Global Chemical Dosing Systems for Swimming Pool Water Treatment Solutions

Basic Specifications

Model NO.

ECH-200L

Material

PE

Experience

30+ Years in Water Treatment

Certification

ISO9001, ISO14001, ISO45001

QC System

Multiple Inspections Before Shipment

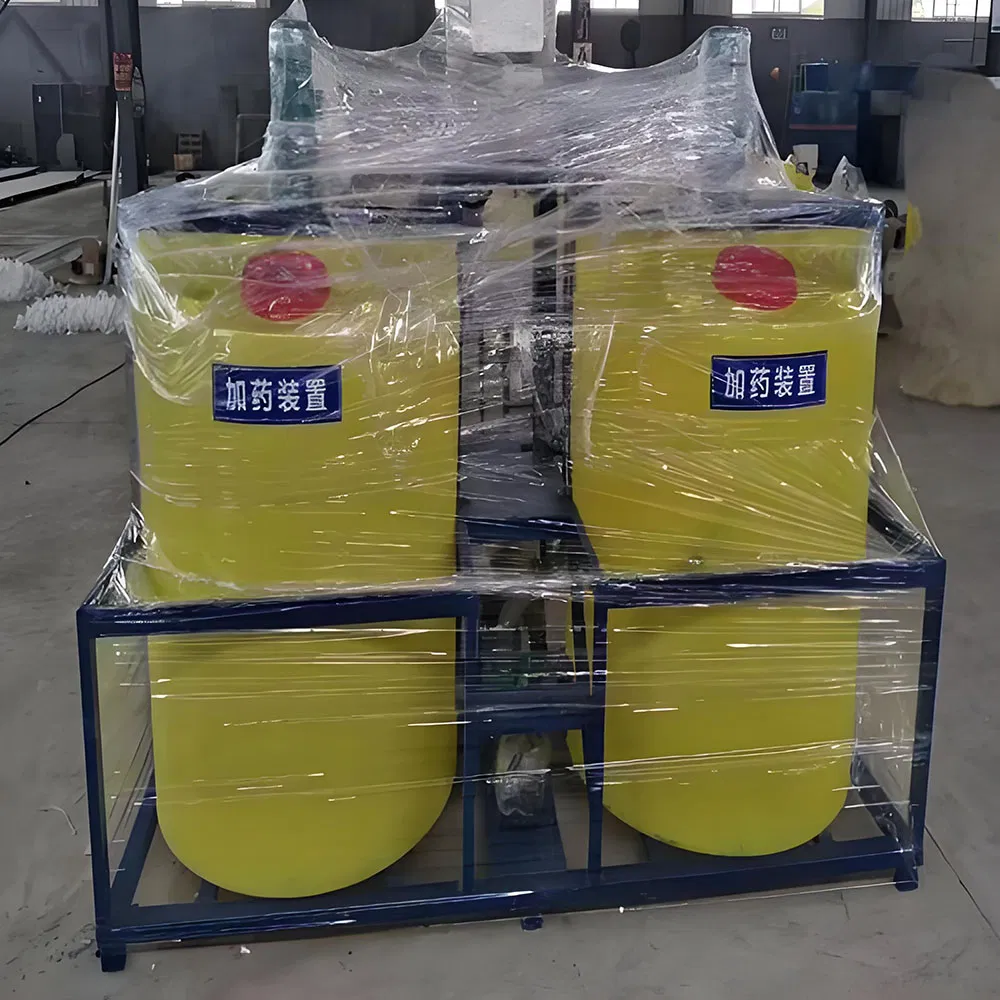

Package

Plastic Film / Wooden Case

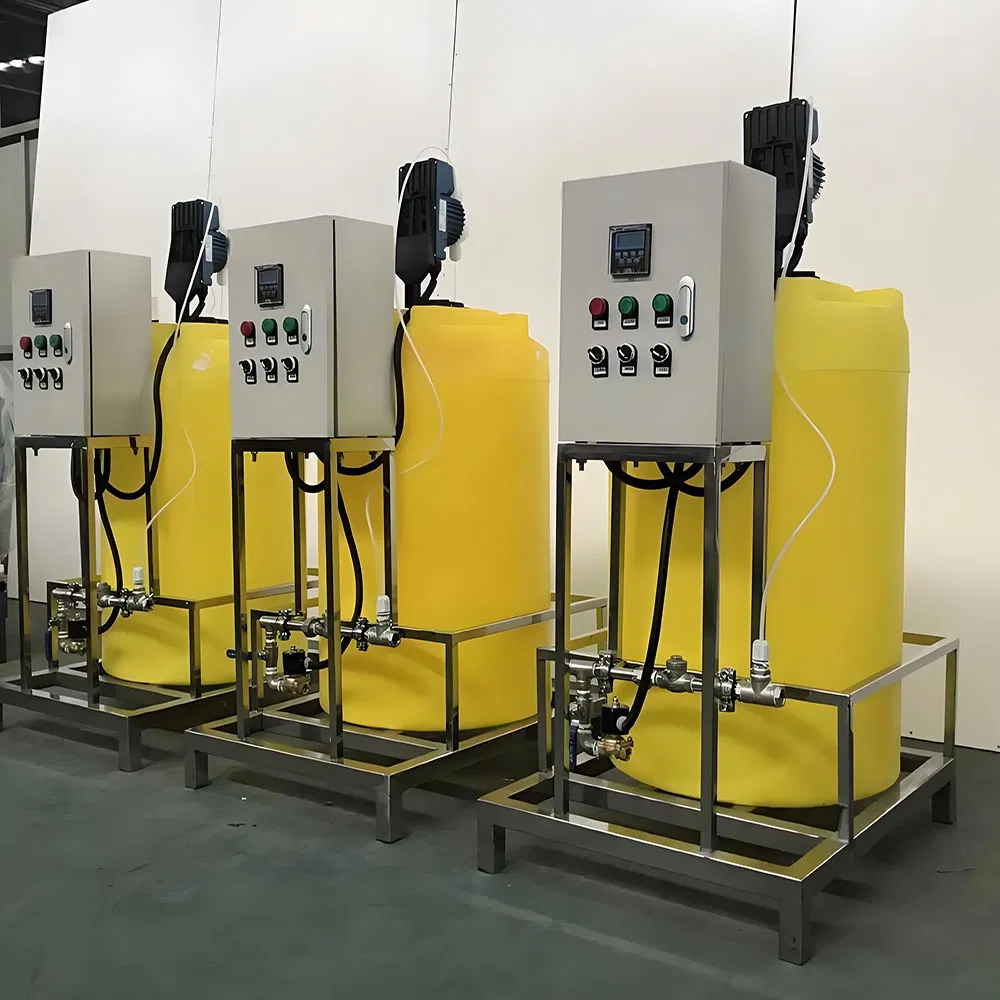

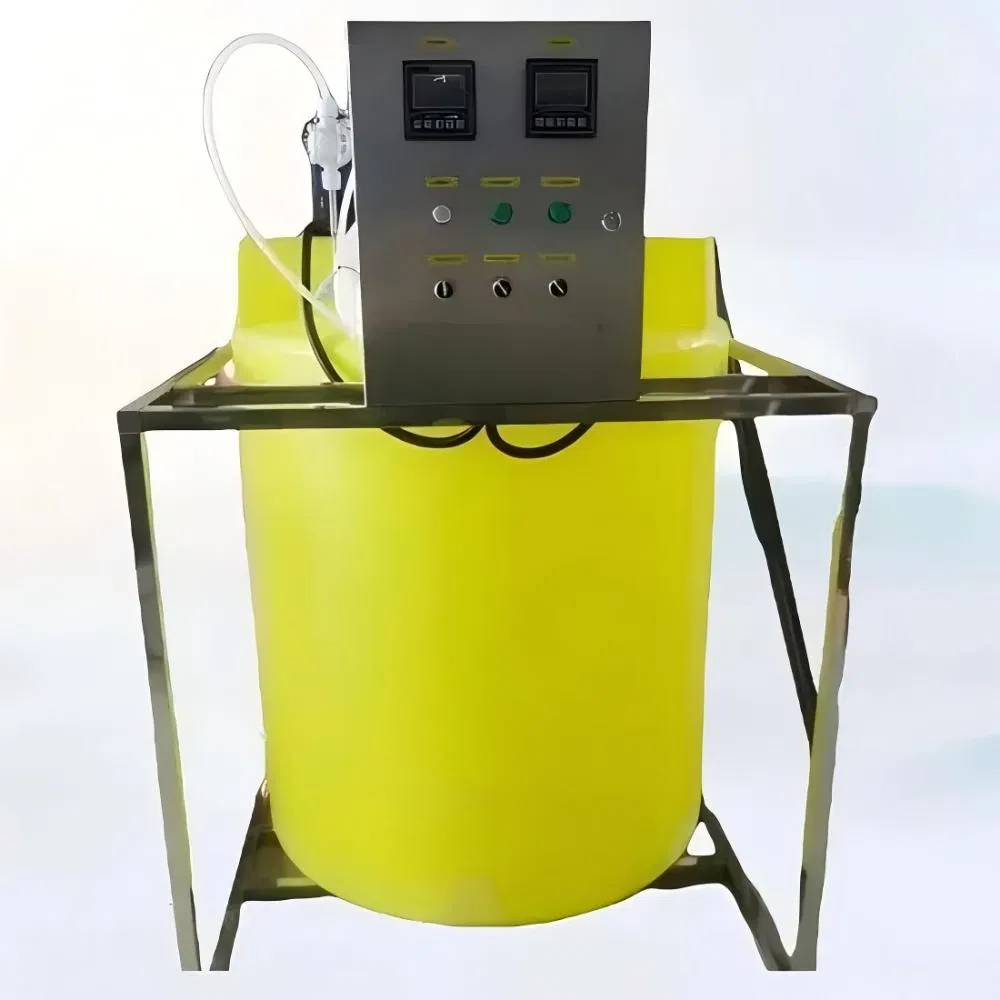

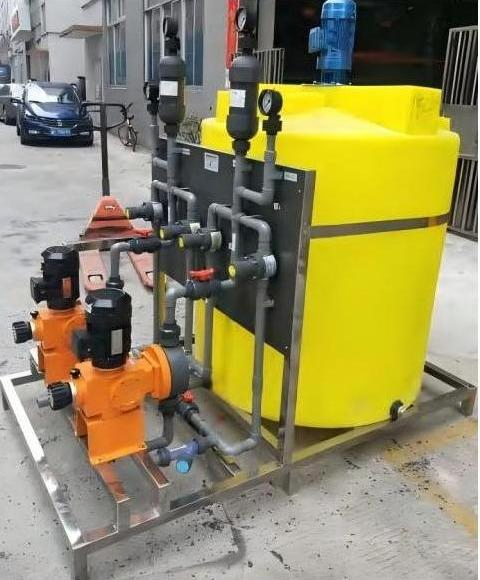

Chemical Dosing Device

To ensure good water quality in swimming pool systems, it is necessary to add corresponding chemical agents during the circulating water treatment process and daily maintenance. This chemical dosing equipment adds agents to the water distribution pipeline in calculated dosages, ensuring chemicals are diluted and evenly distributed to all parts of the pool.

Main Applications

Preparation and dosing of water treatment bleaching agents, polyelectrolytes, and lime slurry
Dosing of various cleaning detergents
Dosing and preparation of various industrial additives

Dosing Operation Process

Step 01: Add chemicals (solid or liquid) through the top dosing port and add an appropriate amount of clear water (solvent).

Step 02: Start the electric stirrer to fully dissolve and mix the chemicals.

Step 03: Start the metering pump to dose the liquid into the system.

Circular Dosing Tank Specifications

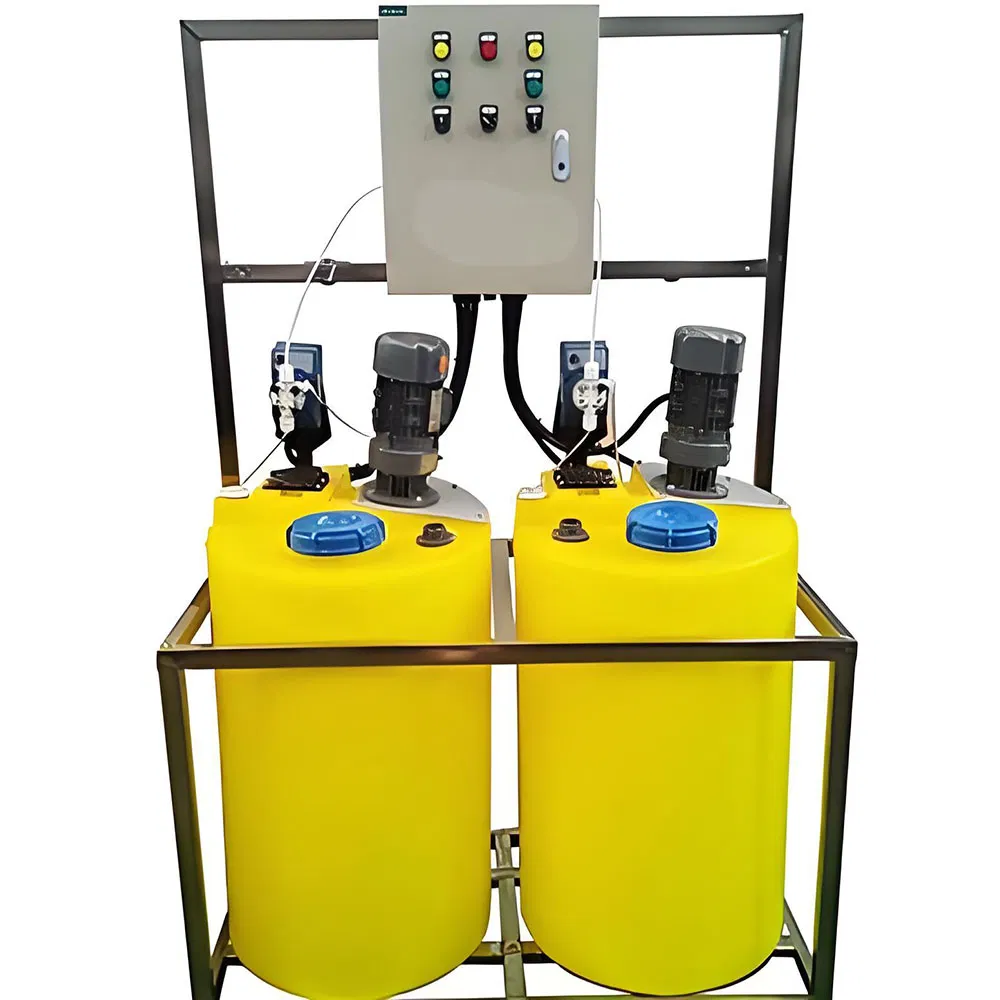

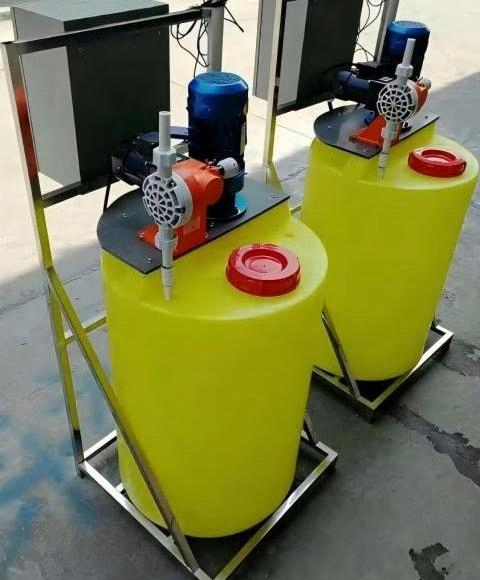

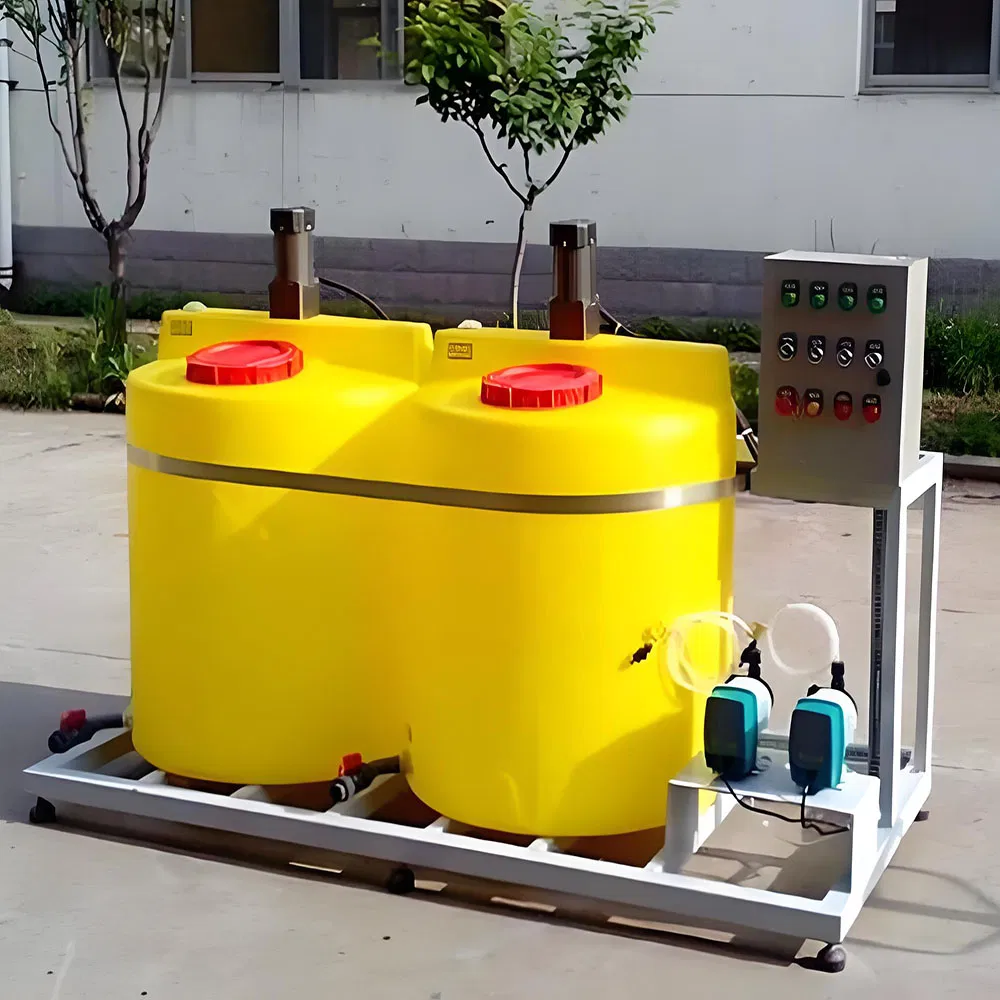

A complete system typically consists of one tank, one pump, and one electric stirrer. Multiple configurations (multiple tanks/pumps) are available for liquid, solid-liquid, and gas-liquid chemical mixing.

Name	Model	Diameter/Width (mm)	Height (mm)	Thickness (mm)	Weight (kg)	Material
Dosing Tank (Circular)	ECH-40L	340	420	4	2.5	PE
	ECH-100L	460	795	5	6.5	PE
	ECH-200L	600	910	6	10	PE
	ECH-300L	720	1050	6	14	PE
	ECH-500L	780	1200	6	18	PE
	ECH-500L (Alt)	880	1030	6	18	PE
	ECH-1000L	1060	1450	6	28	PE
	ECH-2000L	1300	1850	7	55	PE

Professional Capabilities

We are a professional service provider of integrated solutions for water treatment technology and healthy space environment technology. Our expertise covers water treatment chemicals, automatic softeners, filters, RO systems, and UV sterilizers.
