Water Disinfection /Chemical Feeding Systems / Chemical Dosing Systems

1 / 5

Water Disinfection /Chemical Feeding Systems / Chemical Dosing Systems

Customization:	Available
After-sales Service:	5 Years
Warranty:	1 Year

Send Inquiry

Product Description

📝 Basic Information

Model NO.

QDEVU926

Type

Automatic Soluble Drug Dosing Machine

Method

Chemical Treatment

Usage

Industrial, Home, Agriculture, Hospital

Spec

1800*1100*1600mm

Trademark

SPARK

HS Code

8421219990

Capacity

100 Sets/Month

Package Size

180.00cm * 140.00cm * 130.00cm

Gross Weight

4500.000kg

⚙️ Product Description

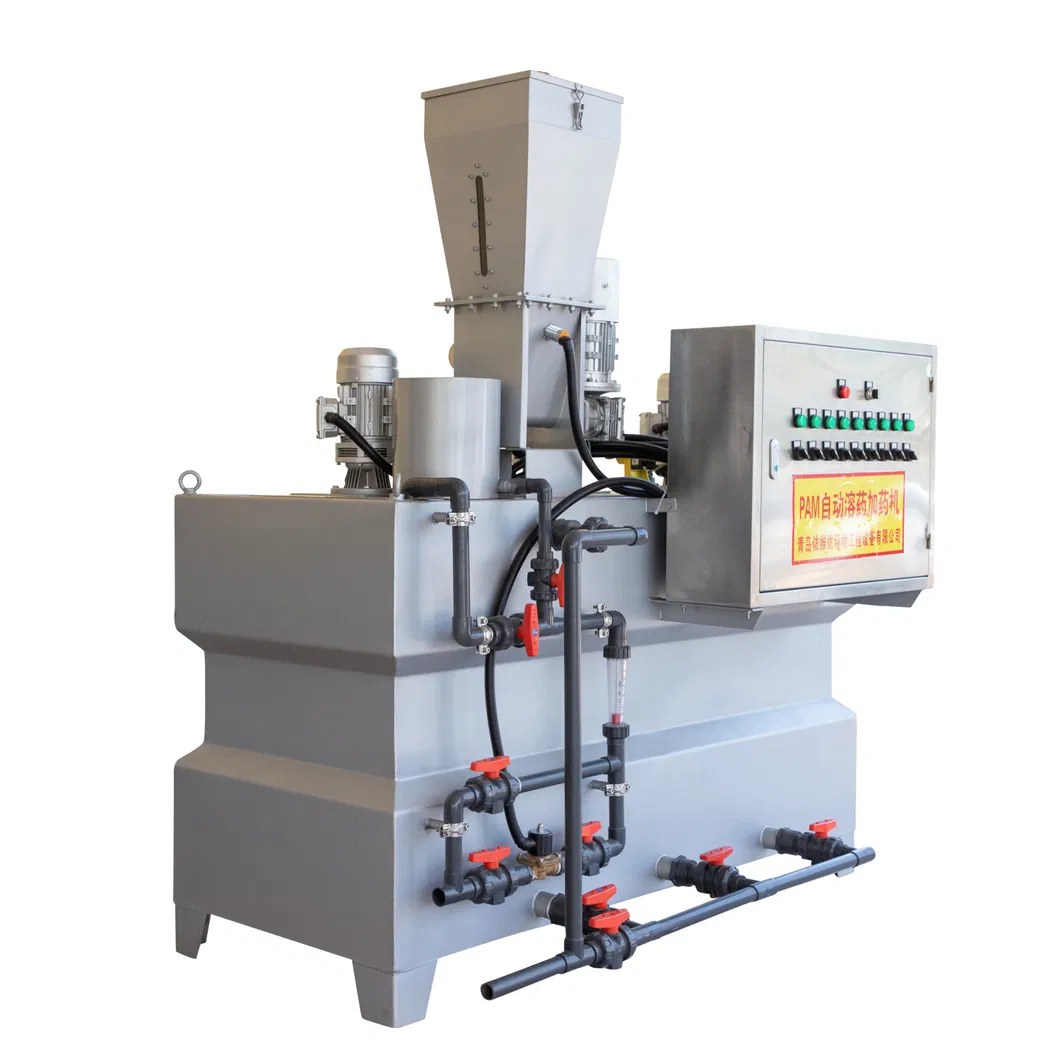

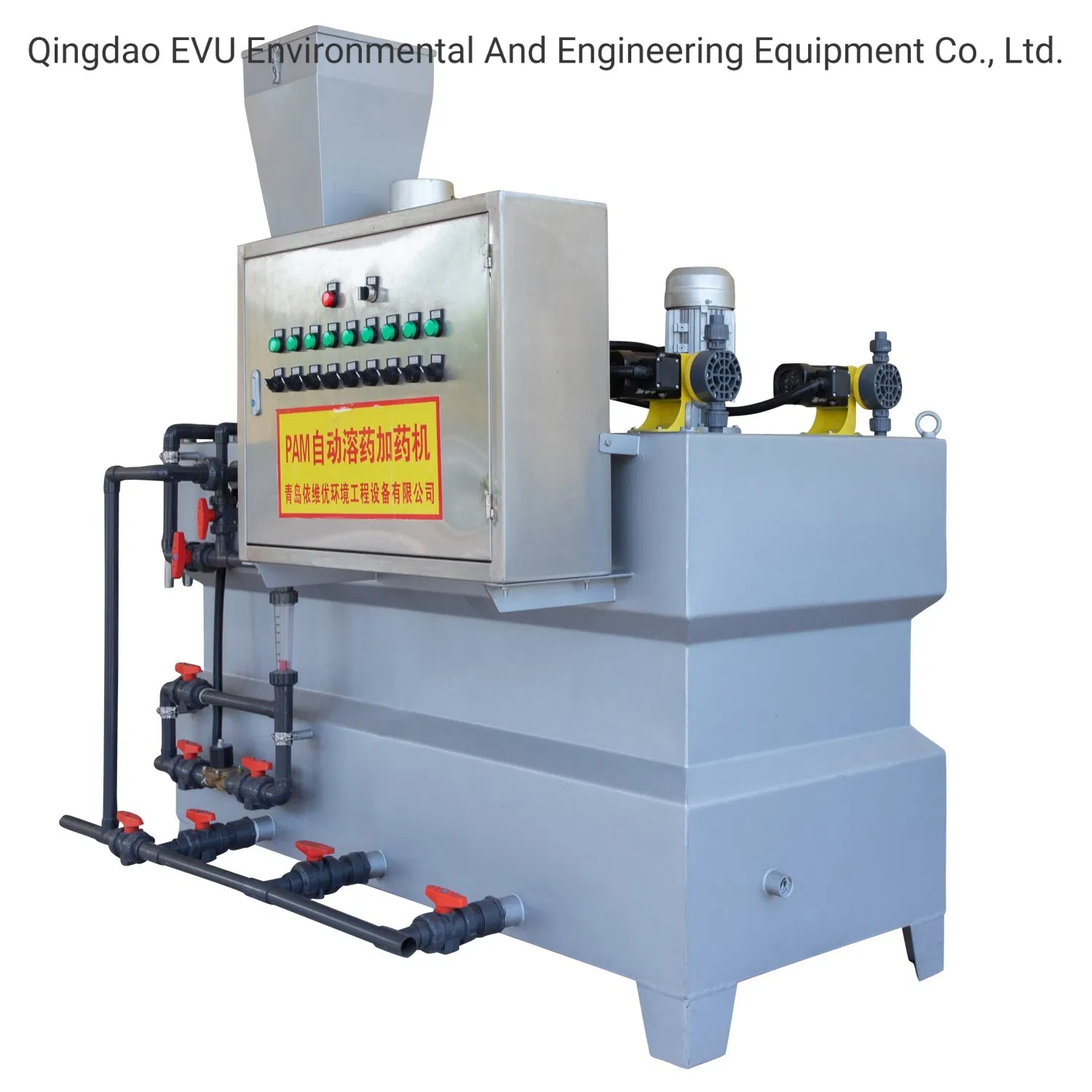

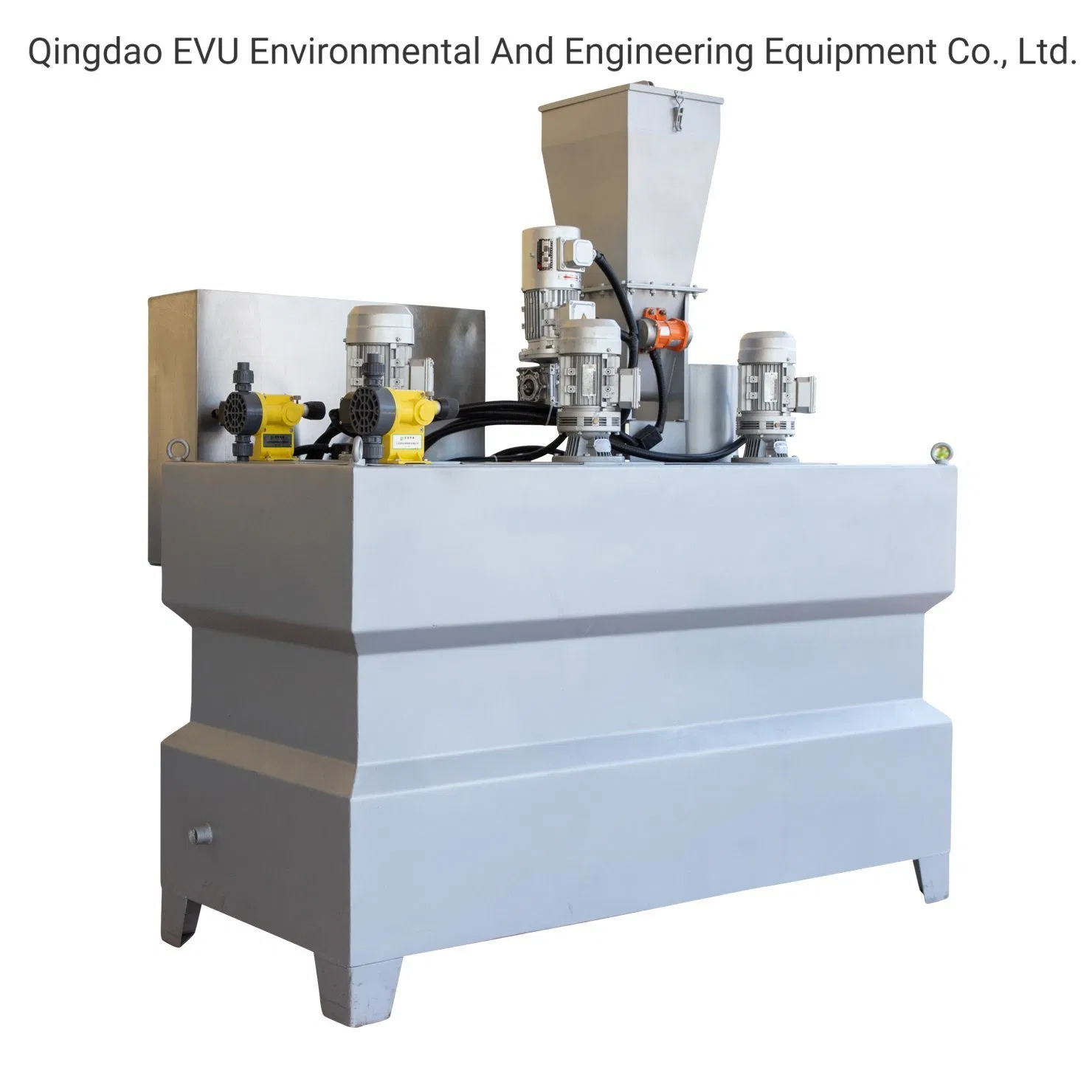

Automatic Stainless Steel Chemicals Dosing Machine Dosage Feeding Equipment for Polymer Flocculant Agent PAC PAM

QDJY series medicine equipment is specially designed to feed and add water quality stabilizers, coagulants, disinfectants, and various other water treatment medicaments. This equipment features a compact structure, ease of operation, and stable performance. It is characterized by low energy consumption, anti-corrosive properties, and low noise levels.

Performance Features:

PT polymer dissolved dosing device
Three Slots continuous preparation with simple operation
Precision conveyor with pre-invasion device to reduce agglomeration (blocking)
Adjustable dry powder and water levels for desired concentration
Ensures liquid curing time of 45-60 minutes
Random cabinet control for homogeneous solution integration
Visual and audible alarms for low hopper material levels
Optional: Liquid polymer feed function and vacuum conveyors
Optional: On-line dilution system and static mixer
Tank Materials: Stainless steel SS304 or SS316L, Polypropylene PP, or HDPE

Applicable Scope:

Water projects for coagulants, disinfectants dissolution, and agitation.
Configuration and dosing of acid and alkali solutions.
Conditioning and desalination water treatment regeneration.
Recirculated cooling water quality stabilizer disposition.

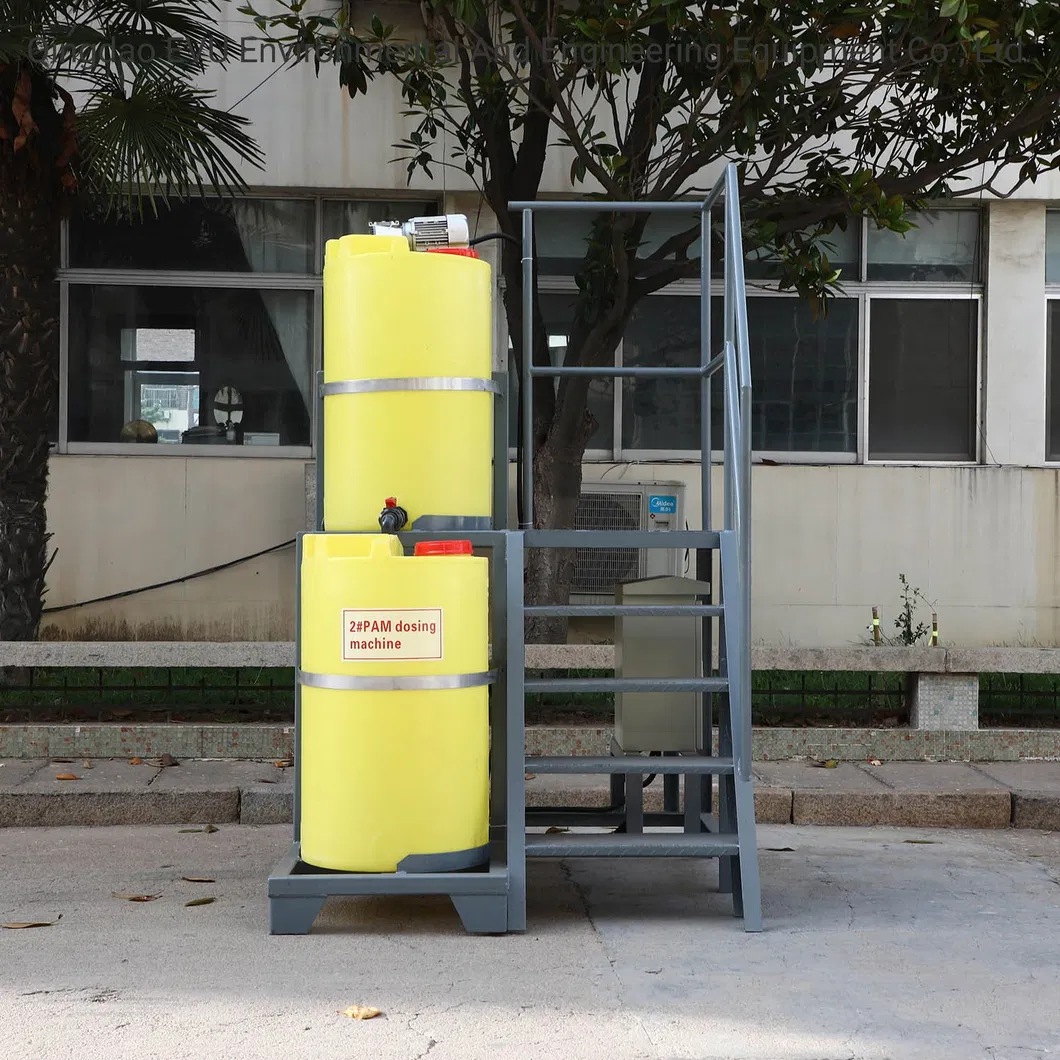

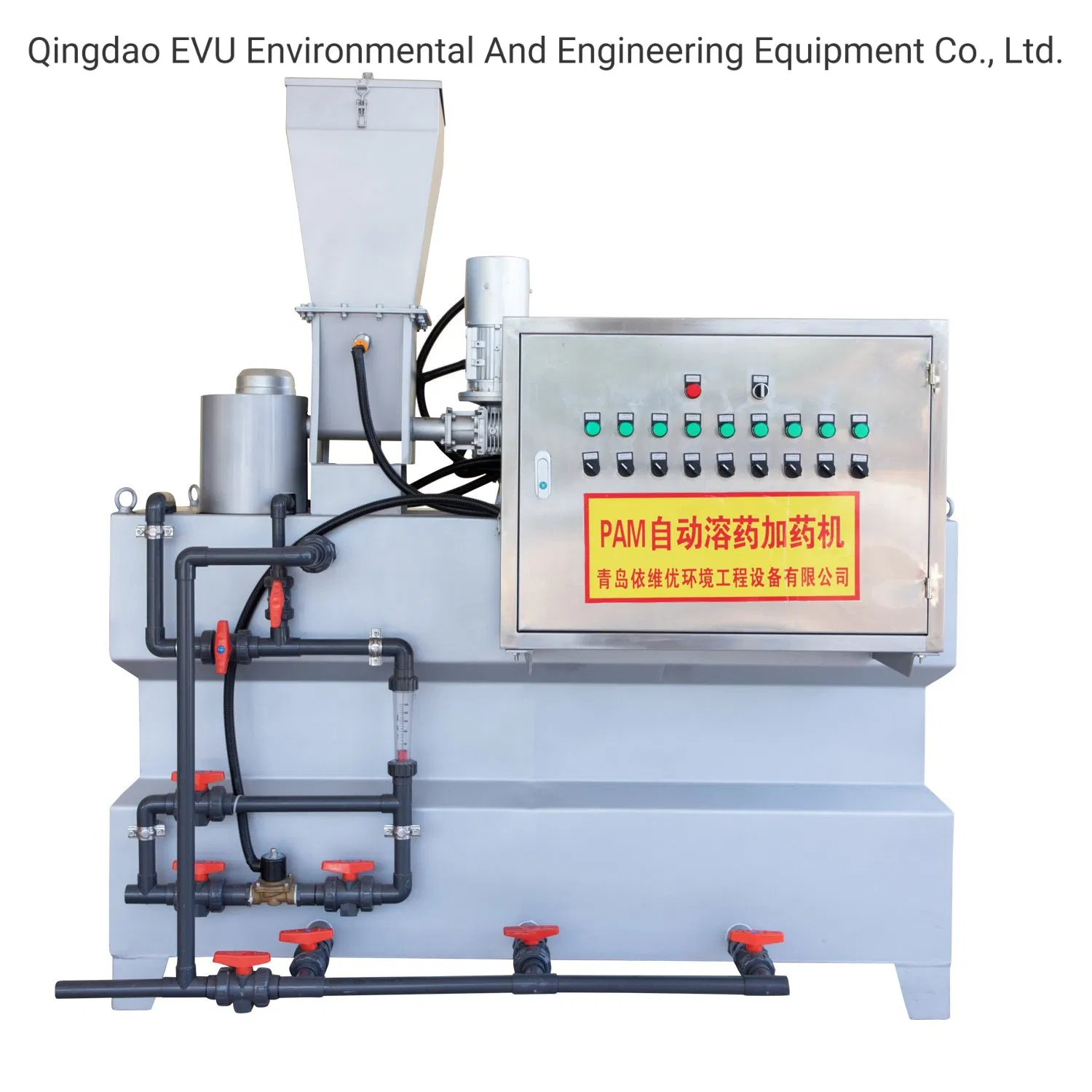

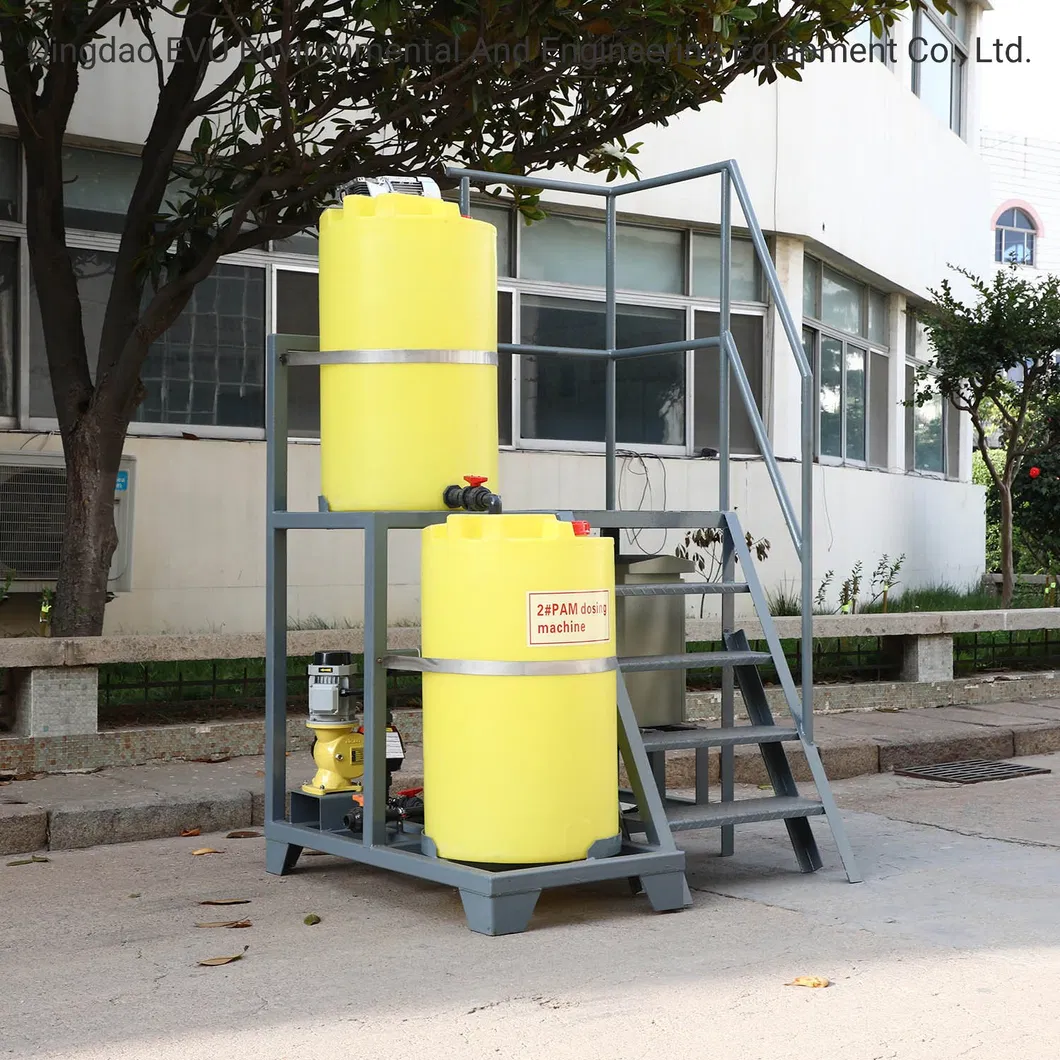

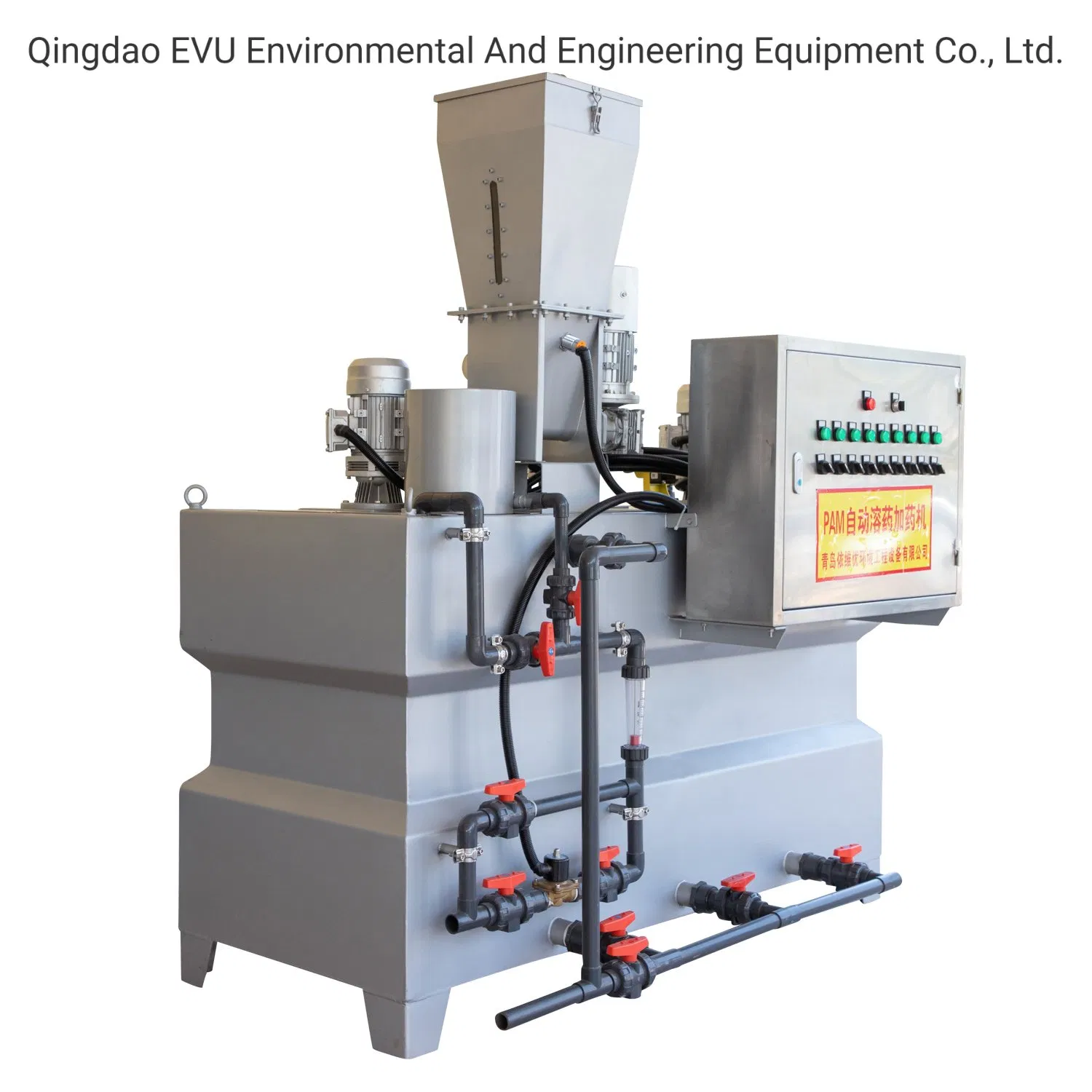

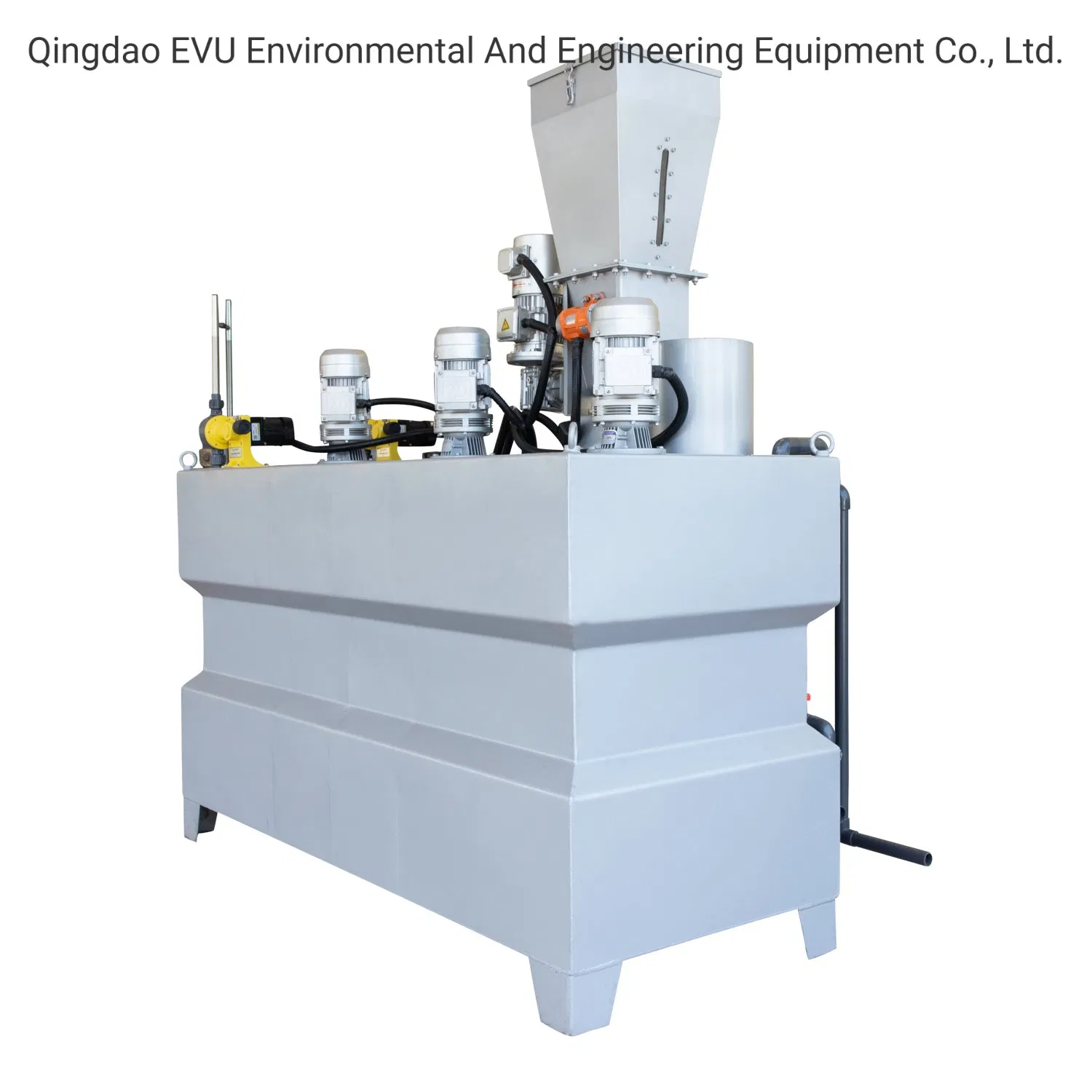

📸 Detailed Photos

📊 Product Parameters

Model	Max. Capacity (lt/hr)	Tank (Lt.)	QTY	Rotate Speed 60hz (rpm)	HP (KW)	Max. Power Consumption (kw)
QDJY-500	500	16	2	168	0.18	1.5
QDJY-1000	1000	16	2	224	0.37	1.5
QDJY-2000	2000	16	2	224	0.37	1.5
QDJY-3000	3000	16	2	227	0.75	2.2
QDJY-4000	4000	16	2	227	0.75	2.2
QDJY-5000	5000	16	2	227	0.75	2.2

📜 Certifications

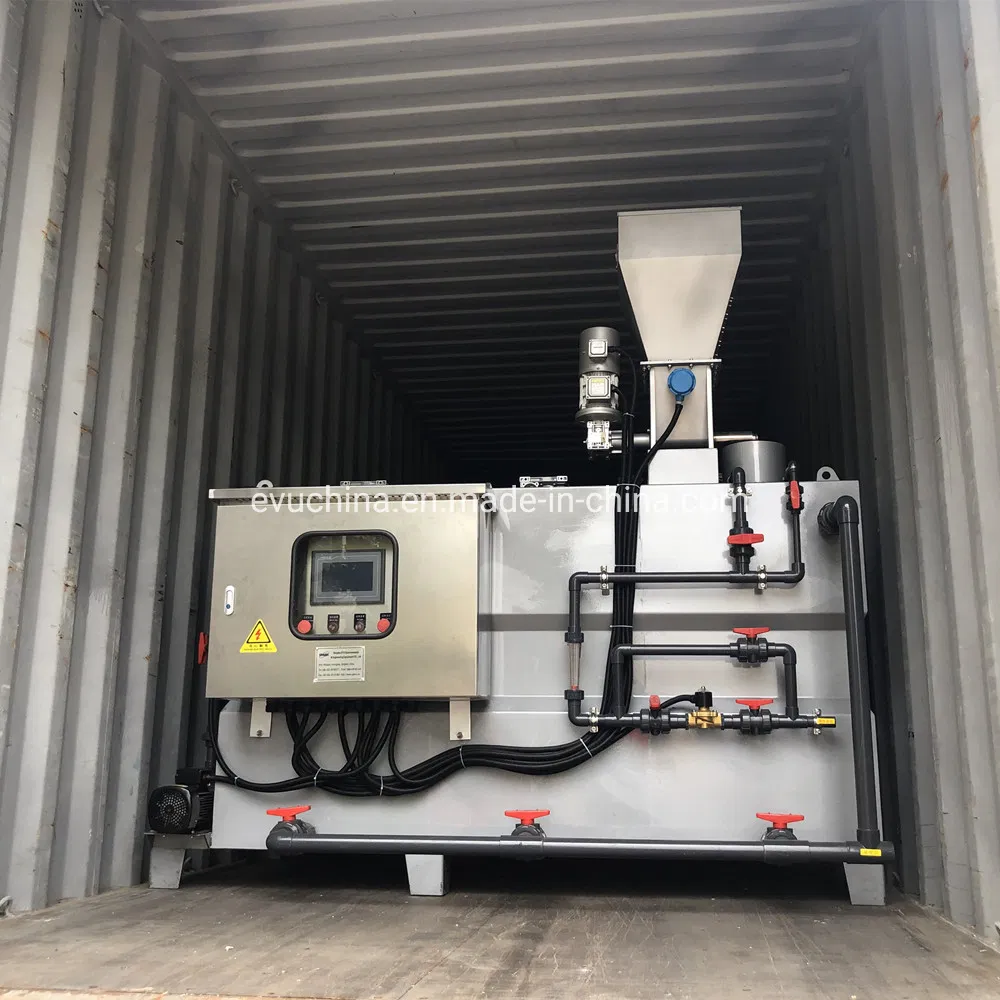

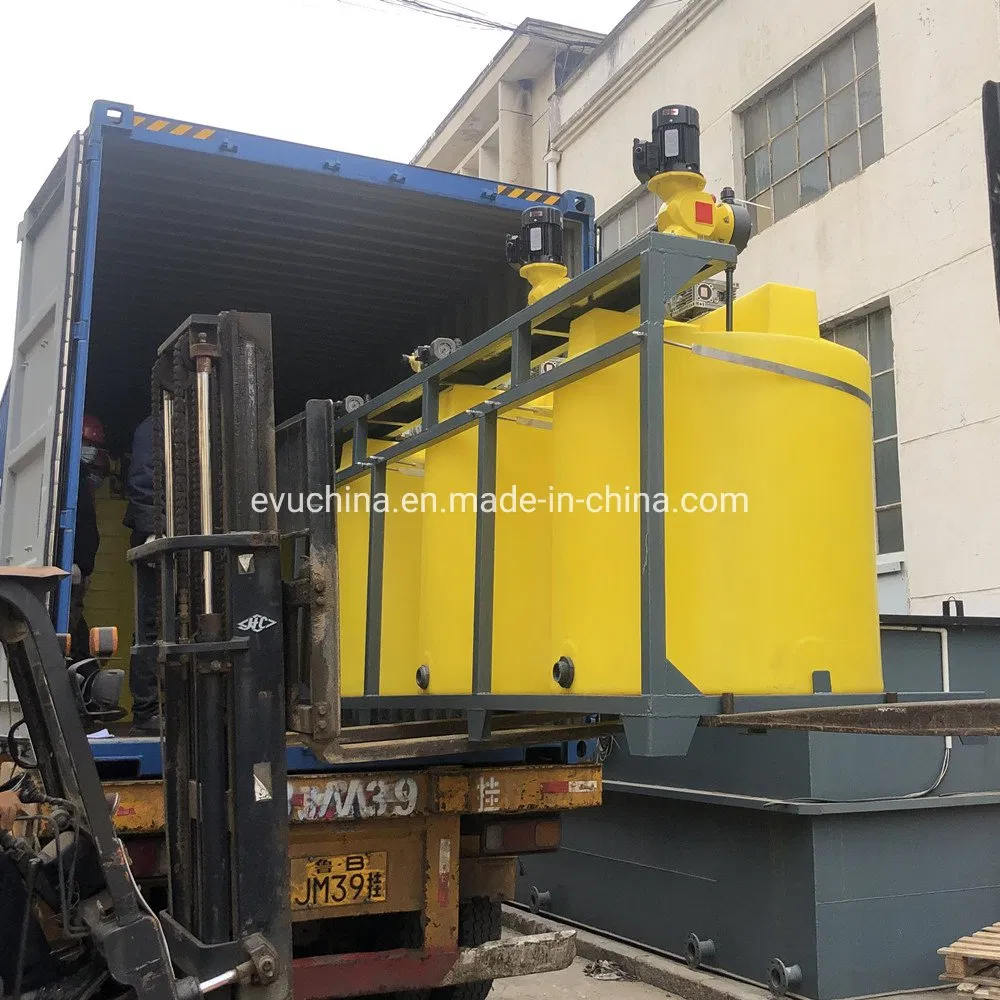

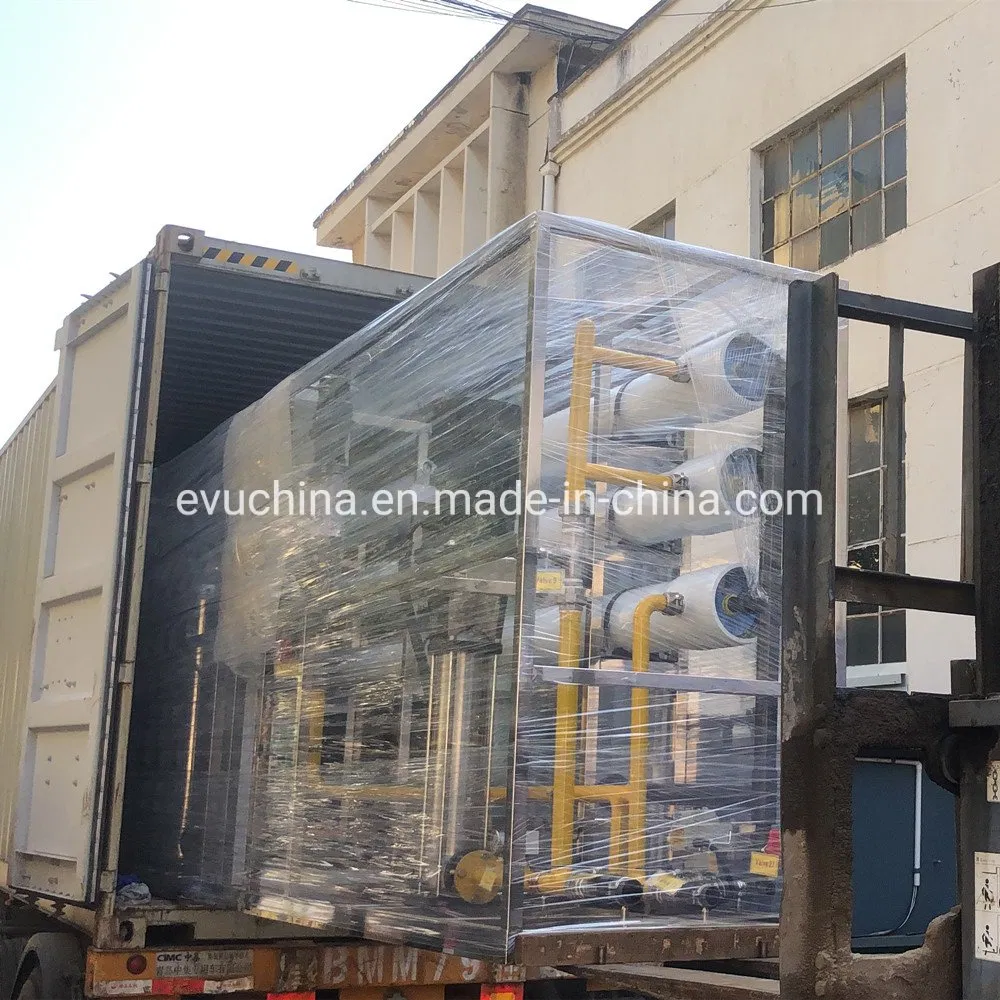

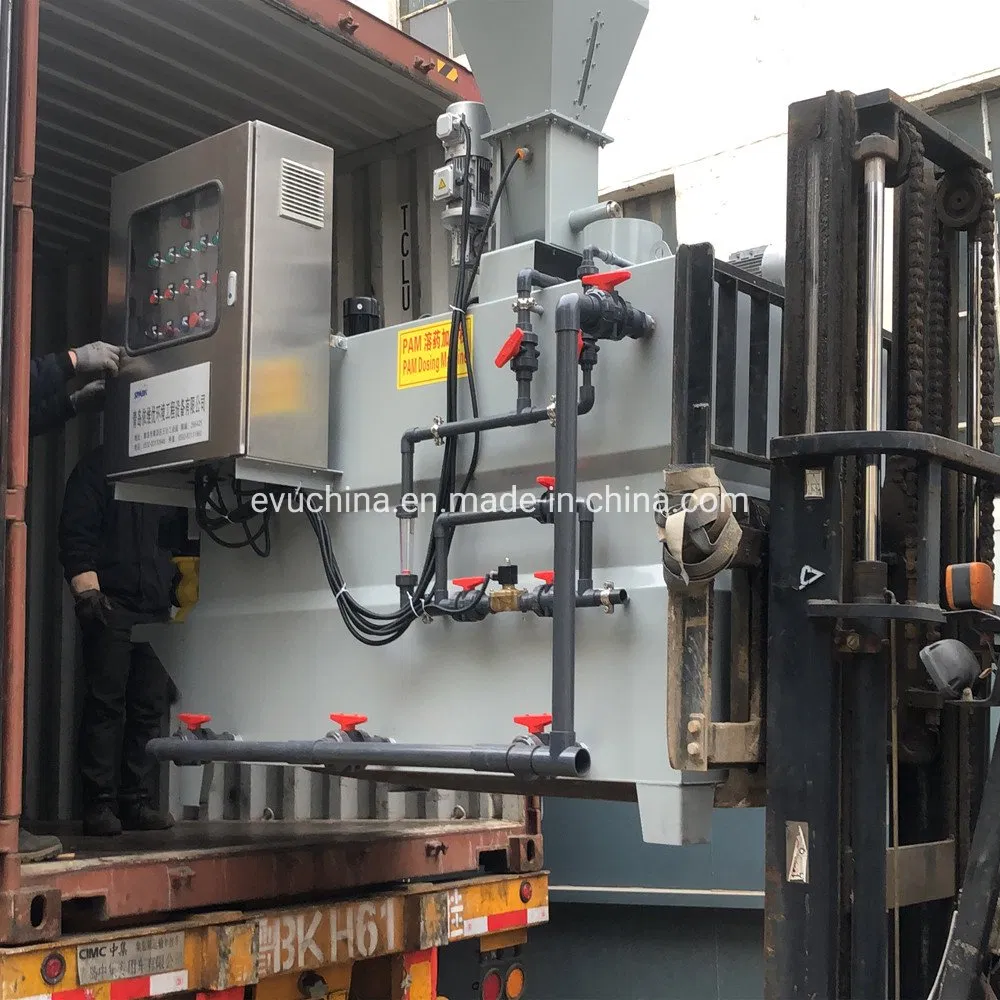

📦 Packaging & Shipping

🏢 Professional Profile

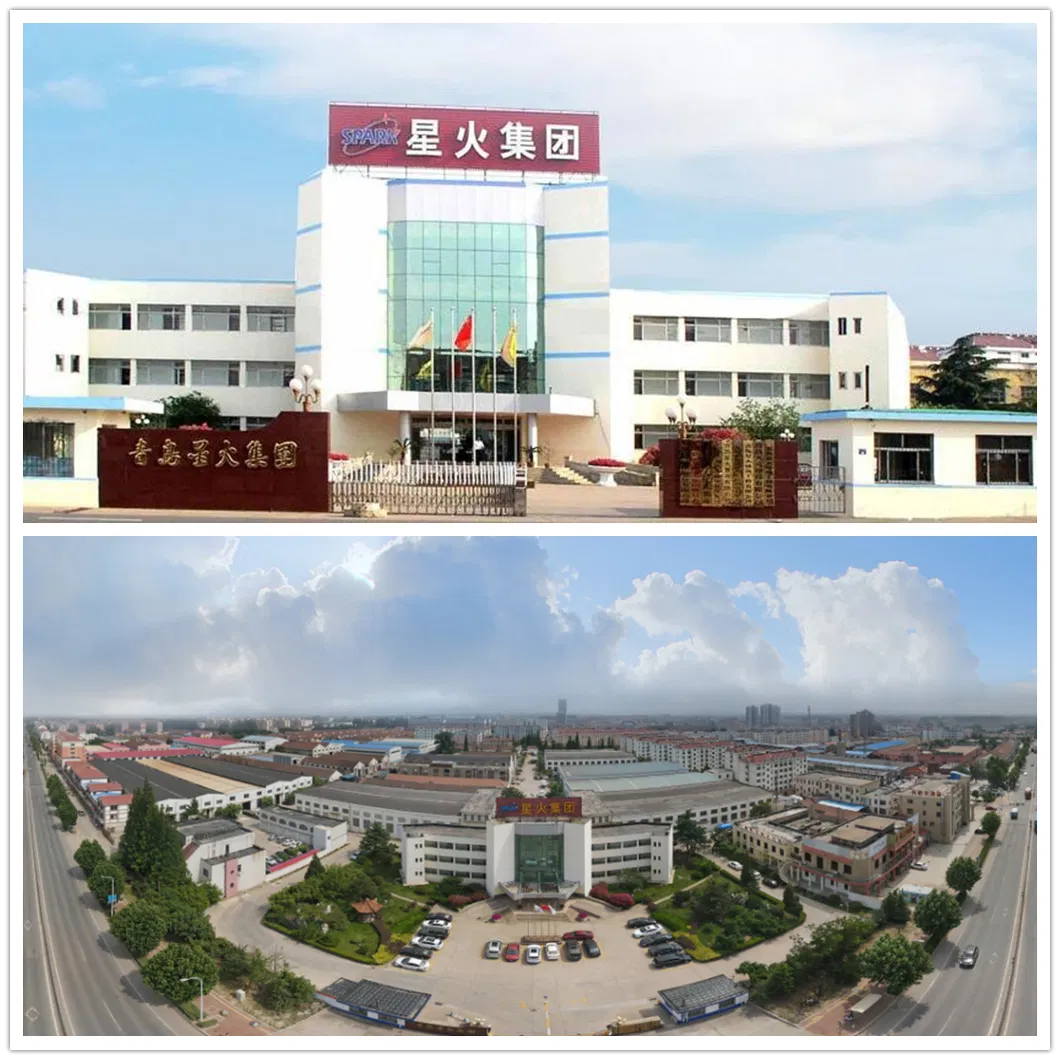

Established in 1999, it is an integrated technology-oriented enterprise in the water treatment industry, covering scientific research design, equipment manufacture, installation, commissioning, and training services. It is part of a large-scale comprehensive enterprise group.

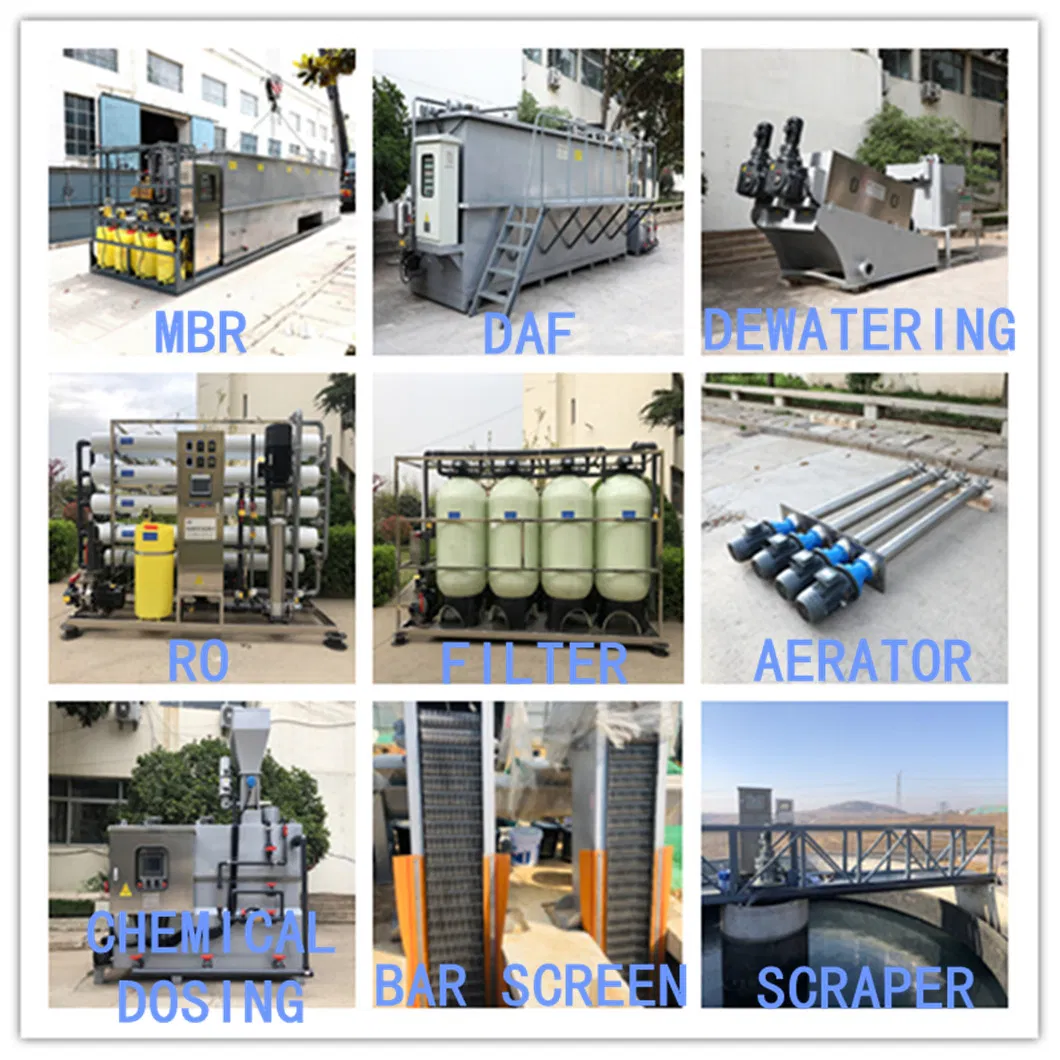

Utilizing advanced global technology and equipment, the main product line includes: Integrated Sewage Treatment Equipment, MBR Sewage Treatment Equipment, Electrocoagulation Sewage Treatment Plant (EC Plant), Reverse Osmosis Filtration Equipment (RO System), Dissolved Air Flotation Machine (DAF), Cavitation Air Flotation Machine (CAF), Aerators, Screw Press Sludge Dewatering Machines, Automatic Chemical Dissolved and Dosing machines, Sludge Scrapers, Micro bubble generators, USAB anaerobic reactors, Bar Screens, and Sand Filters.

Our Advantages:

We provide professional engineer support and a high-efficiency sales team with competitive price superiority. With exports to over 40 countries—including Europe, Poland, Russia, USA, Brazil, Singapore, India, and South Africa—we have built a strong global presence.

🛠️ After Sales Service

24-hour a day, 365-day a year access to a professional hotline for questions and troubleshooting assistance.

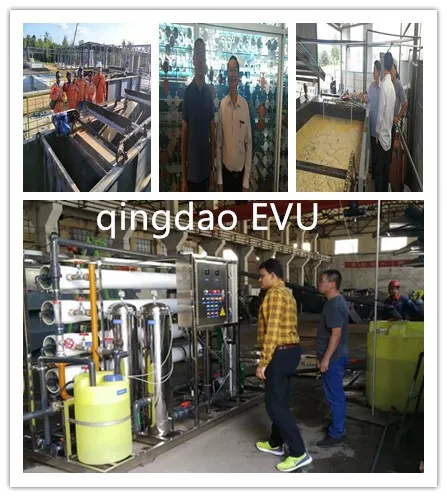

All year round on-site installation and debugging service abroad with professional engineer guidance and training.
Professional guidance for installation and operation.
Comprehensive Manual book in English provided with the machine.
Detailed technical drawings and layout plans.

❓ Frequently Asked Questions

What materials are used for the dosing machine tanks? We offer multiple material options depending on your chemical requirements, including Stainless Steel SS304 or SS316L, Polypropylene (PP), and High-Density Polyethylene (HDPE).

How does the machine prevent chemical agglomeration? The equipment includes a precision conveyor with a pre-invasion device that ensures the dry powder is properly wetted before mixing, significantly reducing the "block" or agglomeration phenomenon.

Is the dosing concentration adjustable? Yes, both the dry powder feed and water intake can be adjusted to prepare the liquid at any desired concentration for your specific water treatment process.

What is the typical liquid curing time for this system? The QDJY series is designed to ensure a liquid curing time of 45 to 60 minutes, which is optimal for chemicals like PAC and PAM.

Do you provide international technical support? Absolutely. We offer 24/7 hotline support and provide on-site installation, debugging, and training services globally through our professional engineering team.

What industries can use this automatic dosing machine? It is widely applicable for industrial water treatment, agricultural irrigation, hospital wastewater management, and home-based water purification systems.
