Soil Solidification System Waste Solidification and Stabilization

The system features computer automatic control for curing agent configuration and mixing based on specific proportions. This unit acts as a container-type host for the powerful mixing head. Features include one-click start and stop for pre-set material ratios, pressure, and output feed rates. The material ratio is determined by preliminary experimental results, while conveying speeds are selected based on excavator size, mixing head speed, temperature, and volume. Pressure settings are adjusted according to the mixing head depth to overcome reverse pressure.

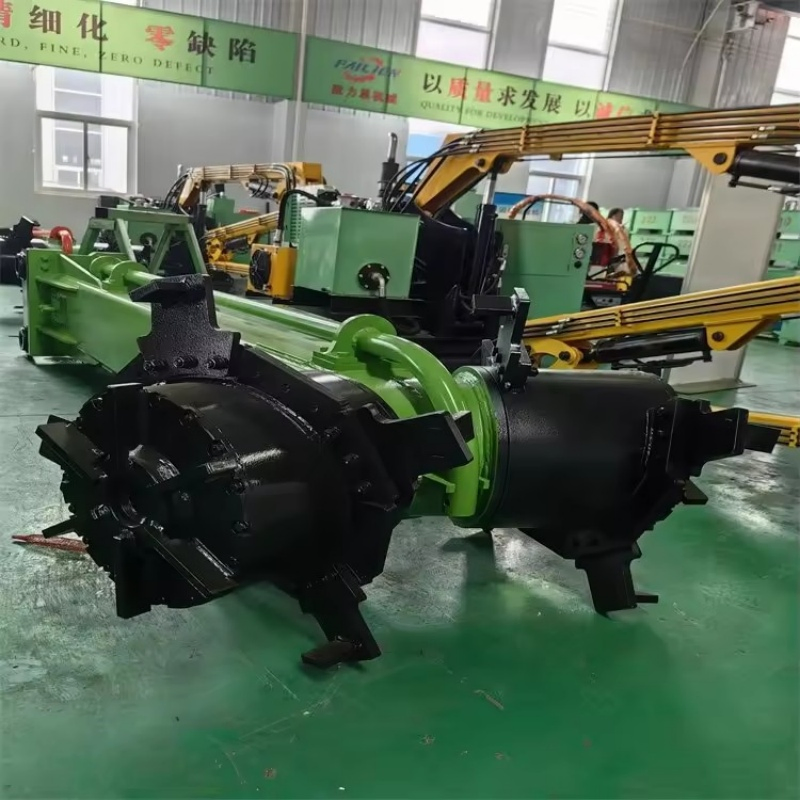

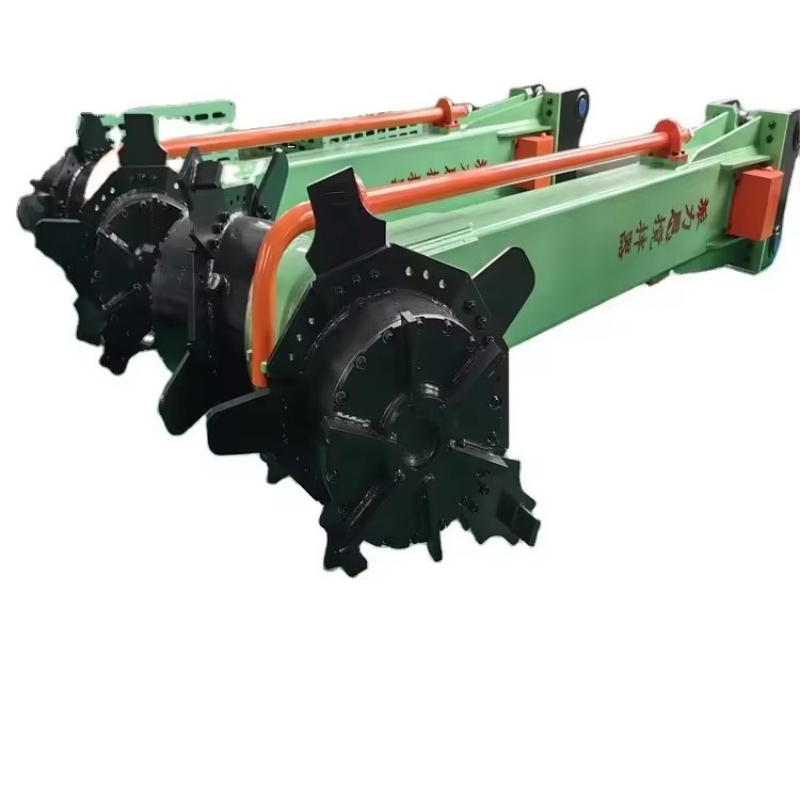

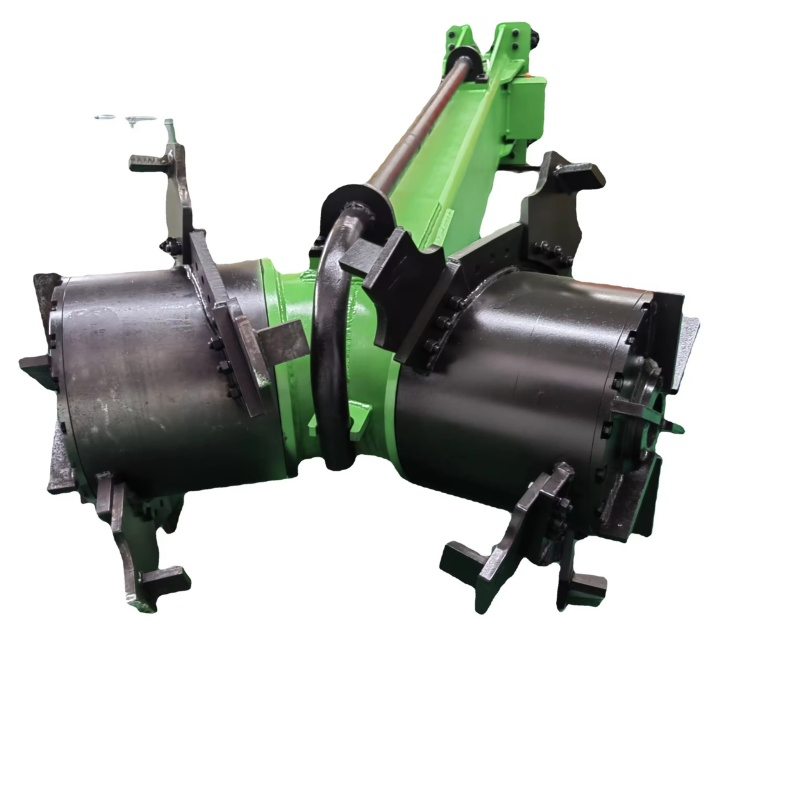

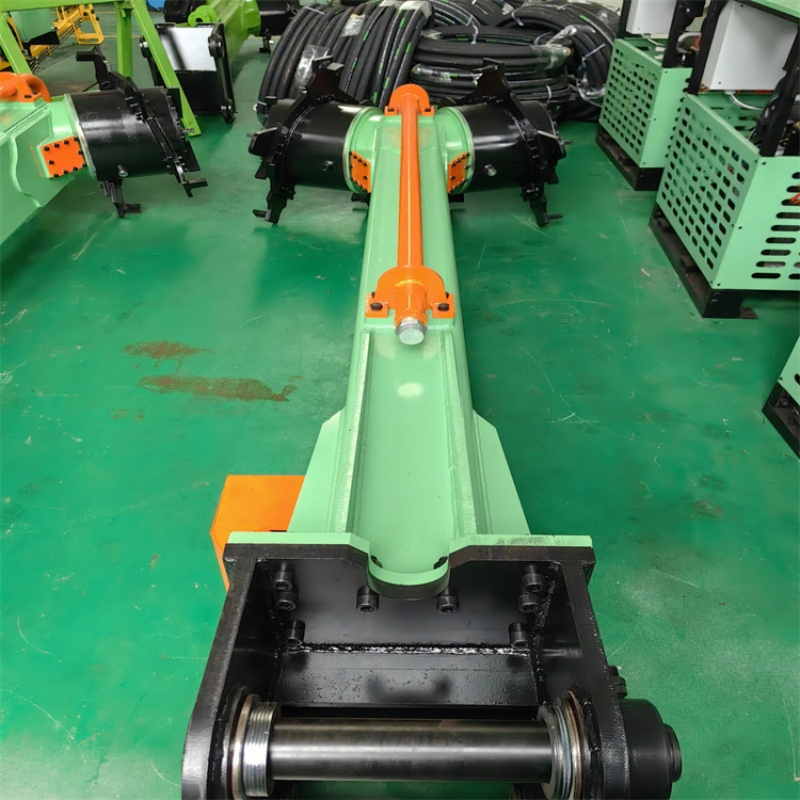

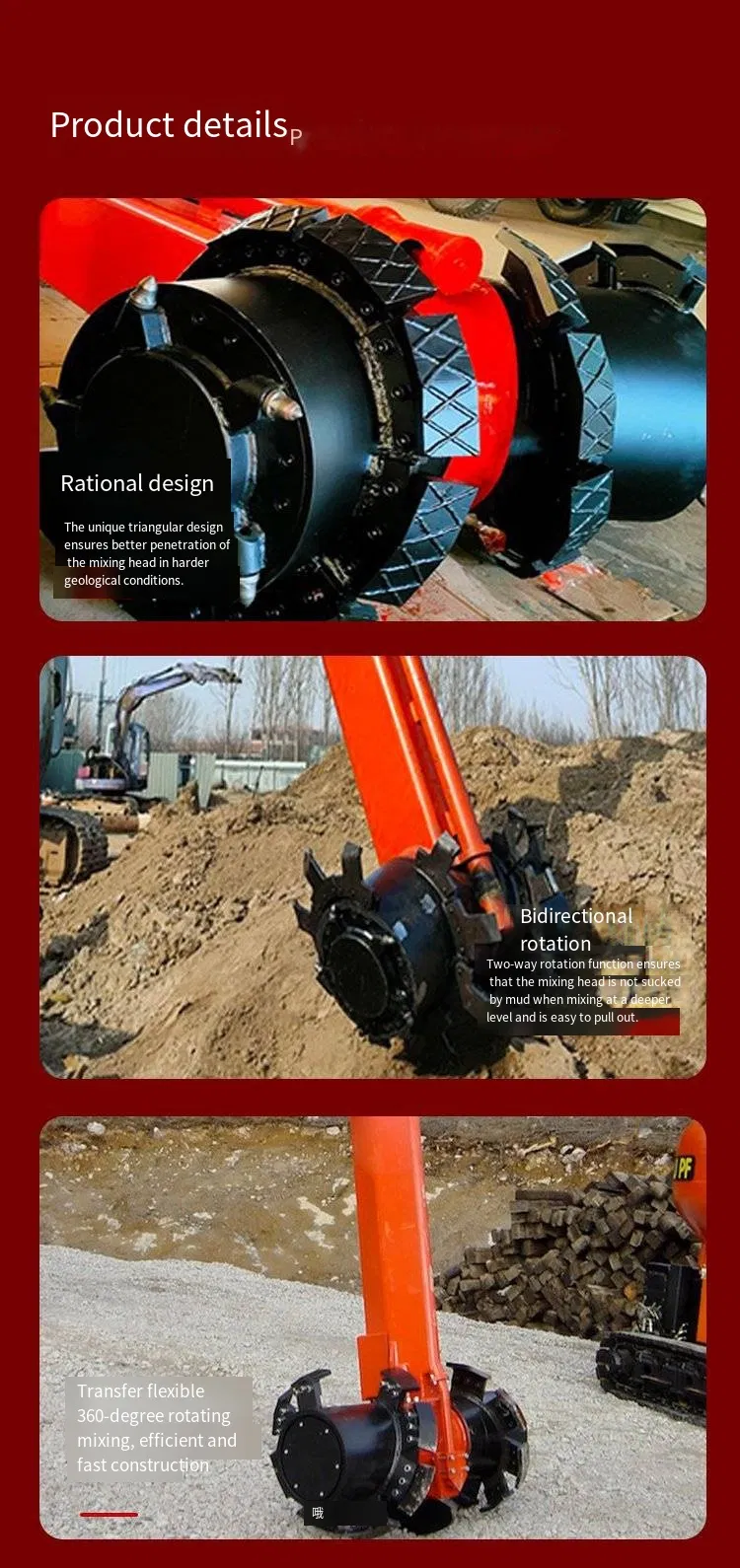

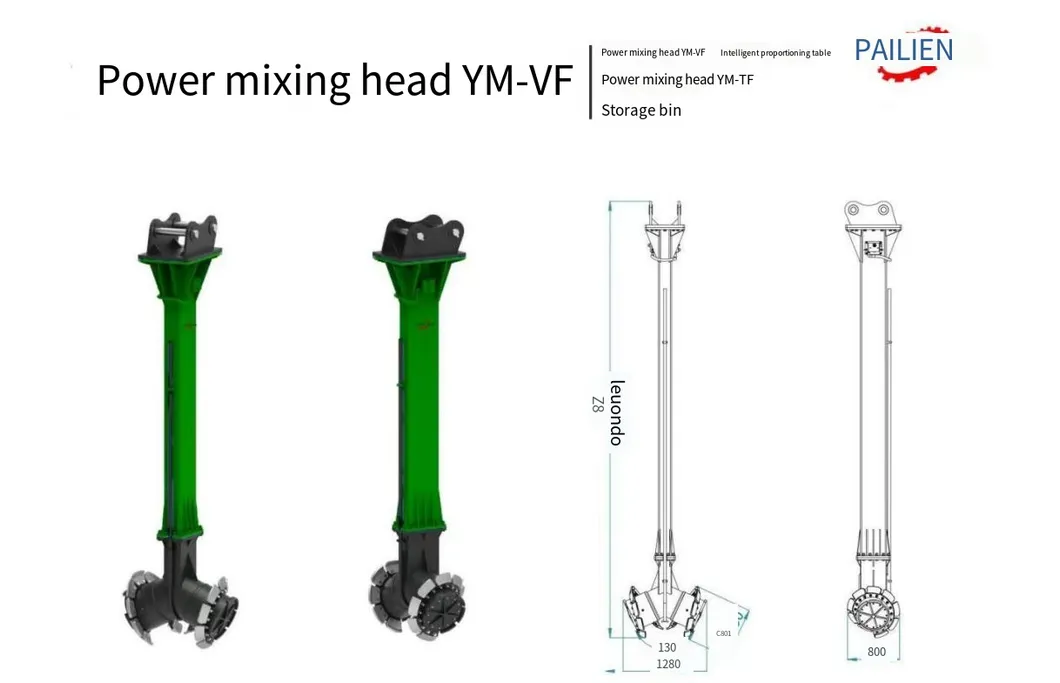

An essential execution device for in-situ curing and repair of soft soil, achieving thorough mixing of the curing agent and silt to form a stable base. The mixing head maintains vertical movement (up and down), staying for set durations at specific heights to ensure proper curing agent infiltration. It features smooth clockwise rotation during downward movement and continued rotation during ascent. The specialized blades at the mixing nozzle drain sludge to form a vacuum, allowing for smooth injection of the curing agent.
