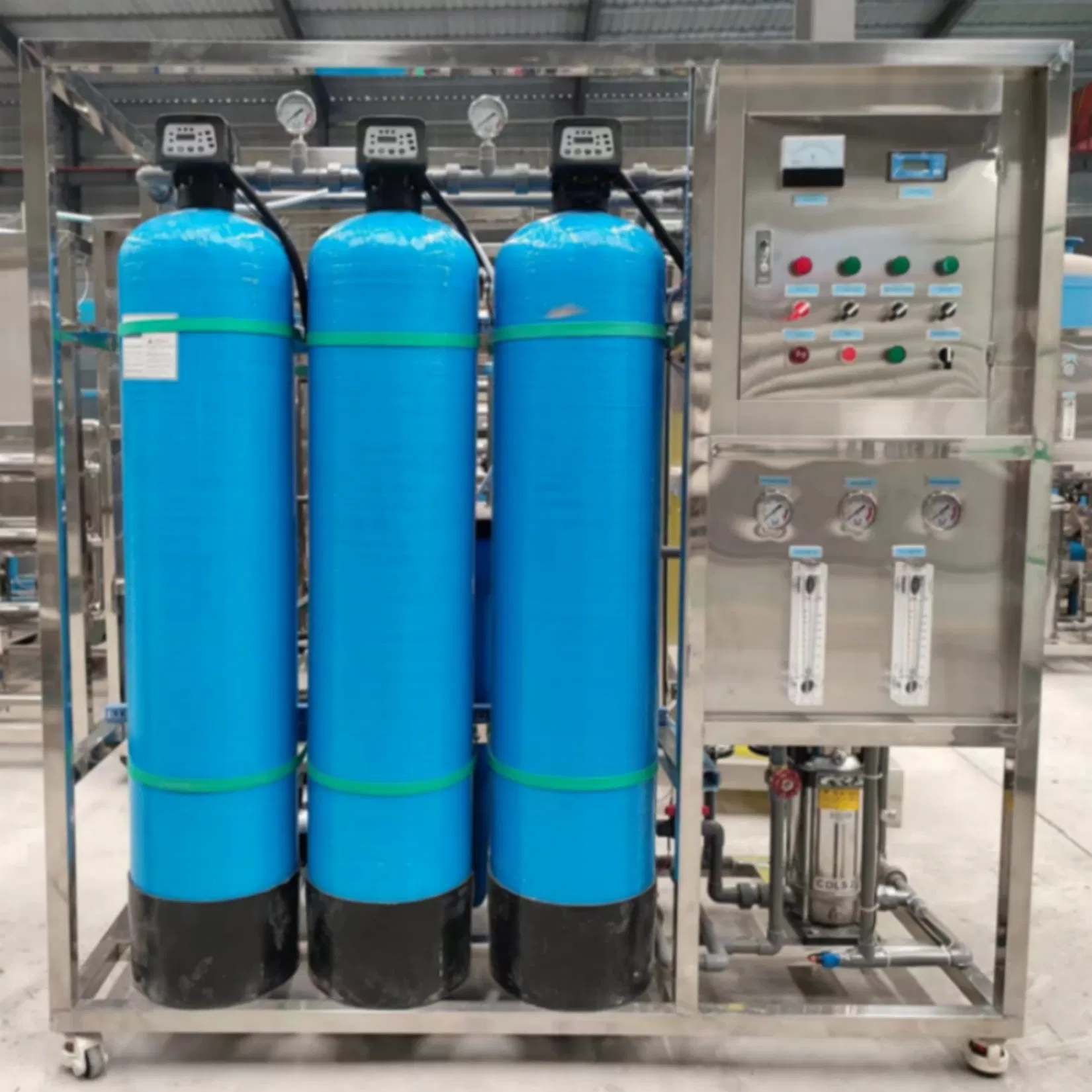

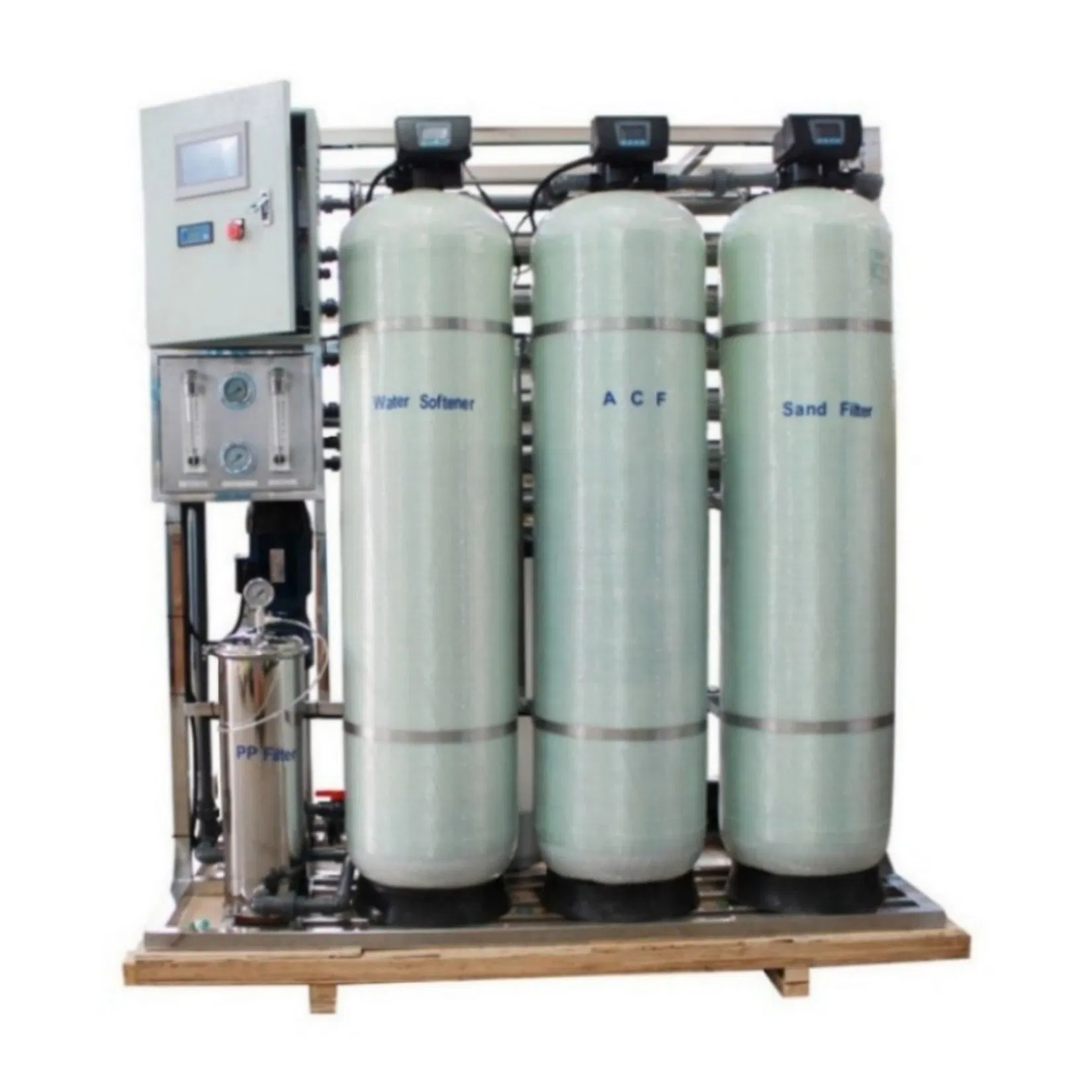

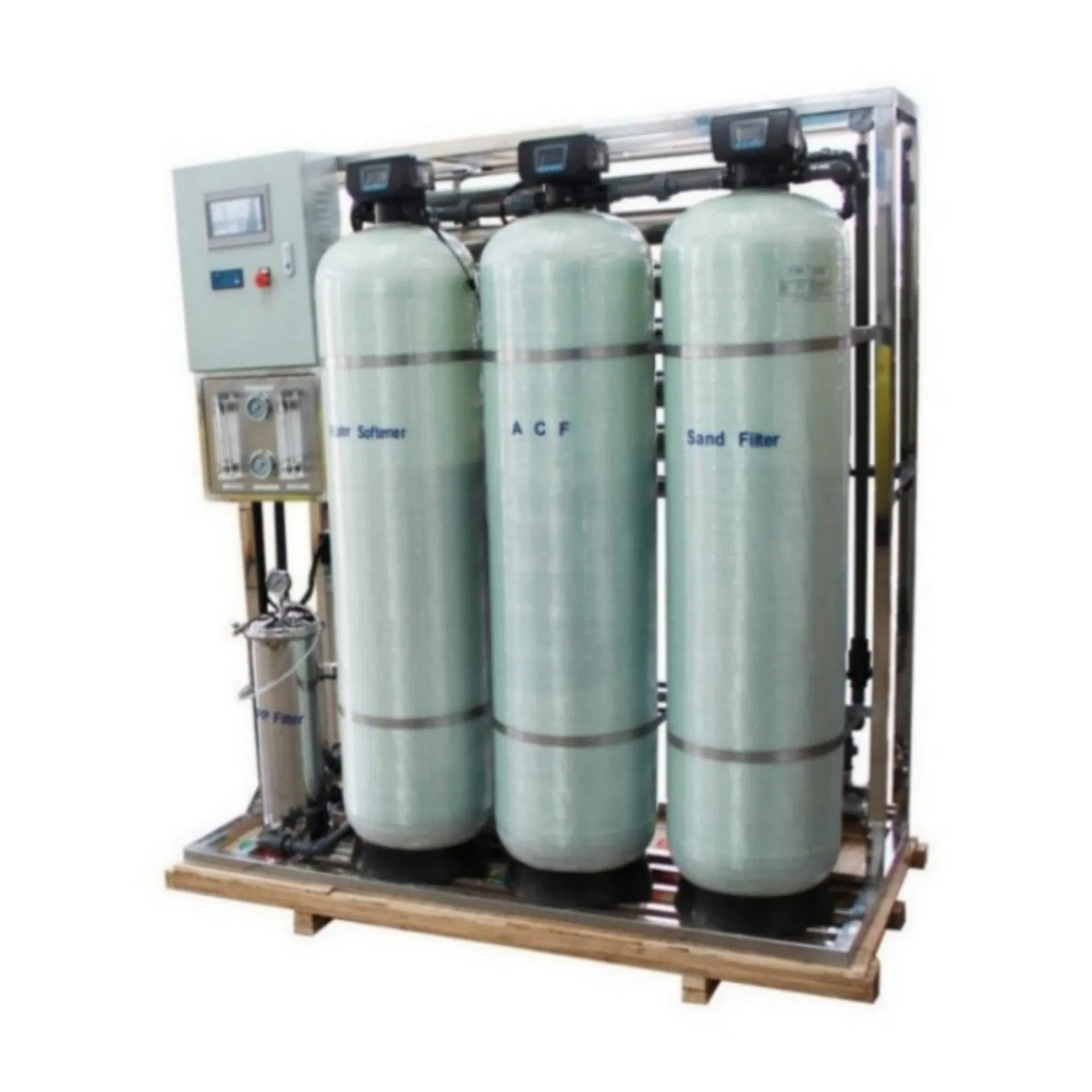

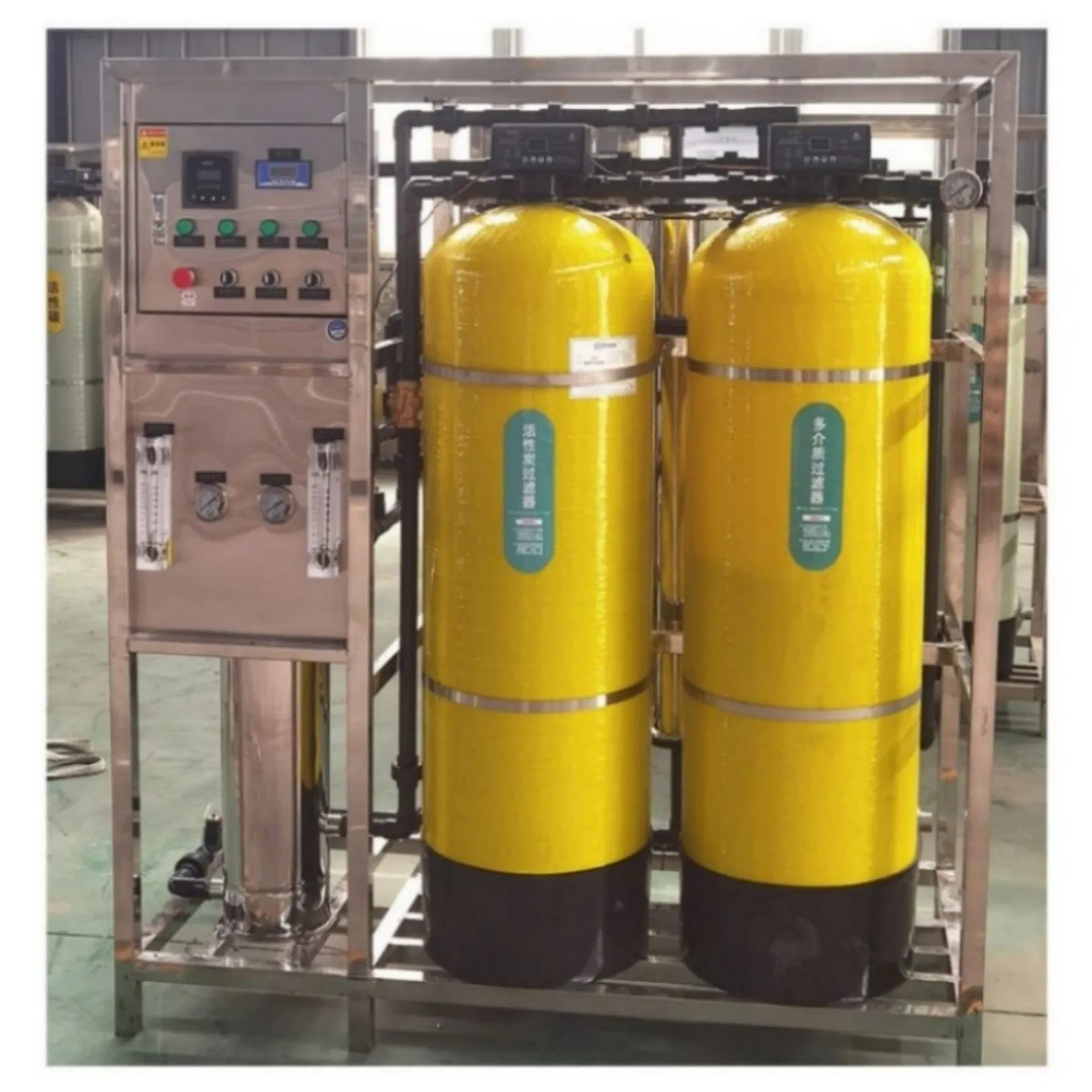

Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
1 / 5
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing
Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing

Advanced Brackish Water Reverse Osmosis System with Antiscalant Dosing

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
HELLA-RO
Motive Force
Electric power
Style
Vertical
Performance
Efficient Filtration
Certification
CE, RoHS, CB
Salt Rejection
99.0%
Application
All Scenario
Capacity
250-100000L/H
Processing
Reverse Osmosis
Voltage
110V/220V/380V
Warranty
5+ Years (Core Part)
Water Source
Underground/Surface/Tap
Product Introduction

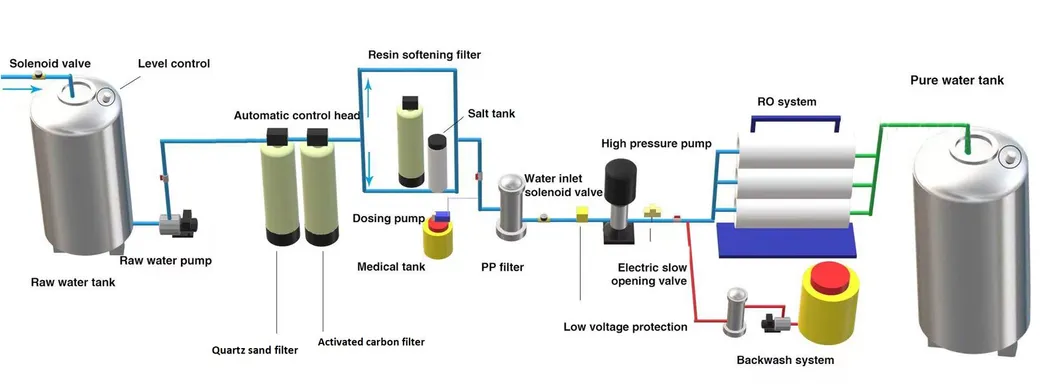

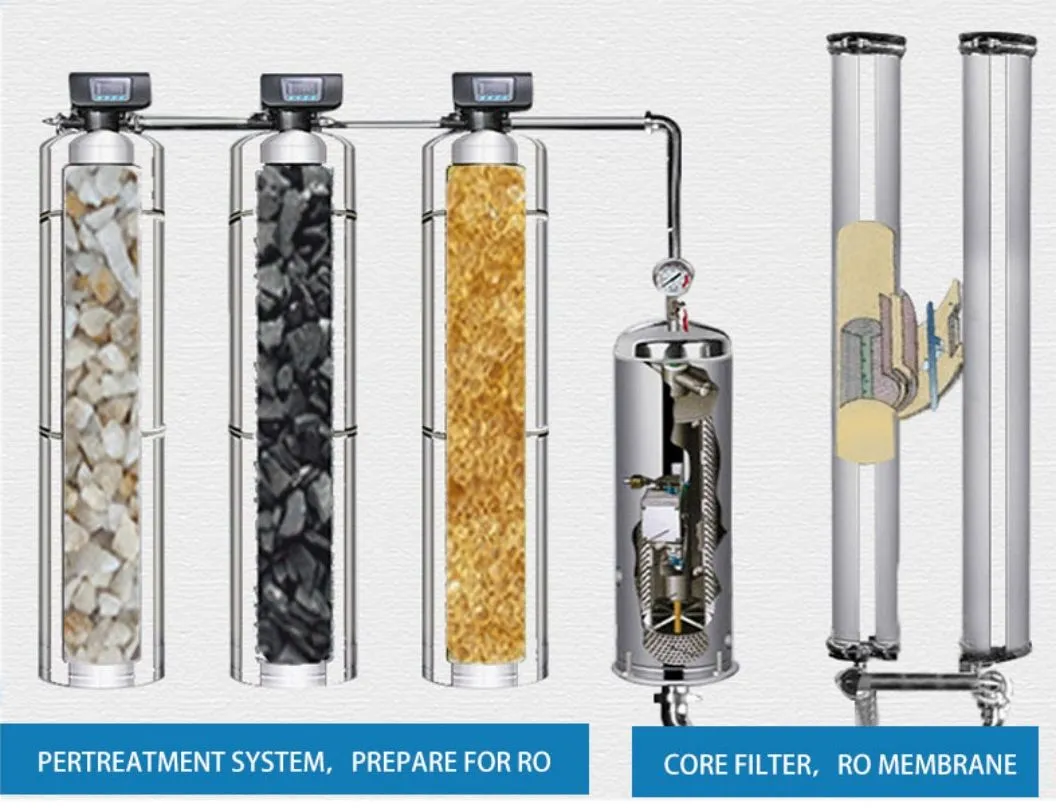

Reverse Osmosis Flow Chart
Reverse Osmosis Flow Chart
  • Raw water system: Level control system to adjust stop/start and single-way valve.
  • Quartz sand filter: Removes turbidity, suspended matter, and organic colloids.
  • Activated carbon filter: Removes free chloride, organic matter, and odors.
  • Resin softening filter: Eliminates calcium and magnesium ions to reduce hardness.

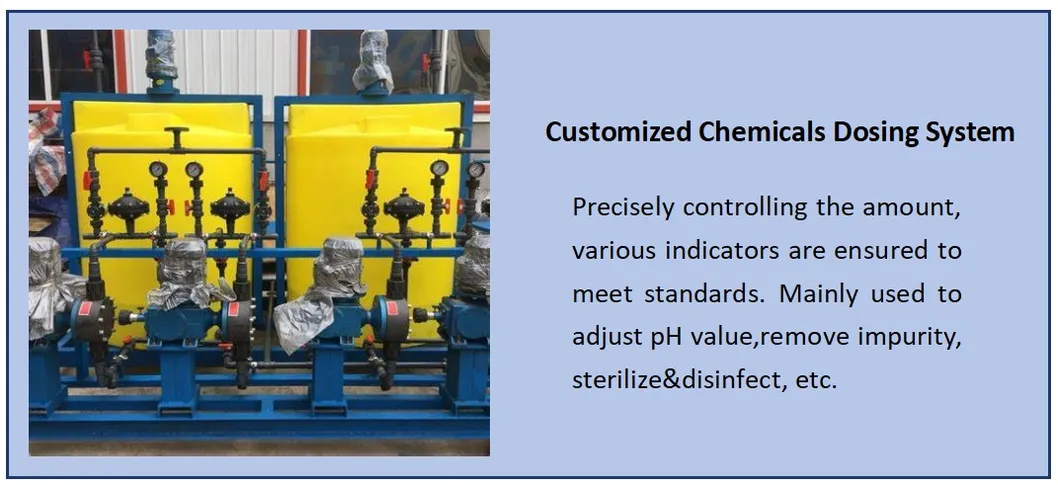

  • Dosing system: Automatically adjusts chemical dosing based on water quality.
  • PP filter: Prevents large particles from entering the RO membrane.
  • High pressure pump: Provides power for the reverse osmosis process.

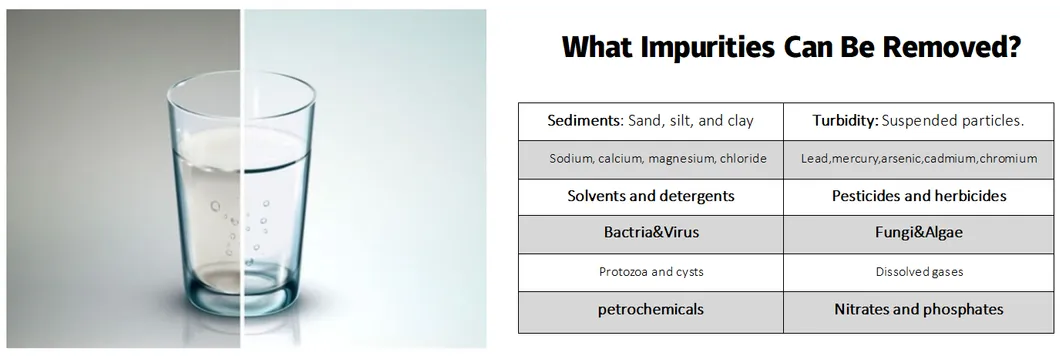

  • RO membrane system: Removes over 99% of ions, bacteria, viruses, and particles.
  • Backwash system: Extends the service life of the RO membrane.
  • Sterilization system: UV light and Ozone generator for organic elimination.
  • Chemicals system: Customized adjustment for various raw water types.

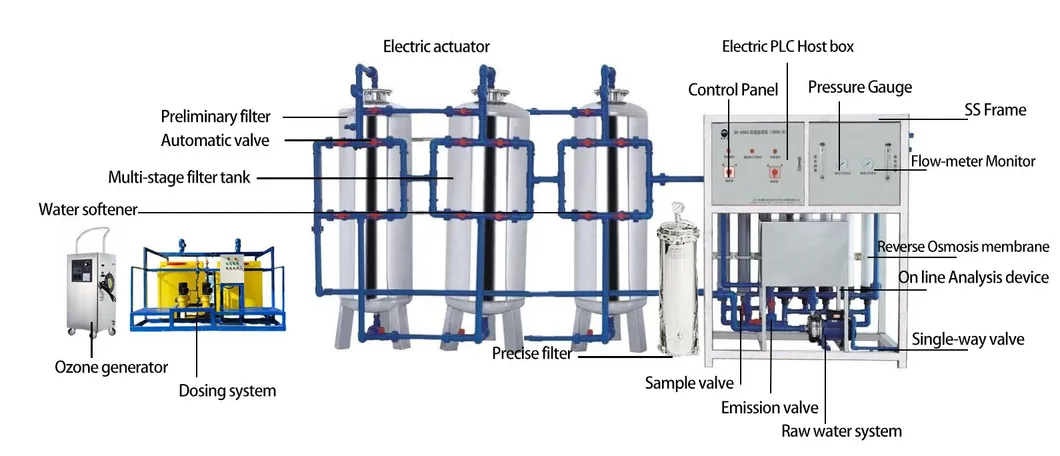

System Overview
Product Parameters
Technical Specifications
Output Capacity 100L-1000T/H Multi-stage Filtration 4/5/6/7-stage
Desalination Rate ≥99% Filtration Accuracy Up to 0.0001μm
Recovery Rate ≥60% Machine Material SS, FRP, CS
Pipe Material PE, PVC, PPR, SS, CS Operating Temp 3-45℃
Product Detail & Performance
Core Machine Features
  • Produce water continuously 24-7.
  • Easy operation and maintenance.

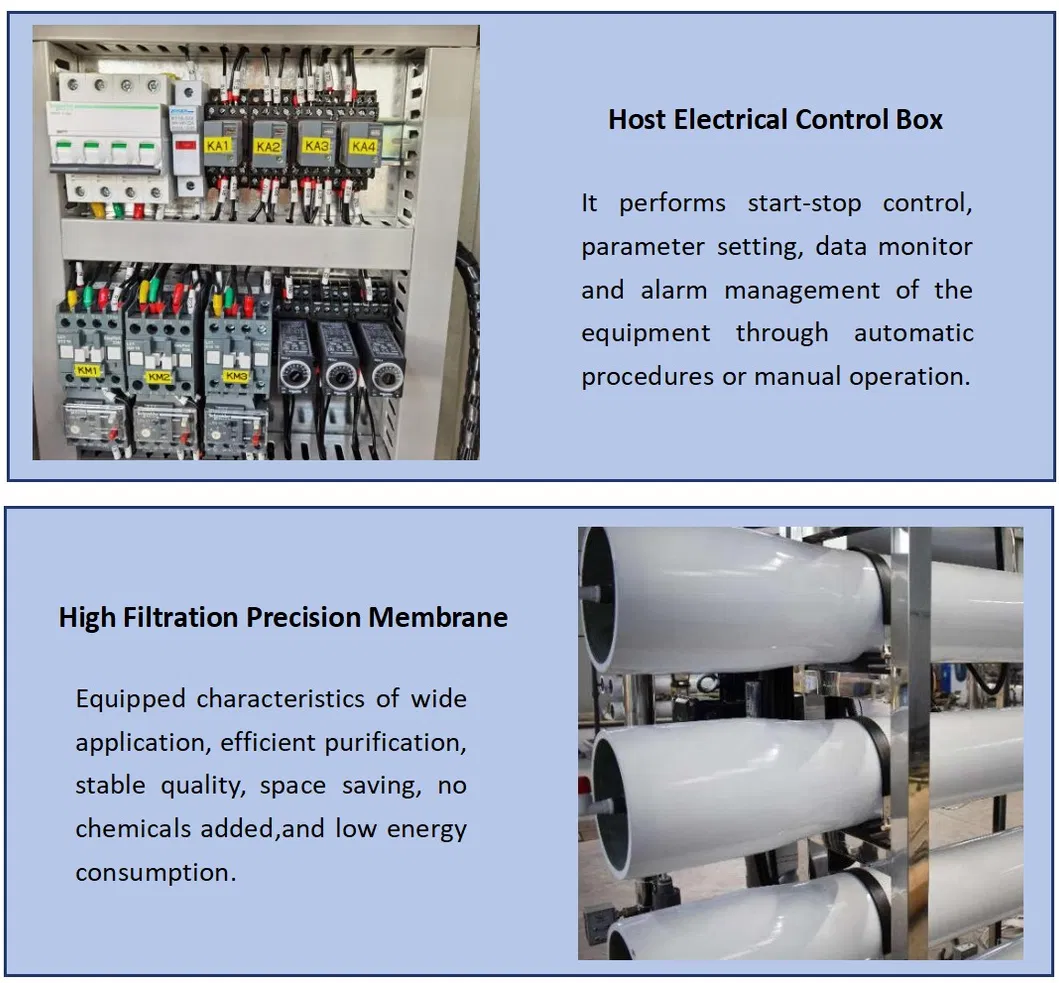

  • Integrated electric parts.
  • Auto-wash to prolong the service life.
  • On-line monitoring devices.
  • Automatic emergency switch off.

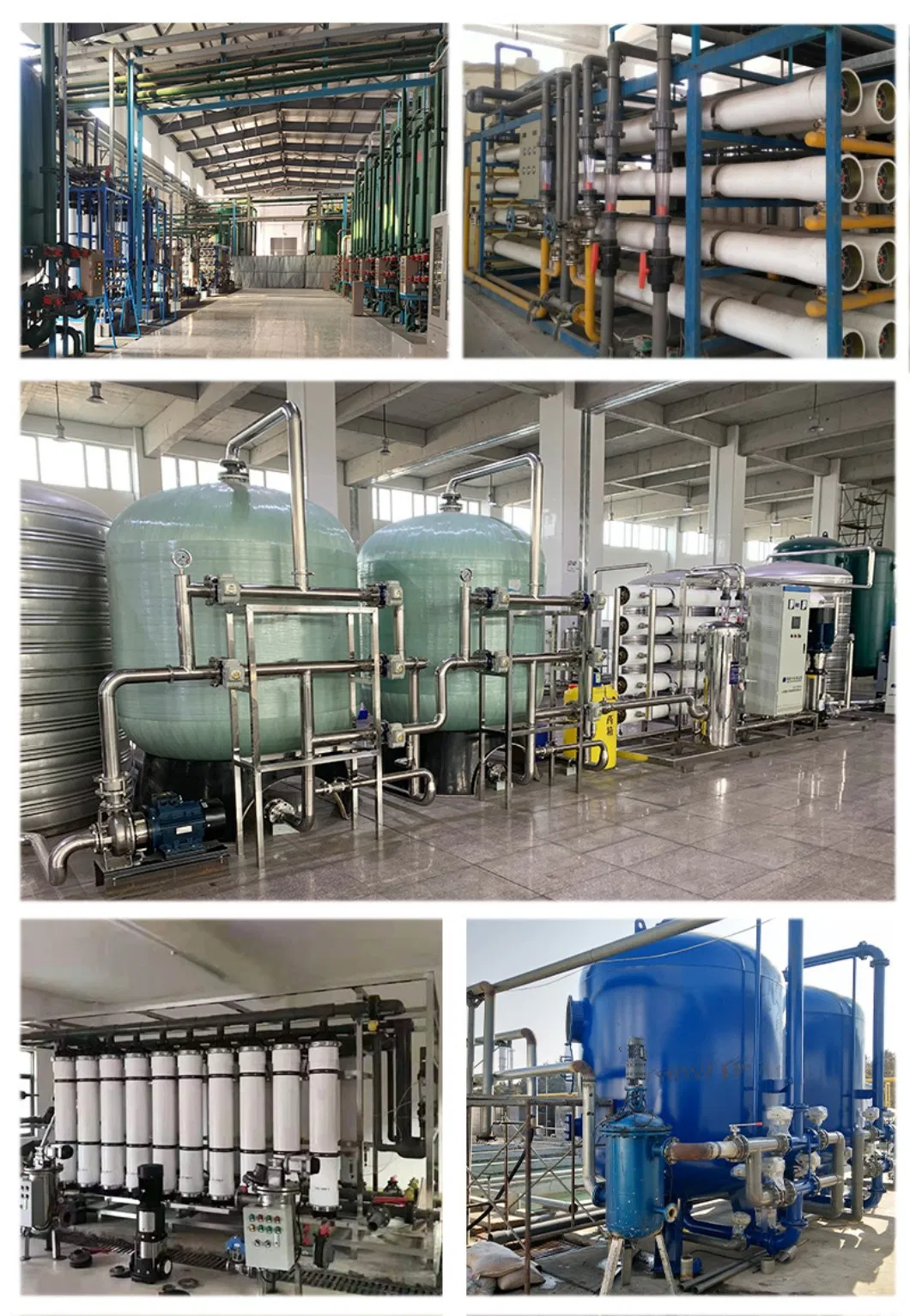

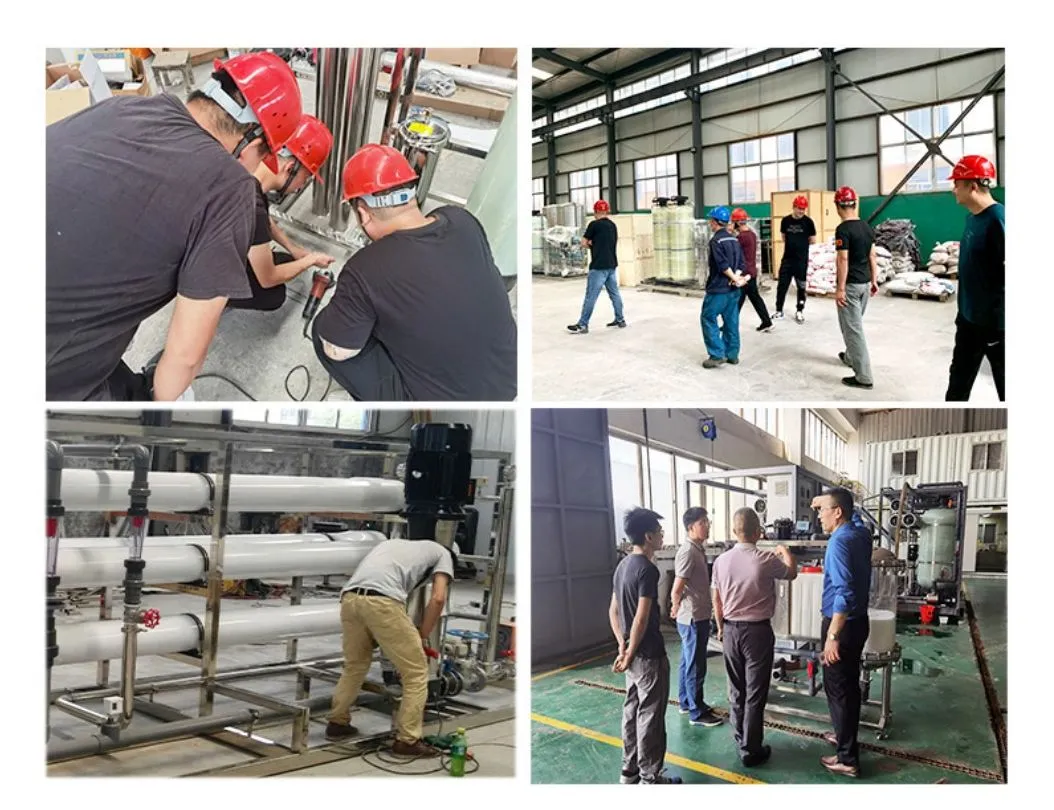

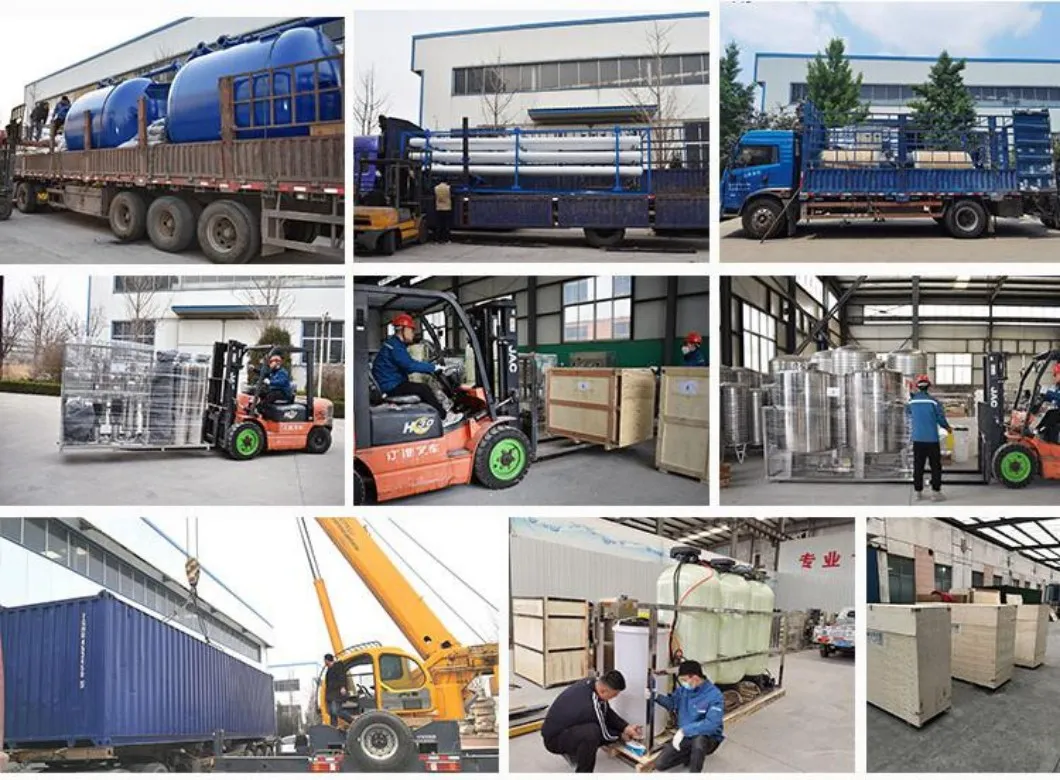

On-site Installation & Delivery
Certifications
Why Partner with Us?
  • Comprehensive Solutions: Advanced & integrated water filtration systems.
  • Competitive Pricing: High margins to help grow your business profitably.
  • OEM Available: Customize with your brand for local market needs.
  • Reliable Quality: ISO-certified systems with durable components.
  • Technical Support: Full training, spare parts, and service assistance.
  • Fast Delivery: On-time shipping with strong after-sales support.
Frequently Asked Questions
1. What is the typical desalination rate of this RO system?
The system achieves a desalination rate of ≥99%, effectively removing ions, bacteria, viruses, and other particles from the water.
2. Can the equipment be customized for different voltages?
Yes, we provide customized voltage configurations including 110V, 220V, and 380V to match local industrial or residential requirements.
3. What kind of water sources can be treated?
The system is versatile and can process underground water, surface water, and municipal tap water.
4. How do you ensure the quality of the machinery?
Every system undergoes a final inspection before shipment. We provide a 2-year guarantee for core parts and lifelong after-sale technical support.
5. What is the expected lead time for a standard set?
For 1 set, the typical lead time is approximately 10 days. Larger orders are subject to negotiation.
6. What maintenance features are included?
The system features an integrated auto-wash and backwash system to prolong the life of filters and RO membranes, along with real-time online monitoring.
