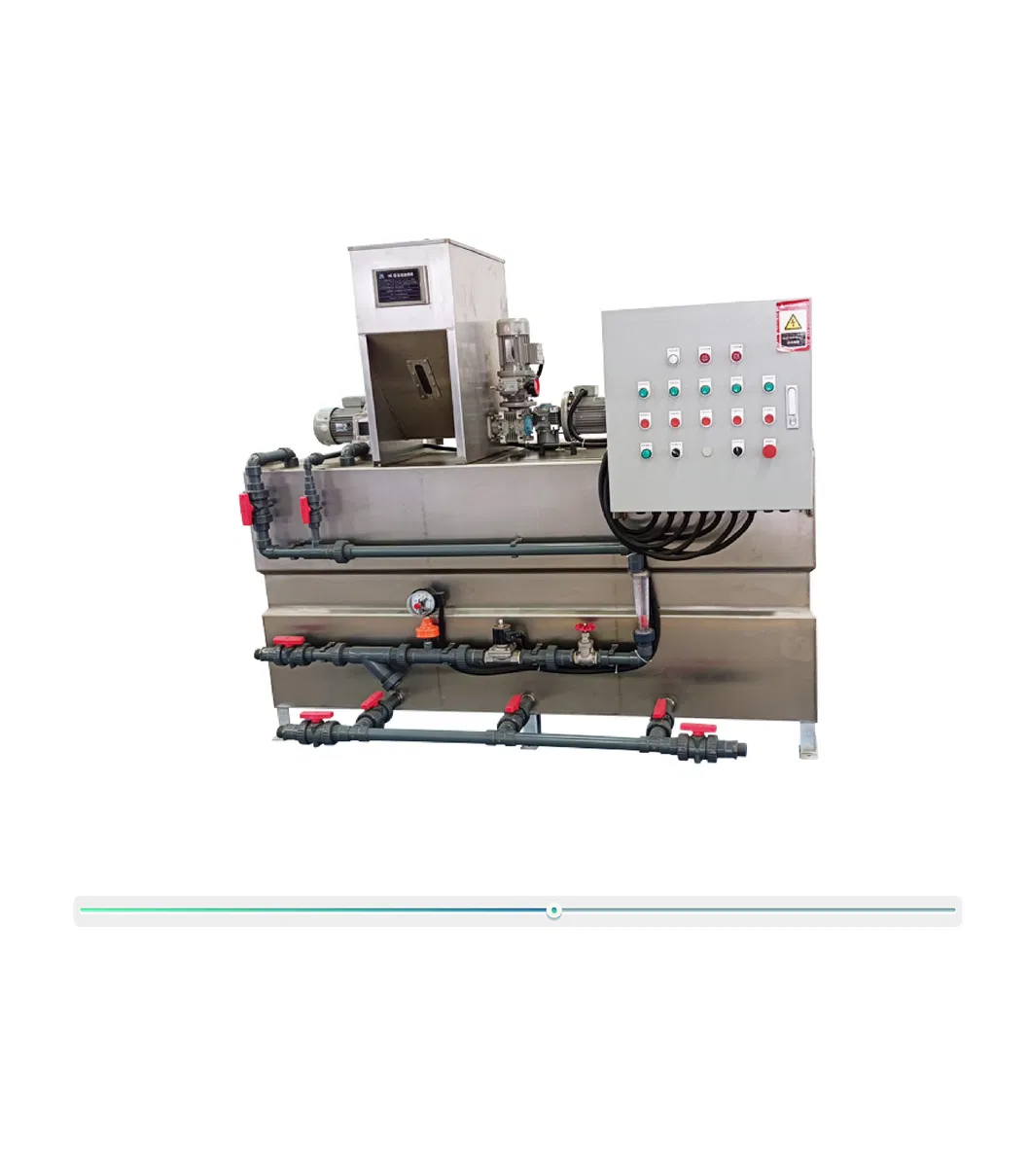

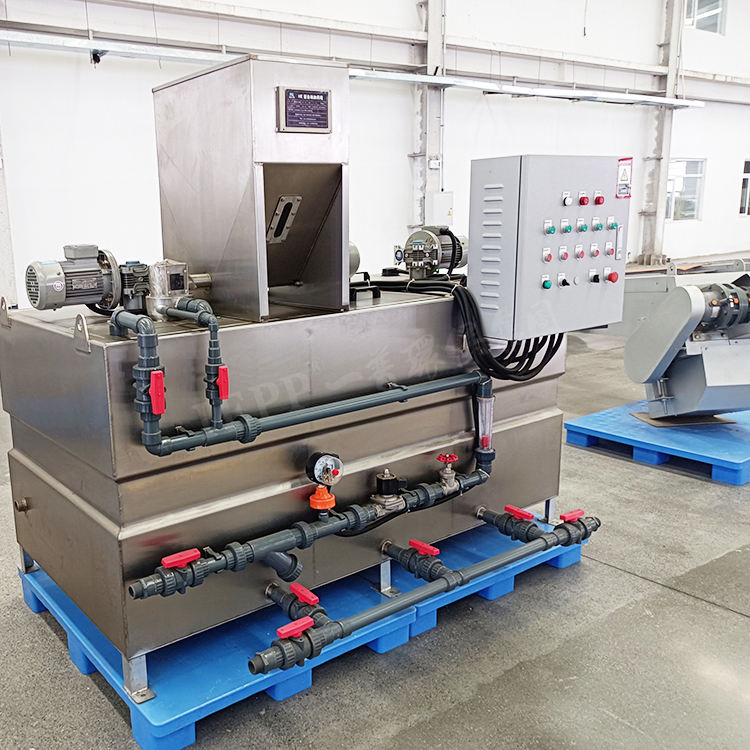

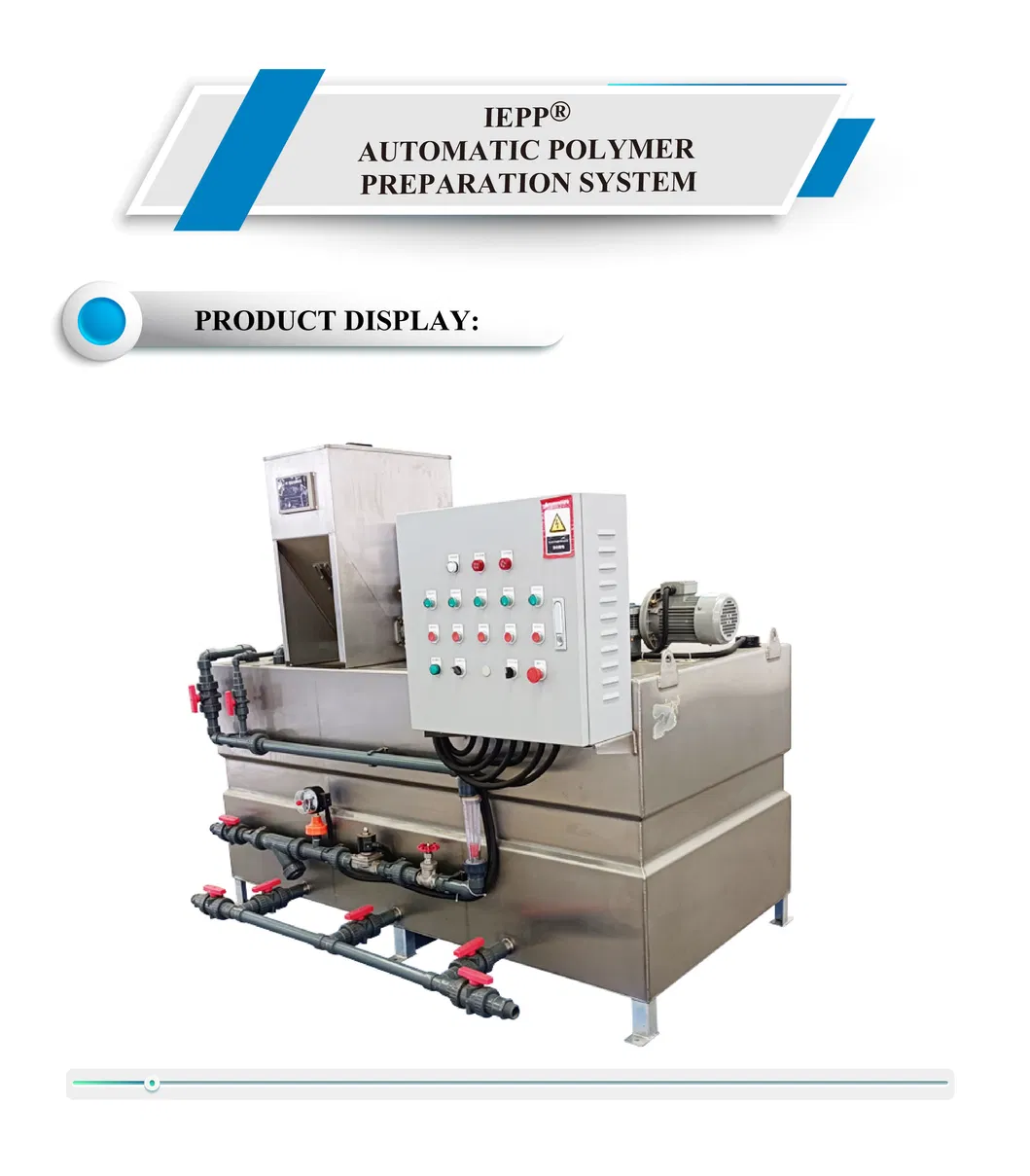

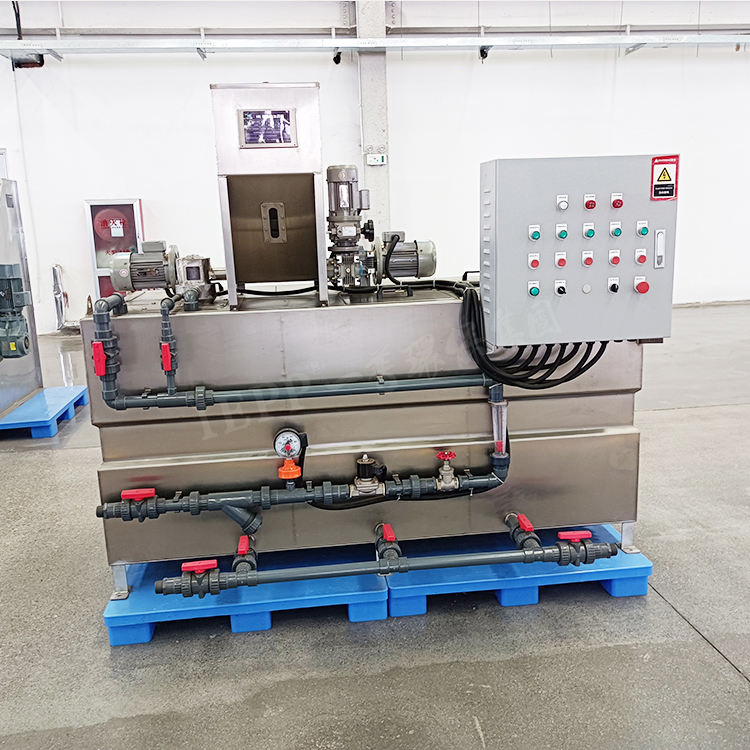

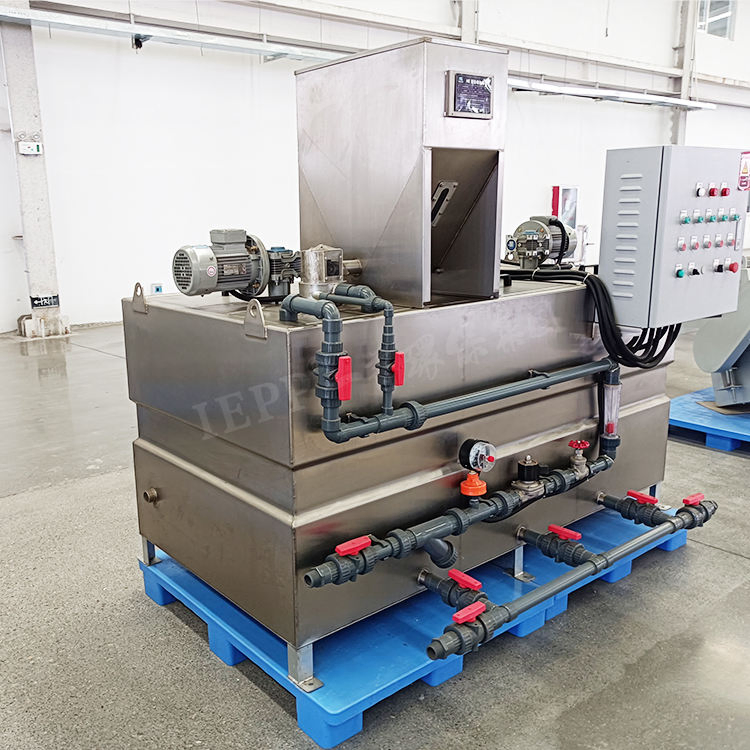

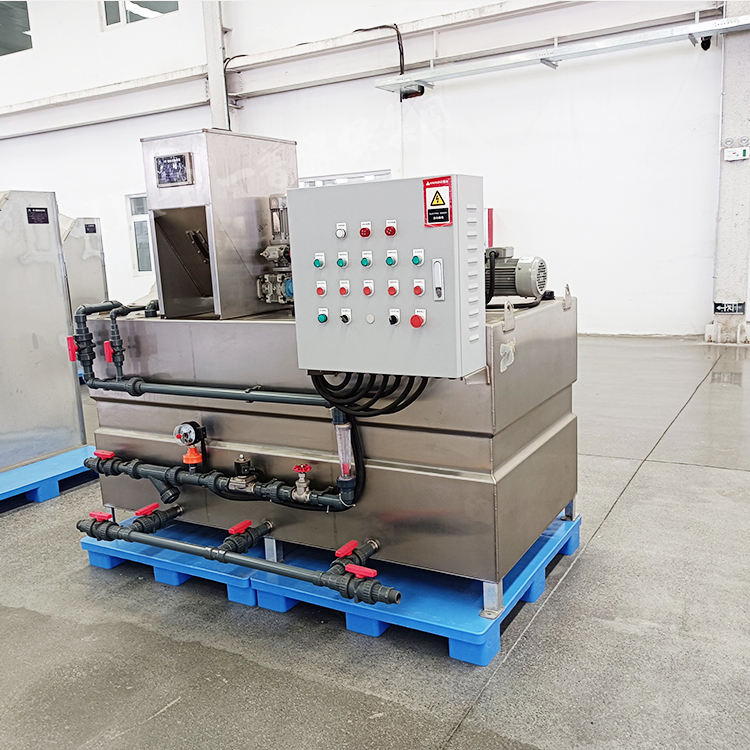

Automatic Polymer Preparation System
The Automatic Polymer Preparation System is a complete range of polymer batching and metering systems. The polymer preparation unit automatically prepares polymer solutions which are used as coagulants for the eventual removal of suspended particles in the water treatment processes of a number of applications from swimming pool maintenance through to the various stages of wastewater treatment, as well as oil recovery, colour removal, paper production and mineral processing.

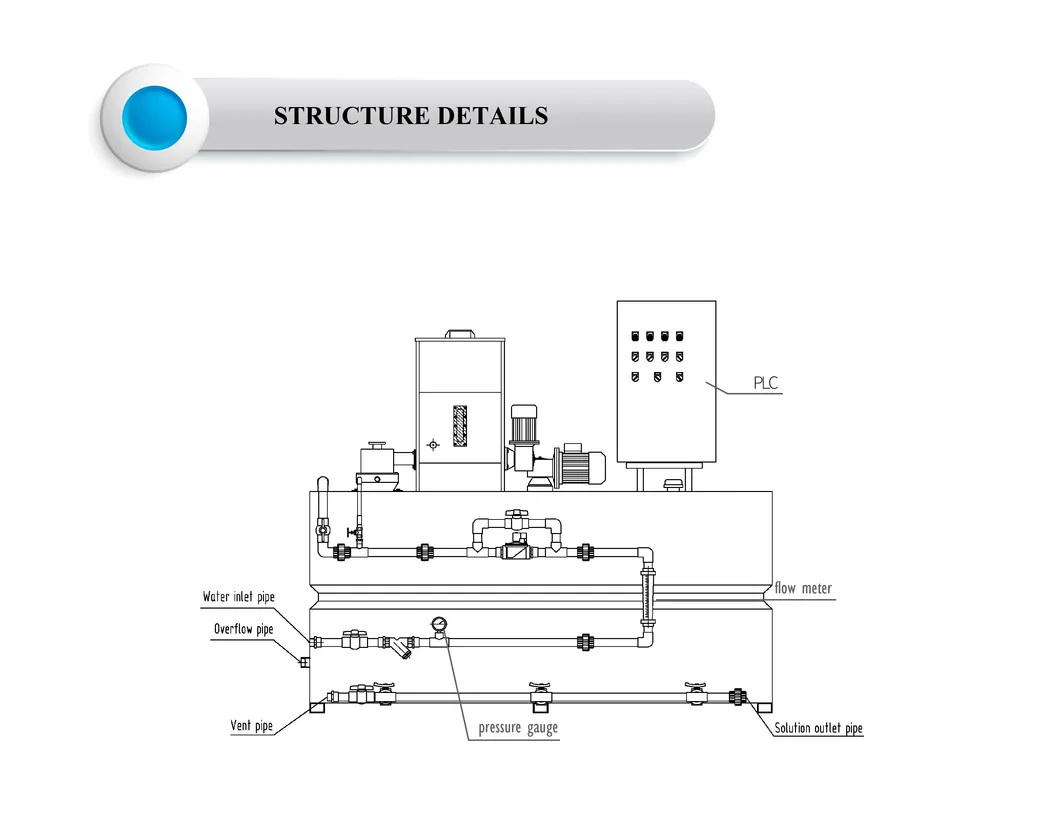

Core Components

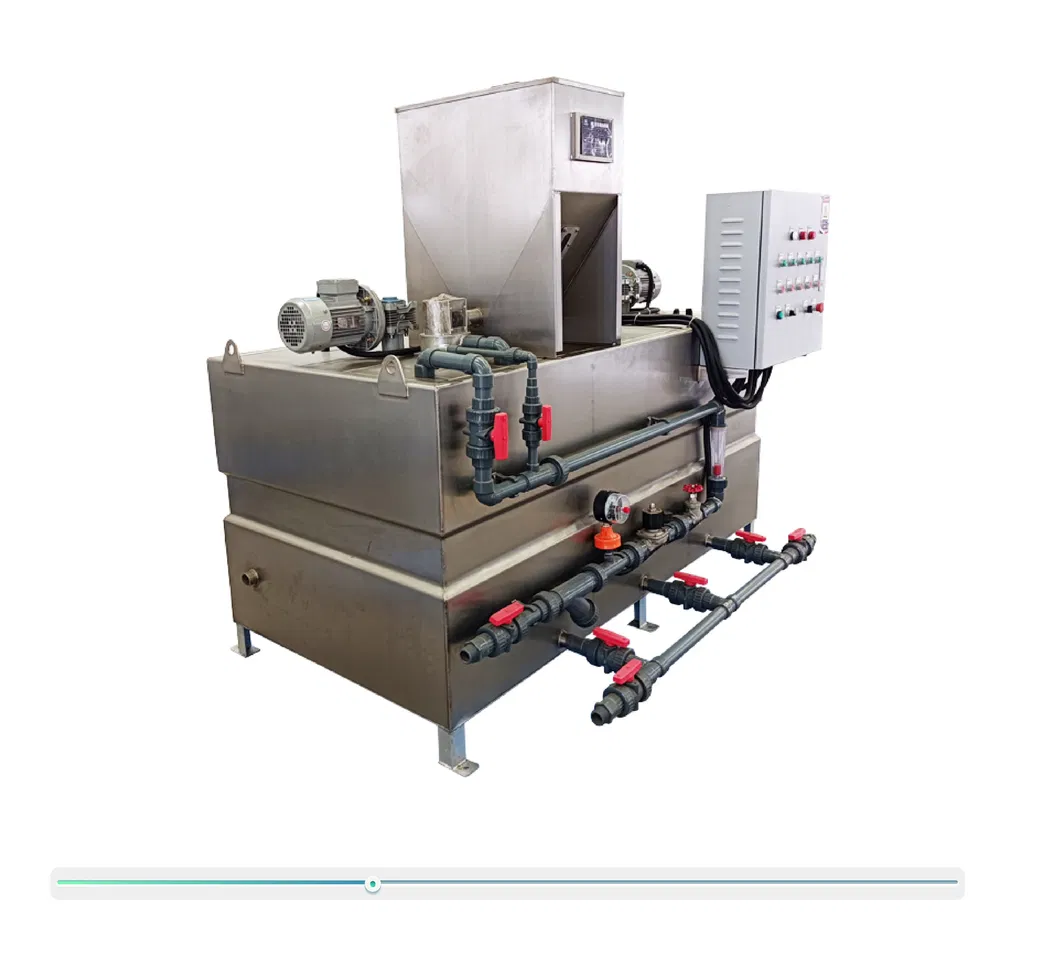

Polymer dosing device: Composed of hopper, push screw, electric heater and more. The effective volume of the hopper can meet long-term dosage needs, equipped with sight glasses and dry powder level meters. The high-precision reducer driven push screw ensures accurate dosing.
Water supply device: Consists of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and rotor flow meter.
Polymer dissolving device: Composed of a pre-soaking device, tank, and 3 sets of mixers. The 3 tanks include a precast mixing tank, homogeneous slaking tank, and solution storage tank to guarantee solution homogeneity.
Technical Parameters
| Model |
Capacity (m³/h) |
Dimensions (m) |
Inlet Diameter |
Material |
| YP-JY1000 | 2.43 | 2.0*1.0*1.7 | DN32 | SS304 |
| YP-JY2000 | 2.43 | 2.2*1.2*1.9 | DN32 | SS304 |
| YP-JY3000 | 4 | 2.4*1.3*2.2 | DN40 | SS304 |
| YP-JY4000 | 4 | 3.0*1.4*2.2 | DN40 | SS304 |
Frequently Asked Questions
Are you a manufacturer with industry experience?
Yes, we have rich experience in manufacturing sewage treatment equipment for more than 15 years.
Is there a minimum order quantity (MOQ)?
There is no minimum order requirement, however, discounts are available for large quantity orders.
Can you provide customized solutions based on specific requirements?
Absolutely. Our professional design team can provide technical drawings and configurations according to your specific project needs.
What information is needed to recommend the right product?
Please provide details regarding your water source, water quality parameters, required flow rate, and available installation area.
What are the accepted payment terms?
We accept TT and L/C. Generally, a 50% deposit is required before production, with the remaining 50% balance settled before loading.
What is the standard delivery timeframe?
Delivery time typically ranges between 4 to 6 weeks, depending on the specific order quantities and customization levels.
