Product Description

Basic Specifications
Model NO.
ECH-604 ECH-600
Certification
ISO9001, ISO14001, ISO45001
Application
Industrial Water Treatment
Voltage
220V
Disinfection Method
Chlorine Dioxide
Monitoring Parameters
pH, Conductivity, Corrosion Rate, Fouling Thermal
Transport Package
Wooden Box Packaging
Specification
1260mm × 640mm × 1950mm
Automatic Dosing Device Overview
The automatic dosing device is engineered for diverse water treatment requirements, including air-conditioning chilled water, cooling water systems, boiler water systems, industrial circulating water, and sewage treatment systems.

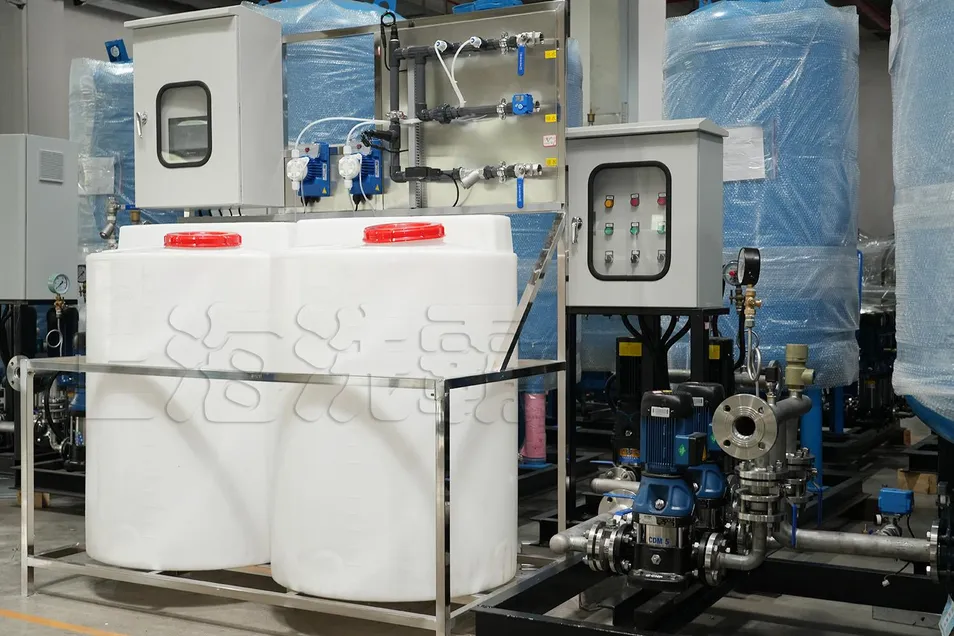

Intelligent Chemical Dosing System
⚙️

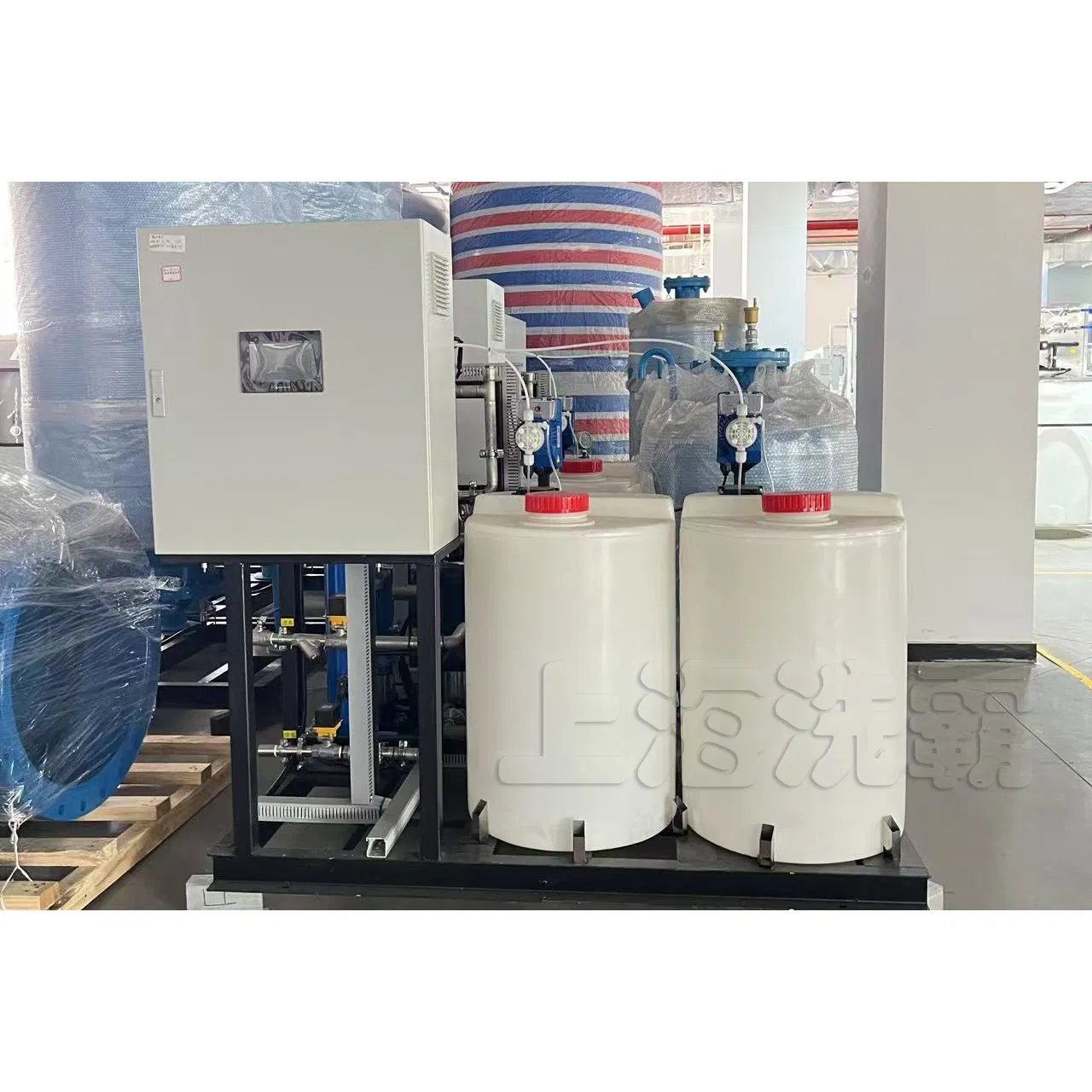

System Composition

Includes a high-precision control cabinet, dosing pumps, storage buckets, and specialized gauges. Monitoring instruments such as pH meters, conductivity meters, and corrosion rate meters are integrated based on specific client requirements.

💡
Operational Principle

Utilizes an intelligent control algorithm to adjust concentration ratios and agent levels. This prevents corrosion, scaling, and biological growth (bacteria/algae), ensuring equipment longevity and optimal water quality stability.

Dosing System Component 1
Dosing System Component 2
Technical Specifications
System Type ECH-A-604 (Open) ECH-B-604 (Closed) ECH-C-604 (Steam)
Cycle Volume Range 0-5000 m³/h 5000-20000 m³/h >20000 m³/h
Boiler Evaporation 0-10 m³/h 10-40 m³/h >40 m³/h
Dosing Tank 200L (PE/SS) 500L (PE/SS) 1000L (PE/SS)
Power Supply AC220V-0.5KW AC380V-2.5KW AC380V-3.0KW
Manufacturing & Innovation
Industrial Facility
With decades of expertise since 1994, we provide integrated solutions for water treatment technology. Our operations are backed by safety production permits and international certifications for quality, environment, and health management.
Factory View 1

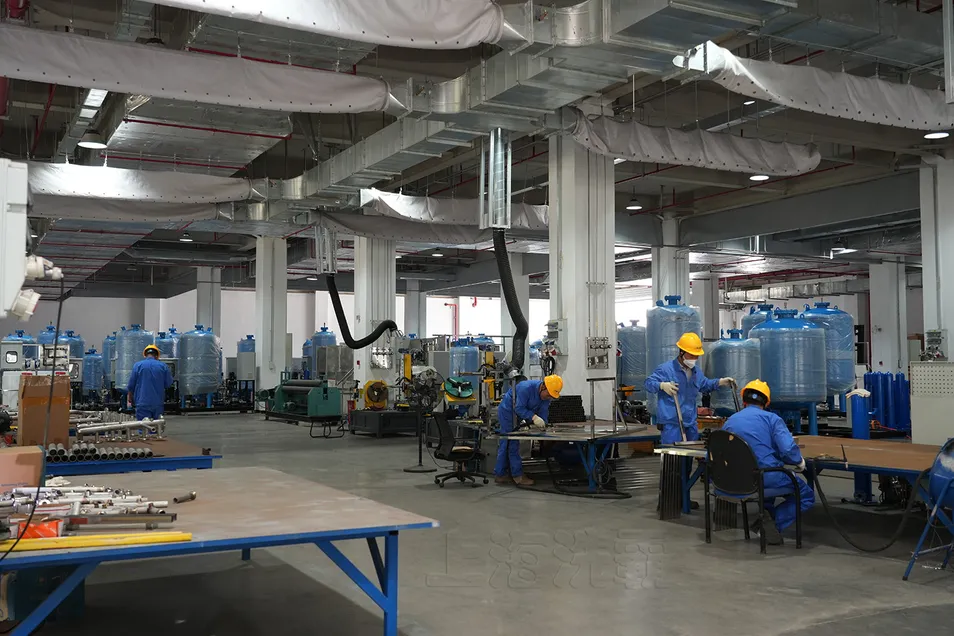

Factory View 2
Advantage Why Choose Our Systems?
  • OEM/ODM Customization Capabilities
  • Turnkey Project Solutions
  • Advanced PLC Intelligent Control
  • Global Project Experience (Indonesia, Ethiopia, Pakistan, USA)
R&D Technical Innovation

Holding 126 authorized patents (60 invention patents) and 38 software copyrights. Our research centers focus on specialized chemicals and advanced water treatment operations.

Patents and Certifications
Research and Development
Frequently Asked Questions
What types of chemicals can this automatic dosing device handle?
The system is designed to accurately dose scale inhibitors, corrosion inhibitors, biocides, and other essential water treatment chemicals used in HVAC, boilers, and industrial water systems.
Is the dosing process fully automated?
Yes, our dosing devices utilize intelligent PLC control systems to monitor water quality parameters in real-time and adjust chemical delivery automatically without manual intervention.
Can the equipment be customized for specific industrial needs?
Absolutely. We offer full OEM/ODM customization, allowing you to select specific gauges (pH, conductivity, etc.), tank materials (PE/SS304/SS316), and system capacities based on your project requirements.
What water quality parameters can the system monitor?
The system can be equipped to monitor pH levels, conductivity, corrosion rates, and fouling thermal resistance to ensure the water remains within preset safety and efficiency ranges.
What certifications do your water treatment systems hold?
Our equipment and manufacturing processes are certified under ISO9001 (Quality), ISO14001 (Environment), and ISO45001 (Health & Safety) management systems.
Are you a manufacturer or a trading company?
We are a professional manufacturer with in-house R&D, production, and export capabilities, providing factory-direct pricing and comprehensive technical support.
