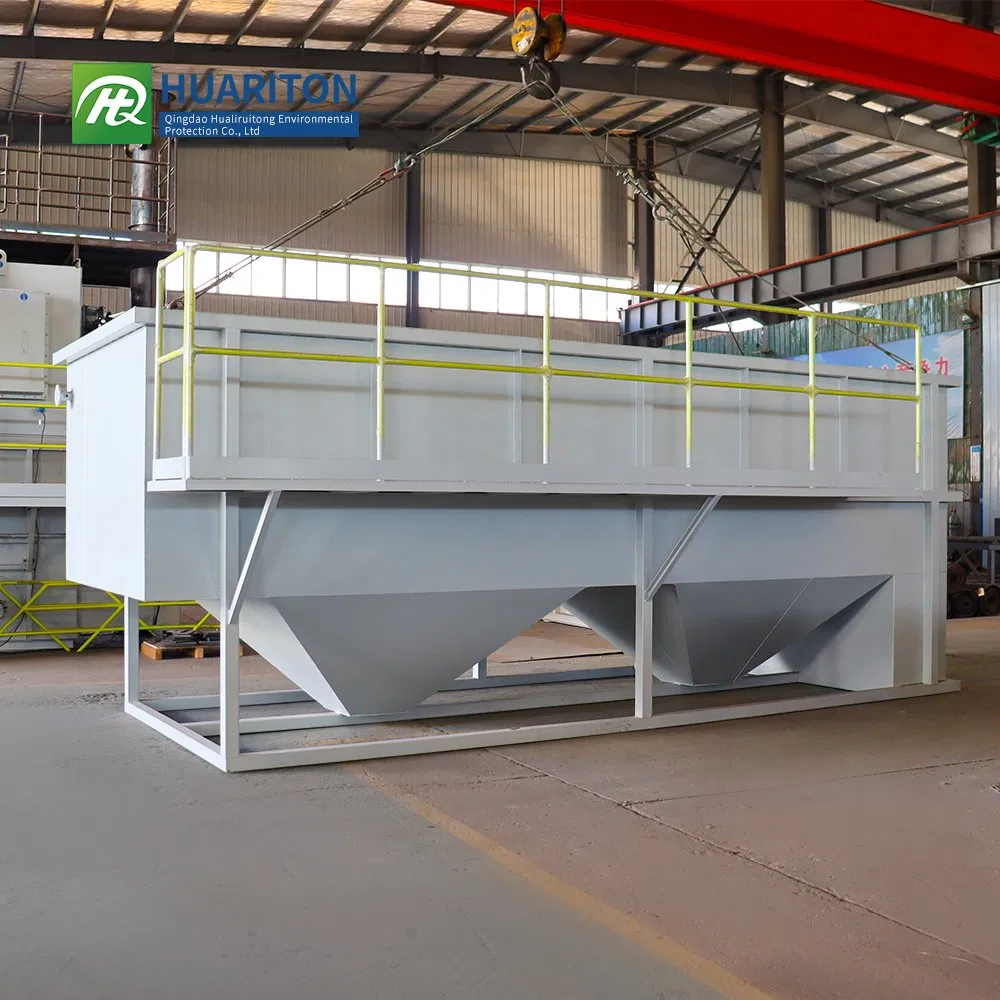

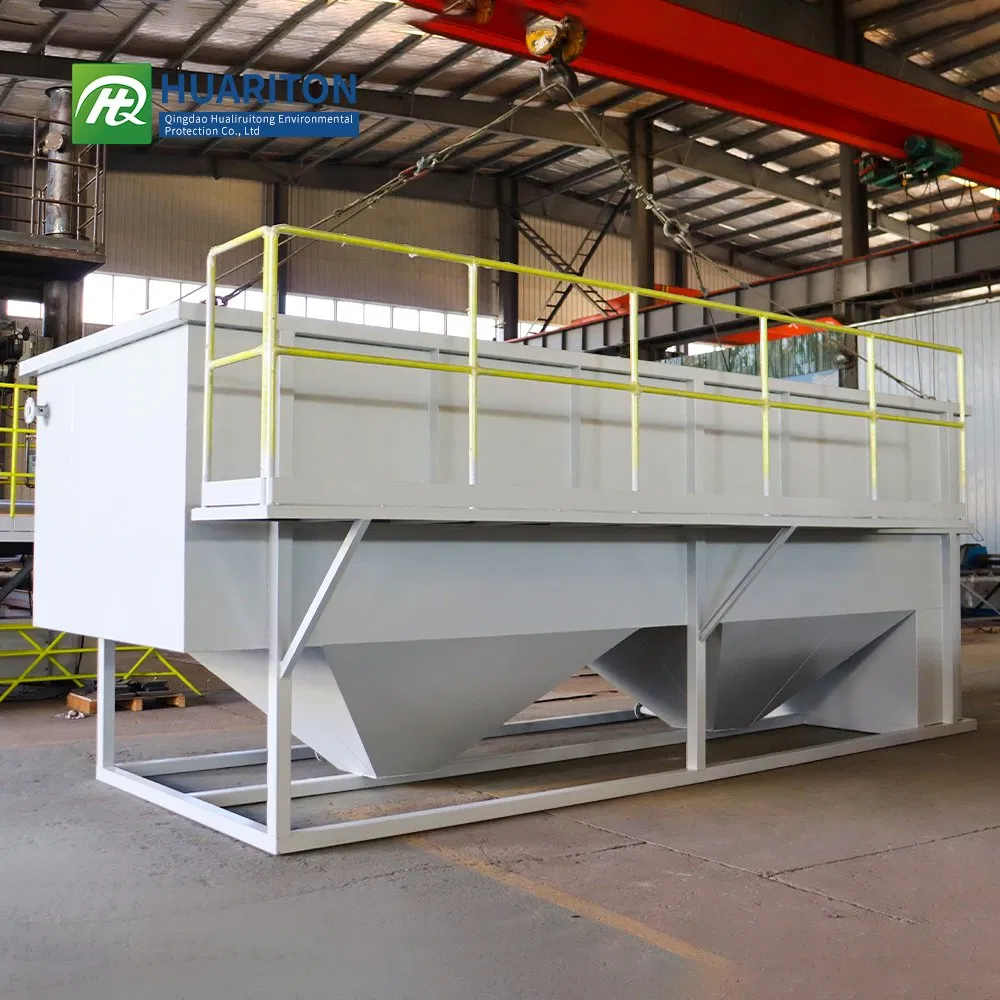

High Efficiency Automatic Sludge Discharge Lamella Clarifier System for Wastewater Treatment Solutions

Customization:	Available
After-sales Service:	24/7 Service
Warranty:	1year

Basic Specifications

Model NO.

YHLC-30

Type

Separation Equipment

Method

Combined Treatment

Usage

Industrial, Home, Agriculture, Hospital

Material

Stainless Steel, Carbon Steel

Stay Time

20-40 Mins

Operation

Automatic Running

Product Name

Lamella Clarifier

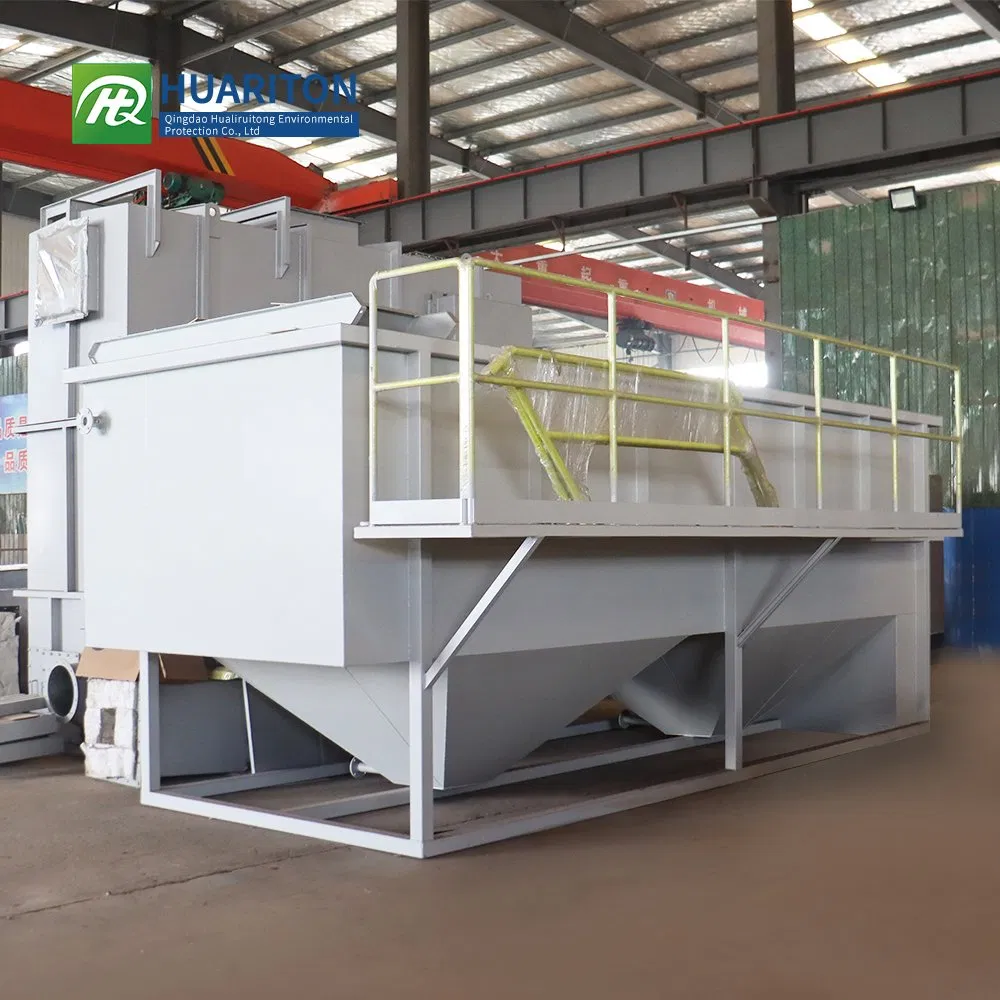

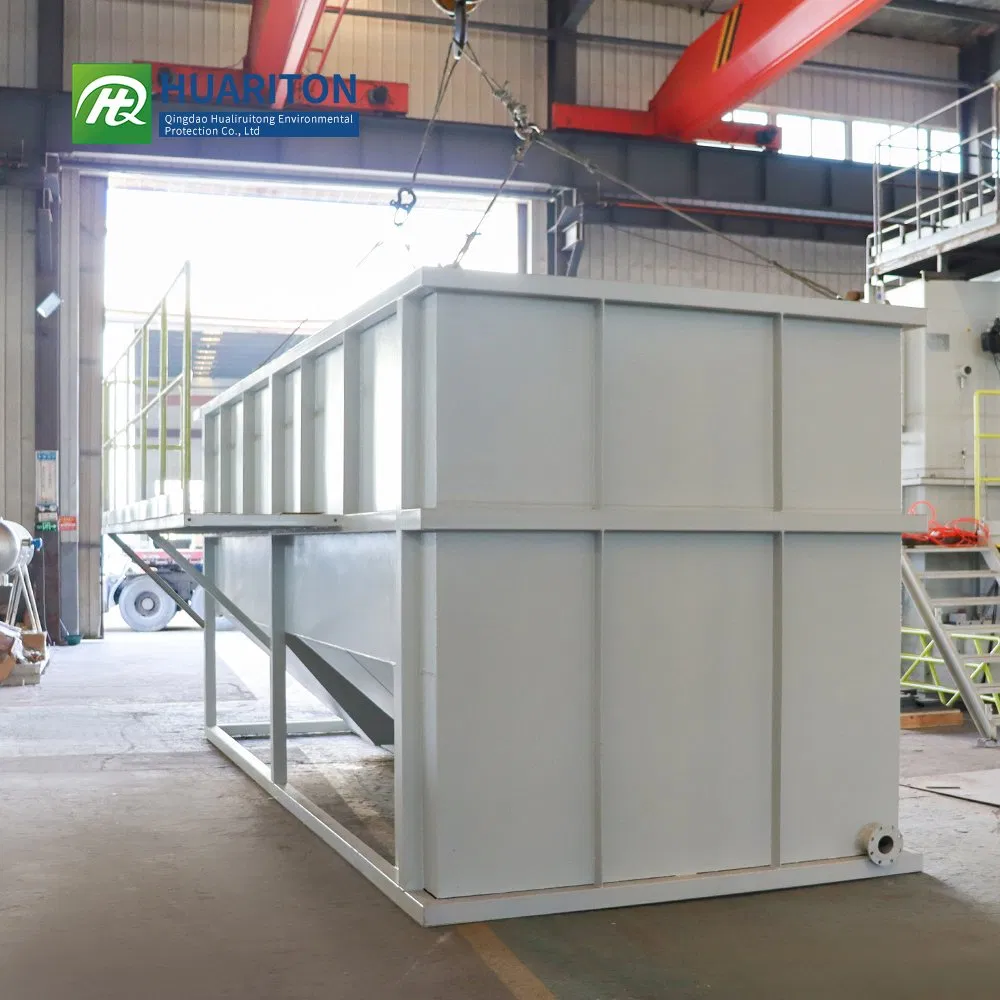

Product Description

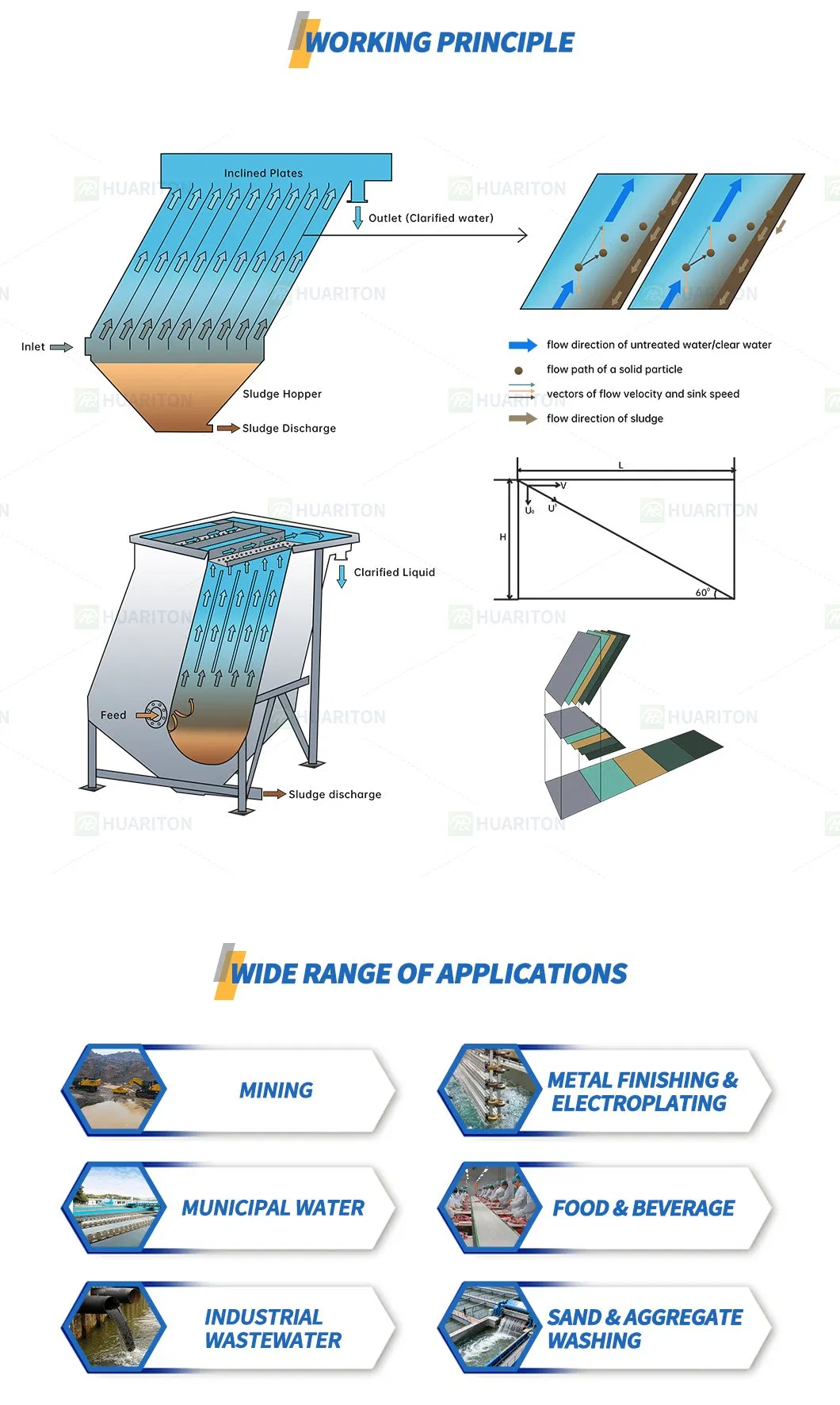

The Lamella Clarifier (also known as Inclined Plate Settler) is designed to provide a highly efficient solution for solid-liquid separation in industrial and municipal wastewater treatment. Compared with traditional sedimentation tanks, our Lamella Clarifier offers a 90% smaller footprint while maintaining superior settling efficiency. It is the ideal choice for projects with limited space and high performance requirements.

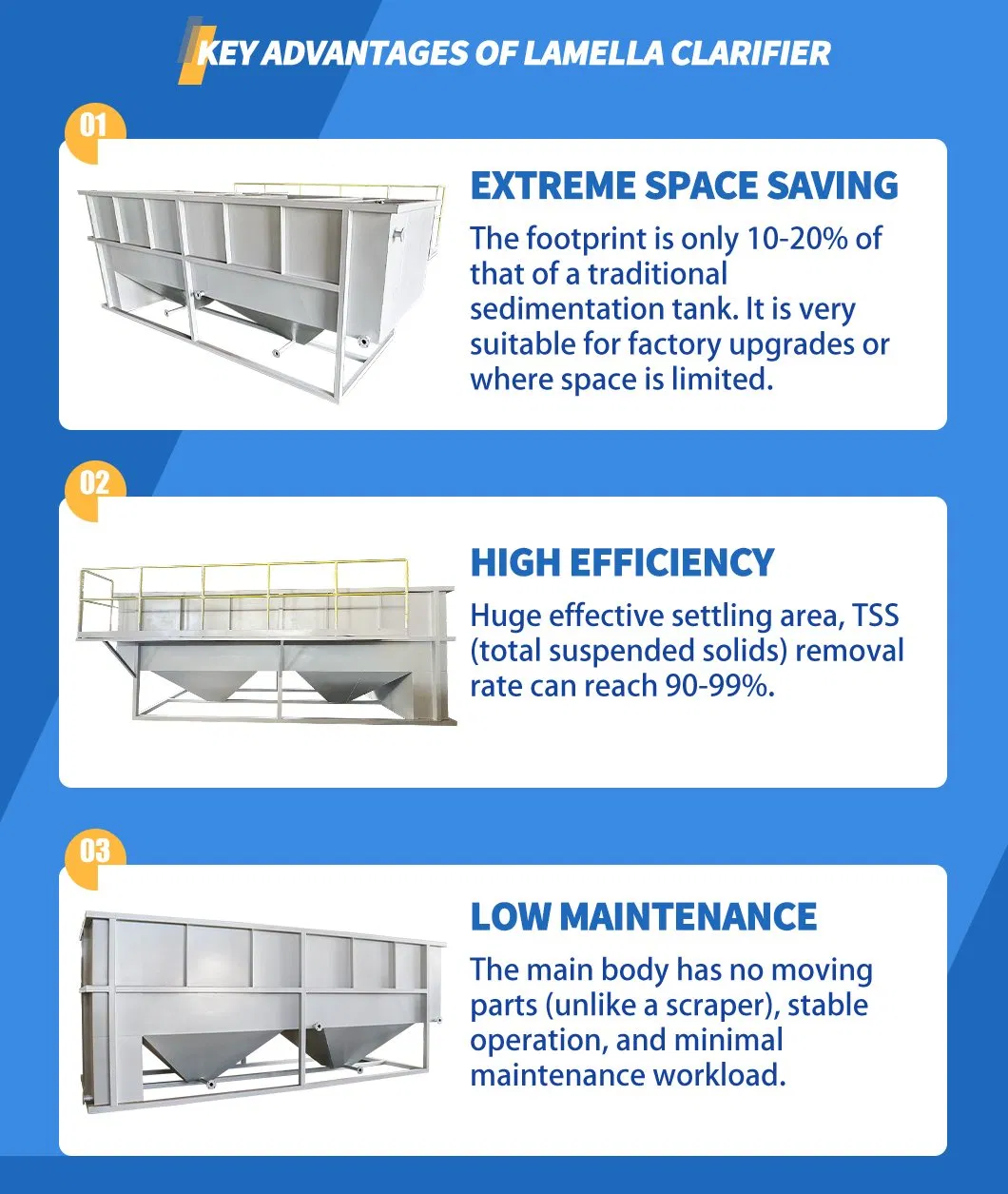

📏 Compact Design

Saves up to 90% of floor space compared to conventional settling tanks.

⚡ High Efficiency

Large effective settling area ensures a high removal rate of suspended solids.

🛡️ Durable Material

Available in Carbon Steel, SS304, or SS316L to resist corrosion.

⚙️ Easy Maintenance

Simple operation with low maintenance costs and automatic running.

Technical Specifications

Model	Capacity	Dimension (m)			Power	Nozzle Size
Model	m³/h	L	W	H	kw	Inlet	Outlet	Sludge
HLC-1	1	1.6	0.9	2.3	/	DN40	DN50	DN80
HLC-3	3	2.2	1.2	2.3	/	DN40	DN50	DN80
HLC-5	5	2.9	1.6	2.8	/	DN40	DN65	DN80
HLC-10	10	5.2	1.8	3.1	/	DN65	DN100	DN80
HLC-20	20	5.9	2.2	3.75	/	DN100	DN150	DN100
HLC-30	30	7.5	2.2	3.75	/	DN100	DN150	DN100
HLC-50	50	9.5	2.2	3.75	/	DN125	DN200	DN100

Packaging & Shipping

Package Size

1600cm * 1200cm * 2300cm

Gross Weight

2500.00kg

Lead Time

30 days (1 Set)

Certifications & Reviews

Frequently Asked Questions

What information is needed for a quote?

For an accurate quote, please provide: 1. Water volume (Flow Rate, m³/h) 2. Water source type 3. Inlet TSS concentration 4. Required outlet TSS concentration 5. Material preference (e.g., SS304 or Carbon Steel).

Do I need to add chemicals?

It depends on your particles. For very fine or colloidal particles, we recommend a flocculation system and the addition of PAC/PAM to achieve the best sedimentation effect.

Is maintenance complicated?

It's very simple. With no moving parts, daily maintenance only requires observing the outlet water quality and opening the bottom valve to drain mud as needed.

What is the main advantage compared to a traditional settling tank?

The primary advantage is space efficiency. A Lamella Clarifier requires only about 20% of the land footprint of a conventional clarifier while offering the same settling capacity.

What materials are available for durability?

We offer Carbon Steel (with epoxy coating), Stainless Steel SS304, and SS316L. For highly corrosive environments, we use multi-layer anti-corrosion treatments.

What kind of after-sales support do you provide?

We provide a 12-month quality warranty and lifetime technical support. Replacement components are shipped for free if they fail under normal use within the warranty period.
