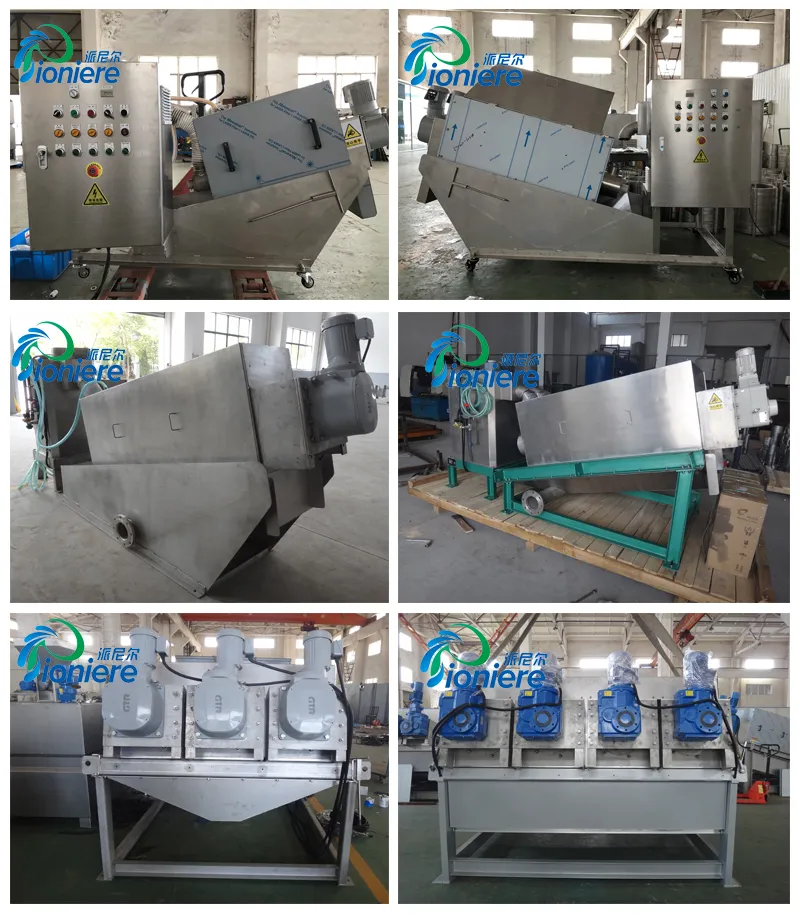

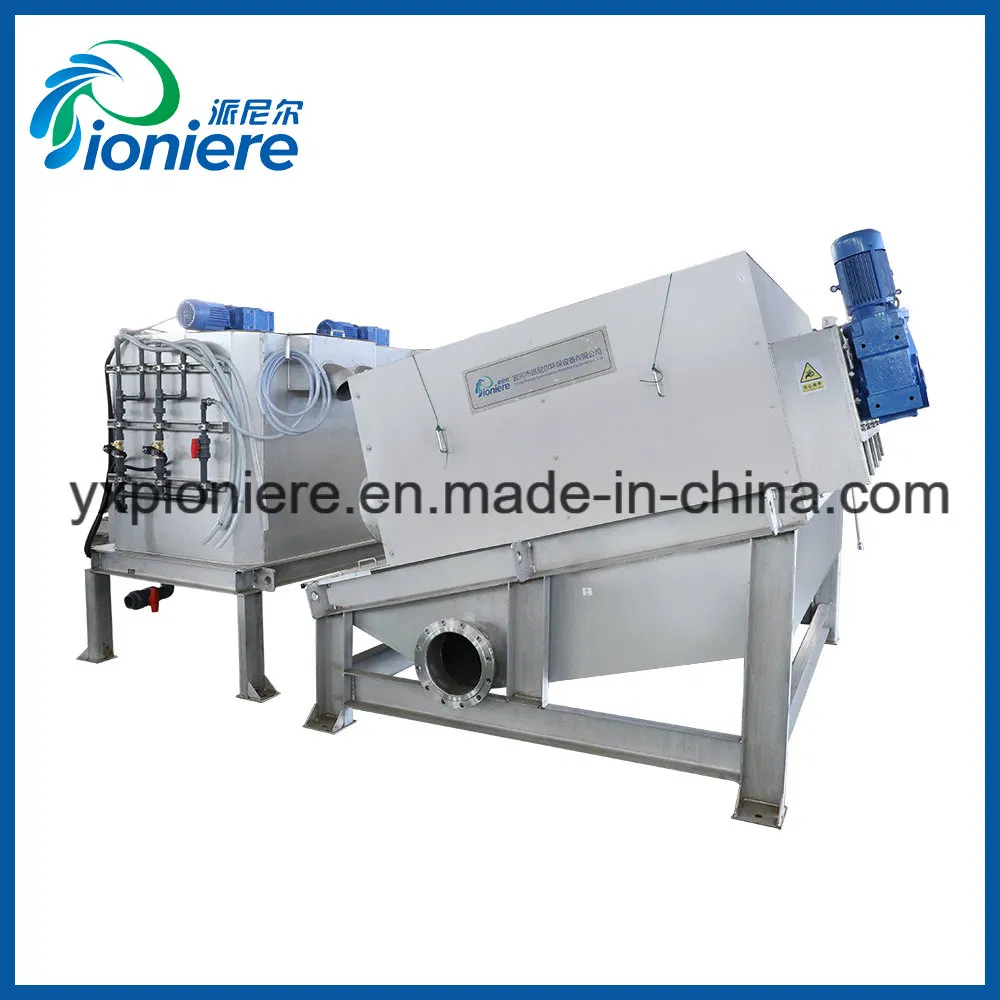

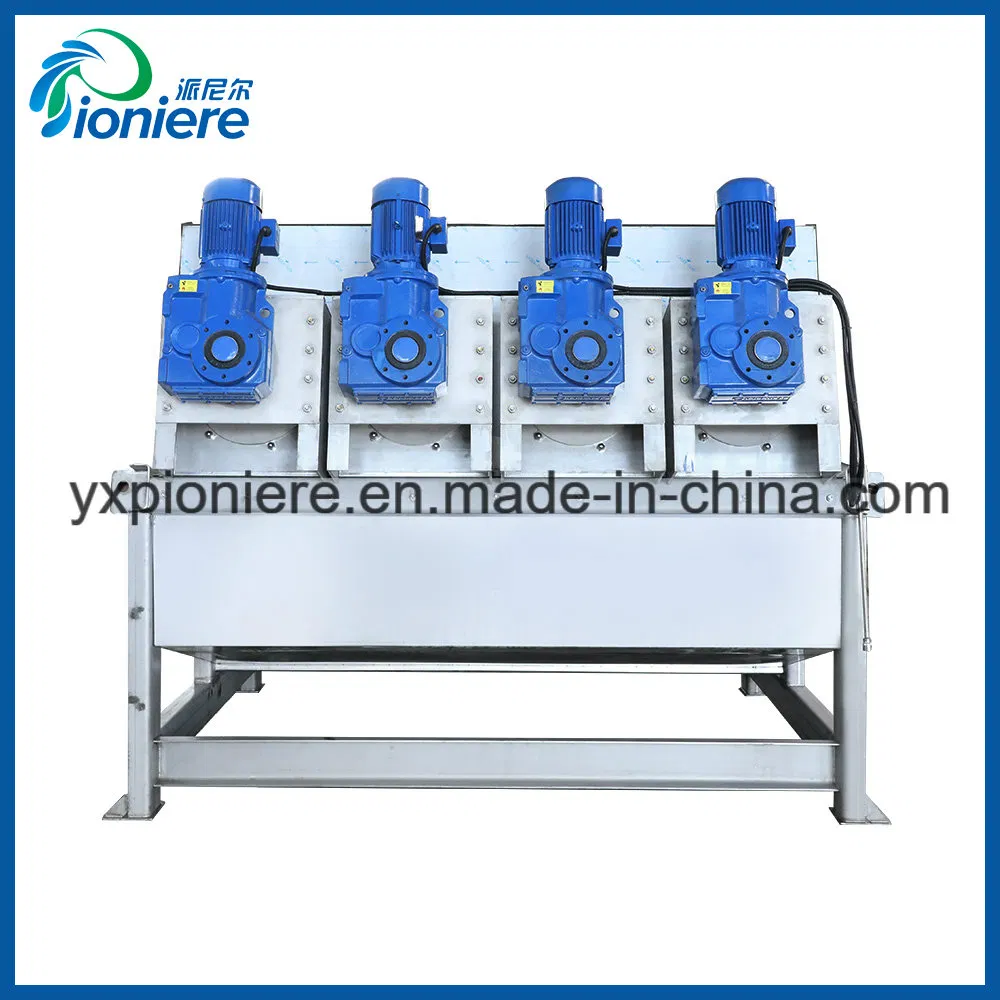

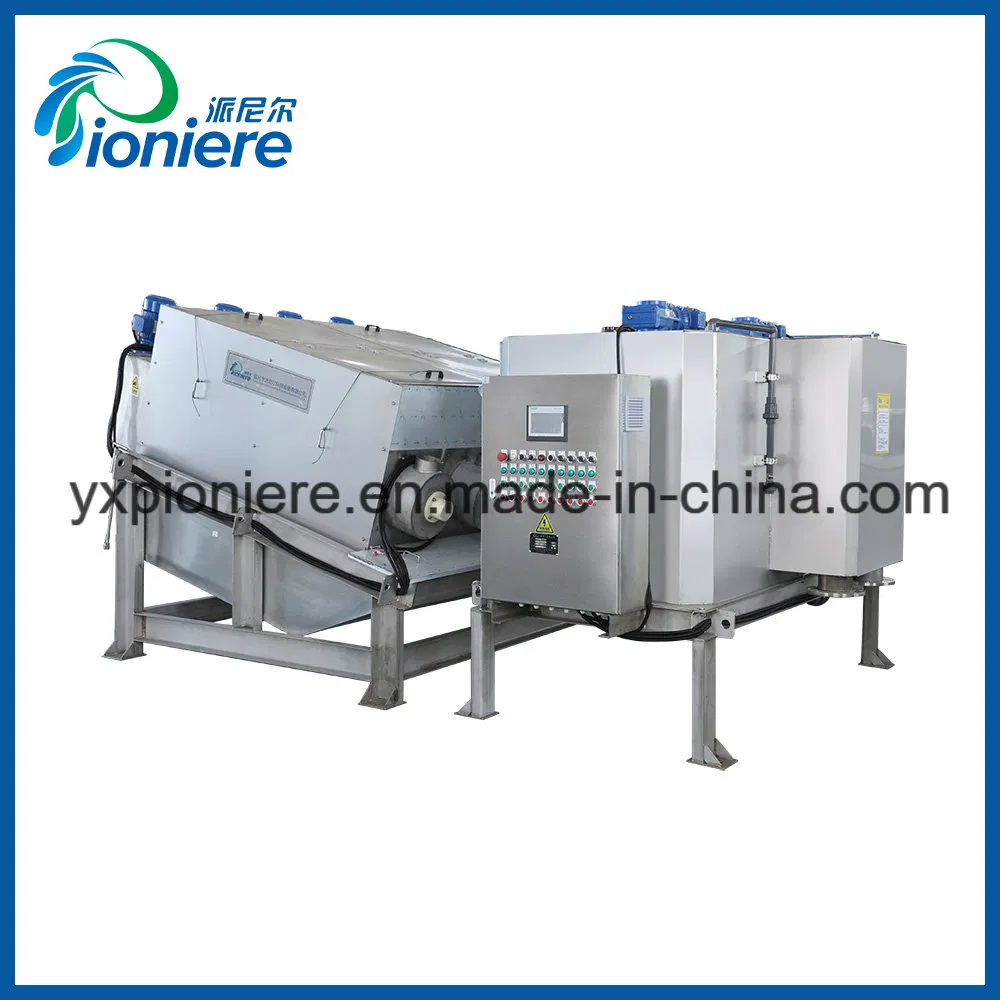

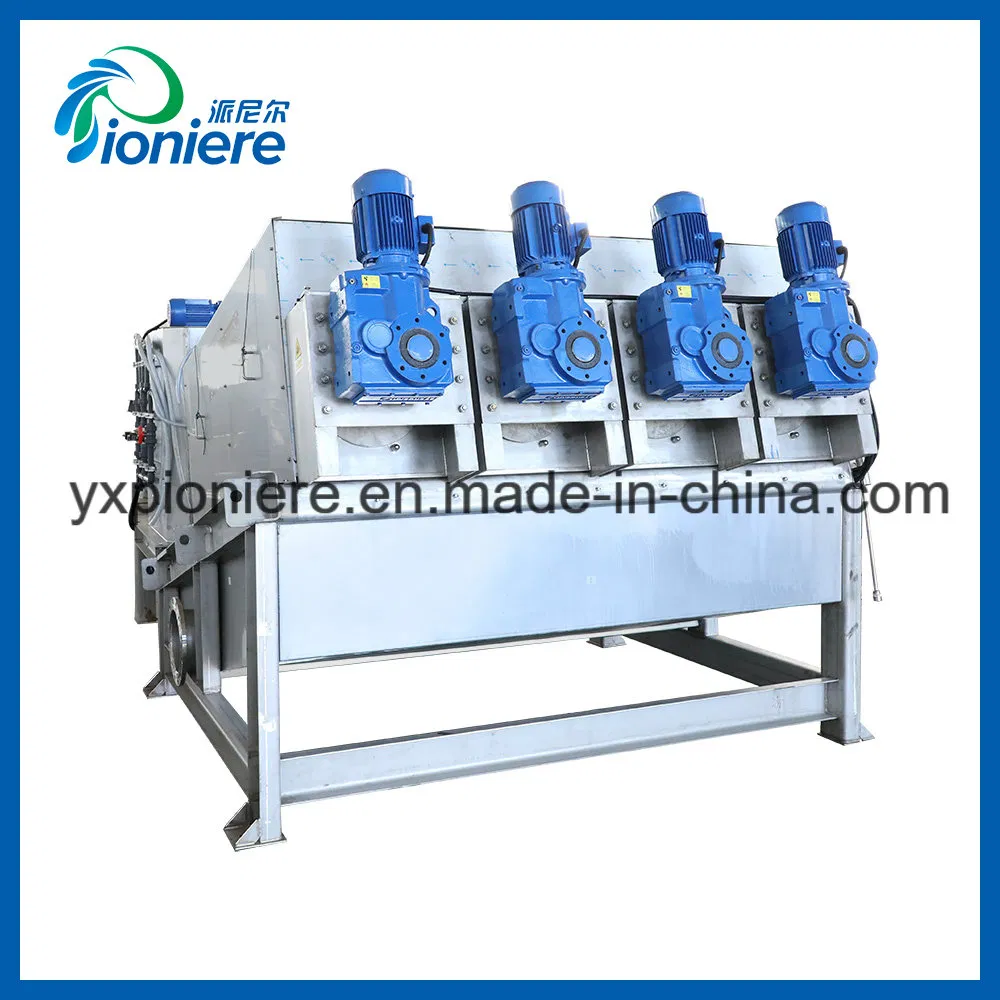

Screw Type Sludge Thickening Equipment is usually used for sludge after biological process and thickening prior to storage, digestion and further dewatering. In WWTP, sludge concentration is about 0.2%-2%. After thickening, the solid content reaches 5% to 9%. Thus stable thickened sludge is provided for further dewatering equipment such as frame press and other machines. Also the dewatering efficiency and capacity are improved.
This machine fits projects with large sludge volume and low demand in moisture content of discharged sludge cake.
| Model No. | DS Standard Capacity(Kg/h) | Sludge Volume (m³/h) | |||||
|---|---|---|---|---|---|---|---|
| Low Conc. | High Conc. | 2000mg/L | 5000mg/L | 10000mg/L | 20000mg/L | 25000mg/L | |
| XF-T401 | 180 | 300 | ~90 | ~36 | ~30 | ~15 | ~12 |
| XF-T402 | 360 | 600 | ~180 | ~72 | ~60 | ~30 | ~24 |
| XF-T403 | 540 | 900 | ~270 | ~108 | ~90 | ~45 | ~36 |
| XF-T404 | 720 | 1200 | ~360 | ~144 | ~120 | ~60 | ~48 |
| Model No. | Dimension (mm) | Rinsing Water (L/h) | Power (kw) | N.W. (kg) | ||
|---|---|---|---|---|---|---|
| L | W | H | ||||
| XF-T401 | 4400 | 1010 | 2250 | 115 | 2.25 | 2100 |
| XF-T402 | 4500 | 1580 | 2250 | 230 | 4.1 | 3150 |
| XF-T403 | 4590 | 2150 | 2250 | 316 | 6.0 | 4100 |
| XF-T404 | 4590 | 2720 | 2250 | 405 | 8.2 | 5000 |

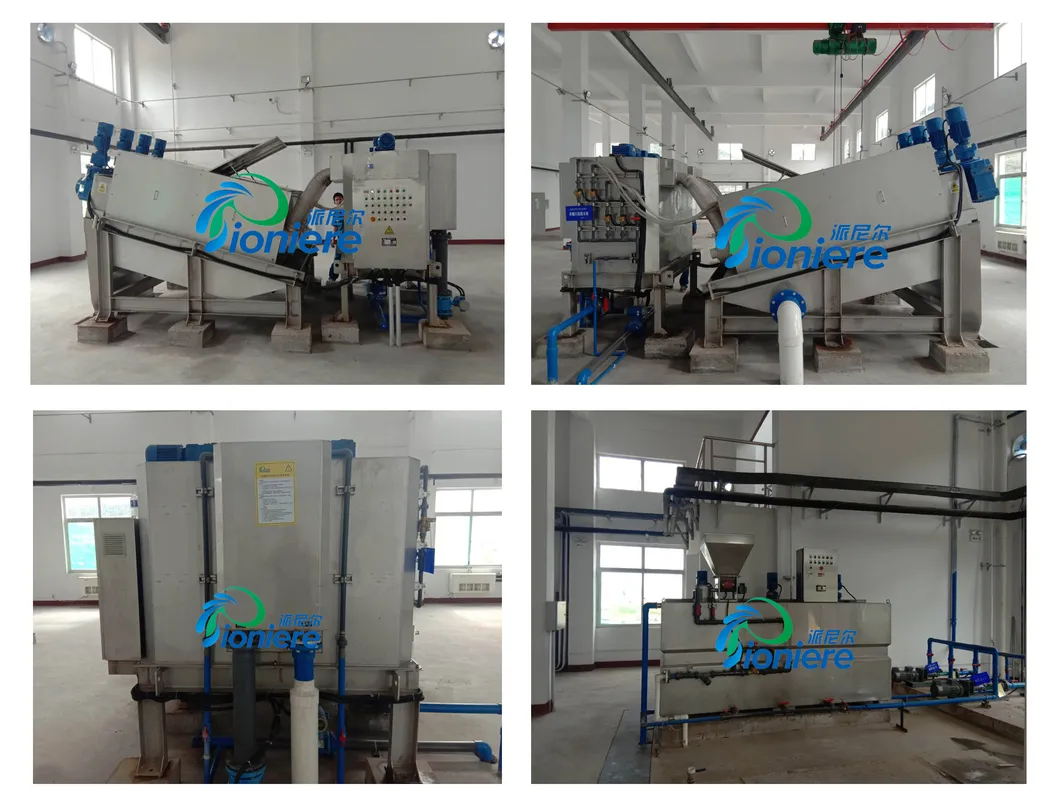

Case Study 1: Municipal Sewage
Location: Lvliang, Shanxi | Model: XF-T404
Case Study 2: Municipal Sewage
Location: Shenzhen, Guangdong | Model: XF-T404
Specialized in manufacturing, developing, and marketing multi-disc sludge dewatering equipment and wastewater treatment systems since 2012. We focus on high quality and technical sophistication to provide the best long-term solutions.
