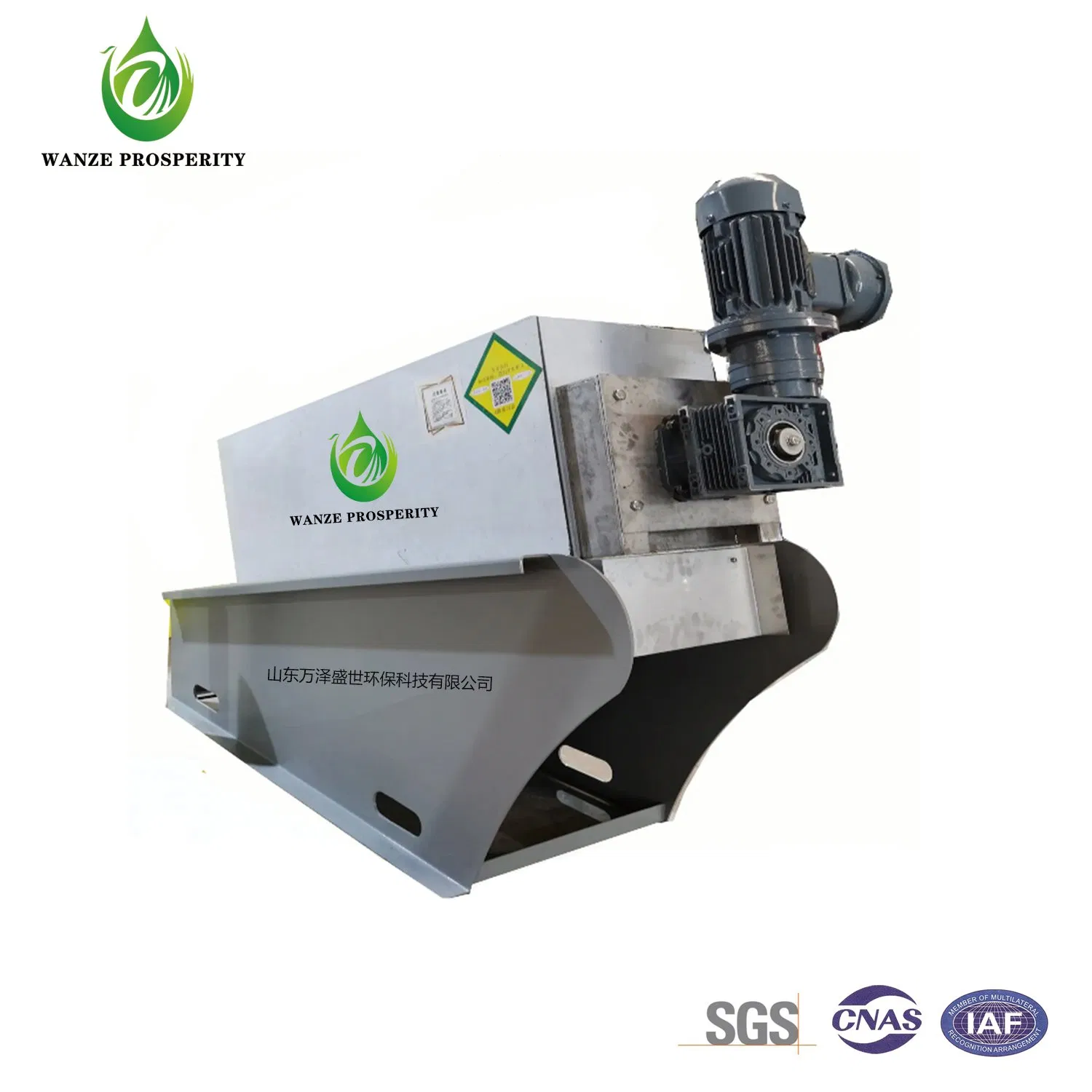

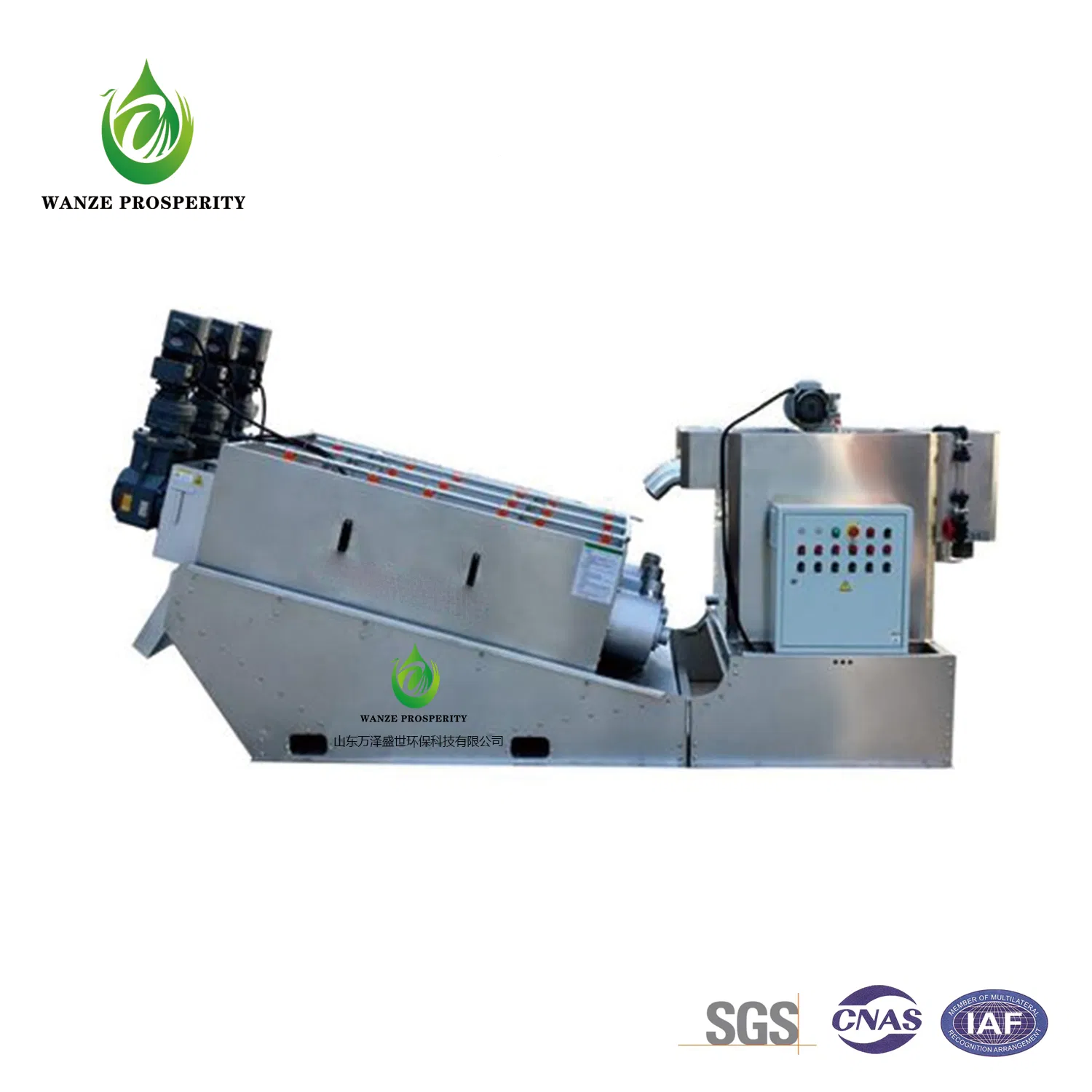

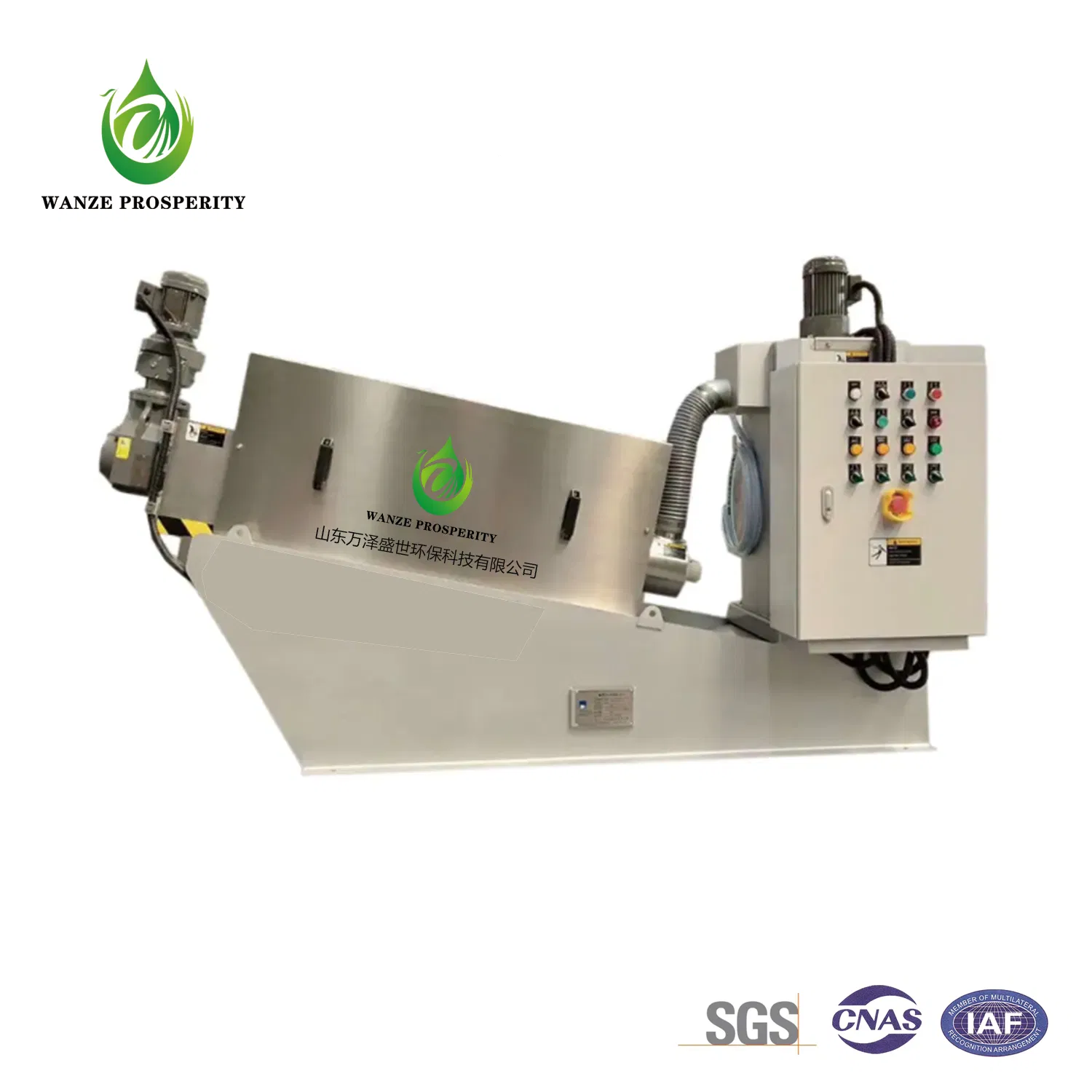

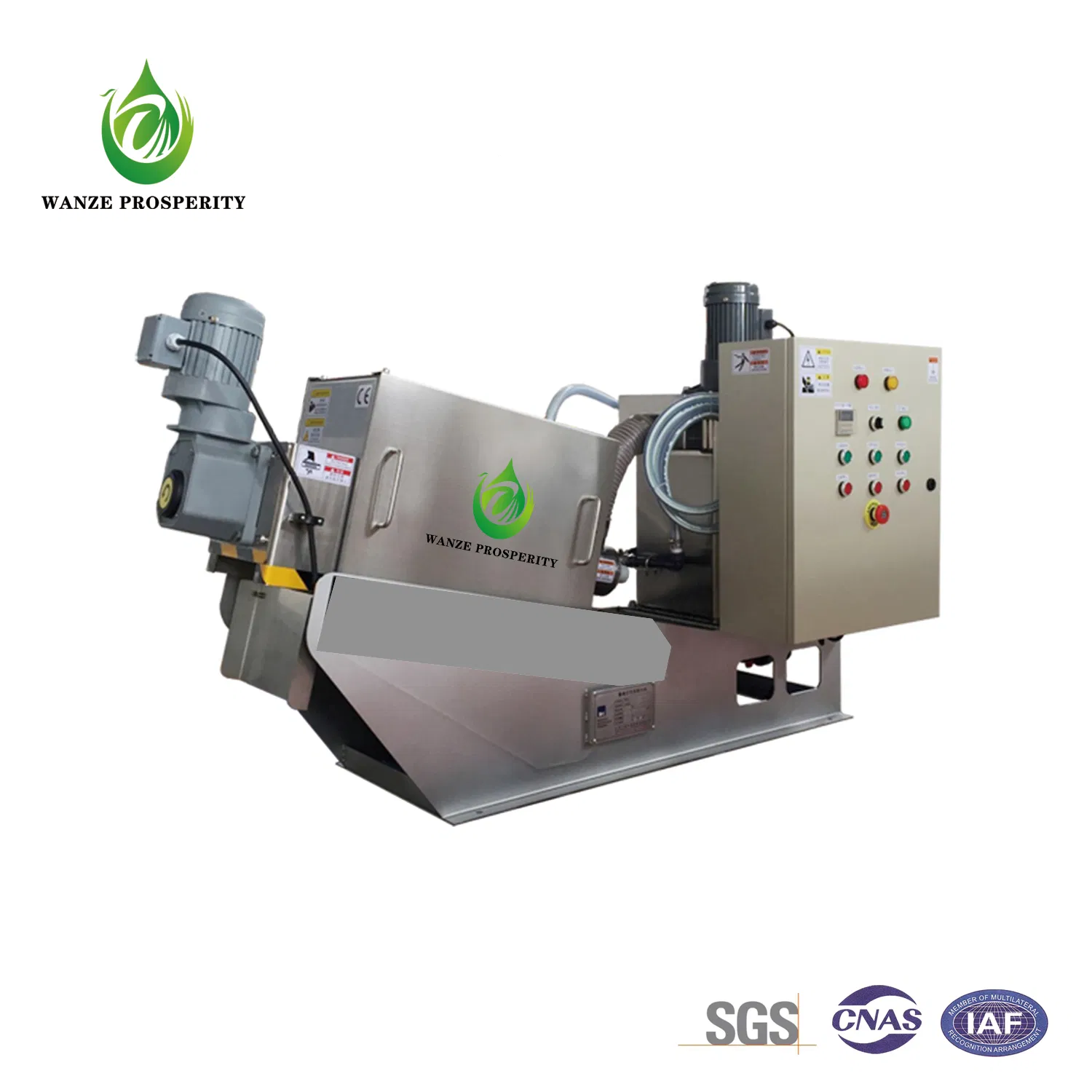

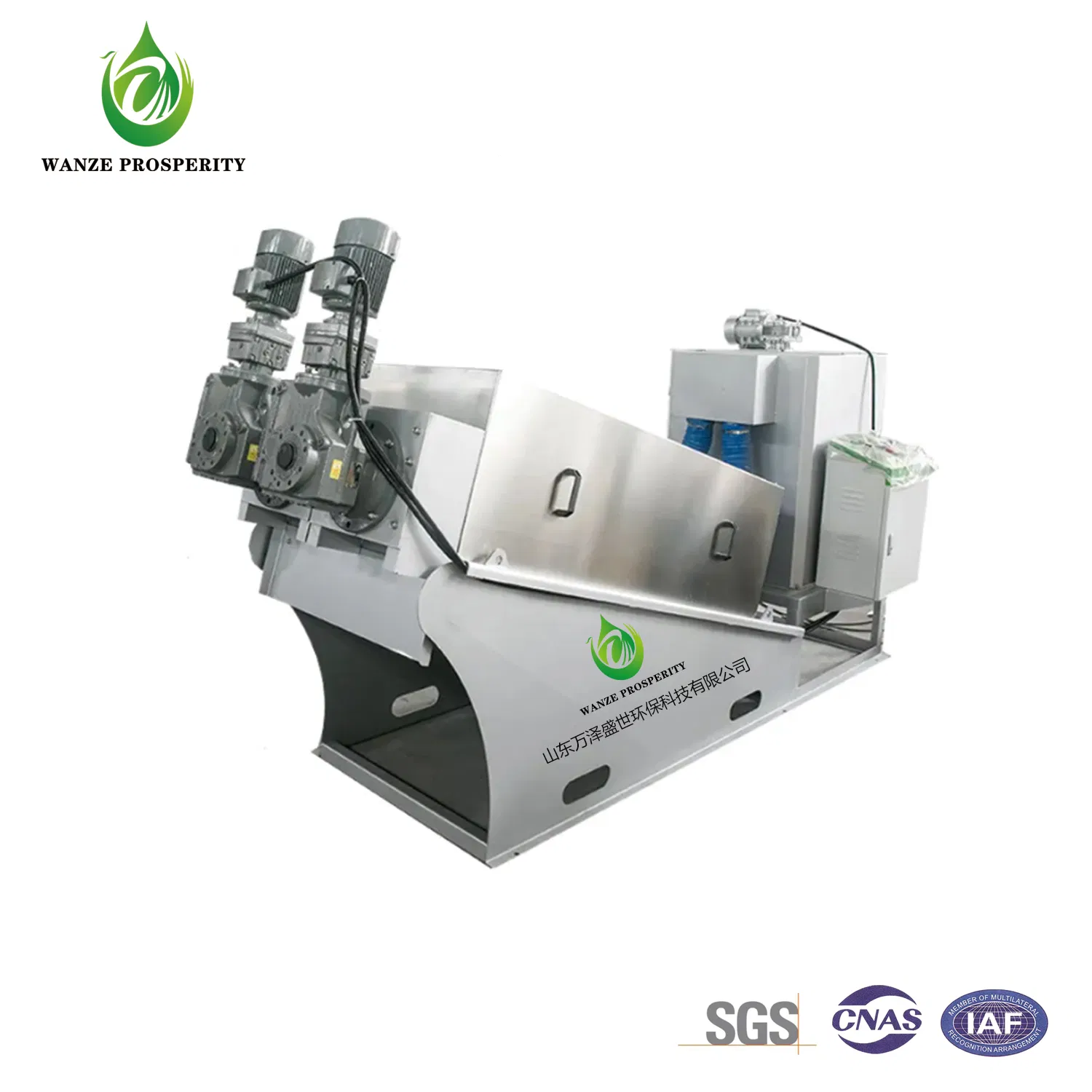

Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
1 / 5
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304
Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304

Small Sludge Stacker / Integrated Thickening and Dehydration System / SS304

Customization: Available
After-sales Service: Online Service
Warranty: One Year Warranty
Send Inquiry

Product Description

Basic Information
Model NO.:
WZSS
Type:
Sludge Dewatering Machine
Method:
Physical Treatment
Usage:
Industrial, Home, Agriculture, Hospital
Power:
1.12-8.2kw
Certificate:
SGS, ISO
Raw Material:
Carbon Steel / SS304
Principle:
Physical Filtration
Service Life:
10 Years
HS Code:
8421219990
Capacity:
2000 Pieces/Year
Packaging & Delivery
Package Size:
300.00cm * 110.00cm * 150.00cm
Gross Weight:
500.000kg
Product Parameters
Model Standard Material Capacity (kg-Ds/h) L*W*H (mm) Net Weight (kg) Power (kw)
WZ101S.S.304 (Optional)4~102200*800*13001781.12
WZ2019~202900*800*15002501.3
WZ20218~403000*1100*15004502.05
WZ30130~603300*900*17207001.65
WZ30260~1203500*1200*172013002.2
WZ503600~9005100*2300*190041005.6
Product Description
◈

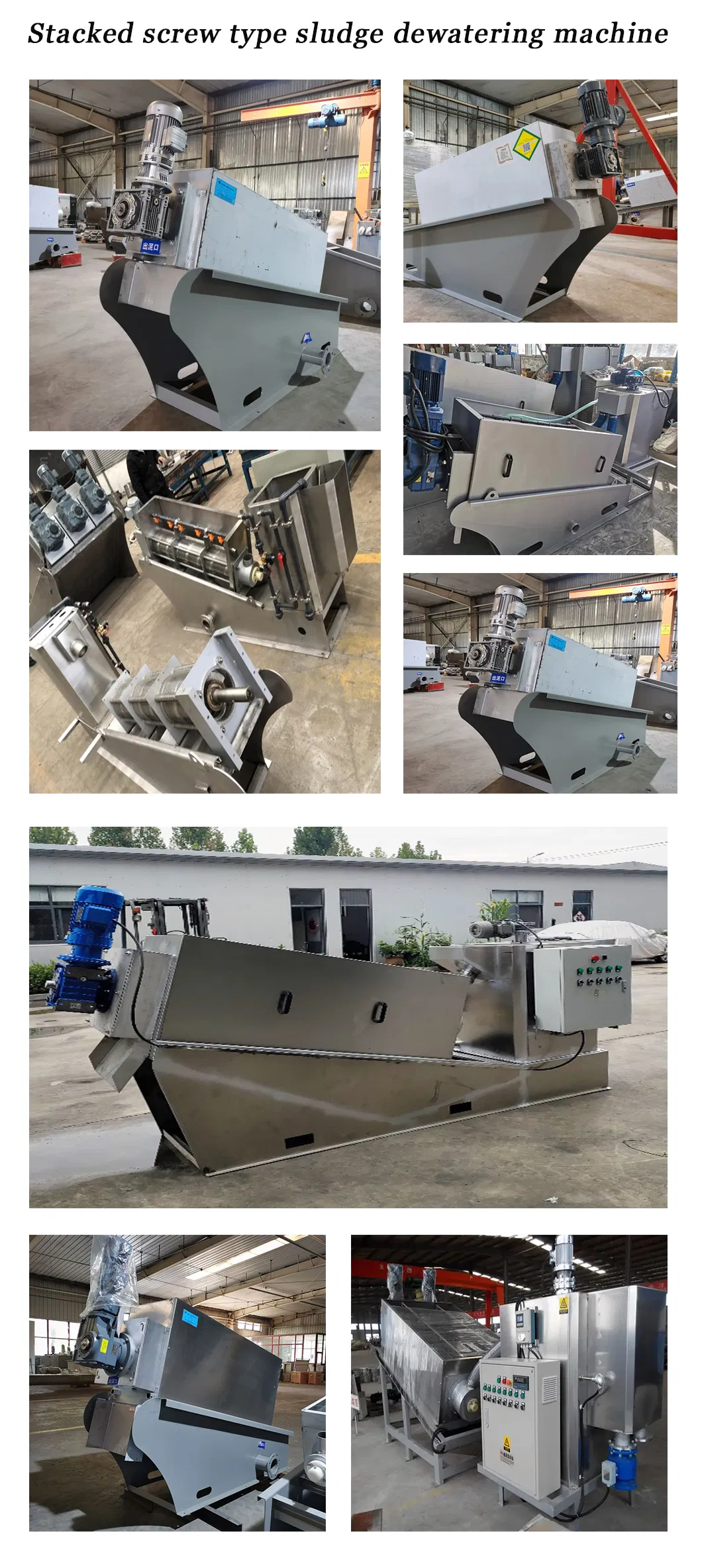

The stacked screw type sludge dewatering machine is a filtering device formed by stacking fixed rings and movable rings, through which a spiral shaft runs. As the pitch between the spiral shaft blades decreases, pressure on the sludge increases, forcing water out from the filtering gap.

Product Description
Our Advantages
✔High Automation: Occupies small area with minimal construction requirements.
✔Low Energy Consumption: Optimized design prevents clogging and reduces operating costs.
✔Broad Application: Ideal for activated sludge from food, chemical, paper making, and municipal plants.

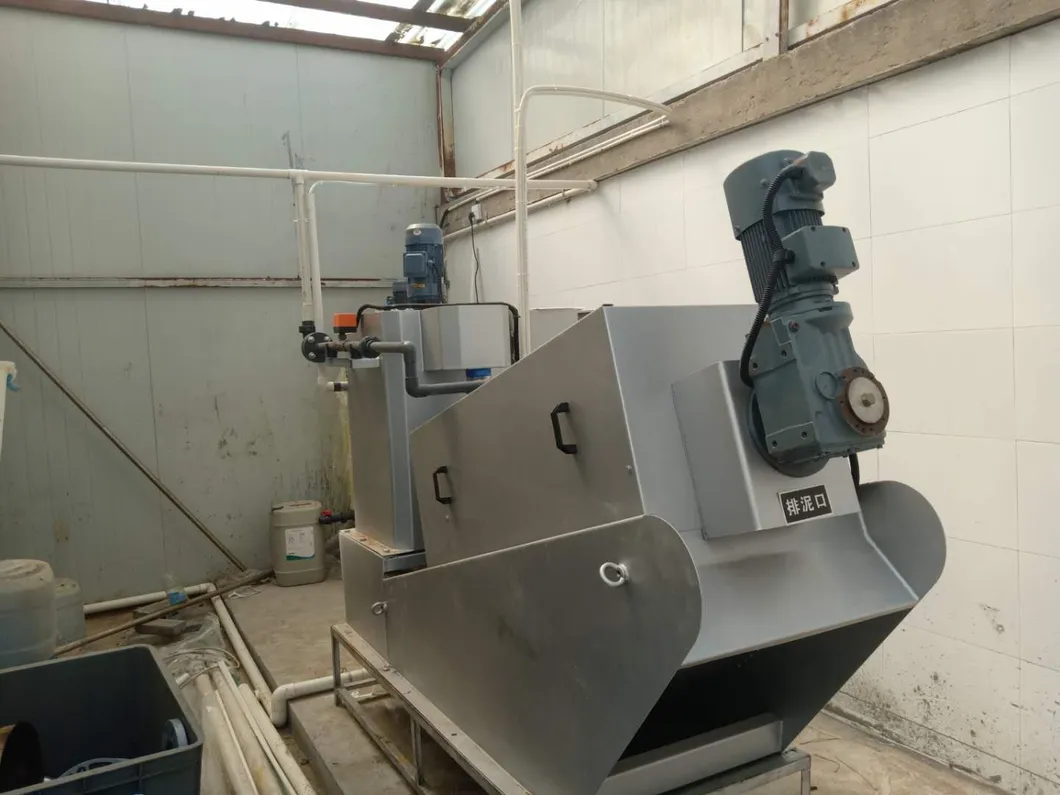

Advantage 1

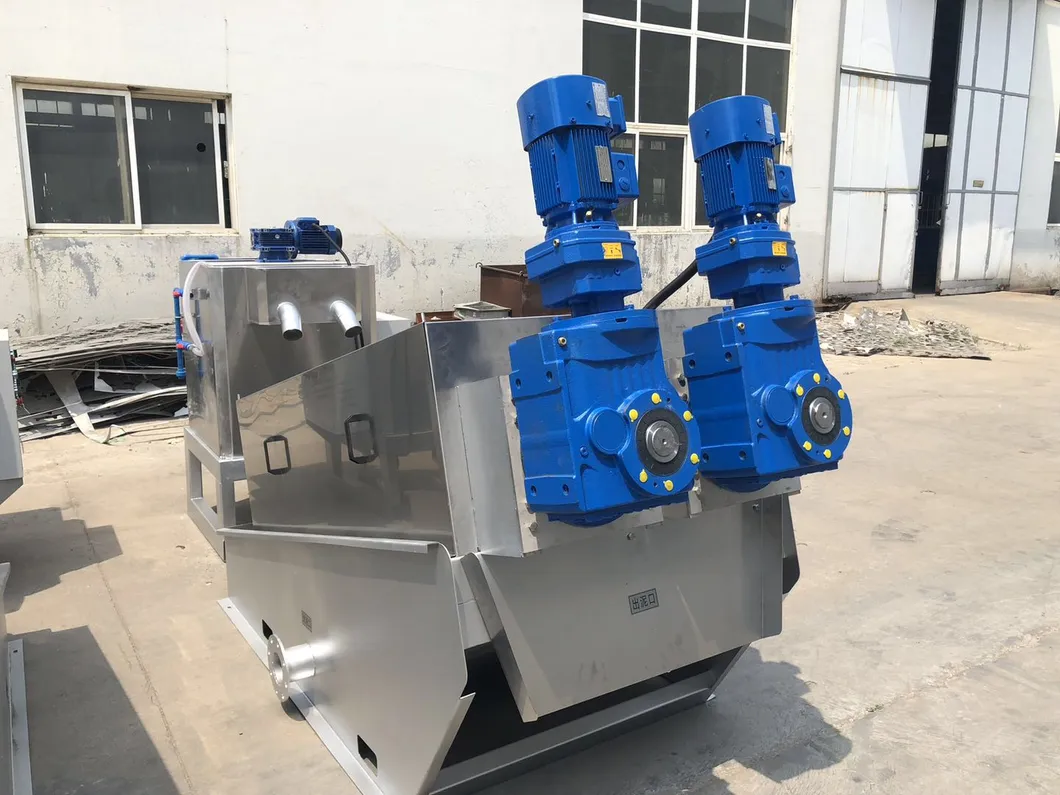

Advantage 2

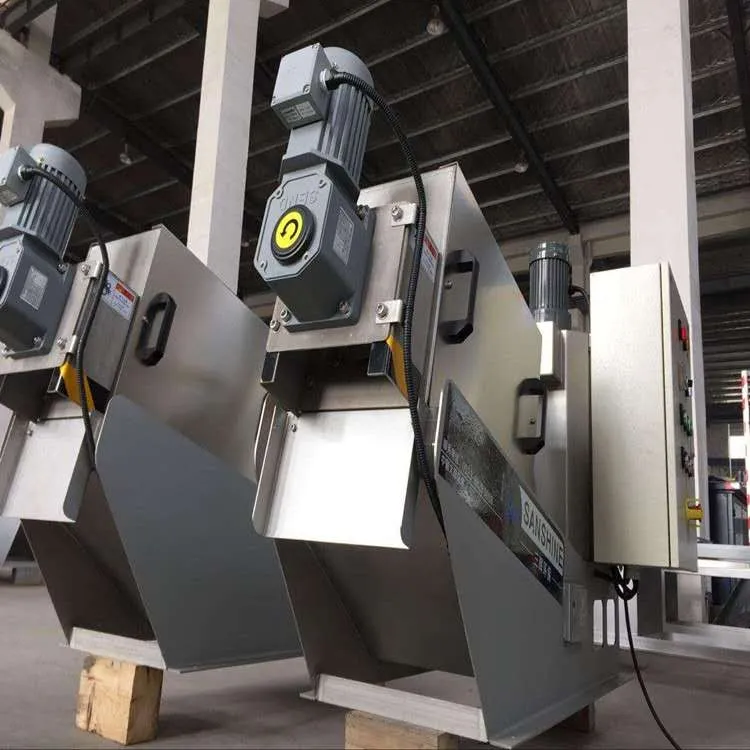

Advantage 3
Certifications
Certifications
Technical Capabilities
⚙

We provide comprehensive sewage treatment solutions, focusing on research, development, and high-tech equipment manufacturing. Our products are widely used in hospital wastewater, aquaculture, industrial circulating water, and organic fertilizer engineering.

Logistics
Frequently Asked Questions
Q: Do you have a minimum order quantity (MOQ)?
A: There is no minimum order requirement, but discounts are available for large quantity orders.
Q: Which certificates do you hold?
A: We are fully certified with ISO and SGS certificates to ensure equipment quality.
Q: Can you meet special requirements for the product?
A: Yes, we have a professional design team that can provide customized drawings according to your specific needs.
Q: What are the acceptable payment terms?
A: We accept T/T and L/C. Generally, a 30% deposit is required before production, with the 70% balance due before loading.
Q: What is the standard delivery time?
A: It depends on the order quantities. Generally speaking, delivery time is within 2 to 4 weeks.
Q: How is the equipment packed for shipping?
A: We use standard export packaging. If you have special requirements, we can accommodate them accordingly.
