High Precision Smart Vial Infusion System for Accurate Dosing/Intelligent Vial Infusion System for Precise Liquid Dosing Solutions

Application:	Chemical Industry, Pharmaceutical Industry
Features:	Sterilization Capability, Temperature Control, Vacuum Packaging
Machine Material:	Carbon Steel, Stainless Steel

Send Inquiry

Product Description

Basic Information

Model NO.

customized

Packaging Material

Glass, PVC

Warranty

1 Year

Pump Type

Ceramic, Peristaltic, Metal Pump

Process Type

Washing, Sterilizing, Filling, Stoppering, Capping

Industrial Use

HPLC, LC, GC Analysis

Capacity

Customized

Machine Type

Pharmaceutical Packaging

Dosage Form

Liquid

Precision

High Precision

Certification

CE, GMP, ISO

Voltage

380V

Origin

China

HS Code

8422303090

Product Overview

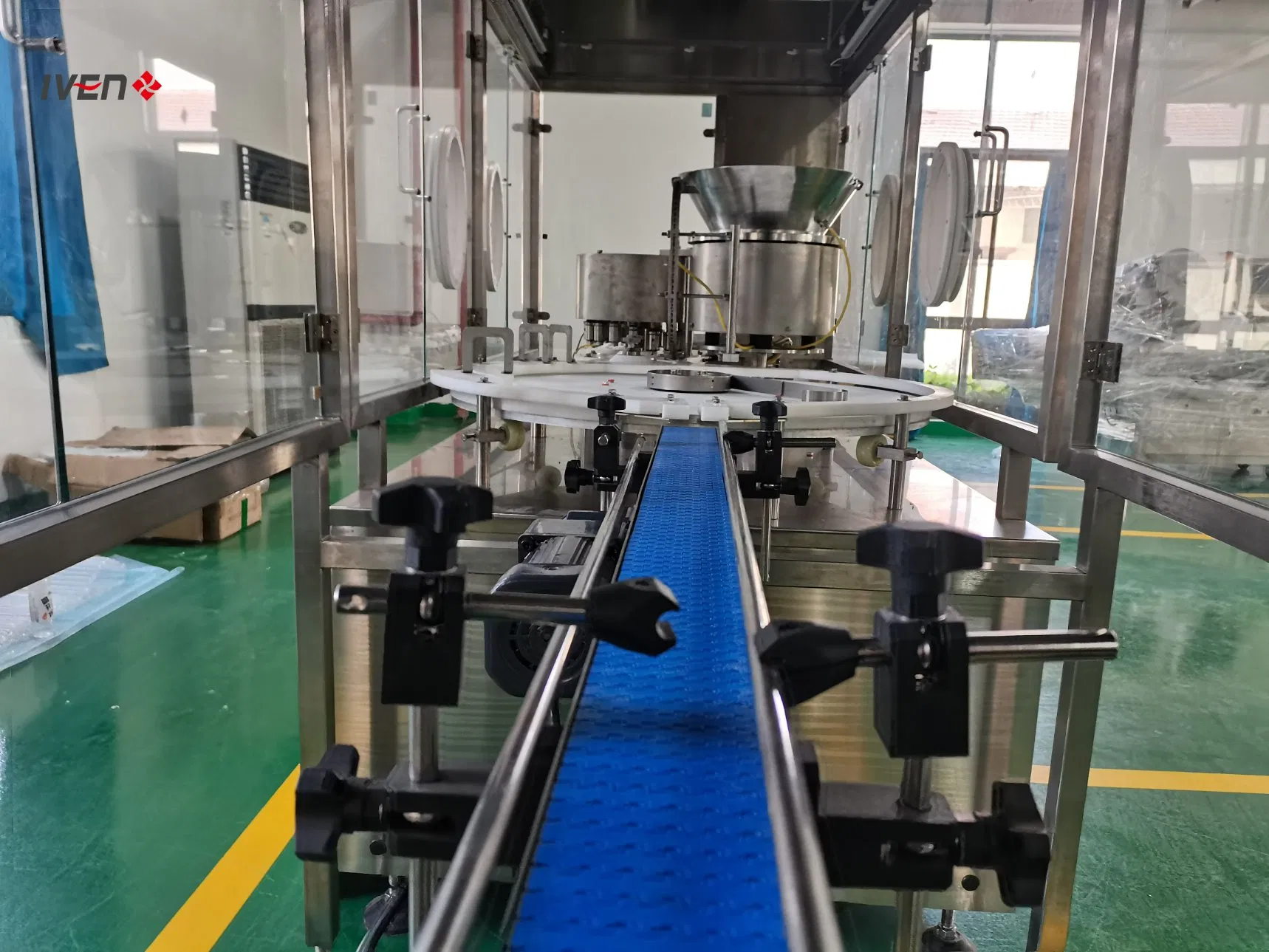

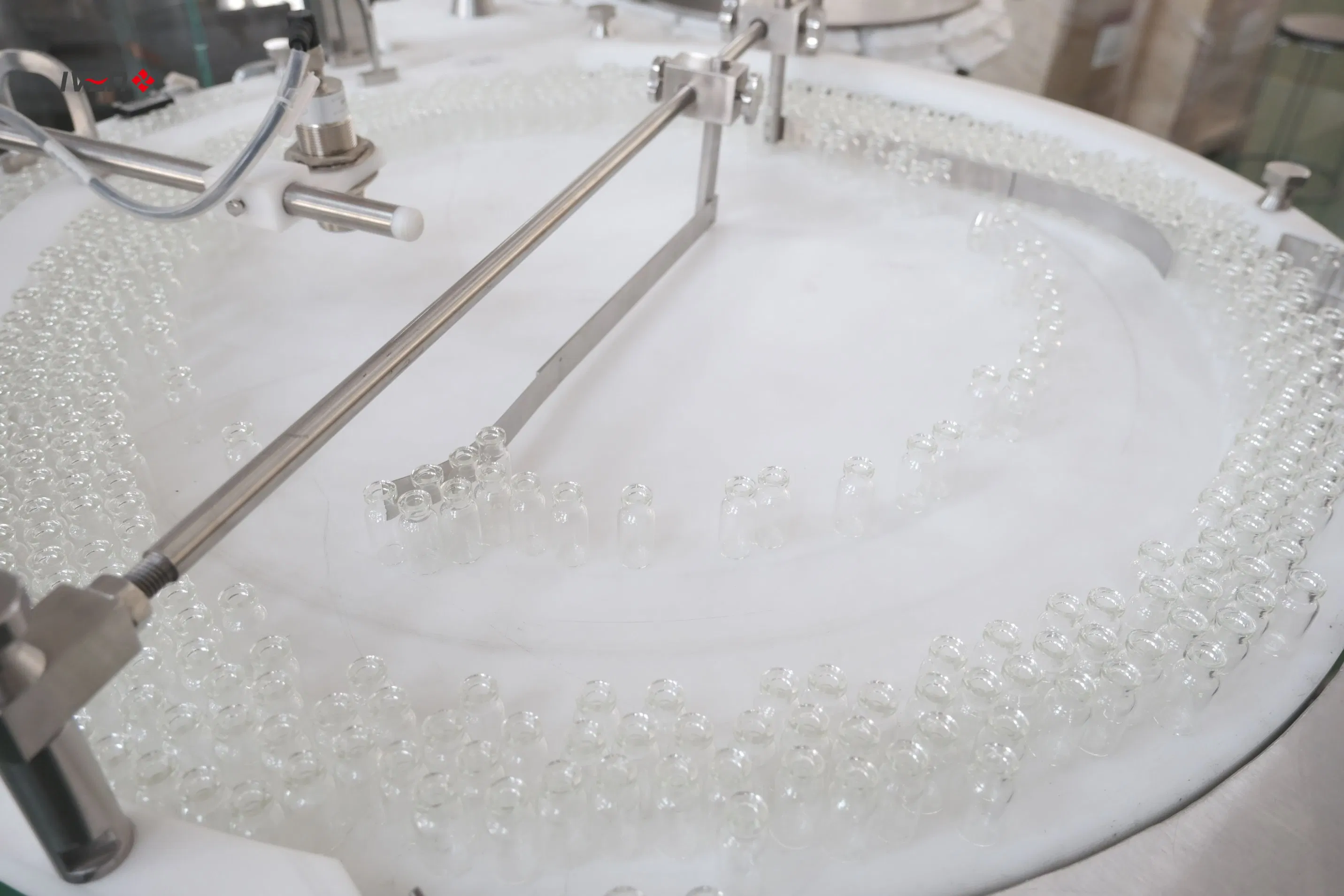

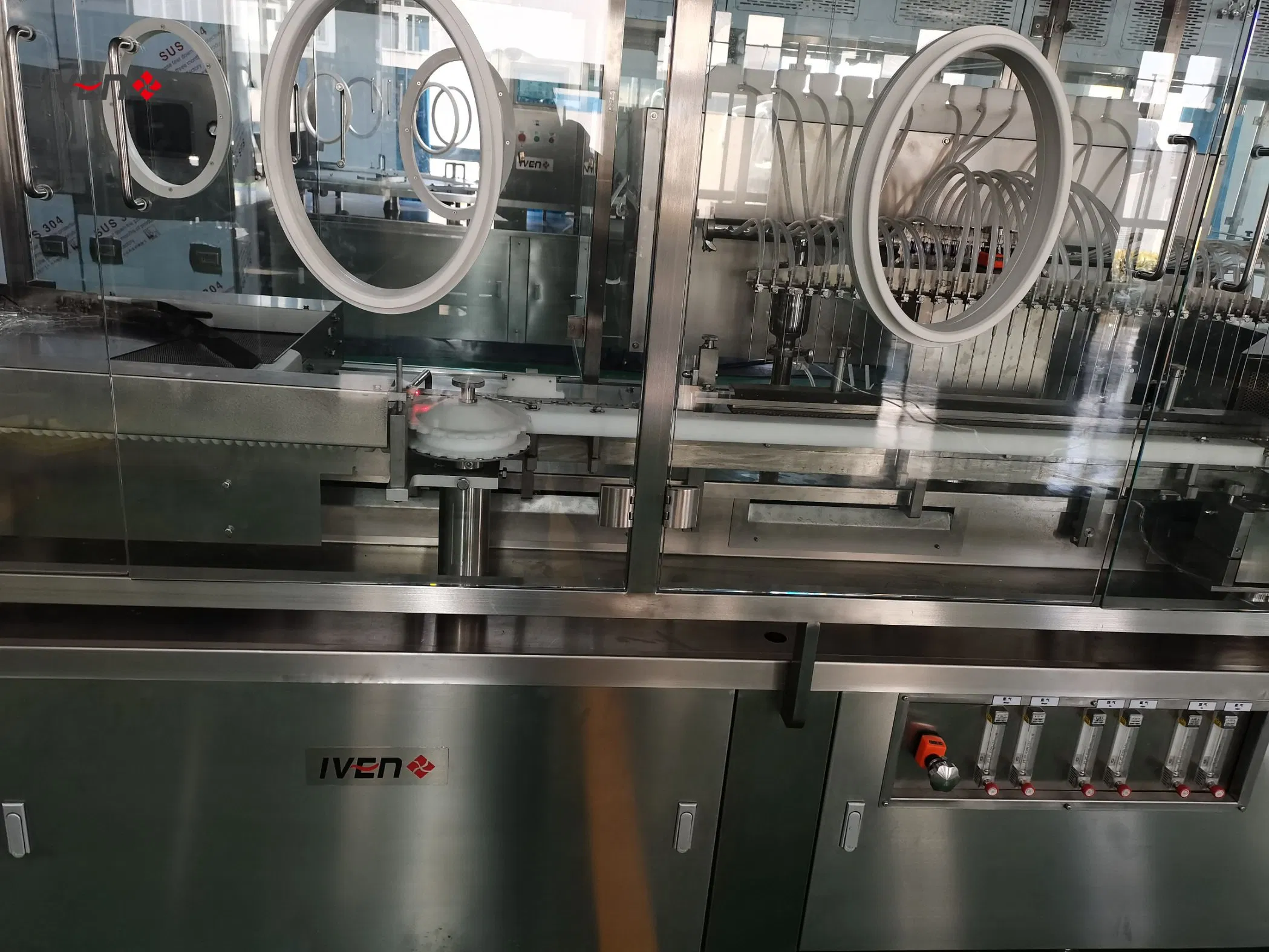

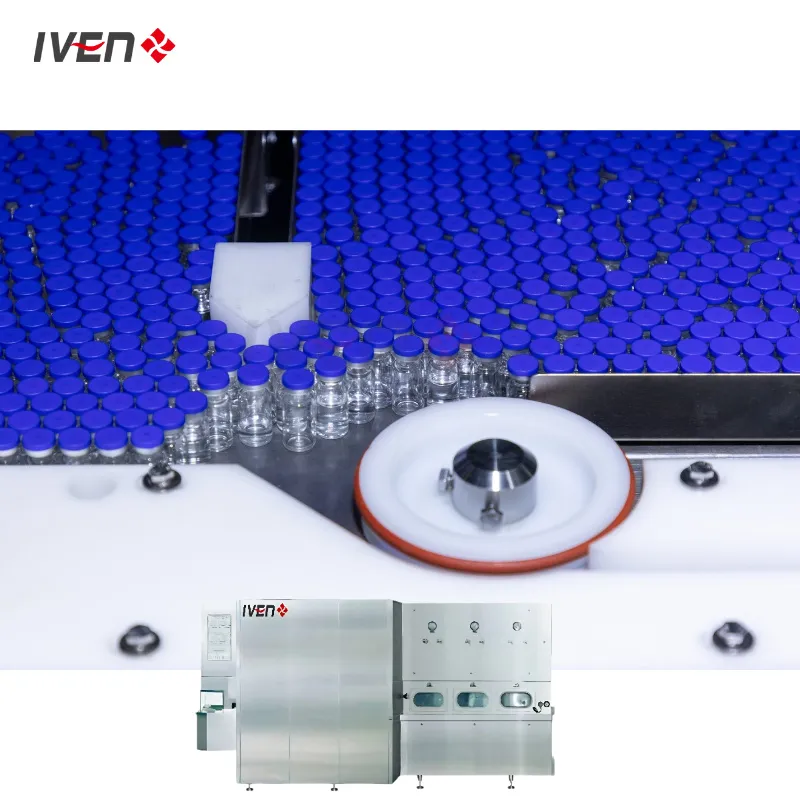

The Vial liquid filling line includes an ultrasonic washing machine, RSM sterilizing drying machine, filling and stoppering machine, and capping machine. This line can work together as a synchronized system or independently. It completes the full process of ultrasonic washing, drying & sterilizing, filling & stoppering, and capping.

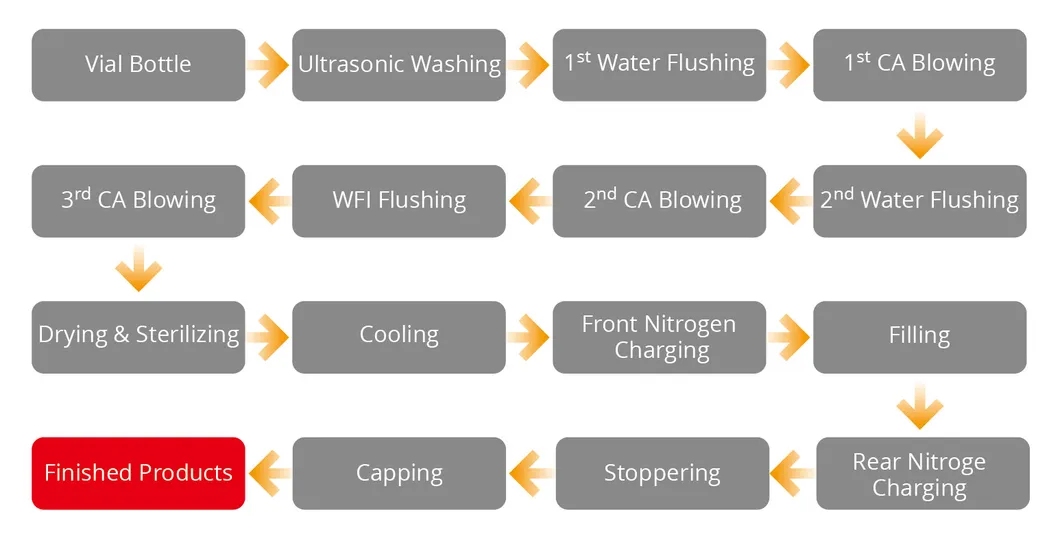

Key Production Procedures

Compact line realizes single linkage and continuous operation from washing to capping.
Full production process ensures cleaning operation, protecting products from contamination to meet GMP standards.

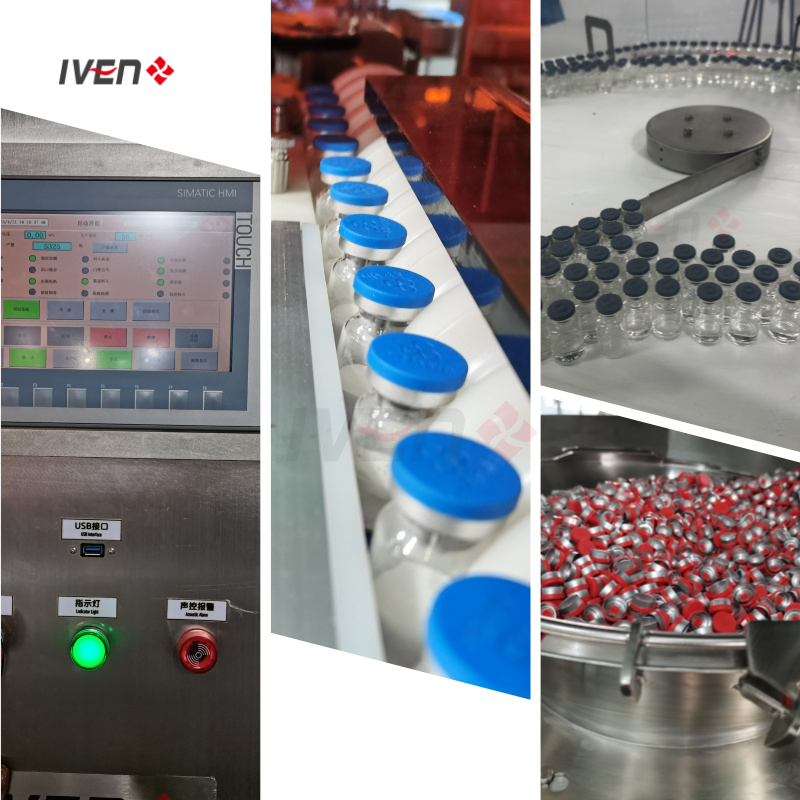

Adopts PLC total control, frequency converter, and touch screen technology for stable operation.
Power-off restart data saving function for each independent machine.

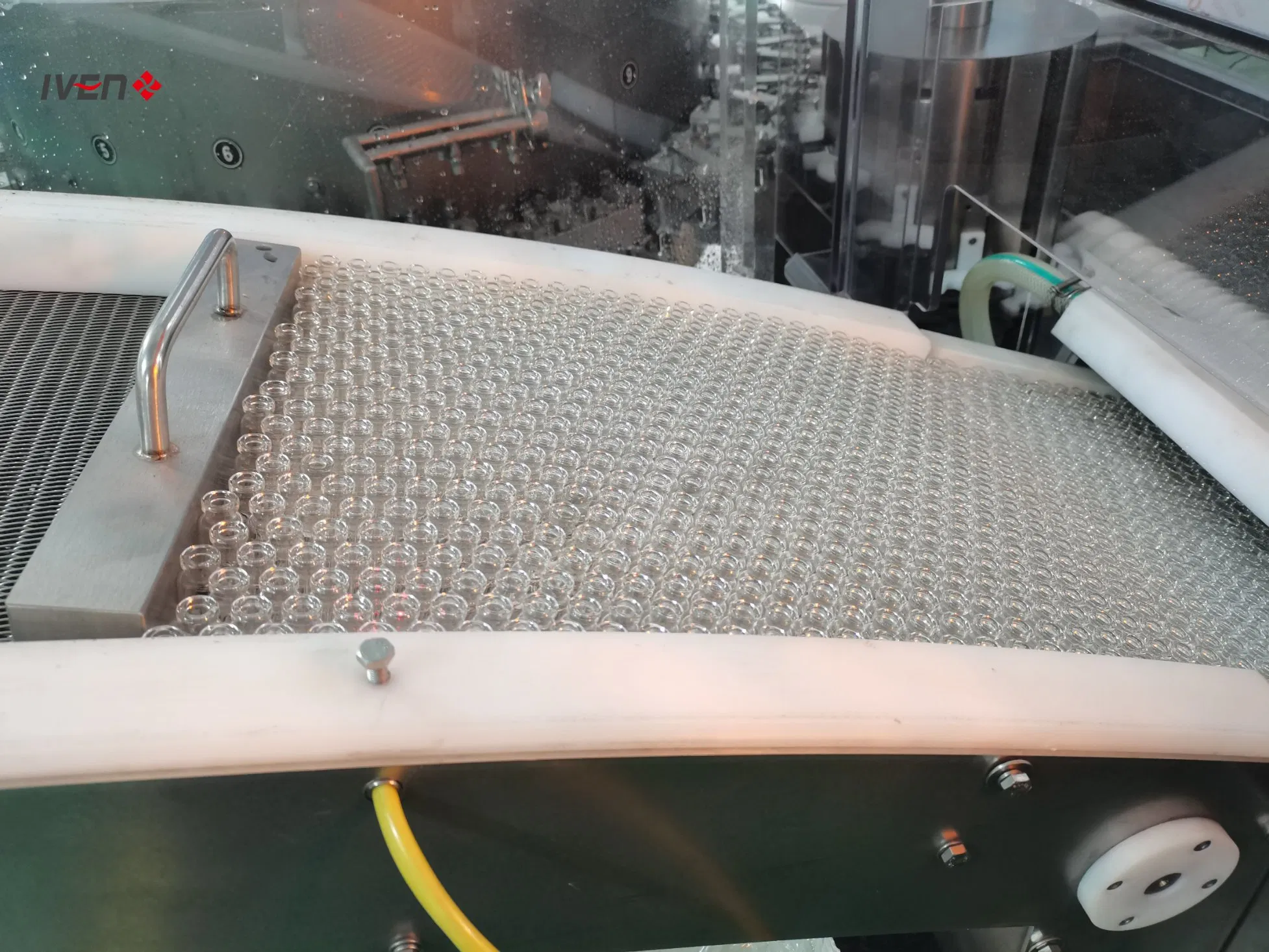

Ultrasonic washing CIP station for the mesh belt of the sterilizer.
Smart sensors: No vial-no filling, no vial-no stopper, and no vial-no capping.
Automatic rejection system for unqualified vials.
Superior SS 316L material for drug contact parts to ensure no dead angles.
Industrial PC control with Audit trail, data integrity, and remote access features.

Technical Parameters

Model	Production Line	Suitable Size	Output (max)	Power	Net Weight	Overall Size
BXKZ I	CLQ 40 / RSM 620/44 / KGF 8	2.25 ml	6000-12000 pcs/h	69.8 KW	7500 Kg	9930×2500×2340 mm
BXKZ II	CLQ 60 / RSM 620/60 / KGF 10	2.25 ml	8000-18000 pcs/h	85.8 KW	8000 Kg	10830×2500×2340 mm
BXKZ III	CLQ 80	2.25 ml	10000-24000 pcs/h	123.8 KW	8100 Kg	10830×2500×2340 mm

Technical Features

Full Servo Control: High precision and synchronization across the line.
Protective Design: Transparent self-lifting cover with humid air outlet and electric screw control.
Ceramic Pump System: Ensures high filling accuracy for various liquid medicines.
Rotational Stoppering: Inserting while rotating effectively ensures a perfect seal.

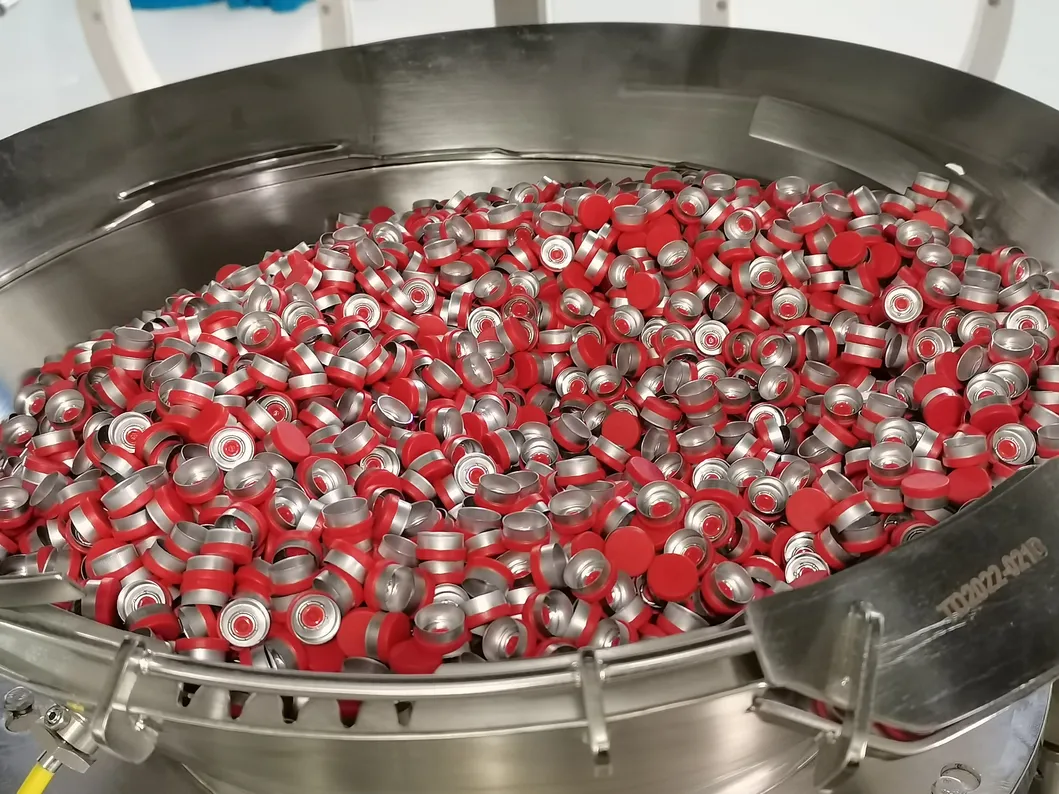

Waste Management: Capping machine includes a vacuum device to absorb aluminum scrap.

Frequently Asked Questions

1. What processes are integrated into this vial filling line?

The system integrates ultrasonic washing, drying & sterilizing, high-precision liquid filling, stoppering, and aluminum capping into one continuous automated line.

2. Does the equipment comply with international pharmaceutical standards?

Yes, all machinery is designed and manufactured in strict accordance with GMP, FDA, and WHO requirements to ensure safety and hygiene in production.

3. How is filling accuracy guaranteed?

We utilize a high-precision ceramic pump filling system. The full servo control system further ensures that each vial is filled with extreme accuracy and consistency.

4. What materials are used for the parts that contact the medicine?

All components that come into direct contact with the product are made from superior SS 316L stainless steel, designed without dead angles to facilitate easy cleaning and sterilization.

5. Can the equipment be customized for specific requirements?

Absolutely. We offer customization for capacity, voltage, pump types (ceramic, peristaltic, or metal), and overall layout to fit your specific factory needs.

6. What type of control system is used for monitoring?

The entire line features a centralized PLC system with touch screen interfaces, offering real-time monitoring, data integrity, and graphical debugging capabilities.
