Basic Information
| Model NO. |
thickener |
Diameter |
30m |
| Application |
Mine |
Condition |
New |
| Warranty |
1 Year |
Product Name |
Coal Concentrator Equipment Pulp Thickener |
| Rake Lifting Speed |
31.4 mm/Min |
Apply to |
Concentrate and Tailings |
| Production Capacity |
300 Set/Sets Per Month |
Origin |
China |

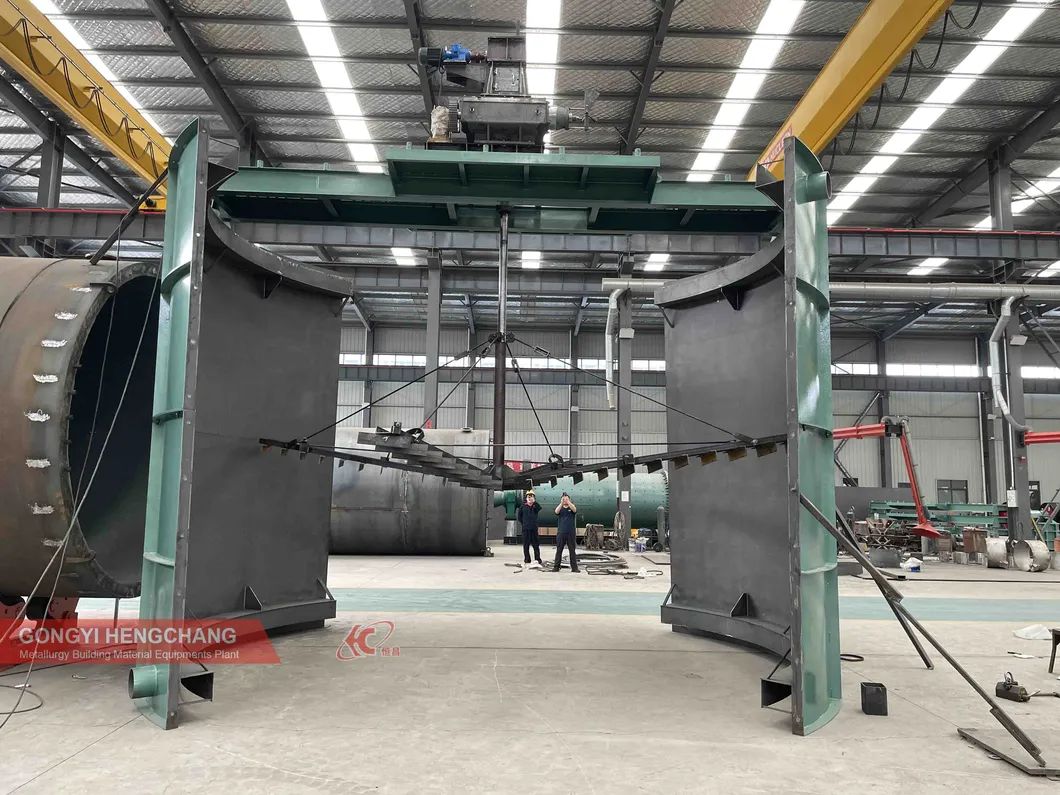

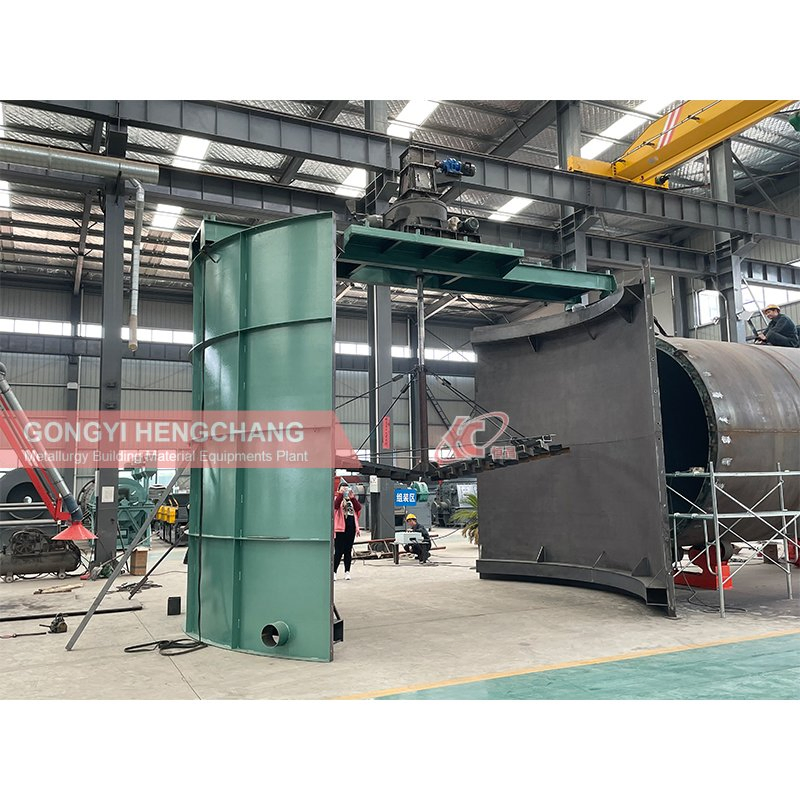

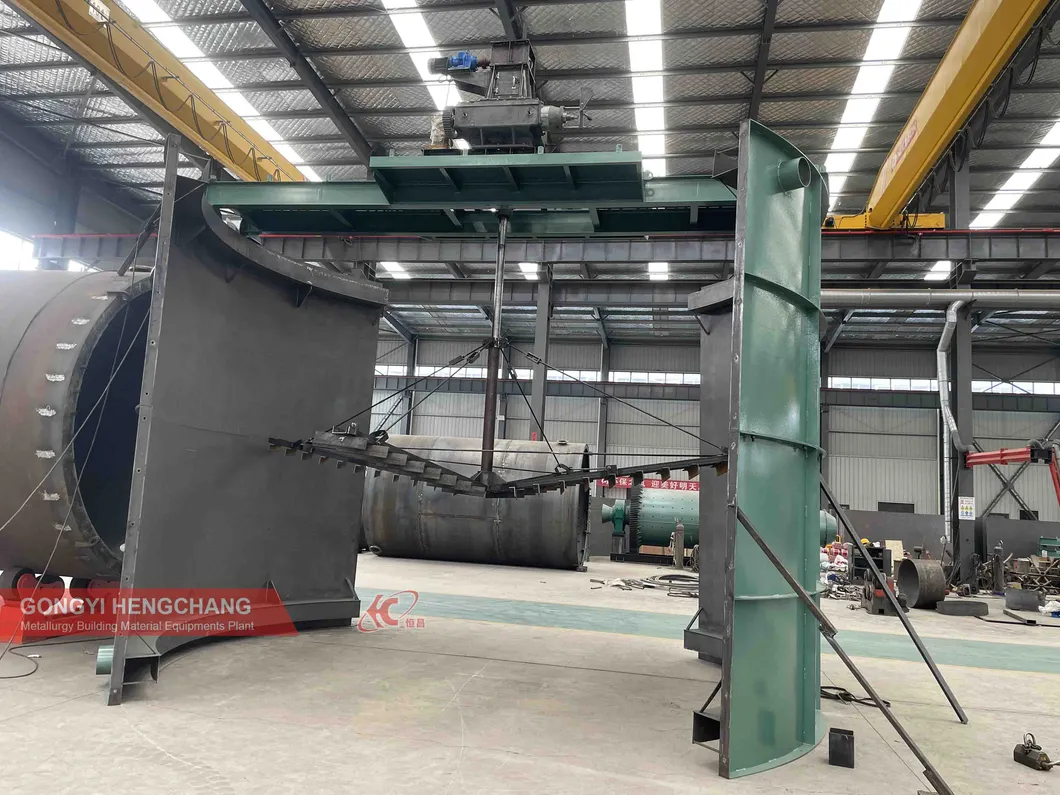

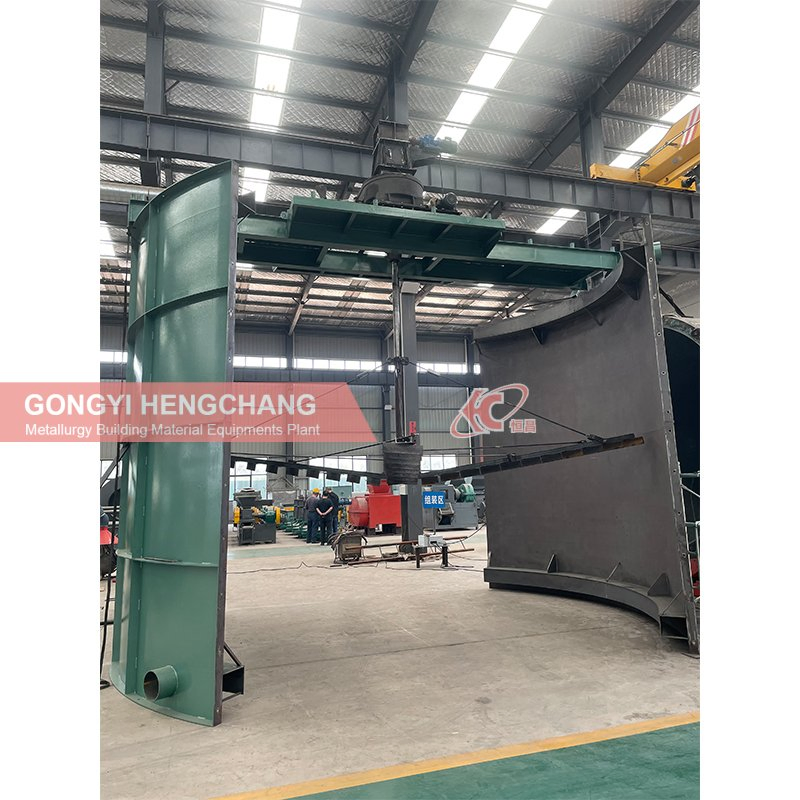

Product Description
The thickener is applicable to the dehydration treatment of concentrate and tailings in concentrators, and is widely used in the concentration and dehydration of slime, wastewater and waste residue in metallurgy, mining, coal, chemical industry, building materials, environmental protection and other departments. There are three series: NZ series central drive thickener, NXZ series central drive automatic rake lifting high-efficiency thickener and NZT series peripheral drive high-efficiency thickener.
Technical Parameters
NZ Series Center Drive Thickener
| Model |
Pool diameter (m) |
Settlement area (m2) |
Rake lifting speed (mm/min) |
Rake lifting height (mm) |
Capacity (t/24h) |
Power (kW) |
| NZ6 | 6 | 28 | 31.4 | 200 | 14-62 | 1.1 |
| NZ9 | 9 | 63.5 | 31.4 | 250 | 32-140 | 3 |
| NZ12 | 12 | 113 | 31.4 | 250 | 56-250 | 3 |
NXZ Series High Efficiency Thickener
| Model |
Pool diameter (m) |
Depth (mm) |
Settlement area (m2) |
Rake lifting speed (mm/min) |
Capacity (t/24h) |
Weight (t) |
| NXZ6 | 6 | 3100 | 28.27 | 32 | 50-100 | 2.6 |
| NXZ15 | 15 | 4510 | 176 | 35 | 350-400 | 24 |
| NXZ30 | 30 | 5343 | 706 | 31 | 1500-2000 | 46 |

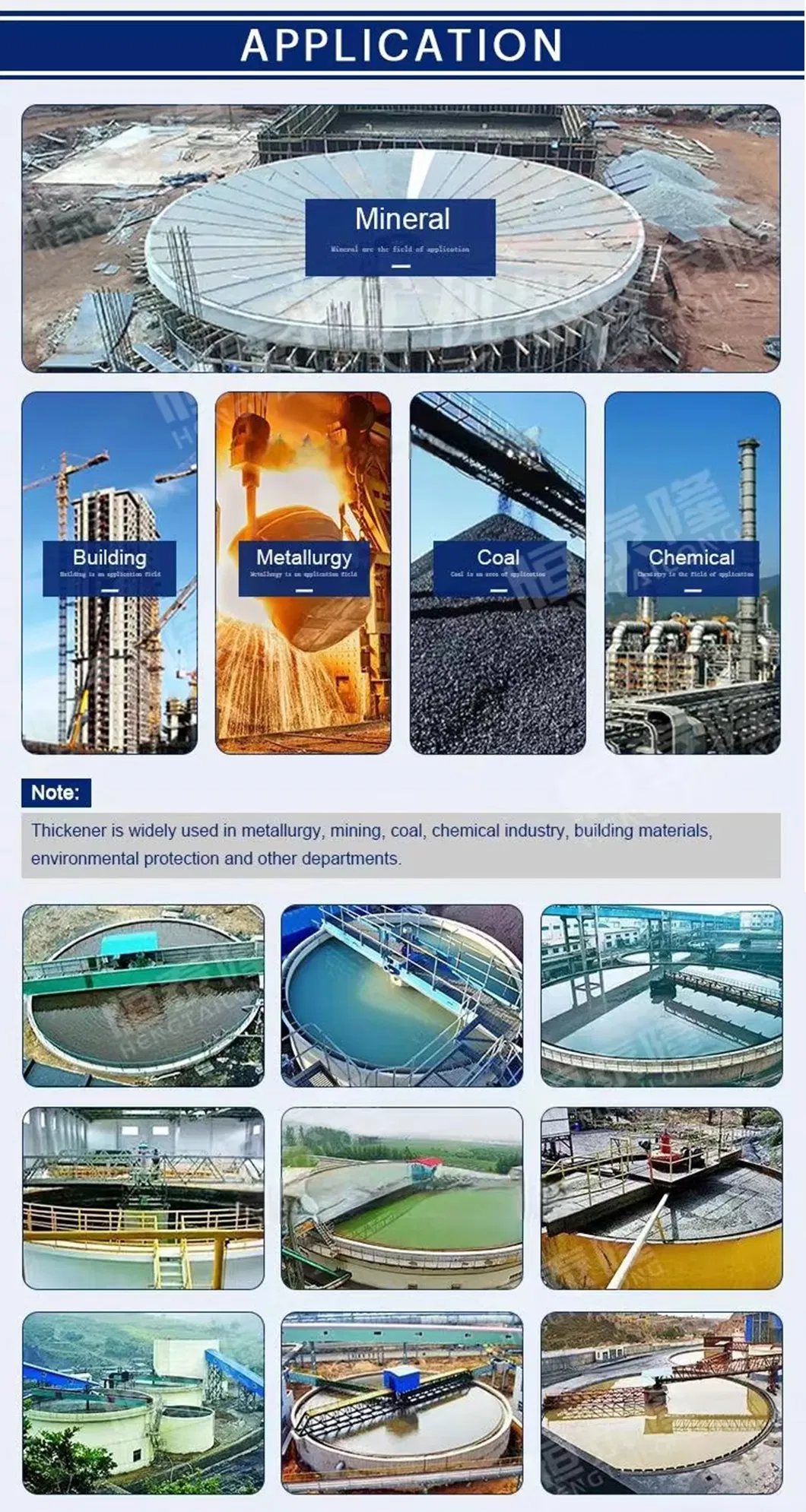

Product Application
This equipment is designed for handling large capacity and light density products. It is primarily used for condensing concentrate and dewatering tailings. Additionally, it effectively treats pulp containing solid particles in coal, chemical industries, building materials, and sewage treatment systems.

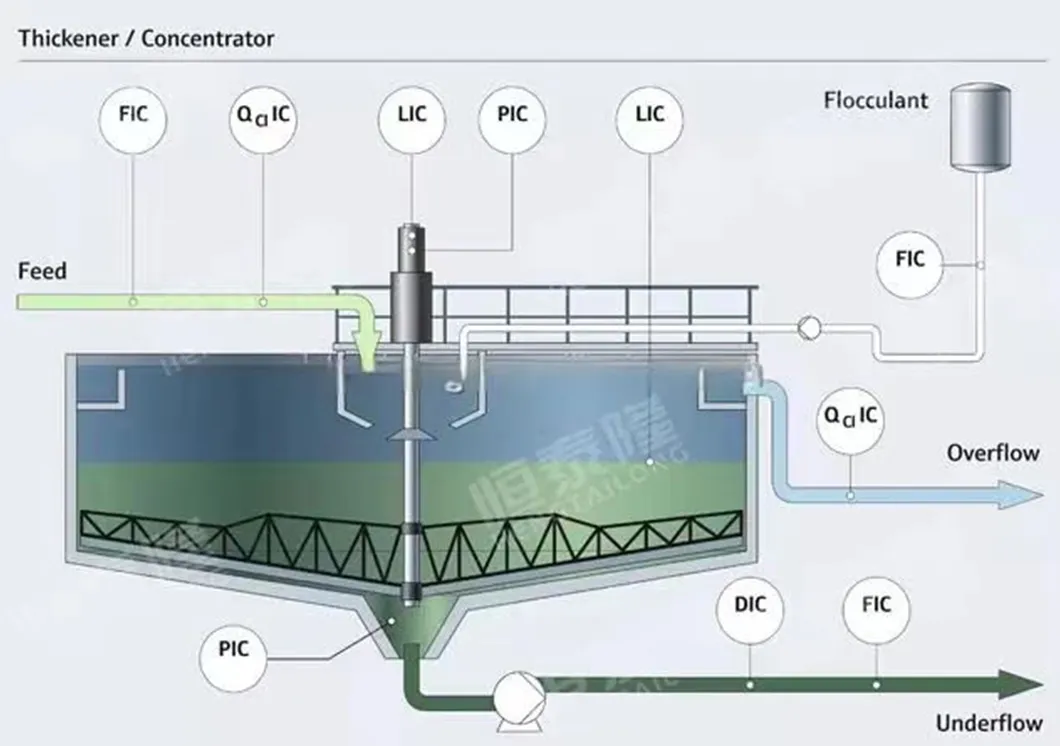

Operating Principle

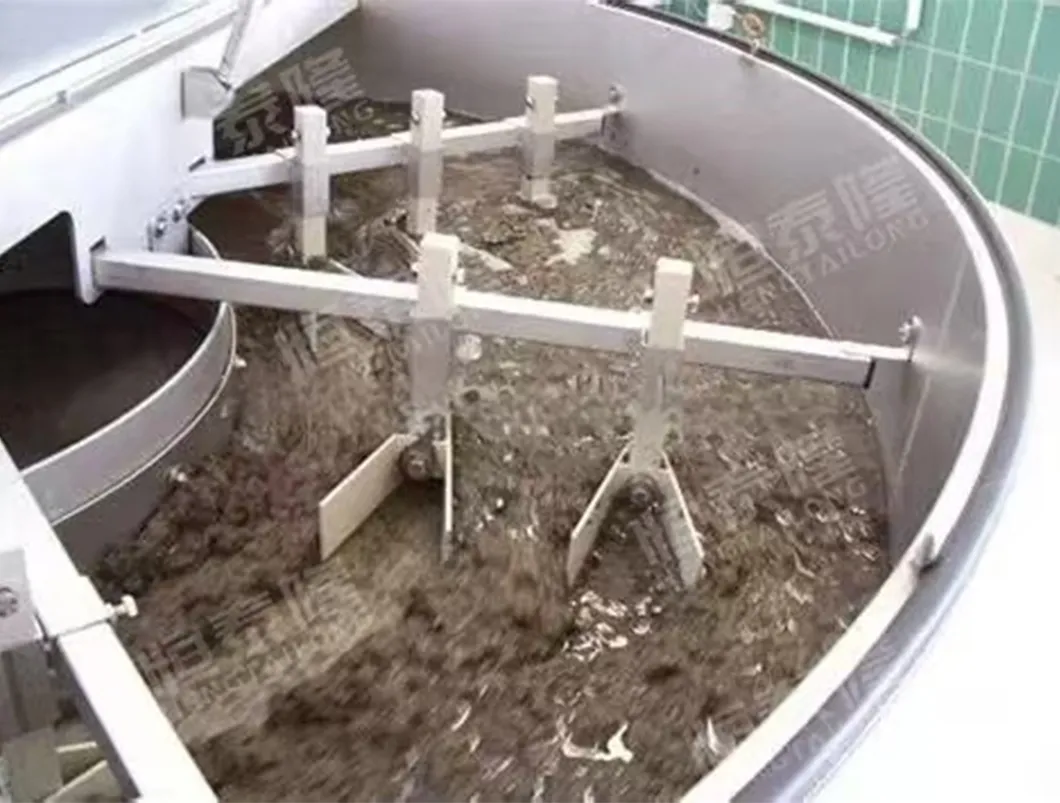

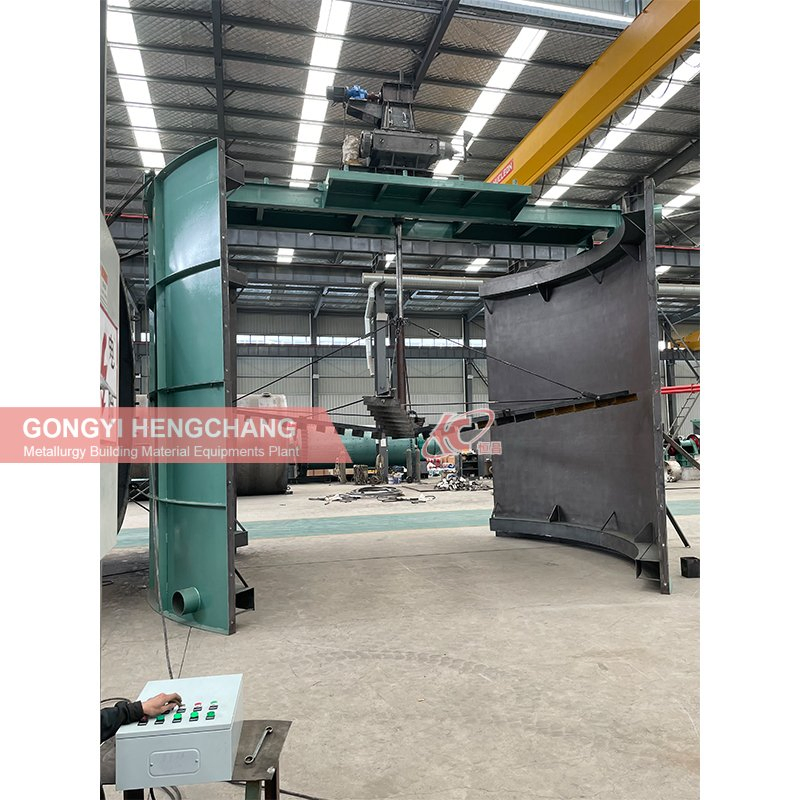

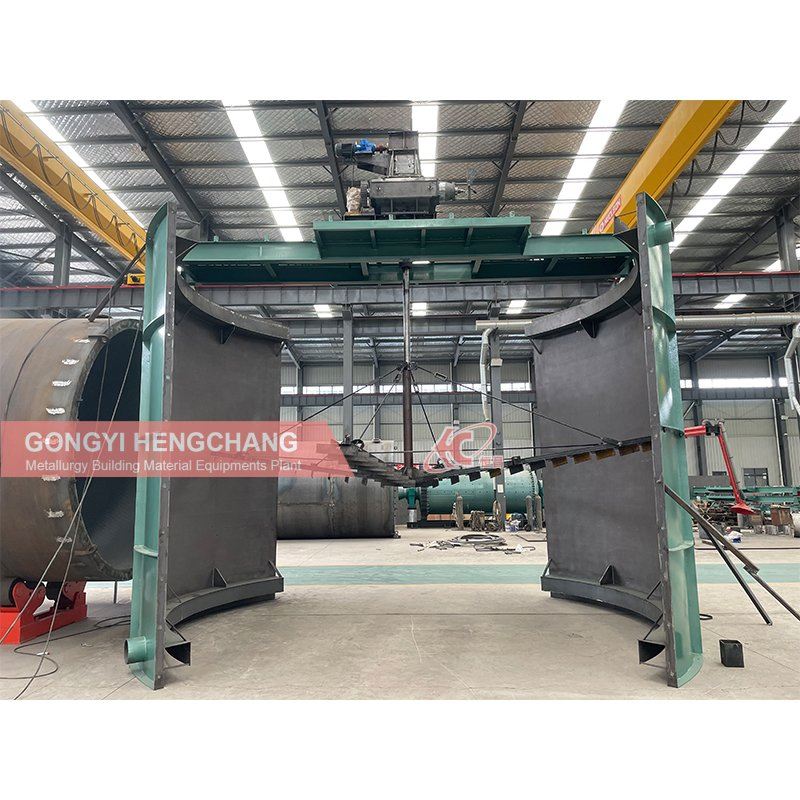

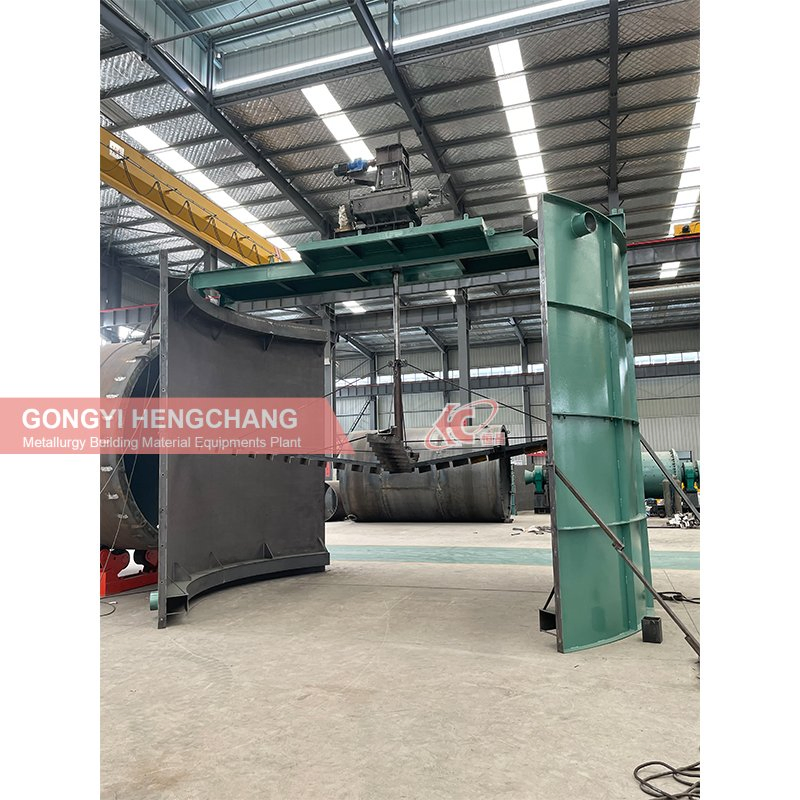

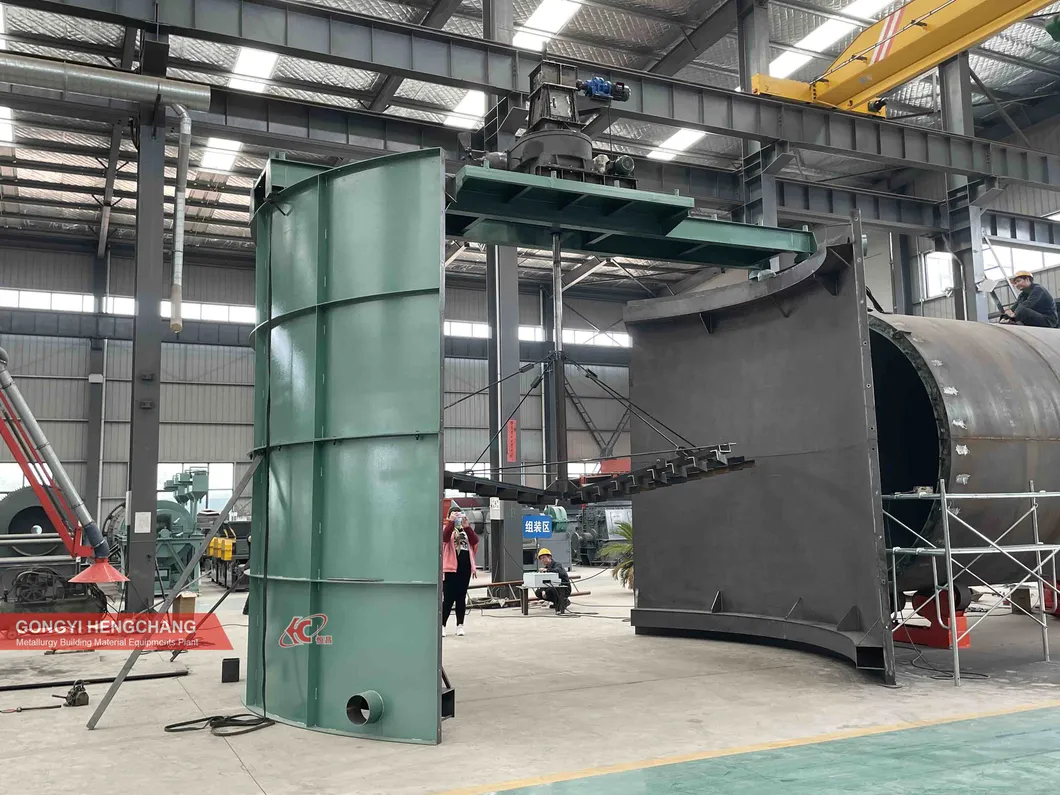

The mining thickener consists of a round thickener and a harrow scrapping machine. Solid particles suspended in the thickener settle by gravity, while the pulp in the upper part turns into clean water, achieving separation.
- Deaeration cell prevents solid particles from attaching to bubbles.
- Feeding pipe is positioned below the pulp surface to prevent air intake.
- Equipped with an inner overflow weir to enlarge the sedimental area and avoid short circuits.
- Advanced peg linear design enhances treatment capacity and underflow density.
Manufacturer Profile
Established in 1992, the plant is a professional manufacturer of mining machines, crushing machines, drying machines, and briquette making equipment. We persist in the philosophy of "scientific and technological innovation, quality first, users first". With many senior engineers specialized in technical design and support, we constantly develop new products to guarantee quality and perfect service. Our facility has successfully achieved ISO, CE, SGS, and BV quality certifications.
Frequently Asked Questions
What are your advantages compared with competitors?
We provide stable and reliable products at reasonable prices, backed by strict quality control systems and fast-response customer service.
Are you a manufacturer?
Yes, we are a professional manufacturer with more than 20 years of experience in the mining machinery industry.
What are your Price and Payment Terms?
Prices can be based on FOB, CFR, or CIF. Payments are typically made via T/T, L/C, or D/P depending on the region.
Can you customize the machine for me?
Yes, we can customize equipment according to specific customer requirements and technical parameters.
Do you provide an English manual for the machinery?
Yes, the instruction manual, test reports, and related data sheets are provided in English for all machines.
What is the procedure if a breakdown occurs?
During the warranty period, we respond immediately to notifications. We provide technical support via telephone/fax or arrange for personnel to visit the site if necessary.
