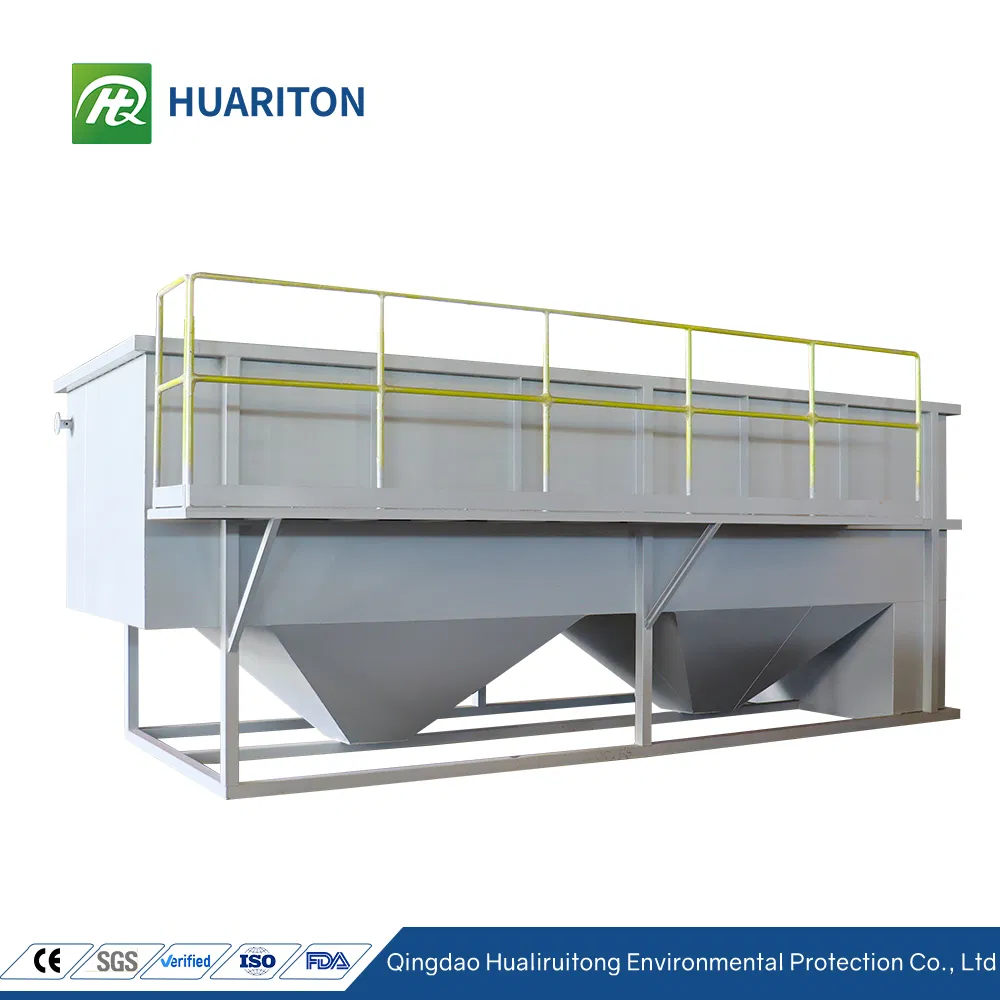

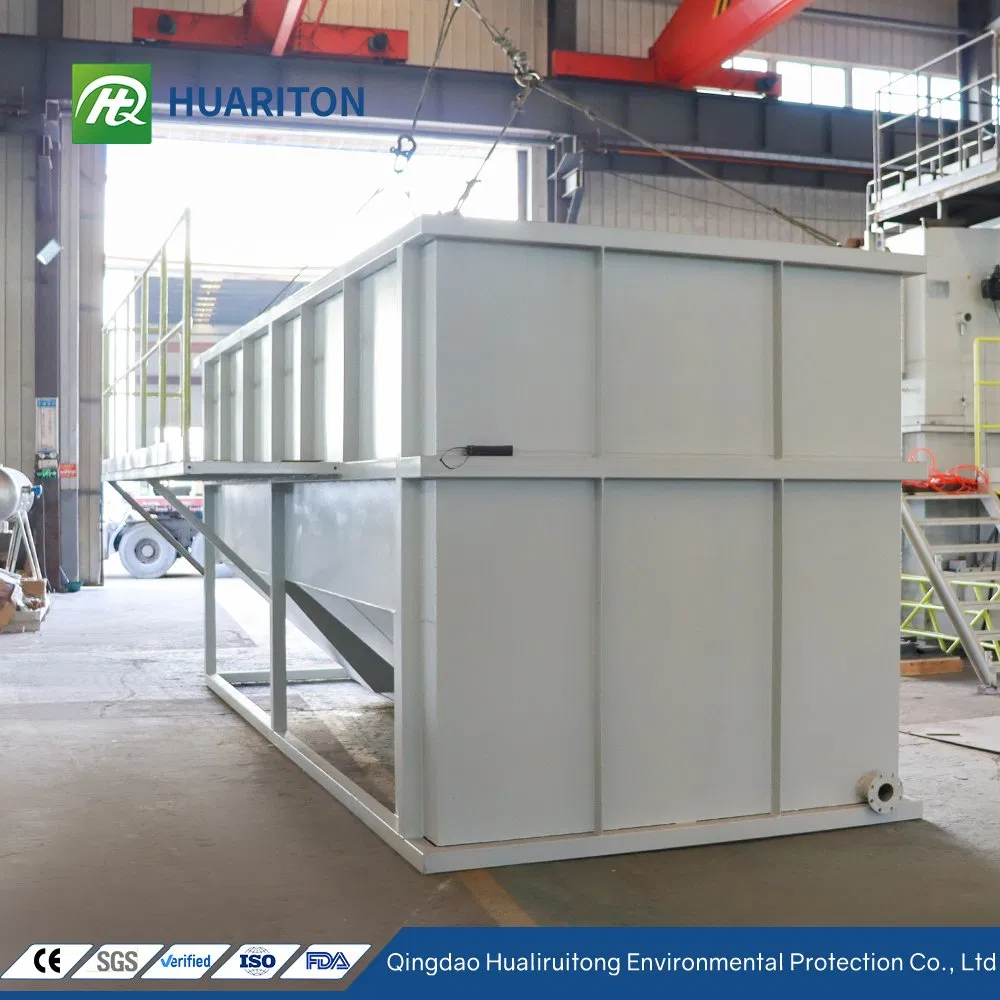

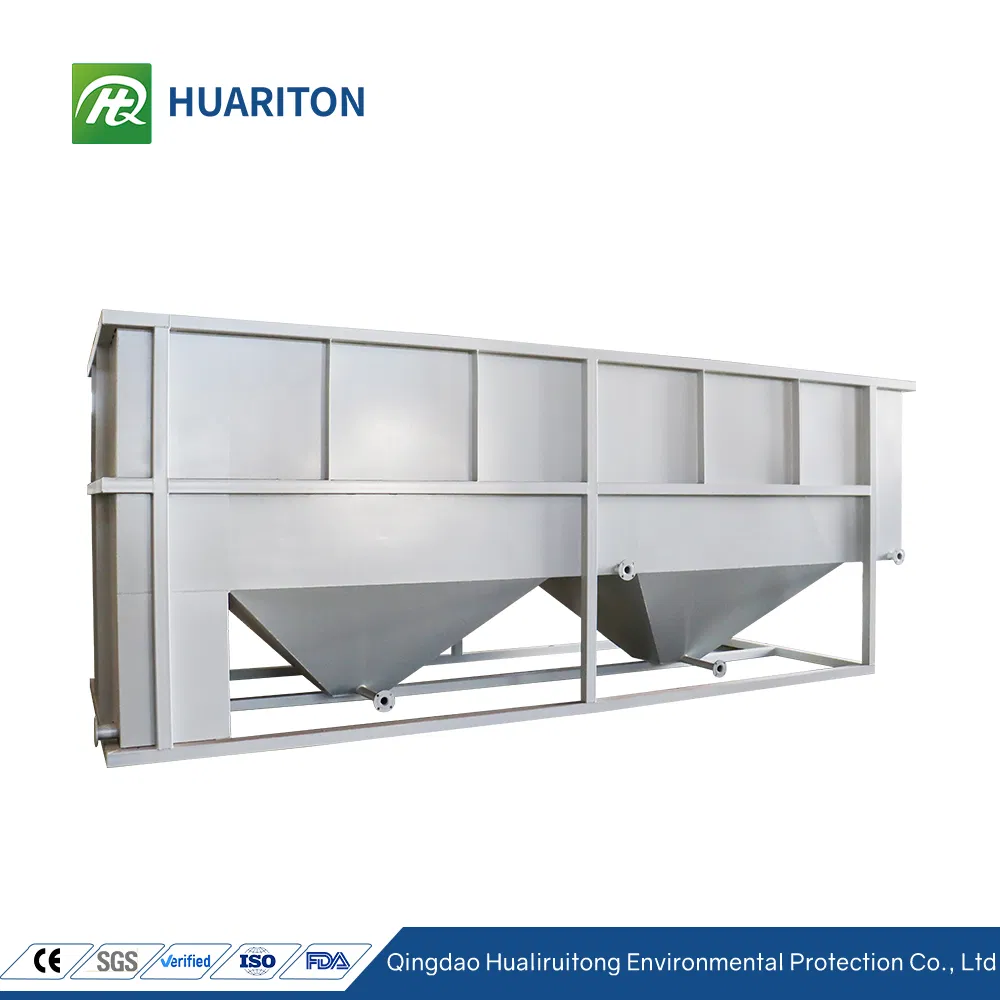

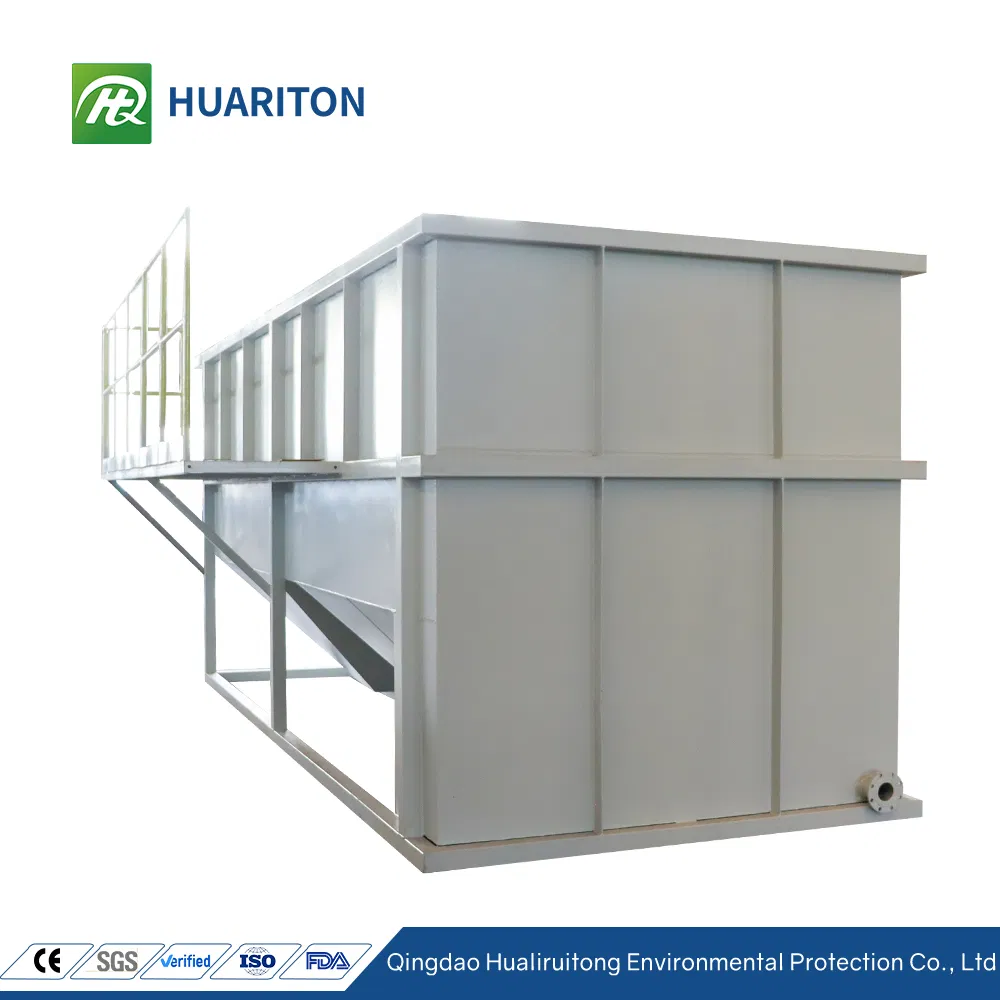

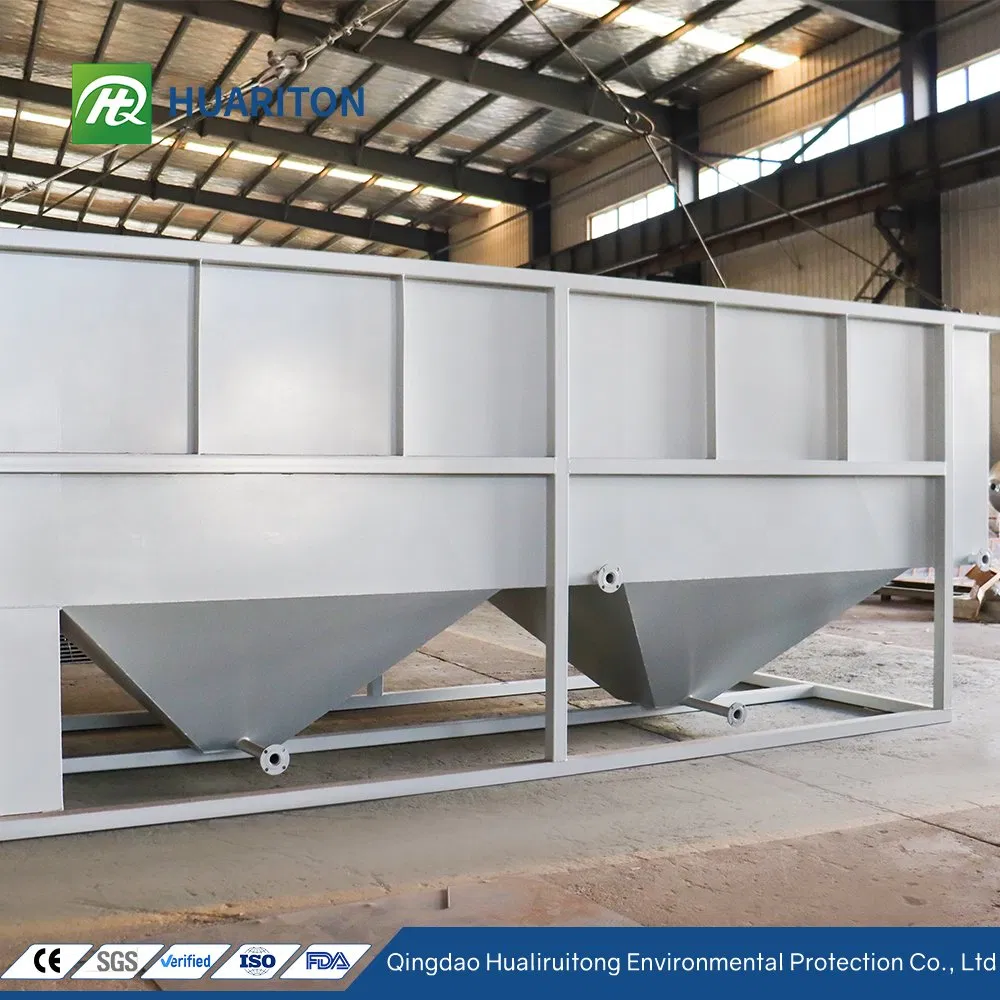

Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
1 / 5
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System
Industrial Effluent Lamella Inclined Plate Wastewater Treatment System

Industrial Effluent Lamella Inclined Plate Wastewater Treatment System

Customization: Available
After-sales Service: 24/7 Service
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
YHLC-30
Type
Separation Equipment
Material
Stainless Steel, Carbon Steel
Usage
Industrial, Home, Agriculture, Hospital
Operation
Automatic Running
Product Name
Lamella Clarifier
Surface Load
4-6
Origin
China
Product Description

The Lamella Clarifier (also known as Inclined Plate Settler) is designed to provide a highly efficient solution for solid-liquid separation in industrial and municipal wastewater treatment. Compared with traditional sedimentation tanks, the Lamella Clarifier offers a 90% smaller footprint while maintaining superior settling efficiency. It is the ideal choice for projects with limited space and high performance requirements.

Compact DesignSaves up to 90% of floor space compared to conventional tanks.
High EfficiencyLarge effective settling area ensures high removal rates of solids.
Durable MaterialAvailable in Carbon Steel, SS304, or SS316L for corrosion resistance.
Easy MaintenanceSimple operation and low long-term maintenance costs.

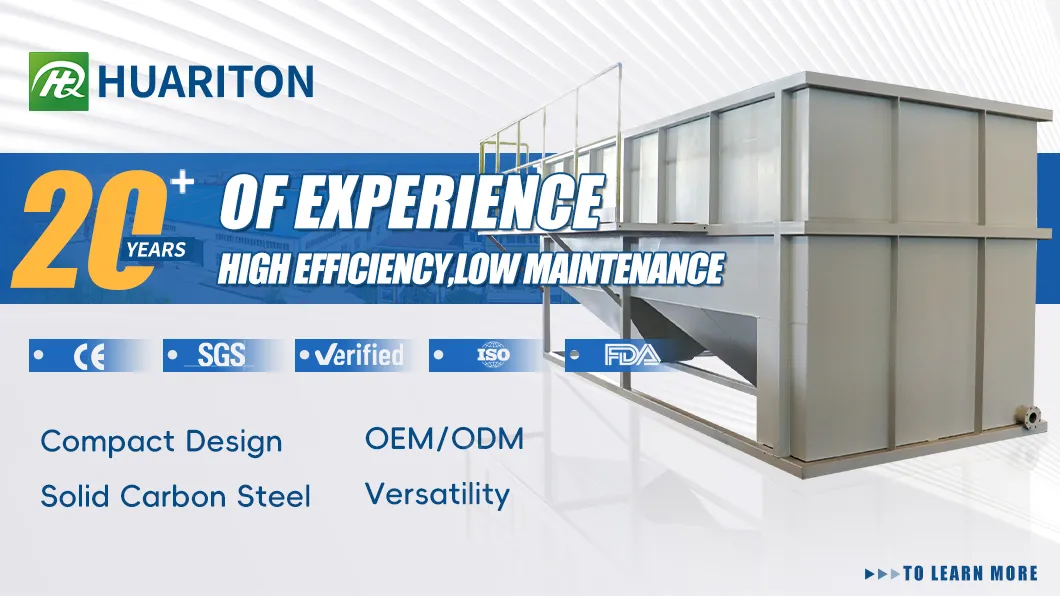

Wastewater Treatment System 1

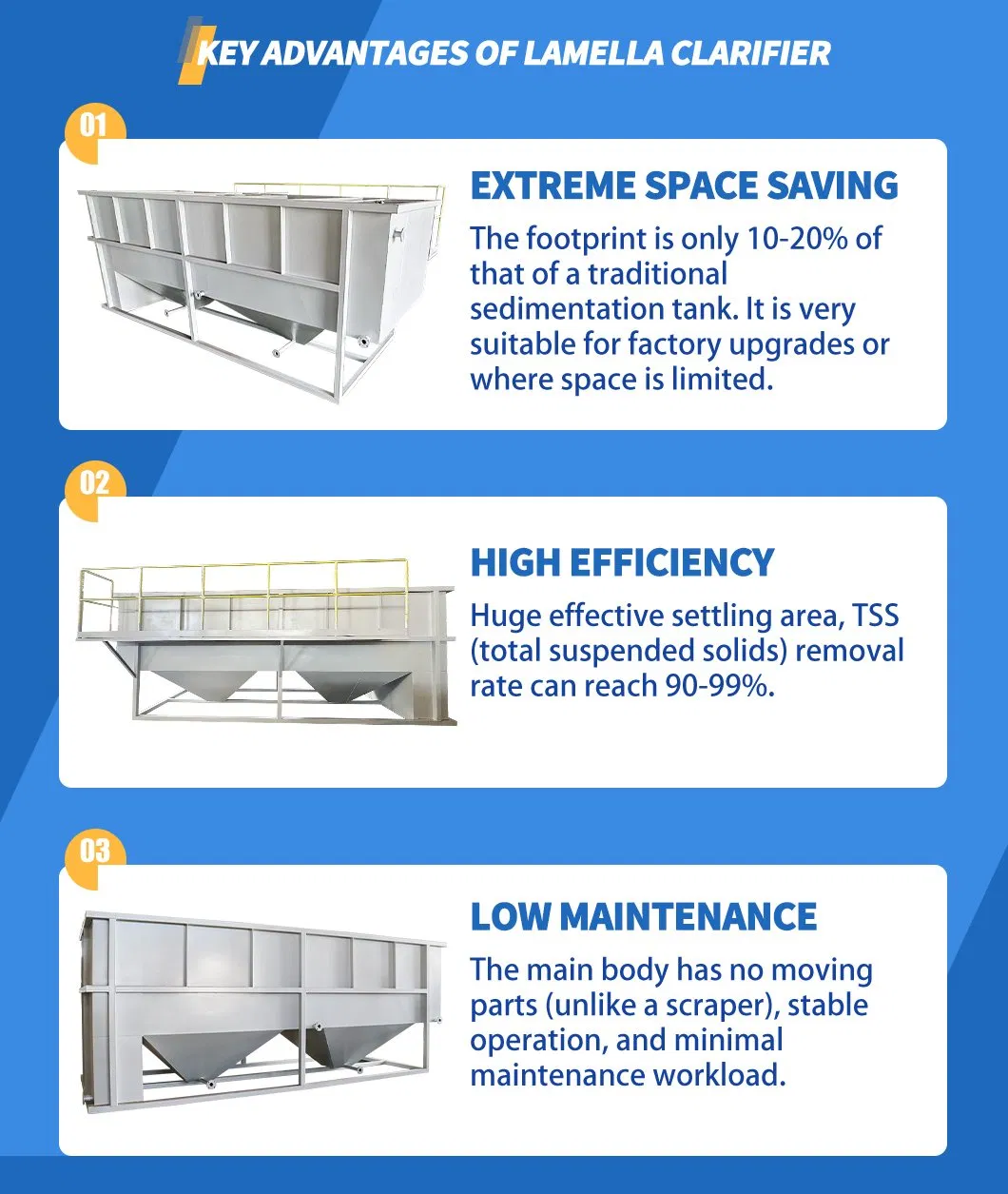

Wastewater Treatment System 2

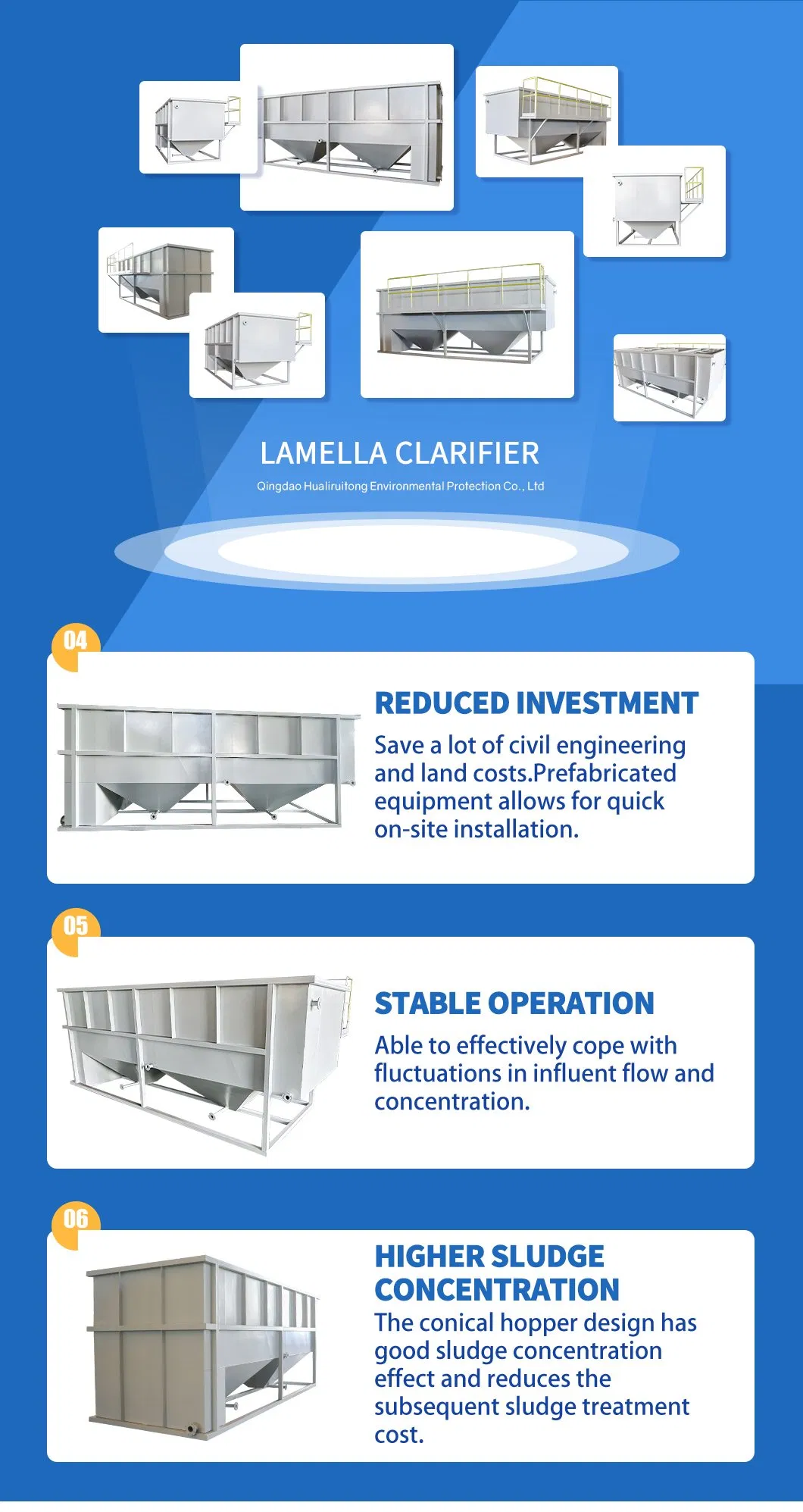

Wastewater Treatment System 3

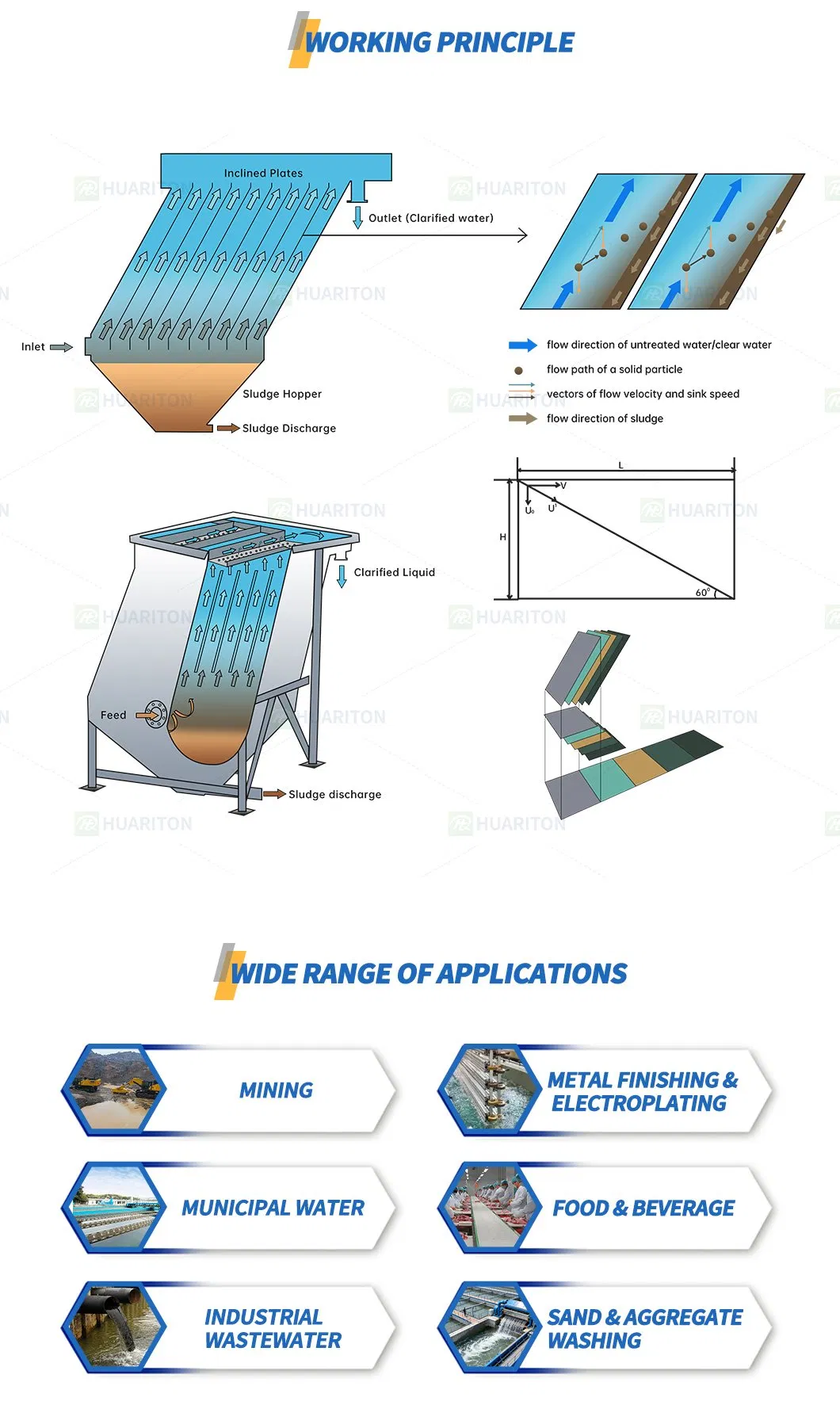

Detailed System View
Technical Specifications
Model Capacity Dimension (m) Power Nozzle Size
m³/h L W H kw Inlet Outlet Sludge
HLC-111.60.92.3/DN40DN50DN80
HLC-332.21.22.3/DN40DN50DN80
HLC-552.91.62.8/DN40DN65DN80
HLC-10105.21.83.1/DN65DN100DN80
HLC-30307.52.23.75/DN100DN150DN100
HLC-10010011.533.8/DN200DN250DN100
Packaging & Shipping
Package Size
1600cm * 1200cm * 2300cm
Gross Weight
2500.00kg
Lead Time
30 days (1 Set); Negotiable (>1 Set)
Packaging Details
Quality & Certifications

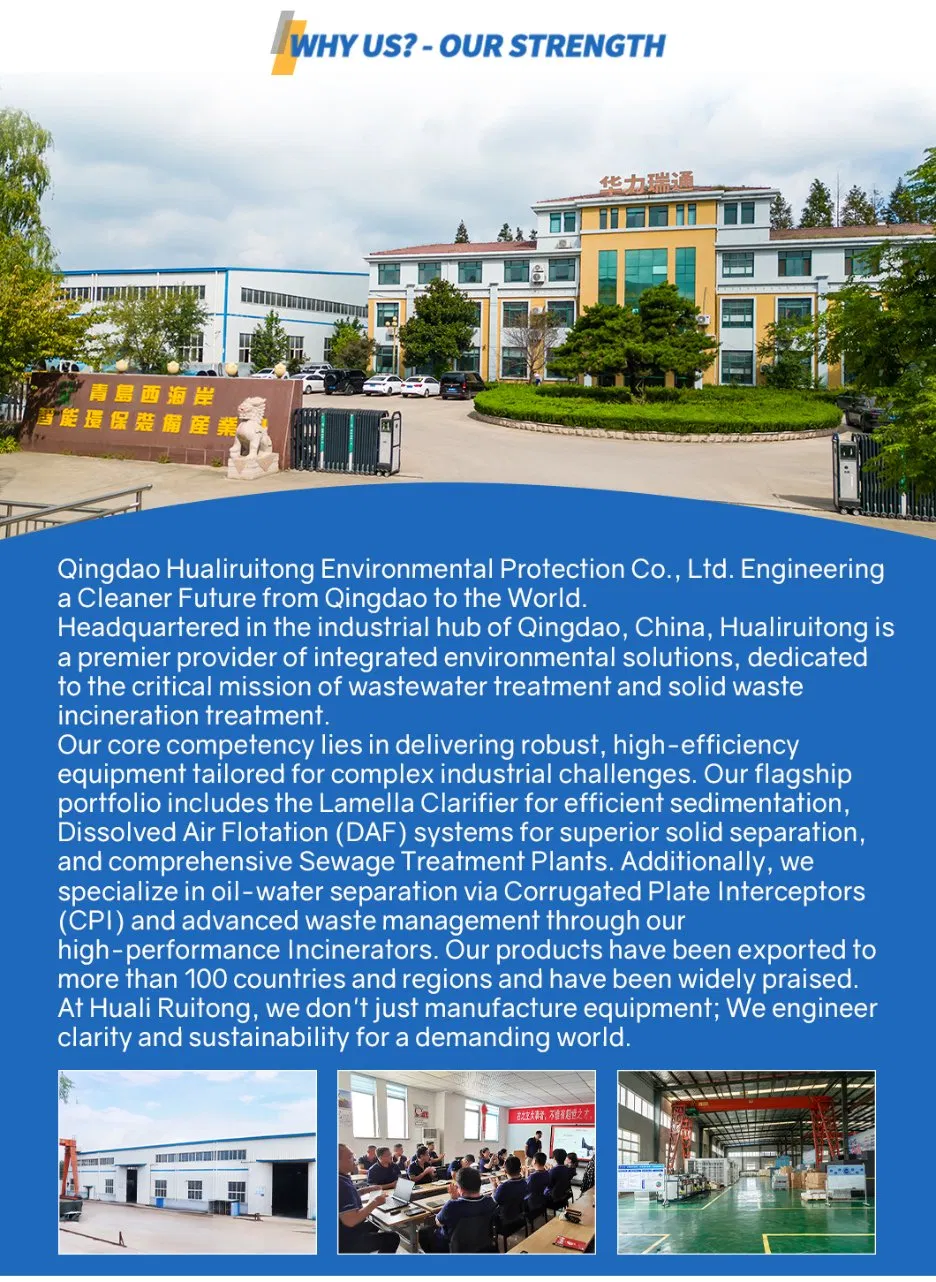

Factory Overview
Certifications
Client Review Details
Success Cases
Frequently Asked Questions
Q1: What information is needed for a quote?
A: Please provide: 1. Water flow rate (m³/h) 2. Water source type 3. Inlet TSS concentration (mg/L) 4. Required outlet TSS concentration 5. Material preference (e.g., SS304 or Carbon Steel).
Q2: Do I need to add chemicals?
A: It depends on your particles. For very fine or colloidal particles (such as clay), we recommend a flocculation system and the addition of PAC/PAM for optimal sedimentation.
Q3: Is maintenance complicated?
A: Not at all. With no moving parts, daily maintenance only requires observing outlet water quality and opening the bottom valve to drain mud as needed.
Q4: What is the main advantage over a traditional settling tank?
A: Space efficiency. A Lamella Clarifier requires only about 20% of the land footprint of a conventional clarifier while offering the same settling capacity.
Q5: What materials are available for construction?
A: We offer Carbon Steel (with heavy-duty epoxy coating), Stainless Steel SS304, and SS316L for highly corrosive environments.
Q6: What is the standard lead time?
A: Standard models usually take 25-30 days, while large customized models take 35-45 days.
