| Model | DS (KG/H) | Power (KW) | Selection Factors |
|---|---|---|---|
| TPDL131 | 5-10 | 0.36 |
How to select the right model? 1. Flow rate of sludge (M3/H) 2. Solid content (%) 3. Sludge character 4. Dried sludge capacity (D.S.KG/H) 5. Moisture content of sludge cake (%) |
| TPDL132 | 10-20 | 0.54 | |
| TPDL251 | 15-30 | 0.92 | |
| TPDL252 | 30-60 | 1.47 | |
| TPDL301 | 30-60 | 1.3 | |
| TPDL302 | 60-120 | 2.05 | |
| TPDL303 | 90-180 | 3 | |
| TPDL351 | 50-100 | 1.85 | |
| TPDL352 | 100-200 | 2.95 | |
| TPDL353 | 150-300 | 4.4 | |
| TPDL401 | 80-160 | 3 | |
| TPDL402 | 160-320 | 4.5 | |
| TPDL403 | 240-480 | 7.5 | |
| TPDL404 | 320-640 | 9 |

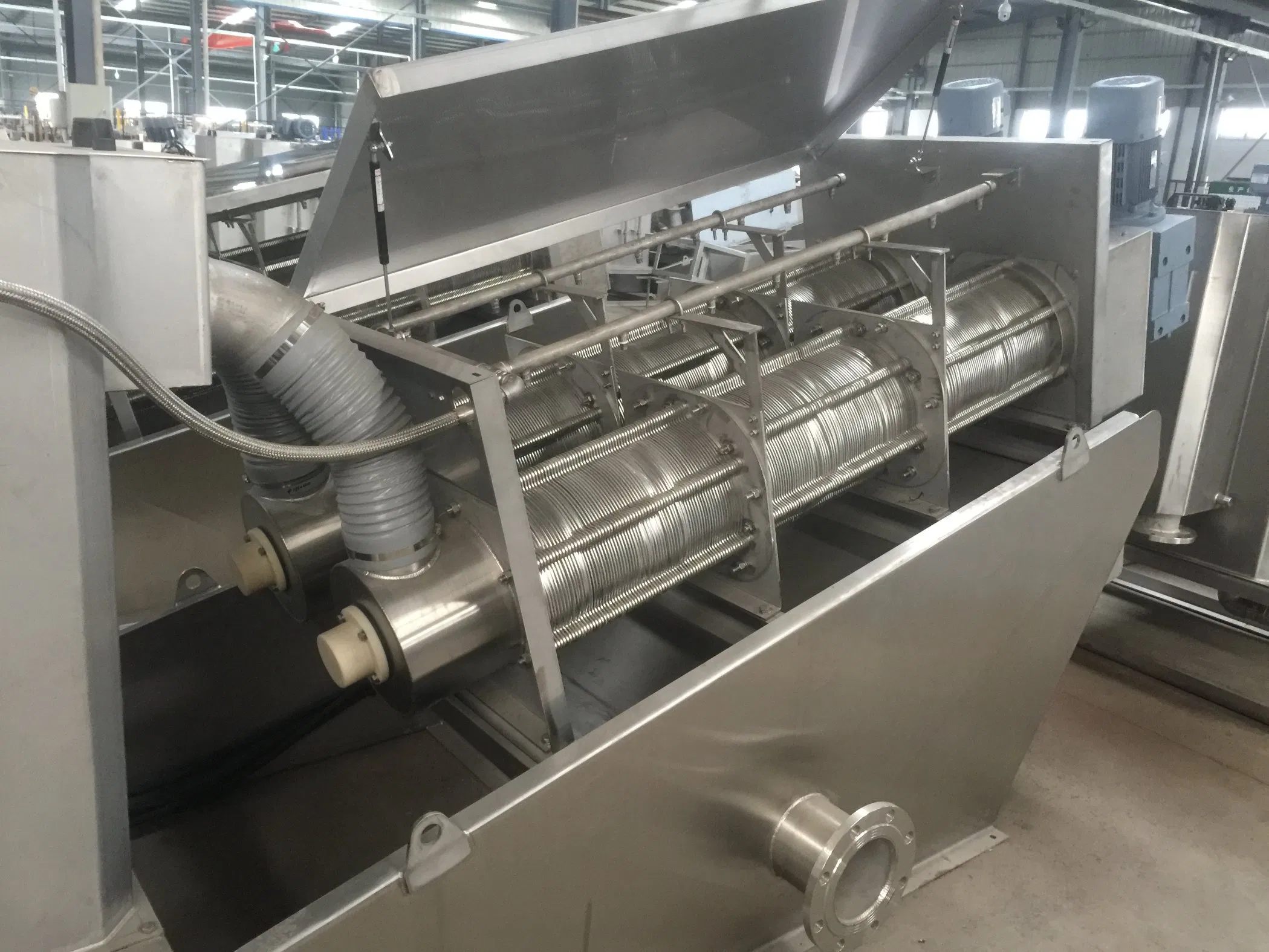

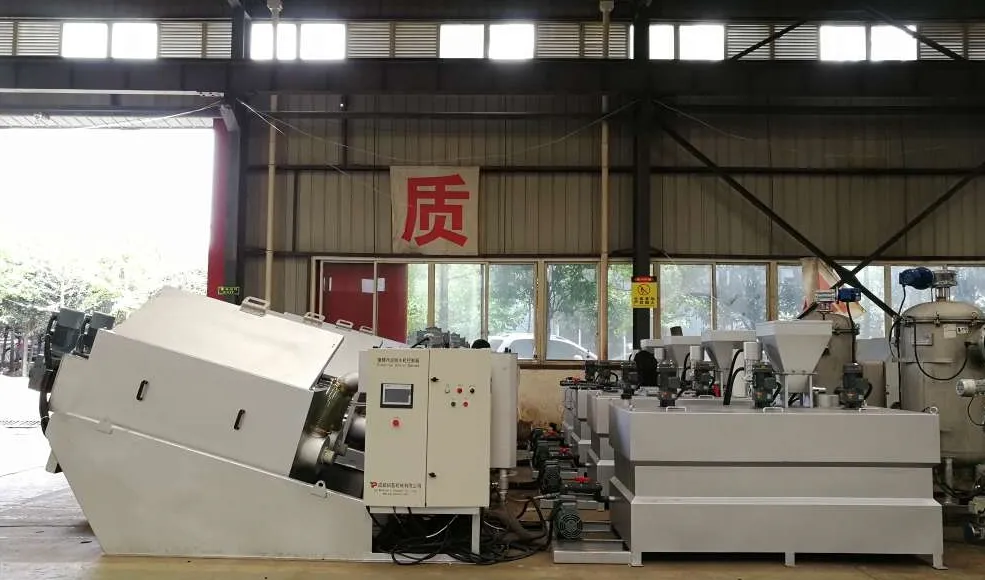

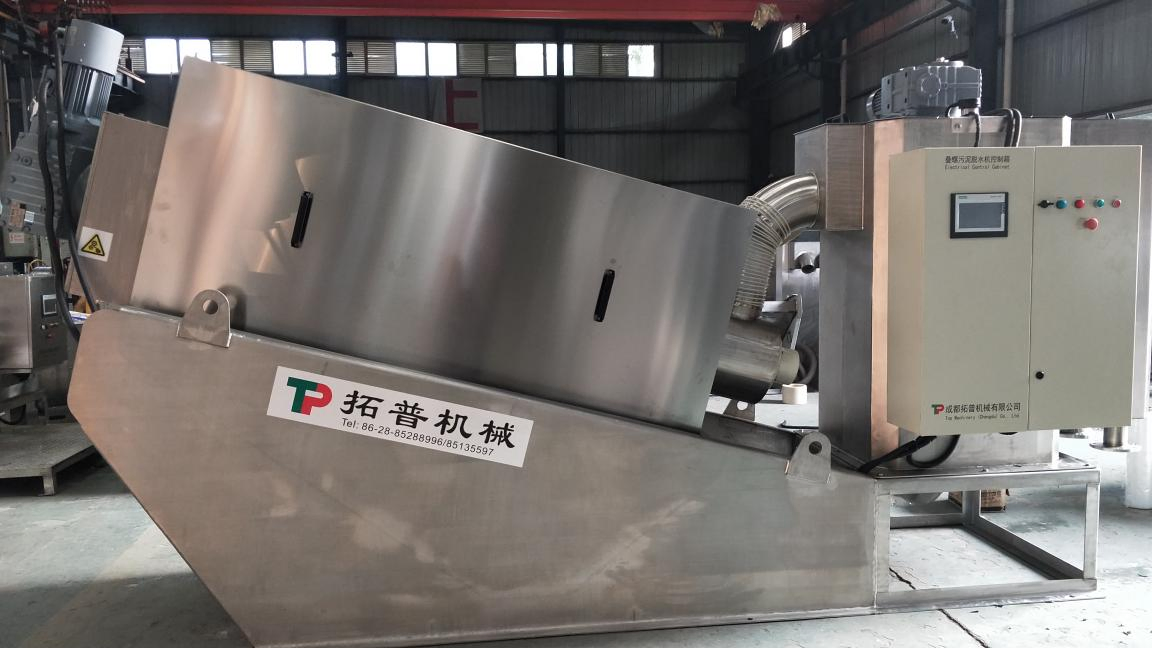

It is an advanced screw press technology designed for sludge thickening and dewatering, offering a clog-free alternative to traditional belt or frame presses.

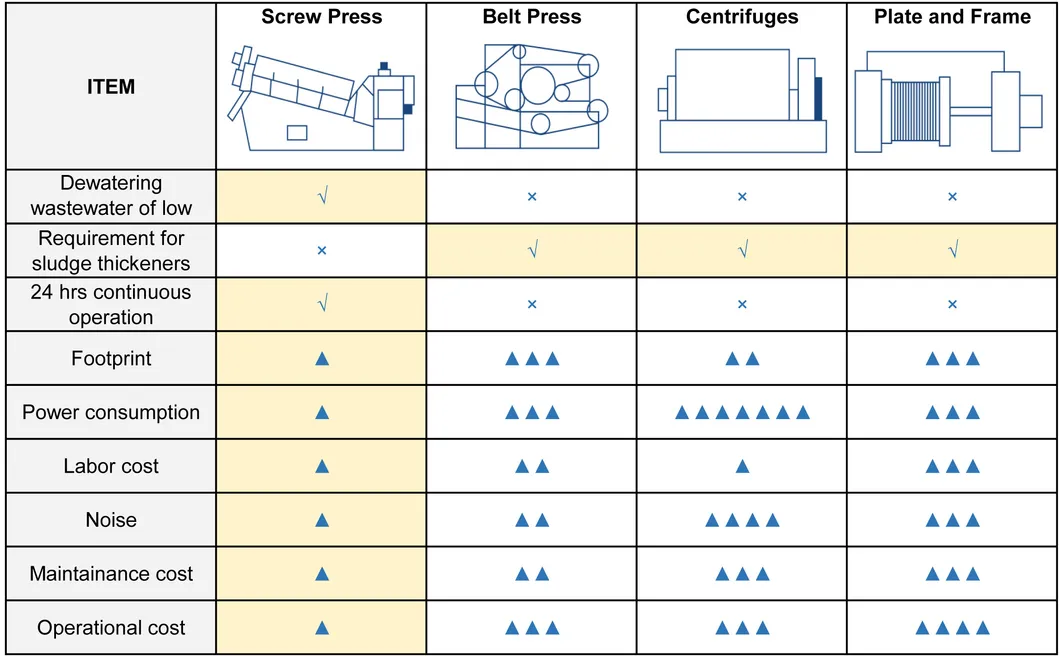

The screw press operates at much lower speeds than centrifuges, reducing power consumption to less than 5% of a centrifuge and water usage to less than 0.1% of a belt press.

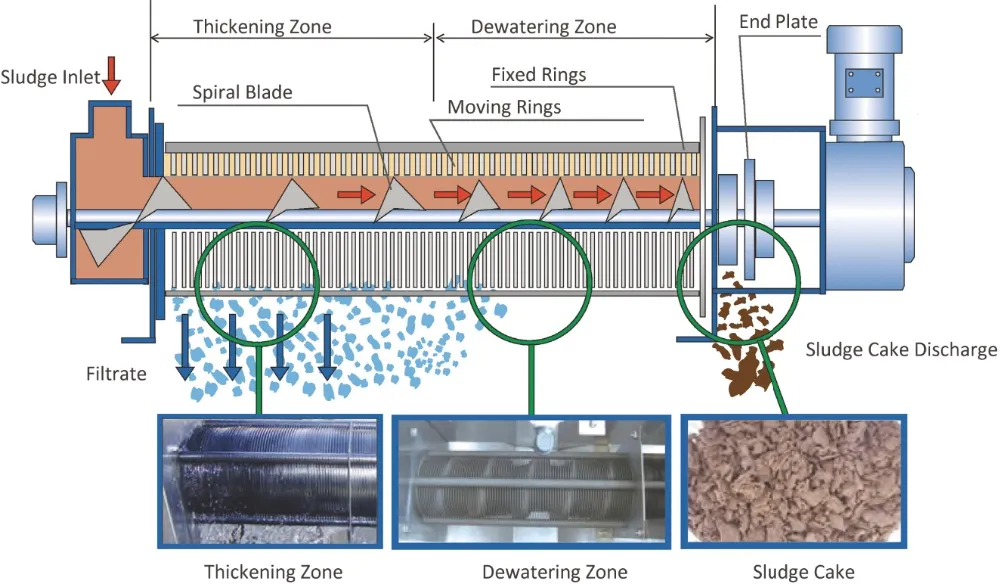

Yes, the unique structure of moving and fixed plates makes it ideal for processing fats, oils, and fiber-heavy sludge without clogging.
Our standard models, such as the TPDL series, are constructed using high-quality SS316 stainless steel for superior durability and corrosion resistance.
Selection depends on the flow rate of your sludge (M3/H), the solid content percentage, the sludge characteristics, and your required dried sludge capacity (DS KG/H).
We maintain a production capacity of approximately 30 sets per month, ensuring timely delivery for standard and customized specifications.
