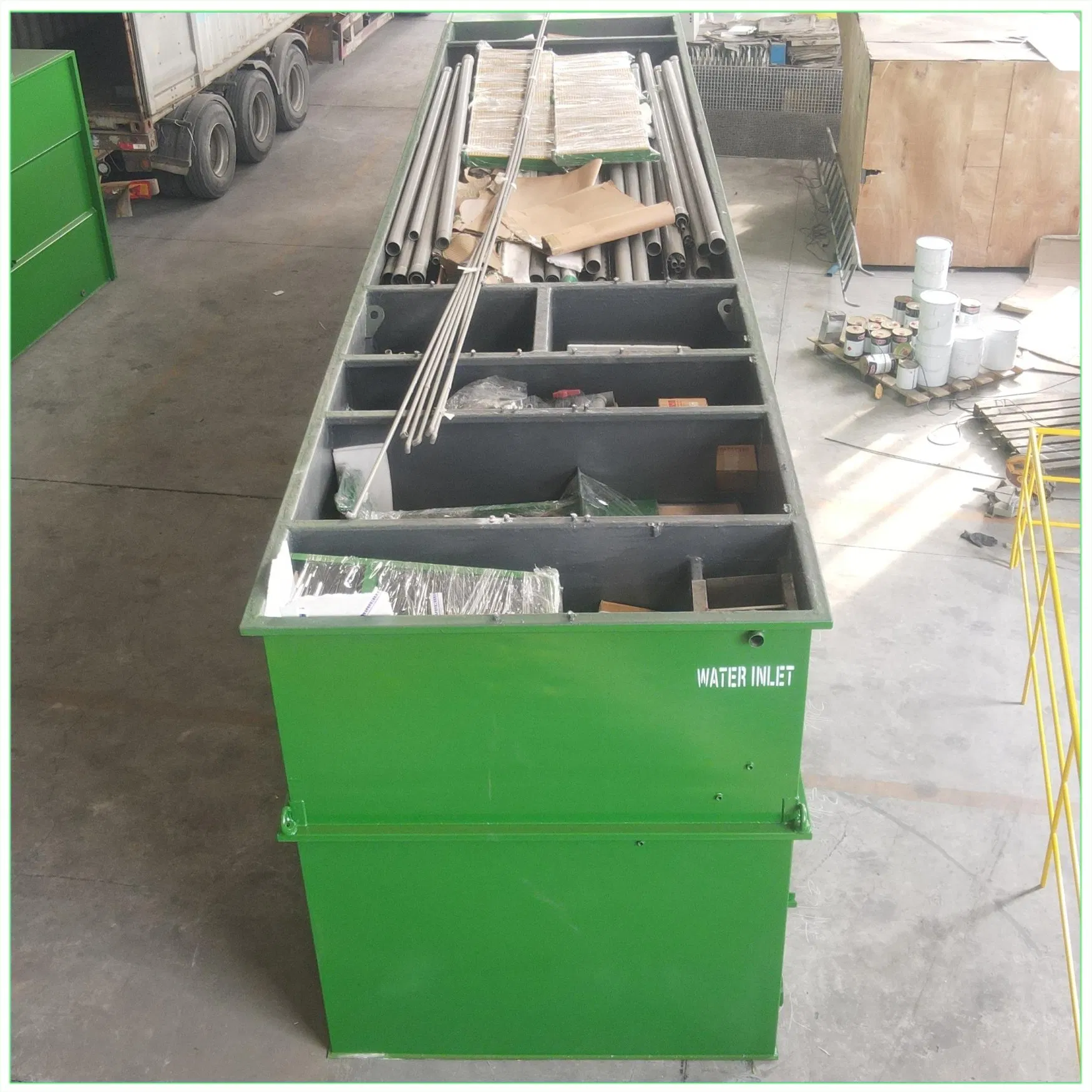

Pre Ttreatment Lamella Clarifier Sludge Thickening System with Inclined Plate Clarifier for Solid Liquide Separator of Biogas

Customization: Available
After-sales Service: Online Service or Go Site
Warranty: 1 Year

Product Description

📊 Basic Information
Model NO.
DM LC-30
Type
Sediment
Method
Physical Treatment
Usage
Industrial, Home, Agriculture, Hospital, River
Flow Rate
1m3/H-1000m3/H
Processing Type
Engineering, Equipment Installation, Debugging
Core Components
Motor, Media, Technology
Weight (Kg)
6500
Product Name
Lamella Clarifier
Voltage
220V, 380V, 110V
Padding
PP/PVC/FRP
HS Code
8421219990
📘 Product Description

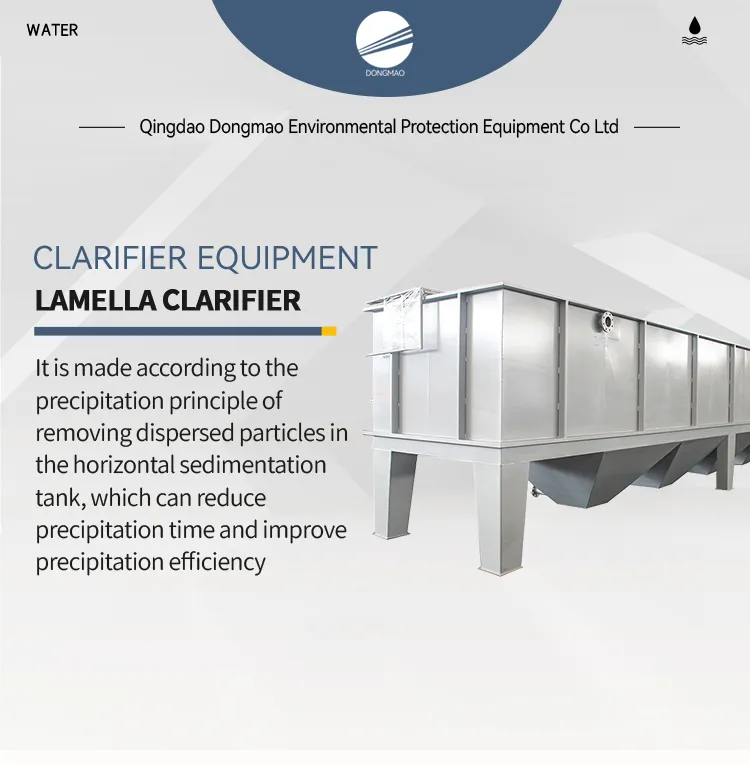

Lamella Clarifier System

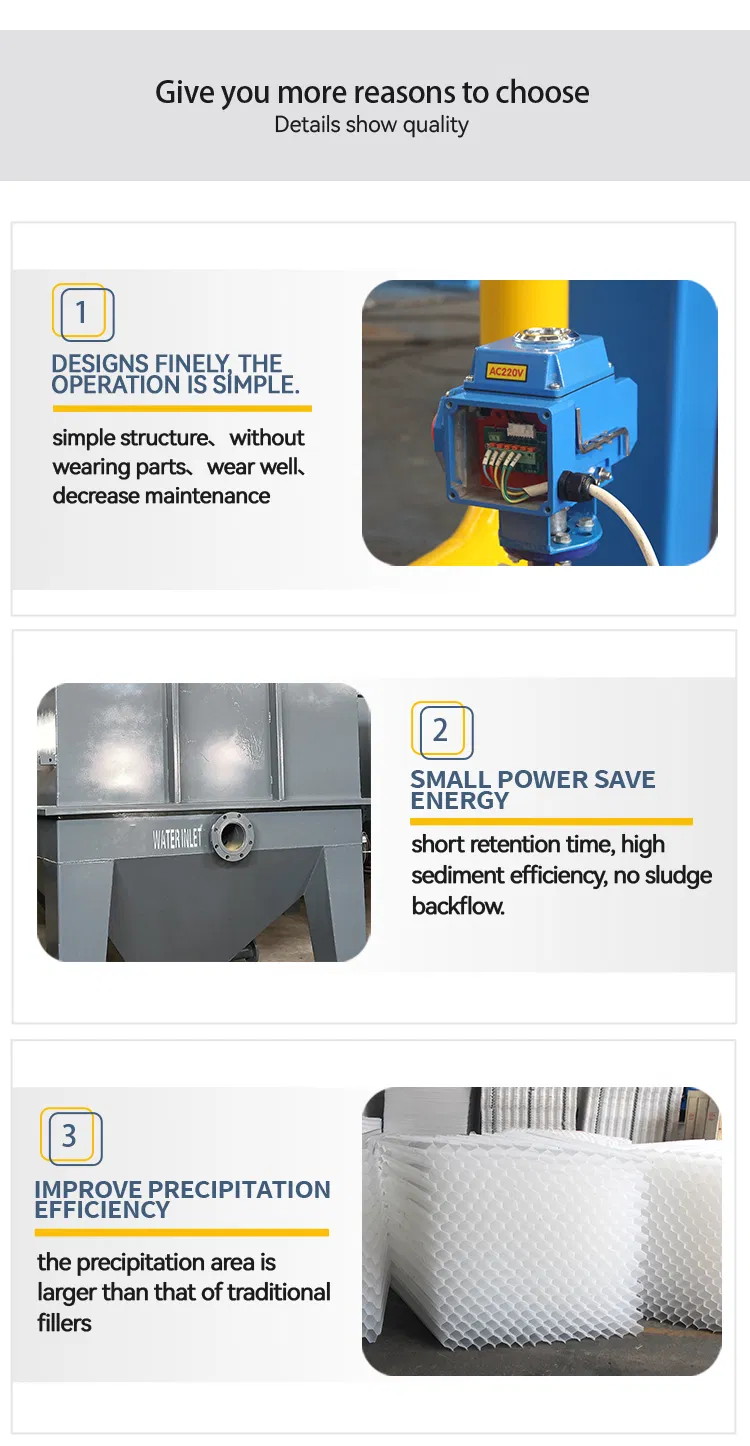

Sludge Thickening System
⚙️ Working Principle

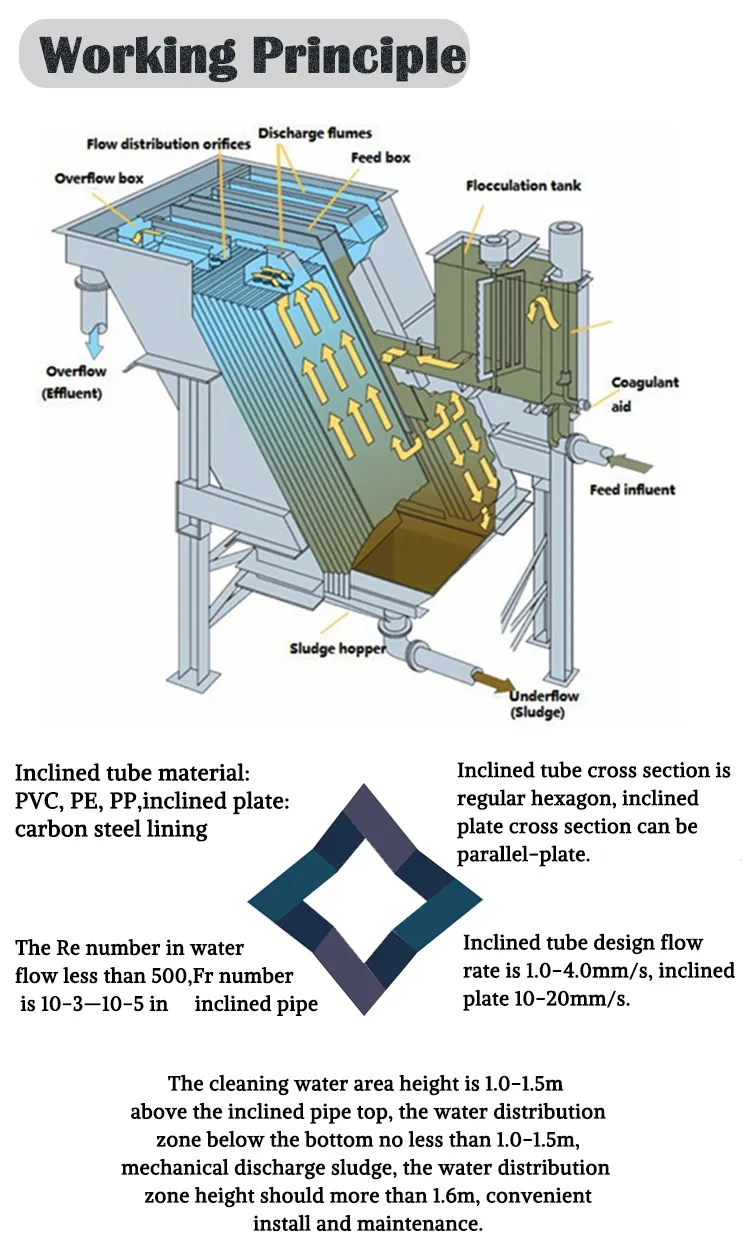

Working Principle Diagram

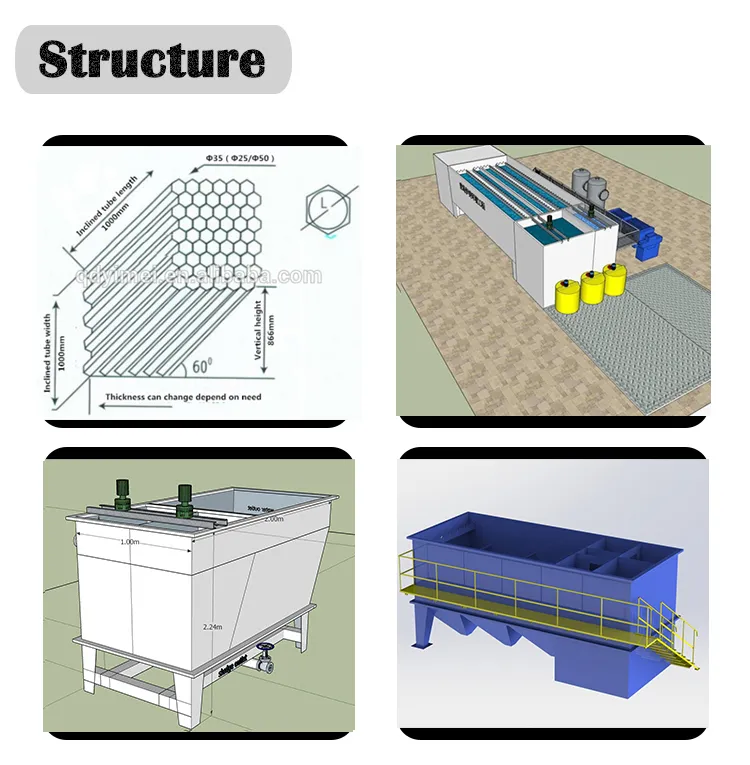

Operation Mechanism
📋 Model List
Specification YMXG-5 YMXG-10 YMXG-15 YMXG-20 YMXG-25 YMXG-30 YMXG-40 YMXG-50
Treatment capacity(m3/h) 5 10 15 20 25 30 40 50
Equipment size(m) 2.2*2*3.5 2.25*2.25*6 2*2.5*6 9*2.25*2.25 8*3*4.5 8*3.5*4.5 10*3.5*4.5 12*3.5*4.5
🚀 Application

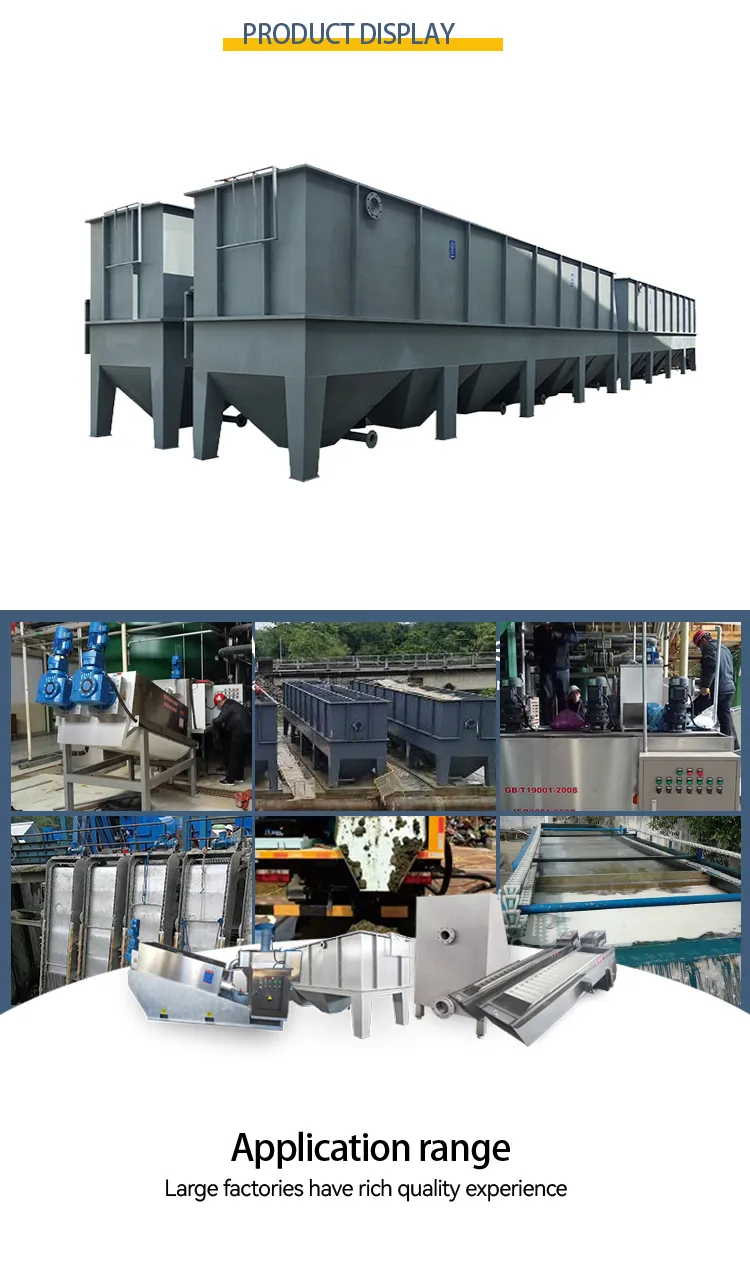

Application Scenarios
📦 Packing and Delivery

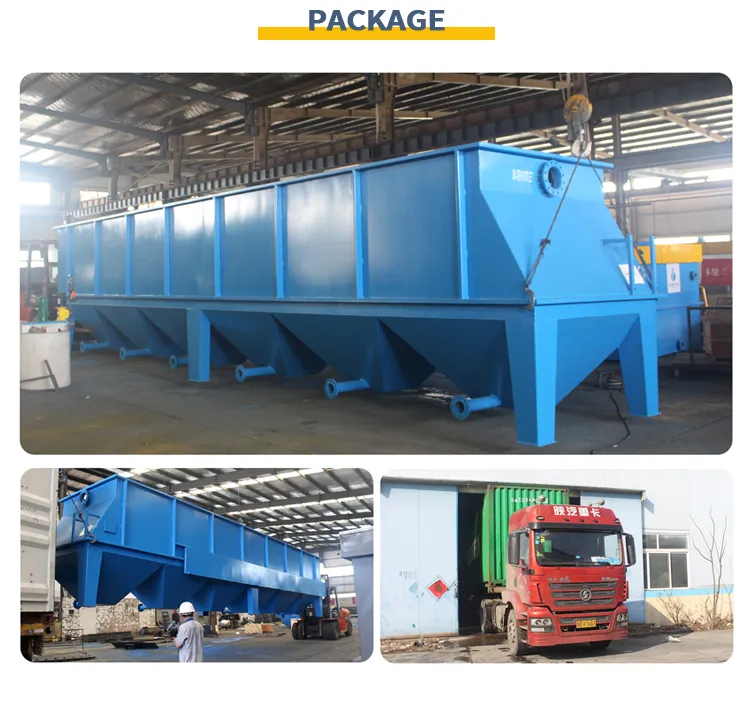

Standard Packing
Advantages
System Advantages

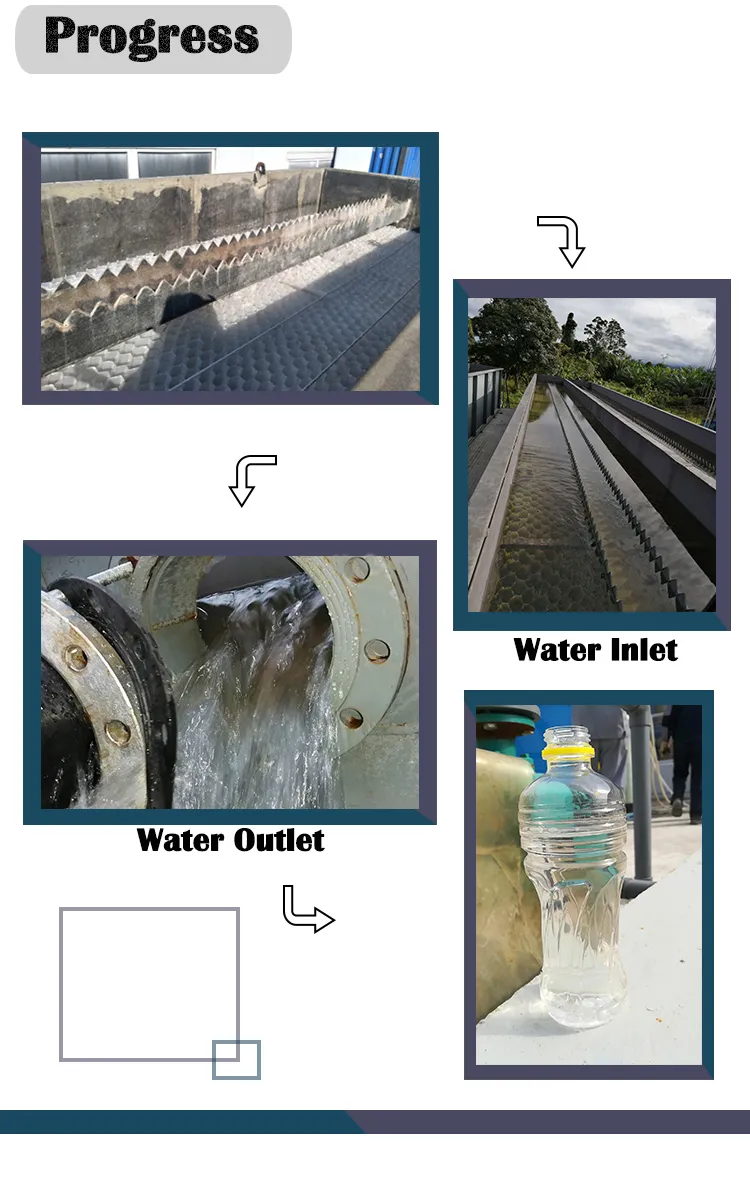

Technical Advantages
🏢 Production & Capability

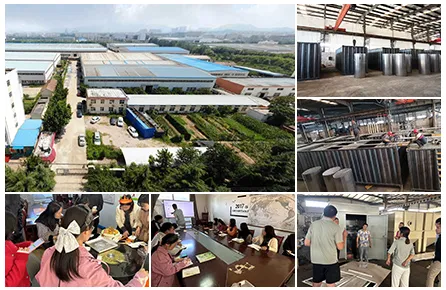

Workshop

The facility was established in 2023, located in the West Coast New District, with a workshop building area of 15,000 m² and more than 30 types of processing machinery. The technical team includes 11 specialized engineers and technicians focused on environmental protection equipment industrial standards. Since establishment, the focus remains on high-quality engineering and equipment installation.

Facility Overview
Frequently Asked Questions
1. What is a Lamella Clarifier used for? It is primarily used for solid-liquid separation in wastewater treatment, removing suspended solids from water through sedimentation using inclined plates to increase the settling area.
2. How do the inclined plates improve efficiency? The inclined plates reduce the vertical distance a particle must travel before hitting a surface, significantly increasing the effective settling area compared to traditional horizontal tanks.
3. What industries can benefit from this equipment? Our equipment is widely used in industrial wastewater, river water purification, hospital water treatment, agriculture, and municipal water plants.
4. What materials are the plates and padding made of? Depending on the application and chemical requirements, padding materials are available in PP (Polypropylene), PVC, or FRP (Fiberglass Reinforced Plastic).
5. Can the flow rate be customized? Yes, the system is highly customizable. We offer solutions for flow rates ranging from 1m³/H up to 1000m³/H based on your specific project requirements.
6. Is a machinery test report provided before shipping? Yes, we provide full machinery test reports and video outgoing-inspections to ensure all equipment meets performance standards before delivery.
