Intelligent Ozone Generator System with Adaptive Dosing 10000g/H for B2B Buyers Worldwide

Basic Information

Model NO.

HMS-10K

Certification

ISO9001, CE

Dielectric Material

Glass Tube

Cooling Method

Water-Cooling

Gas Source

Oxygen

Frequency

400-1000Hz

Ozone Capacity

10kg/H

Material

Stainless Steel

Service Life

Whole Life

Specification

3400*1000*2200mm

Packaging & Delivery

Package Size

300.00cm * 180.00cm * 260.00cm

Gross Weight

2500.000kg

Transport Package

Wooden Packaging

Product Description

Ozone Generator Intelligent Control System with Adaptive Dosing Technology 10000g/h

1. High Efficiency

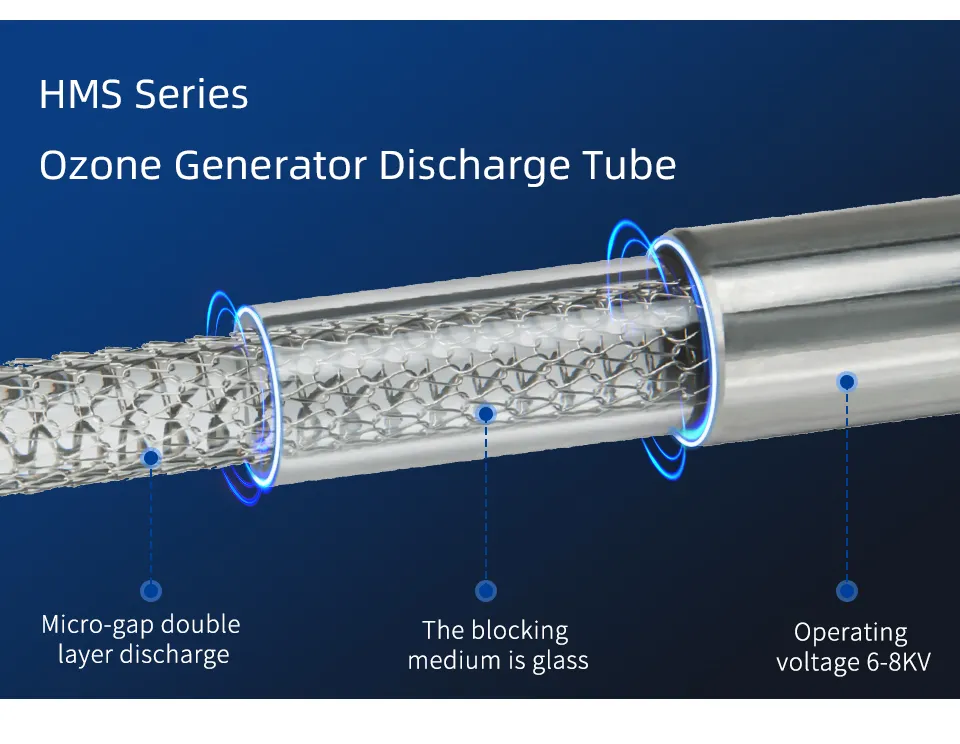

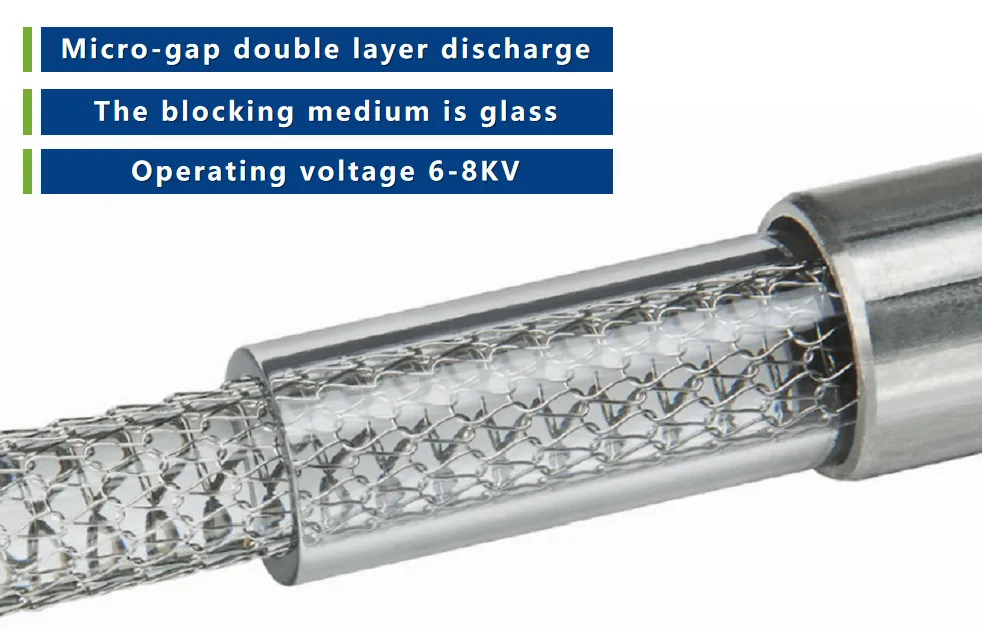

High-efficiency discharge tube
Micro-gap double-layer discharge
Patented design hexagon conductive plate

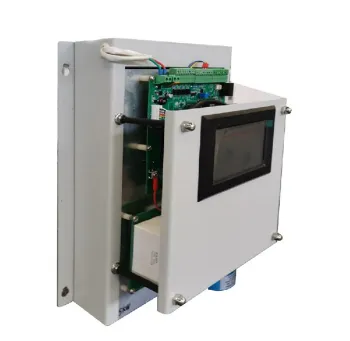

2. High Adaptability

Various options for heat exchange modules

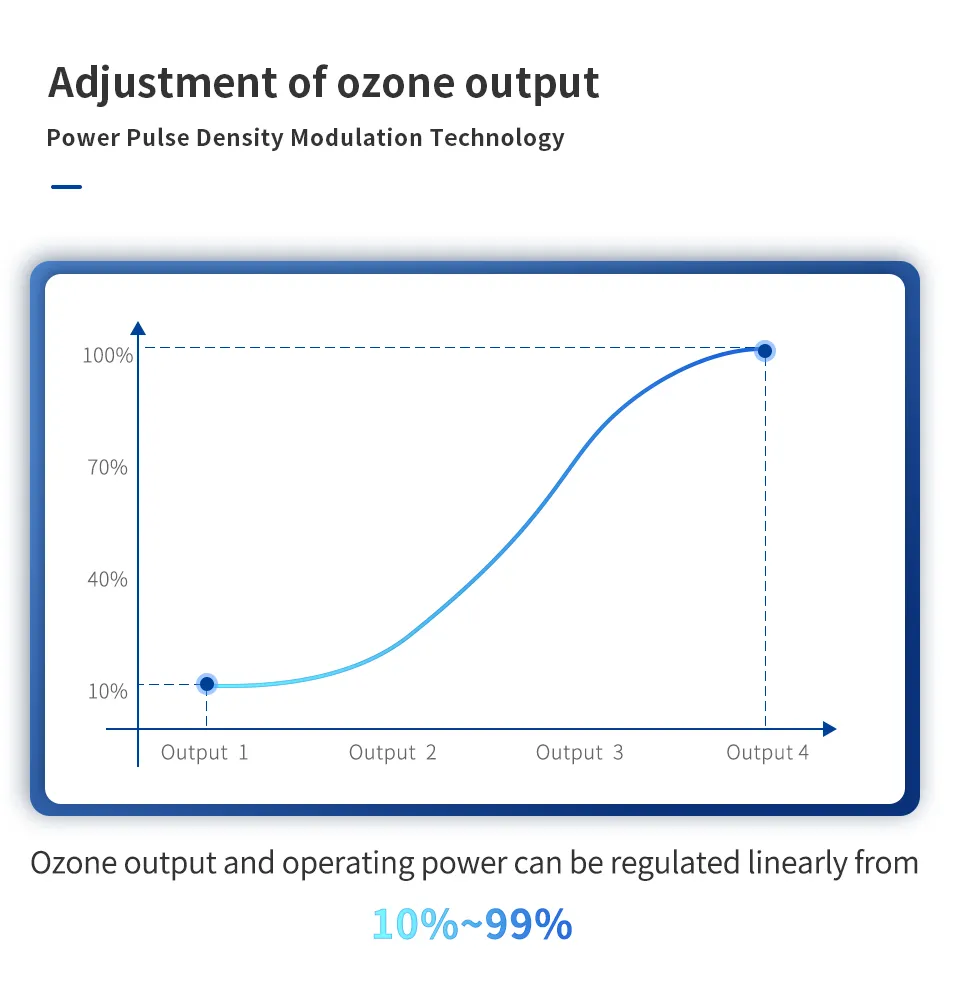

Adjustment of ozone output
Power Pulse Density Modulation Technology

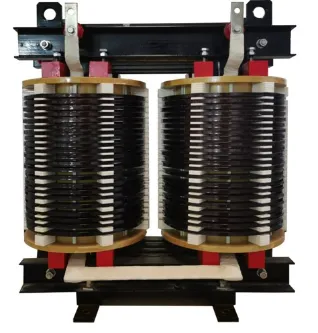

3. Low Power Consumption

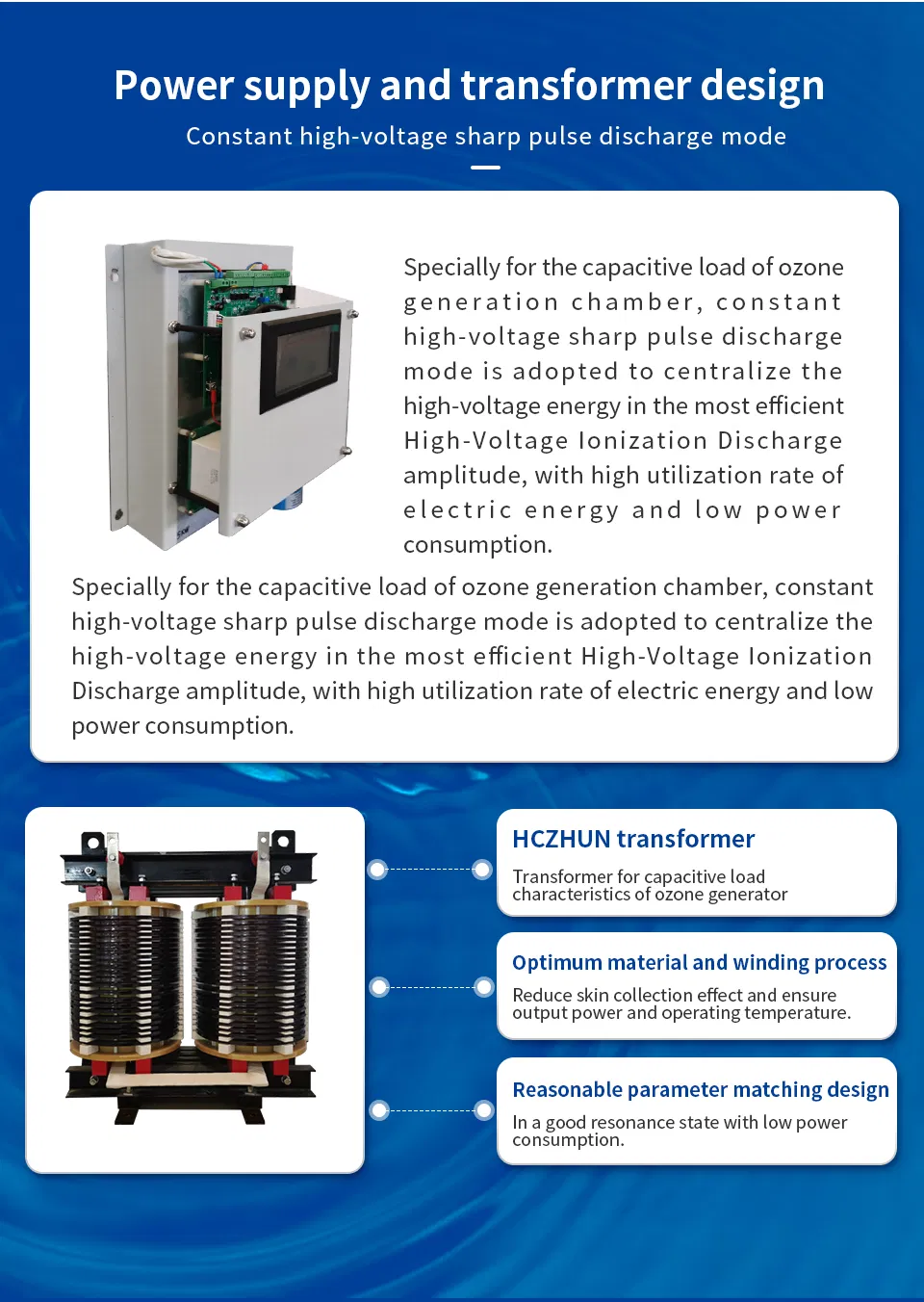

Reasonable Transformer Parameter Design
Power Supply Design at the Right Ratio

4. Low Failure Rate

Power Protection Technology
Protection against electrical breakdown
Dedicated Monitoring Protection Circuits

Technical Parameters

Model	Ozone Production (kg/h)	Gas Flow Rate (Nm³/h)	Concentration (mg/L)	Cooling Water (m³/h)	Power (kW)	Dimensions (mm)
HMS-5K	5	33.5-40	125-150	9-10	35-40	20008001900
HMS-10K	10	67-80	125-150	18-20	70-80	25009001600
HMS-15K	15	100.5-120	125-150	27-30	105-120	25009001600
HMS-20K	20	134-160	125-150	36-40	140-160	340010002200
HMS-25K	25	167.5-200	125-150	45-50	175-200	340010002200
HMS-30K	30	201-240	125-150	54-60	210-240	340010002200
HMS-40K	40	268-320	125-150	72-80	280-320	500010002200

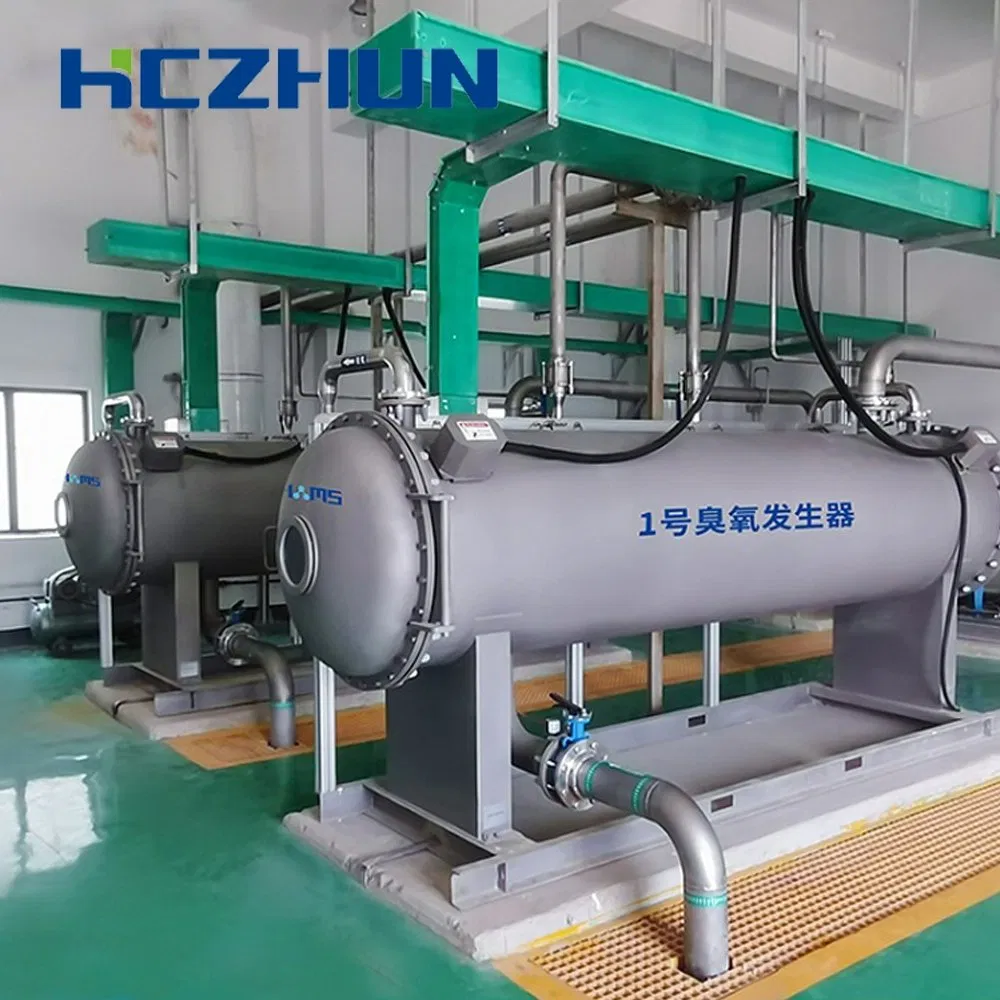

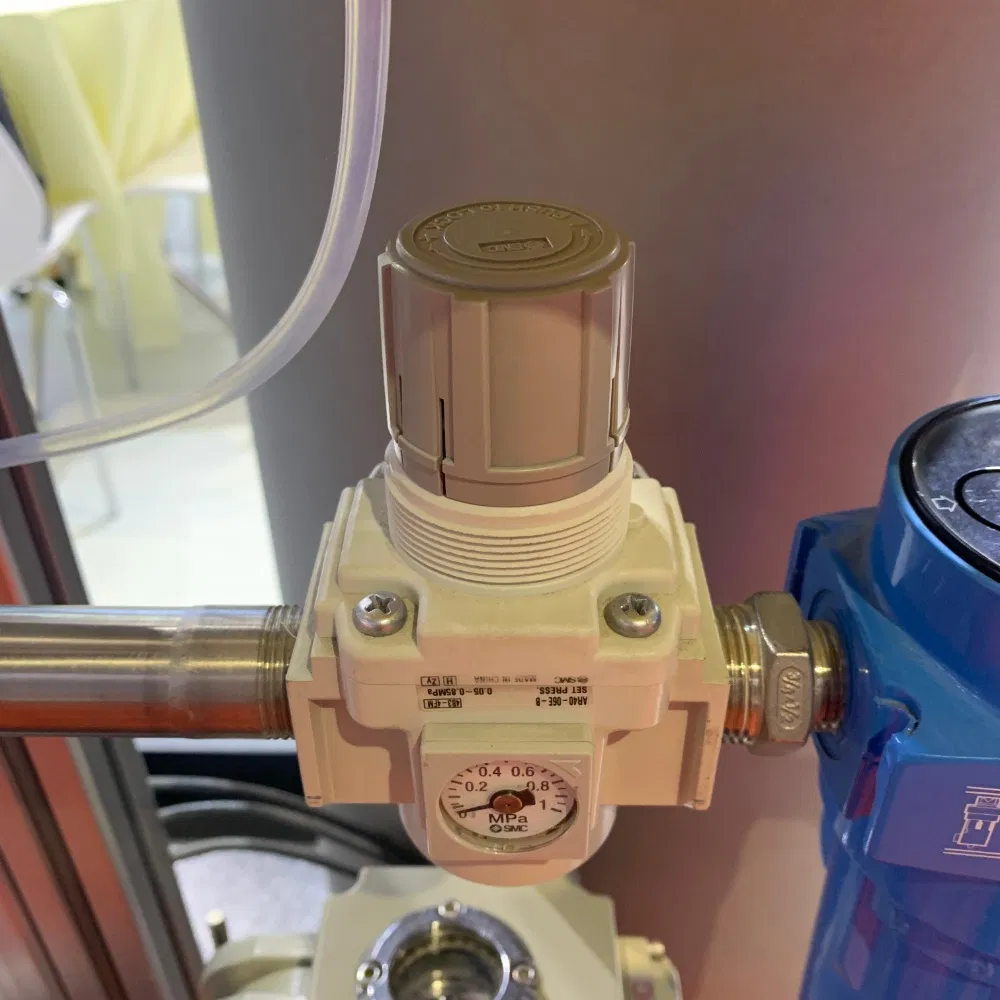

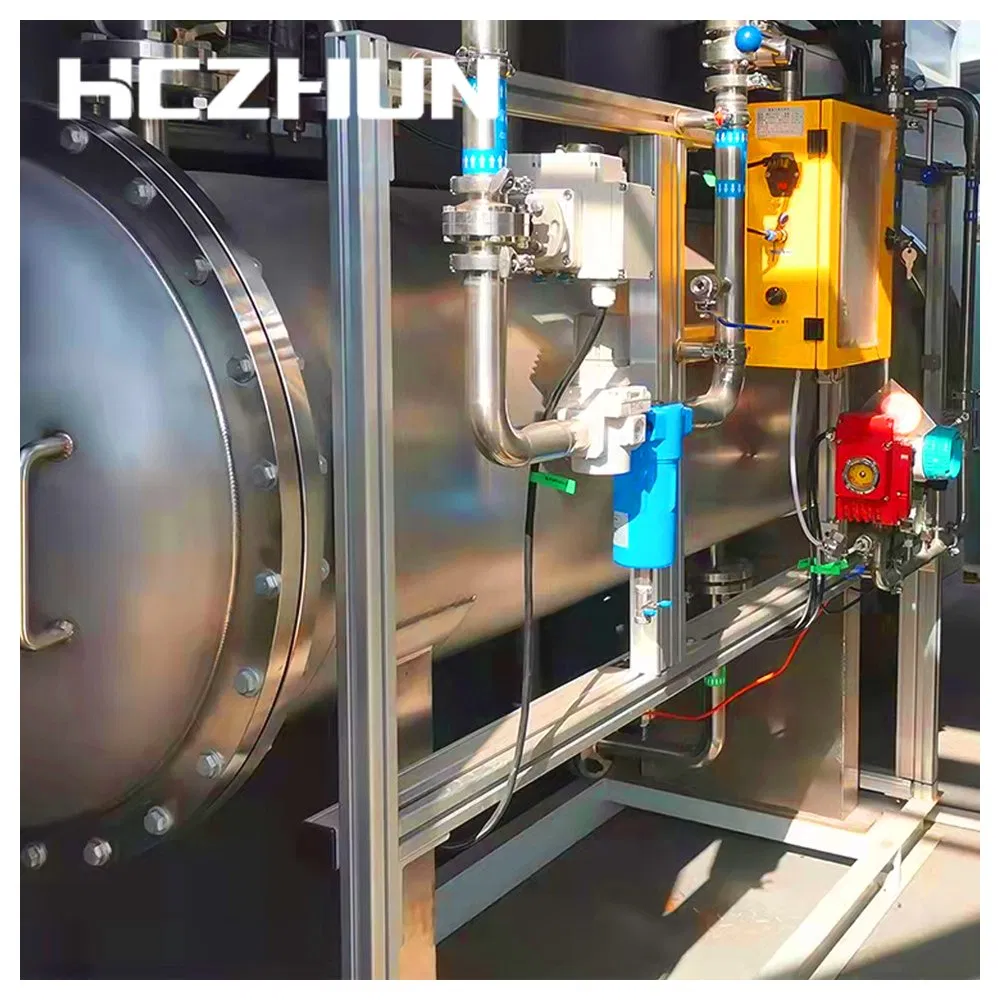

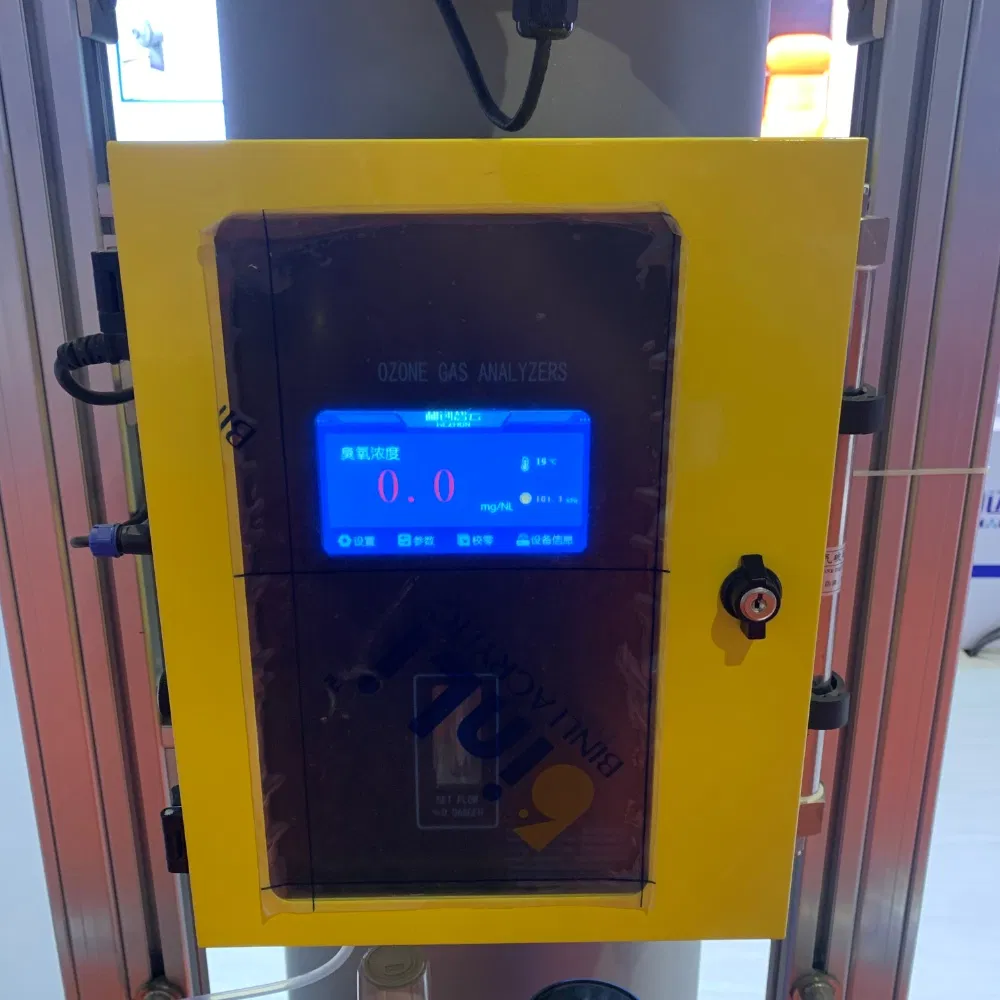

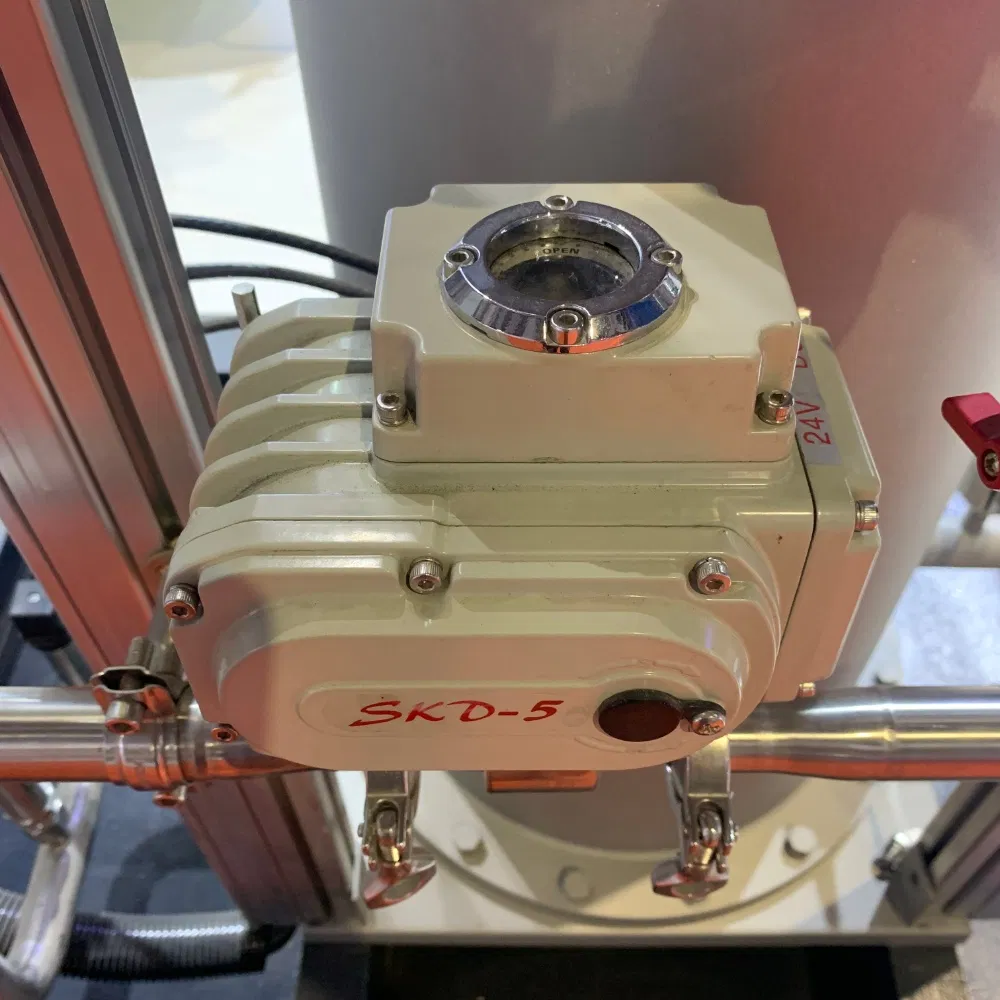

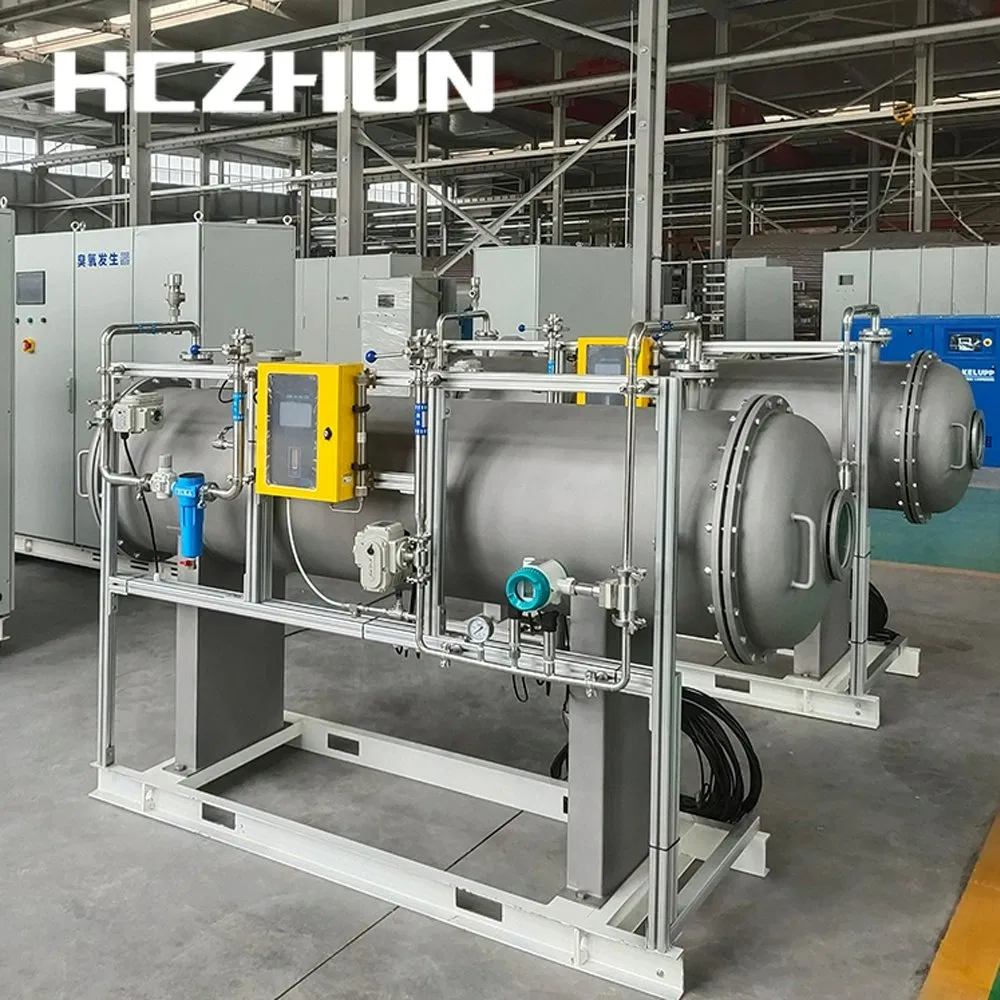

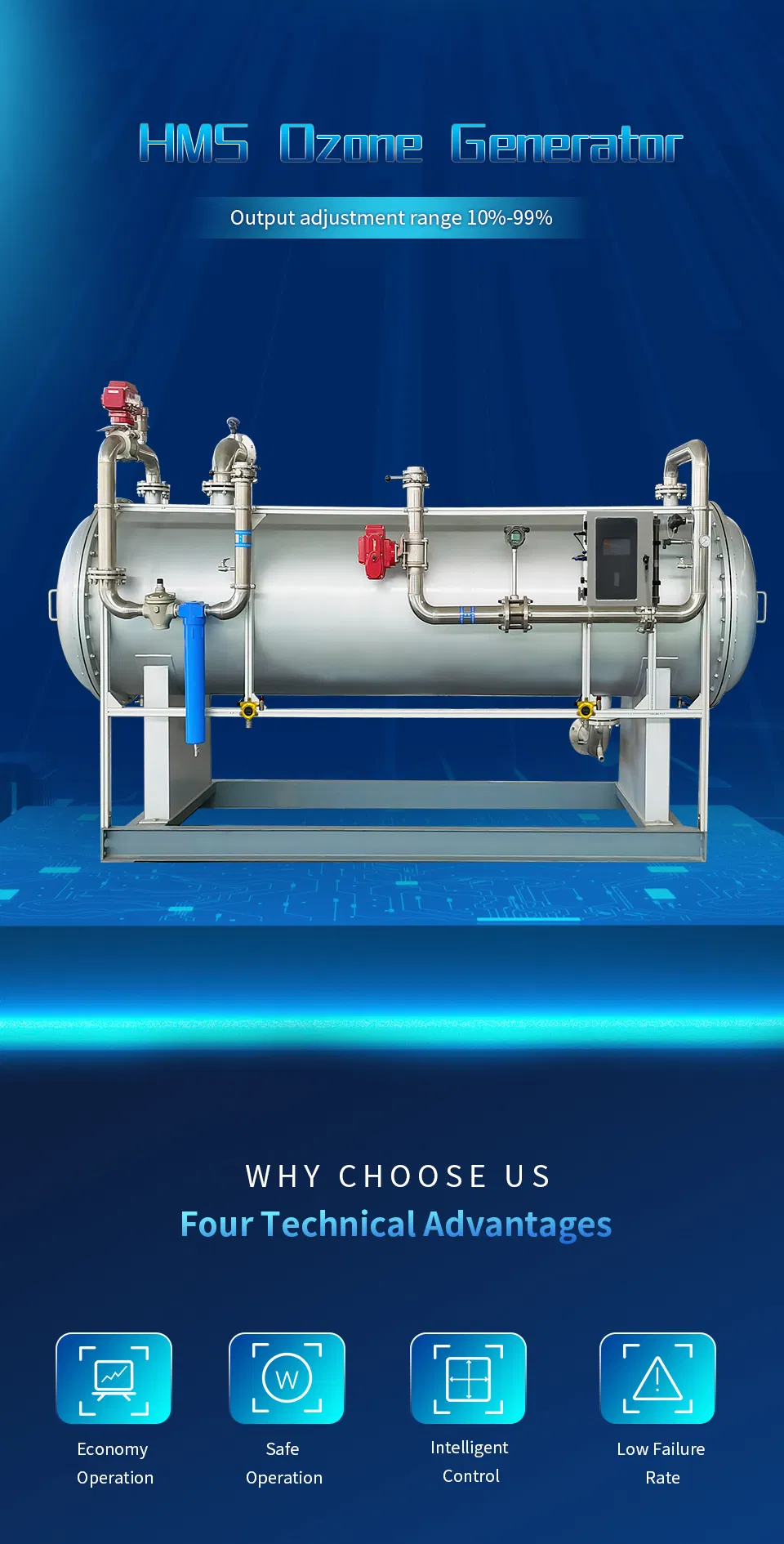

Real Machine Photos

Our Services

Customization Options

Logo Customization (MOQ: 1 set)
Packaging Customization (MOQ: 1 set)
Design Customization (MOQ: 1 set)

After-Sales & Training

Accessories available & On-site installation
Product Usage Training
Product Maintenance Training

Frequently Asked Questions

1. Are you a distributor or manufacturer?

We are a professional manufacturer. From production to manufacturing, we independently produce and complete all processes.

2. Can you customize machines according to our needs?

Yes, we provide full customization services according to your specific technical requirements and application needs.

3. What certificates do you have?

We hold ISO9001, CE, and TUV Explosion-Proof Certifications, ensuring the highest safety and quality standards.

4. How long is the service time of the equipment?

The whole machine provides a one-year warranty, with a service life of 5 to 10 years for key components under proper maintenance.

5. How safe is the equipment?

Safety is absolutely guaranteed. We feature a PLC automatic control system that monitors and displays any issues in real-time. We also include a special hydrogen exhaust system.

6. How is the product packaged for shipping?

We use robust wooden box packaging to ensure safety during transit. Special packing requirements can also be accommodated.
