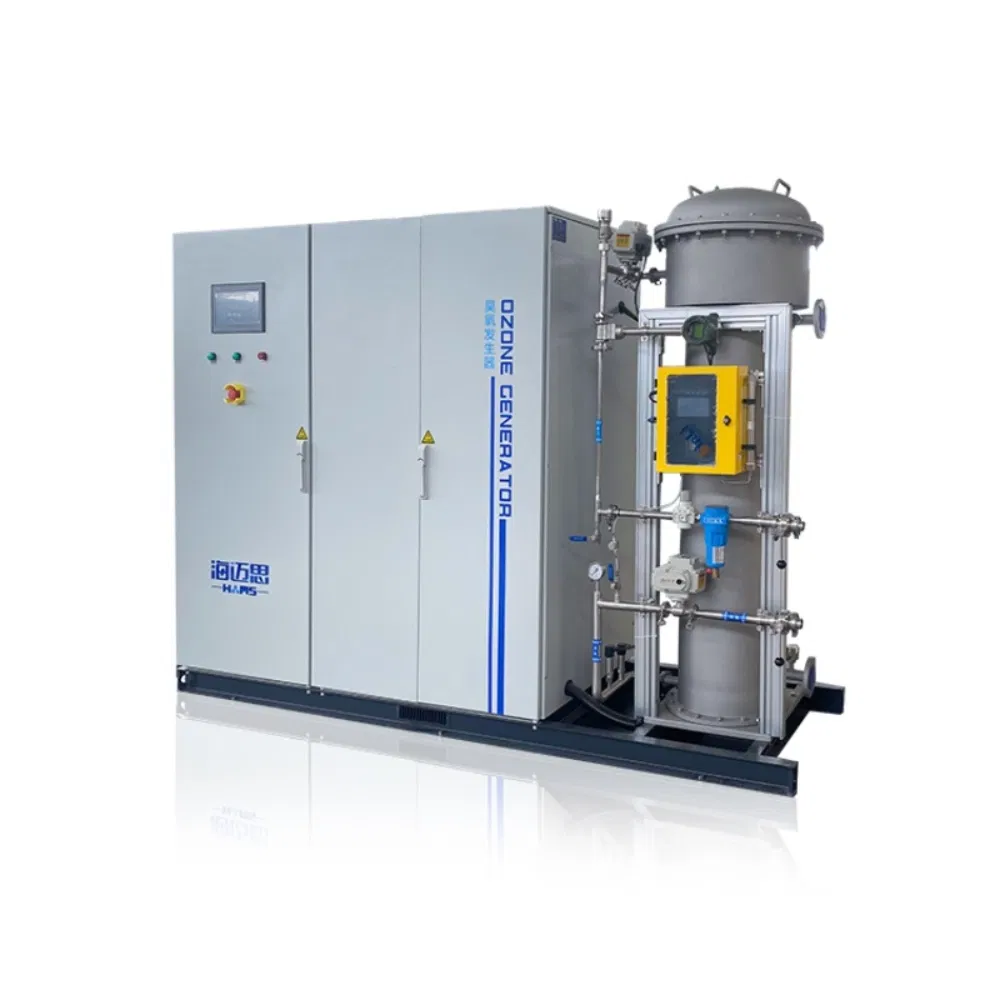

Intelligent Ozone Generator Control System with Adaptive Dosing Technology 3000g/H for Global B2B Procurement

Basic Specifications

Model NO.

HMS-3K

Certification

ISO9001, CE

Dielectric Material

Glass Tube

Cooling Method

Water-Cooling

Gas Source

Oxygen

Frequency

400-1000Hz

Ozone Capacity

3kg/H

Material

Stainless Steel

Service Life

Whole Life

Package Size

300cm * 180cm * 260cm

Gross Weight

2500.00kg

Origin

China

Technical Advantages

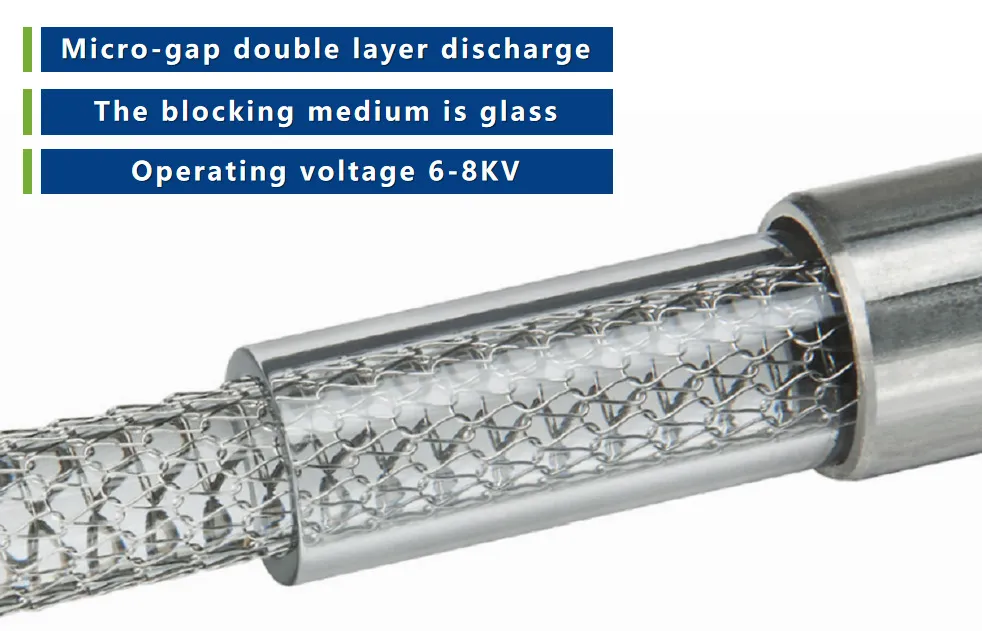

1. High Efficiency

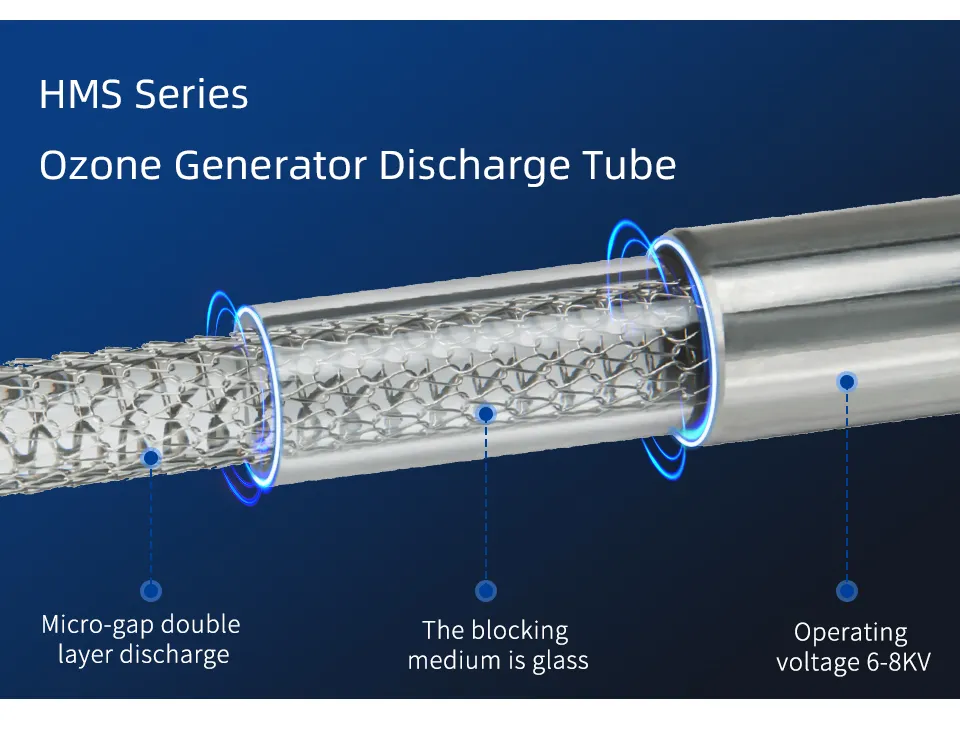

High-efficiency discharge tube with micro-gap double-layer discharge. Patented design hexagon conductive plate.

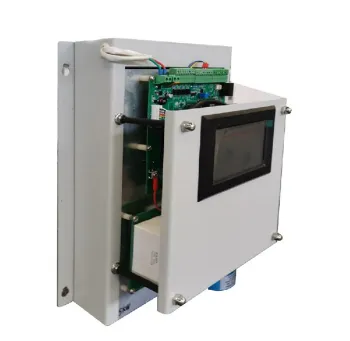

2. High Adaptability

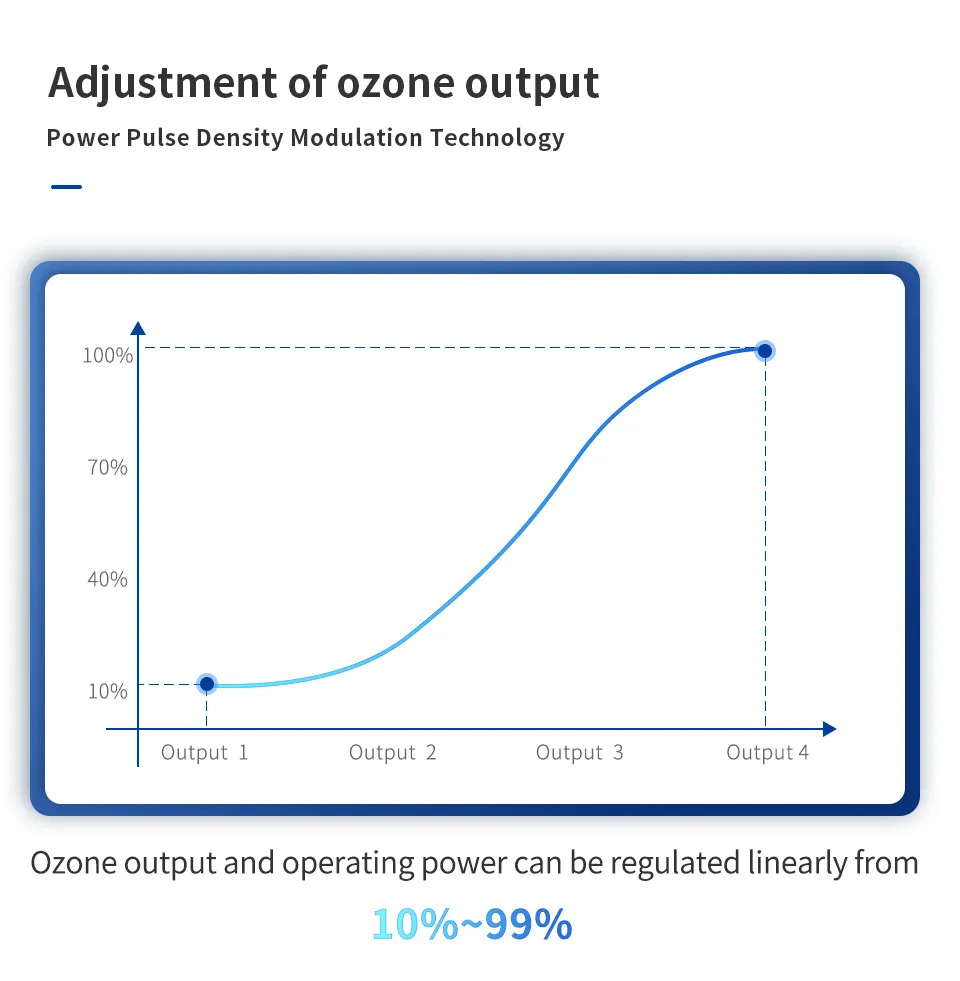

Various options for heat exchange modules and precise adjustment of ozone output via Power Pulse Density Modulation Technology.

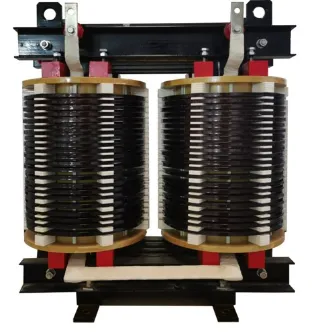

3. Low Power Consumption

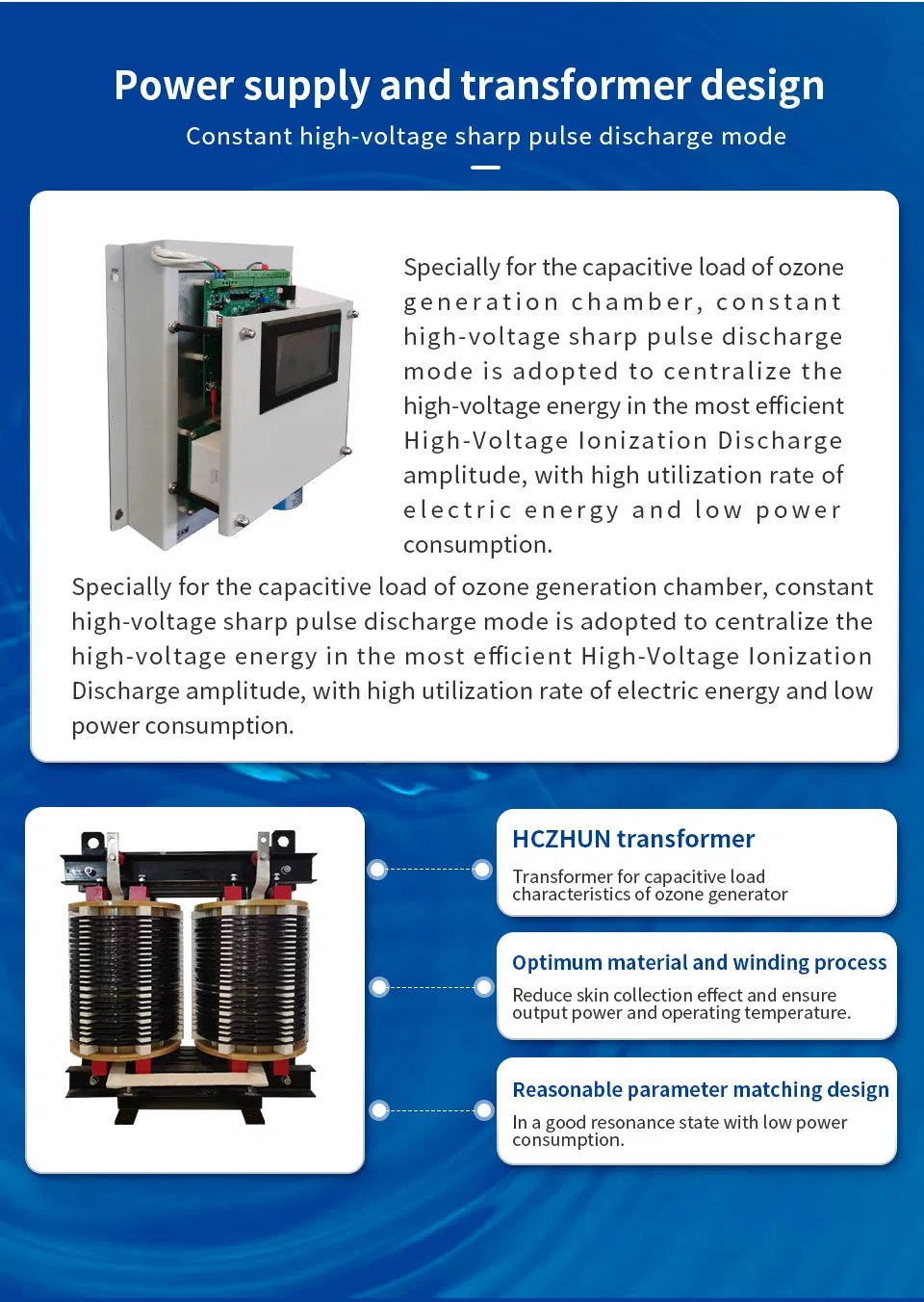

Reasonable Transformer Parameter Design combined with Power Supply Design at the optimal ratio for maximum energy savings.

4. Low Failure Rate

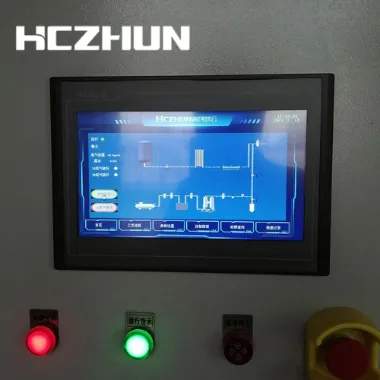

Advanced protection against electrical breakdown, chamber media fragmentation, and dedicated monitoring protection circuits.

Product Parameters (Oxygen Source)

Model	Ozone Production (kg/h)	Source Gas Flow (Nm³/h)	Ozone Conc. (mg/L)	Cooling Water (m³/h)	Power (kW)	Dimensions (mm)
HMS-5K	5	33.5-40	125-150	9-10	35-40	20008001900
HMS-10K	10	67-80	125-150	18-20	70-80	25009001600
HMS-15K	15	100.5-120	125-150	27-30	105-120	25009001600
HMS-20K	20	134-160	125-150	36-40	140-160	340010002200
HMS-25K	25	167.5-200	125-150	45-50	175-200	340010002200
HMS-30K	30	201-240	125-150	54-60	210-240	340010002200
HMS-40K	40	268-320	125-150	72-80	280-320	500010002200

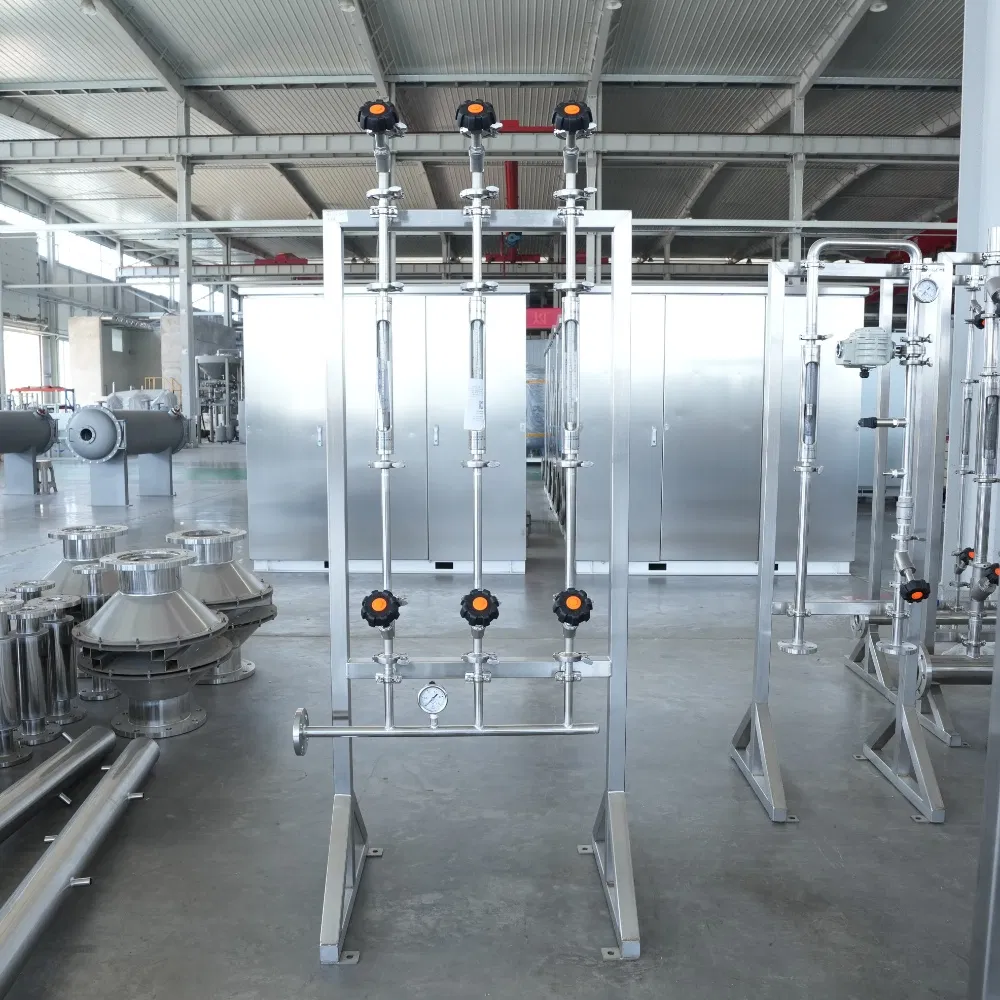

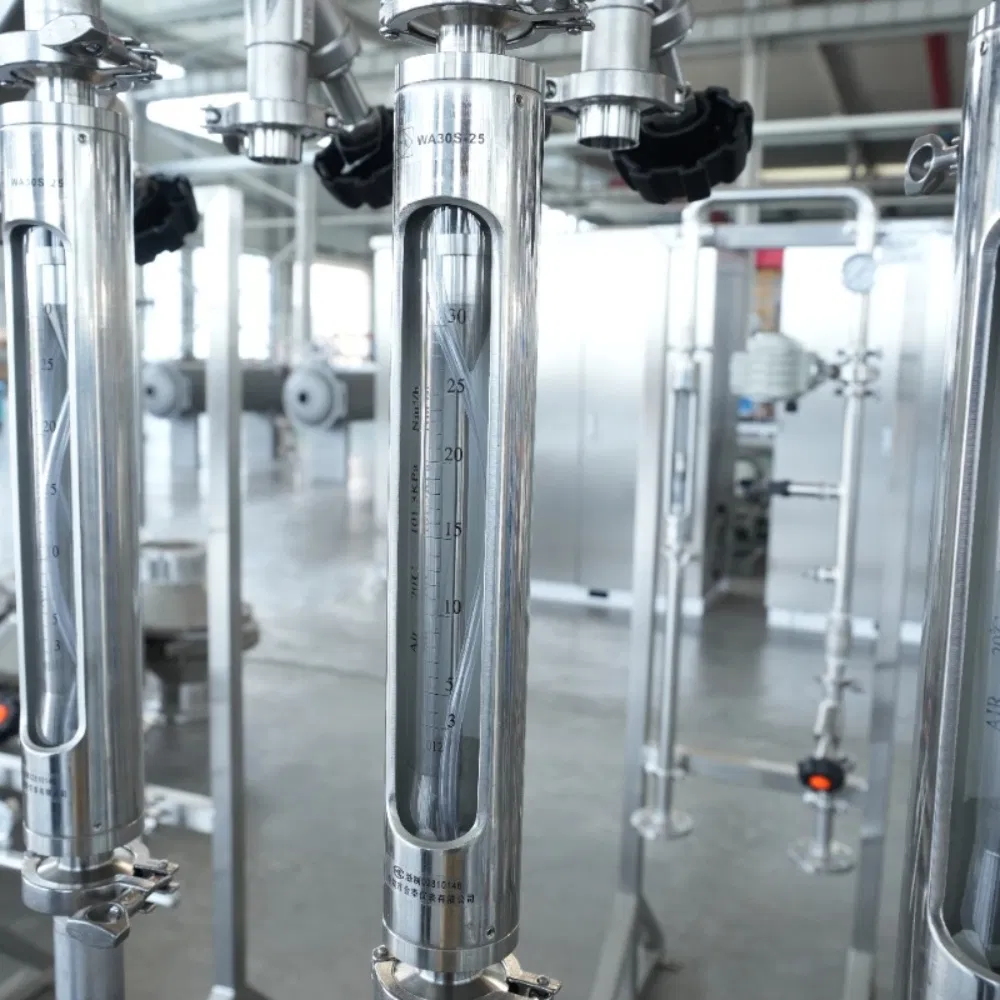

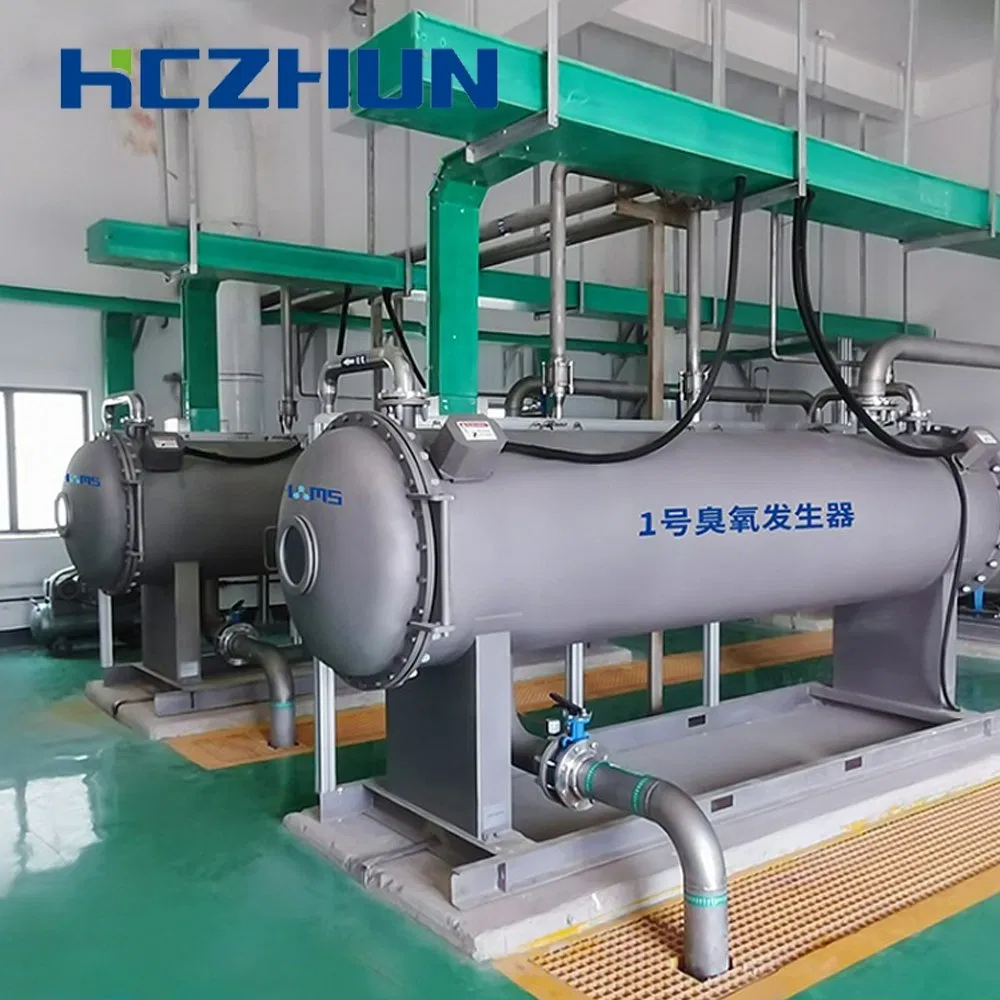

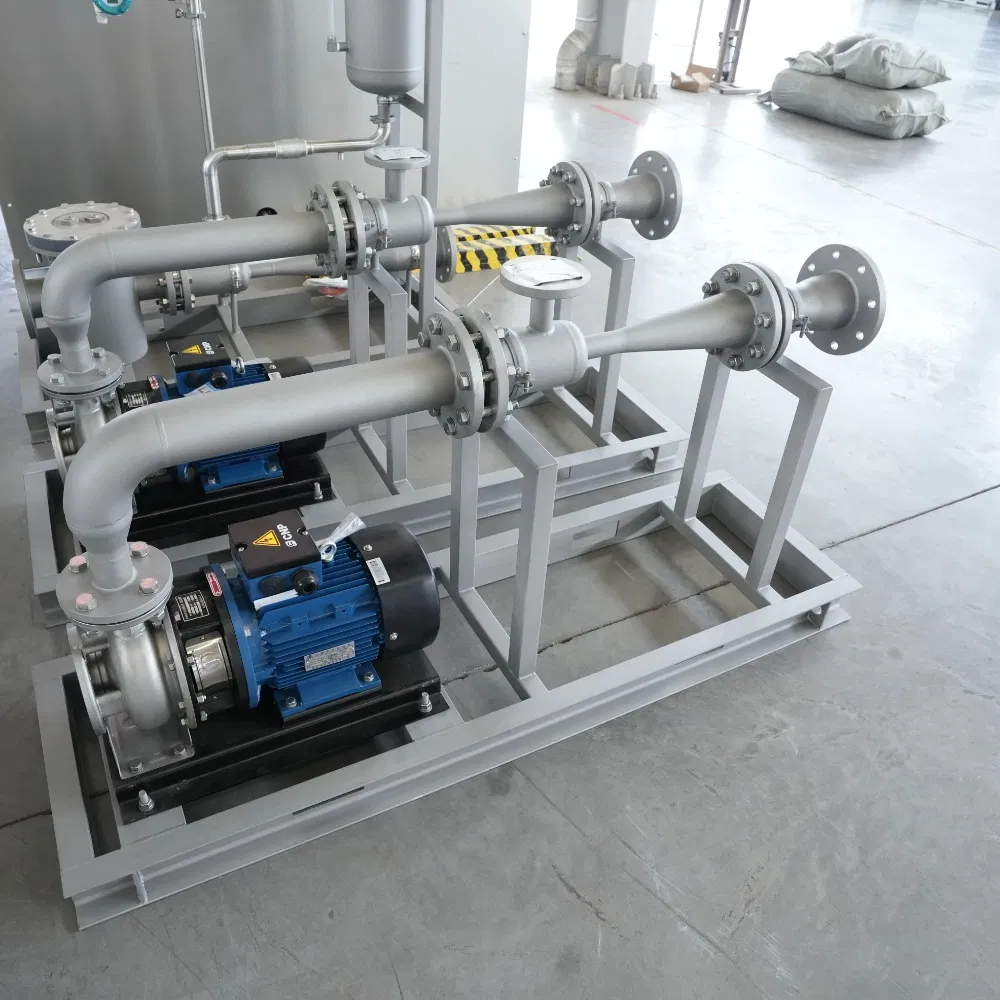

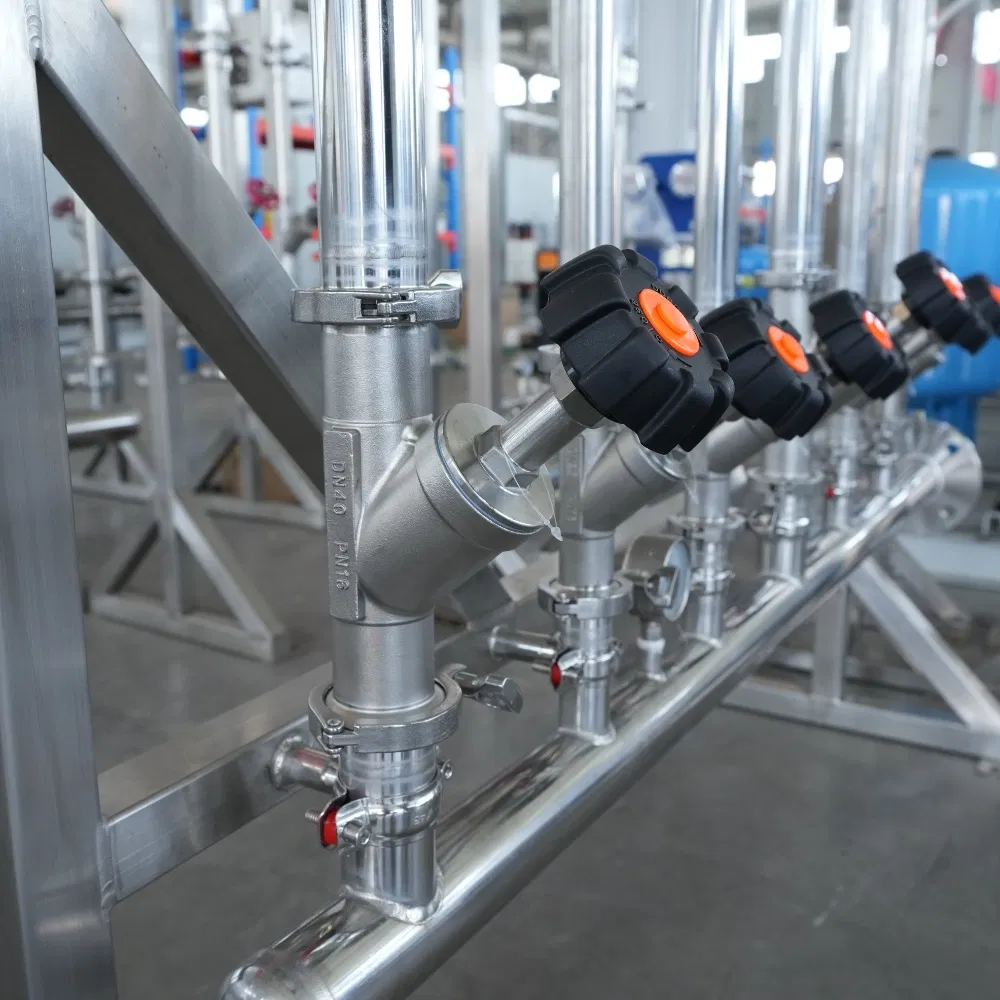

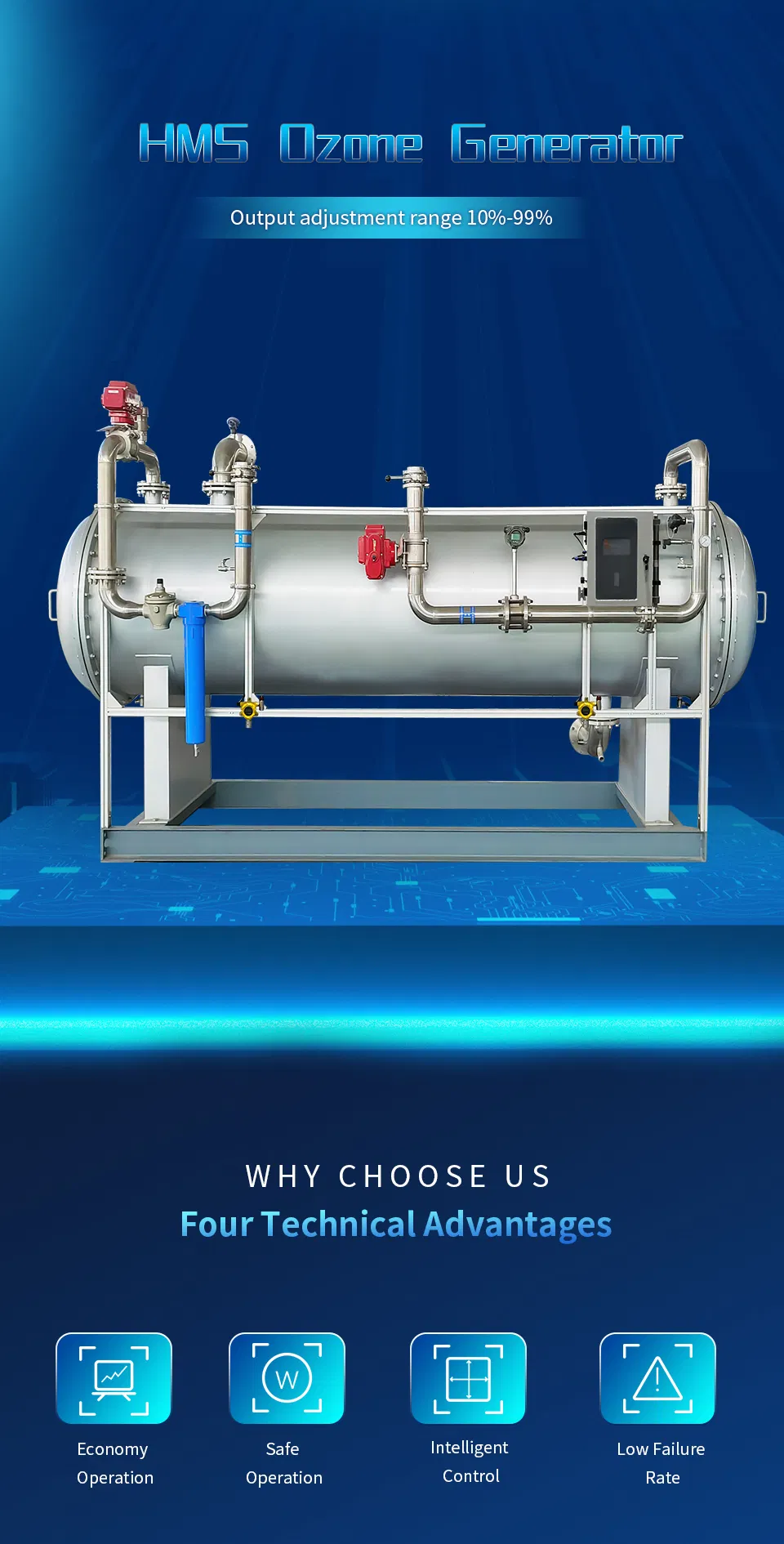

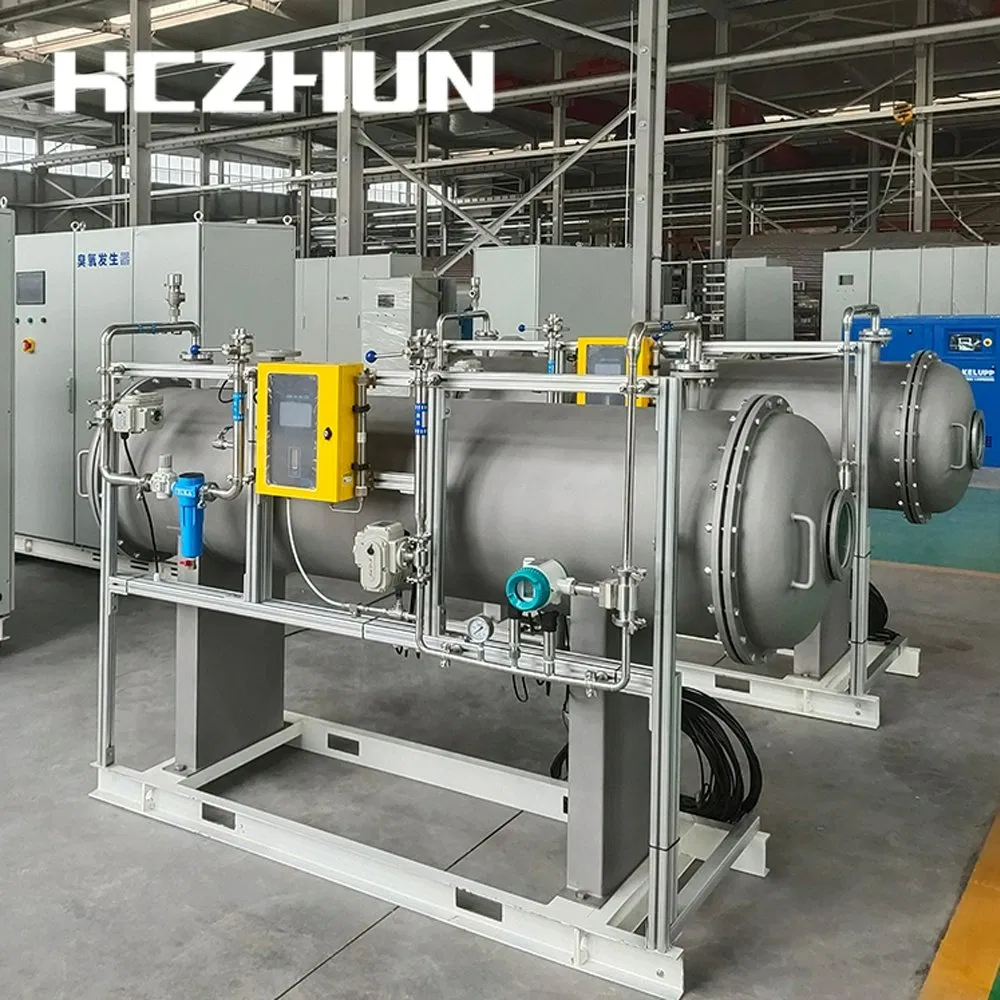

Real Machine Photos

Professional Services

Customization

Logo, Packaging, and Design customization available (MOQ: 1 set).

After-Sales

Accessories available and on-site installation support.

Training

Comprehensive product usage and maintenance training provided.

Frequently Asked Questions

Are you a distributor or manufacturer?

We are a manufacturer. From production to manufacturing, we independently produce and complete all processes.

Can you customize machines according to our needs?

Yes, we can customize the equipment according to your specific requirements.

What certificates do you have?

We hold ISO9001, CE, and TUV Explosion-Proof Certifications.

How long is the service time of the equipment?

The whole machine provides a one-year warranty, with a service life of 5 to 10 years for key components.

How safe is the equipment?

Safety is guaranteed. We use a PLC automatic control system that monitors and solves issues in real-time, plus a special hydrogen exhaust system to ensure safety.

How to install the device when it reaches the destination?

We provide detailed installation instructions and online guidance. If necessary, we can send a technician to assist you on-site.
