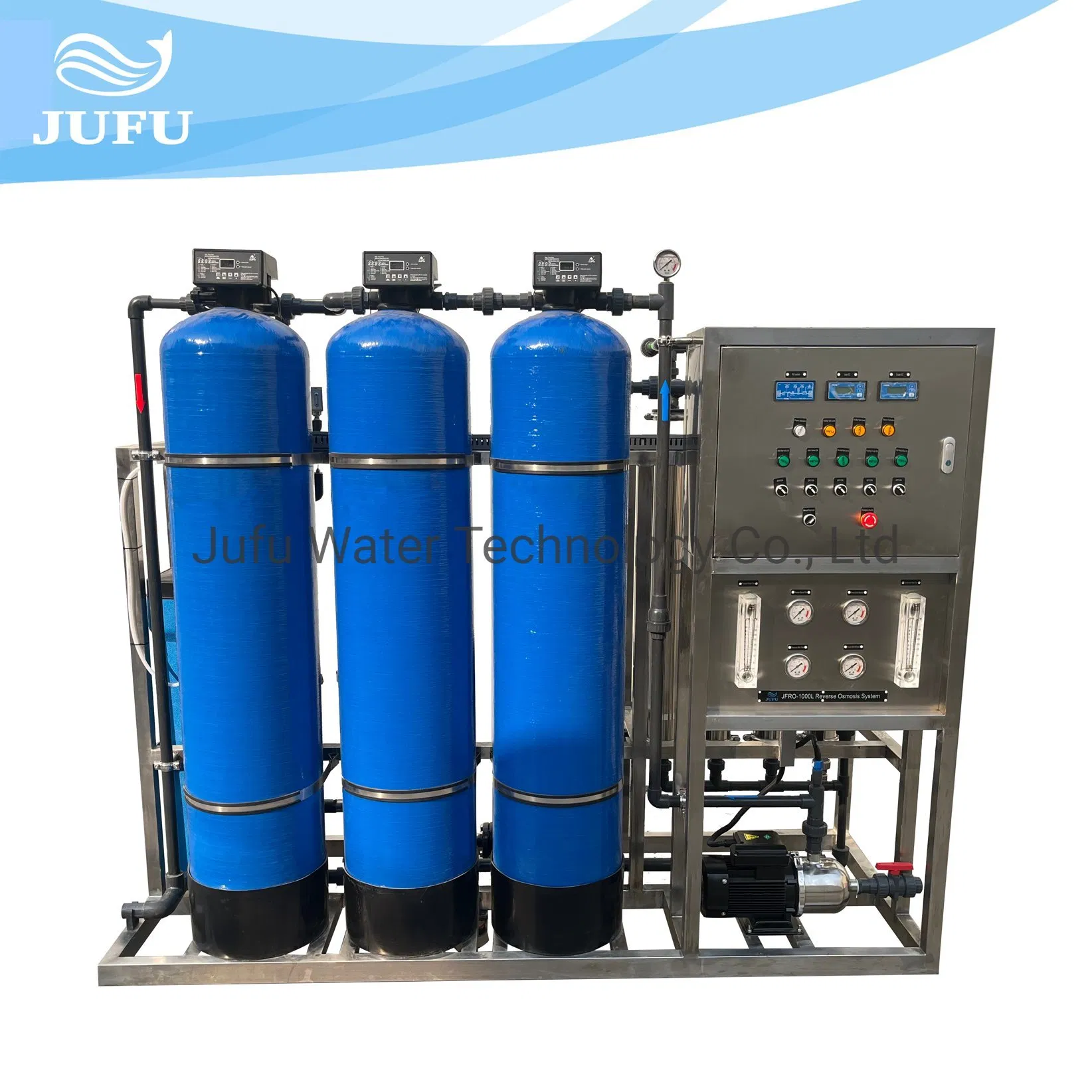

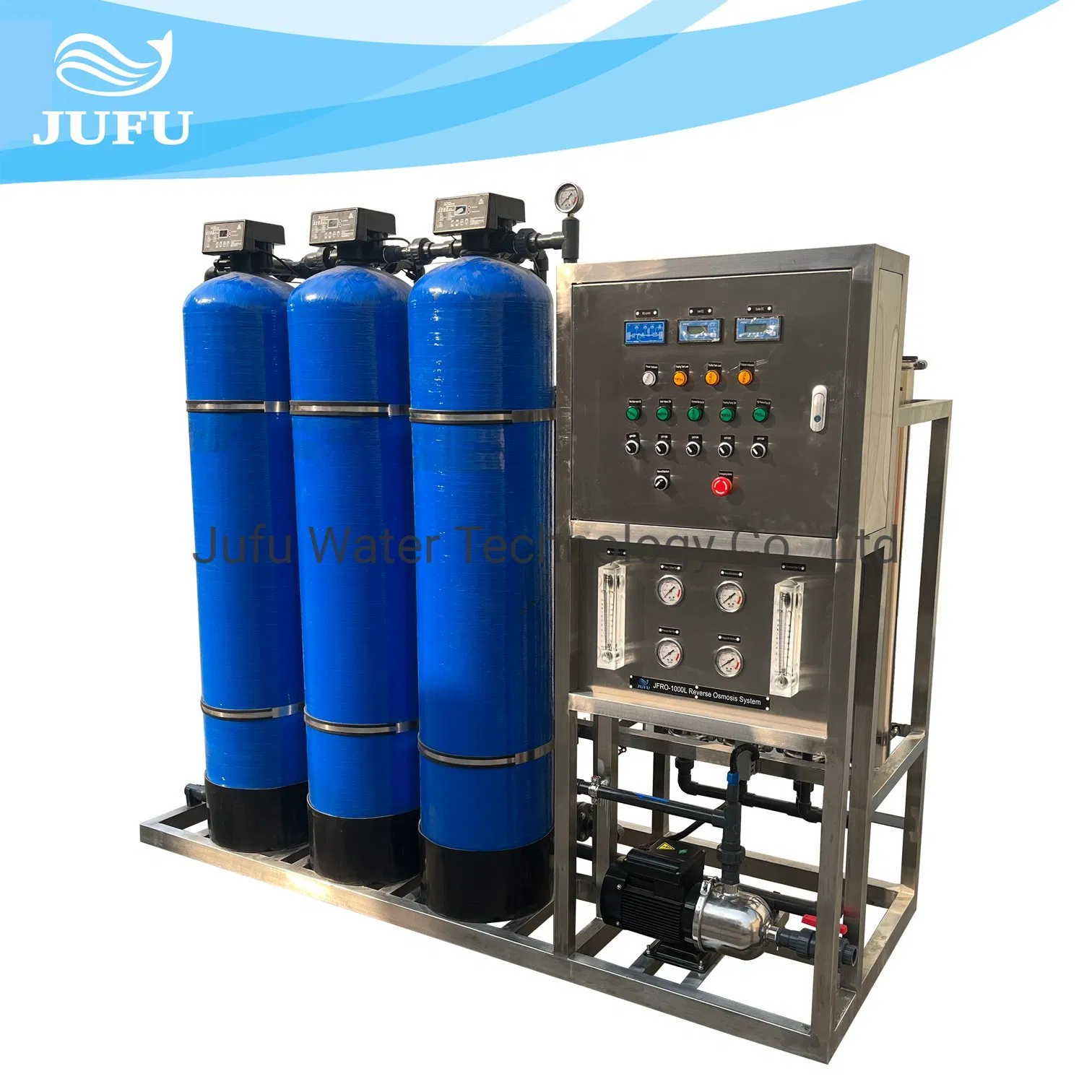

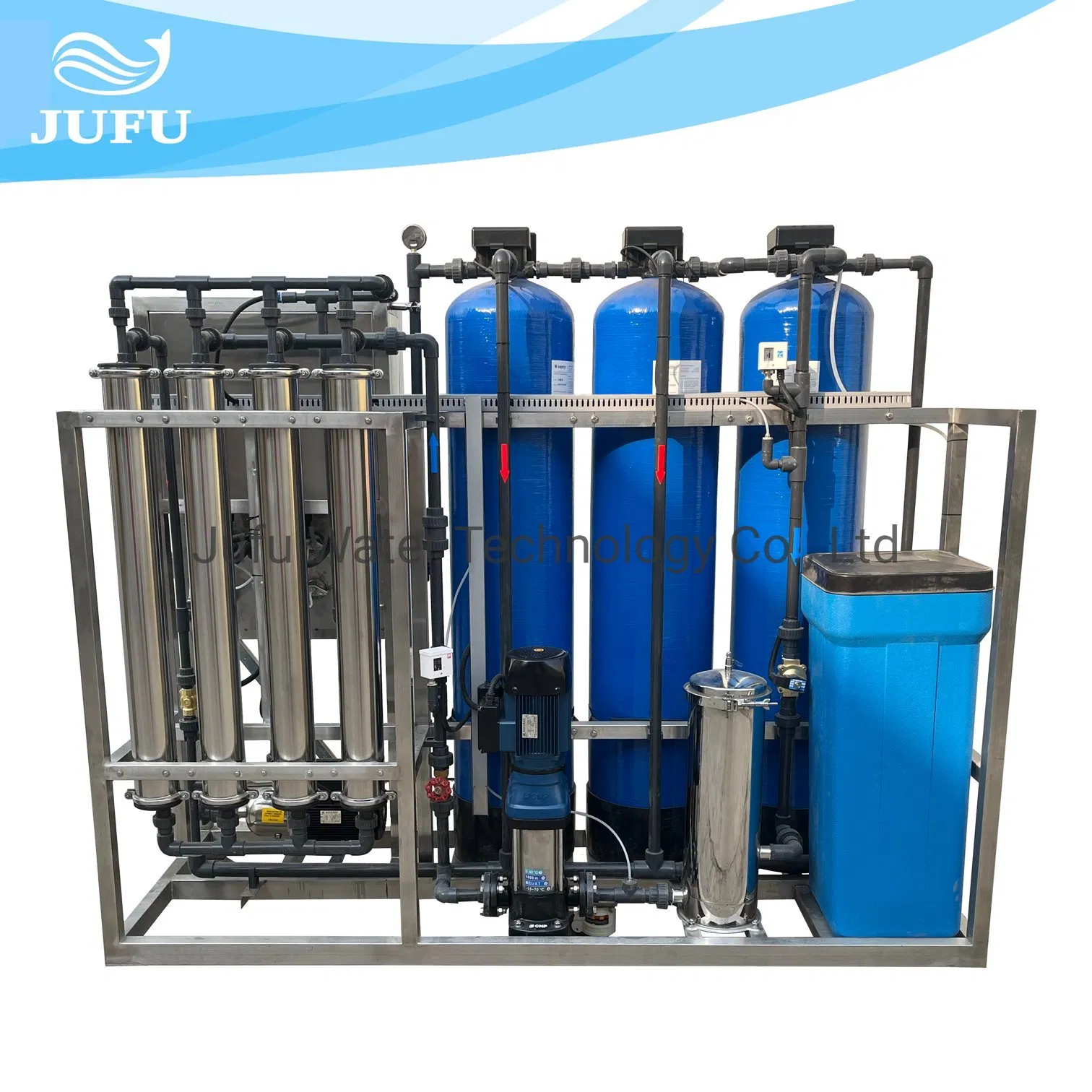

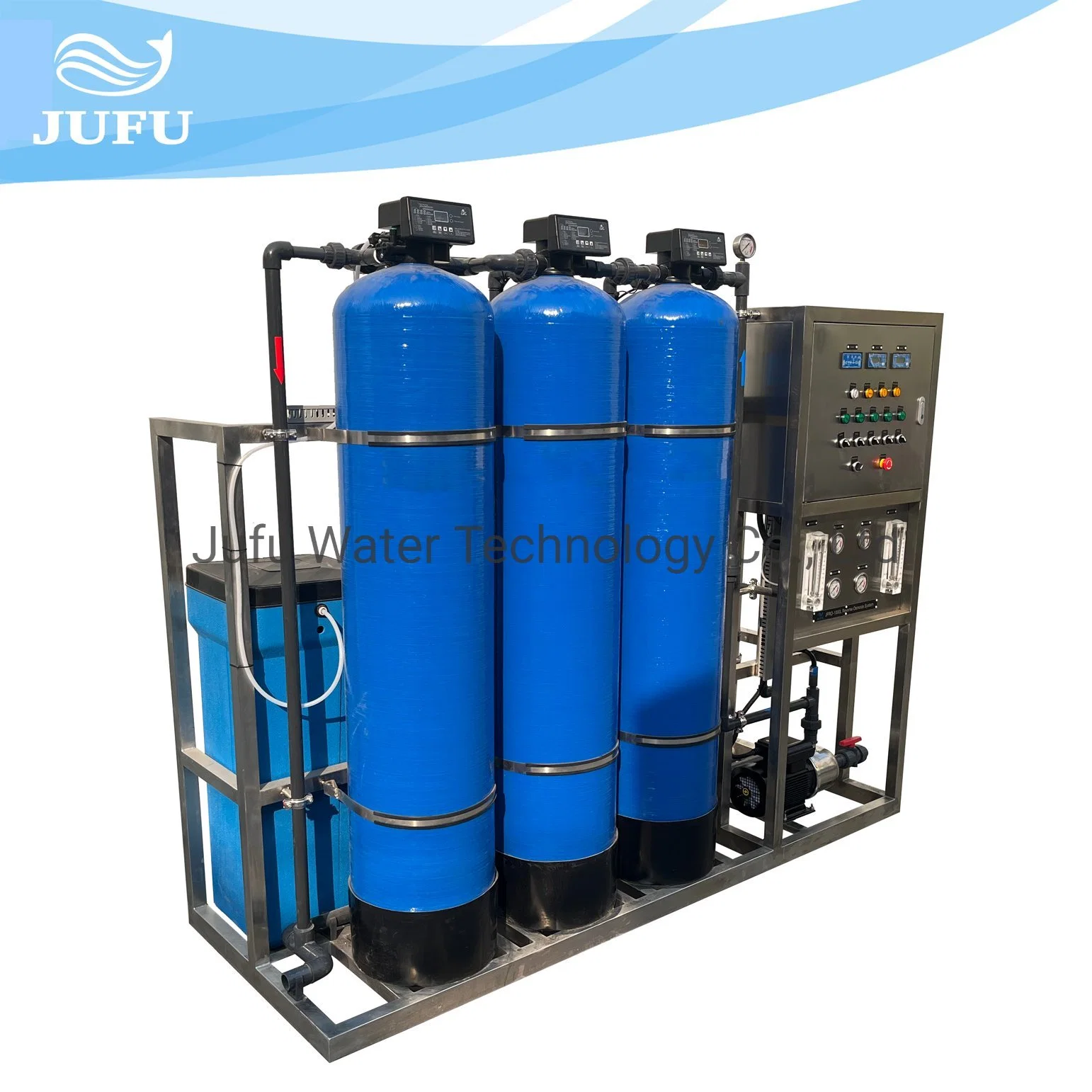

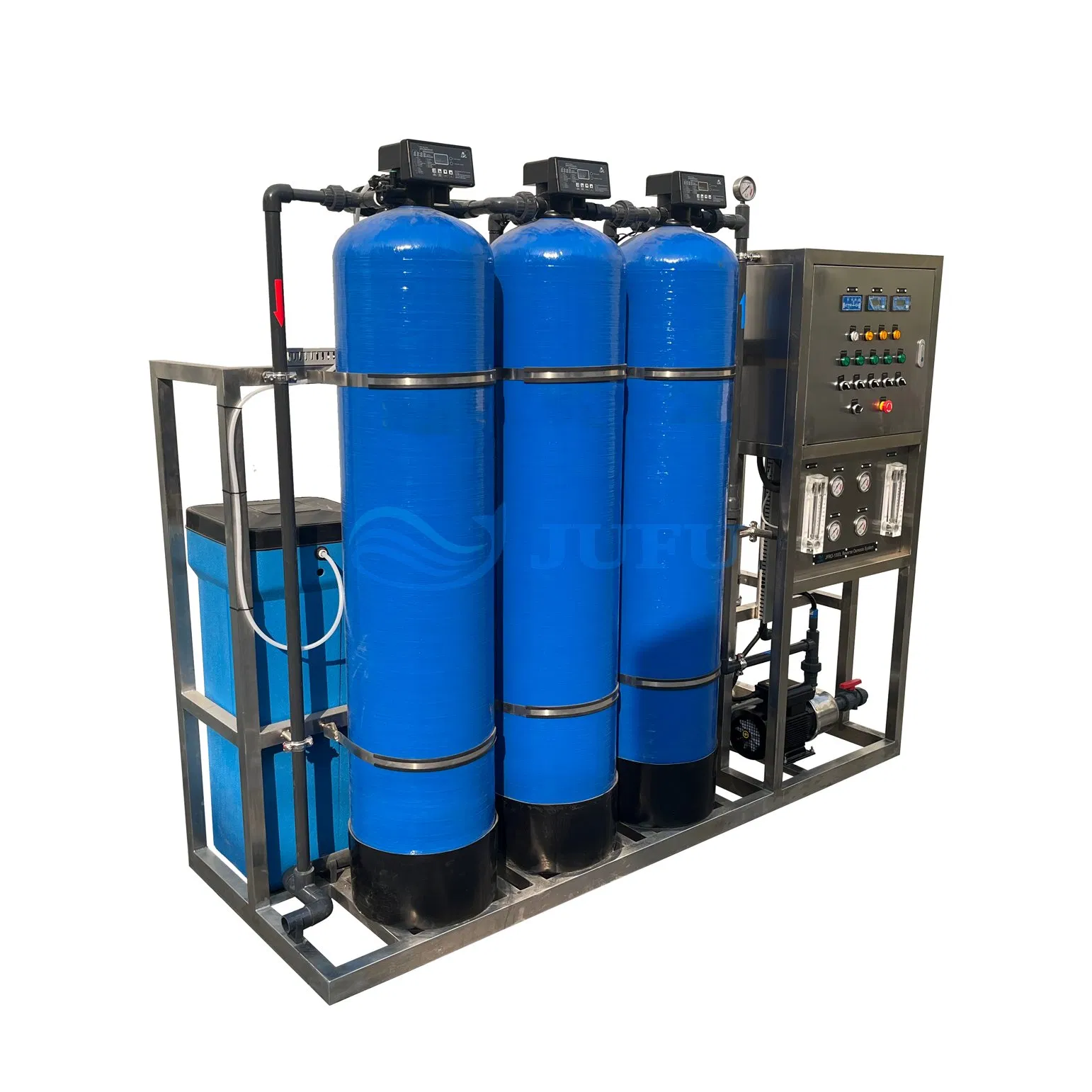

1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1 / 5
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant
1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant

1000lph Reverse Osmosis System Water Filter Purifier Desalination Water Treatment Machine Water Purification System RO Drinking Water Treatment Plant

Customization: Available
Certification: ISO9001, CE
Salt Rejection Rate: 99.0%
Send Inquiry

Product Description

Basic Specifications
Model NO.
JFRO-1000L
Application
Industry
Capacity
1000L/H
Weight (Kg)
100 Kg
Size
80*60*150cm (Customizable)
Membrane Brand
Vontron
Core Components
RO Membrane
Pump Brand
Cnp
Frame Material
Stainless Steel
Warranty
1 Year
Control Type
Auto Control
Package Size
210cm * 80cm * 197cm
Product Description
Banner

What is RO Water Treatment System?

The reverse osmosis water treatment system can separate, extract, purify and concentrate the reverse osmosis method that is greater than the osmotic pressure according to the different osmotic pressures of various materials. When the RO membrane is located on one side of the selective membrane, by applying pressure to the solution, RO membranes remove many types of macromolecules and ions from solution. Solutes such as iron, viruses, bacteria and solids are retained on the pressurized side of the membrane, while pure solvents are allowed to pass through the other side of the membrane.

RO System Operation
Advantages of RO System
  • Physical Purification: Non-phase-change physical method used to desalinate and purify saline water.
  • High Efficiency: Desalting rate of single membrane element is 99.3%, removing colloids, organics, bacteria, and heavy metals.
  • Energy Saving: Uses water pressure as the driving force, ensuring lowest energy consumption.
  • Eco-Friendly: No large amount of chemical treatment required; recovery rate is over 70%.
  • Automation: High automation program with automatic failure protection.
  • Stable Quality: Compact structure and easy to operate with reliable water quality output.

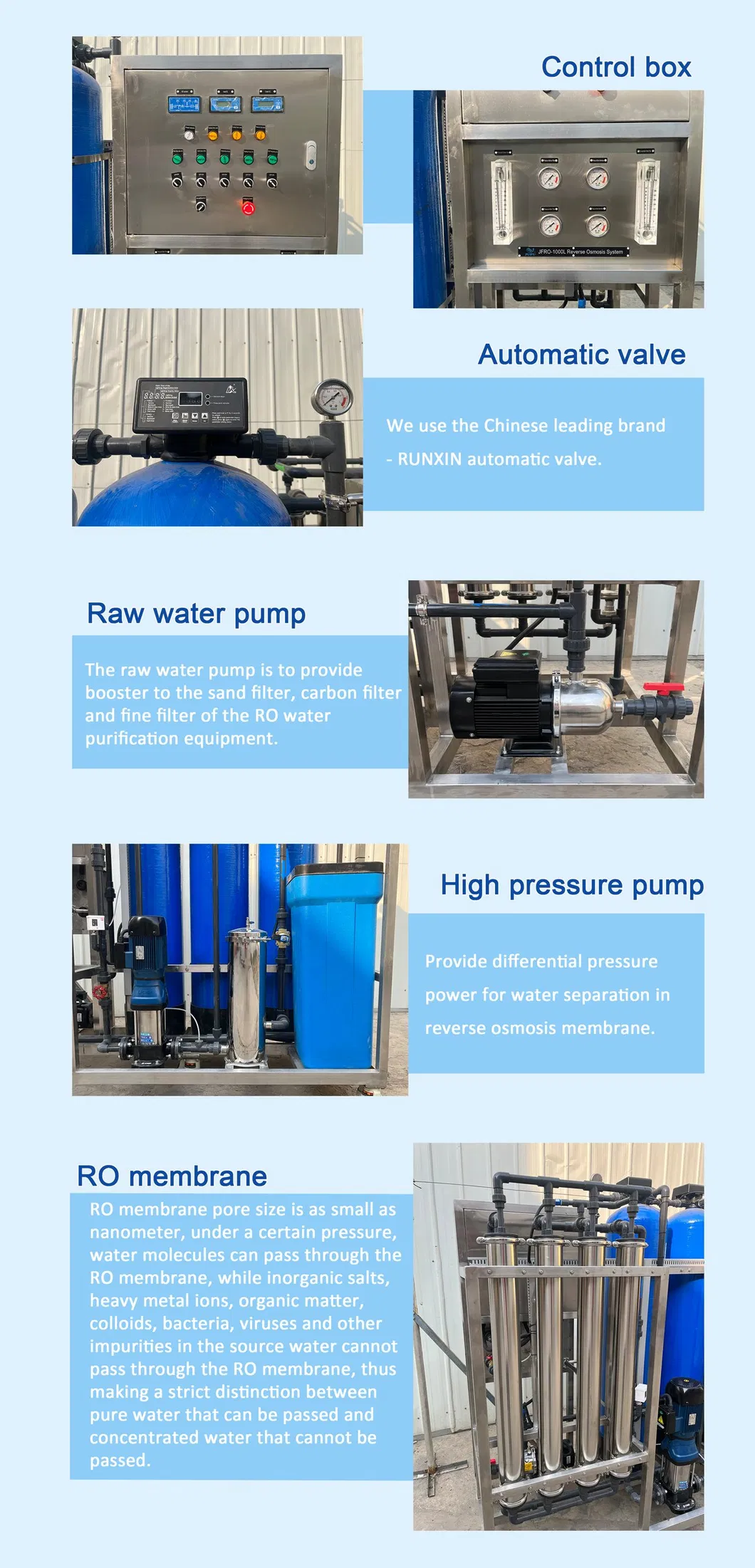

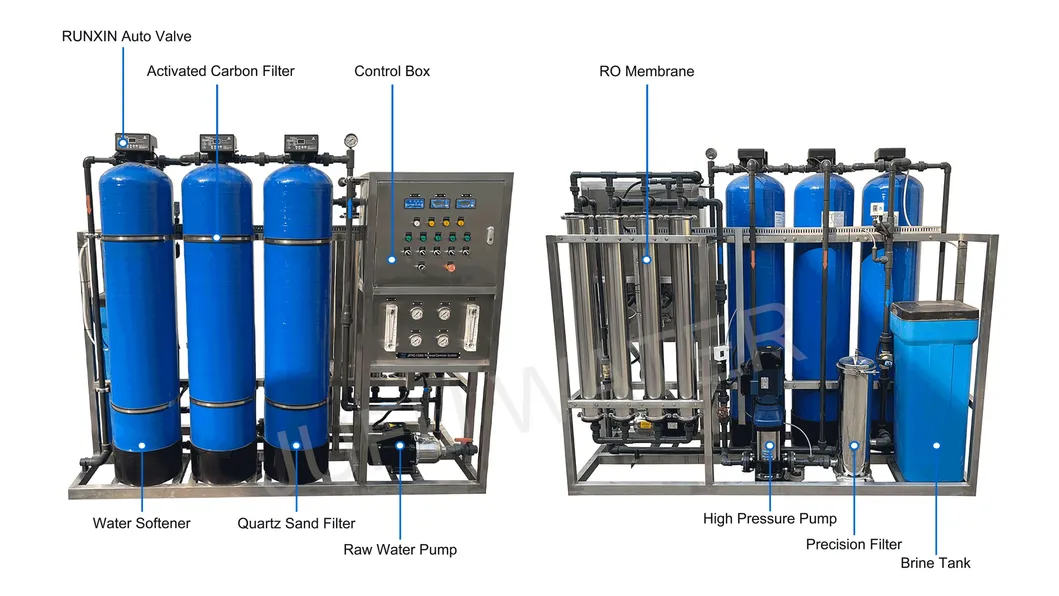

System Detail 1 System Detail 2
Technical Parameters (1000L/H)
ParameterDetail
Host Size1000x600x1600mm (Customizable)
Power / Supply2.2KW / 220V/380V/460V - 50Hz/60Hz
Operating Pressure0.8-1.2 MPa
Recovery Rate50%
Outlet Flow1000L/h
Desalination Rate≥99.5%
RO Frame MaterialSUS304
Membrane Size / Qty4040 / 4 Elements
Tank MaterialSS/FRP (Optional)
Control ValveManual/Automatic (FLECK/RUNXIN)
Workflow & Process
Source water tank → Booster pump → Quartz sand filter → Activated carbon filter → Water softener → Precision filter → Primary RO system → Secondary RO system → Mixer → Ozone sterilizer → Pure water tank → Filling line

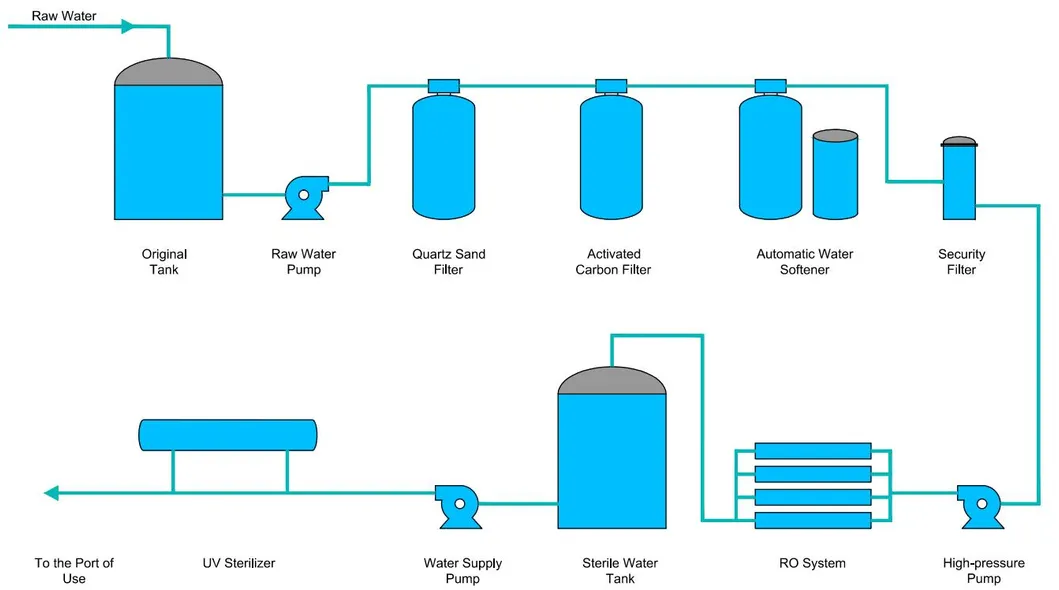

Process Diagram Equipment Overview
Industry Solutions & Applications

Providing integrated Research & Development, Manufacturing, and Engineering installation for water purification equipment. Our solutions cover:

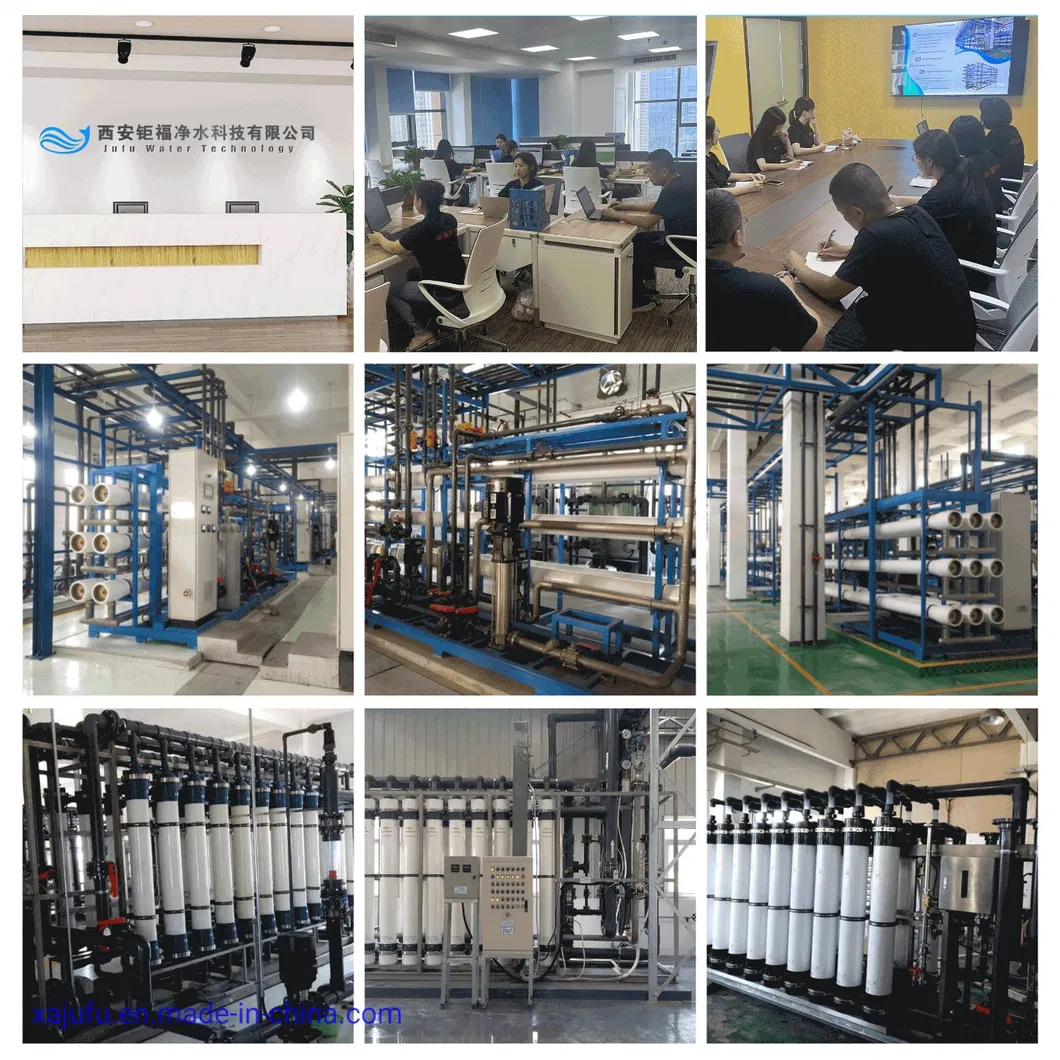

Expertise 1 Expertise 2 Expertise 3
  • Ultrafiltration and Nano-filtration equipment.
  • EDI electric desalination and medical purified water systems.
  • Industrial process water recycling and reuse solutions.
  • MBR integrated wastewater treatment.
Frequently Asked Questions
What type of source water can this system treat?
The system is designed for various sources. To provide an accurate solution, please provide a Water Analysis Report including the raw source of your water.
How do I choose the right equipment for my needs?
Professional engineers provide tailor-made solutions based on your required output capacity, application, local piping standards, and installation needs.
What are the payment terms and lead times?
Typical terms include a deposit in advance and balance before delivery. Lead time generally ranges from 3-5 weeks depending on product specifications.
What is the warranty period?
We offer a 1-year warranty for all products. With proper maintenance and use, the equipment typically has a working life of 5 years or more.
Do you provide on-site installation guidance?
Yes, installation guidance can be provided as part of the customized solution package to ensure optimization and correct setup.
What certifications or standards do the products meet?
Our products are manufactured as Hi-tech industrial water treatment solutions, using premium components like Vontron membranes and CNP pumps to meet global purification standards.
