20m3 Per Hour Reverse Osmosis Systems Well Solar Plant Seawater Desalination Solar Powered Desalination Plant RO System Treatment Swro Salt Water to Drinking

Still deciding? Get samples of $ !
Order Sample

Product Description

⚙️ Basic Information
Model NO.
CK-SW
Application
Industry
Capacity
20t/H
Function
Water Purification
Frame Structure
Stainless Steel 304/316
RO Membrane
Vontron
Water Pump
Cnp or Imported Brands
Desalination
97%
Recovery Rate
45-50%
Productivity
20000L/H
📦 Packaging & Delivery
Package Size
500.00cm * 200.00cm * 400.00cm
Gross Weight
12000.000kg
💧 Product Description

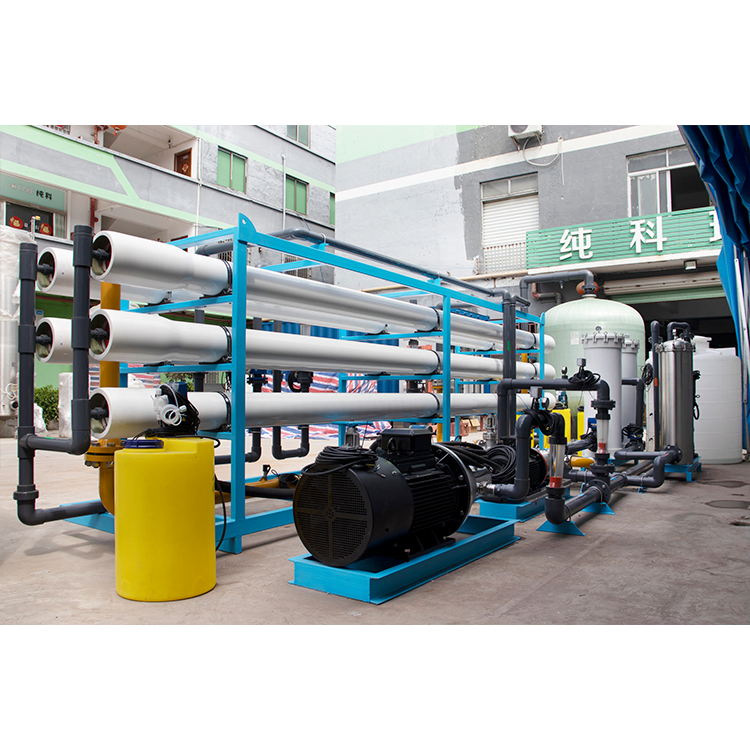

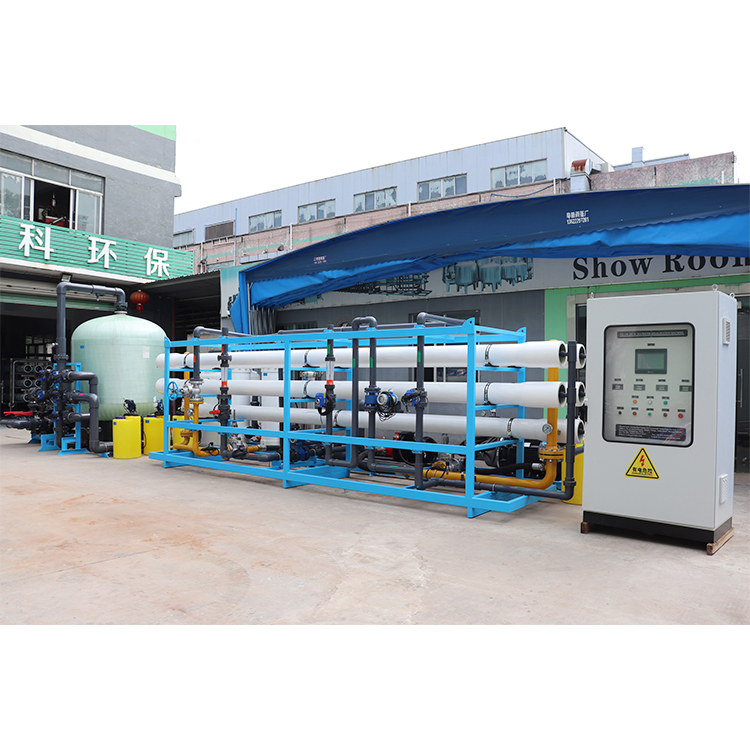

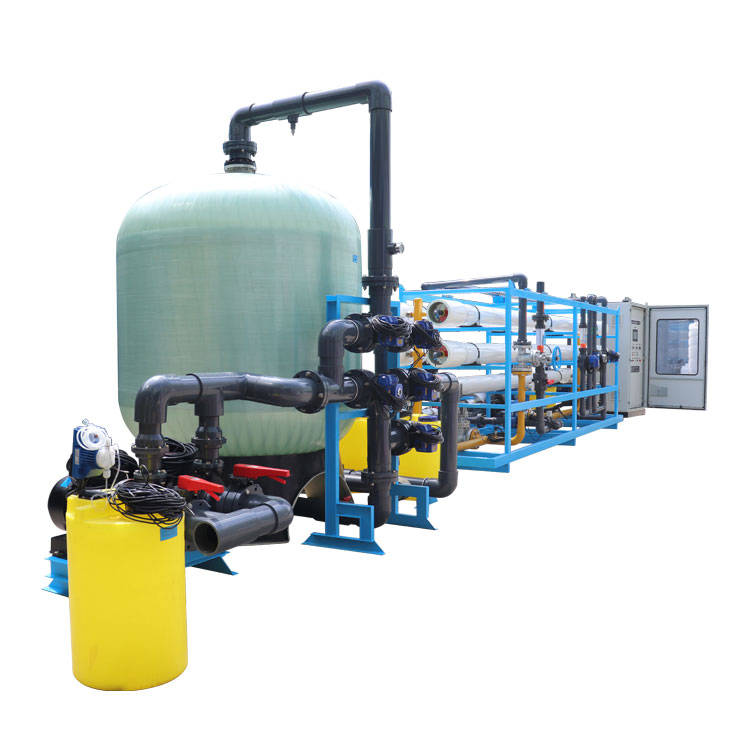

20m3 Per Hour Reverse Osmosis Systems Seawater Desalination Plant

High-efficiency solar powered treatment equipment designed to convert salt water into high-quality drinking water.

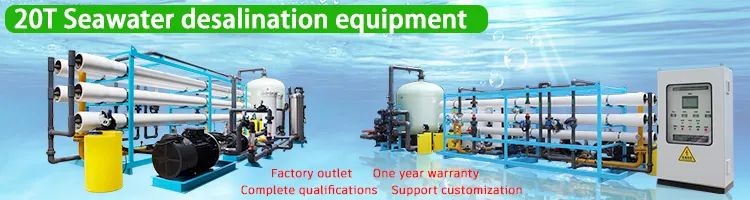

Seawater Desalination System

Industrial RO Seawater Desalination Plants offer a capacity range between 2m³ per hour to 2500m³ per day. These systems are engineered to handle high Total Dissolved Solids (TDS) and the corrosive nature of salt water using specialized FRP or Carbon Steel materials for pretreatment tanks.

System Components:

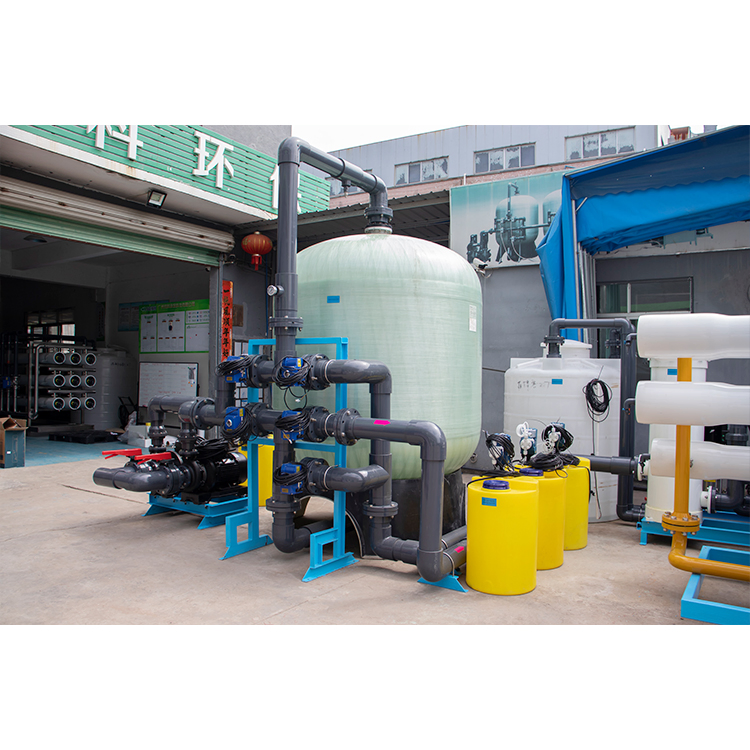

  • Pretreatment: Consists of Sand Media Filter, Activated Carbon Filter, and Softener Tanks to remove suspended solids, turbidity, chlorine, and organic contaminants.
  • Security Filter: Utilizes 1µm or 5µm PP cartridge filters in FRP or PVC housings.
  • High Pressure Pump: Options include premium imported brands or CNP for optimized performance.
  • Membrane Technology: Features high-grade SW RO Membranes (DOW Filmtec, Toray, Vontron, Hydranautics, or LG brands).

Ion Removal Efficiency Performance

Type of Ions Efficiency Type of Ions Efficiency
AI3+95-99%SO2-490-99%
Mn2+95-99%HPO2-490-99%
Ca2+92-99%CO2-380-95%
Mg2+92-99%SiO2-375-90%
K+75-93%CF-85-95%
Na+75-95%HCO-380-95%
NH4+70-90%CI-80-95%
PO3-490-99%NO-350-75%

Product Show & Details

Product Show
RO System Detail 1 RO System Detail 2 RO System Detail 3 RO System Detail 4 RO System Detail 5 RO System Detail 6 RO System Detail 7 RO System Detail 8 RO System Detail 9
❓ Frequently Asked Questions
What is the production capacity of this desalination plant?
The system has a productivity of 20,000 liters per hour (20t/H), suitable for large-scale industrial applications.
What is the salt removal efficiency of the RO membrane?
The system provides a desalination rate of approximately 97%, effectively converting seawater into drinking water.
What materials are used for the frame and tanks?
The frame is constructed from Stainless Steel 304 or 316. For pretreatment tanks, we use corrosion-resistant FRP (Fiber Reinforced Plastic) or Carbon Steel to withstand high salt concentrations.
Can this system be powered by solar energy?
Yes, this desalination plant is designed to be compatible with solar power, making it ideal for remote areas or eco-friendly projects.
What brands of RO membranes are used?
We typically utilize world-class brands such as Vontron, DOW Filmtec, Toray, Hydranautics, or LG for our seawater RO membranes.
What is the typical recovery rate of the system?
The system operates with a recovery rate of 45-50%, depending on the raw water quality and operating conditions.
