📋 Product Overview
Control Type
Automatic Control
📦 Packaging & Delivery
Package Size
265.00cm * 132.00cm * 230.00cm
📍 Product Description
What is Reverse Osmosis (RO)?

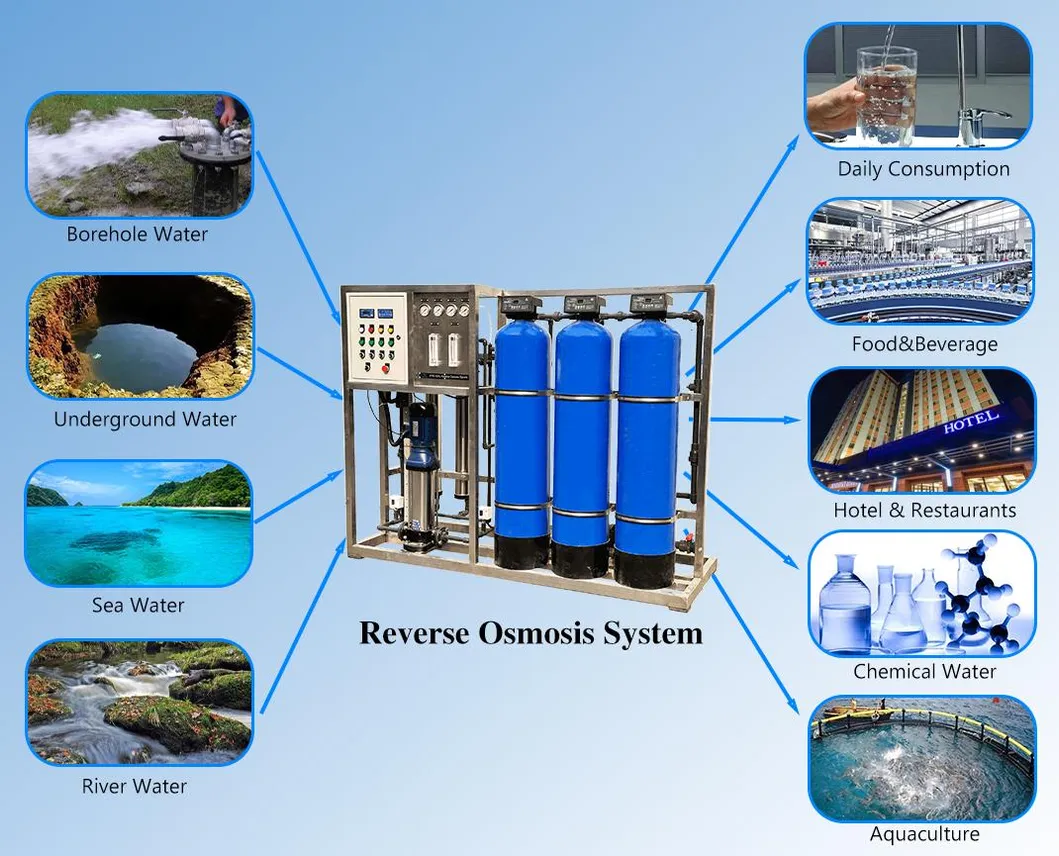

Reverse osmosis (RO) is a water purification technology that uses semi-permeable membranes to remove ions, molecules and larger particles from drinking water, resulting in purified water. In Reverse osmosis, an applied pressure is used to overcome the osmotic pressure and push the water from high concentration of contaminants to low concentration of contaminants. This brackish reverse osmosis water system can treat high salt underground well water with TDS from 2000ppm up to 20000PPM, making it suitable for domestic consumption, agriculture irrigation, industrial supply, and commercial bottled water.

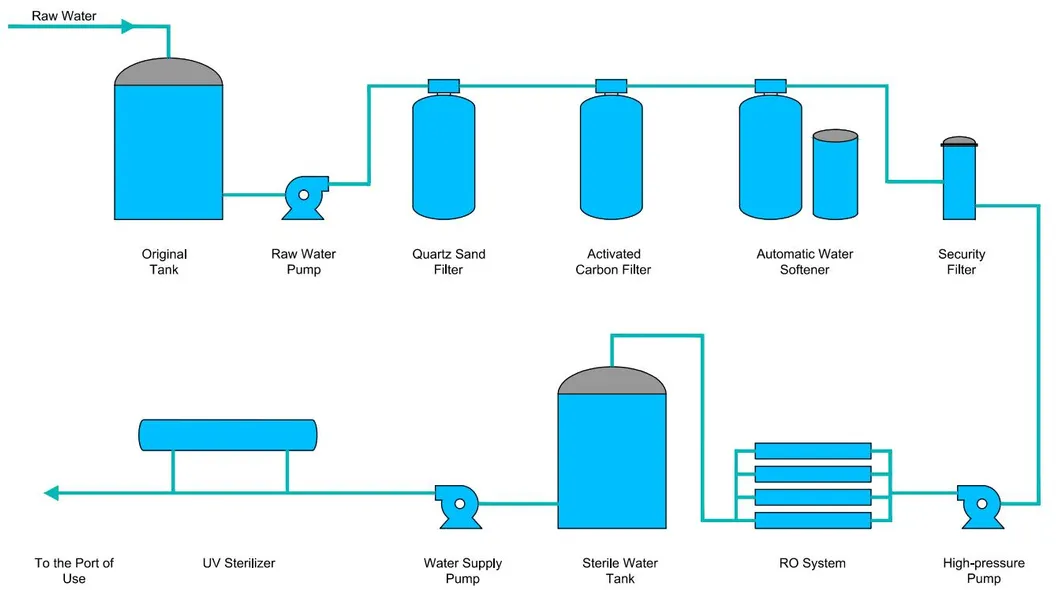

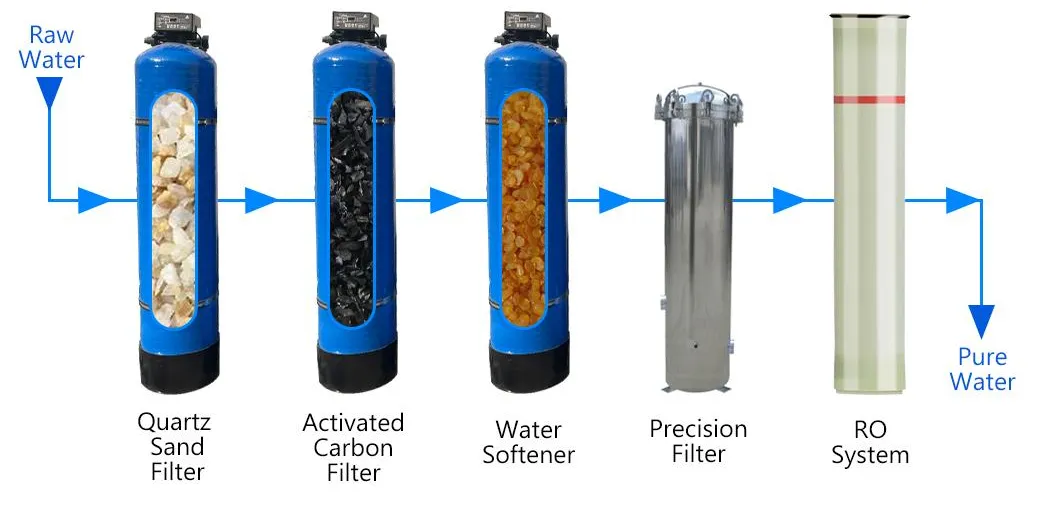

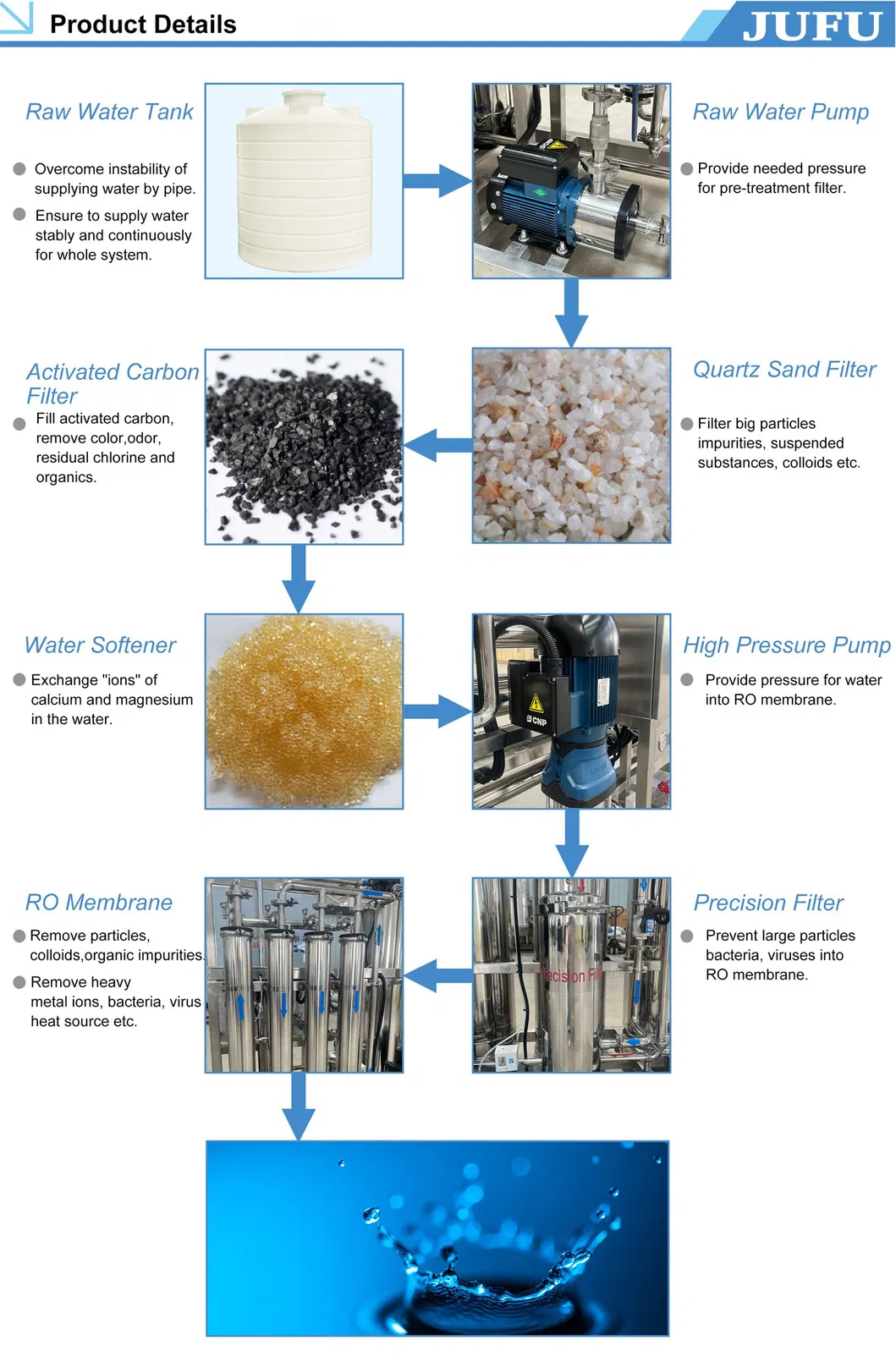

Working Flowchart of RO system

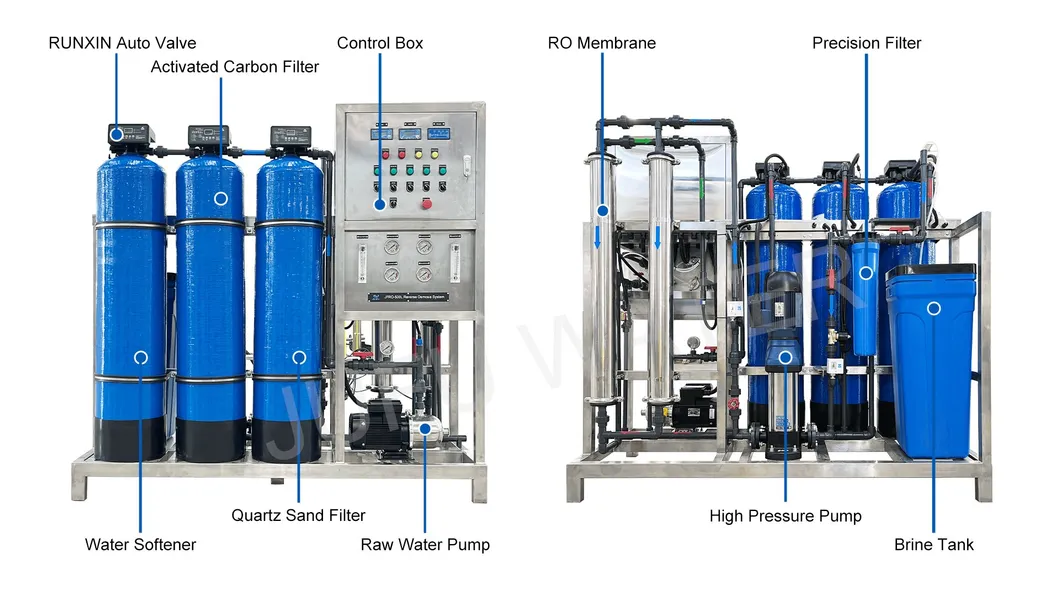

Raw water → original water tank → original water pump → multi-media filter (quartz sand filter) → activated carbon filter → soft water processor → precision filter → high pressure pump → first stage reverse osmosis (RO) device → pure water tank → high pressure pump → second stage reverse osmosis → ultraviolet sterilization device → water point
⚙ Technical Specifications

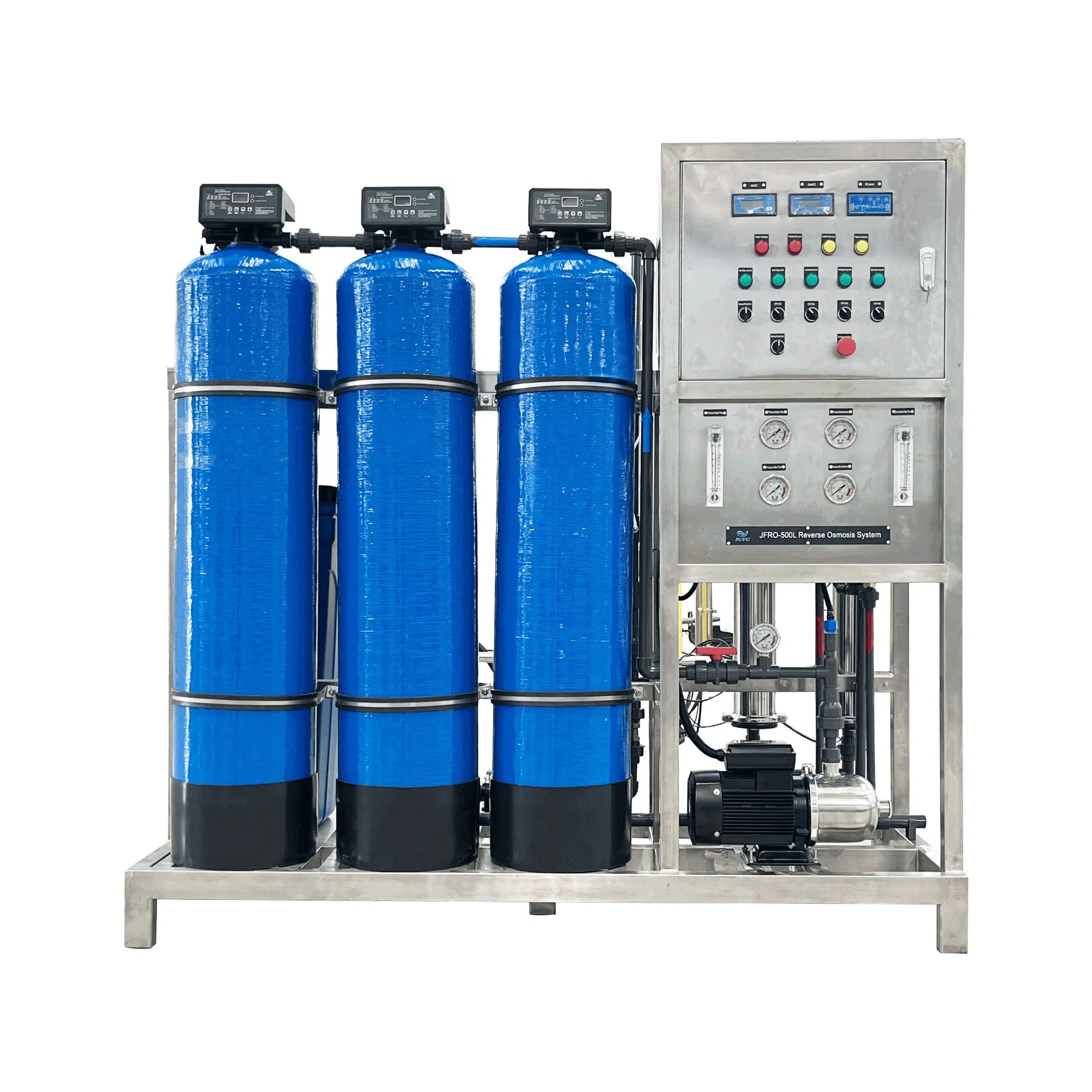

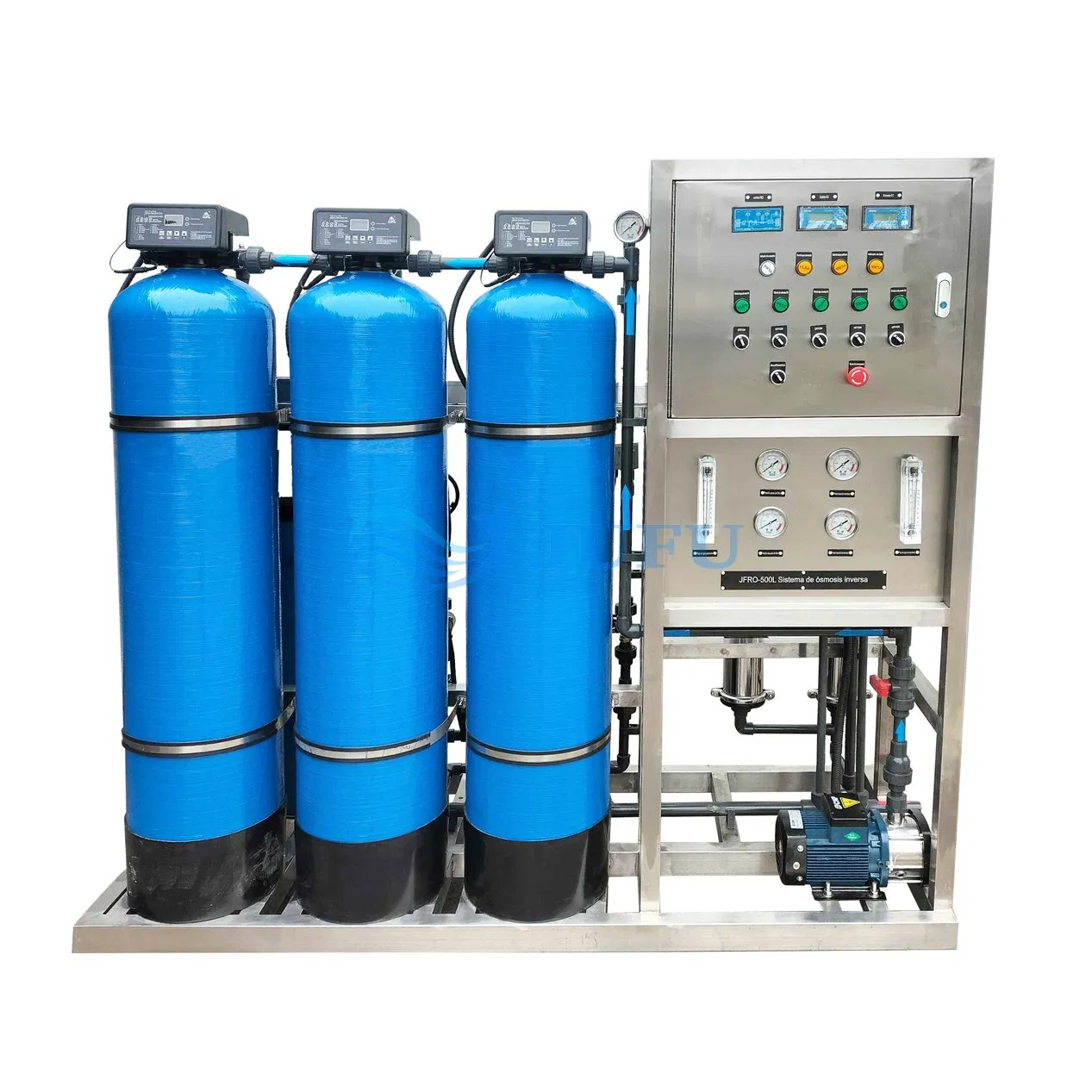

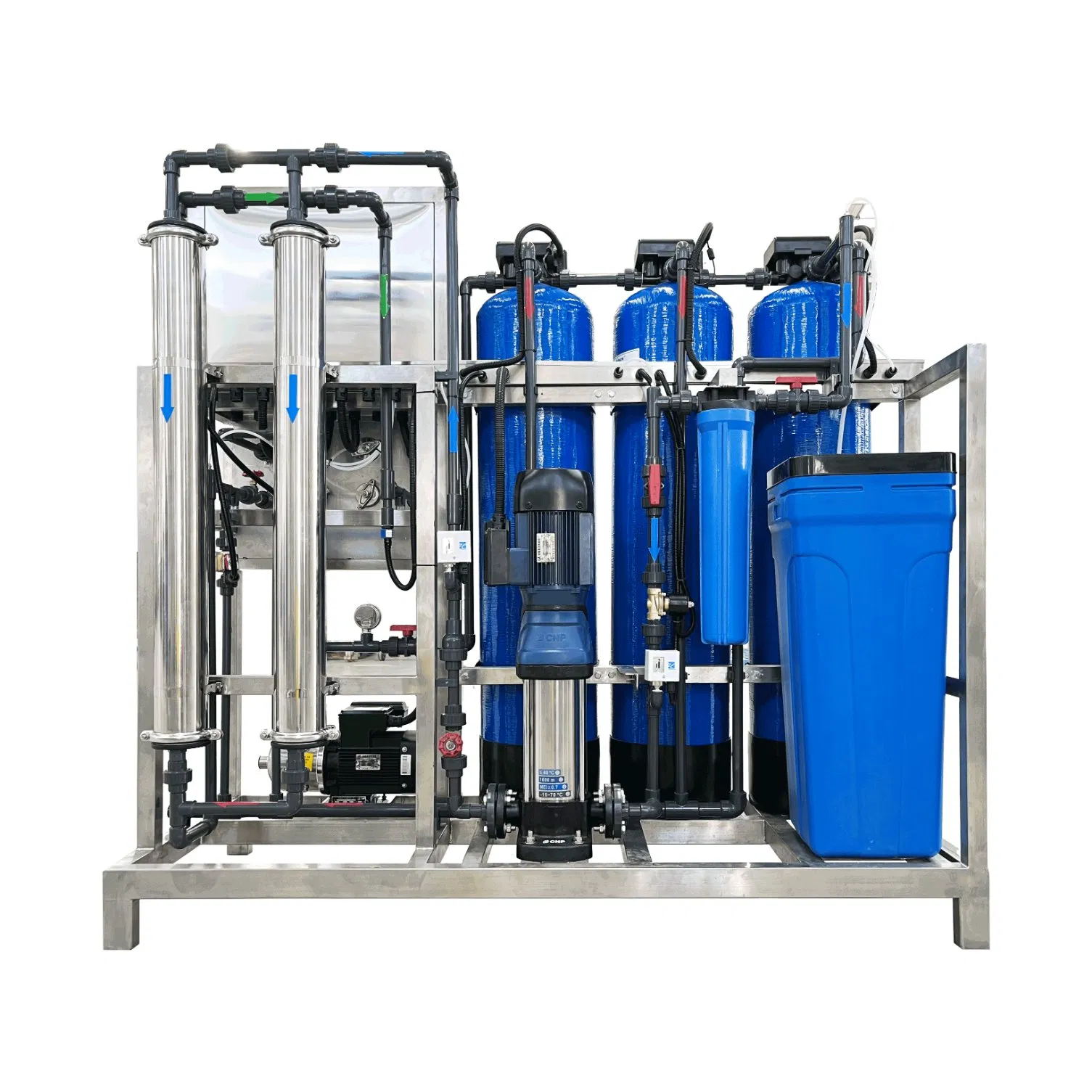

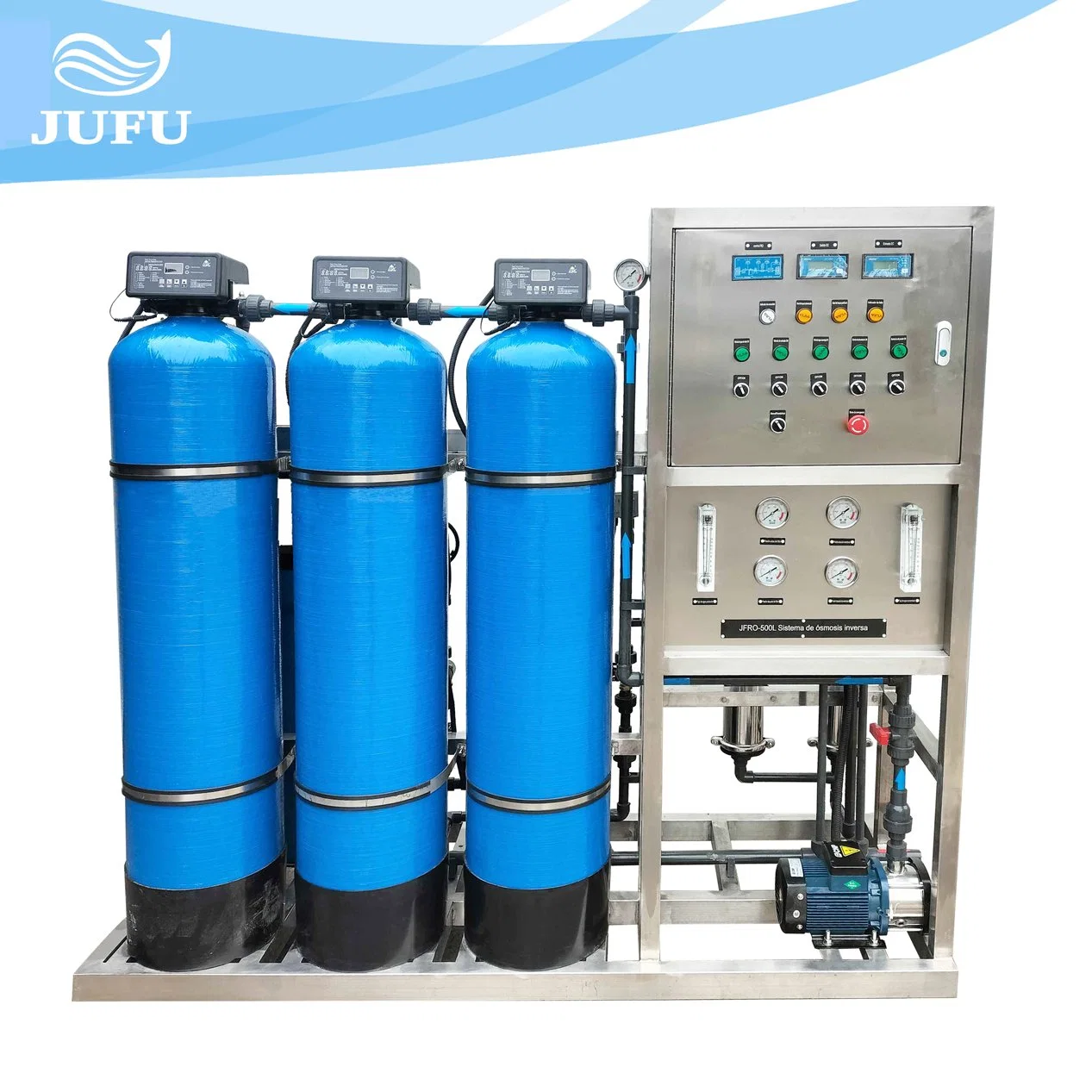

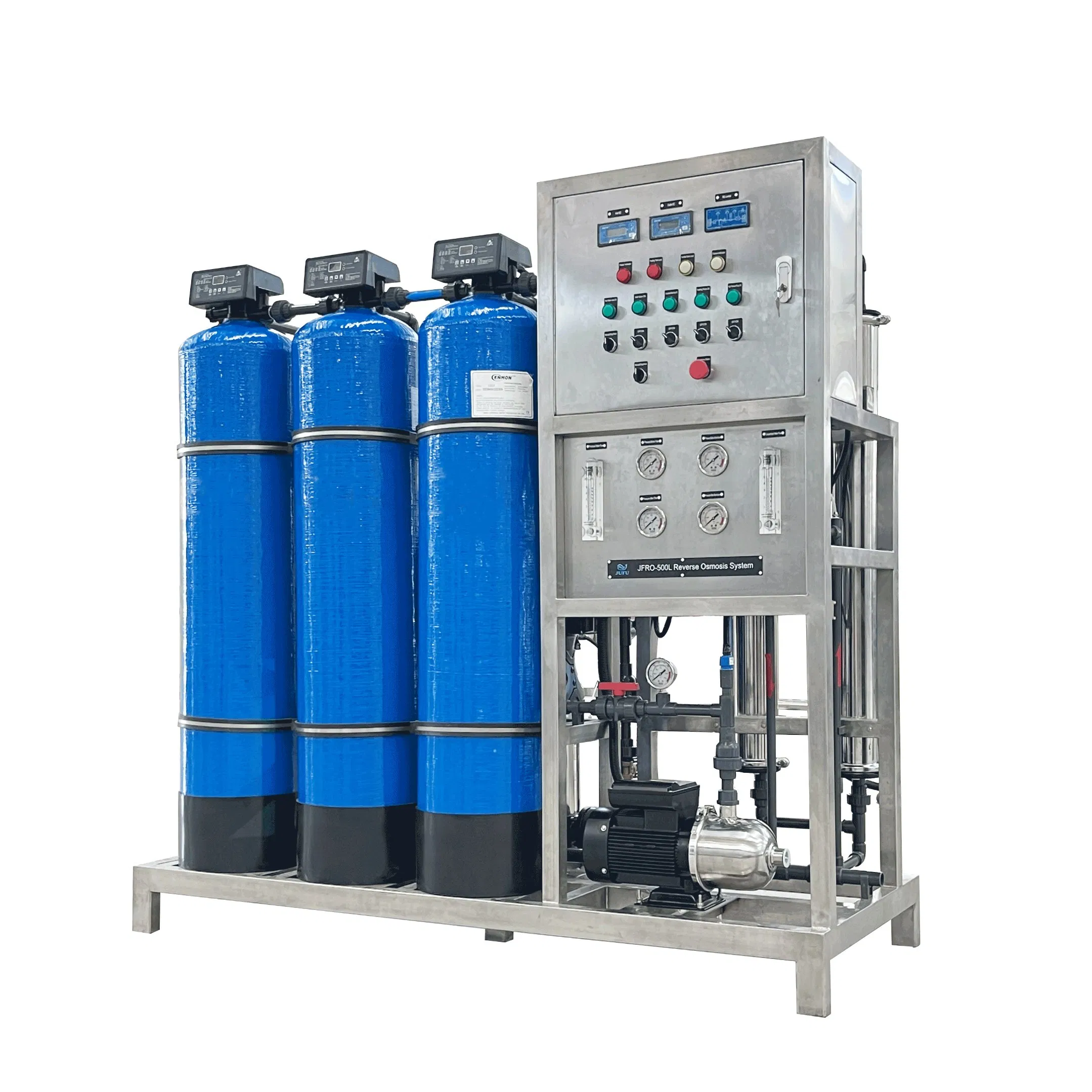

| 500LPH Reverse Osmosis System Parameters |
| Model | JFRO-500L |
| Power | 1.5KW |
| Power Supply | 220V/380V/460V - 50Hz/60Hz |
| Operating Pressure | 0.8 - 1.2MPa |
| Recovery Rate | 50% |
| Producing Capacity | 500L/H |
| Desalination Rate | 99.5% |
| RO Frame | SUS304 |
| RO Membrane | DOW / Hydranautics / Troy / Vontron (Optional) |
| Number of Membranes | 2 |
| Pump | CNP / NYP ... (Optional) |
| Tank Material | SS / FRP (Optional) |
| Control Valve | Manual / Automatic |
| Pipe Material | U-PVC/ Stainless steel (Optional) |
🔍 Product Details & Requirements
| RO Feed Water Requirement |
| Silt Density Index (SDI) | < 5 |
| Turbidity | < 1.0 NTU |
| Organic matter content | < 1.5 |
| Free residual chlorine | polyamide composite membrane < 0.1mg/L |
| Operating temperature | 4ºC~45ºC for composite membrane |
| Iron content | Fe < 0.05 when dissolved oxygen > 5mg/L |
| Silicon dioxide content | SiO2 < 100 |
🏭 Manufacturing Excellence
💬 Frequently Asked Questions
What's the type of your company?
We are a high-tech manufacturer specializing in the water treatment industry for nearly two decades, integrating R&D, manufacturing, and engineering installation.
What kind of information is needed for product selection?
Please provide your raw water source (Water Analysis Report if possible), required output capacity, the application for the project, and local piping standards.
How can I choose the products that perfectly match my case?
Tailor-made solutions are provided by professional engineers based on your requirements, highlighting and solving project pain-points for overall optimization.
What are your payment terms and lead time?
Typically, we require a deposit in advance and balance before delivery. Lead time is usually 3-5 weeks for general products.
What is your product warranty?
We offer a 1-year warranty for the products. With proper use and maintenance, the equipment itself can work efficiently for over 5 years.
Do you offer on-site installation guidance?
Yes, we can provide guidance on installation and system setup to ensure the equipment operates correctly in your local environment.
