Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System
1 / 5
Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System
Industrial Reverse Osmosis Water Treatment System

Industrial Reverse Osmosis Water Treatment System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
ECH-RO-6
Application
Industry
Capacity
6 M³/H
Pure Water Output
6 M³/H
Feed Water Type
Tap / Well / Brackish / Process Wastewater
Feed Water TDS
≤1,500 Mg/L
Feed Water Temp
5-45°C
SDI (15 Min)
≤3
Validation Docs
Dq/Iq/Oq/Pq (Outline)
Packing
Plastic Film Wrapping, Wooden Case

Industrial RO System 6m³/h

This 6 m³/h reverse osmosis (RO) water treatment system consists of a pretreatment section, RO unit, electrical control, and piping assembly. The pretreatment includes a multi-media filter, activated carbon filter, automatic water softener, sodium ion exchange resin unit, and precision cartridge filter (PP, 20 μm) to remove suspended solids, chlorine, hardness, and fine particles, ensuring optimal RO membrane life and performance.

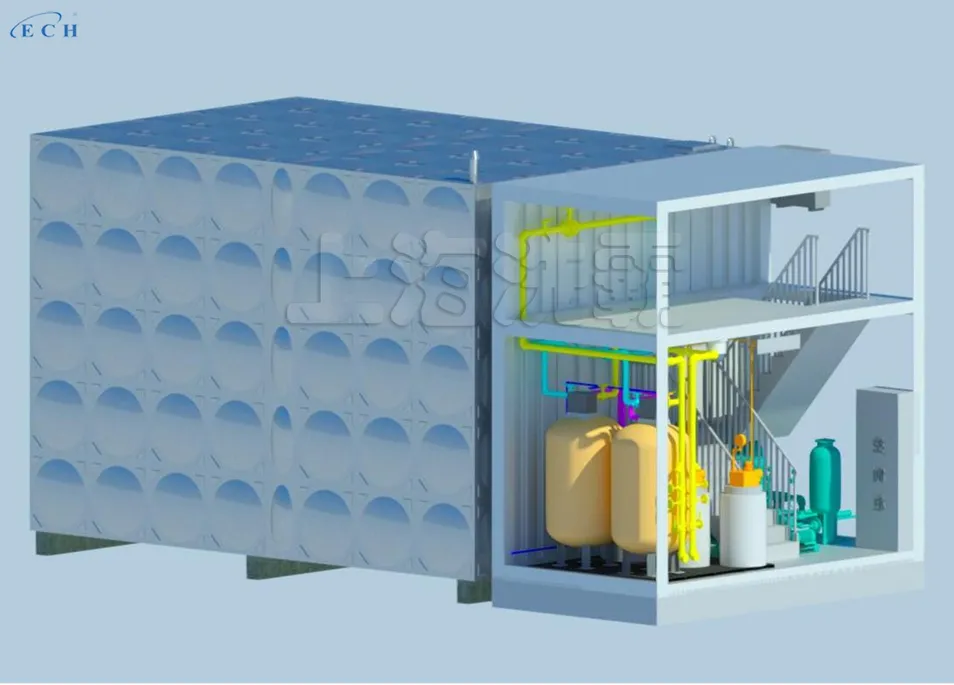

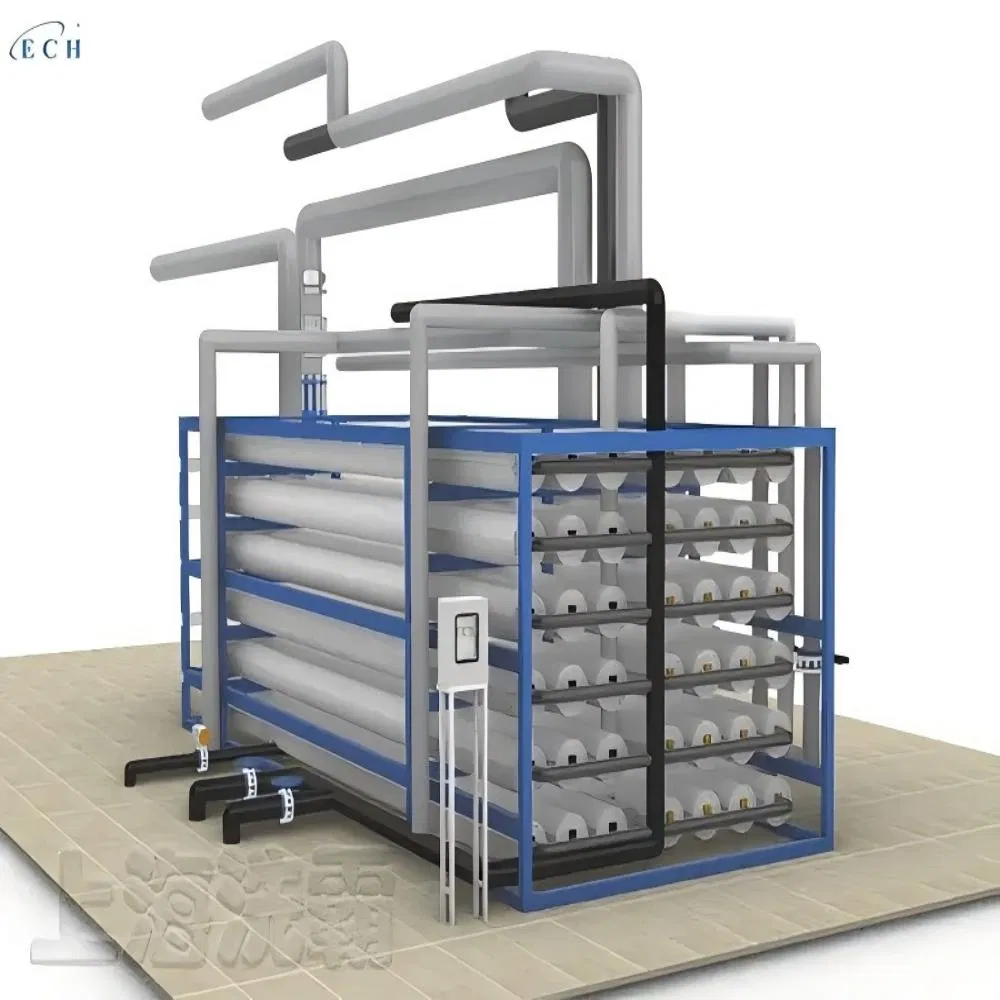

Industrial RO System View 1

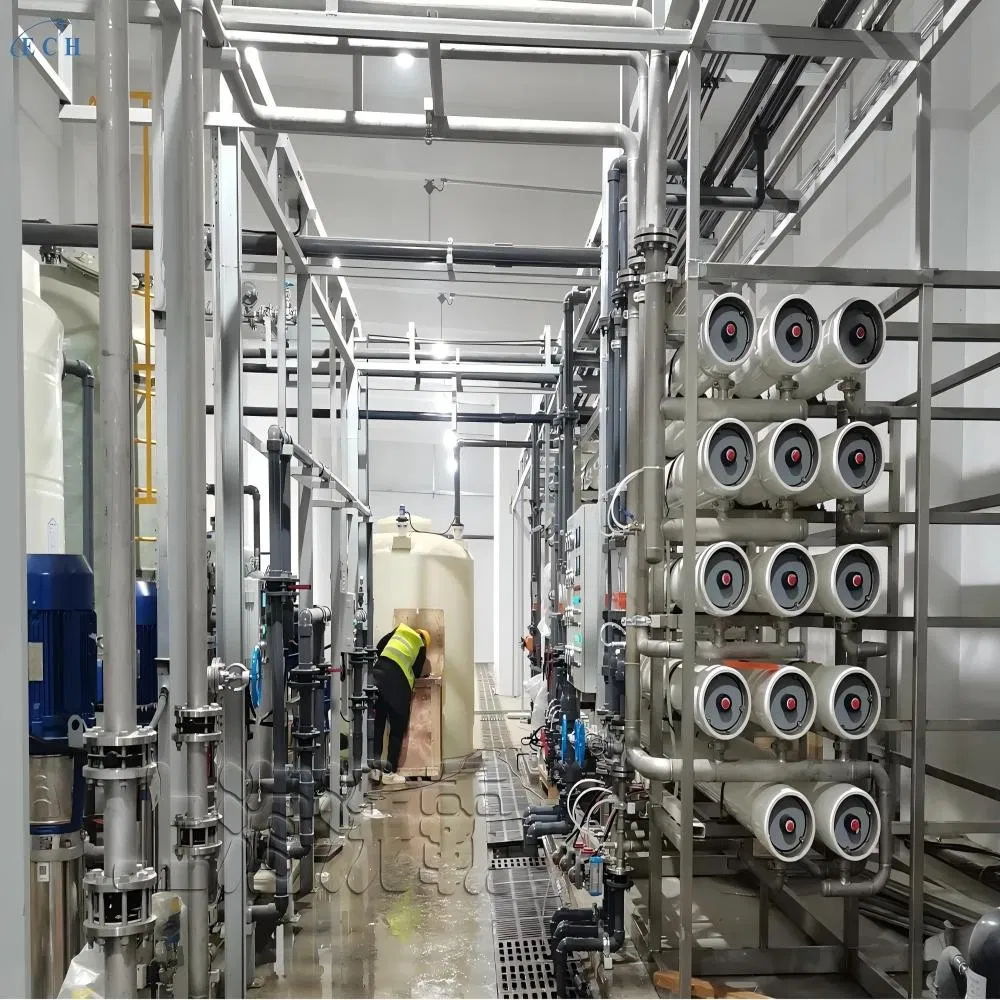

Industrial RO System View 2
⚙️Key Features
  • ✓ High Purity Output: Conductivity ≤ 10 μS/cm
  • ✓ High Recovery: ≥ 70 % recovery rate
  • ✓ Salt Rejection: ≥ 99 % rejection rate
  • ✓ Material: SS304 stainless steel construction
  • ✓ Power Efficient: Total installed power ≤ 8.5 kW
📊Performance Parameters
  • • System Capacity: 6m³/h
  • • Operation Pressure: 1.0-1.6MPa
  • • HP Pump Power: ≈5.5 kW
  • • Max Feed TDS: ≤ 2000ppm
  • • Automated Flushing: Included

Technical Specifications

Category Item Specifications Material Qty
PretreatmentRaw Water Tank1810LSS3041 set
Multi-media Filter10m³/hSS3041 set
Activated Carbon FilterΦ1000×H2300mmSS3041 set
Cartridge FilterΦ750×H1900mmSS3041 set
RO System Core
RO UnitHigh Pressure PumpQ=20m³/h, H=136m, 11kWSS3041

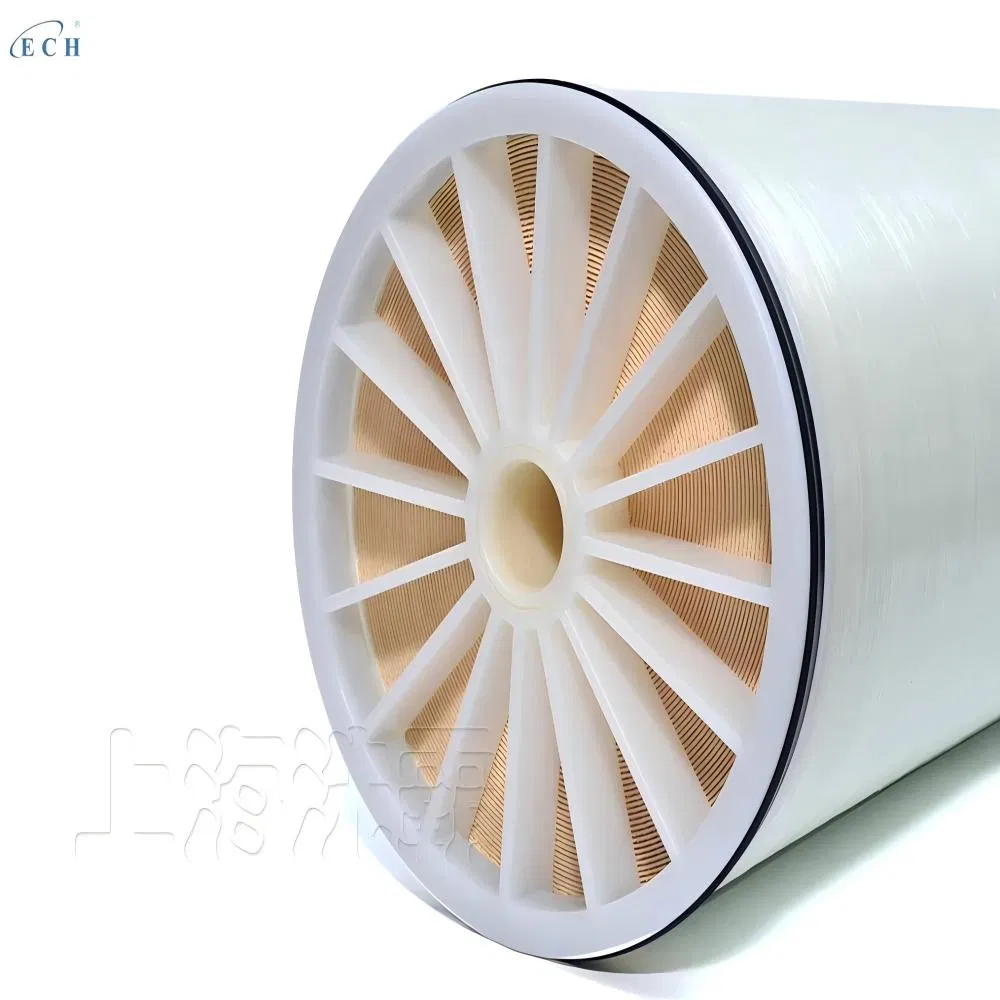

RO Membrane8040, High Rejection-6
Membrane Housing8040-2BFRP3
Conductivity Meter0-20μS/cm-2
Control & Distribution
ElectricalControl SystemPLC Automatic Control-1 set
PipingPure Water Tank3.6m³SS3041 set

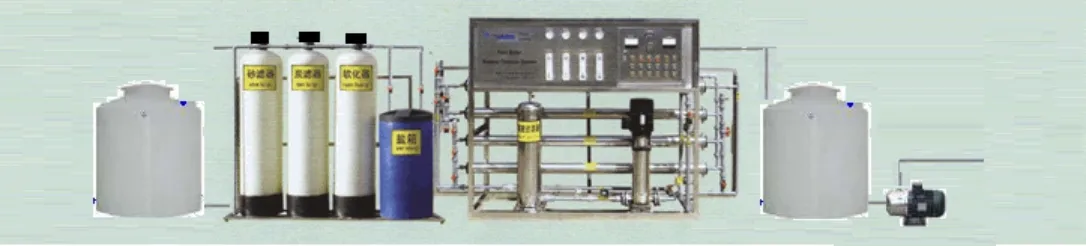

Process Diagram

Manufacturing & Quality

Our manufacturing facility spans 31,000 square meters and is equipped to handle professional water treatment equipment fabrication. We hold certifications for ISO9001, ISO45001, and ISO14001, ensuring that every industrial RO system meets international standards for quality and safety.
Factory Workshop

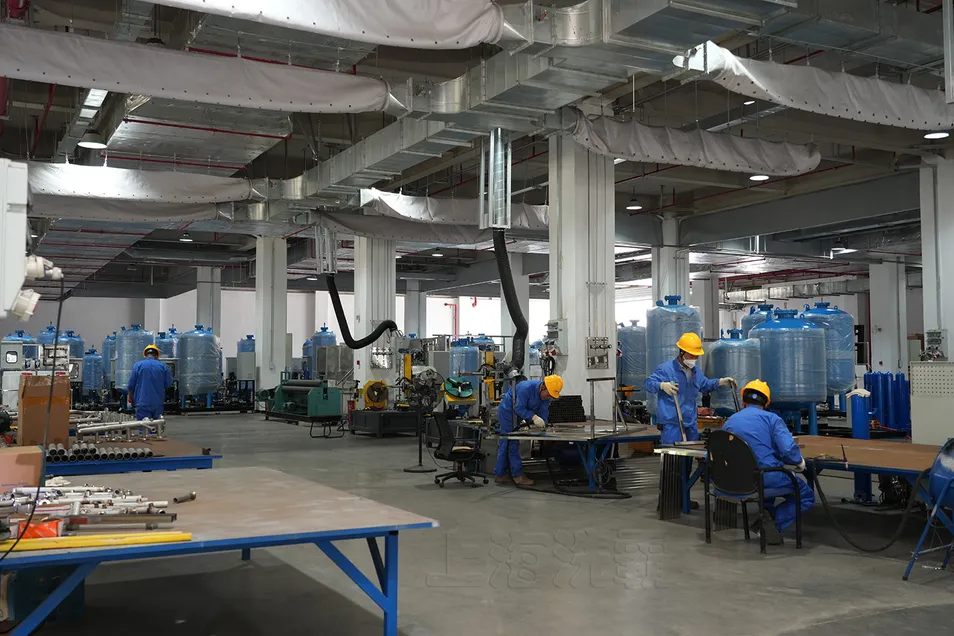

Production Line
System Components
Research & Development: As a recognized high-tech enterprise, we hold over 126 authorized patents, including 60 invention patents. Our district-level R&D center specializes in advanced materials and water treatment operations technology to provide turnkey project solutions globally.
Patent Certifications
R&D Center

Frequently Asked Questions

Why include both multi-media filter and softener in pretreatment?
The multi-media filter removes suspended solids and large particles to prevent clogging. The softener removes hardness (calcium/magnesium) to prevent scaling on the RO membranes, while the carbon filter removes chlorine that can irreversibly degrade polyamide membranes.
Can the RO equipment be customized?
Yes. We offer complete OEM/ODM customization options including flow rate adjustments, material upgrades (such as SS316L), and PLC + HMI automation packages based on your specific feed water quality and industry requirements.
What is the expected salt rejection and recovery rate?
This system features a high salt rejection rate of ≥99% and an efficient recovery rate of ≥70%, ensuring high-purity permeate water with minimal waste.
What materials are used in the system construction?
The system frame and major wetted components are fabricated in SS304 stainless steel for superior corrosion resistance. Membrane housings are typically high-strength FRP (Fiber Reinforced Plastic).
Is your company a manufacturer or a trading company?
We are a professional manufacturer with our own 31,000 square meter factory. We integrate R&D, manufacturing, and international trade to offer factory-direct pricing and technical support.
What is the total power consumption for the 6m³/h system?
The total installed power is ≤8.5 kW, which includes the 5.5 kW high-pressure pump. This ensures energy-efficient operation for industrial water supply needs.
