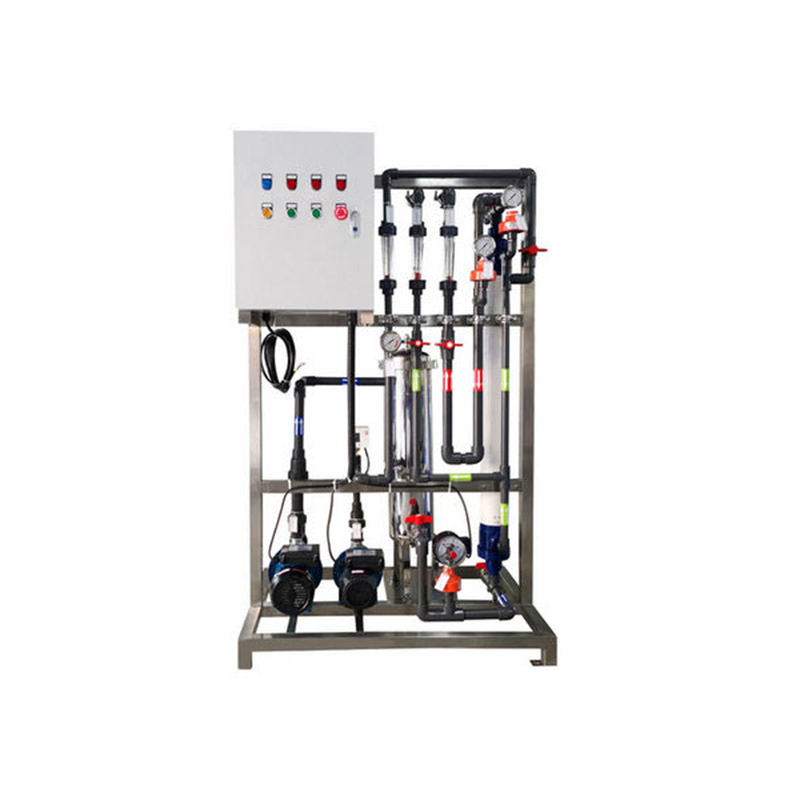

Basic Information
Model NO.HYHJ-RO-0.5T
Motive ForceElectric power
StylePure Water Treatment System
PerformanceEfficient Filtration
Device PowerAC/380V/50Hz
Control ModeFully Automatic Operation
Weight260kg
Specification1500mm*650mm*1700mm
HS Code8421219990
Capacity3000 units/year
Product Description

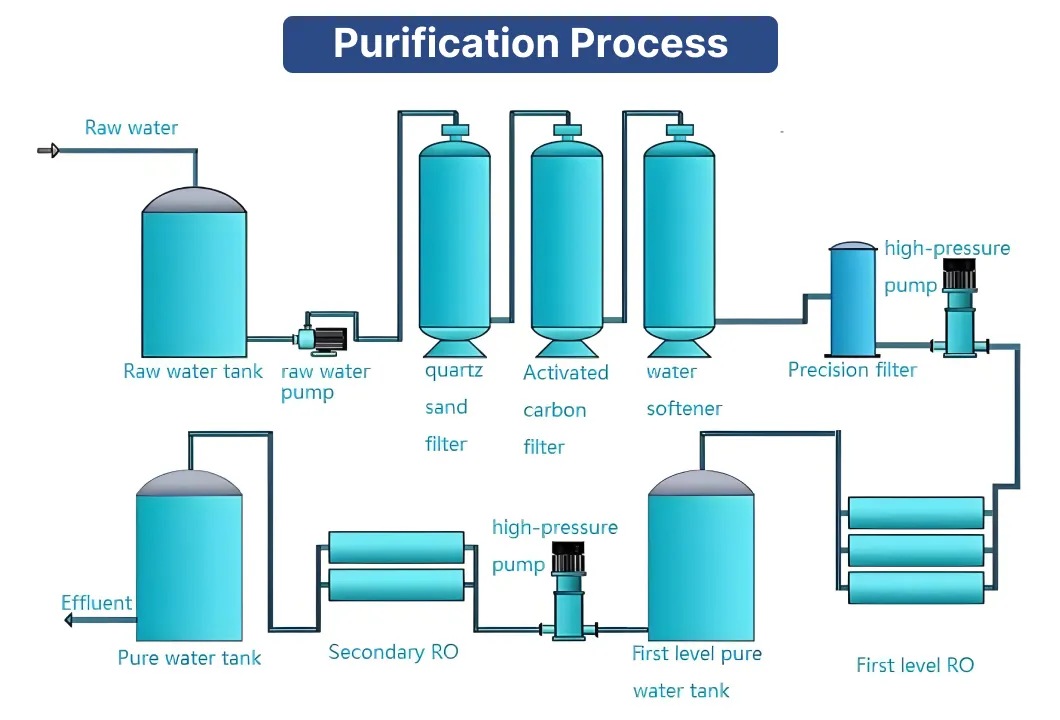

Working Process Flow:
Raw Water → Raw water pump → Mechanical filters → Activated carbon filter → Add antiscalant → Precision filters → RO high pressure pump → RO reverse osmosis membrane element → Finished water.
- Water tank: Designed to store tap water, addressing low tap water pressure and supporting the booster pump for optimal performance.
- Booster pump: Robust stainless steel construction ensures ample pressure for subsequent filtration processes.
- Quartz sand filter: Expertly eliminates mud, suspended solids, and larger particles from tap water.
- Carbon filter: Provides superior removal of organic substances, residual chlorine, and odors.
- Security filter: Offers additional filtration, safeguarding the reverse osmosis membrane.
- High pressure pump: Delivers the necessary force to drive the reverse osmosis process.
- Reverse osmosis unit: The heart of high-purity water production, delivering crystal-clear water.
- Pure water tank: Stores the pristine pure water ready for diverse applications.
Technical Parameters
| Parameters |
HYHJ-RO-0.5T Specification |
| Machine Size (L*W*H) |
1500mm*650mm*1700mm |
| Control mode |
Fully automatic |
Power |
AC/380V/50HZ |
| Unladen Weight |
260KG |
Running Weight |
500KG |
| Raw water pump |
Q=2m³/H H=30m |
High Press Pump |
Q=2m³/H H=90m |
| Quartz sand filter |
φ250×1400mm |
Carbon filter |
φ250×1400mm |
| Precision filters |
5 cores 10 inches |
Filter element |
10''5μm |
| RO Vessels |
1 core 4 inches |
RO Membrane Model |
4040 |
Our Advantages & Applications
Frequently Asked Questions
1. What is the production capacity of the HYHJ-RO-0.5T system?
This system is designed to produce 0.5 tons (500 liters) of pure water per hour, making it ideal for commercial and small-scale industrial use.
2. Does the system require manual operation?
No, the system features a fully automatic operation mode, including self-cleaning and pressure monitoring to ensure consistent water quality without constant supervision.
3. What source water can be treated with this RO system?
It is primarily designed for tap water, well water, or underground water. It efficiently removes sediment, chlorine, organic matter, and heavy metals.
4. What are the electrical requirements for installation?
The standard model requires a power supply of AC 380V at 50Hz. Please ensure your facility meets these specifications before installation.
5. How often should the filter elements be replaced?
Replacement cycles depend on raw water quality. Generally, precision filters are replaced every 3-6 months, while the RO membrane can last 1-2 years under proper maintenance.
6. Can the tank materials be customized?
Yes, we offer customization for filter tanks, including Fiber Reinforced Plastic (FRP) or Stainless Steel options based on your specific application requirements.
