Advanced 5-Ton Municipal Wastewater Treatment System for Eco-Friendly Solutions

1 / 5

Advanced 5-Ton Municipal Wastewater Treatment System for Eco-Friendly Solutions

Customization:	Available
After-sales Service:	Support
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.	XYD-SMC-5	Type	A2O Process Water Purification Machine
Method	Biological Treatment	Usage	Industrial, Home, Agriculture, Hospital
Productivity	5t/D	Weight	520kg
Condition	New	Size	242201200cm
Control	Electric Auto Control (PLC Siemens)	Core Components	Pressure Vessel, Pump, Motor, PLC
Technology	A2O Process	Footprint	25m2

⚙️ Product Description

💡

Wastewater Treatment System for Medical, Villa, and Industrial Use

The sewage treatment tank is an upgraded product of an integrated domestic sewage treatment device, which has undergone multiple technological innovations and is highly integrated. It is designed for high-efficiency nitrogen and phosphorus removal.

Low investment & good treatment effects
Low power consumption (Energy saving)
SMC material mold casting for stable quality
IoT technology for remote mobile management
Low sludge production
Service life exceeds 30 years

🧪 SMC Material Technology

SMC material adopts FRP mold casting process, enhancing mechanical property indexes. It includes UP resin, glass fibers, and fillers to prevent fiber separation and ensure durability.

Name	Unit	Index
Density	g/cm3	1.75~1.95
Water-absorbing quality	mg	<3
Heat distortion temperature	ºC	≥240
Impact strength	KJ/m2	70~90
Bending strength	MPa	150~180
Compressive strength	MPa	>140
Glass fiber content	%	25±2

🛡️ Corrosion Resistance

Resists corrosion from dilute acids, alkalis, salts, organic solvents, and seawater.

❄️ Temperature Adaptability

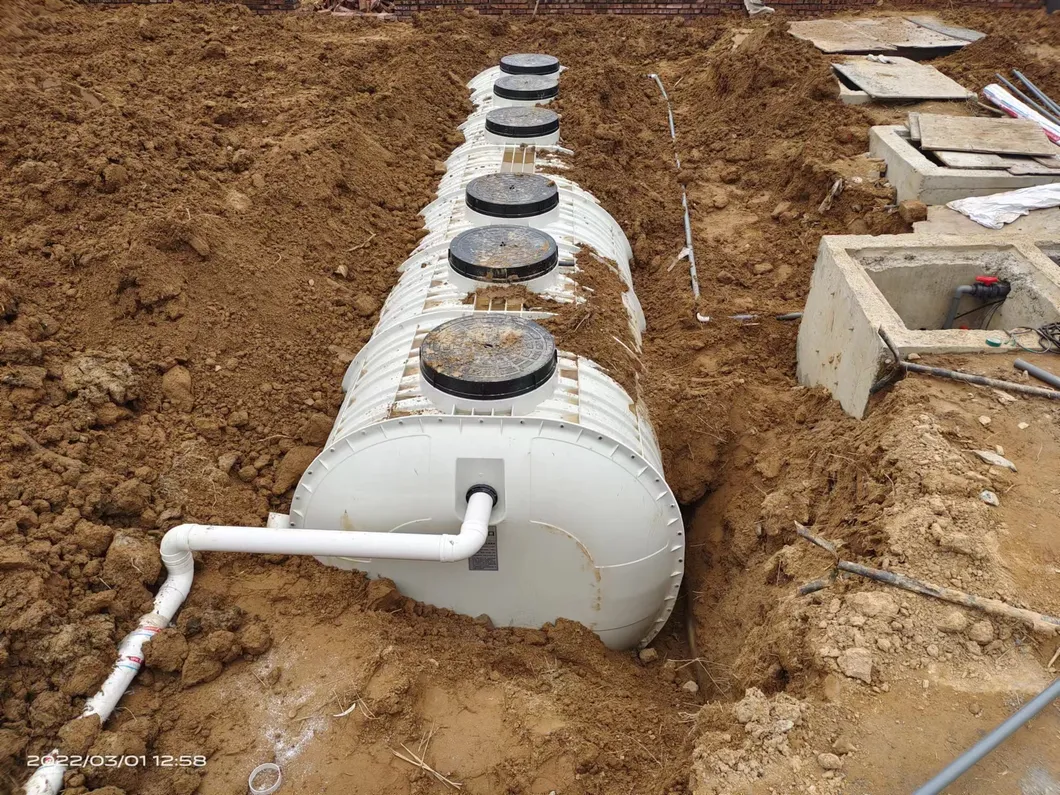

Maintains mechanical properties from -50ºC to +155ºC. Ideal for buried underground installations.

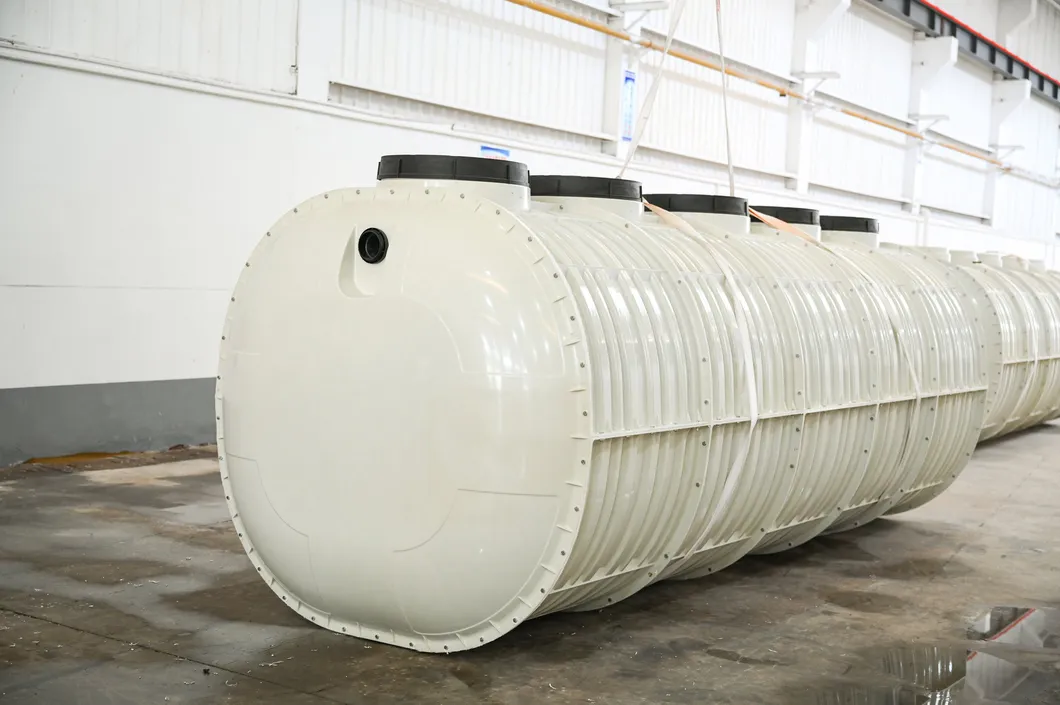

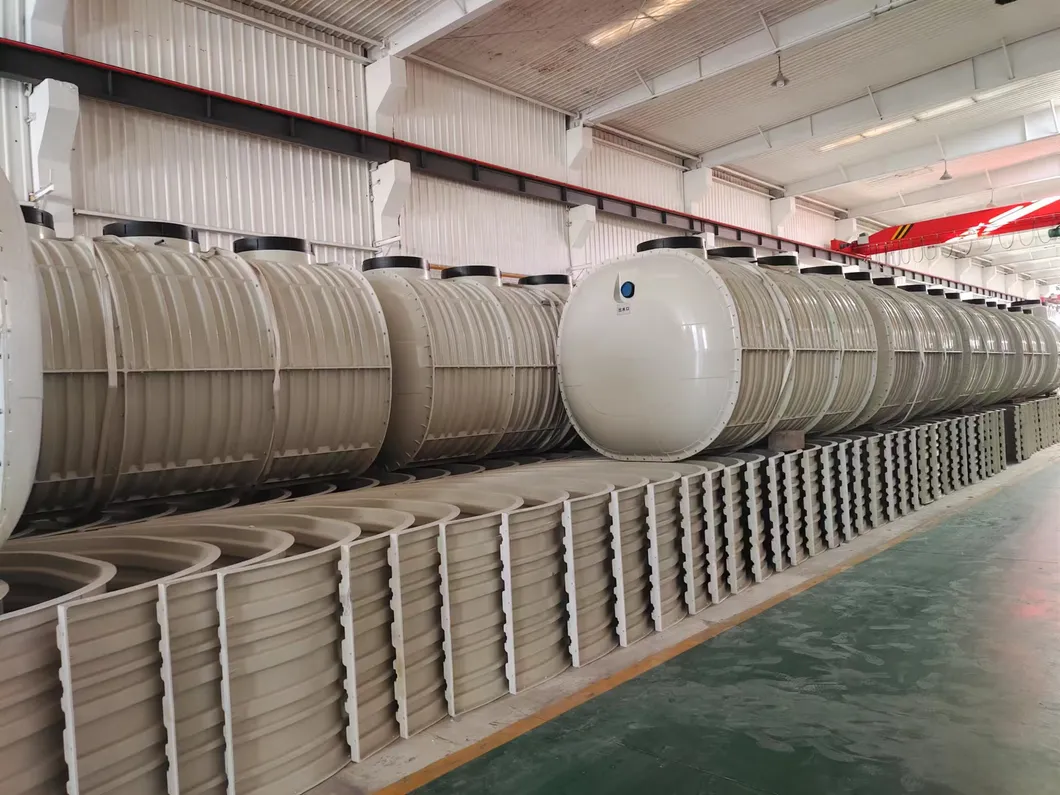

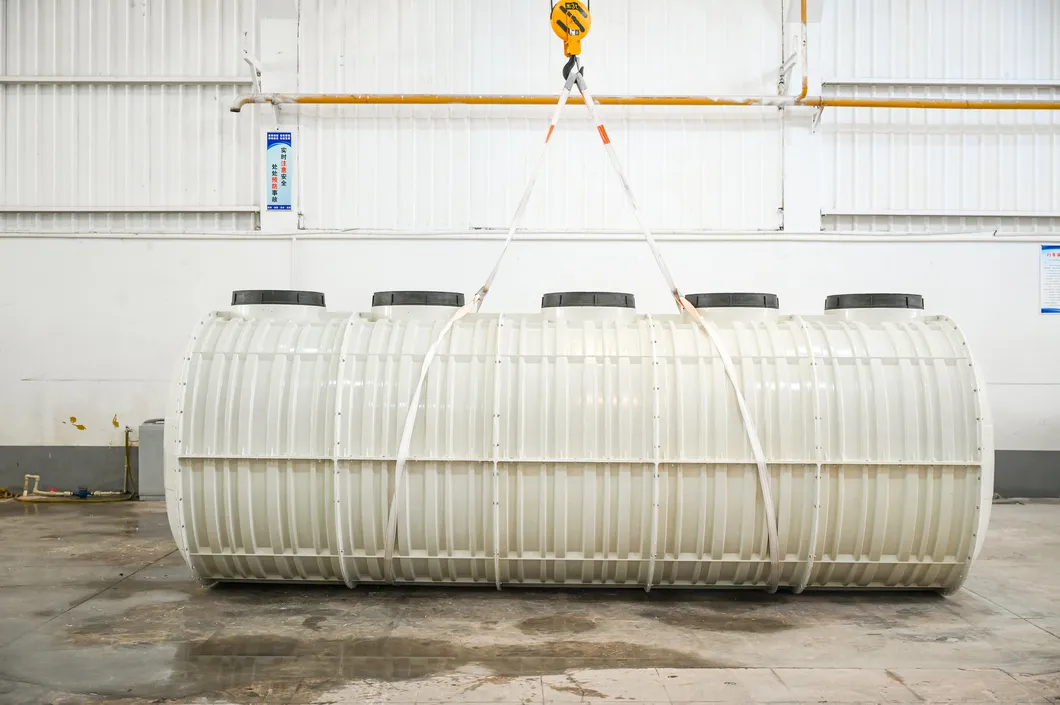

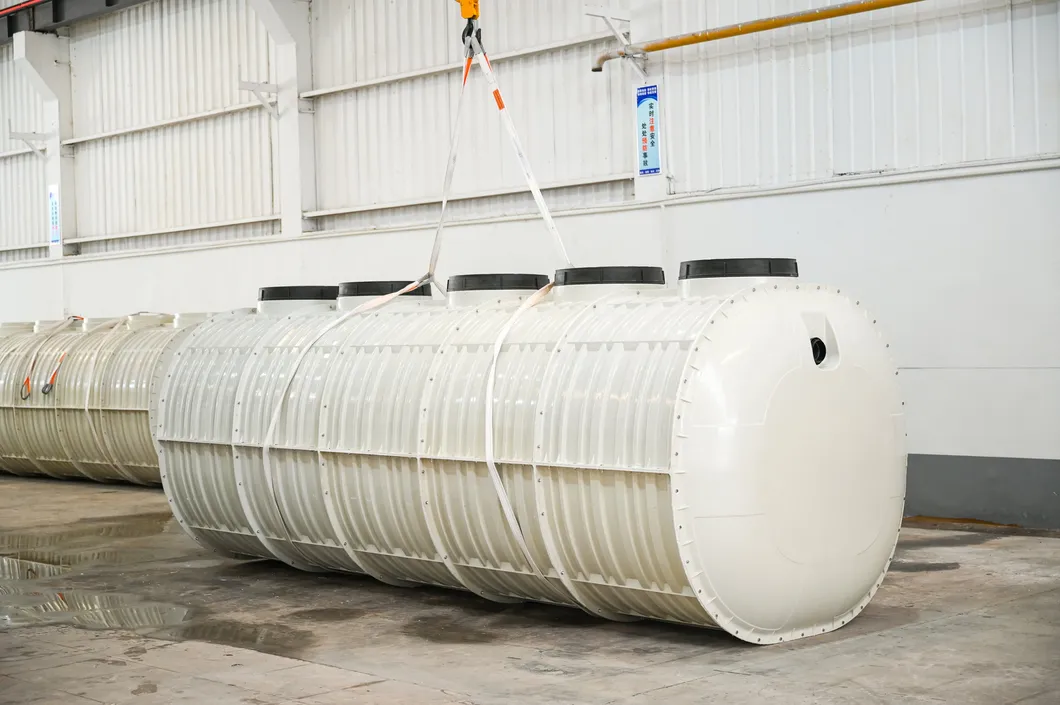

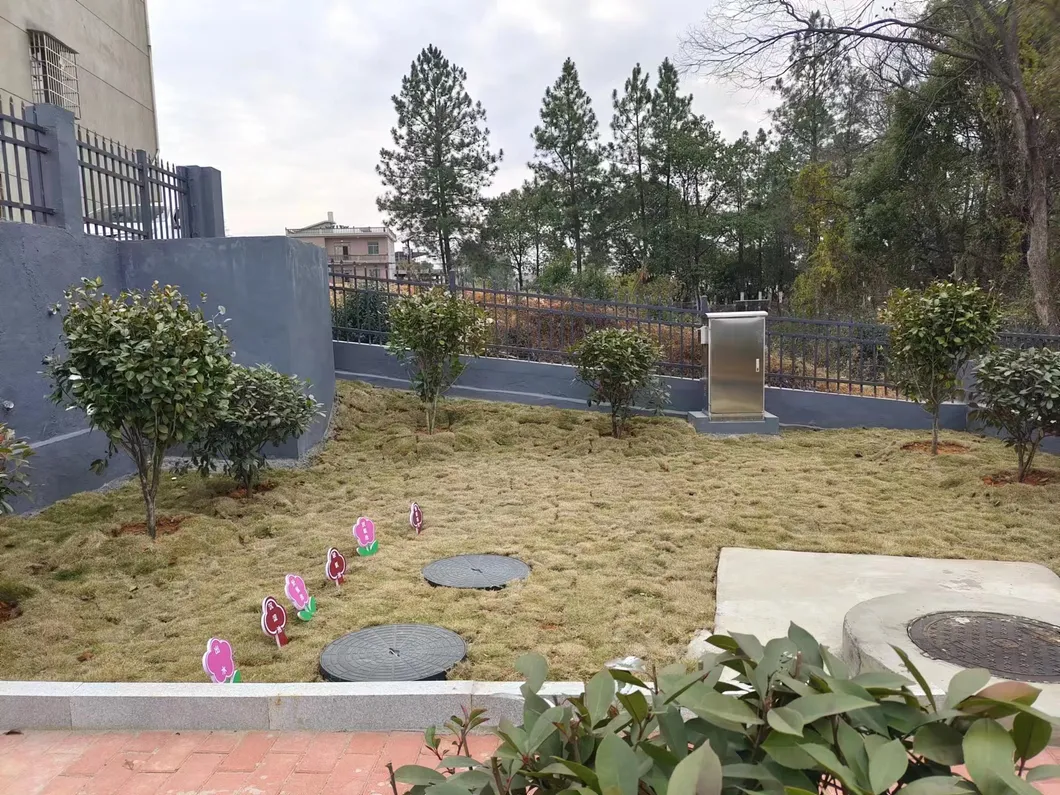

📸 Detailed Photos

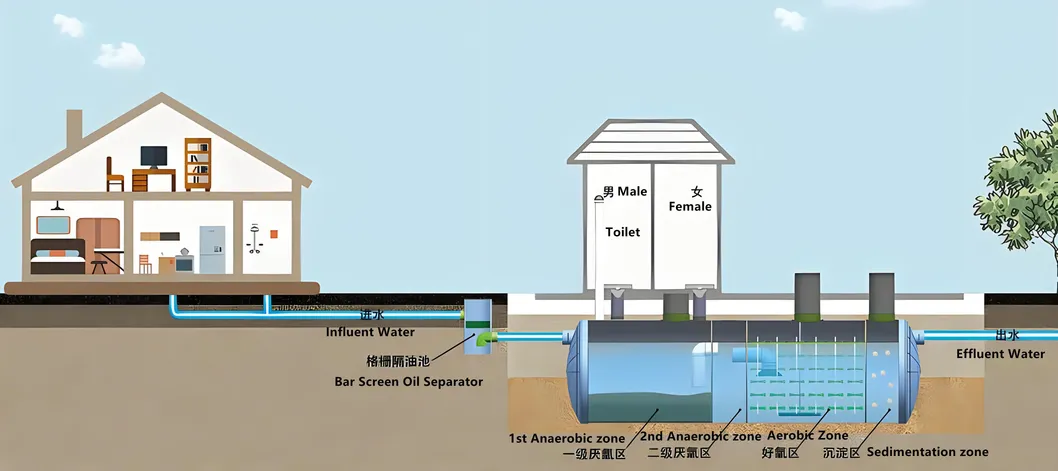

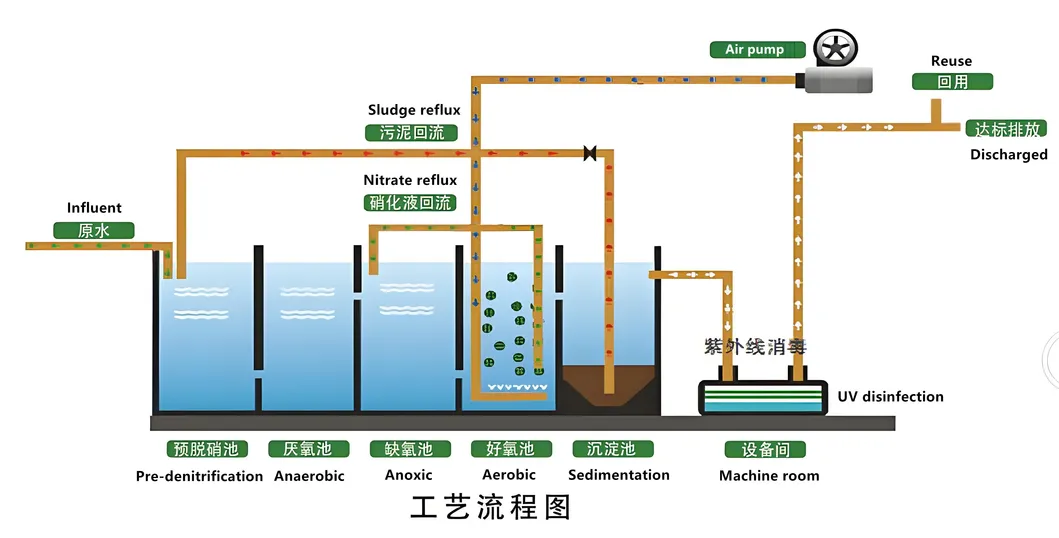

🔄 A2/O Biological Process

The A2/O process ensures effective removal of COD, ammonia nitrogen, and total nitrogen while strengthening phosphorus removal. The biofilm method used is more resistant to shock loads compared to activated sludge methods.

Process Advantages:

Simultaneous removal of organic matter, nitrogen, and phosphorus.
Simplified flow with lower hydraulic retention time.
No sludge expansion (SVI generally < 100).
High phosphorus content in sludge (>2.5%).

🧬 Bio-Tech Components

Functional Microorganisms

Agent	Strains	Applications
Denitrifying Agent	Ammonia oxidizing, nitrifying, photosynthetic microorganisms	Rivers, lakes, domestic sewage, nitrogen-containing wastewater
Oil Removal Agent	Degreasing microorganisms	Tourism wastewater, oily wastewater, polluted water bodies

Bio-filler Parameters

Material type	Polymer composites
Specific surface area	≥4000 m2/m3
Porosity	98%
Service life	Above 15 years

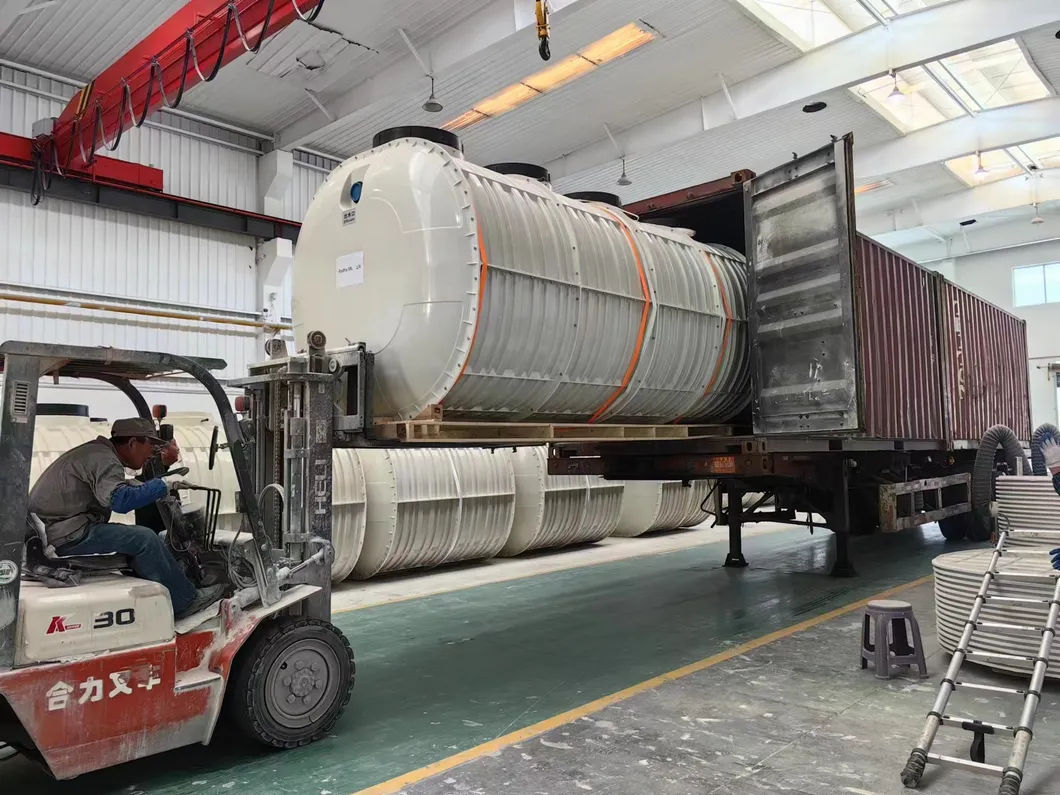

📜 Certifications & Logistics

❓ Frequently Asked Questions

What is the estimated service life of the SMC treatment tank?

The equipment is built using high-strength SMC molded materials, which provide excellent corrosion and aging resistance, allowing for a service life exceeding 30 years when buried underground.

How does the A2/O process improve water quality?

The A2/O process combines anaerobic, anoxic, and aerobic environments to simultaneously remove organic matter, nitrogen, and phosphorus, ensuring the effluent meets strict discharge standards.

Does the system require professional on-site management?

No, the system is designed for unmanned operation. It utilizes IoT (Internet of Things) technology to allow for remote mobile management, significantly reducing labor costs.

What is the maintenance requirement for sludge?

Thanks to the biological biofilm method and high microbial self-oxidizing ability, the residual sludge production is approximately 30% of that of traditional activated sludge methods, leading to lower maintenance costs.

What are the typical delivery times for the equipment?

Delivery times vary based on specific equipment requirements, but typically range between 7 to 18 days.

Can this system handle different types of sewage?

Yes, the equipment is versatile and suitable for domestic sewage, hospital wastewater, villa complexes, agriculture, and industrial water purification needs.
