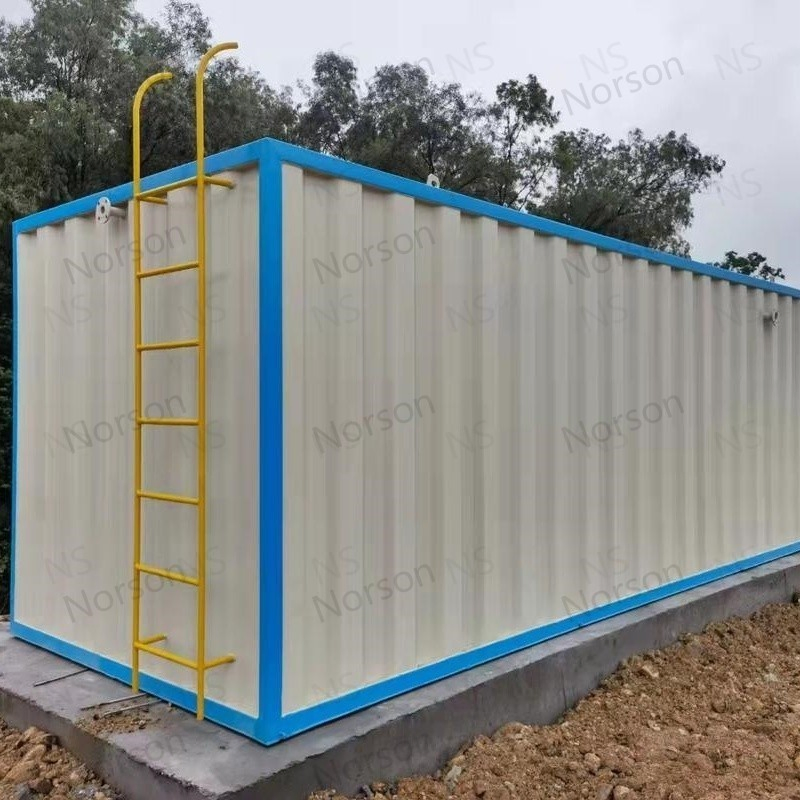

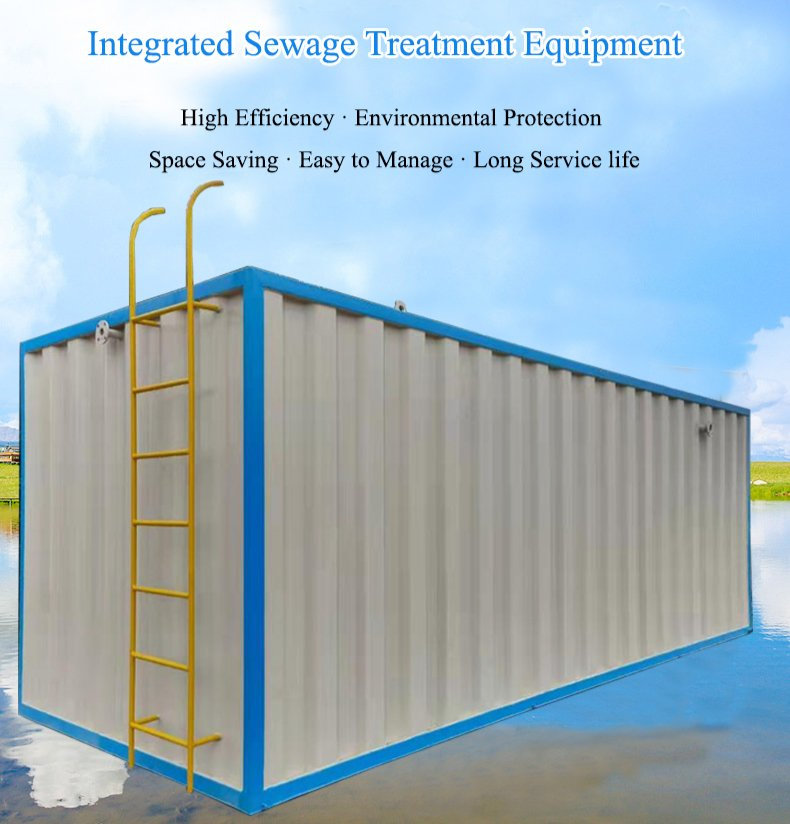

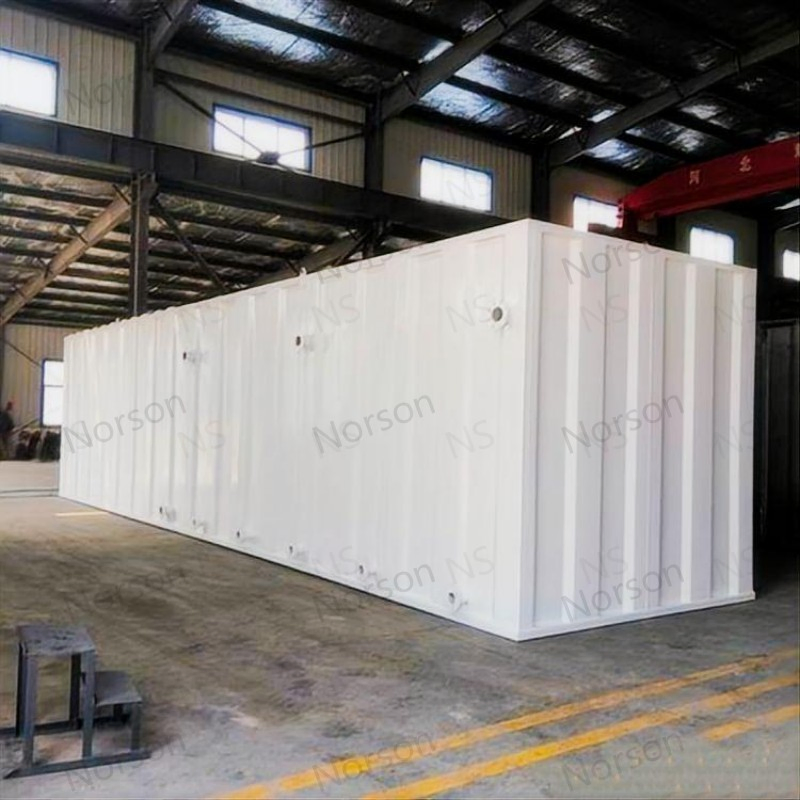

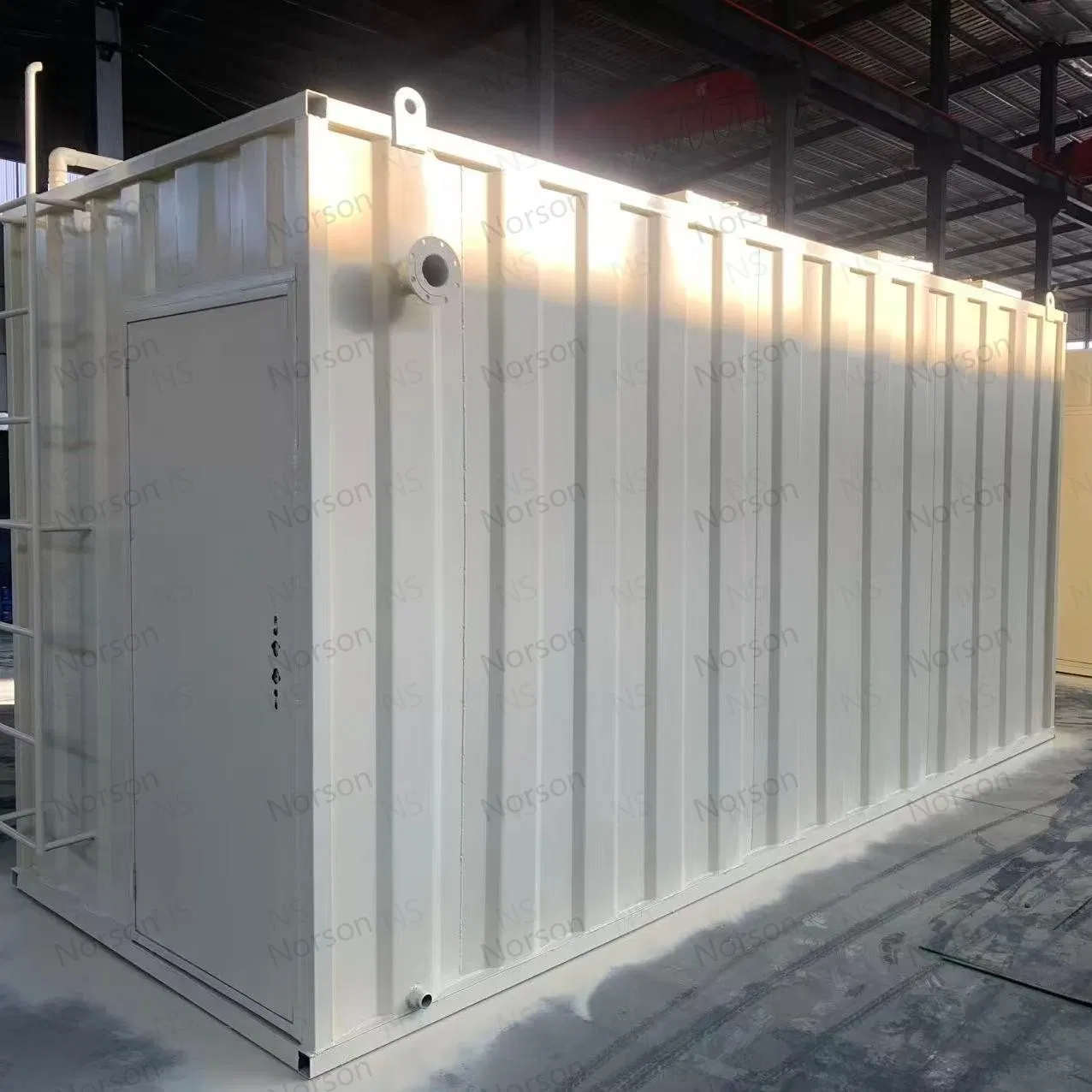

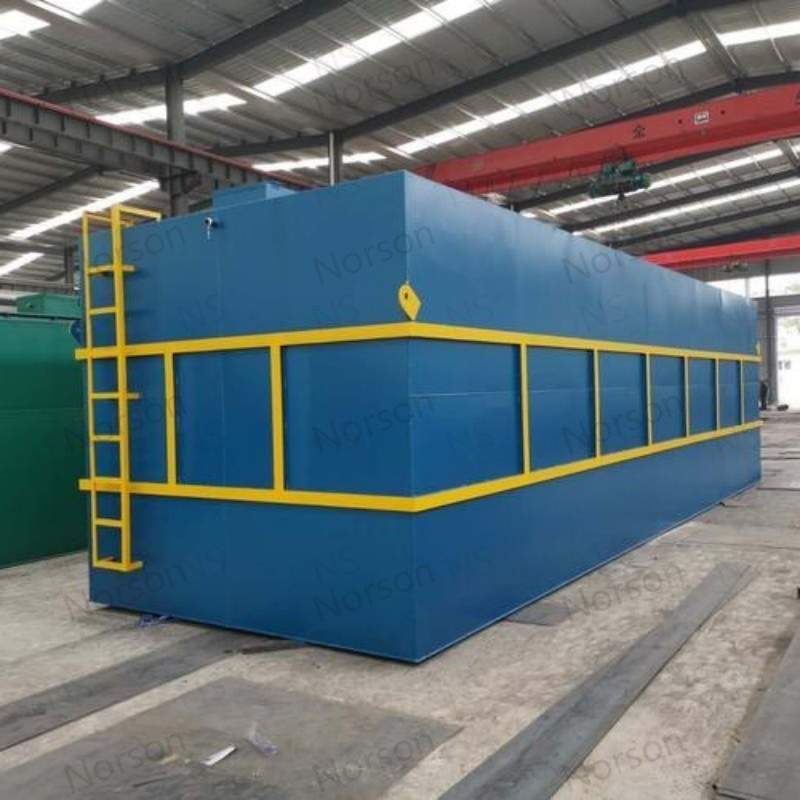

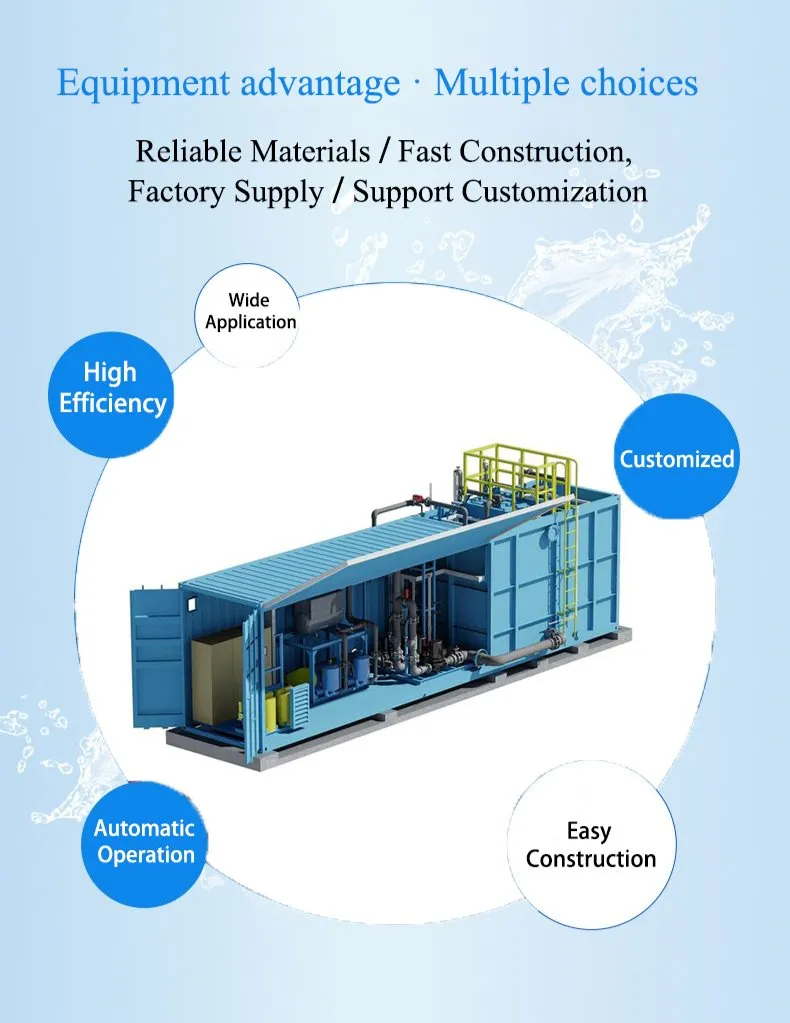

Integrated wastewater treatment plants combine biological treatment and membrane filtration technologies, offering high efficiency, energy saving, and a small footprint. This equipment is engineered to treat domestic sewage, industrial wastewater, and specialized wastewater from hotels, factories, and farms.
Effectively reduces COD and BOD levels by over 90%.
Removes suspended solids, bacteria, and viruses via membrane tech.
Fully automated PLC system for unattended operation.
| Item | NS-1 | NS-2 | NS-3 | NS-4 | NS-5 | NS-8 |
|---|---|---|---|---|---|---|
| Capacity (m³/h) | 1 | 3 | 5 | 7.5 | 10 | 30 |
| Primary Tank (m³) | 1.8 | 5.5 | 9 | 14 | 18 | 50 |
| Oxidation Tank (m³) | 5 | 14.5 | 24 | 36 | 44 | 130 |
| Blower Power (kw) | 0.4 | 0.75 | 1.5 | 2.2 | 2.2 | 5.5 |
| Total Weight (t) | 5.5 | 6.5 | 8 | 11 | 17 | 29 |

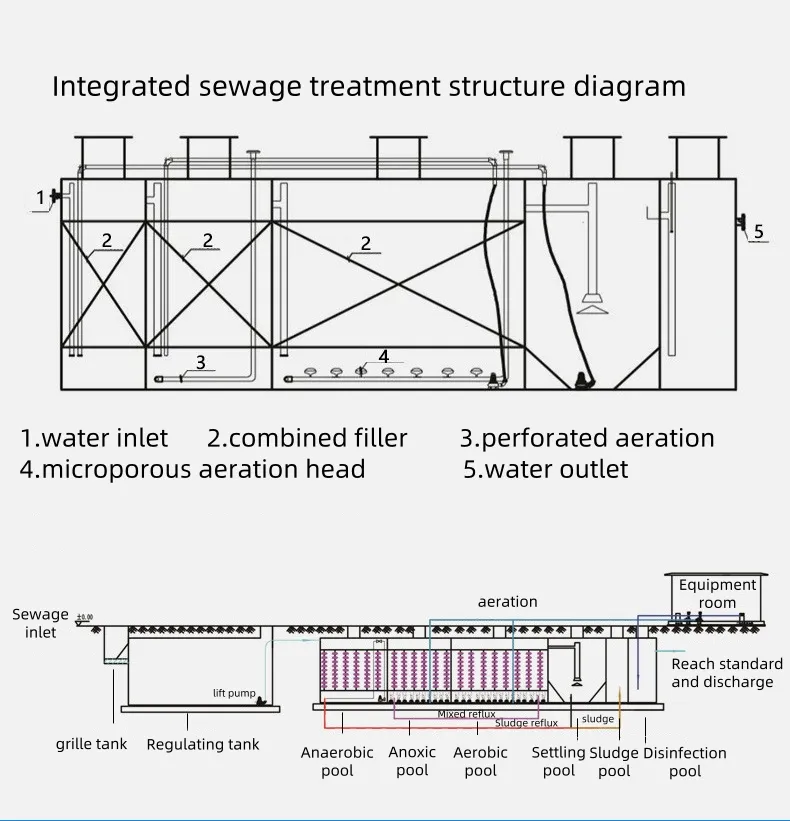

The system employs advanced Membrane Bioreactor (MBR) technology, merging biological reaction zones with membrane filtration units. This ensures superior effluent quality that meets national discharge standards for municipal reuse or safe discharge.
Operational noise levels kept below 50 dB.

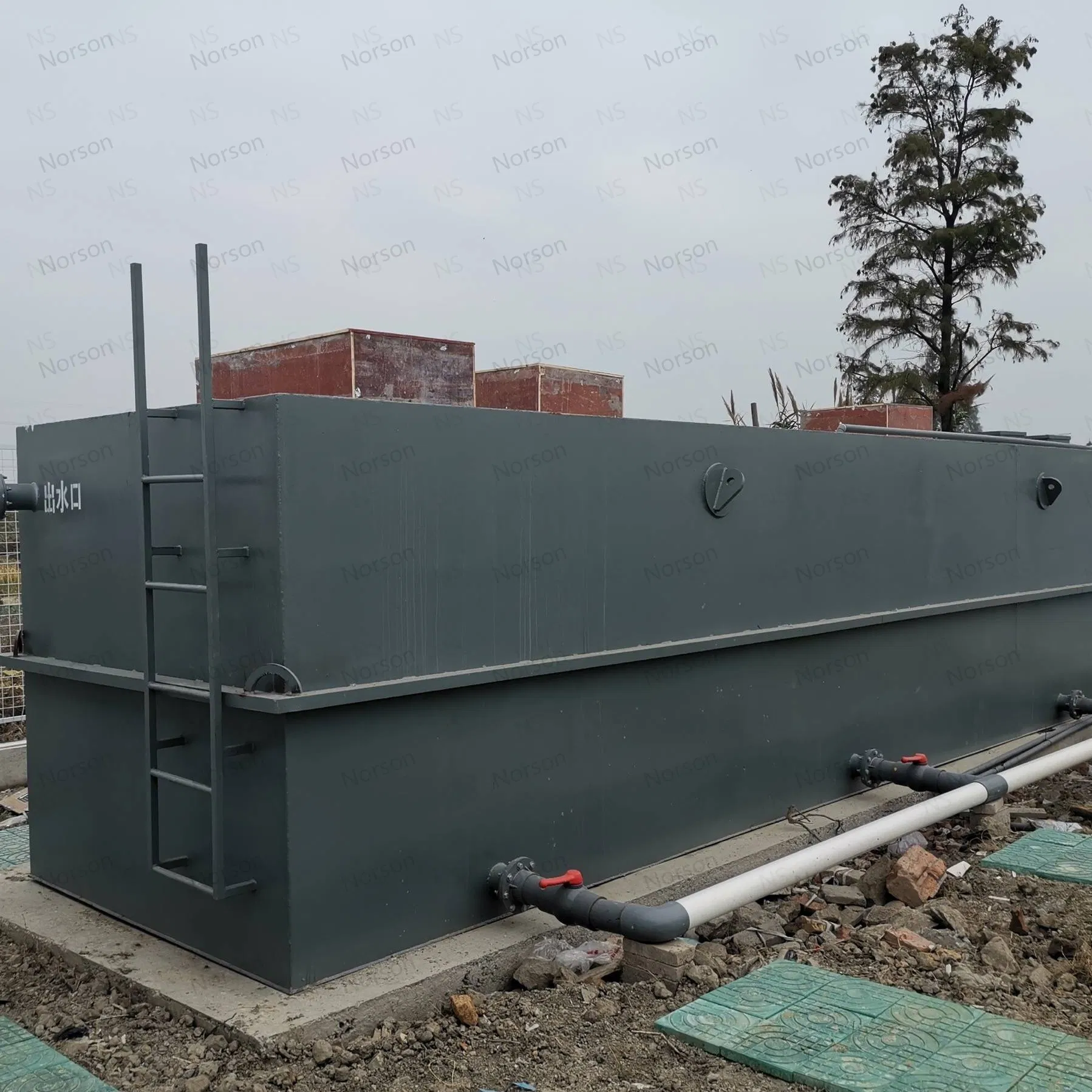

Can be placed underground to utilize surface for landscaping.
Flexible adaptation to different pollution loads and treatment goals.
Suitable for urban residential areas, food processing plants, chemical plants, livestock farms, resorts, and medical institutions. Our solutions support stable water quality and safe daily reuse in diverse environments.
