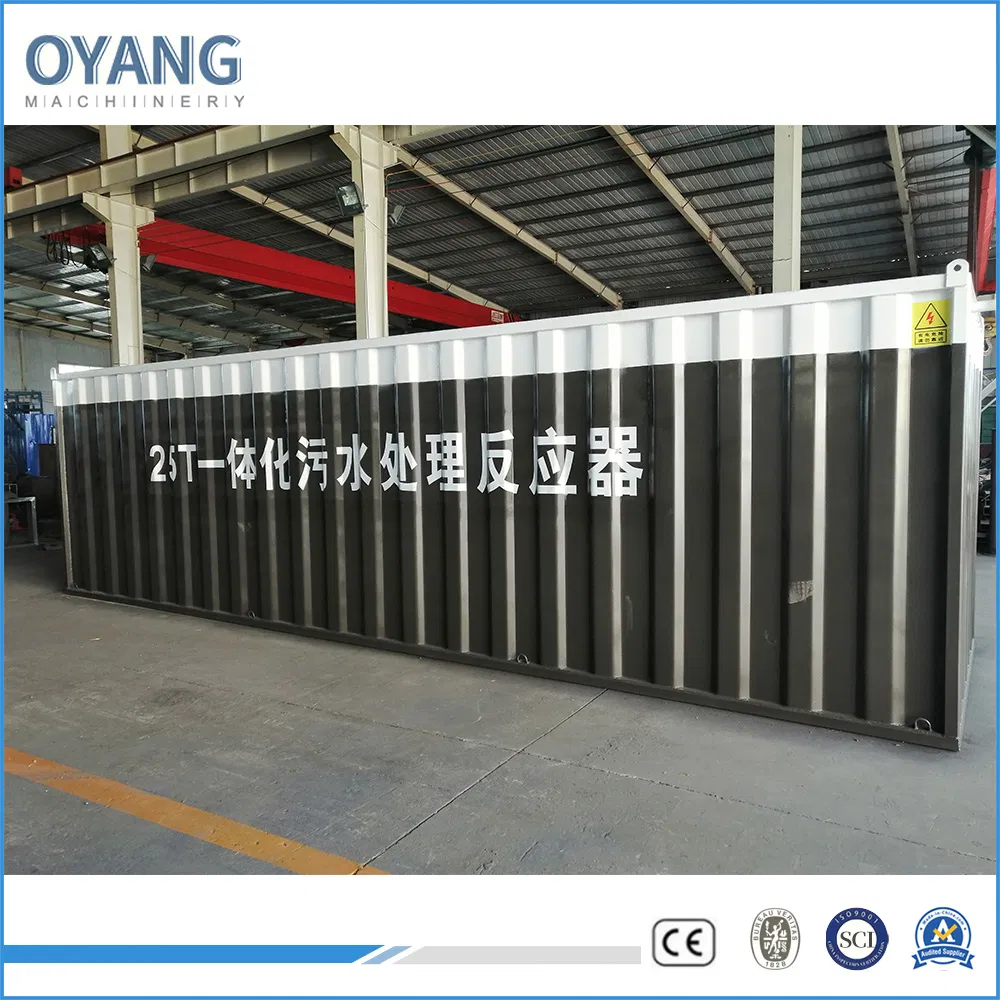

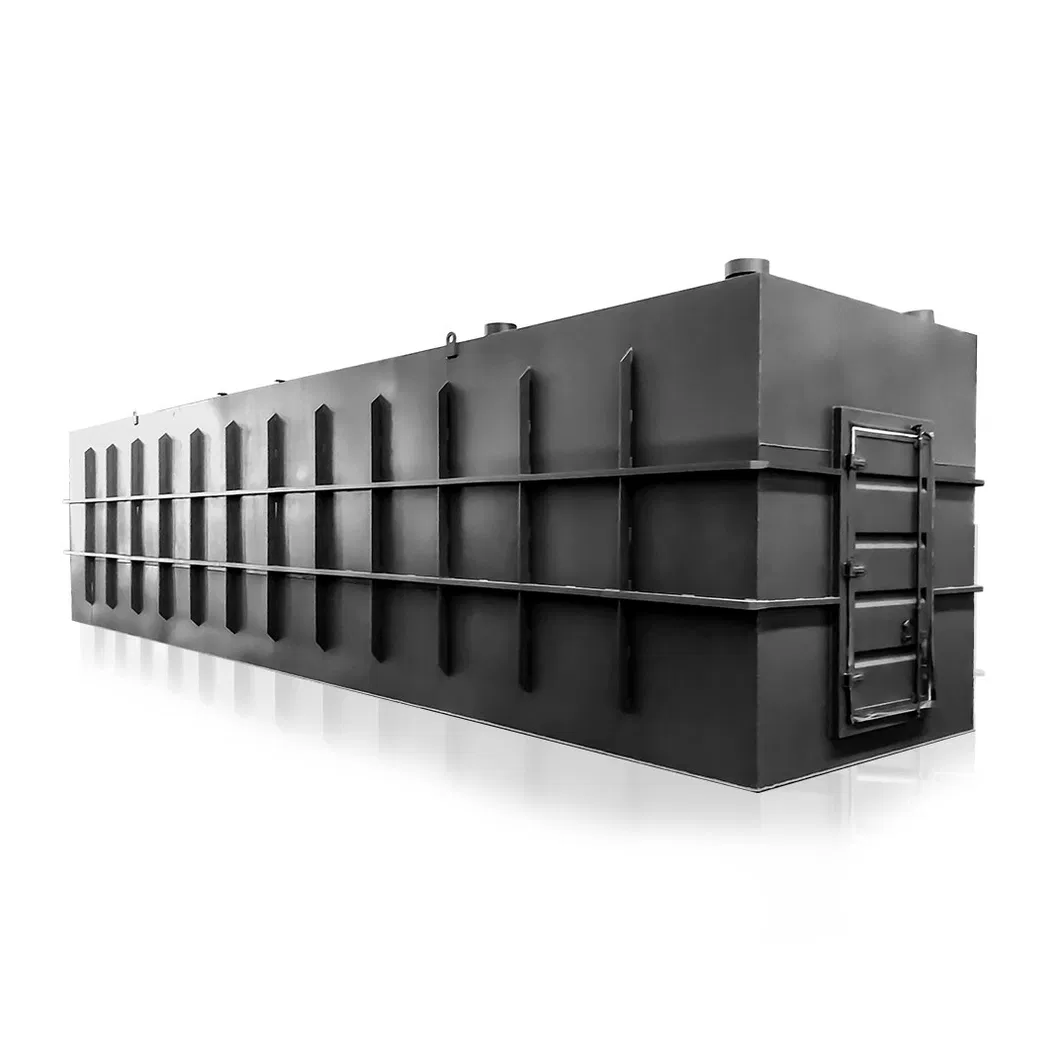

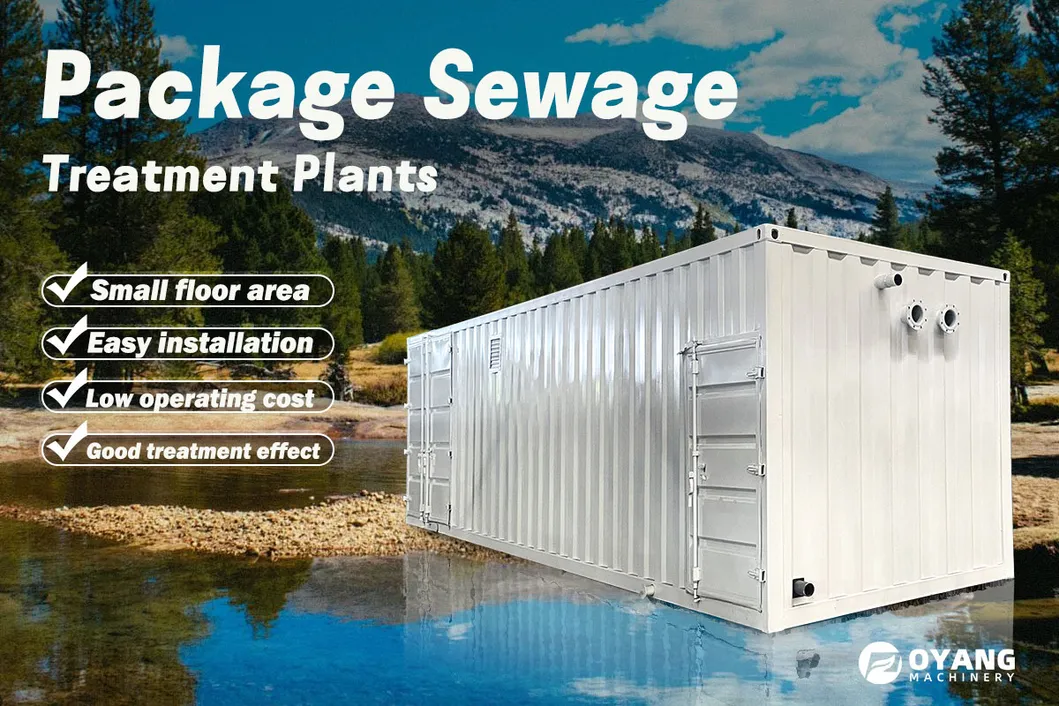

The integrated sewage treatment plant can effectively remove BOD5, COD and NH3-N. It has the characteristics of stable and reliable technical performance, good treatment effect, low investment, automatic operation, and convenient maintenance and operation. At the same time, MBR, MBBR, AO, AAO and other processes can be provided.

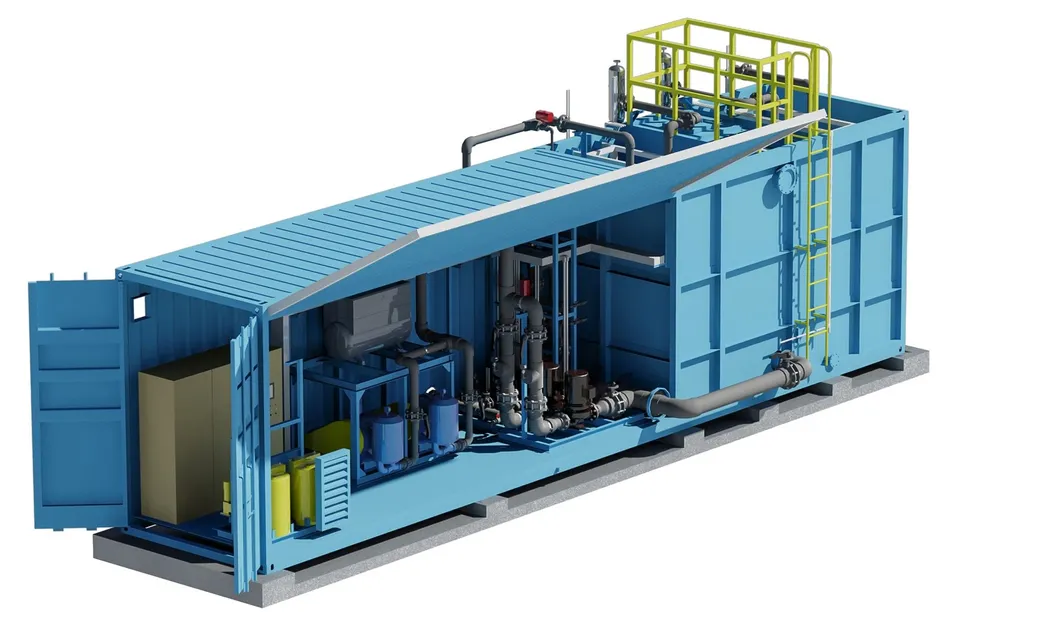

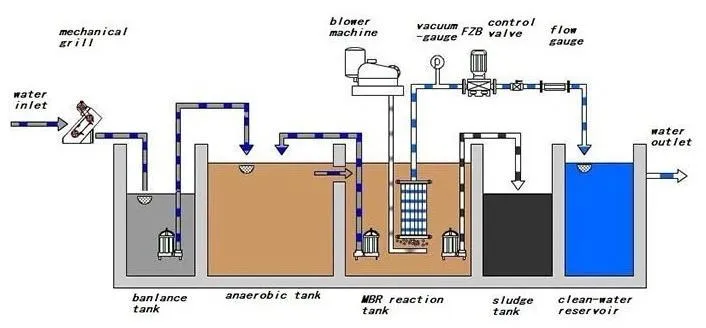

Replacing the end secondary sedimentation tank of traditional biological treatment technology with membrane modules. This maintains a high concentration of activated sludge in the bioreactor, increasing the organic load and reducing the footprint. The system can maintain an activated sludge concentration of 8000~10,000mg/L and extend sludge age (SRT) to more than 30 days.
| Model | WSZ1 | WSZ2 | WSZ3 | WSZ5 | WSZ10 | WSZ20 | WSZ30 | WSZ50 | |
|---|---|---|---|---|---|---|---|---|---|
| Capacity (m3/h) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | |
| Fan | Air Vol | 0.31 | 0.59 | 0.67 | 1.02 | 2.5 | 4.11 | 2.5x2 | 4.11x3 |
| Pressure | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | |
| Power (kW) | 0.55 | 0.75 | 1.5 | 1.5 | 3.7 | 5.5 | 3.7x2 | 5.5x3 | |
| Pump | Lift (m) | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Power (kW) | 0.55 | 0.55 | 0.55 | 0.75 | 0.75 | 1.5 | 1.5 | 5.5 | |
| Area (m²) | 6 | 10 | 14 | 19 | 39 | 75 | 113 | 168 | |

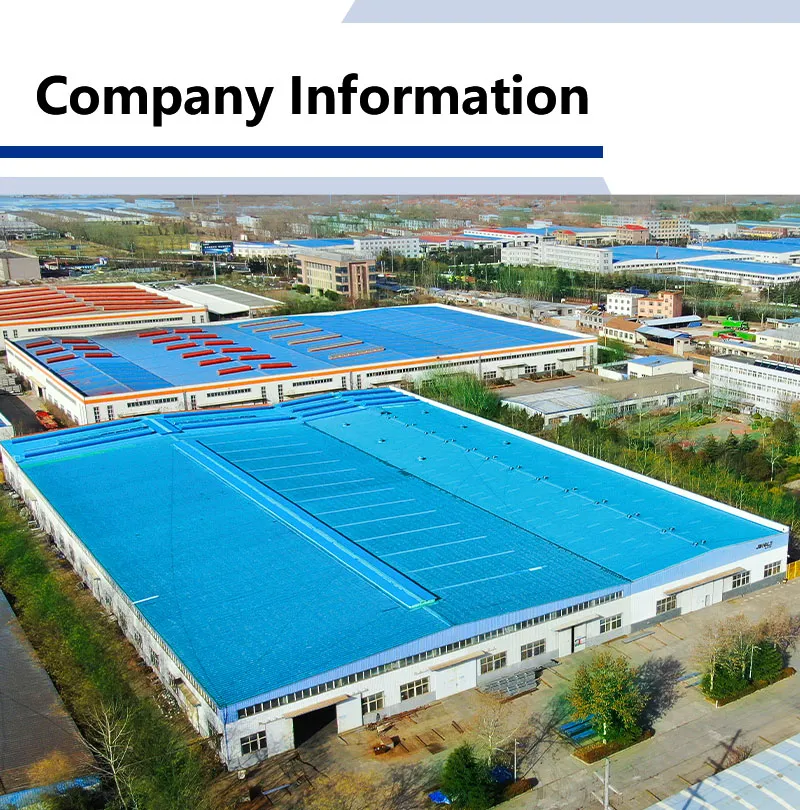

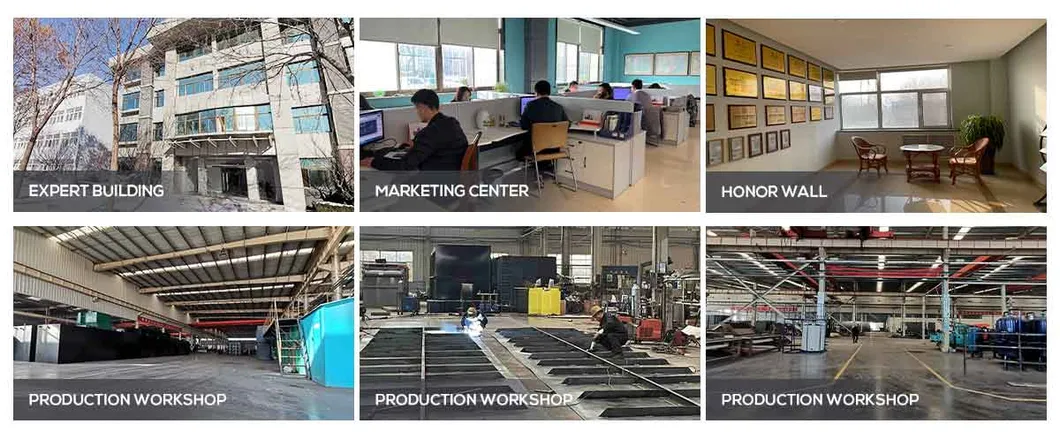

With a workshop area of 20,000 square meters and rich experience in sewage treatment, we have established long-term relationships with makeshift hospitals, petrochemical industries, railway groups, and the state grid.

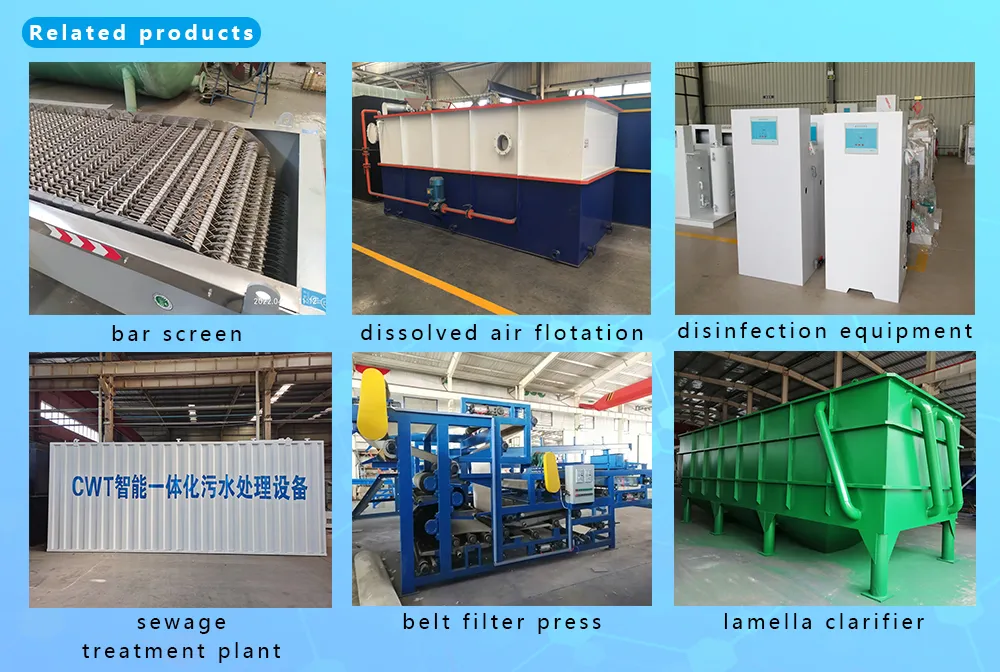

Main products include: integrated sewage treatment equipment, domestic and buried sewage systems, air flotation machines, belt filter presses, sludge dewatering machines, and hospital sewage treatment equipment. Our solutions are widely used in food, petrochemical, papermaking, breeding, leather, textile, printing, and dyeing industries.
