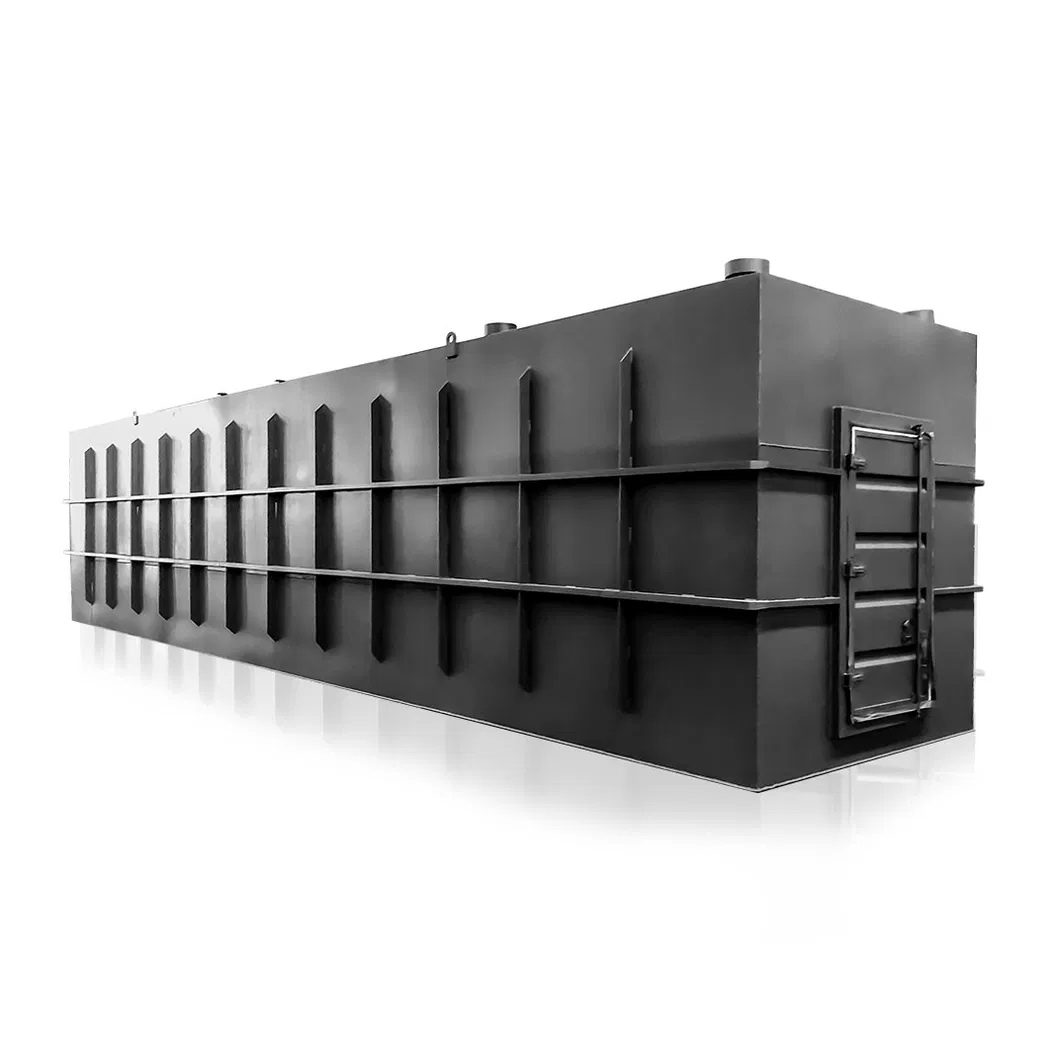

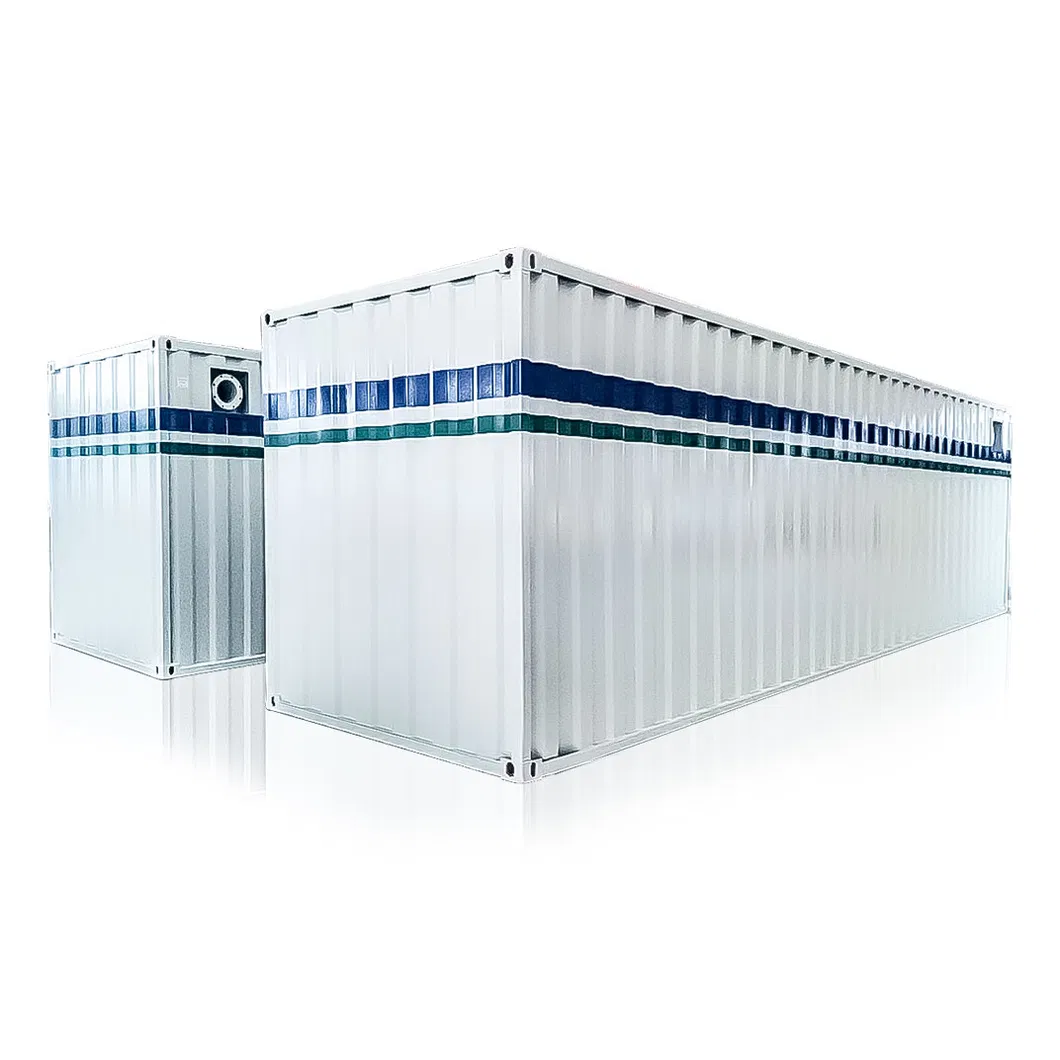

Global Integrated Solutions for Underground Sewage Equipment Engineering for B2B Procurement

📊

Basic Information

Model NO.MBR-8-10-16

TypeAerators

MethodBiological Treatment

UsageIndustrial, Home, Agriculture, Hospital, Sewage Treatment

Service Life10-30 Years

OperationAutomatic

InstallationUnderground / Onground

MaterialCarbon Steel, Stain Steel, FRP, PE, PP

📝

Product Description

Membrane bioreactor is a high-efficiency sewage treatment technology that combines membrane separation technology and traditional sludge process. With the filtration effect, the organisms are completely trapped in the bioreactor, which realizes the complete separation of water and sludge, and maintains a high MLSS in the bioreactor. It features strong nitrification ability and high pollutant removal rate.

⚙️

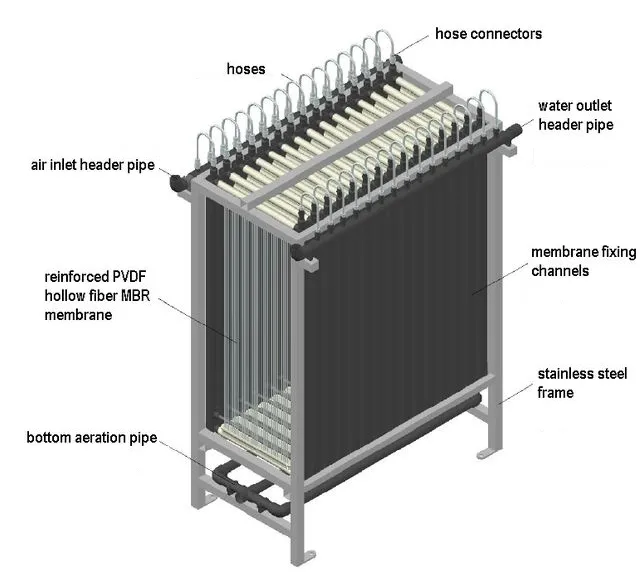

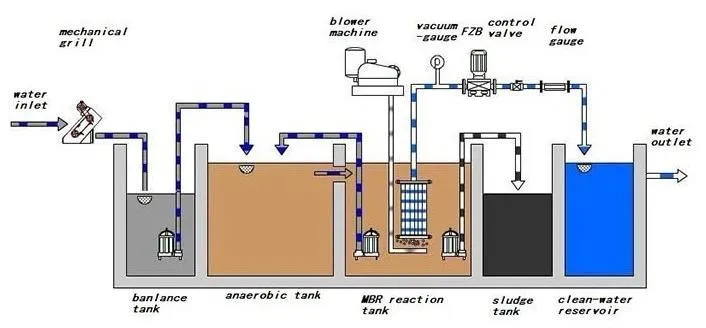

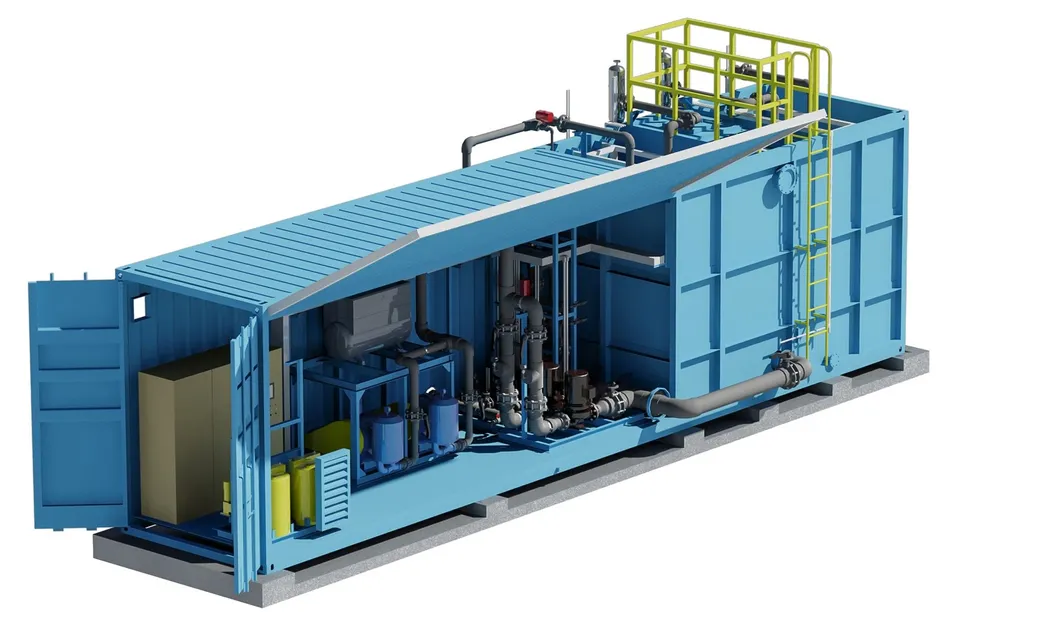

Working Principle

Replacing the end secondary sedimentation tank of traditional biological treatment technology with membrane modules, maintaining a high concentration of activated sludge in the bioreactor, increasing the organic load of biological treatment, thereby reducing the footprint of sewage treatment facilities. The concentration of activated sludge in the membrane bioreactor system can be increased to 8,000~10,000mg/L, or even higher; the sludge age (SRT) can be extended to more than 30 days.

⭐

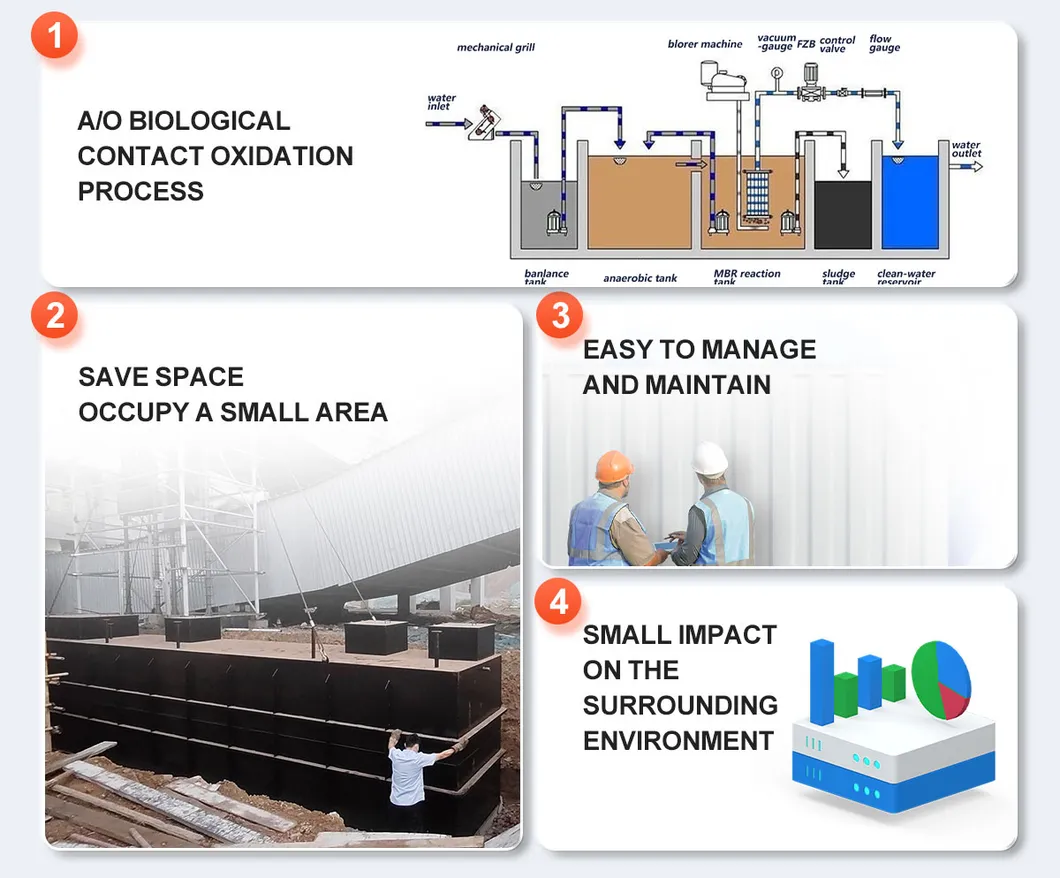

Product Advantages

Advanced Process: A/O biological contact oxidation process is used. Elastic three-dimensional fillers in pools provide large specific surface area and high microbial activity for quick pollutant removal.
Space Saving: The equipment can be buried underground, not occupying surface area. The surface can be greened or used for driving.
Maintenance: Designed for easy management and long-term maintenance stability.
Eco-Friendly: Small impact on the surrounding environment with effective denitrification.

🌐

Applications

Widely used in industrial and mining enterprises, living quarters, urban and rural areas, food processing, petrochemical, papermaking, breeding and slaughtering, leather, textile, printing and dyeing, hospitals, and hotels.

📋

Technical Parameters

Diaphragm Type	MBR-8	MBR-10	MBR-16
Dimensions (L*W mm)	810*525	1025*525	1050*535
Membrane Area (m2)	8	10	16
Water Rate	1.0-1.2	1.2-2.5	2.0-2.5
Water Turbidity	<1	<1	<1
SS (mg/L)	<10	<10	<10

🏭

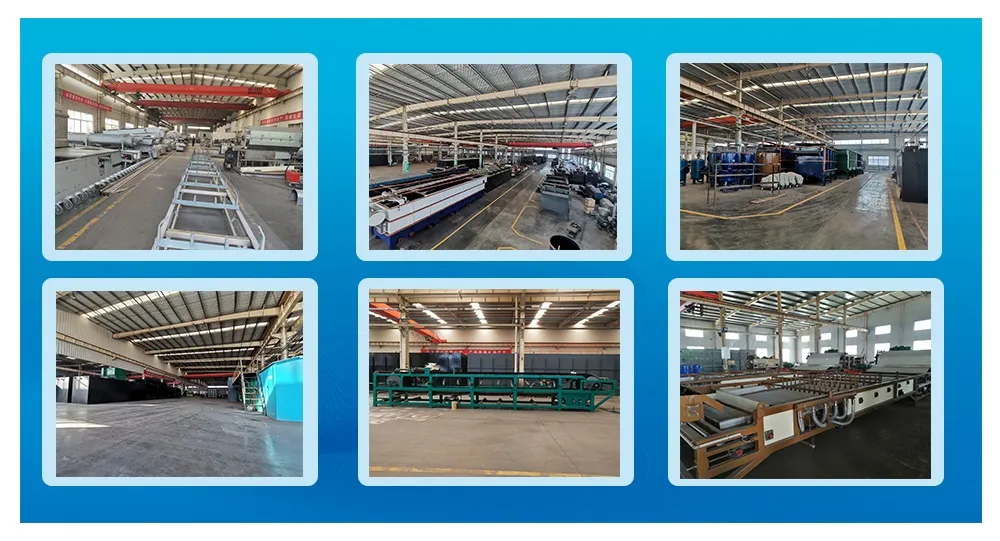

Production & Packing

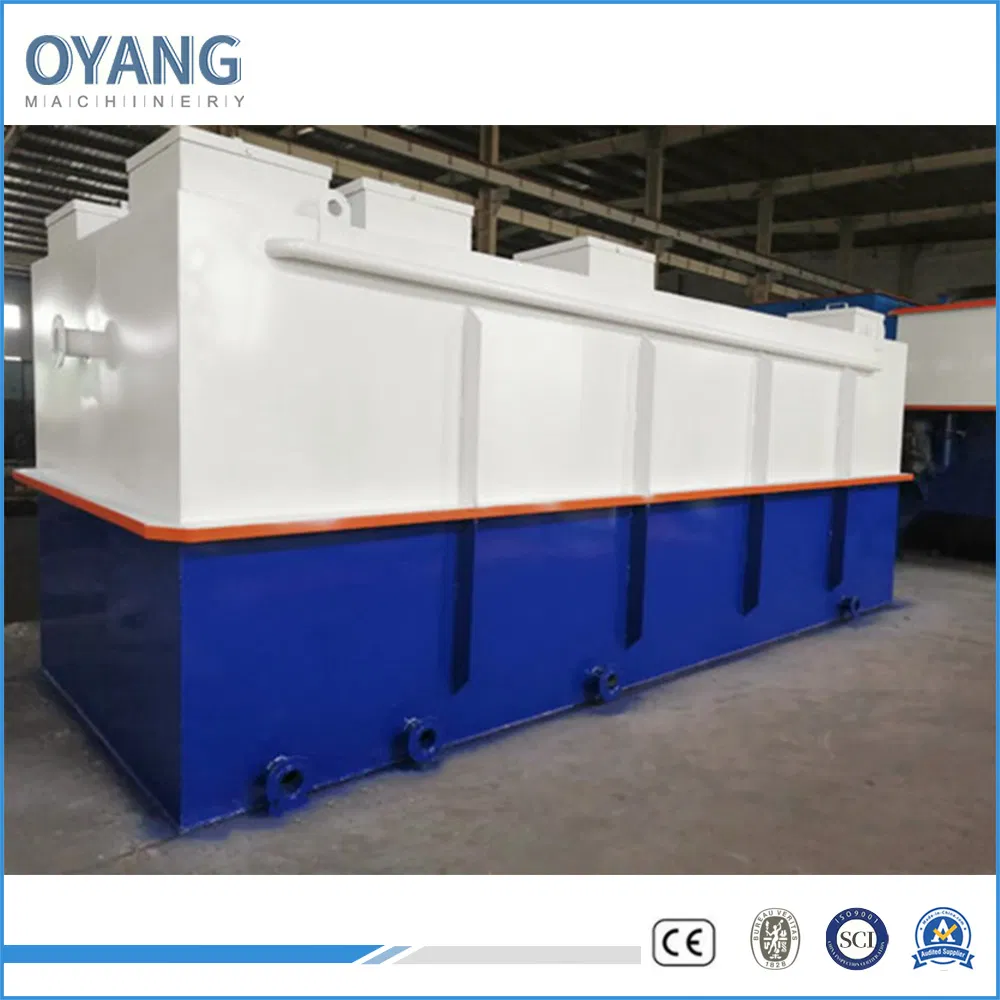

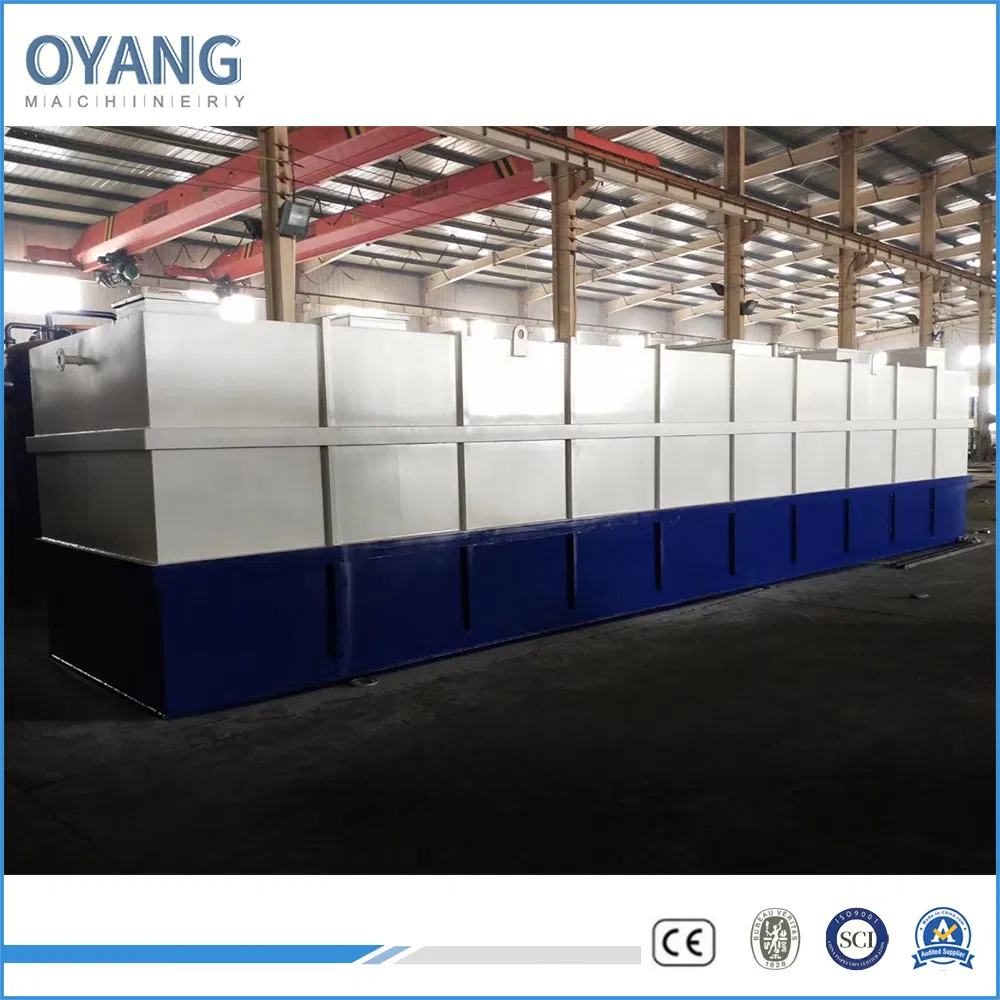

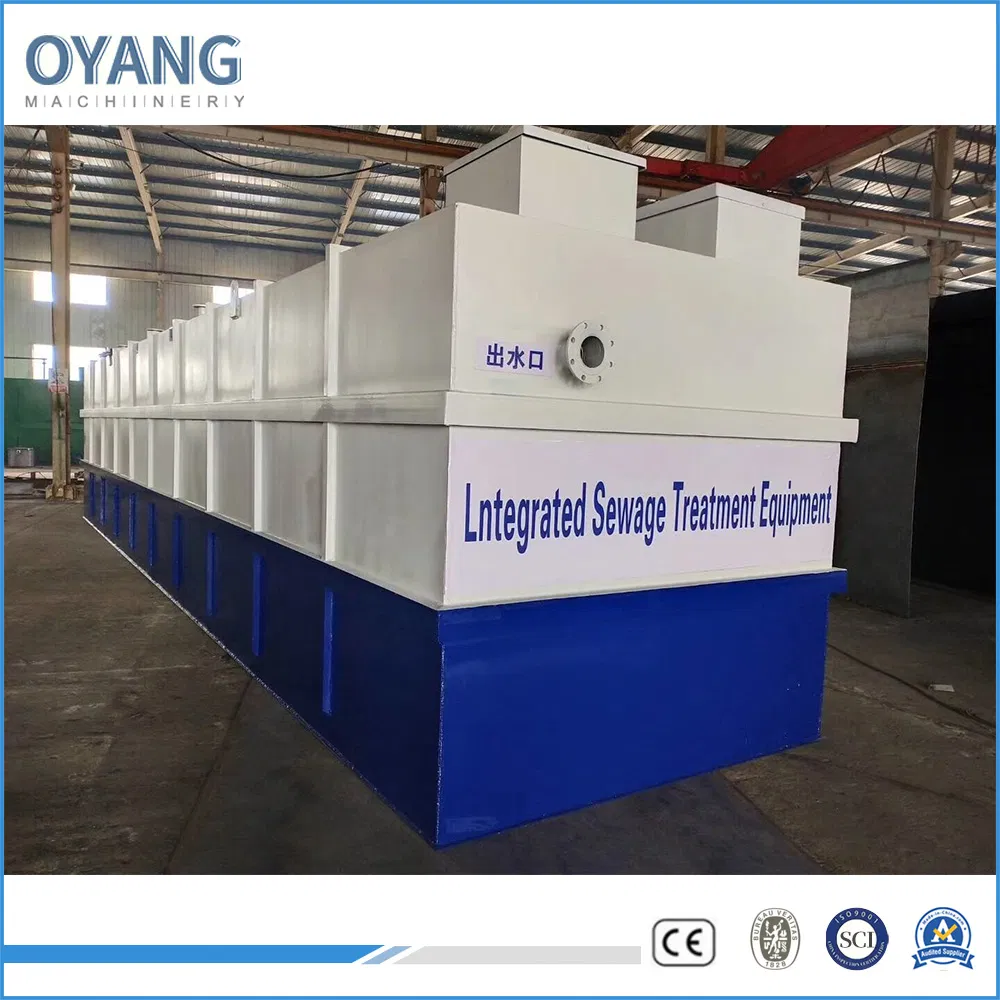

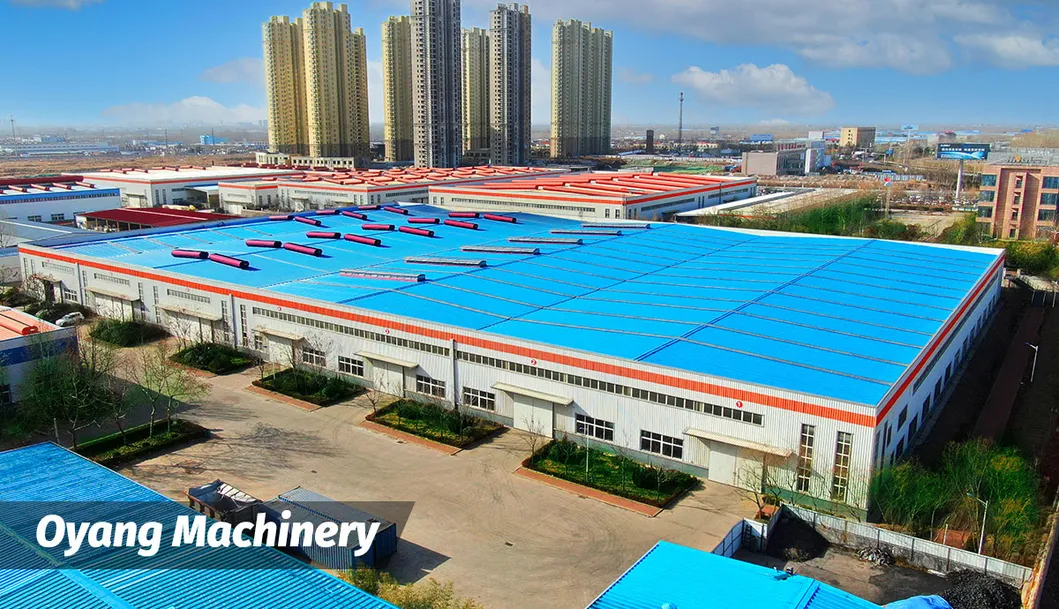

Corner of Workshop

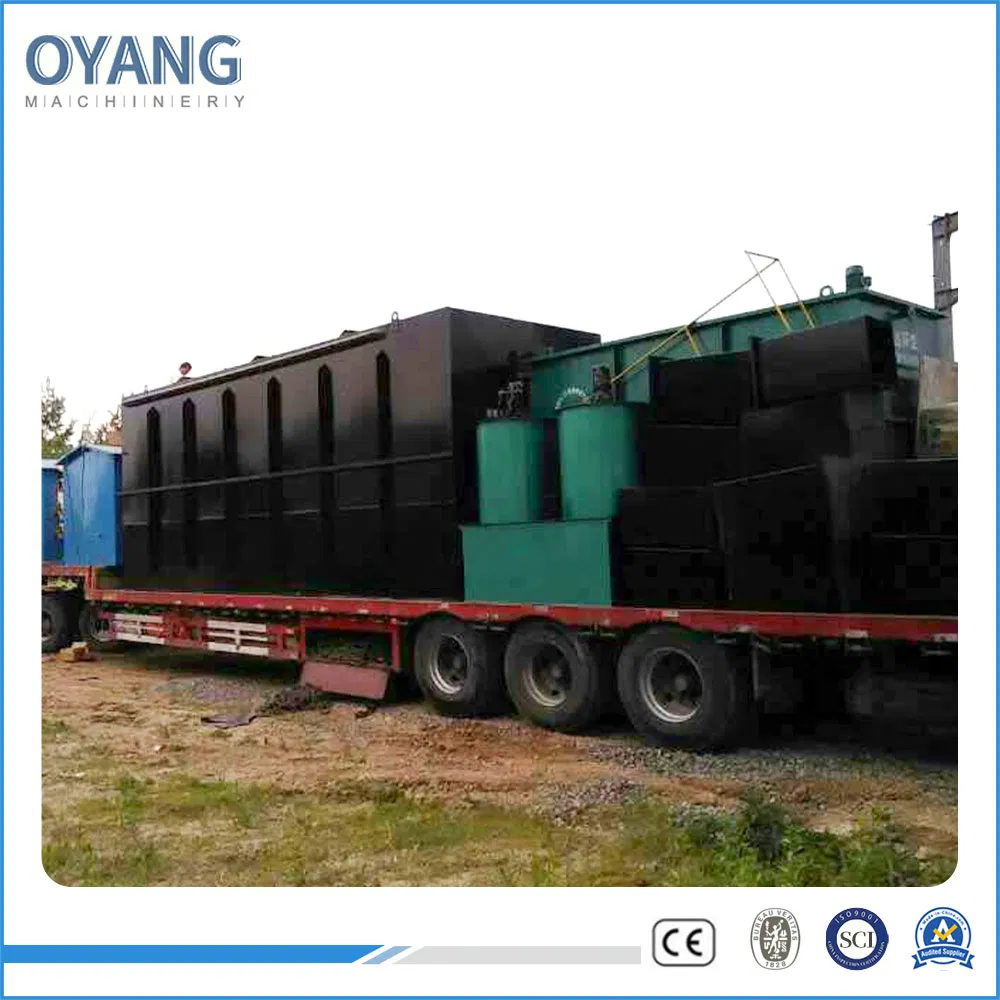

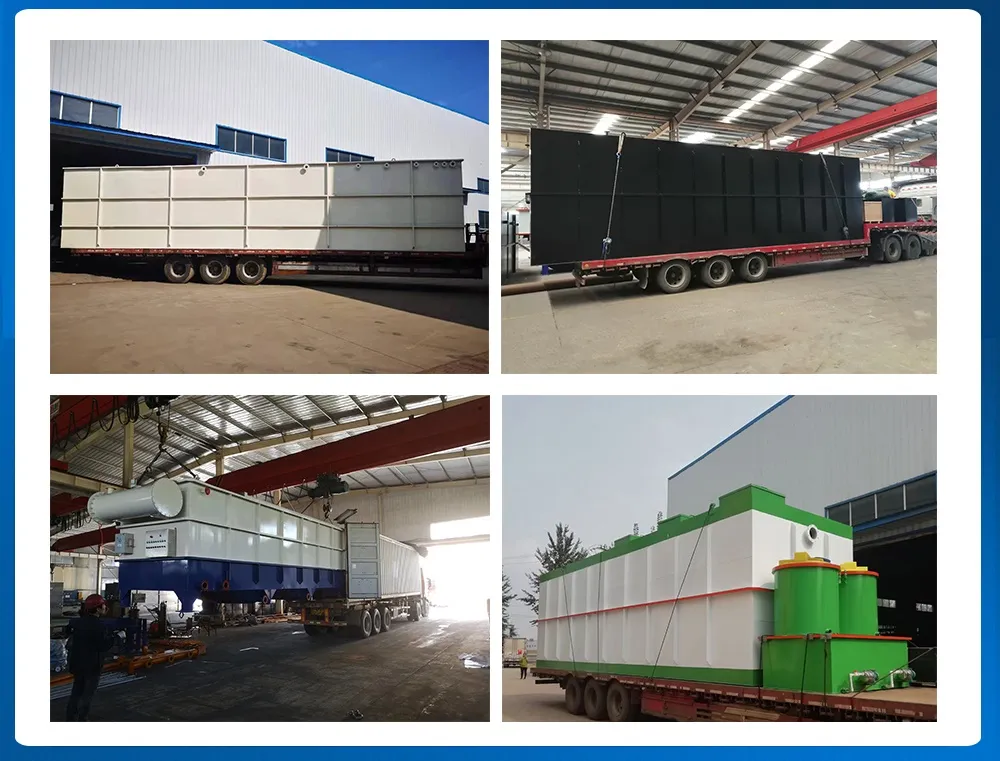

Packing & Shipment

📜

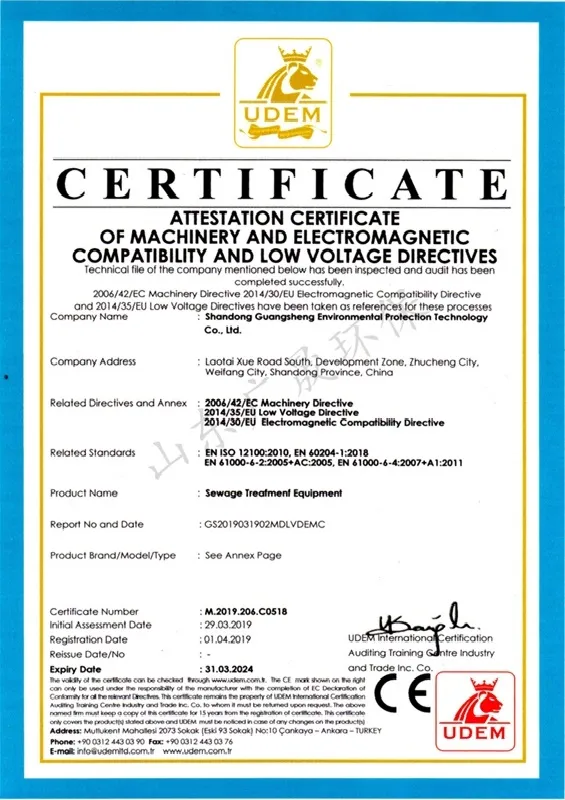

Certifications

❓

Frequently Asked Questions

Q1: Are you a manufacturer or a trading company? A: We are a professional factory specializing in the production of wastewater treatment equipment with extensive industry experience.

Q2: Can the equipment be customized with OEM services? A: Yes, we provide full OEM services including custom logos and specifications to meet your project requirements.

Q3: What is the typical service life of the MBR system? A: Our equipment is designed for durability, with a service life typically ranging from 10 to 30 years depending on maintenance and operating conditions.

Q4: How do you ensure the quality of your products for international customers? A: We have cooperated with over 1,000 customers worldwide and exported to nearly 50 countries. We hold CE, ISO, and BV certifications to ensure global quality standards.

Q5: Do you offer after-sales technical support? A: Yes, we provide comprehensive after-sales service, and our engineers are available to provide technical assistance and guidance.

Q6: What materials are used in the construction of the treatment units? A: We offer a variety of high-quality materials including Carbon Steel, Stainless Steel (SS304/316), FRP, PE, and PP based on the specific application needs.
