Advanced Mbr Mbbr High-Speed Water Treatment Equipment System for Corrosion Resistance

Customization:	Available
After-sales Service:	After-Sales One-Stop Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

WSZ

Type

Domestic Wastewater

Method

Biological Treatment

Usage

Industrial, Home, Agriculture, Hospital

Treatment Capacity

5 M³/D

Dimensions

2500*1500*2000 mm

Weight

1.65 T

Floor Area

18 ㎡

Production Capacity

2000 sets Per Month

Product Advantages

⚙ High Automation Delight in its fully automated features that guarantee unwavering performance. With sophisticated remote control capabilities, manage and oversee operations from anywhere in the world.

🛡 Low Failure Rate Meticulously tested through stringent quality controls, substantially lowering the risk of malfunction. This minimizes maintenance needs, allowing focus on core activities without frequent repairs.

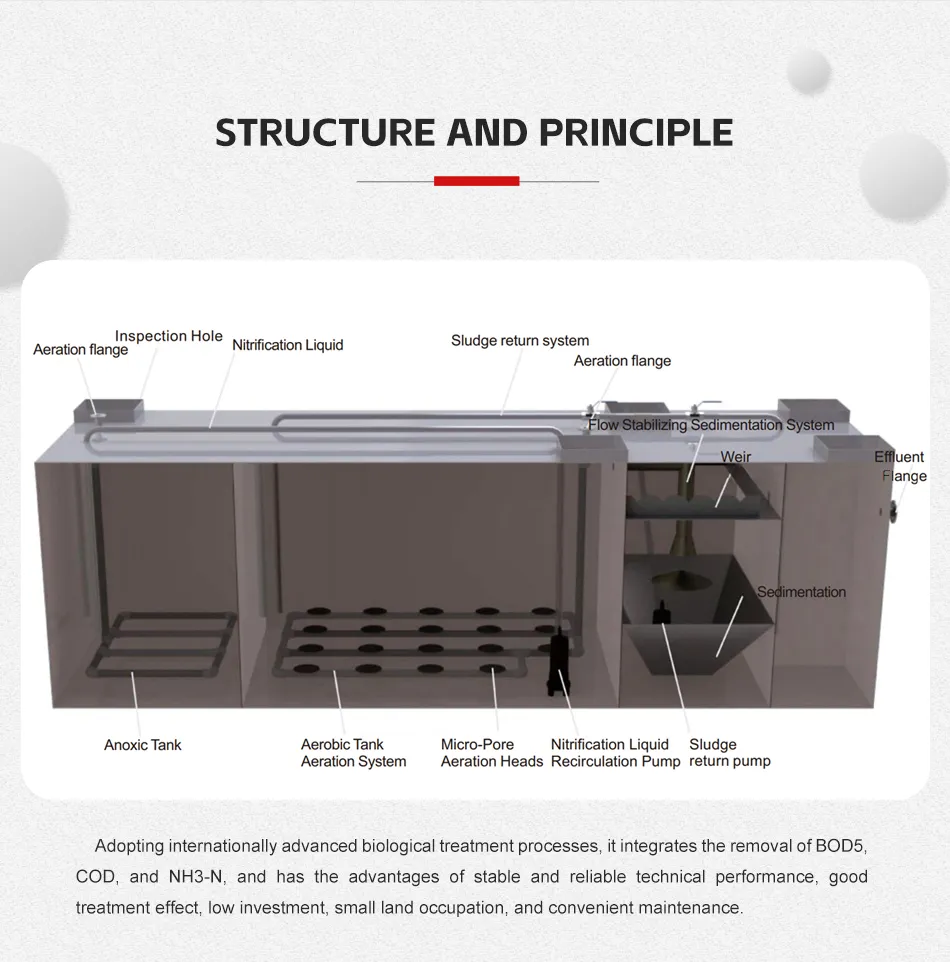

♻ Dual Recycle Systems Features sophisticated liquid and sludge recirculation technologies. It optimizes denitrification by dynamically adjusting recirculation rates and maintains an ideal microbial environment.

💎 Durable Materials Precisely engineered using premium materials such as carbon steel, stainless steel, and fiberglass. Carbon steel is coated with epoxy coal tar pitch for remarkable corrosion resistance.

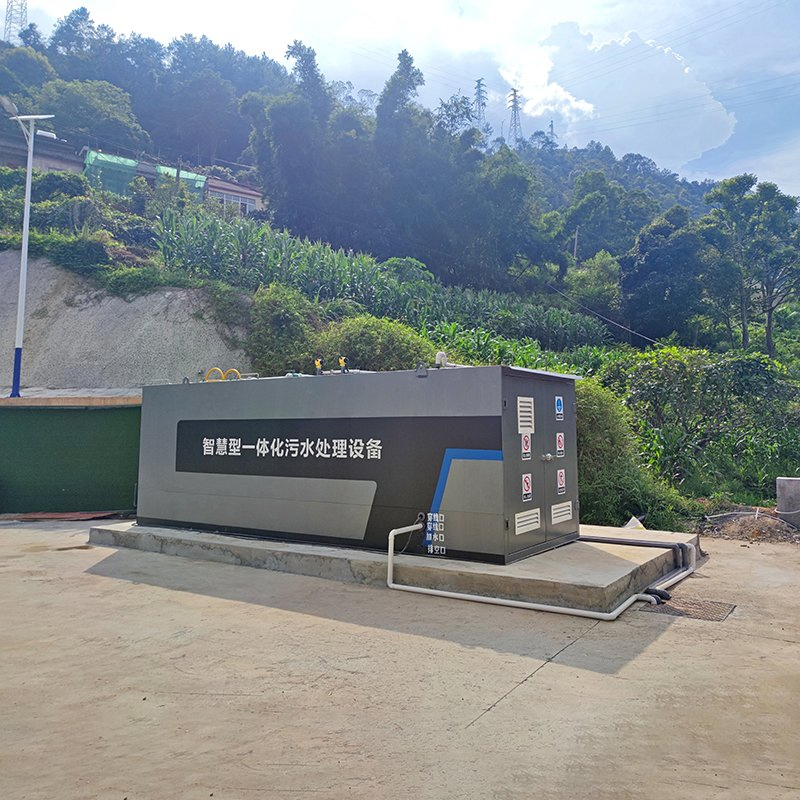

🏗 Reinforced Design Internal reinforcements make it suitable for installation either buried up to 2 meters underground or positioned above ground to meet diverse operational requirements.

📊 Efficient Distribution Advanced water distribution systems prevent short-circuiting, achieving an impressive tank utilization rate of 89.8%, outpacing conventional systems by 15%-30%.

🌬 Specialized Aeration Outfitted with a unique micro-hole aeration device to prevent blockages and ensure optimal mixing of wastewater, activated sludge, and dissolved oxygen.

🌿 Advanced Fillers Sophisticated, eco-conscious composite fillers promote rapid biofilm development and swift microbial proliferation, enhancing microbial activity for superior effluent quality.

Treatment Efficiency & Specifications

Schedule of Treatment Efficiency

Parameter	Inlet Water Quality (mg/L)	Effluent Quality (mg/L)
BOD5	150-250	≤20
CODcr	300-400	≤60
SS	100-300	≤20
NH3-N	30-40	≤15
PH	6-9	6-9

Equipment Features

Compact and highly efficient design, optimizing space utilization and landscape aesthetics.
Superior capability in organic pollutant removal ensuring exceptional effluent quality.
User-friendly operational design requiring no specialized maintenance.
Treated water quality meets or surpasses rigorous national discharge standards.
Remarkable flexibility to adapt to varying raw water characteristics.

Application Scope

Hotels & Hospitals: Dependable sewage treatment for high-standard facilities.
Residential Areas: Efficient waste management for villages, towns, and villa estates.
Transport Hubs: Solutions for stations, airports, and harbor terminals.
Industrial Sites: Custom-designed for factories, mines, and tourist locales.
Organic Wastewater: Versatile handling of industrial organic wastewater akin to domestic sewage.

Project Design Requirements

Please provide your project data so that we can design equipment that better meets your requirements.

Processing Parameter Requirement
Parameters/Index	Inflow (mg/L)	Outflow Requirement
COD / BOD / TSS	-	-
Ammonia Nitrogen / TN / TP	-	-
PH / E.coli	-	-
Water Flow	m³/d
Installation	On/Underground (indicate depth if underground)
Voltage / HZ	Local standards

Frequently Asked Questions (FAQ)

What is the typical treatment capacity of this equipment?

The standard model displayed has a treatment capacity of 5 M³/D, but systems can be designed to match specific project requirements.

Can the equipment be installed underground?

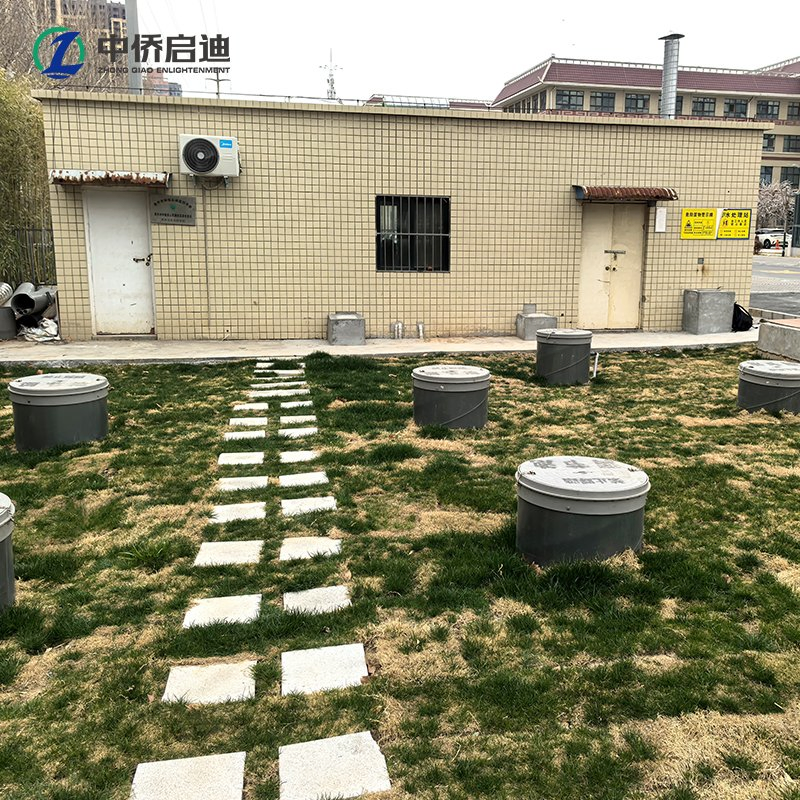

Yes, the reinforced design allows it to be buried up to 2 meters underground, which helps save space and prevents mosquito breeding.

What materials are used for construction?

The equipment is built using high-quality carbon steel (with epoxy coating), stainless steel, or fiberglass for maximum corrosion resistance.

Does the system require professional maintenance staff?

No, the system is highly automated and designed for ease of use with low failure rates, requiring no specialized on-site maintenance.

What is the efficiency of the tank utilization?

Due to the advanced water distribution system, the tank utilization rate reaches 89.8%, which is 15%-30% higher than conventional systems.

What types of wastewater can this equipment treat?

It is ideal for domestic sewage from hotels, hospitals, residential areas, and villages, as well as industrial organic wastewater with similar characteristics.
