Advanced Municipal Waste Water Treatment Solutions for Sustainable Living

Customization:	Available
After-sales Service:	After-Sales One-Stop Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.	QDPP	Type	Sewage Treatment Equipment
Method	Biological Treatment	Usage	Industrial, Home, Agriculture, Hospital, Domestic Wastewater
Color	Black/Blue/etc	Capacity	Above 0.5m³
Material	Carbon Steel & Stainless Steel/FRP	Painting	Epoxy Painting
COD Outlet	< 50mg/L	HS Code	8421299090

Product Description

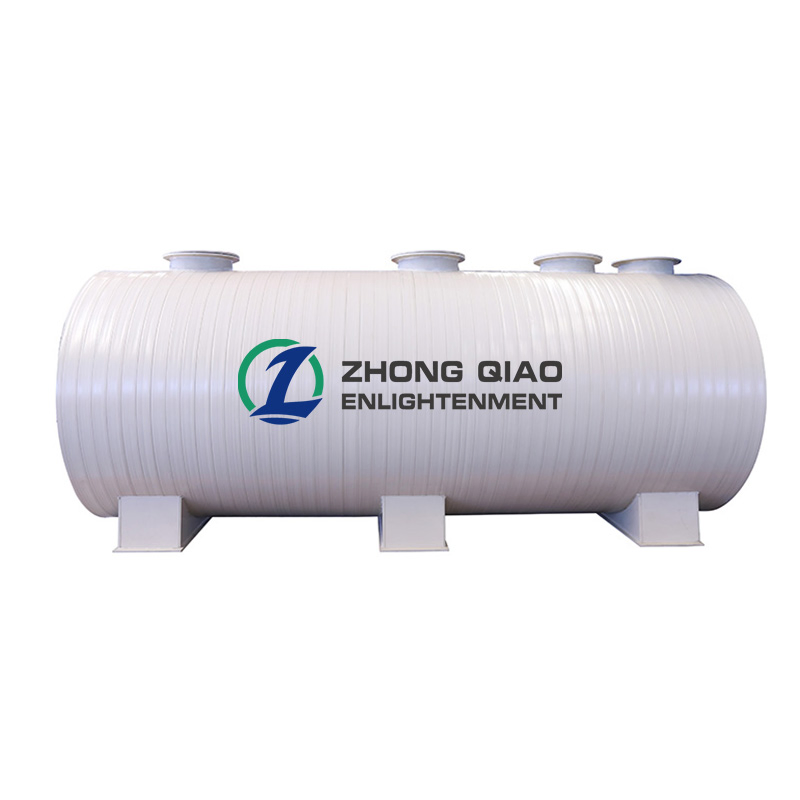

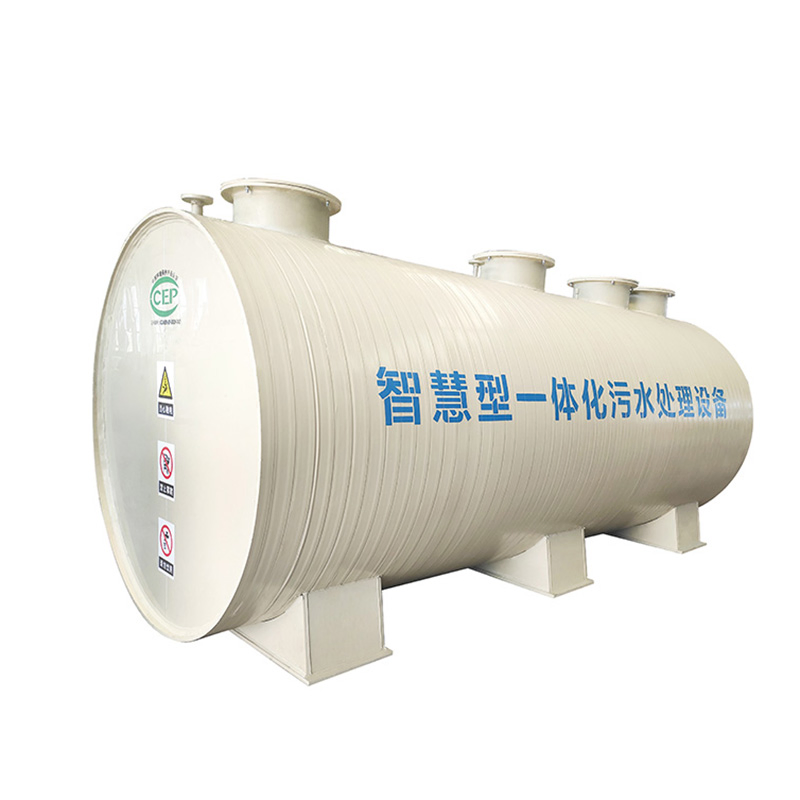

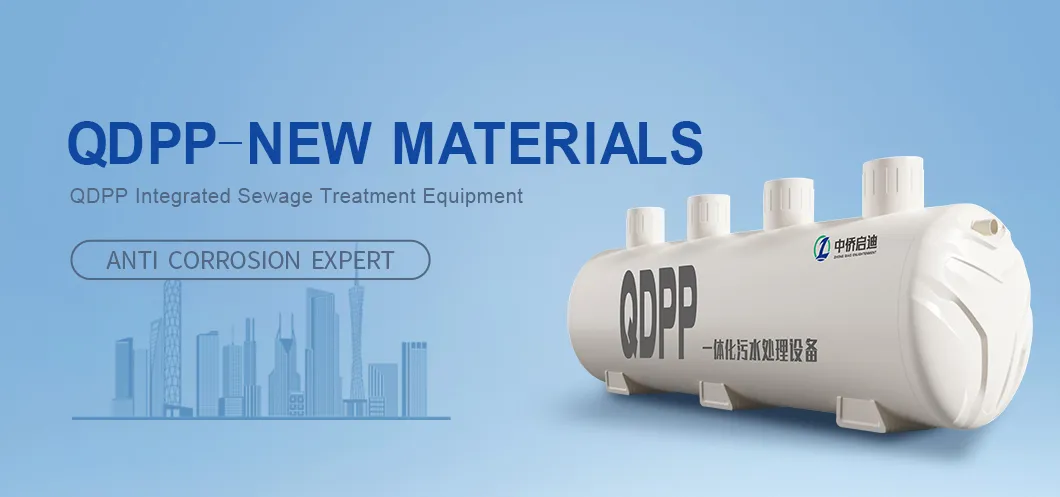

Introducing the QDPP Integrated Sewage Treatment Equipment

Step into the world of extraordinary innovation with the QDPP Integrated Sewage Treatment Equipment. Meticulously crafted with advanced high-molecular materials, this equipment shines with unmatched durability and remarkable performance, thanks to its seamless tank design. Our dedicated R&D team has expertly integrated Western technologies, specifically tailored to meet unique sewage treatment needs.

Superior Raw Materials: Polypropylene (PPH)

Our unwavering commitment to quality is exemplified by our choice of high-modulus polypropylene as the foundational element. With an impressive elastic modulus of ≥1500 MPa—substantially surpassing HDPE's 800 MPa—it guarantees remarkable ring stiffness and robust structural integrity. PPH is non-toxic, odorless, and possesses ultra-light density with outstanding water stability (0.01% absorption rate).

Distinctive Characteristics

1. Safety First The tank is manufactured using spiral extrusion winding-one-time forming technology, achieving a seamless, one-piece structure.

2. Enhanced Durability Includes UV-resistant and anti-aging additives, significantly extending outdoor service life compared to standard plastic equipment.

3. Corrosion Resistance Excellent resistance to various acids, bases, salts, and organic solvents, ensuring reliability in harsh chemical environments.

4. Flexible Installation Lightweight design, non-toxic, non-scaling, and user-friendly. Customizable to specific project requirements.

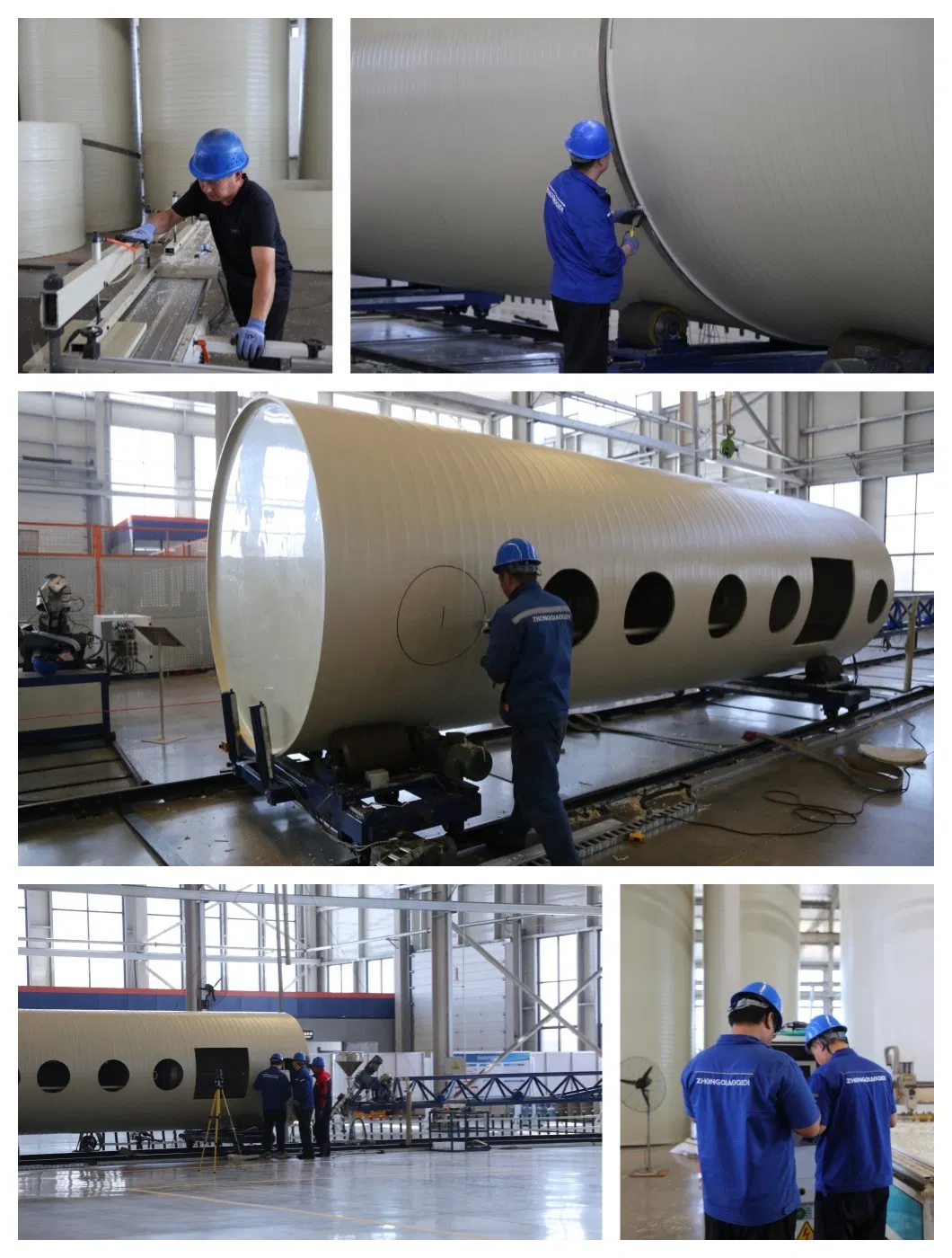

State-of-the-Art Production & Welding

Experience the pinnacle of modern engineering with our High-Efficiency QDPP Equipment. Wall thicknesses range from 10 to 80 mm, tailored to accommodate diverse tank joint specifications.

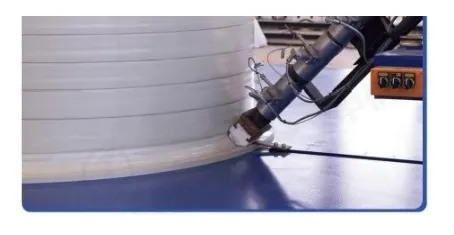

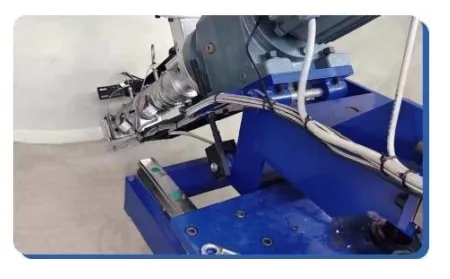

Precision Internal & External Welding

Utilizing imported automatic extrusion welding machines, this technology creates robust welds at stress-intensive points. We use pristine PPH pellets thermally fused at the seams to forge an indestructible bond with the tank body.

Performance Parameters

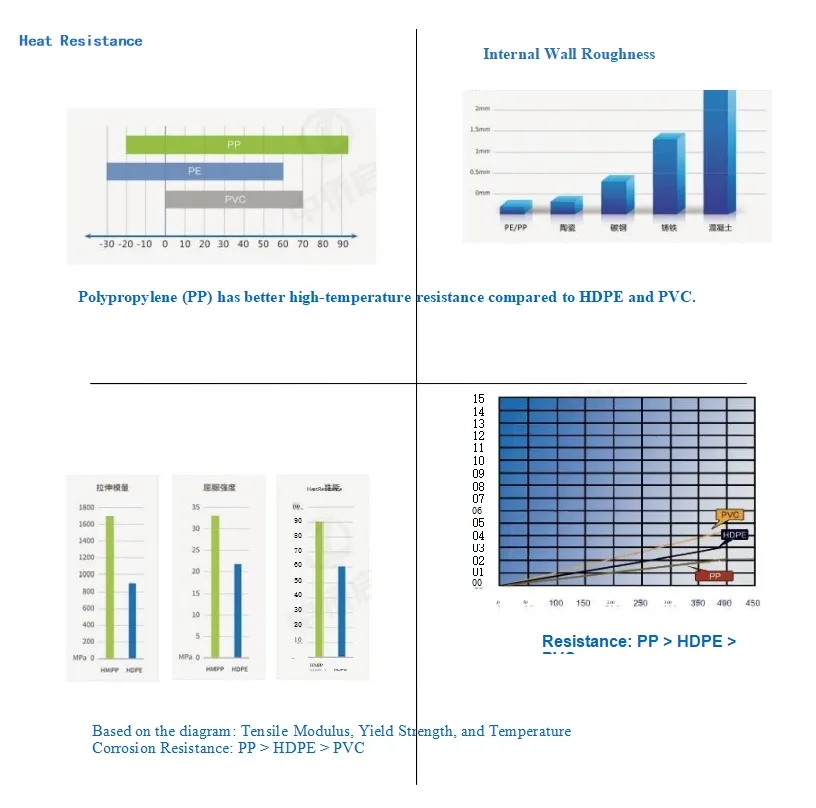

Polypropylene (PPH) Performance Data
Item	Typical Value	Unit	Test Method
Density	905	k/m³	ISO 1183
Yield Stress (50 mm/min)	36	MPa	ISO 527-2
Tensile Modulus (1 mm/min)	1650	MPa	ISO 527-2
Charpy Impact Strength (+23°C)	7	KJ/m²	ISO 179/1eA
Vicat Softening Temp B (50N)	95	ºC	ISO 306

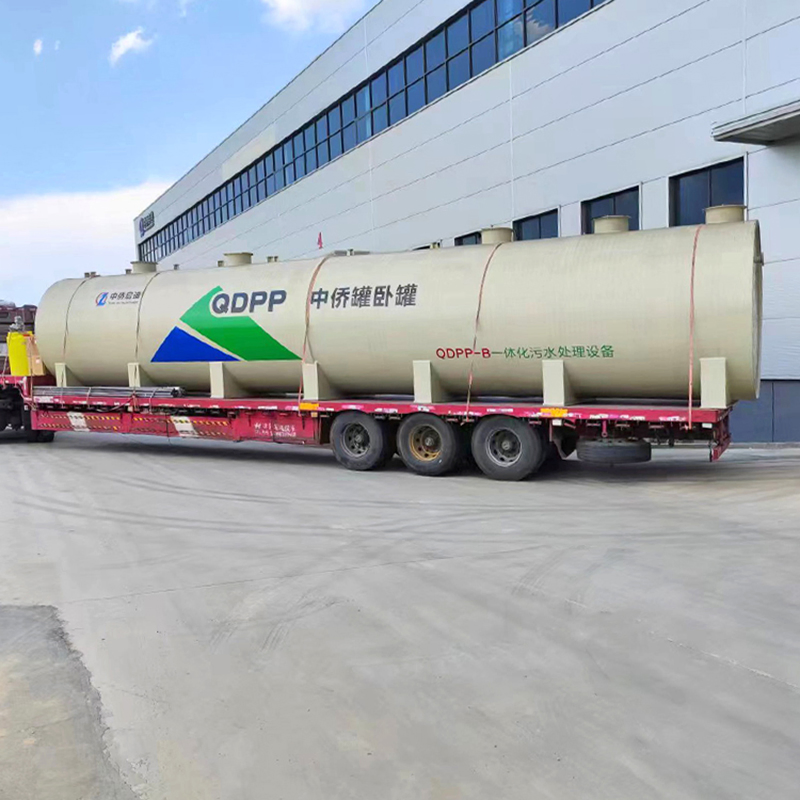

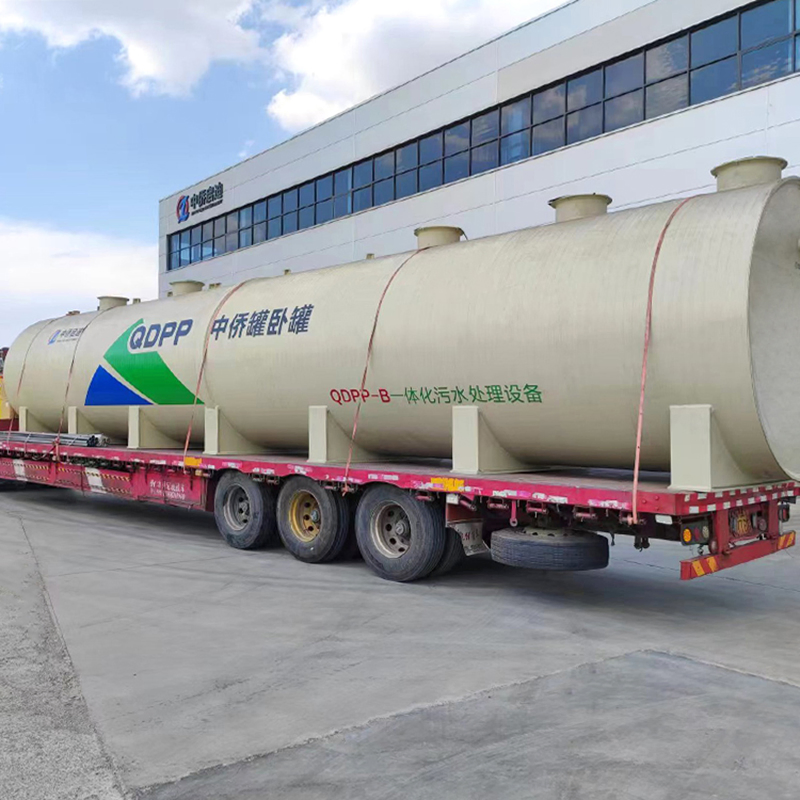

Product Showcase

Processing Parameter Requirements

Please provide your project data so that equipment can be designed to meet your specific requirements.

Parameters/Index	Inflow Quality (mg/L)	Outflow Requirement (mg/L)
COD	-	-
BOD	-	-
TSS	-	-
Ammonia nitrogen	-	-
PH / E.coli	-	-
Water Flow	m³/d

Frequently Asked Questions

Q1: What is the main material used in the QDPP equipment?

A: The equipment is primarily constructed from high-modulus polypropylene (PPH), which offers superior ring stiffness and chemical stability compared to standard materials like HDPE.

Q2: Can the equipment be installed underground?

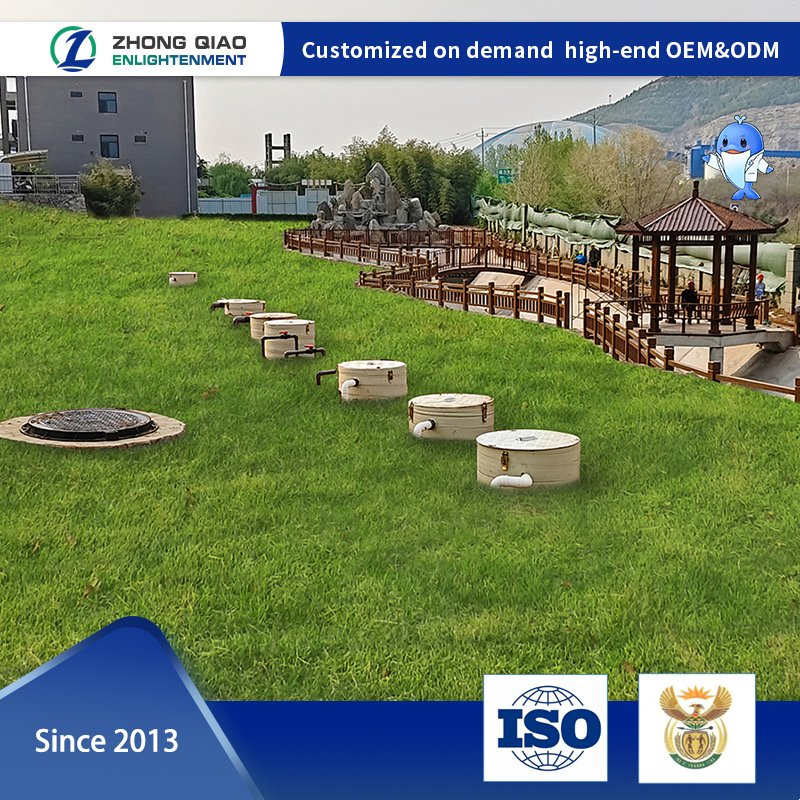

A: Yes, the QDPP system is designed for both on-ground and underground installation. Its robust structural integrity and corrosion resistance make it ideal for varied burial depths.

Q3: How effective is the equipment at removing contaminants?

A: The system is highly efficient, with the capability to reduce COD (Chemical Oxygen Demand) in the outlet to less than 50mg/L, meeting stringent discharge standards.

Q4: What makes the welding process "state-of-the-art"?

A: We use imported automatic extrusion welding machines for both internal and external seams. This ensures a seamless, one-piece structure that is virtually leak-proof and highly durable.

Q5: Is the equipment resistant to UV radiation?

A: Yes, the raw PPH materials include specialized UV-resistant and anti-aging additives to ensure a long service life even when exposed to direct sunlight.

Q6: What industries can benefit from this technology?

A: It is widely used in wastewater management, chemical processing, pharmaceuticals, food processing, electronics, and agricultural sectors, among many others.
