Wastewater Treatment Process MBR Domestic

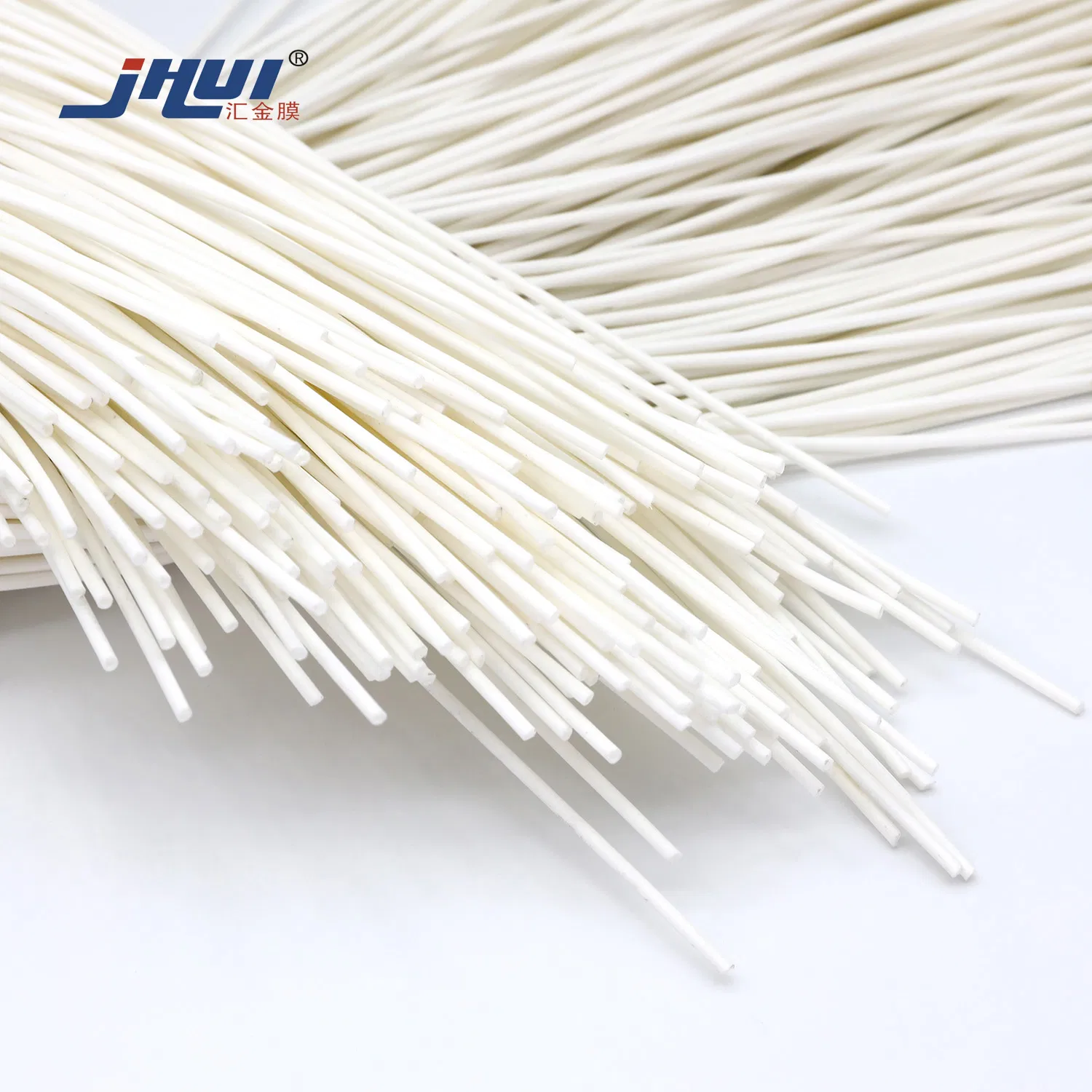

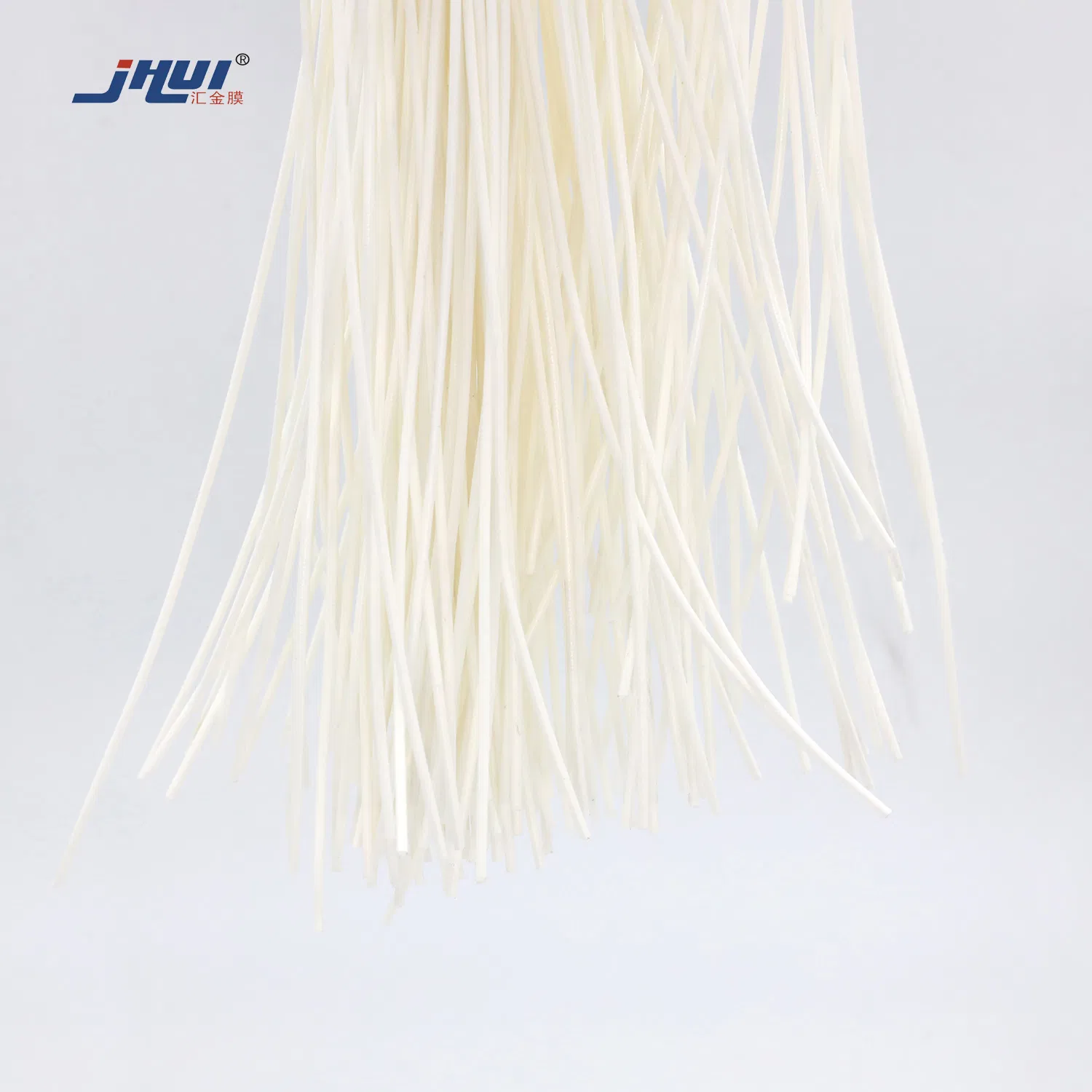

Production and development focus on column-type hollow fiber ultrafiltration film and MBR membrane. Column membranes utilize polyether (PES), polypropylene (PAN), polyfluoroethylene (PVDF), and other materials. MBR membranes are primarily based on lined reinforced polyfluoroethylene (PVDF).
Annual production capacity: 2 million square meters (MBR membrane).

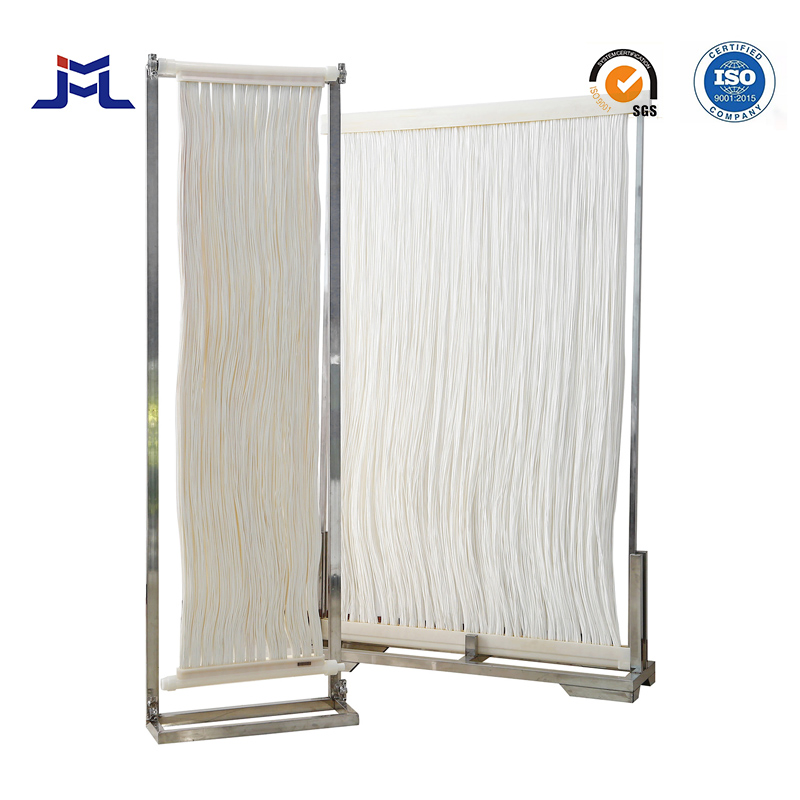

Customization for MBR membrane modules is available depending on detailed specifications, drawings, and data requirements.

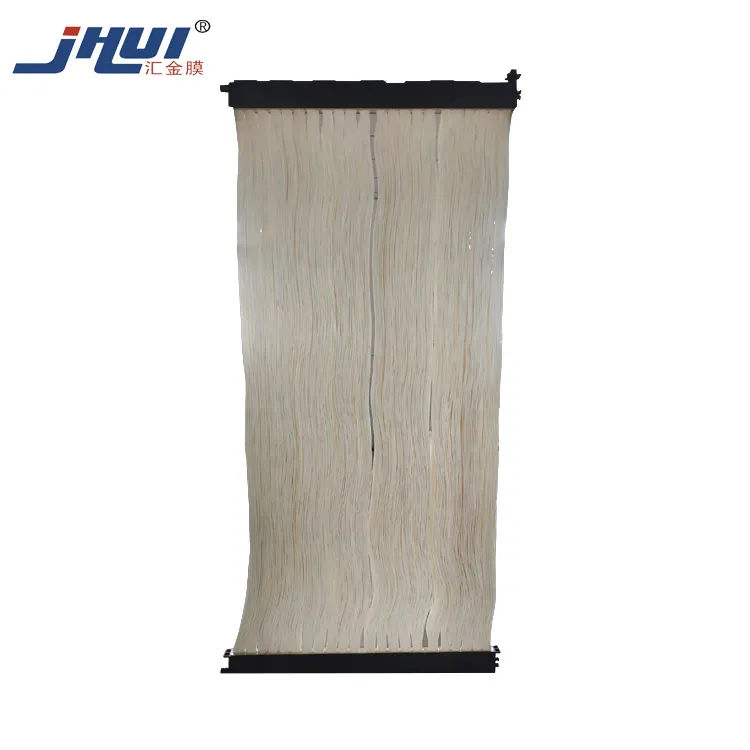

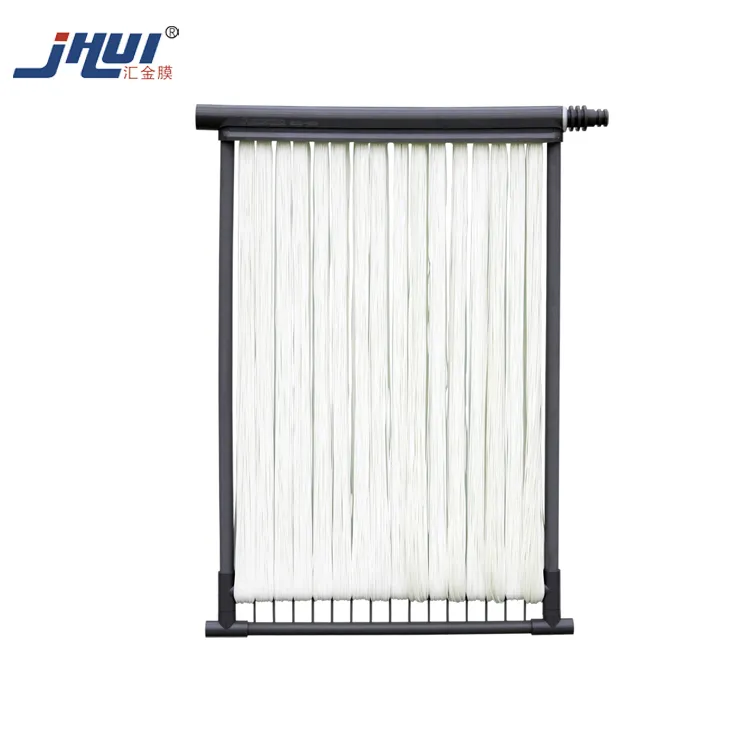

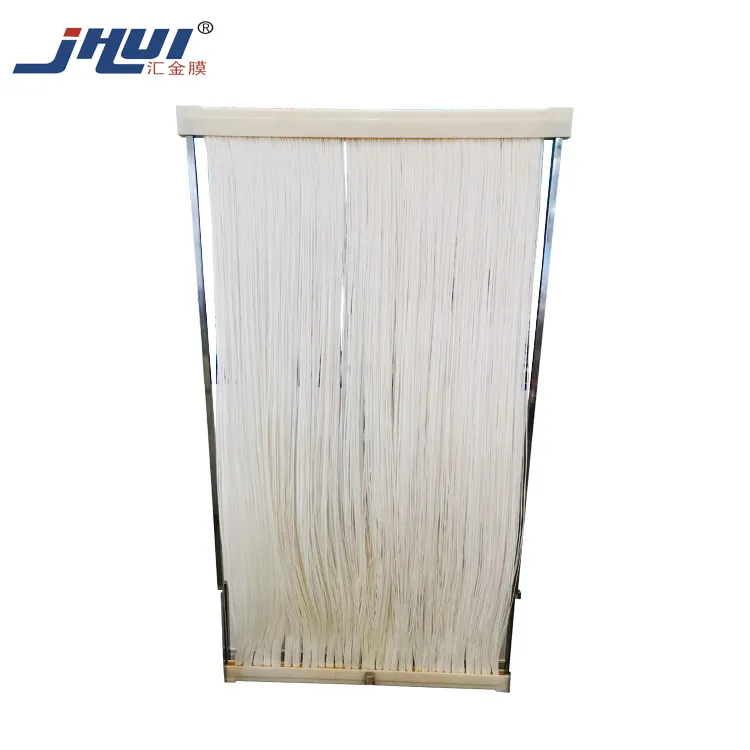

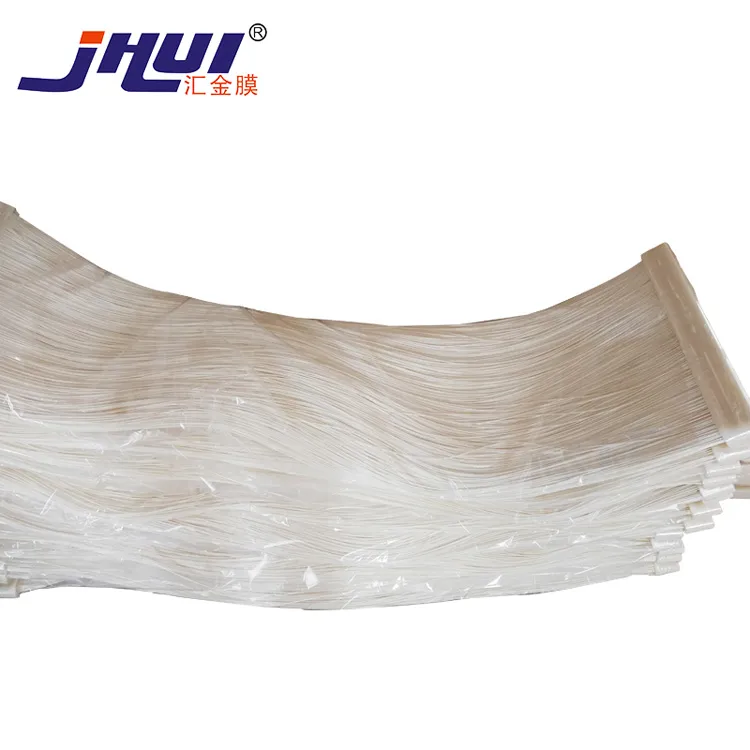

| Model | JHM-MBR-I15 | JHM-MBR-I20 |
|---|---|---|
| Element Size (mm) | 630*1500*36 | 630*2000*36 |
| Connection | Ф32 | Ф32 |
| Effective Area | 15m² | 20m² |
| Pore Size | 0.03~0.04µm | |
| Material | PVDF membrane with PET support tube & ABS cartridge | |
| Filtration Mode | Negative pressure suction by submersed membrane | |
| Module Type | 500D | 5000 Series | 1013 |
|---|---|---|---|
| Surface Area | 35m² | 25m² (adjustable) | 12.5m² (adjustable) |
| Height | 2198mm | 2000mm | 815mm |
| Width | 844mm | 1250mm | 571mm |
| Material | PVDF | PVDF | PVDF |

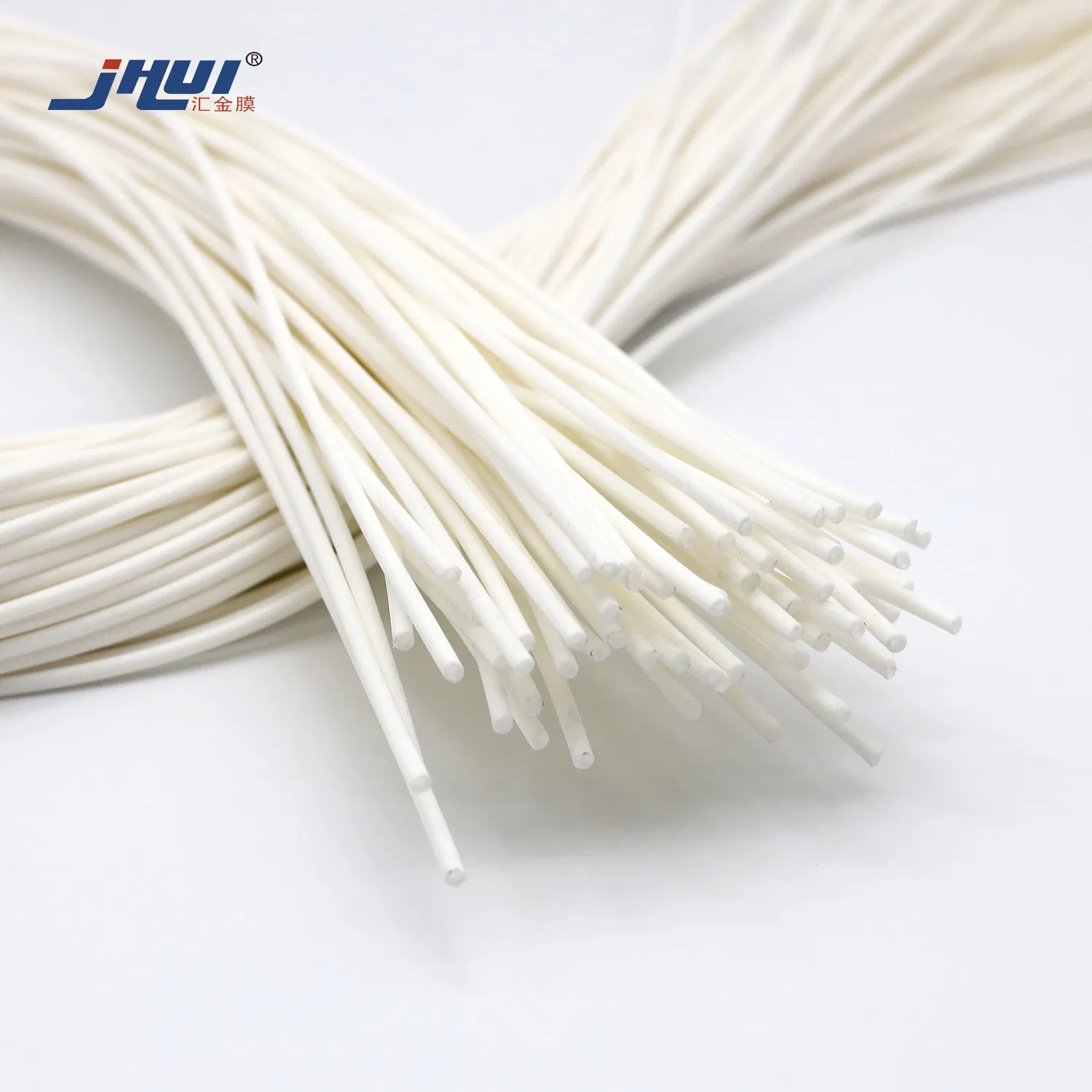

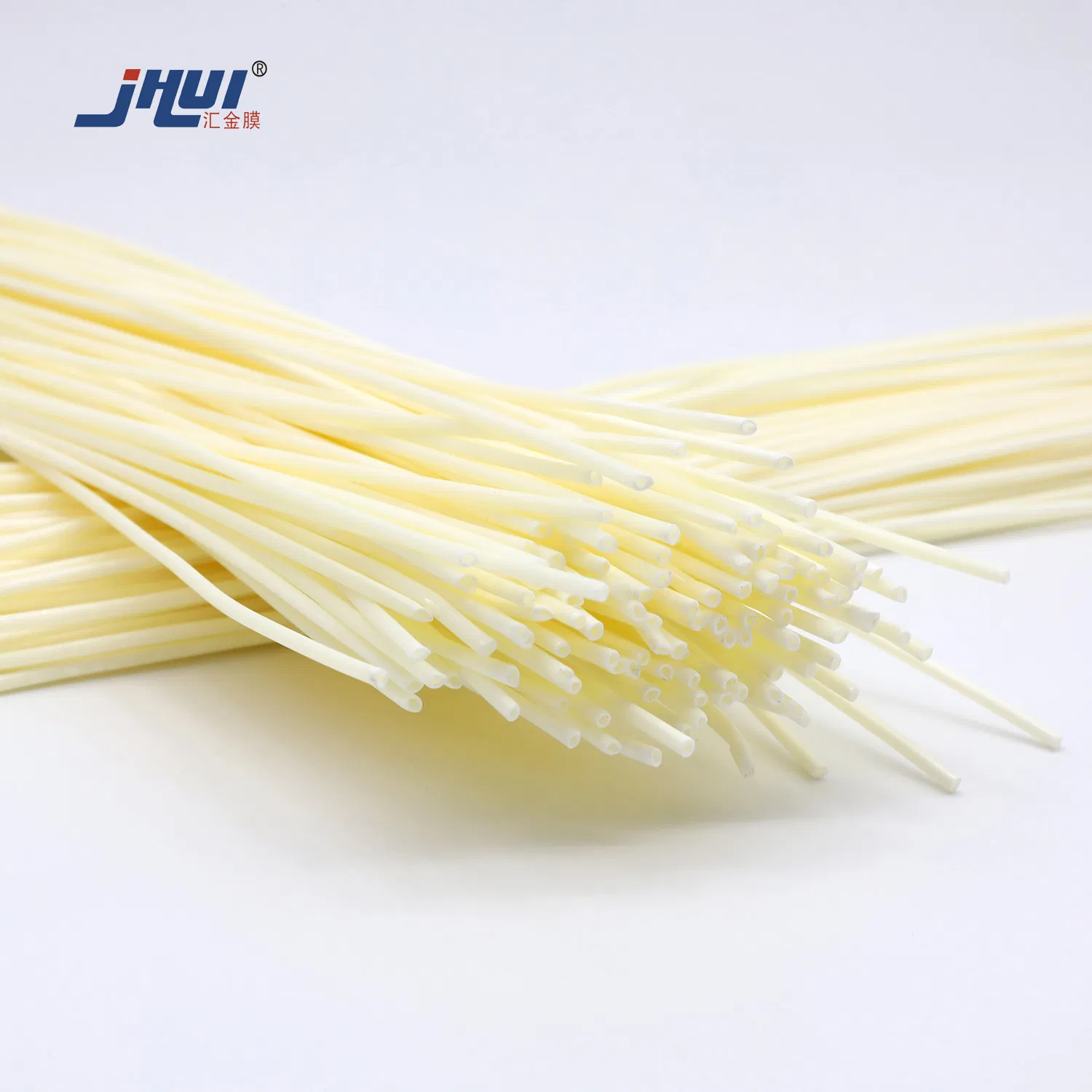

| Fiber Diameter (OD/ID) | 1.9mm / 0.8mm | 2.2mm / 1.0mm | 2.2mm / 1.0mm |
Meeting global needs for clean water through membrane technology treatment solutions since 2007. The hollow fiber membranes and systems designed and built are focused on creating a more sustainable environment for future generations. All processes follow a quality management system certified since 2015 to ensure reliable and effective engineered water and wastewater treatment products.

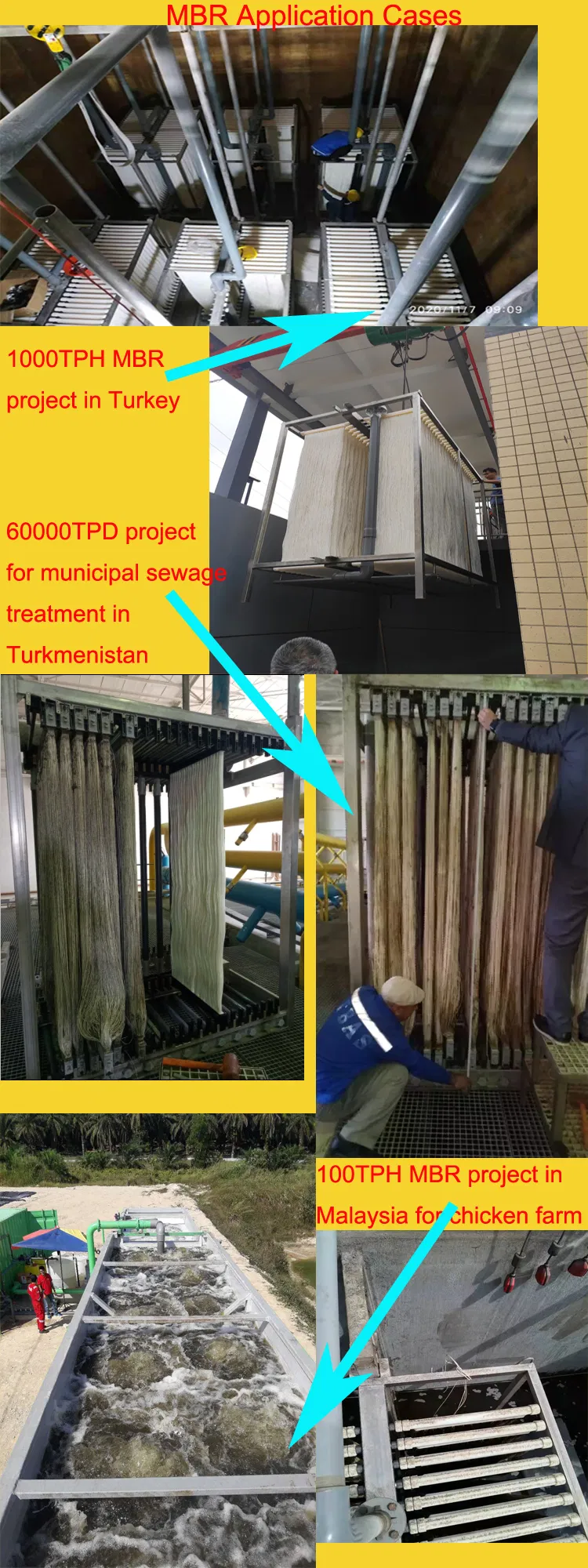

Products have been exported to over 35 countries and territories including Romania, Turkey, Turkmenistan, Malaysia, Brazil, and Australia.
