Basic Info.
Certification
SGS/Ce/ISO 9001
After Sale Service
Engineers Available
Delivery Time
35 Days Against Down Payment
Electrical Component
Schneider/Omron/Customize
Production Capacity
2000 Sets/Year
Product Description

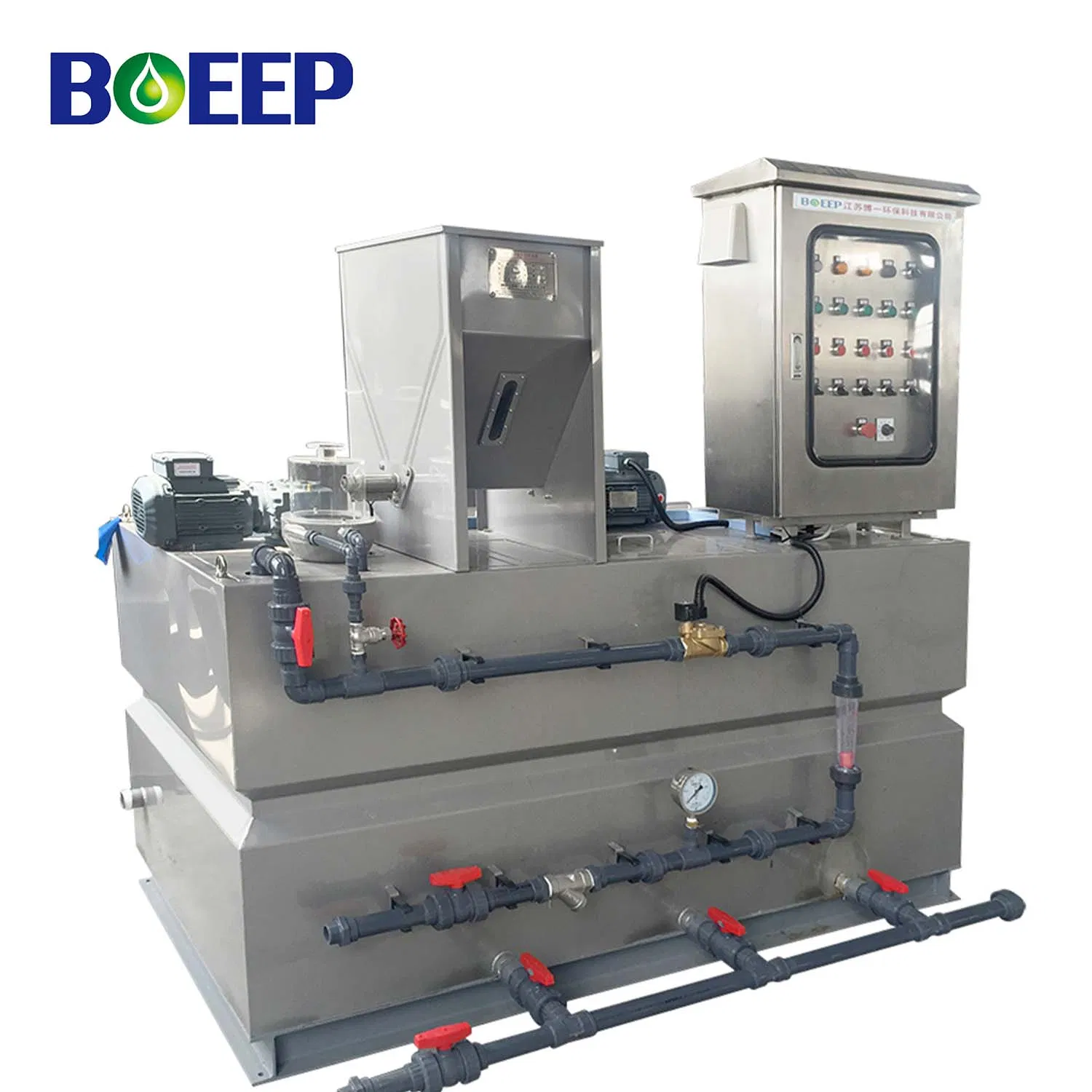

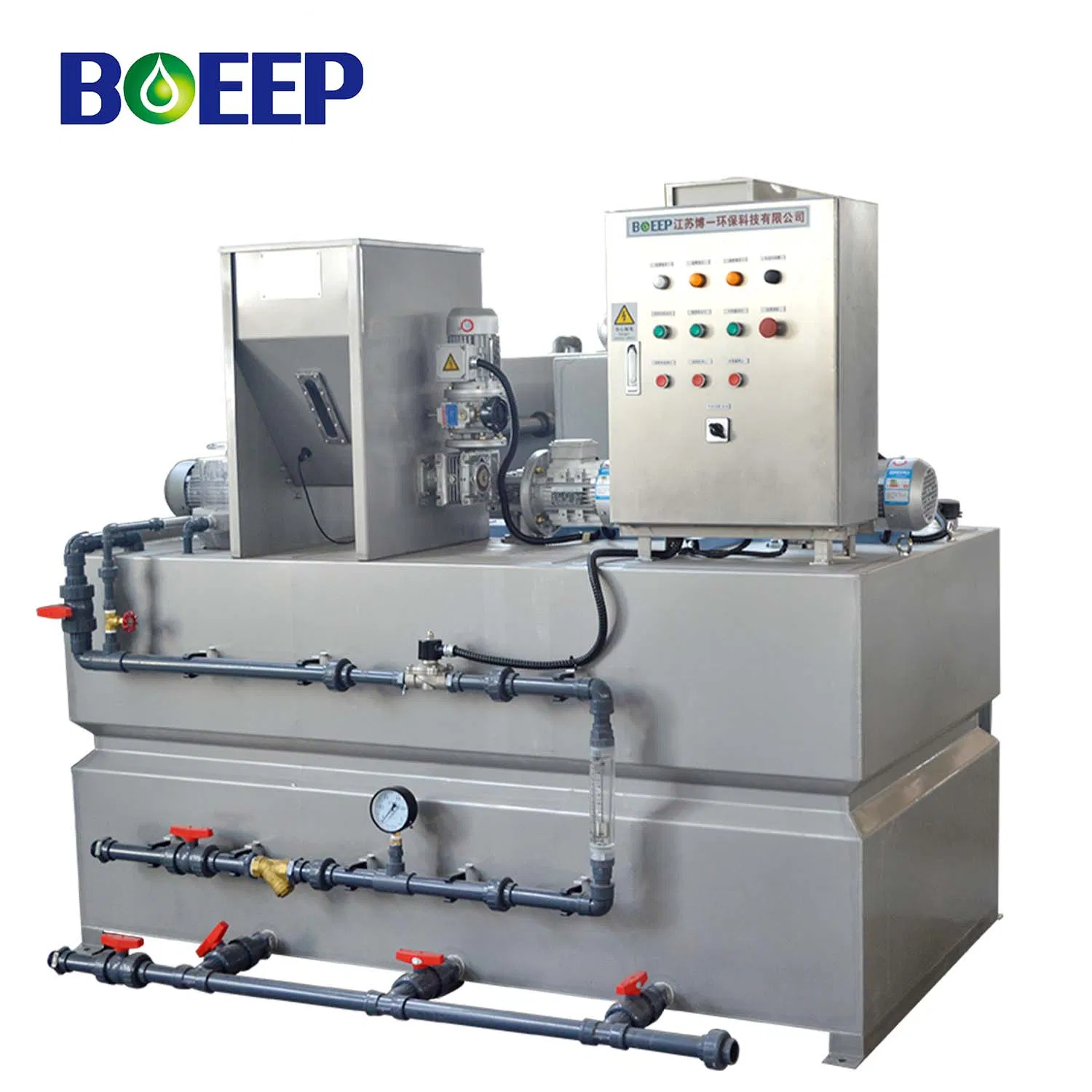

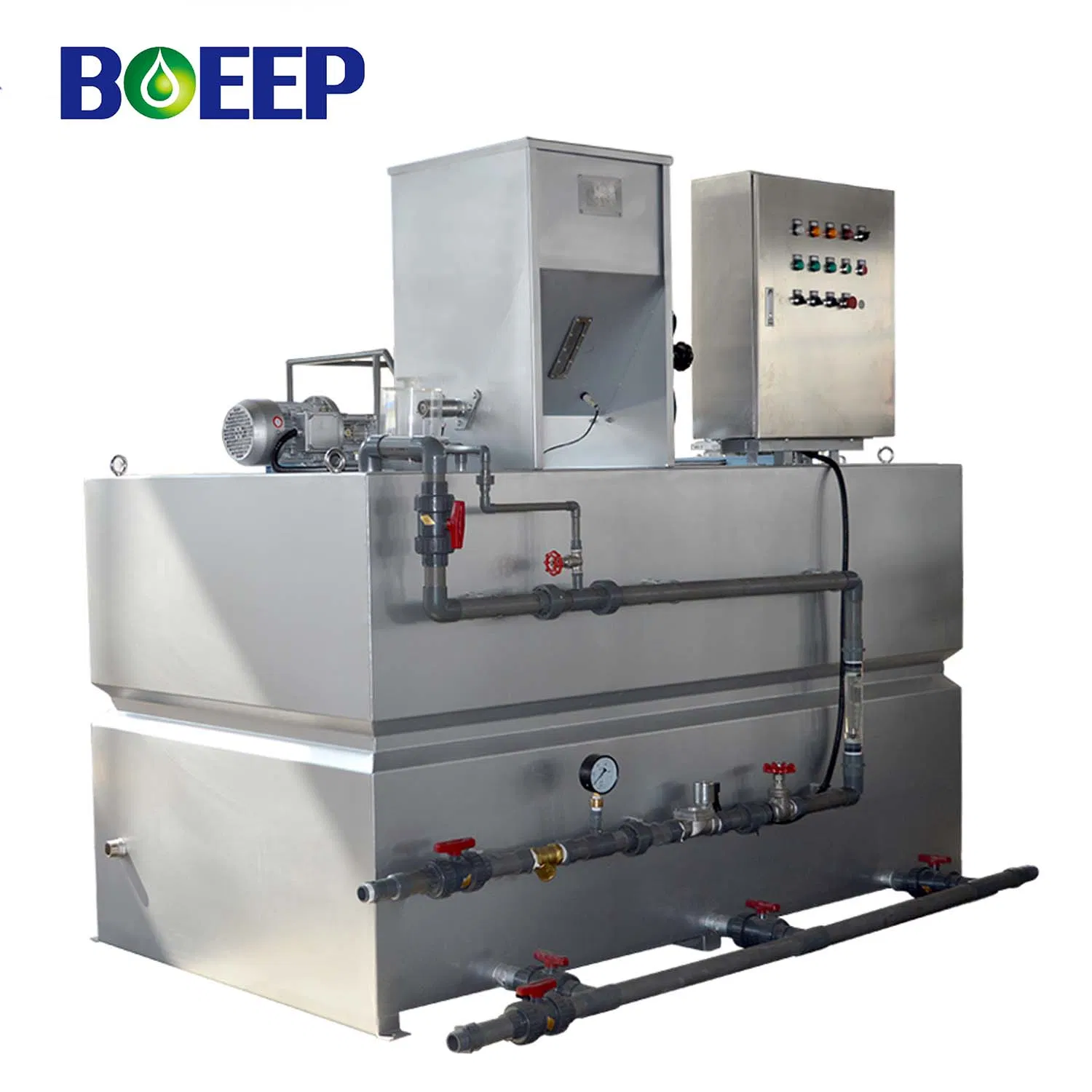

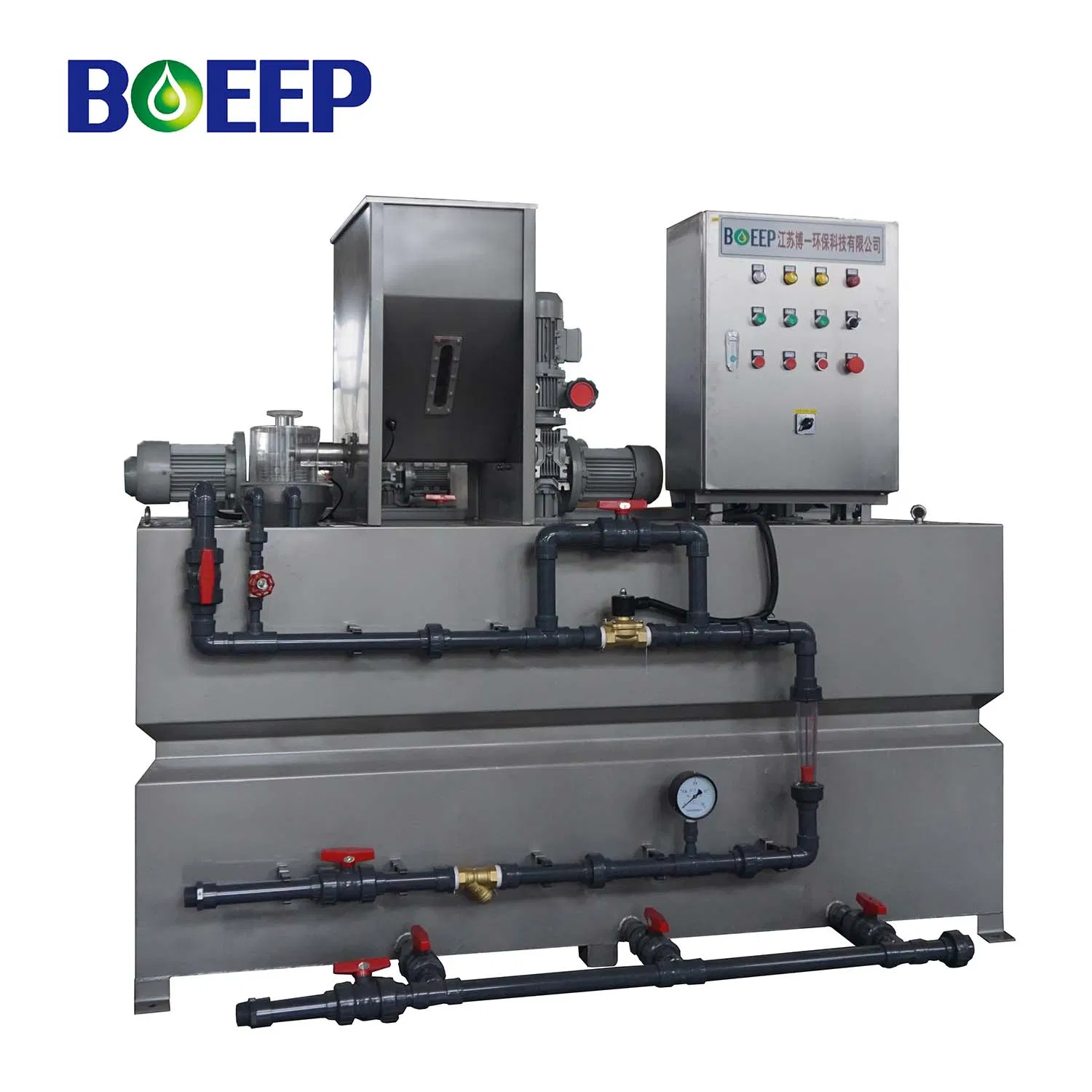

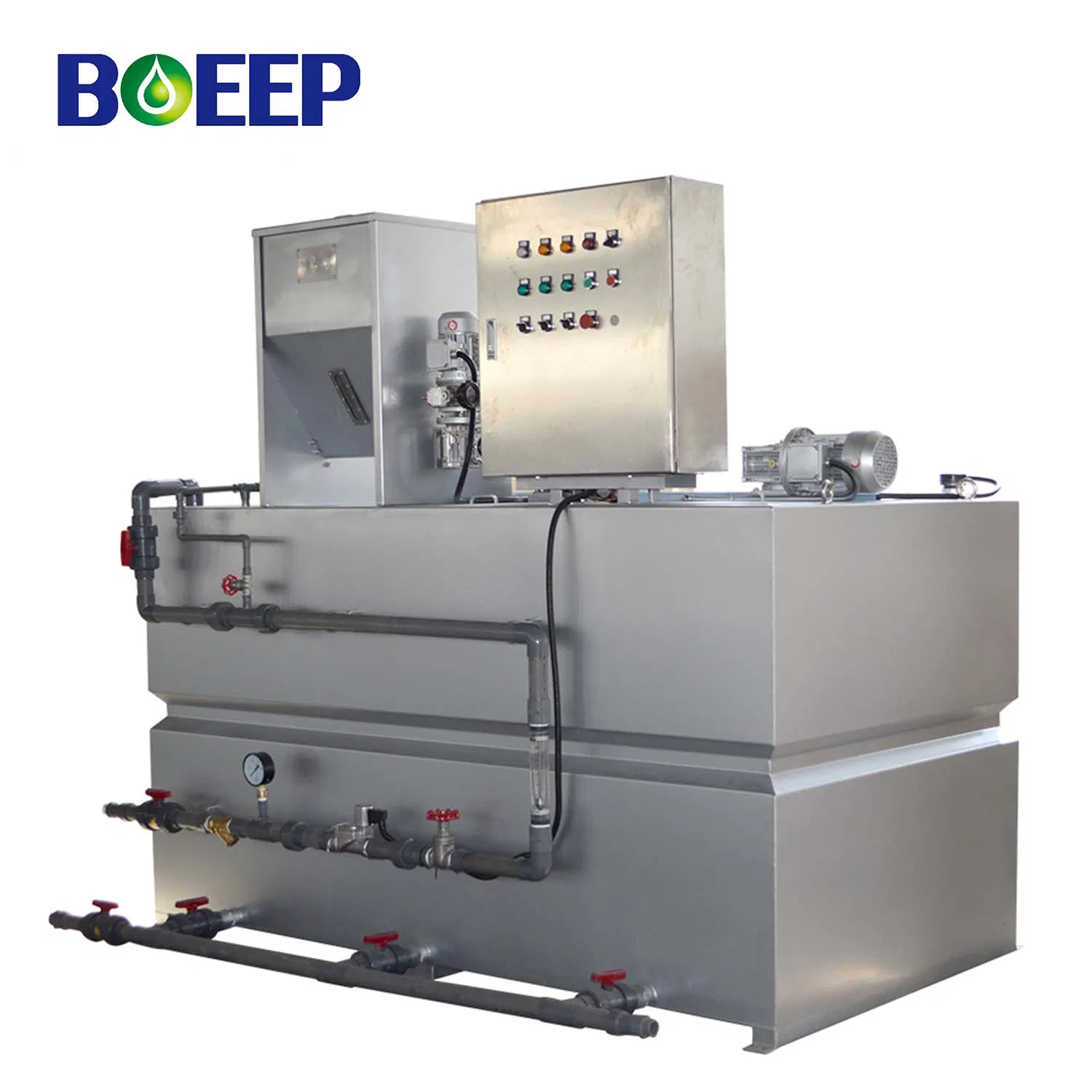

The automatic dosing machine is widely used in the waste water treatment, it can mix the compounds continuously and effectively, so the reactive polymer solution appears.

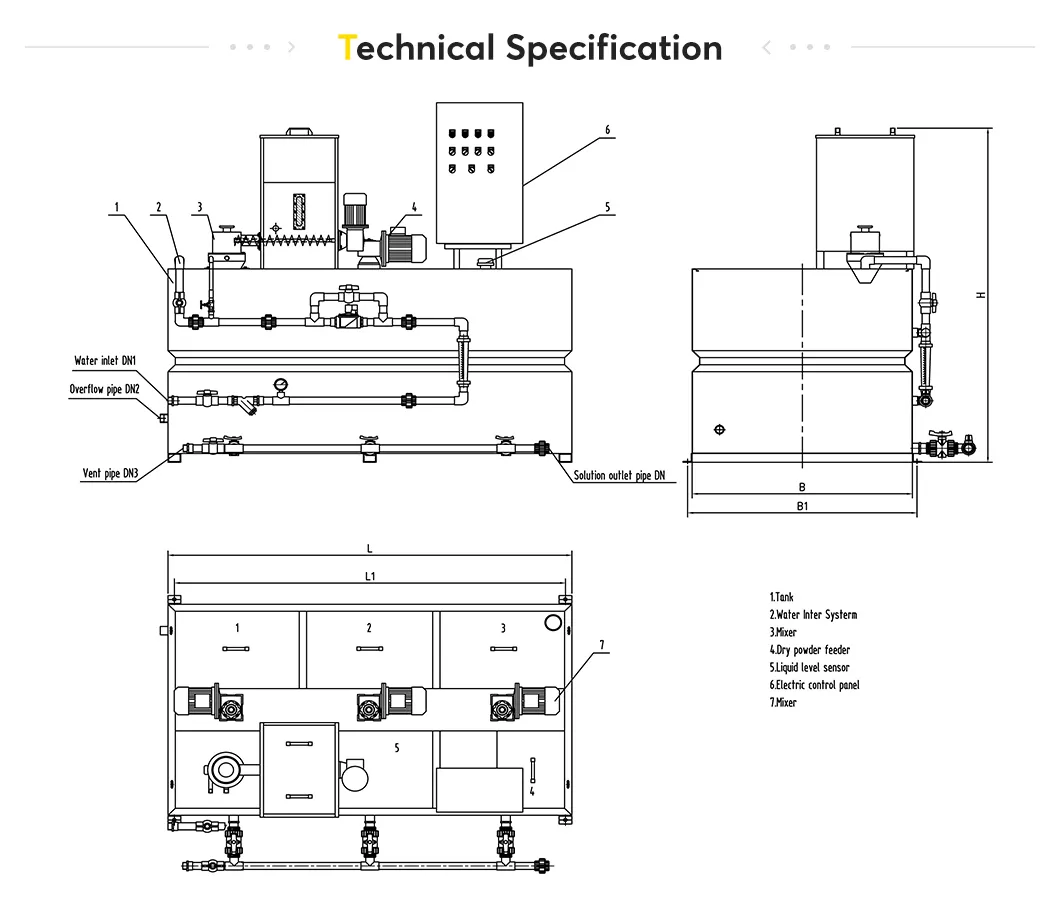

These main components of the machine: Polymer feed machine (including material hopper), Dry powder infiltration device, Tank, Level controller, Mixer, Dosage water inlet pipe, Electric control panel.
Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.
Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.
Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
- Fully automatic operation including automatic dosing, dissolving and feeding.
- The highly precise dry polymer dosing device and the well-designed heater device can prevent the polymer from caking.
- The dosage of dry powder and water can be adjustable, so the solution with any concentration can be prepared.
- Optional: Vacuum feeding machine
- Optional: on-line dilution system
- Tank material: SS304 or SS316l, Polypropylene PP, FRP etc.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are both a manufacturer and a trading company with over 20 years of professional experience as a wastewater treatment equipment manufacturer and engineering service enterprise.
Do you provide OEM services?
Yes, OEM services are available, including any required logos.
What certificates does your equipment have?
Our equipment is certified with CE, ISO, and SGS standards.
What is the warranty period for the dosing system?
We offer a one-year warranty after the arrival of the goods. During this period, we provide free replacement for non-man-made damaged parts.
What is your typical delivery time?
Normally, the delivery time is within 45 days upon receipt of the down payment.
Do you offer after-sales engineering support?
Yes, we provide after-sales service and have engineers available to assist with technical needs.
