Basic Information
Certification
SGS / CE / ISO 9001
Product Description

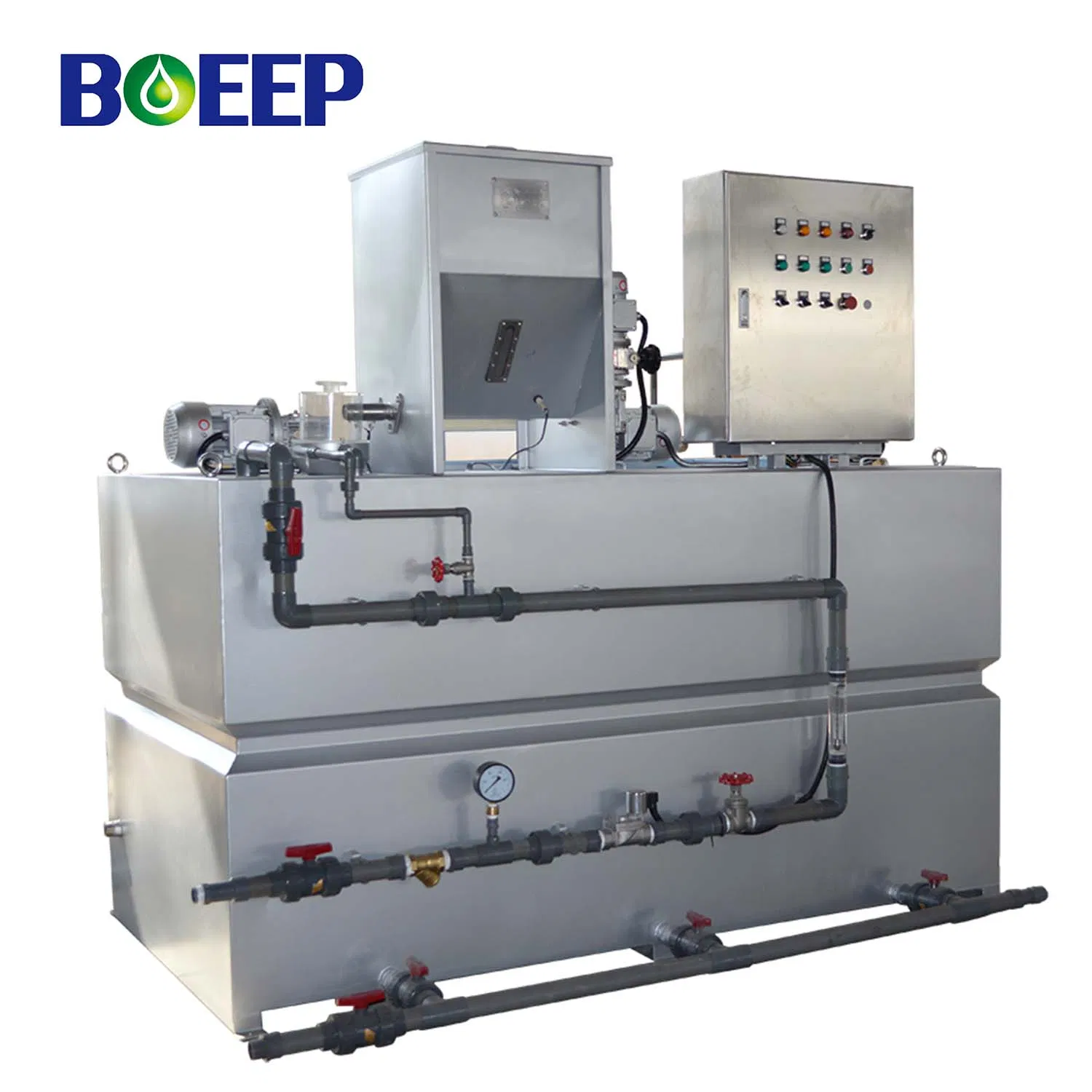

The automatic dosing machine is widely used in wastewater treatment. It can mix compounds continuously and effectively, ensuring the production of high-quality reactive polymer solutions.

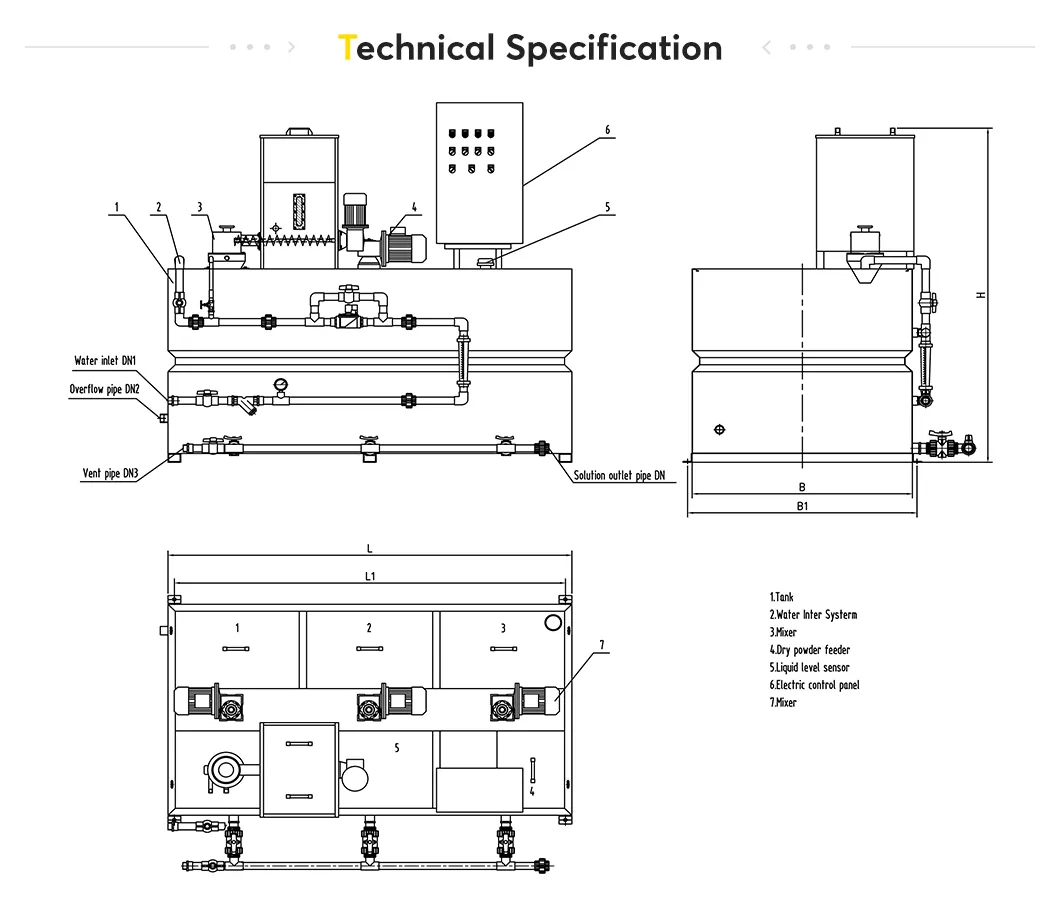

Main Components
This high-efficiency system includes: Polymer feed machine (with material hopper), Dry powder infiltration device, Tank, Level controller, Mixer, Dosage water inlet pipe, and an Electric control panel.
Polymer Dosing Device
Composed of a hopper, push screw, and electric heater. The hopper volume supports extended operation and features sight glasses for material monitoring via a dry powder level meter. The precision push screw and discharge heater prevent powder caking.
Polymer Dissolving Device
Consists of a pre-soaking device, tank, and 3 sets of mixers. The system uses a three-tank configuration: precast mixing tank, homogeneous slaking tank, and solution storage tank to guarantee perfect homogeneity.
Water Supply Device
Includes a professional pipeline assembly with manual ball valves, filters, pressure gauges, solenoid valves, stop valves, and rotor flow meters.
Key Features & Options
- Fully automatic operation including dosing, dissolving, and feeding.
- Highly precise dry polymer dosing and integrated heater to prevent caking.
- Adjustable dry powder and water dosage for custom concentration levels.
- Optional: Vacuum feeding machine and on-line dilution system.
- Tank materials available in SS304, SS316L, Polypropylene (PP), or FRP.

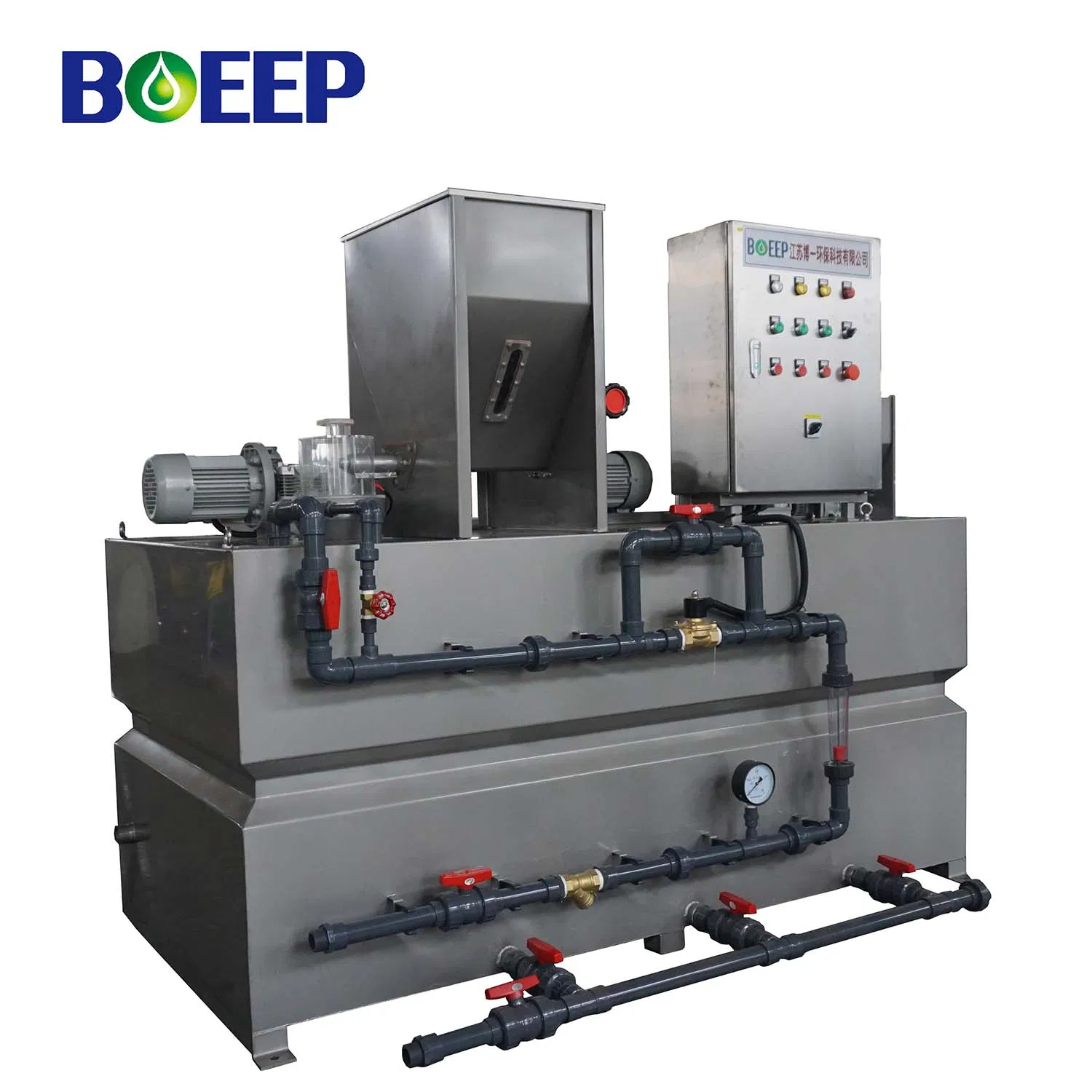

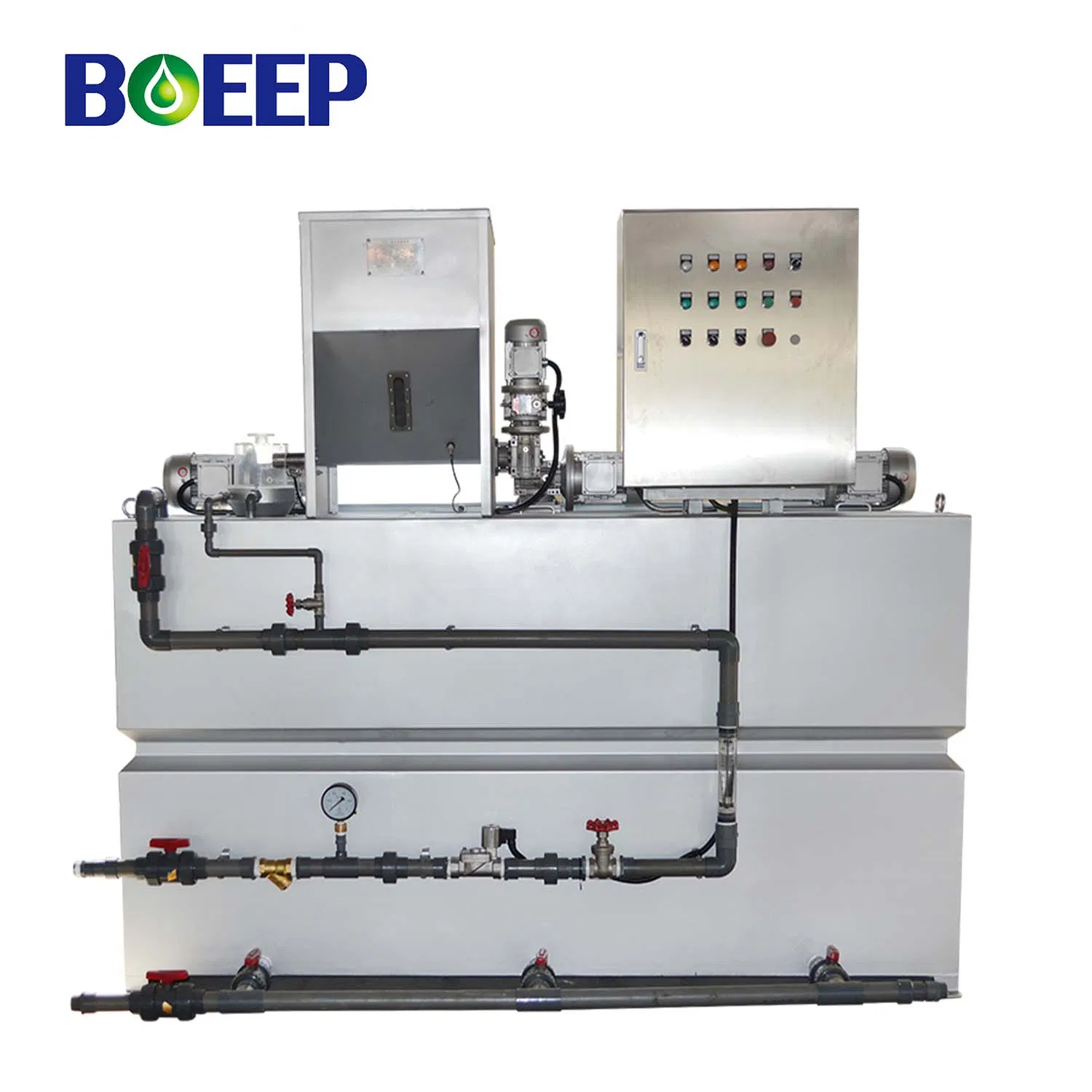

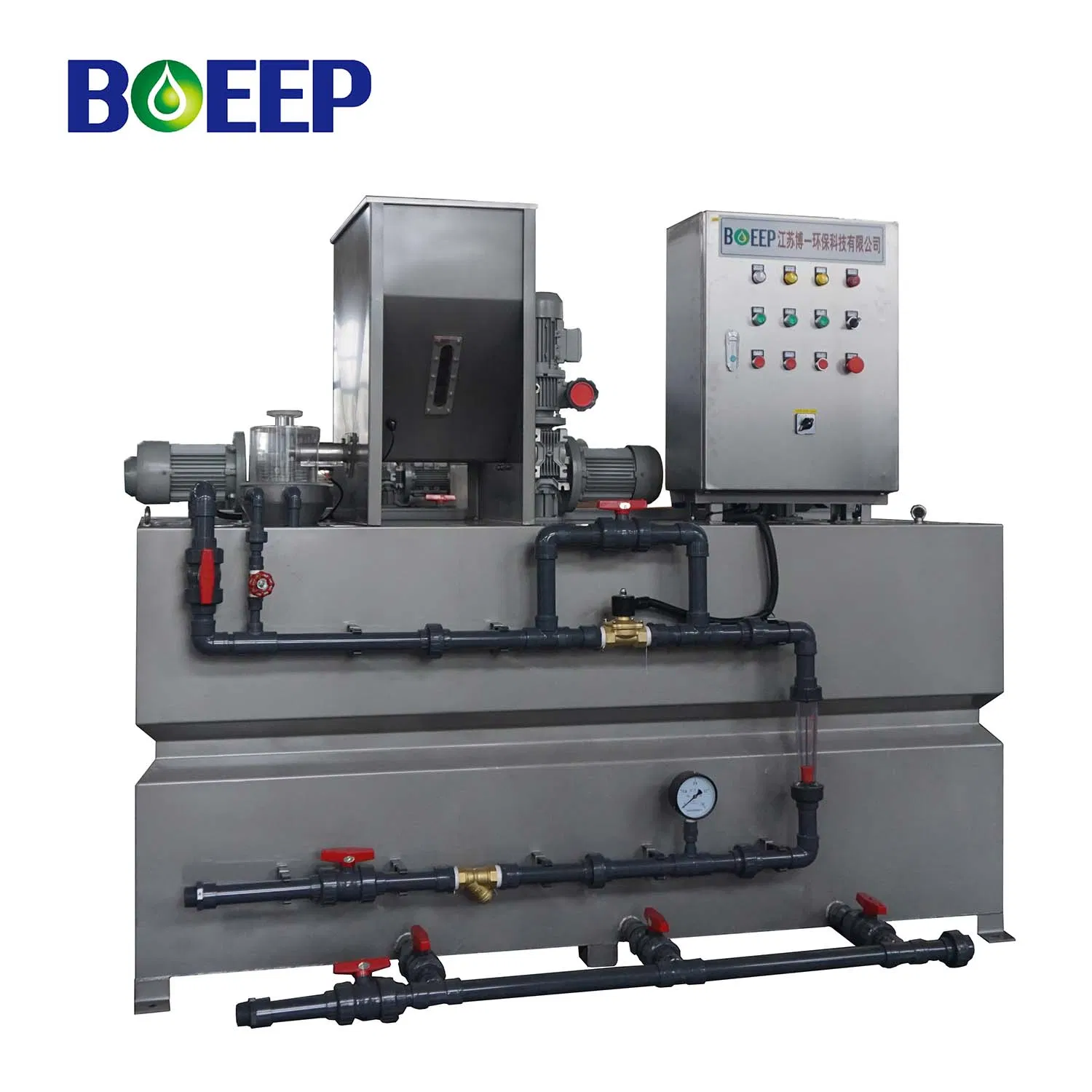

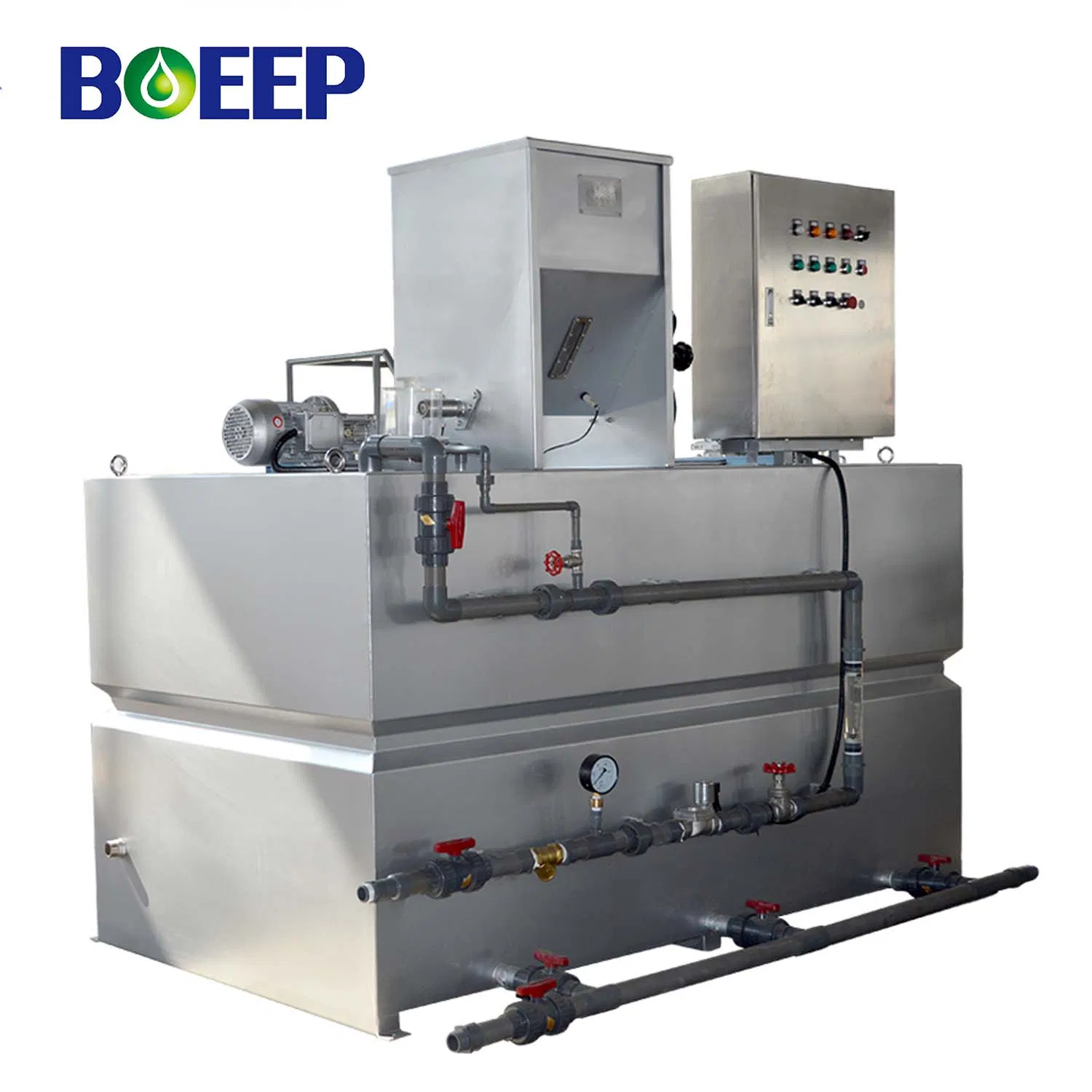

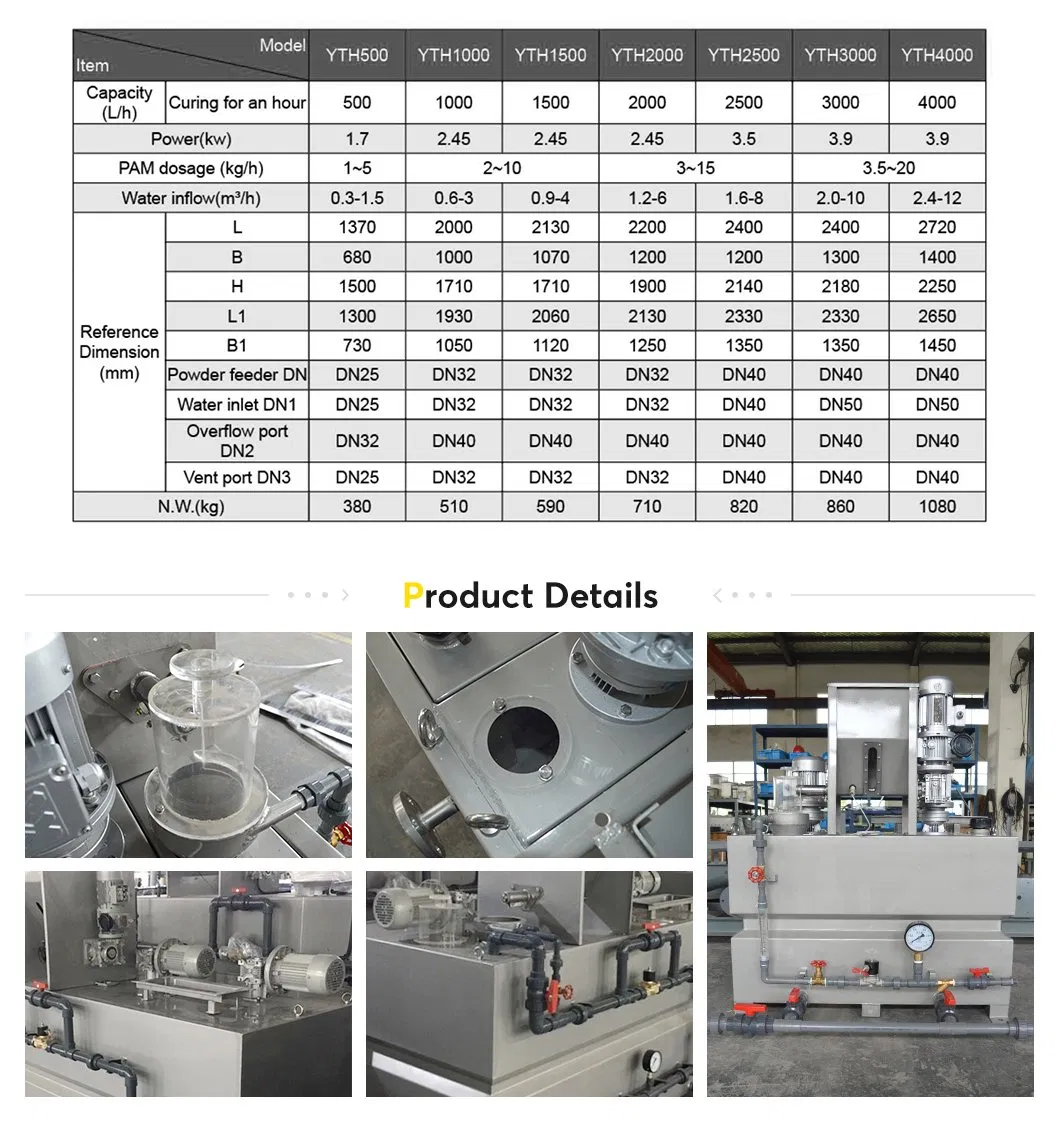

Product Display
Frequently Asked Questions
Are you a manufacturing or trading company?
We are both a manufacturer and a trading company with over 20 years of professional experience in wastewater treatment equipment and engineering services.
Do you provide OEM services?
Yes, we provide full OEM services, and any required logos or branding can be incorporated.
What is your production capacity?

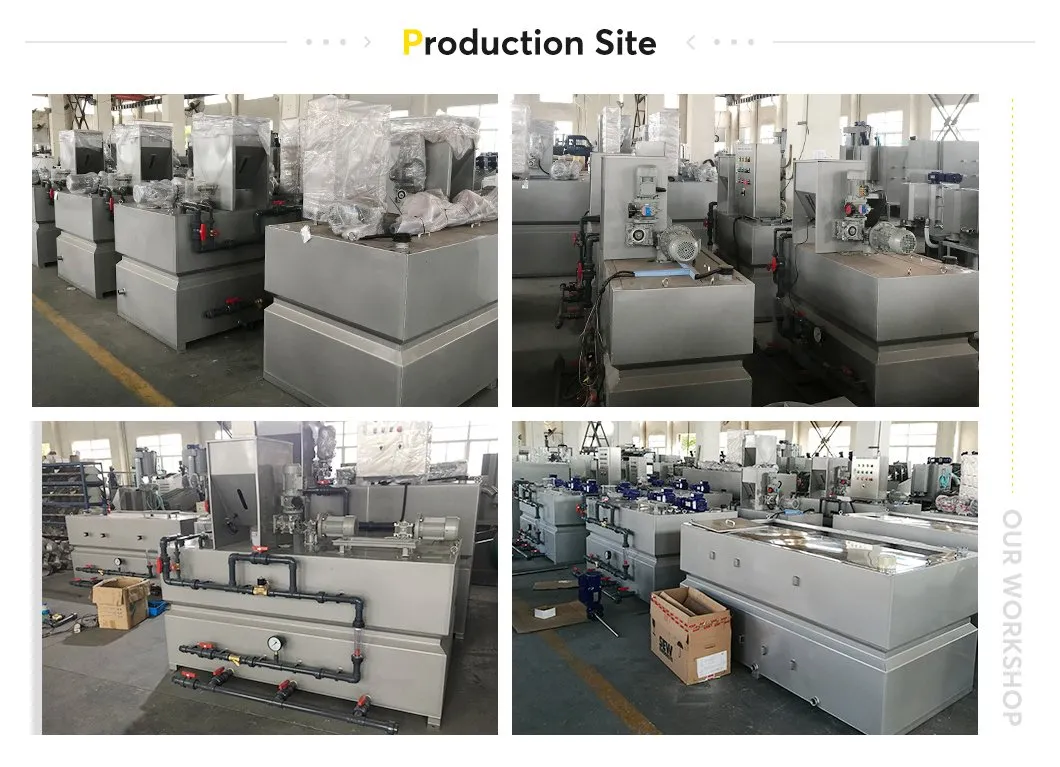

Our facility spans over 20,000m² and produces approximately 2,000 sets of machinery per year.
What is the warranty period for the equipment?
We provide a one-year warranty after the arrival of goods. During this period, we provide free replacement parts for any non-man-made damage.
What is the standard delivery time?
Normally, the delivery time is within 35-45 days upon receipt of the down payment.
Do you offer after-sales support?
Yes, we have experienced engineers available to provide professional after-sales support and technical assistance.
