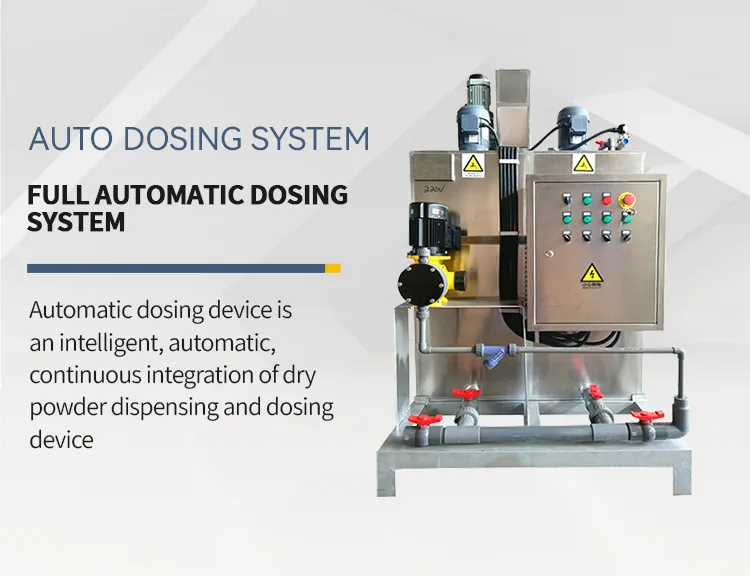

PLC Control Automatic Chemical Dosing System

Full automatic powder dosing system is an intelligent, automatic, and continuous integration device for dry powder dissolution and drug delivery. This system integrates water supply, powder dosing, curing, and automatic control into one efficient unit.

The device facilitates automatic continuous preparation. Dry powder chemicals are fed from the hopper via a screw propeller into a premixed chamber with clear water. The wet material then enters the dispensing slot for dilution and mixing based on specific concentration requirements.

Solutions move from the preparation tank to the storage tank through a slaking tank. The process is fully automated: it stops when the storage tank is full and restarts when levels are low. Integrated blenders in the preparation and slaking tanks ensure complete dilution and maturation.

• High Automation: PLC controlled with an intuitive man-machine interface for simple operation.
• Stable Performance: Safety protocols automatically stop equipment during faults.
• Precision Dosing: Spiral feeder with closed-loop speed control ensures accuracy within 1%.
• Quality Maturation: Guarantees 2 hours of ripening time with concentrations between 0.05% - 0.5%.
• Durable Construction: Tank bodies utilize high-grade SS304 or PP materials.

The dry chemical dosing system is designed for continuous solution preparation. The entire process—from powder intake to final solution delivery—is automated. The system monitors storage tank levels using liquid level switches: low levels trigger the preparation cycle, while high levels stop it, ensuring a consistent supply of chemical liquid for industrial applications.
