Automatic Dosing Systems Chemical Dosing System for Water Treatment

1 / 5

Automatic Dosing Systems Chemical Dosing System for Water Treatment

Customization:	Available
After-sales Service:	Engineers Available for Technology Assistence
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Information

Model NO.

YTH

Type

Polymer Dosing Machine

Method

Chemical Treatment

Usage

Industrial, Agriculture, Hospital, Municipal, Farming Sewage etc.

PAM Dosage

1-25 Kg/H

Water Inflow

0.3-12 M3/H

Motor

SEW / Nord / Customize

Electrical Component

Schneider / Omron / Customize

Protection Level

IP55 F

Capacity

500-6000 L/H

Material

SS304

HS Code

8479820090

⚙️ Product Description

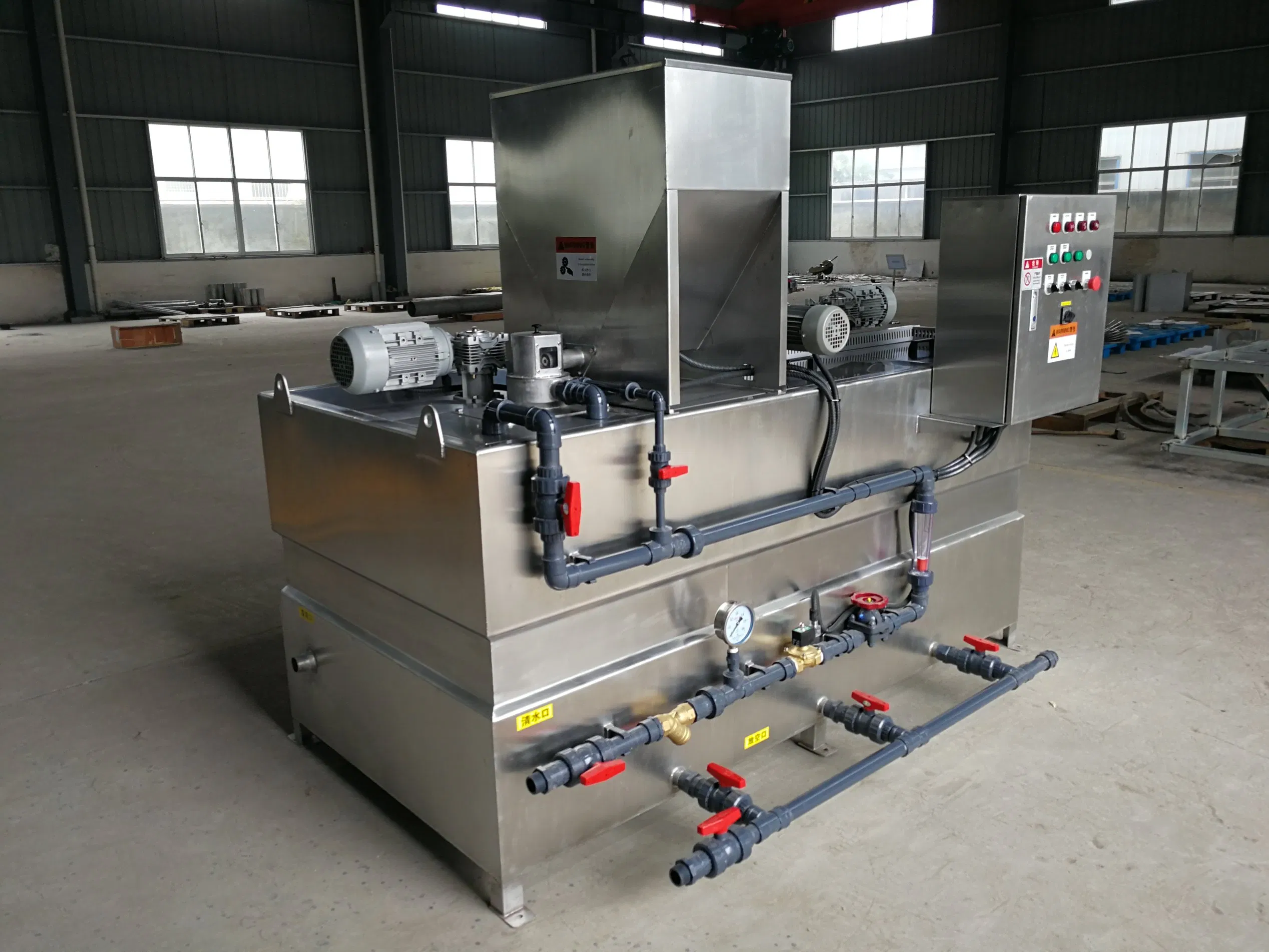

The automatic polymer dosing machine is widely utilized in wastewater treatment systems. It is designed to mix chemical compounds continuously and effectively, ensuring the production of a high-quality reactive polymer solution.

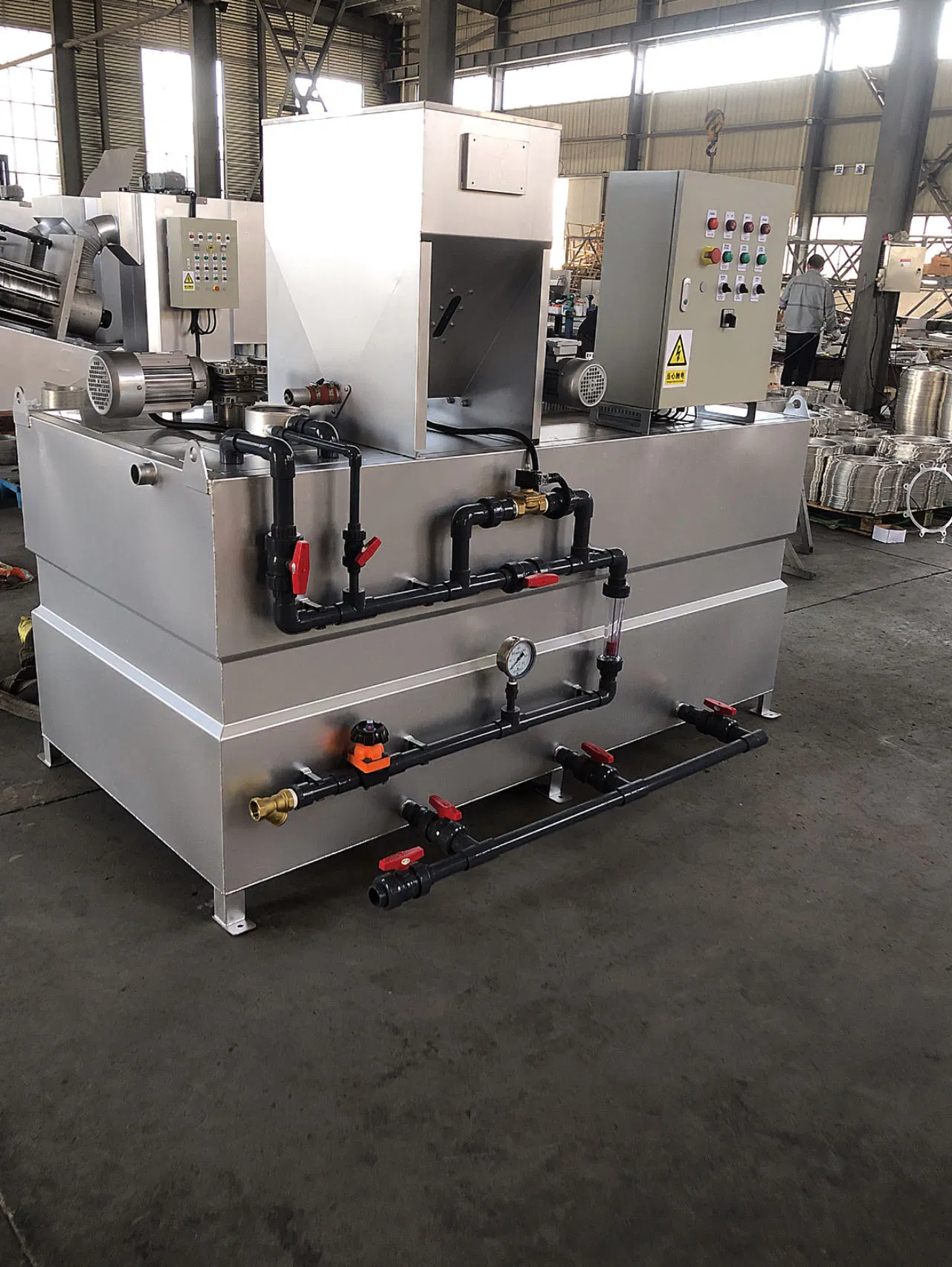

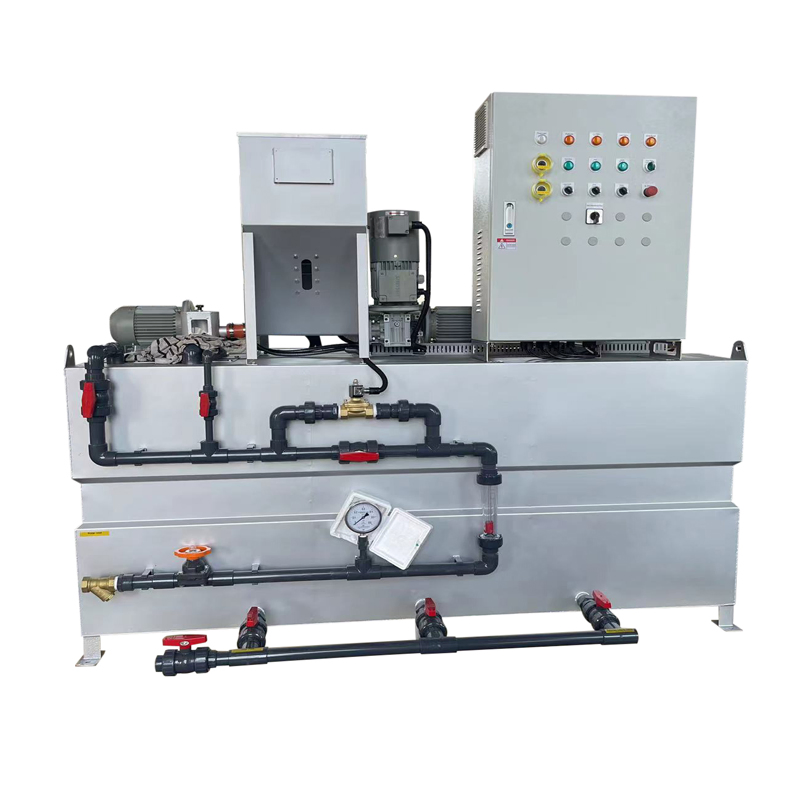

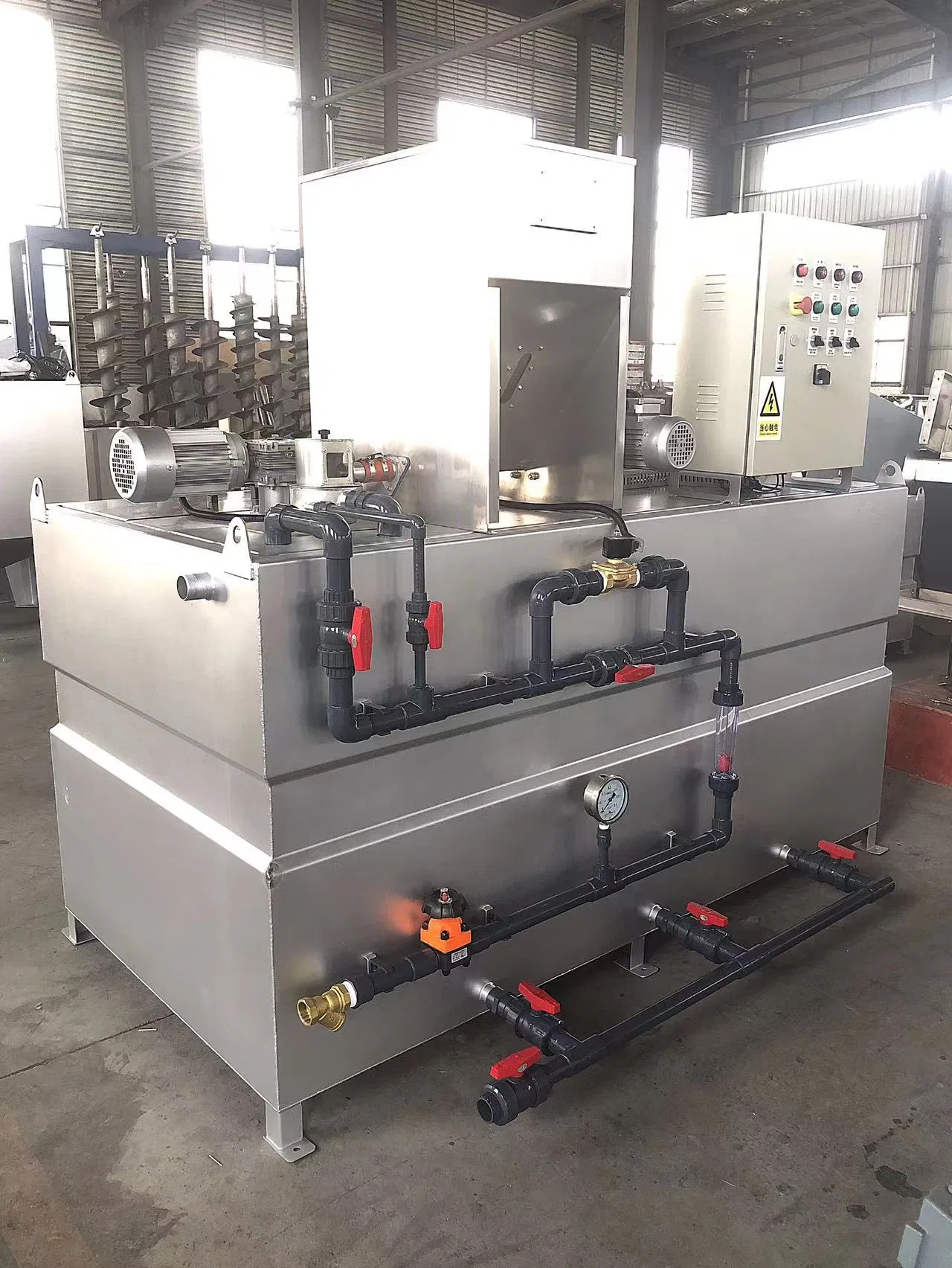

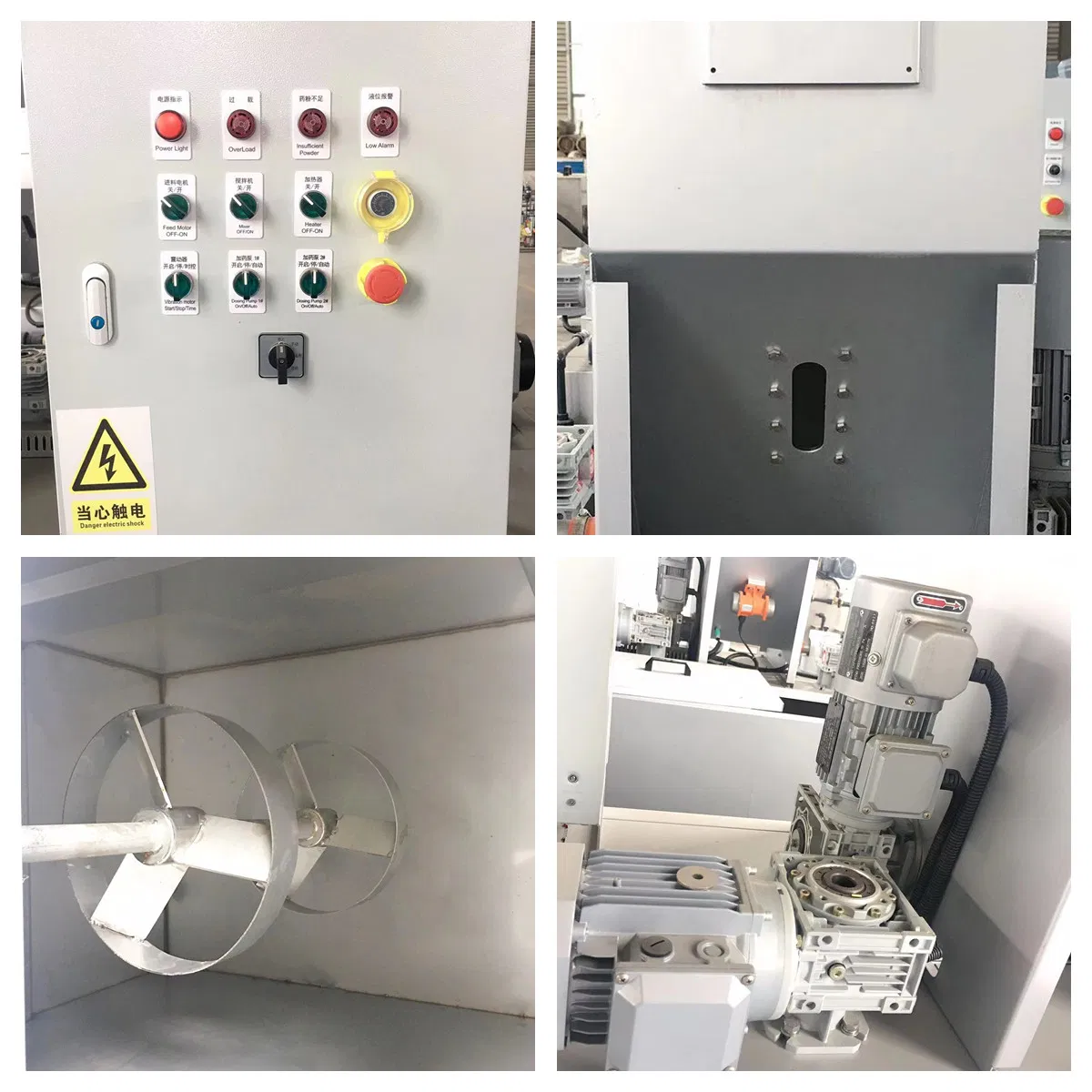

The unit integrates several key components for seamless operation: a dry powder hopper, infiltration device, mixing tank, level controller, high-efficiency mixer, water inlet assembly, and a centralized electric control cabinet.

⭐ Key Features

Fully automatic operation integrating dosing, dissolving, and feeding processes.
High-precision dry polymer dosing device with a built-in heater to prevent chemical caking.
Adjustable dosage for both dry polymer and water, allowing for precise solution concentration.
Automated alarm system warns operators when powder levels are low.
Versatile tank material options: SS304, SS316, Polypropylene (PP), or FRP.
Optional vacuum feeding and on-line dilution systems available upon request.

📊 Technical Parameters

Model Item	YTH 500	YTH 1000	YTH 1500	YTH 2000	YTH 3000	YTH 4000	YTH 5000	YTH 6000
Capacity (L/h)	500	1000	1500	2000	3000	4000	5000	6000
Power (kw)	0.94	2.45	2.45	2.62	4.89	4.89	4.89	4.89
PAM Dosage (kg/h)	1~5	2~10		3~15	3.5~20		4.5~25
Water Inlet (m³/h)	0.3~1.5	0.6~3	0.9~4	1.2~6	2.0~10	2.4~12	2.4~12	2.4~12
N.W. (kg)	250	400	490	550	700	770	960	1050

❓ Frequently Asked Questions

What is the primary application of the automatic polymer dosing machine?

It is primarily used in water and wastewater treatment to prepare polymer solutions for flocculation and sludge dewatering in municipal, industrial, and agricultural sectors.

How does the machine prevent the polymer powder from caking?

The system includes a well-designed heater device within the dry powder hopper and a high-precision infiltration device to ensure the powder remains dry and dissolves evenly.

Can the concentration of the polymer solution be adjusted?

Yes, both the dosage of dry polymer and the water inflow rate can be adjusted via the control system, allowing you to prepare specific concentrations tailored to your requirements.

What materials are used for the construction of the tank?

Standard units are made from high-quality SS304 stainless steel. Optional materials such as SS316, Polypropylene (PP), or Fiber Reinforced Plastic (FRP) are also available.

Is the dosing system capable of fully automatic operation?

Absolutely. The electric control cabinet manages the entire process—including dosing, dissolving, and feeding—and includes low-level alarms for chemical replenishment.

What is the typical lead time for these units?

Standard production and delivery typically occur within 45 days after the confirmation of the down payment, depending on customization requirements.
