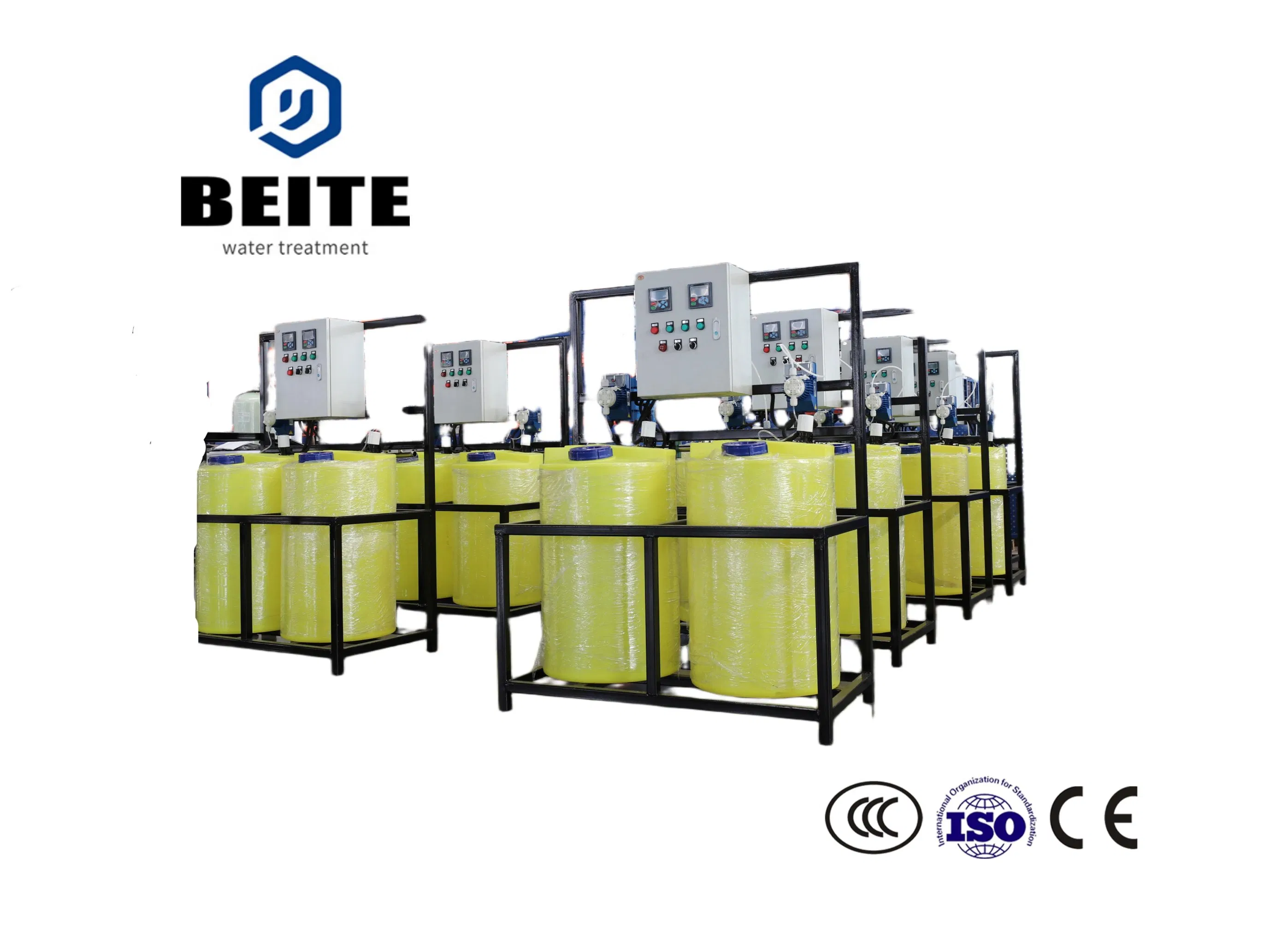

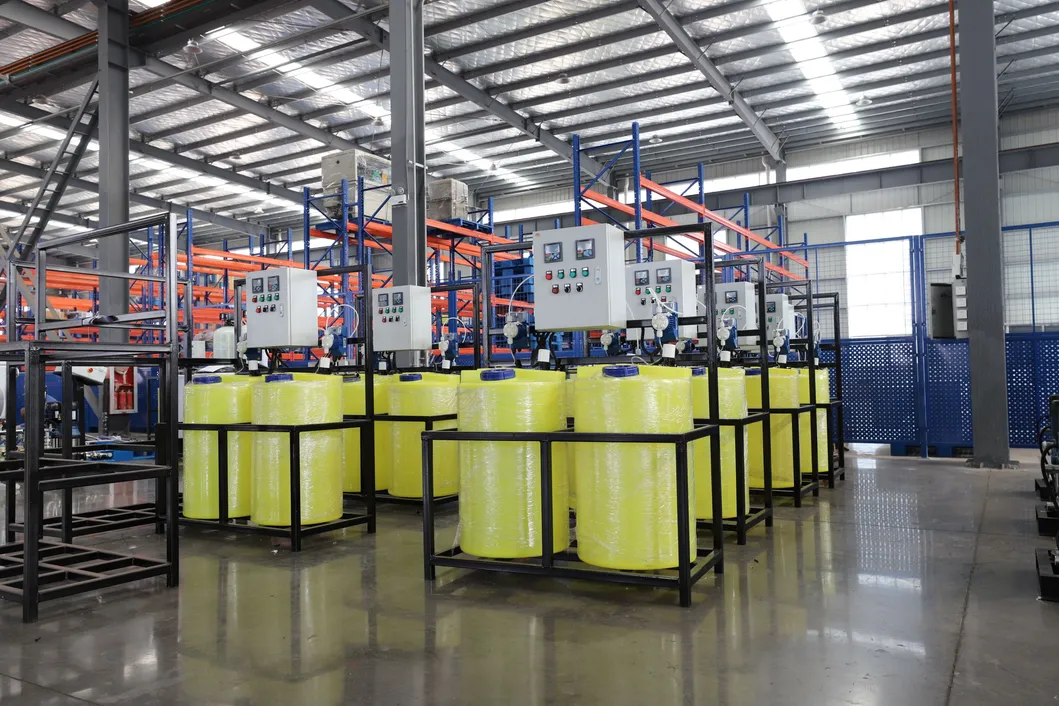

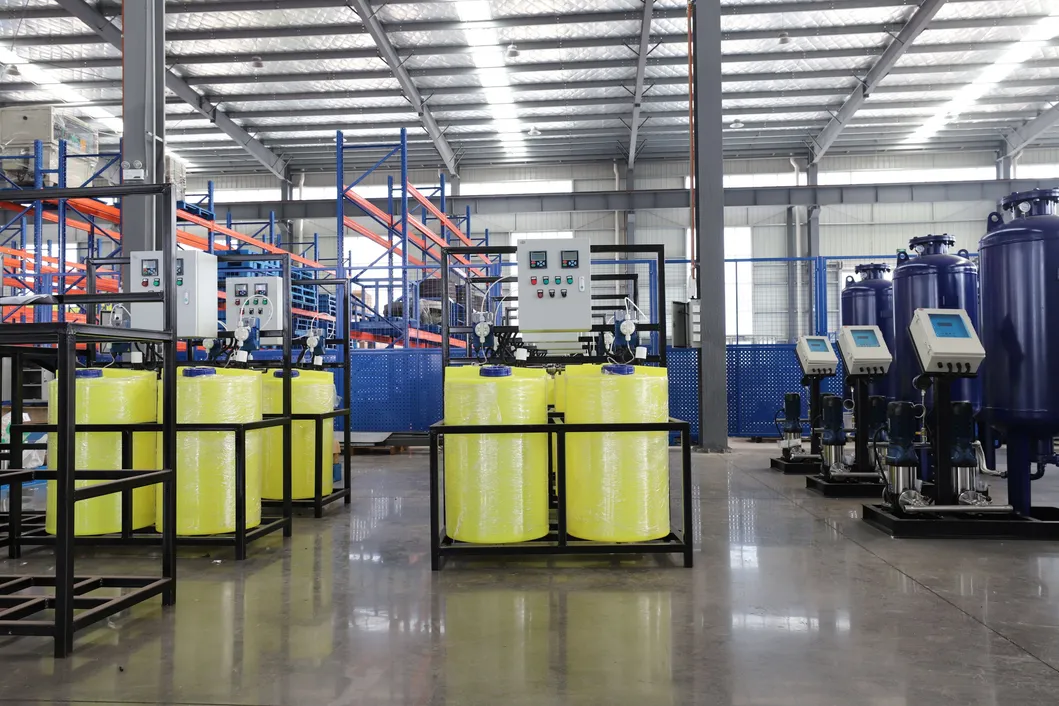

Automatic Polymer Dosing Device for Chemical Dosing Systems and Machines for Global B2B Procurement

Customization:	Available
Type:	Water Treatment
Usage:	Environmental Protection, Chemical Industry

Overview & Basic Info

Model NO.

YTZDJ

Motive Force

Electric power

Style

Vertical

Performance

Sophisticated Filters

Certification

CE, ISO9001

Material

PE

Power

220V/380V/50Hz/60Hz

Pressure

8-20bar

Transport Package

Wooden Cases

Production Capacity

2000pieces/Month

Product Description

The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through the following two control modes:

●

Time Control Mode: Uses a microcomputer time control switch to control the timing opening and closing of the metering pump and sewage valve.

●

Indication Control Mode: Real-time opening and closing based on water quality index changes for automatic dosing and discharge.

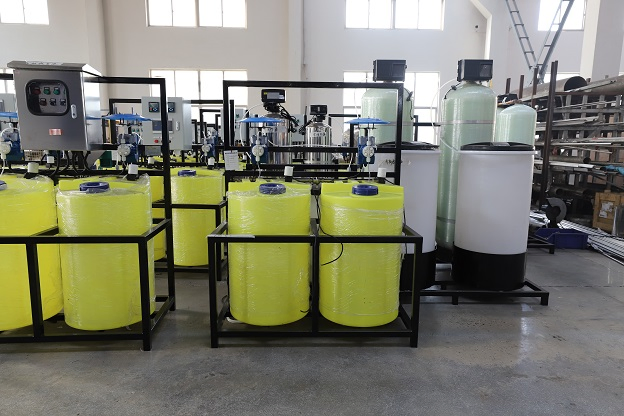

Product Parameters

Key Elements

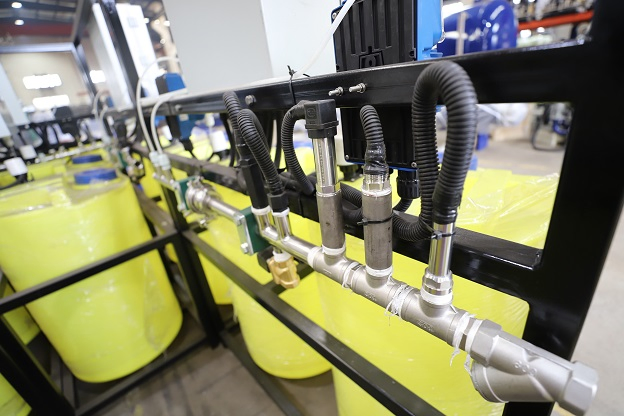

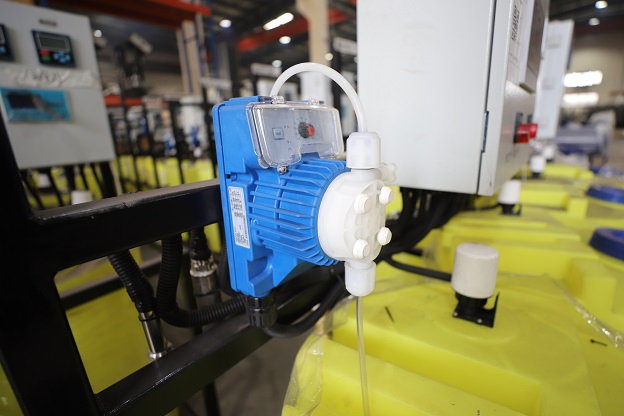

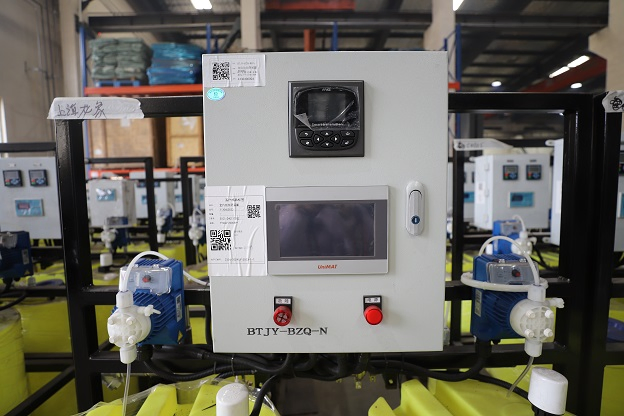

1. PLC control | 2. Metering pump | 3. Dosing tank | 4. On-line monitoring (Optional: PH, Turbidity, ORP, Corrosion rate)

Name	Type	Dimensions (mm)	Import/Outlet Diameter
Single Pump Single Barrel (Time Control)	YTZDJ-2000D	6406701650	DN25
Single Pump Single Barrel (PH Detector)	YTZDJ-2000DP	6406701900	DN25
Double Pumps Double Barrels (Time Control)	YTZDJ-2000S	67012601650	DN25
Double Pumps Double Barrels (PH Detector)	YTZDJ-2000SP	67012601900	DN25

Features & Benefits

1. Precise measurement with arbitrary chemical proportions.

2. High automation, simple operation, and low energy consumption.

3. Strong corrosion, acid, and alkali resistance.

4. Remote control and computer management integration capability.

5. Effective protection from freshwater/seawater corrosion.

6. Prevents incrustation of condensers and heat exchangers.

Applications

• Industrial Systems: Air Conditioning Circulating Water and Boiler Water. Injecting corrosion/scale inhibitors.
• Textile Industry: Printing and Dyeing. Adding chelating agents and oxygen bleach stabilizers.
• Water Treatment: Tapping water, waste water, and sewage systems.

Cooling Water System Problems Solved:

1. Corrosion: Prevents metal reversion to oxide state.
2. Scale: Manages insoluble minerals like calcium carbonate.
3. Fouling: Controls deposition of suspended materials.
4. Biological Contamination: Inhibits microbial growth and biological membranes.
