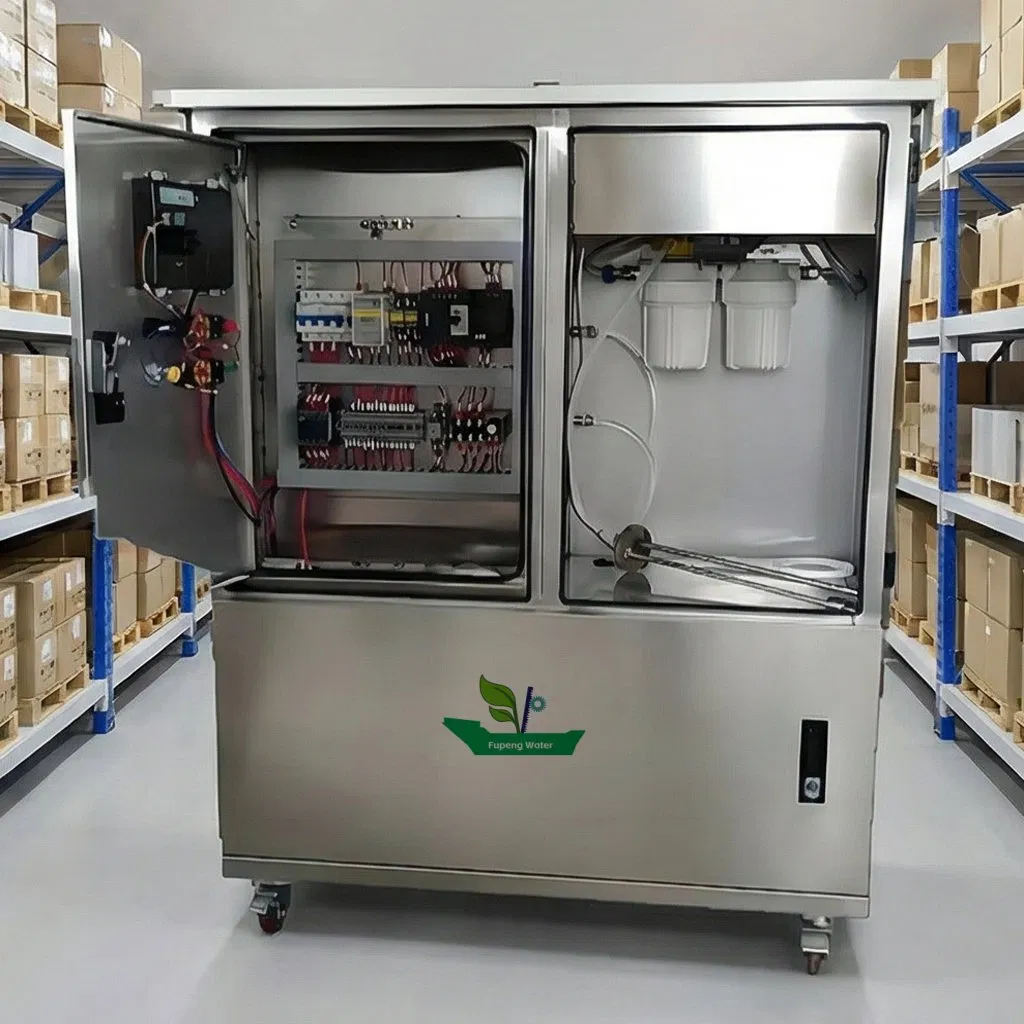

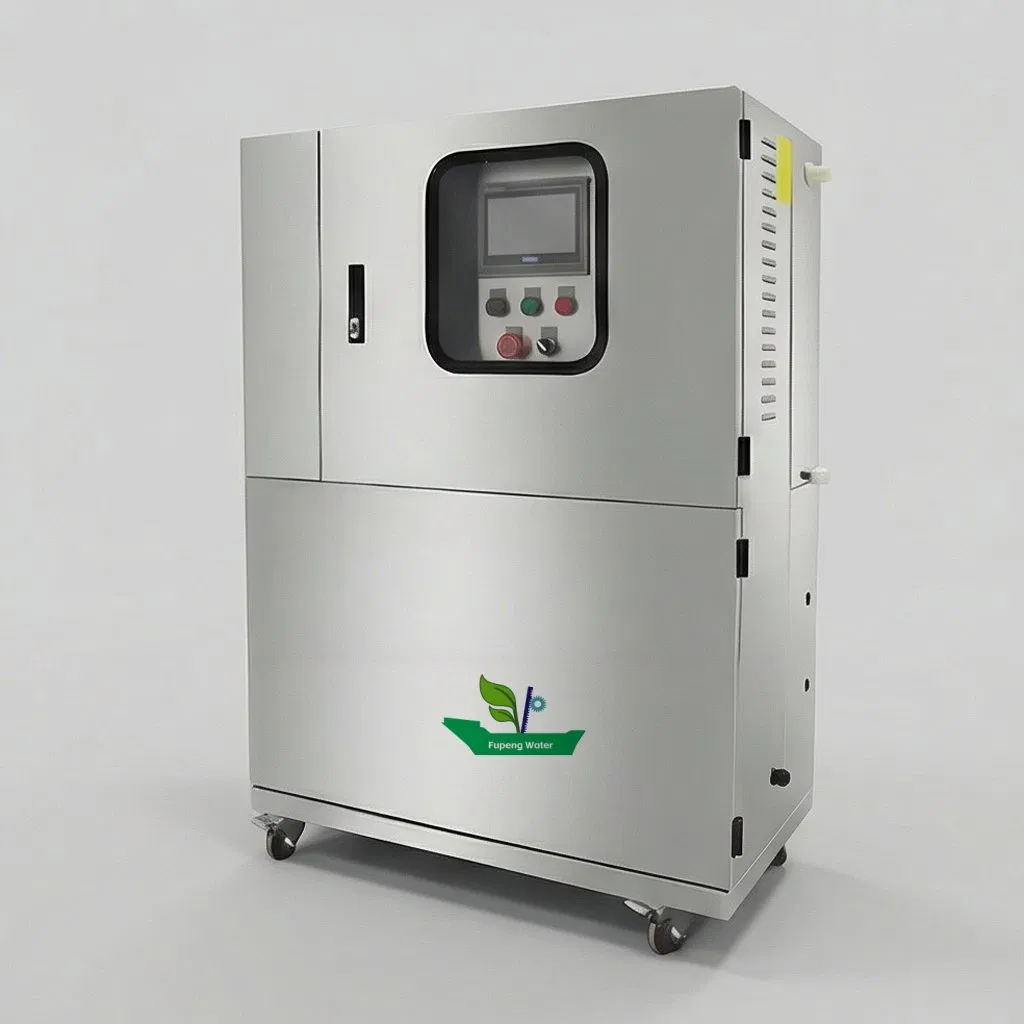

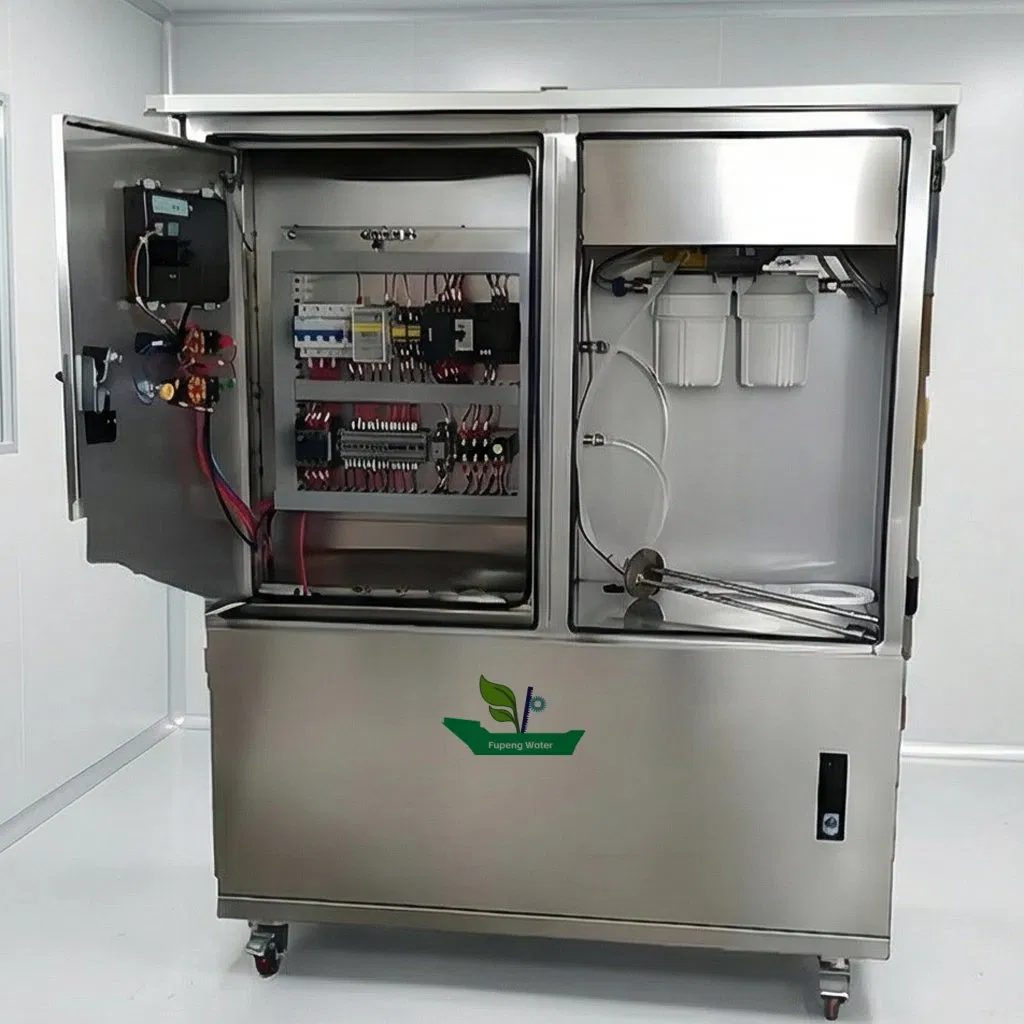

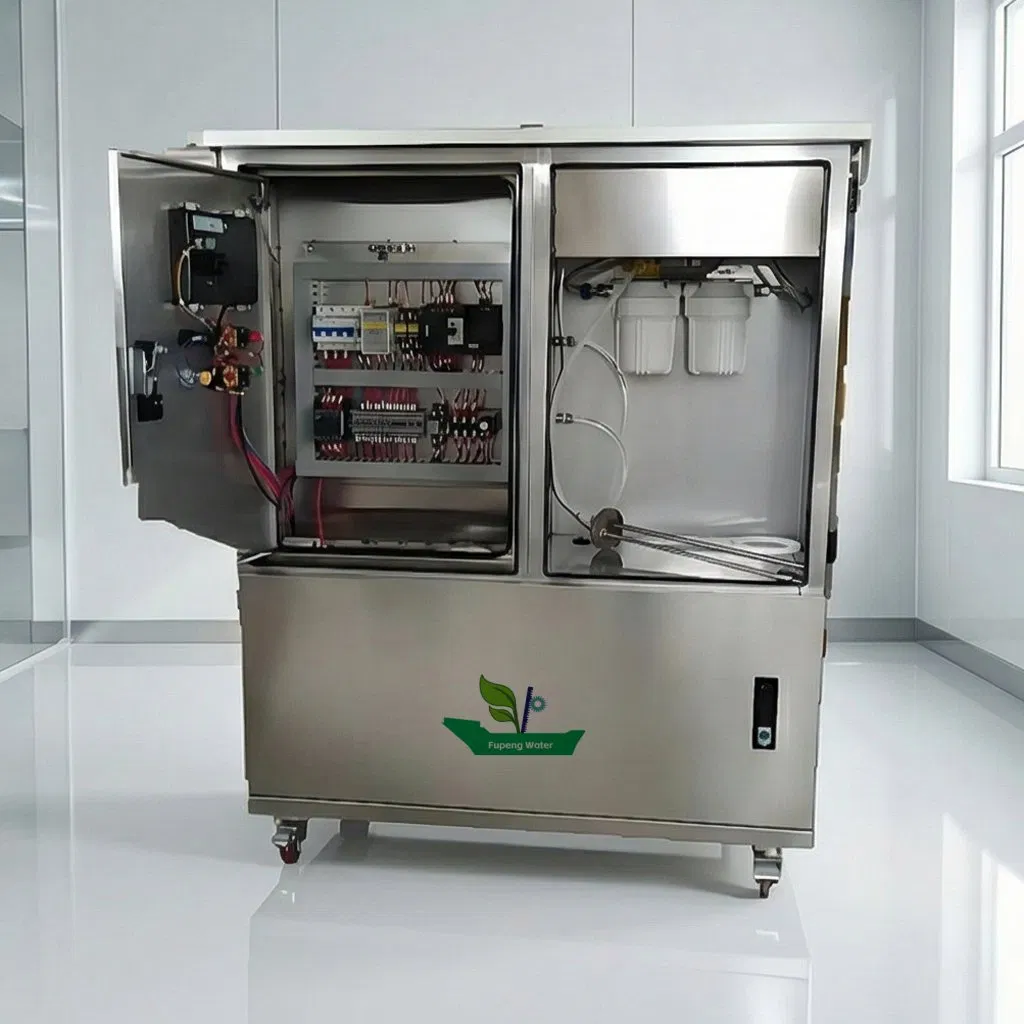

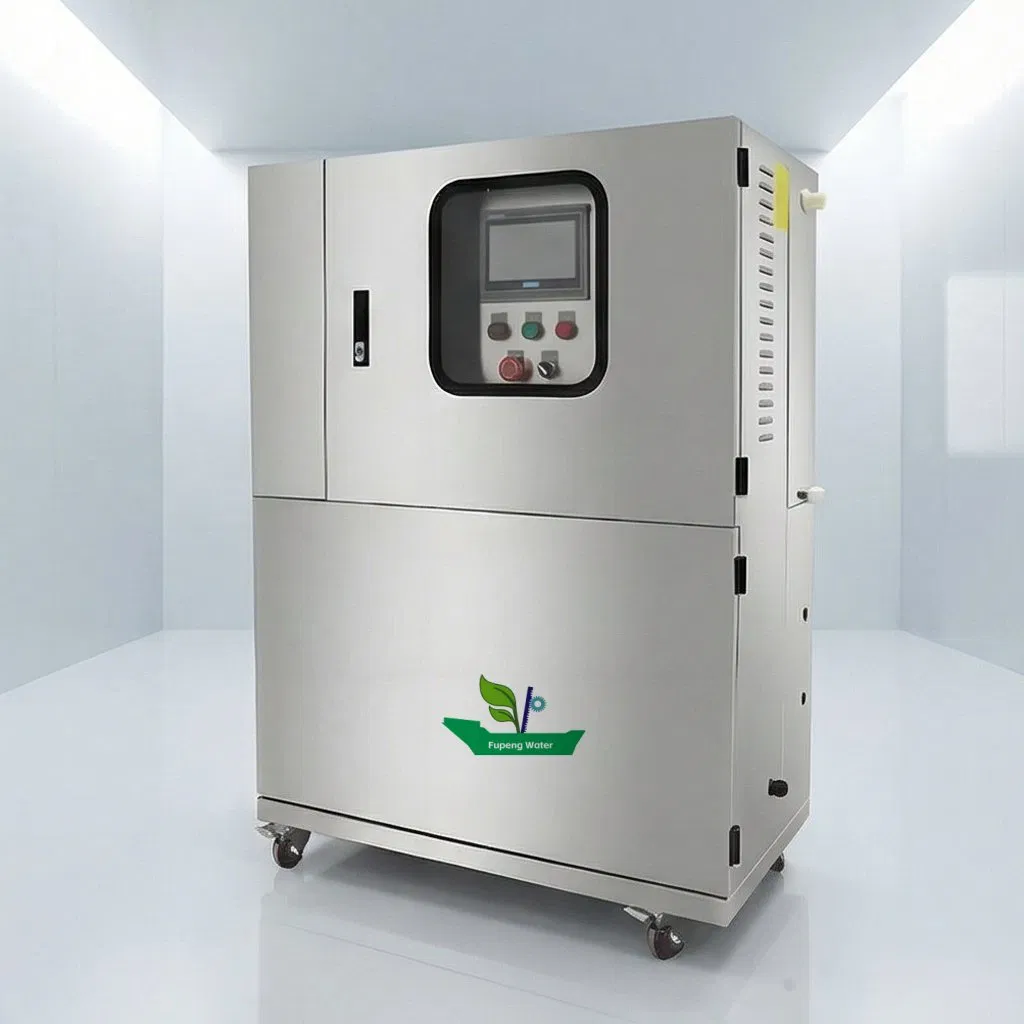

Chemical Industry Wastewater Treatment Biological Odor Removal System

1 / 5

Chemical Industry Wastewater Treatment Biological Odor Removal System

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

THY-EQ2000 - THY-EQ120000

Certification

Dielectric Material

Enamel Tube

Cooling Method

Air-Cooling

Gas Source

Air

Frequency

>1000Hz

Installation

Portable / Fixed

Type

Electrolytic Type

Deodorization Rate

Up to Over 99.6%

Air Quantity

160,000m³/H

Ambient Temp.

-30℃ to 95℃

HS Code

8421299090

Product Description

Since 2008, we have integrated and refined cutting-edge technologies to address major pollutants such as volatile organic compounds (VOCs), inorganic compounds, hydrogen sulfide, ammonia, and mercaptans. This optimized combination of technologies—including high-temperature oxidation, photocatalytic decomposition, chemical decomposition, biological decomposition, and residual odor adsorption—effectively addresses the vast majority of unacceptable odors.

⚙️ High Adaptability

Handles high concentrations, large volumes, and various odorous substances. Operates 24/7 stably.

💰 Low Operating Cost

No high-power equipment, low noise, and requires no dedicated personnel for daily maintenance.

🌡️ Wide Environment Range

Operates in -30°C to 95°C and humidity range of 30% to 98% without pretreatment.

📐 Small Footprint

Lightweight design suitable for compact installations, handling air volumes up to 160,000 m³/h.

Technical Parameters

S/N	Model	Dimensions (mm)	Ventilation Outlet (mm)	Power/Voltage	Wind Resistance (pa)
1	THY-EQ2000	850×500×670	450×400	1.28kw/220V	<100
2	THY-EQ6000	1000×1060×1200	950×750	1.6kw/380V	<100
3	THY-EQ10000	1000×1060×1200	950×750	2.4kw/380V	<100
4	THY-EQ15000	1600×1060×1200	950×750	3.2kw/380V	<100
5	THY-EQ20000	1600×1060×1200	950×750	4.8kw/380V	<100
6	THY-EQ30000	1600×1060×1200	950×750	6.4kw/380V	<100
7	THY-EQ40000	1160×1060×1800	800×400	9.6kw/380V	<100
8	THY-EQ60000	1560×1900×2280	1400×700	20.2kw/380V	<100
9	THY-EQ100000	3200×2200×1950	1600×1600	30.8kw/380V	<100
10	THY-EQ120000	4400×2200×1950	1600×1600	41kw/380V	<100

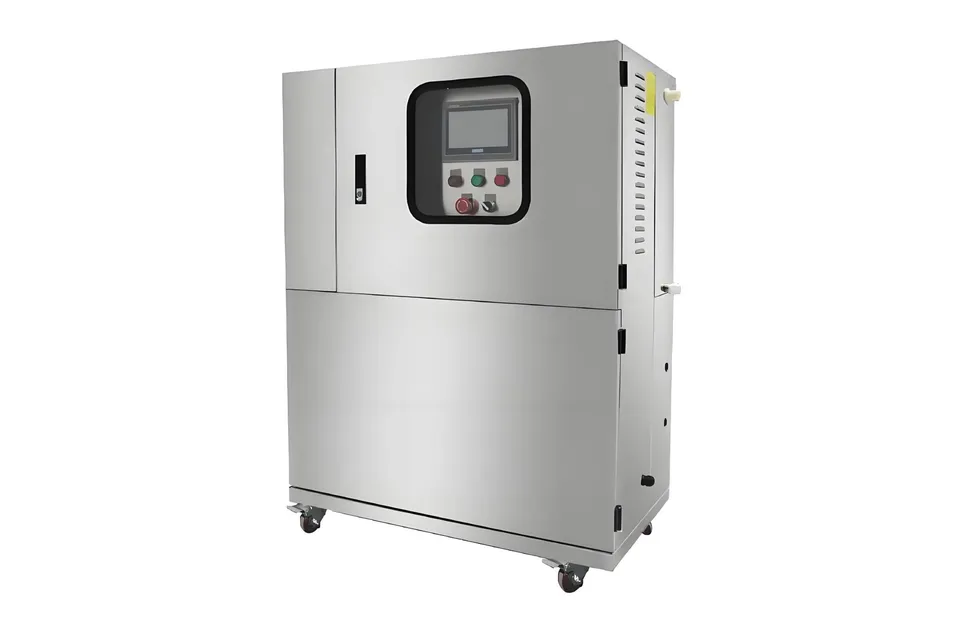

Product Showcase

Frequently Asked Questions

1. Are you a factory or a trade company?

We are a factory with rich experience in China. We welcome customers to make an appointment for a video factory inspection to see our production process.

2. How do I know which model is suitable for my needs?

Please provide your daily water treatment volume, the type of sewage (domestic or industrial), the number of users, and your local discharge standards. Our technical team will recommend the optimal solution.

3. What is the deodorization efficiency of this system?

The system is highly efficient, with deodorization rates reaching over 99.6%, significantly exceeding standard emission requirements for odor pollutants.

4. How is the equipment installed and operated?

Most main components are pre-installed before shipment. We provide detailed training videos and user manuals. About 95% of our customers can successfully install and run the machine independently.

5. What is the warranty period and after-sales support?

We provide an 18-month warranty after installation. For any issues, we respond within 24 hours to provide professional technical solutions.

6. Does the gas require pretreatment before entering the equipment?

No special pretreatment like heating or humidification is required. The equipment operates normally across a wide range of temperatures (-30°C to 95°C) and humidity (30% to 98%).
