Basic Specifications
Model NO.
HY-RO 500lph to 45tph
Capacity
250L~10000L and Customized
Productivity
500L to 45m3/Hour
Size
1.4*0.6*1.6(M), Made to Order
Material
Plywood Case, Stainless Steel or Fiber Glass
Operation Pressure
10 Bar~15 Bar
Recovery Efficiency
70%~75%
What is a Reverse Osmosis Water System?
A reverse osmosis (RO) desalination system is a water treatment system that uses the process of reverse osmosis to remove salt, impurities, and contaminants from seawater (or brackish water) to produce fresh, drinkable water. The system works by applying pressure to force water through a semipermeable membrane, which filters out salts, microorganisms, and other harmful substances, leaving behind purified water.

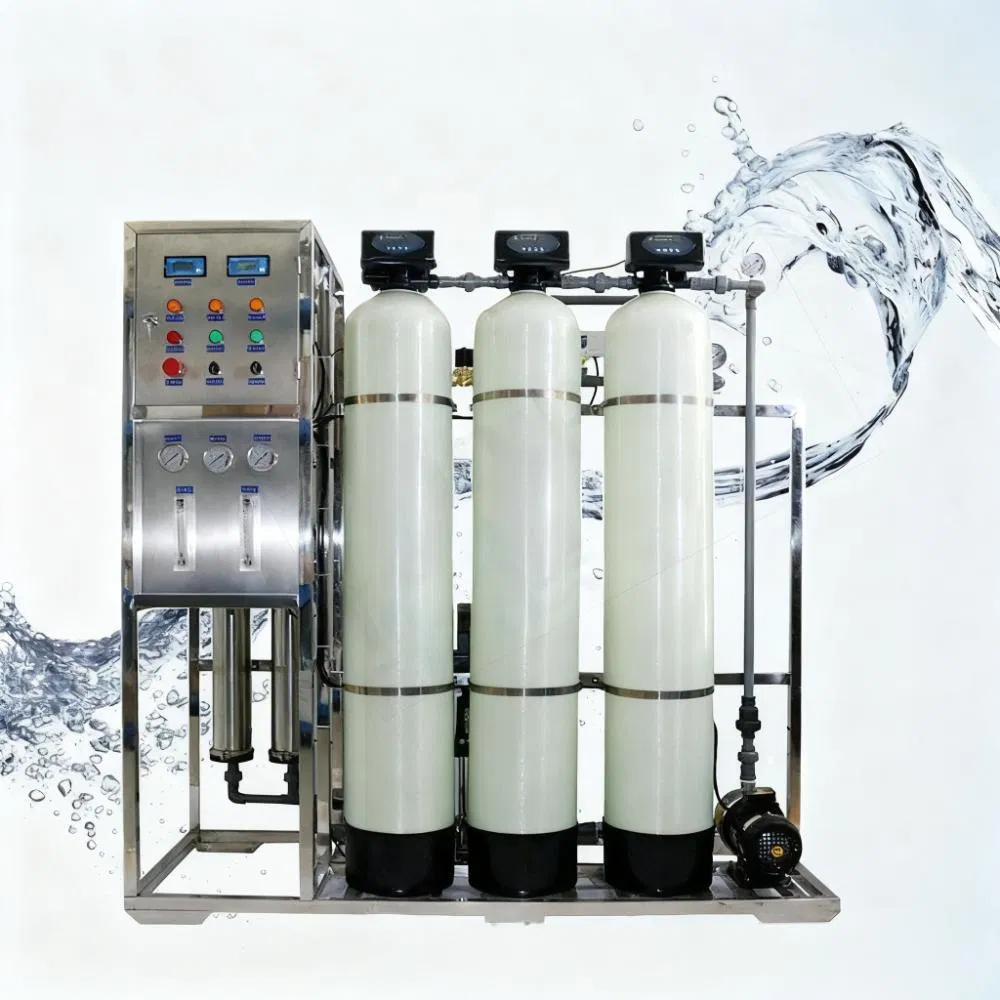

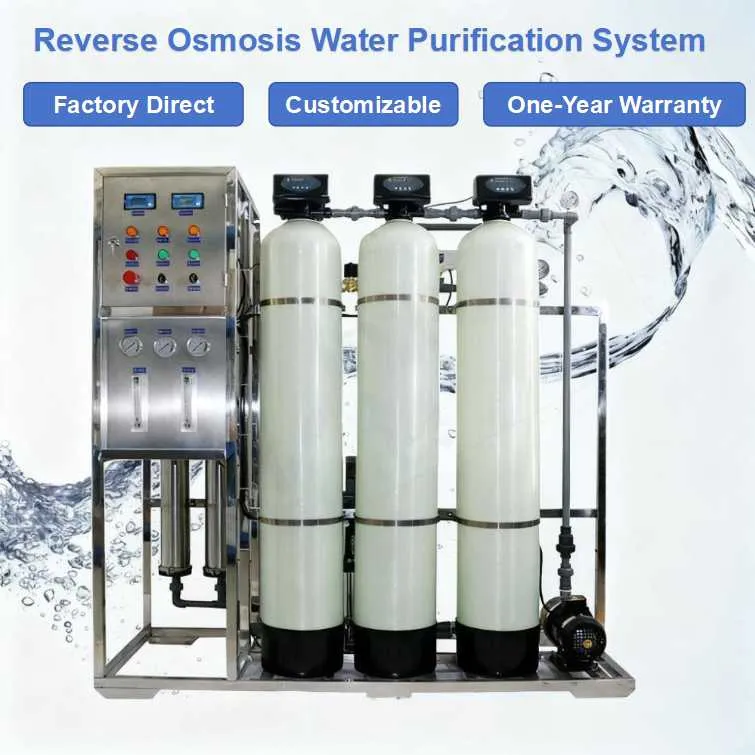

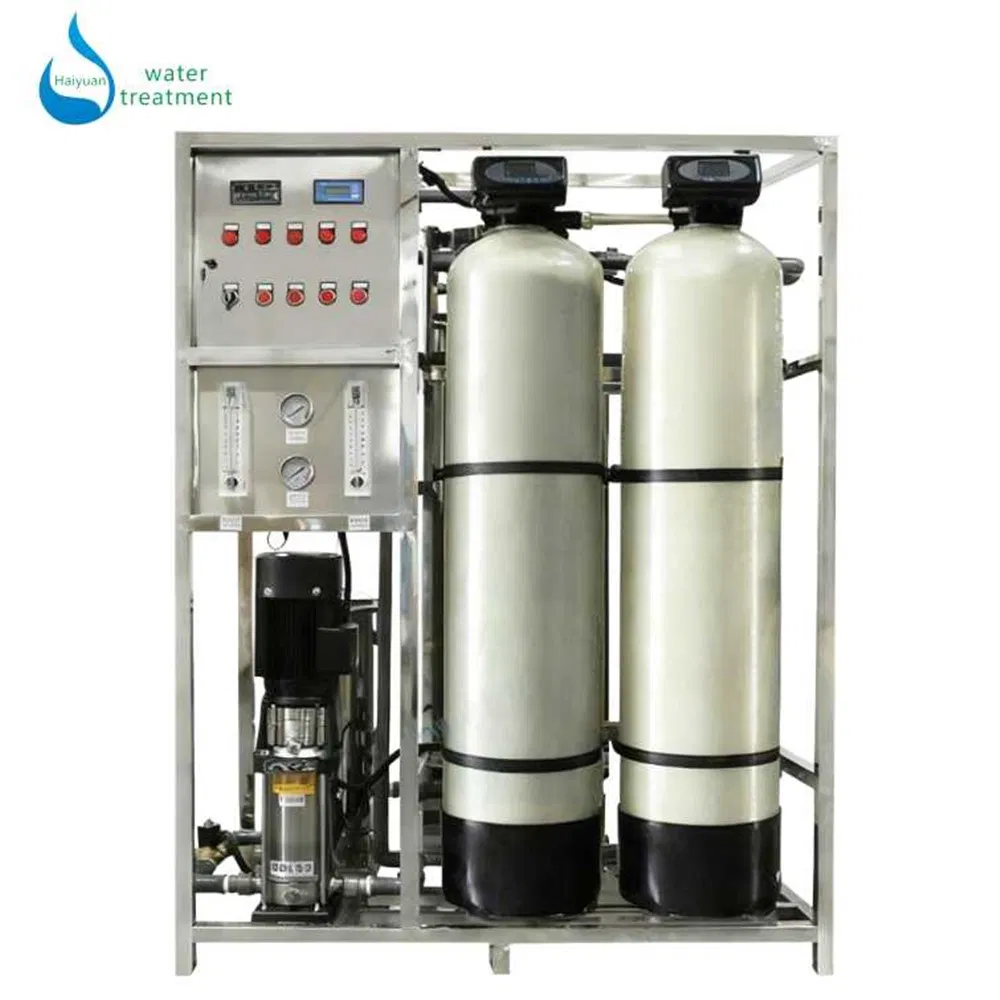

500L/hr RO System for Drinking Use
Raw Water Tank →
Booster Pump →
Sand Filter →
Activated Carbon Filter →
Water Softener →
Precision Filter →
High Pressure Pump →
RO Membrane →
Product Water Tank
| HY-RO-500L/hr Technical Parameters |
|---|
| Flow rate | 500l/hr | Recovery rate | 60% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 2.17KW |
| Incoming TDS | 560ppm | Output water TDS | 12.8ppm |
| Working pressure | 9.5bar | Operating Temp | 5-45ºC |

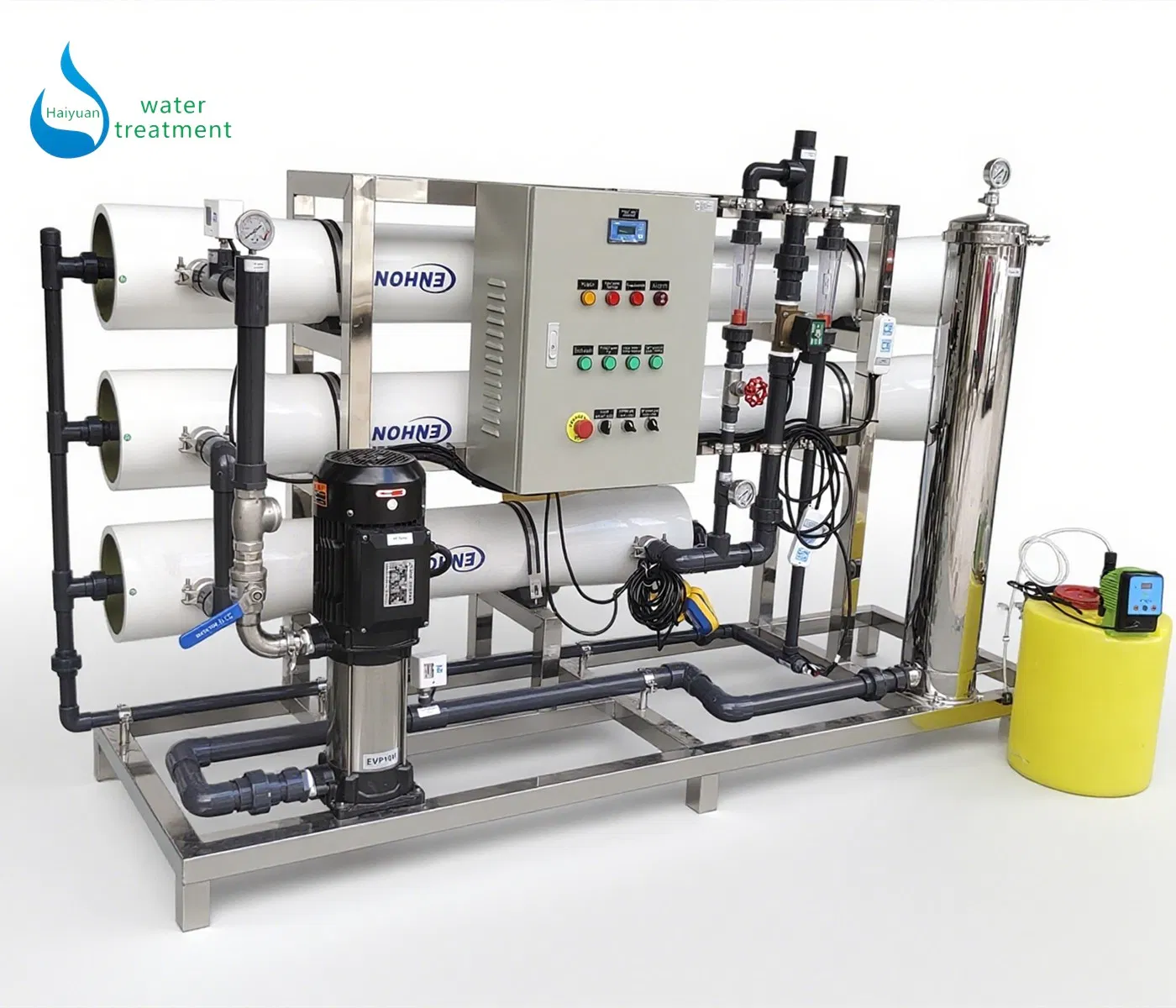

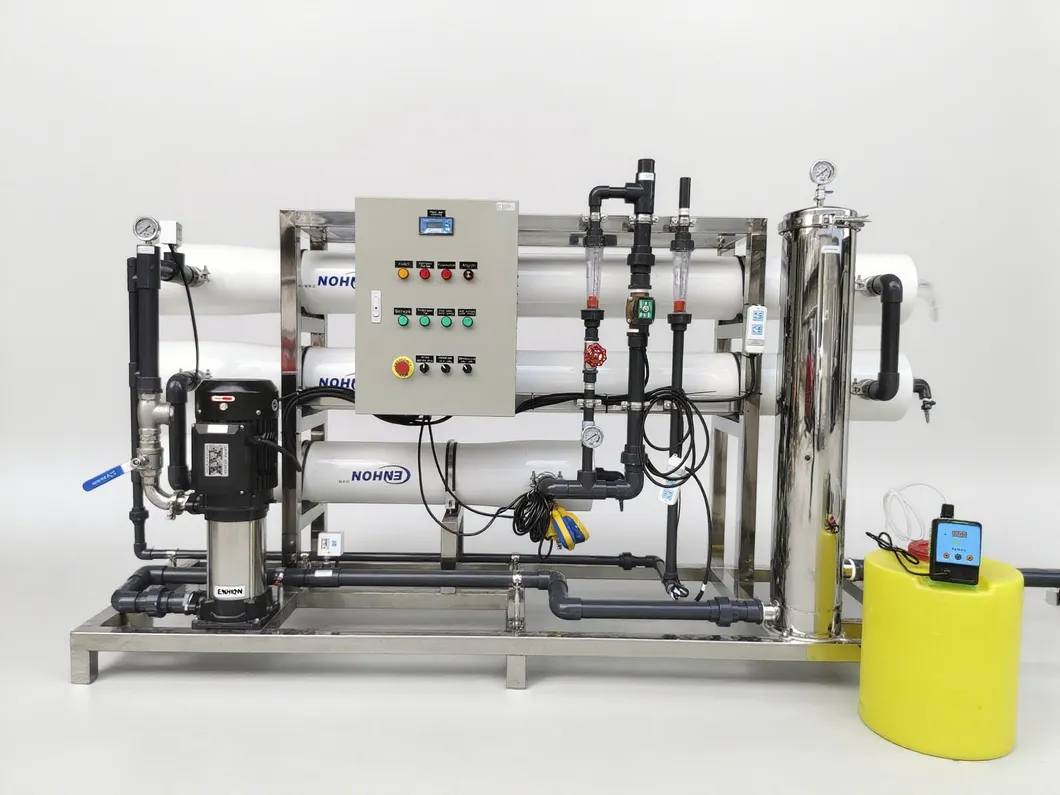

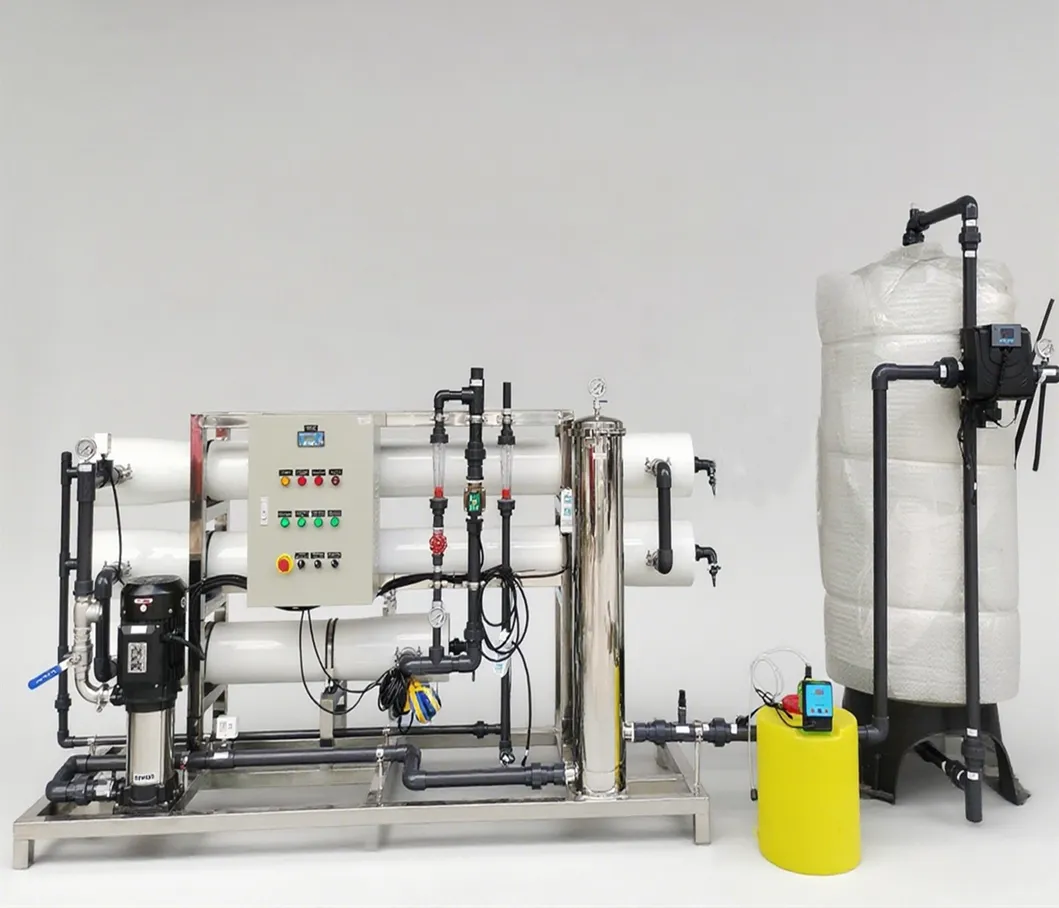

5T/hr Well Water Treatment (Greenhouse Supply)

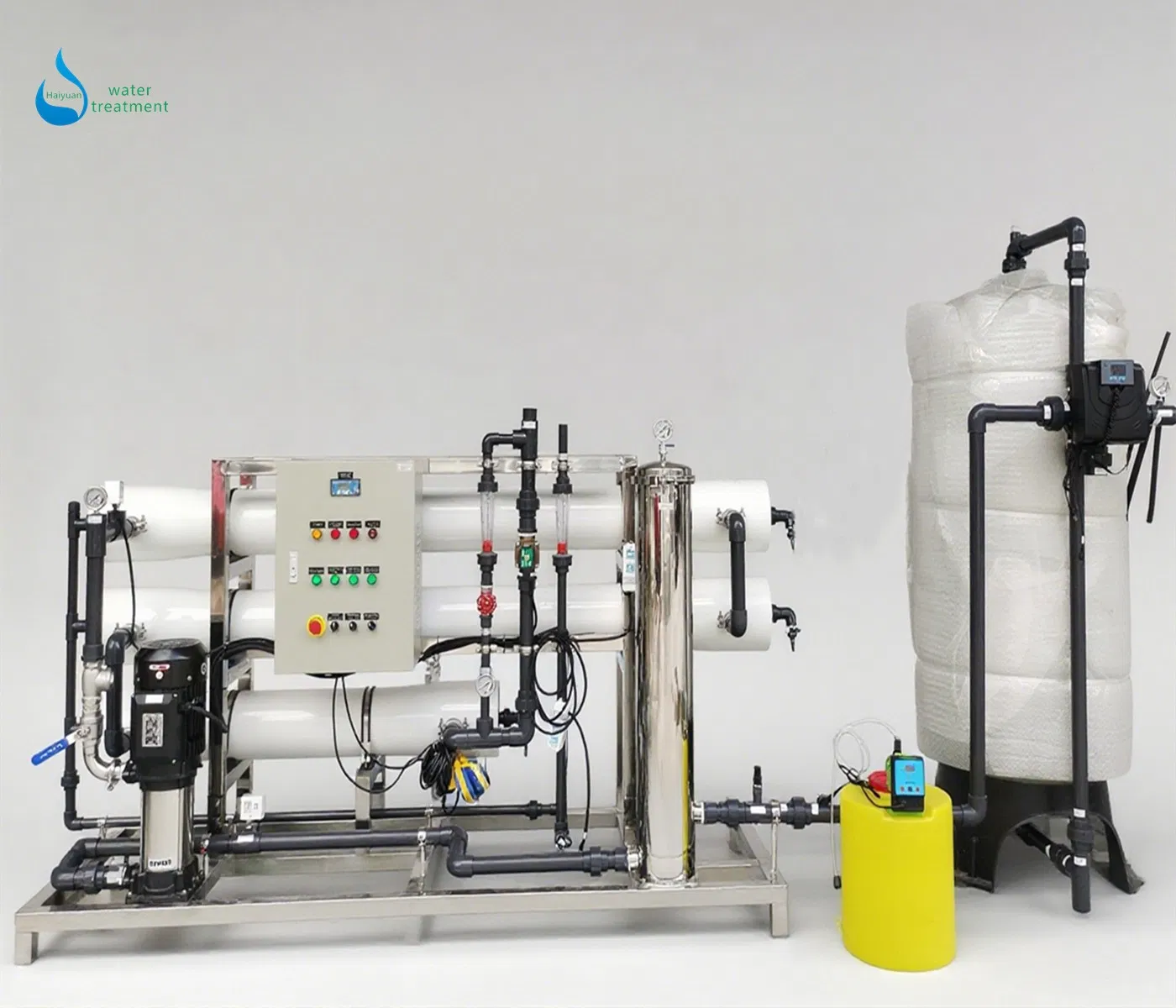

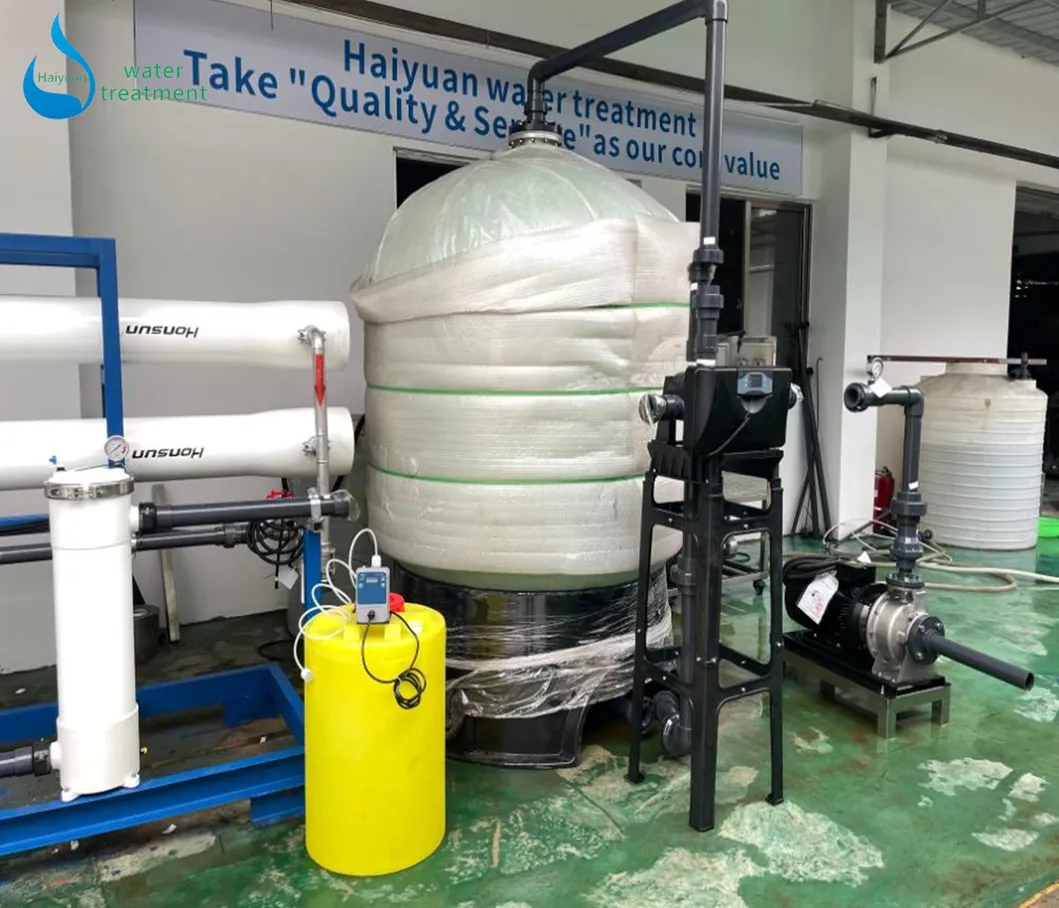

10T/hr Brackish Water for Agricultural Irrigation

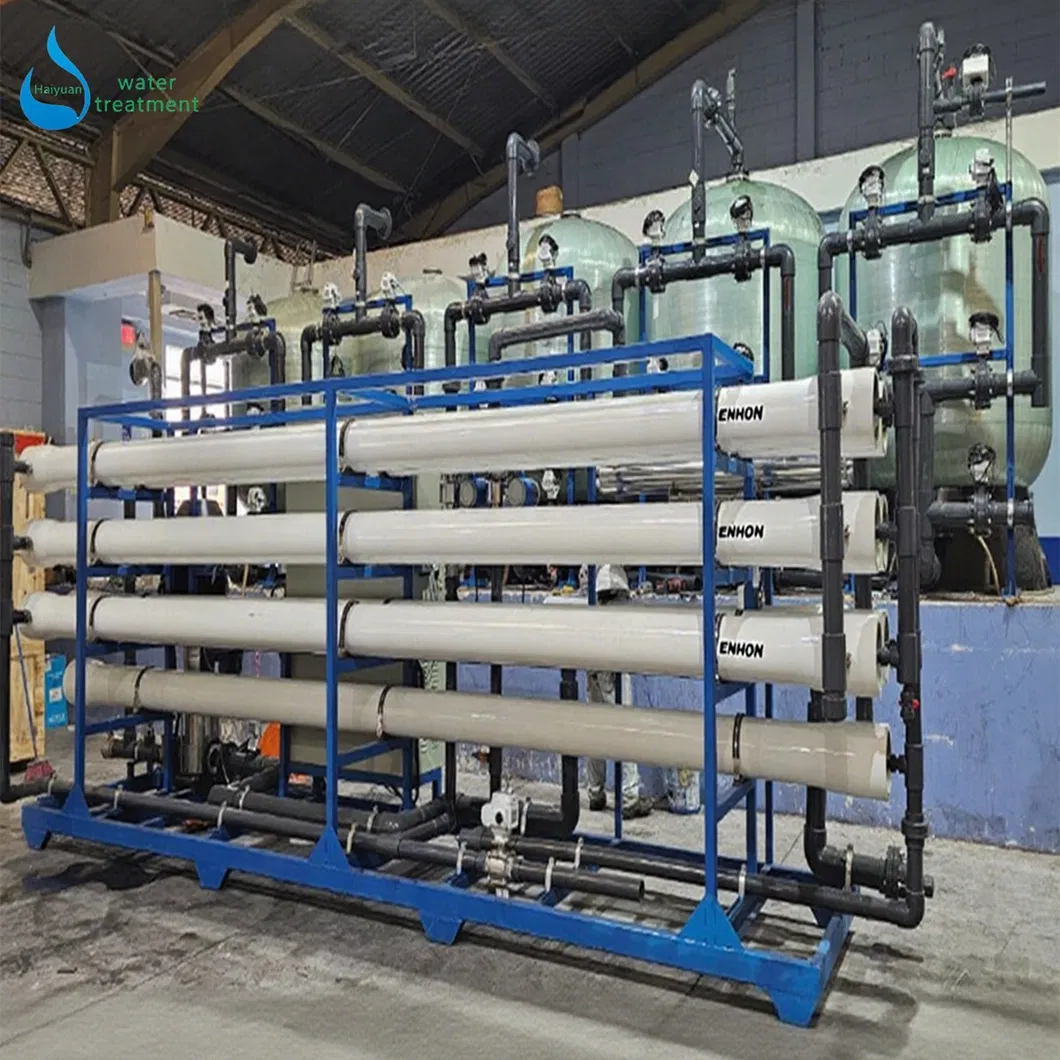

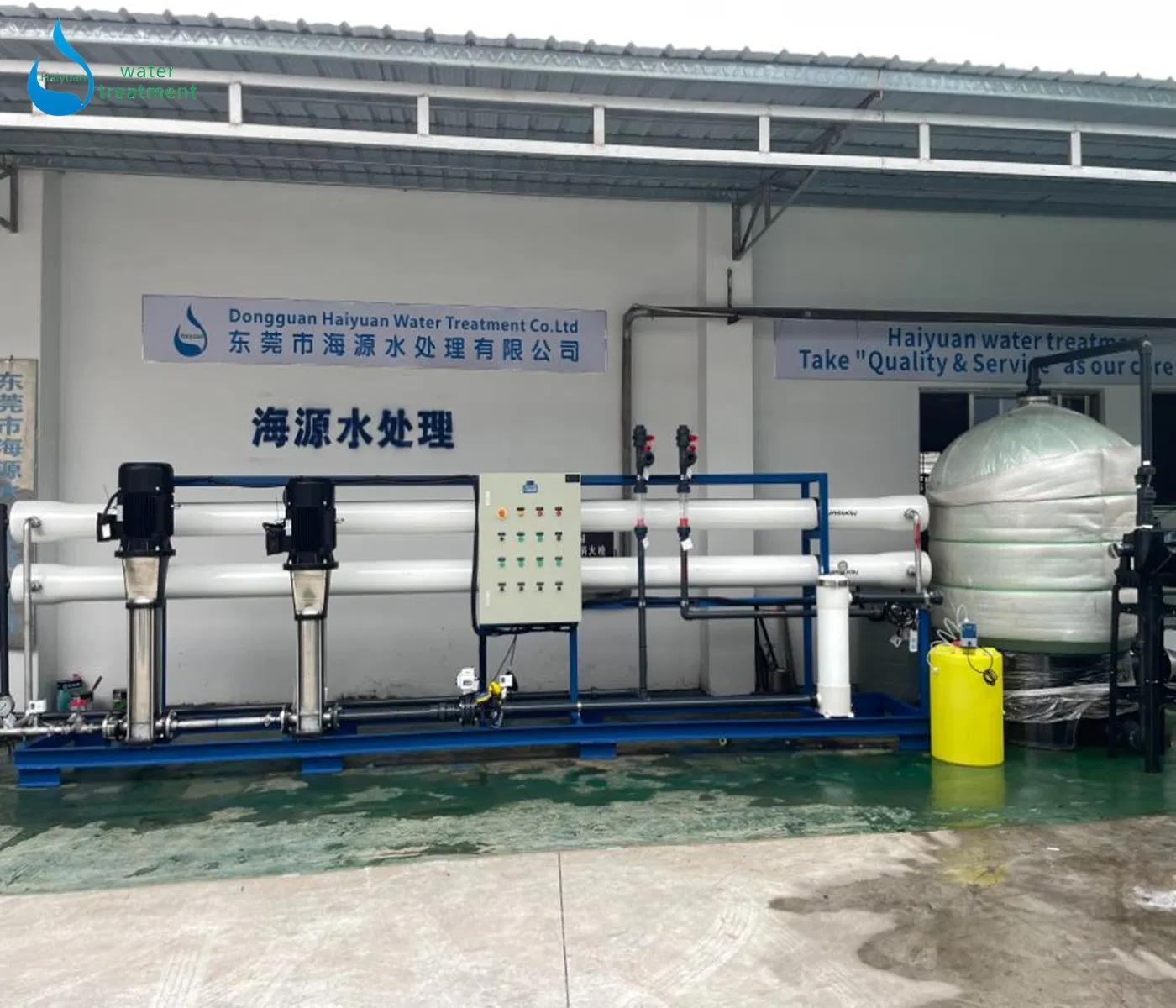

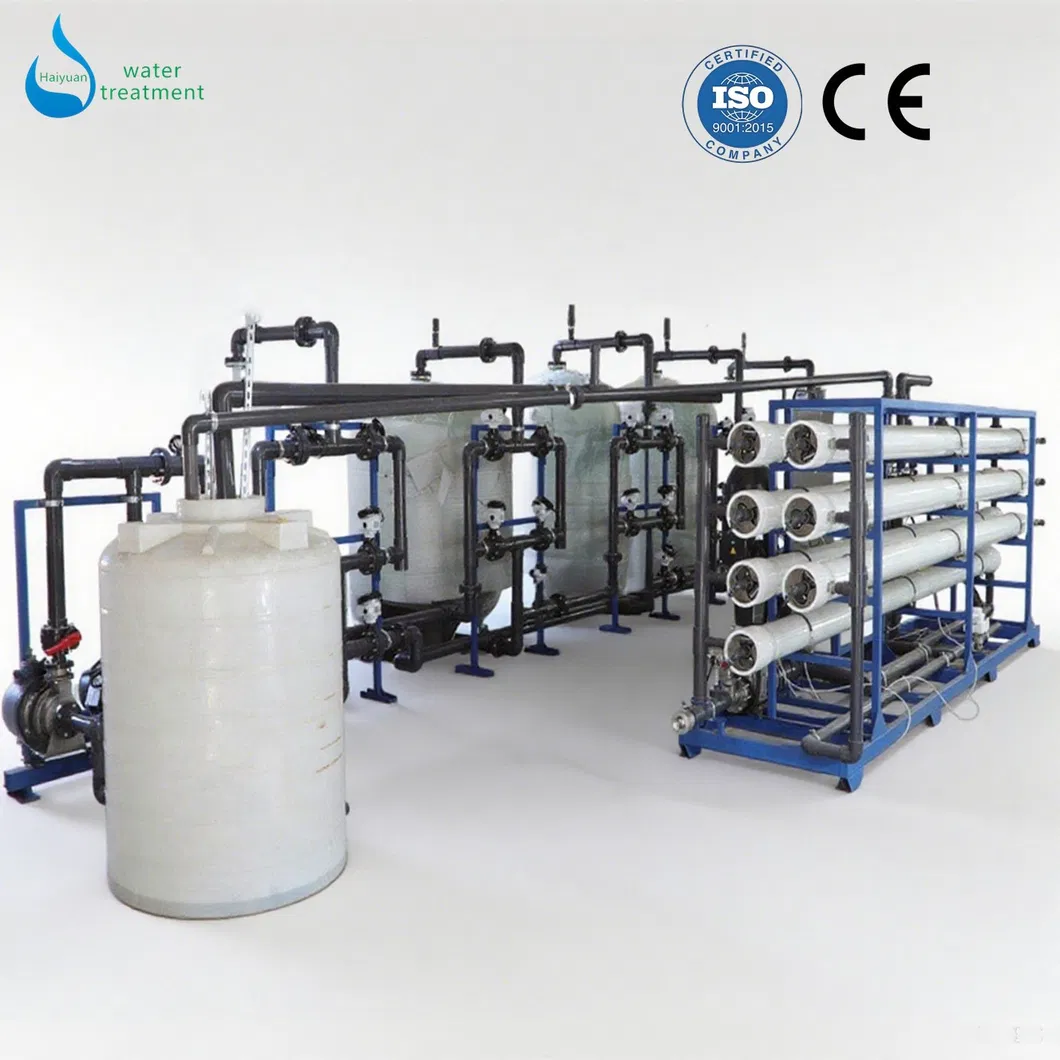

45T/hr Well Water for Industrial Use
Industrial Process Flow: Automatic Chlorination → Raw Water Tank → Booster Pump → Multimedia Filter → Activated Carbon Filter → Water Softener → Antiscalant Dosing → Dechlorination Dosing → Cartridge Filter → High Pressure Pump → RO System → UV Sterilizer → Product Water Tank
Reverse Osmosis Application Areas
- Drinking Water Supply: Ideal for islands, coastal villages, hotels, and luxury resorts.
- Industrial Use: Perfect for manufacturing, cooling systems, and critical process water.
- Agricultural Irrigation: Produces safe, low-salt water for sensitive crops and greenhouses.
- Commercial Apps: Used in fish farms, bottling plants, and professional car washes.
Why Use Reverse Osmosis?
Reverse osmosis is widely recognized for its efficiency and environmental benefits:
- Efficient Filtration: Removes up to 99% of salts, heavy metals, and bacteria.
- Versatile: Handles everything from groundwater to high-salinity seawater.
- Energy-Efficient: Advanced membrane technology reduces power consumption.
- Eco-Friendly: Minimizes the need for harsh chemical treatments.
- Cost-Effective: Low operational costs provide long-term savings.
Professional Manufacturing & Factory
With over 15 years of experience in water treatment, we design, manufacture, and install containerized and skid-mounted RO systems globally. Our focus is providing high-quality, customized solutions that meet specific local water conditions and output requirements.
Service & After-Sales Support
- Overseas Installation: Remote or on-site guidance for worldwide deployment.
- Direct Manufacturer: Direct support and pricing without intermediaries.
- 24/7 Support: Technical assistance available around the clock.
- Ready Stock: Consumables and wearing parts kept in stock for fast shipping.
- Warranty: Comprehensive one-year product guarantee.
Frequently Asked Questions
Q: What source water can these RO systems treat?
A: Our systems are designed to treat well water, brackish water, seawater, and municipal tap water to meet drinking or industrial standards.
Q: Can the system be powered by solar energy?
A: Yes, we offer full customization for power sources, including solar-powered, grid-connected, or hybrid energy systems.
Q: How often do the RO membranes need to be replaced?
A: Typically, membranes last 2 to 3 years depending on the raw water quality and the effectiveness of the pretreatment system.
Q: What is the recovery rate of your RO machines?
A: Most of our standard systems offer a recovery rate of 60% to 75%, which can be optimized based on specific requirements.
Q: Do you provide technical support for installation?
A: Absolutely. We provide professional installation instructions, remote video guidance, and can even dispatch engineers for large-scale overseas projects.
Q: Is it possible to customize the dimensions for containerized systems?
A: Yes, we can configure systems to fit into 20ft or 40ft containers, or design open skid-mounted layouts to fit your specific space.
