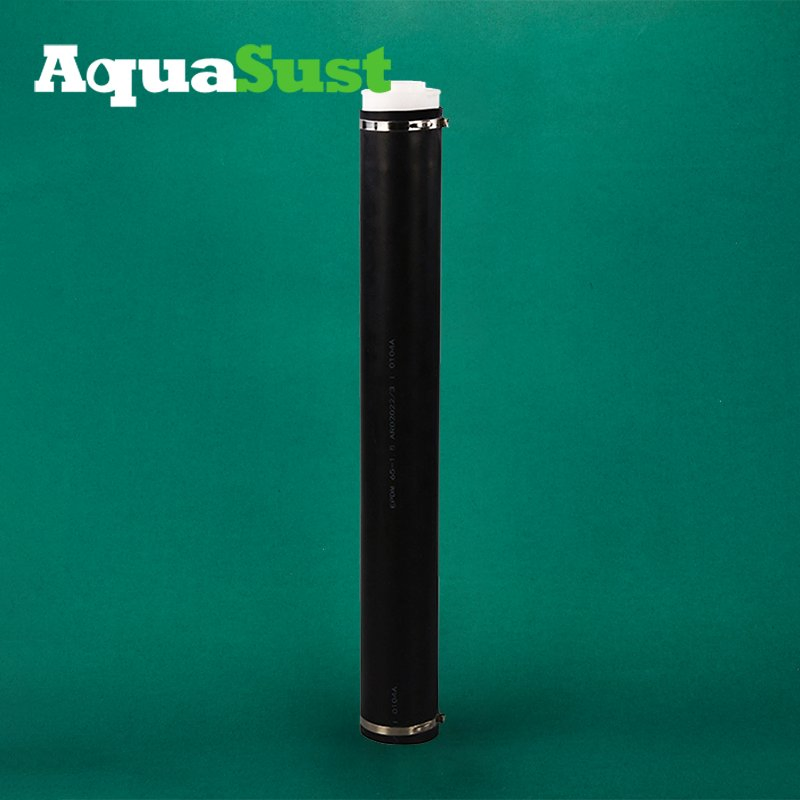

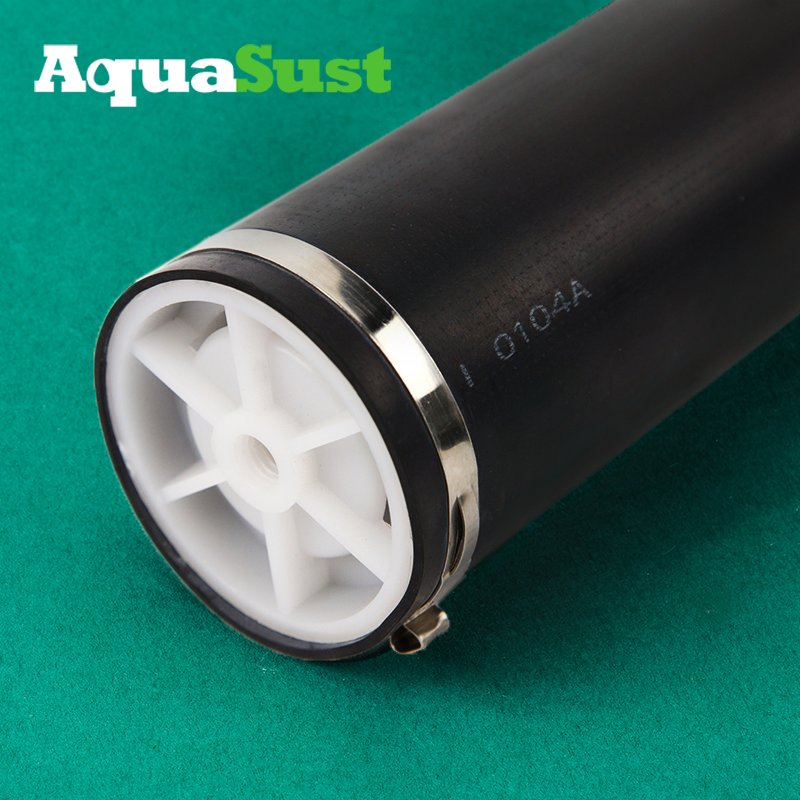

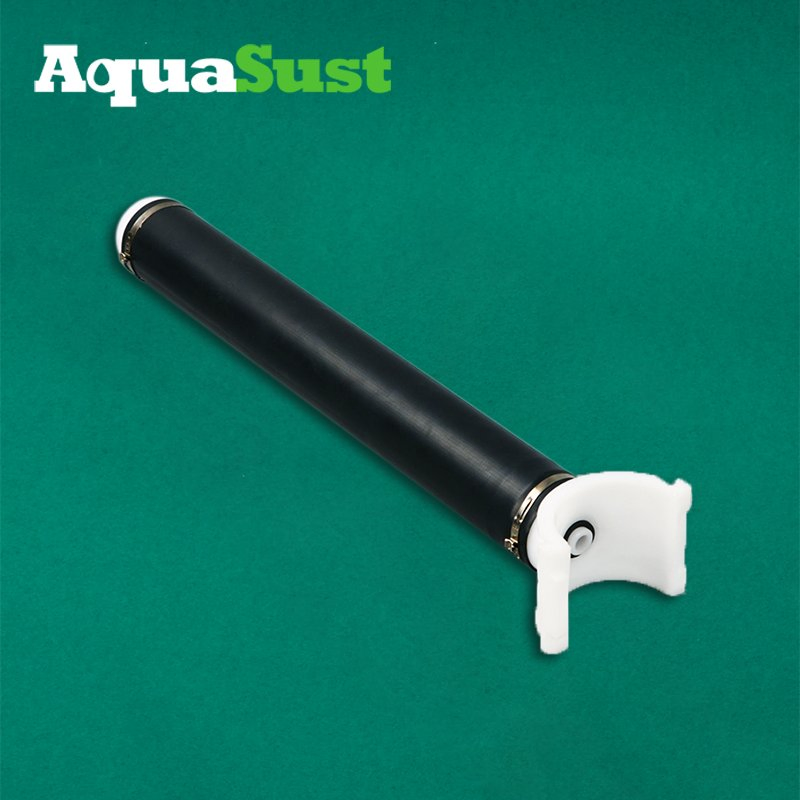

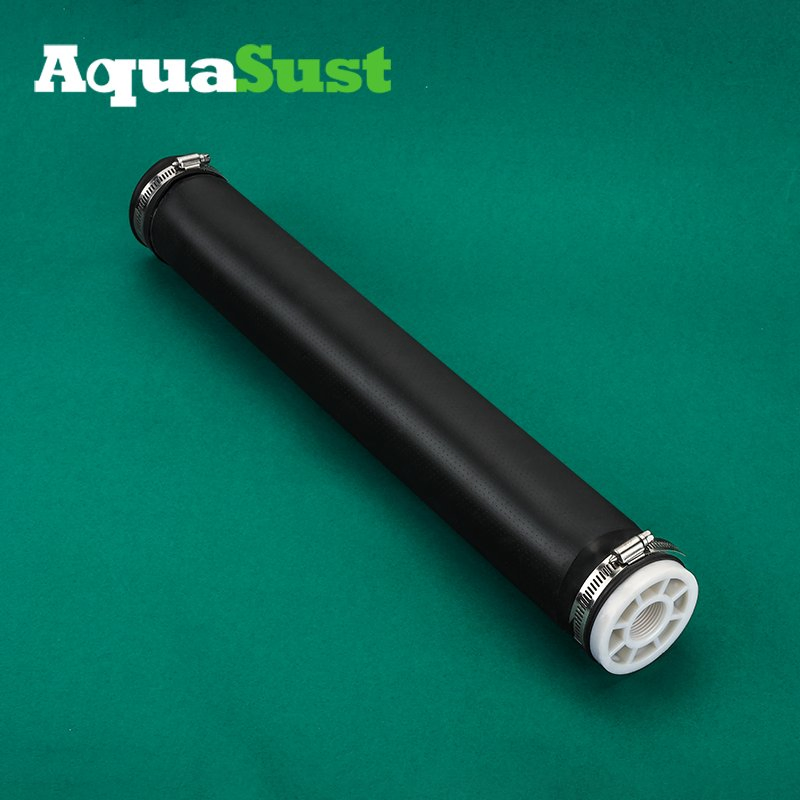

Cost-Effective Tube Diffuser Solution for Municipal Wastewater Treatment

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info.
Model NO.
TD63
Type
Aerators
Method
Physical Treatment
Usage
Industrial, Home, Agriculture
Transport Package
Custom
Specification
Custom
Production Capacity
5000 Set/Year
Tube Diffuser Solution
Product Description

Smart Tube Diffuser Overview

Fine Bubble Tube Diffusers can be connected on one side or in pairs to different rectangular and round tubes (PP material) with the appropriate adapter. The membranes are manufactured with premium quality EPDM material and are available with fine or coarse-bubble perforation. The support tubes (ABS or PP material) can be reused when membranes are replaced.

The units offer maximum smart tube diffusers which are the best solution for long and narrow aeration tanks. The opportunity to choose different materials, connection threads, and sizes makes the TD63 750 mm membrane tube diffuser fit any wastewater. These diffusers are produced with the latest technology and are used in wastewater treatment plants.

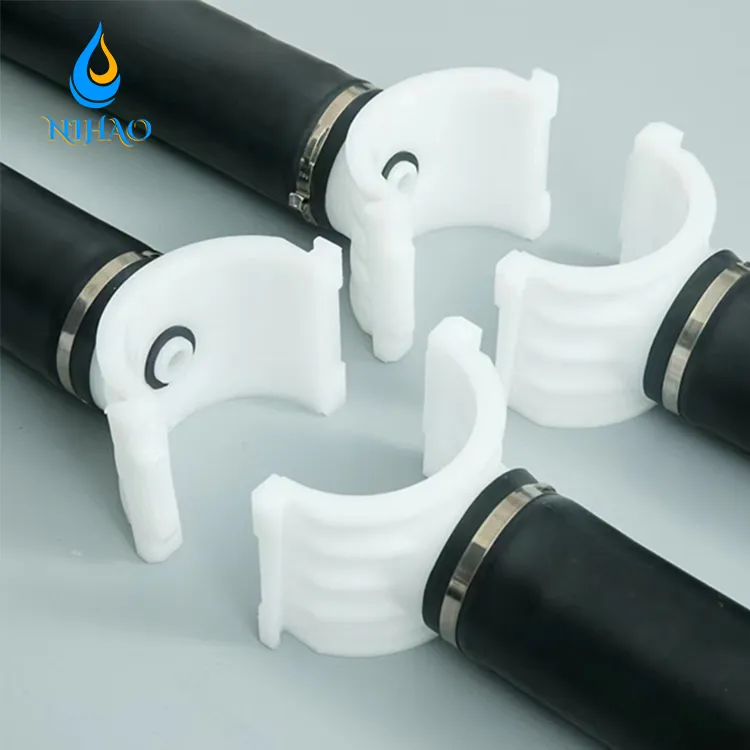

Tube Diffuser Detail 1

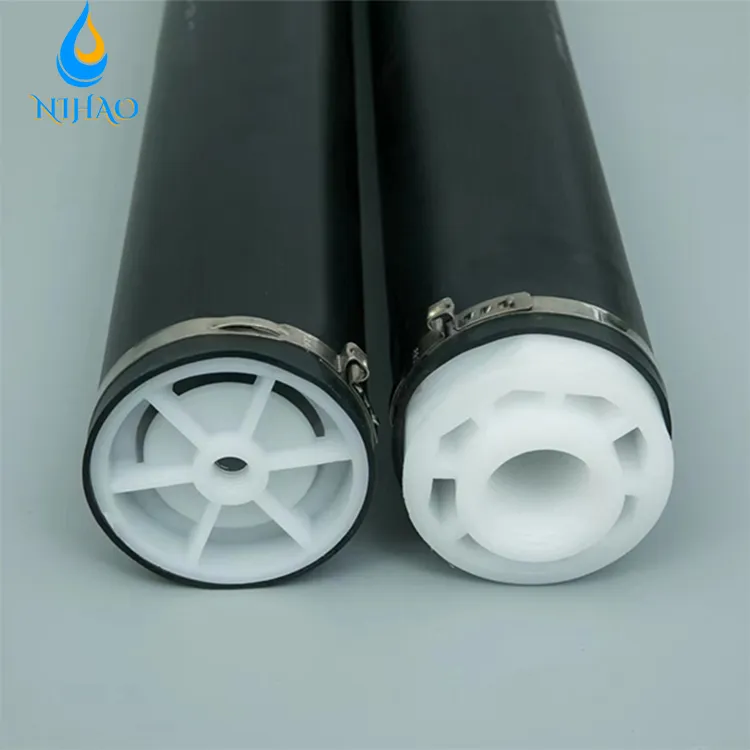

Tube Diffuser Detail 2
Details Display

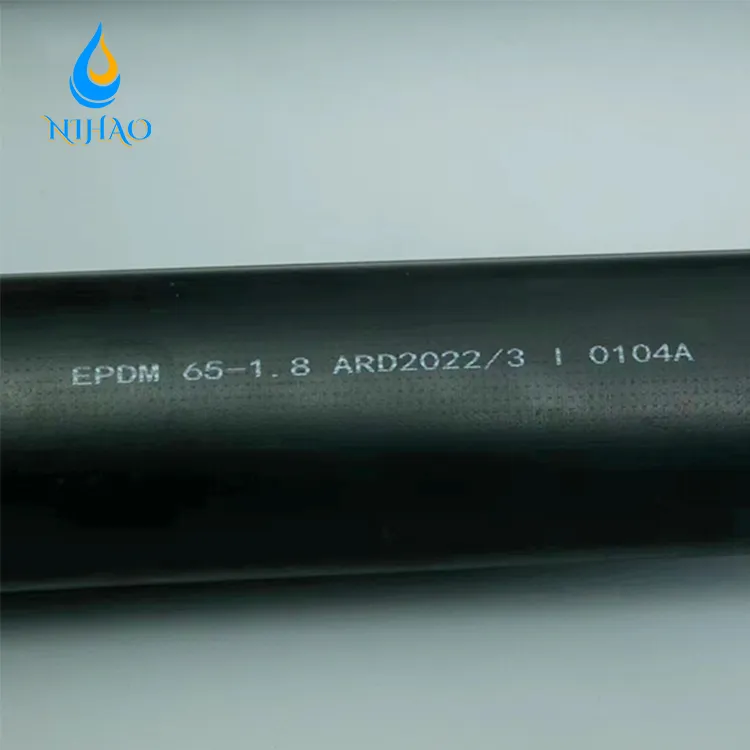

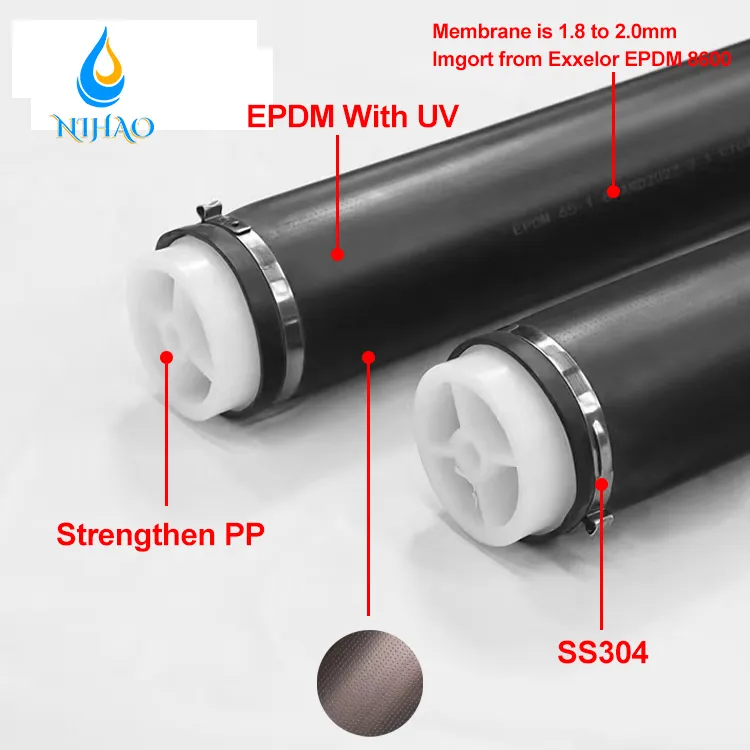

Smart Tube Diffuser Show
Smart Tube Diffuser Show
Key Advantages
🛡️
Formula EPDM with UV protector: Pipes are made from UV protector and strong ABS material, ensuring high durability.
🇩🇪
German Quality Material: Uses EPDM formula imported from Lanxess Germany with less plasticizer.
📉
Efficiency: Low-pressure loss and longer duty life. Wall thickness is optimized at 1.8 to 2.0mm.
Quality Control: Strict quality control during production ensures consistent performance across the aeration tank.
🔧
Double Check Valve: Enhanced protection for the system.
⚙️
Non-tearing Slits: I-shaped slits prevent clogging and tearing during operation.

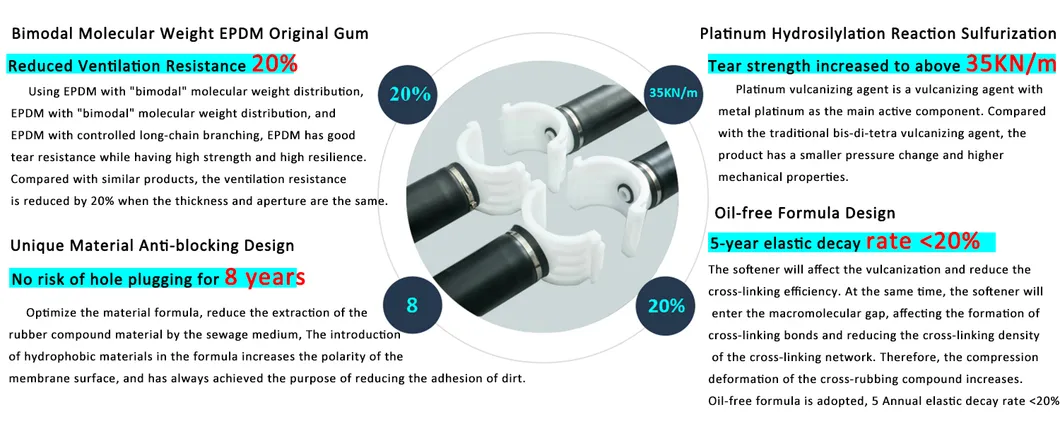

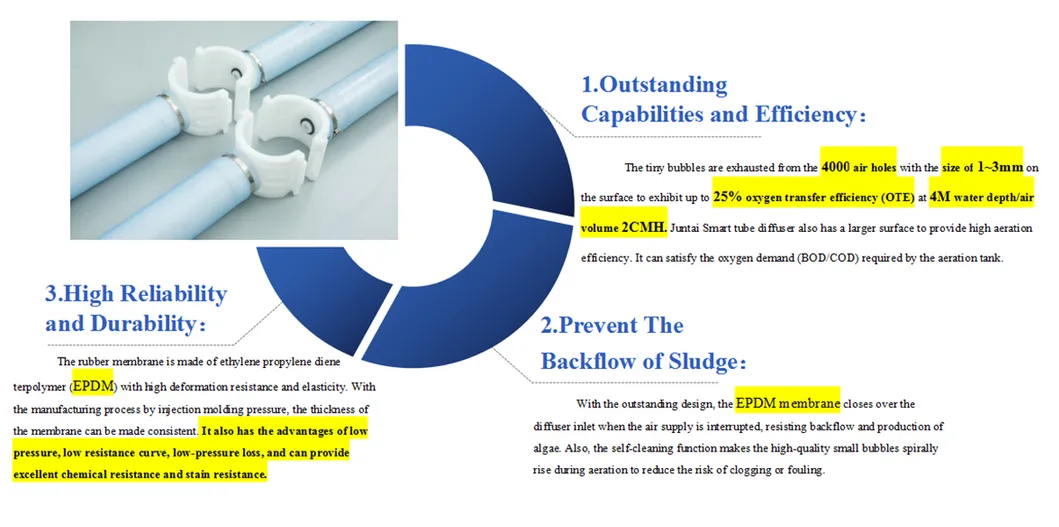

Structure Detail Mechanical View
Series and Scope

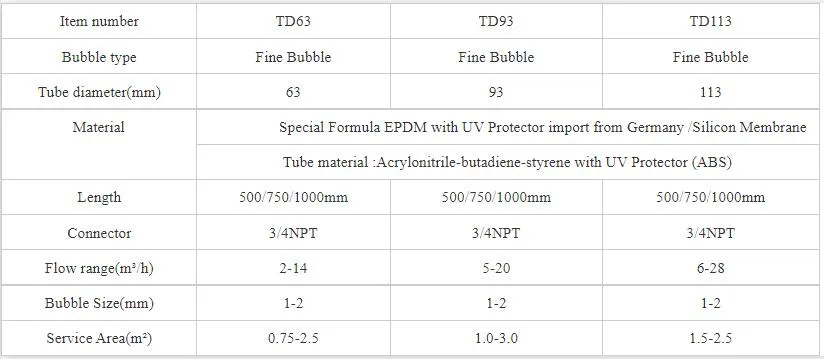

Product Series

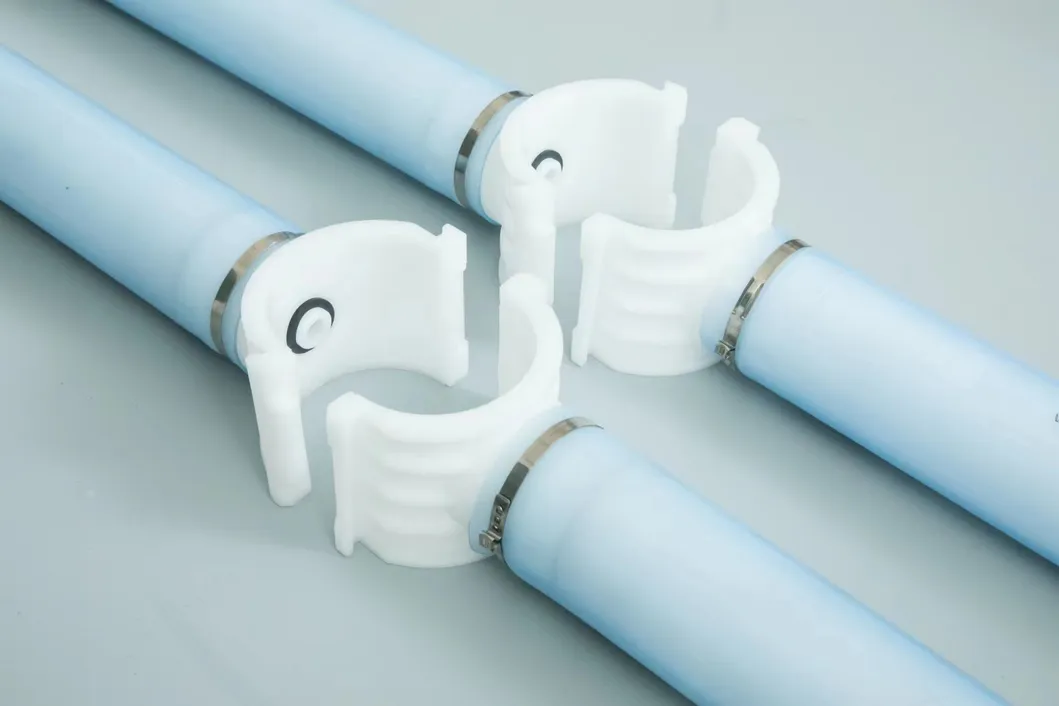

Application 1

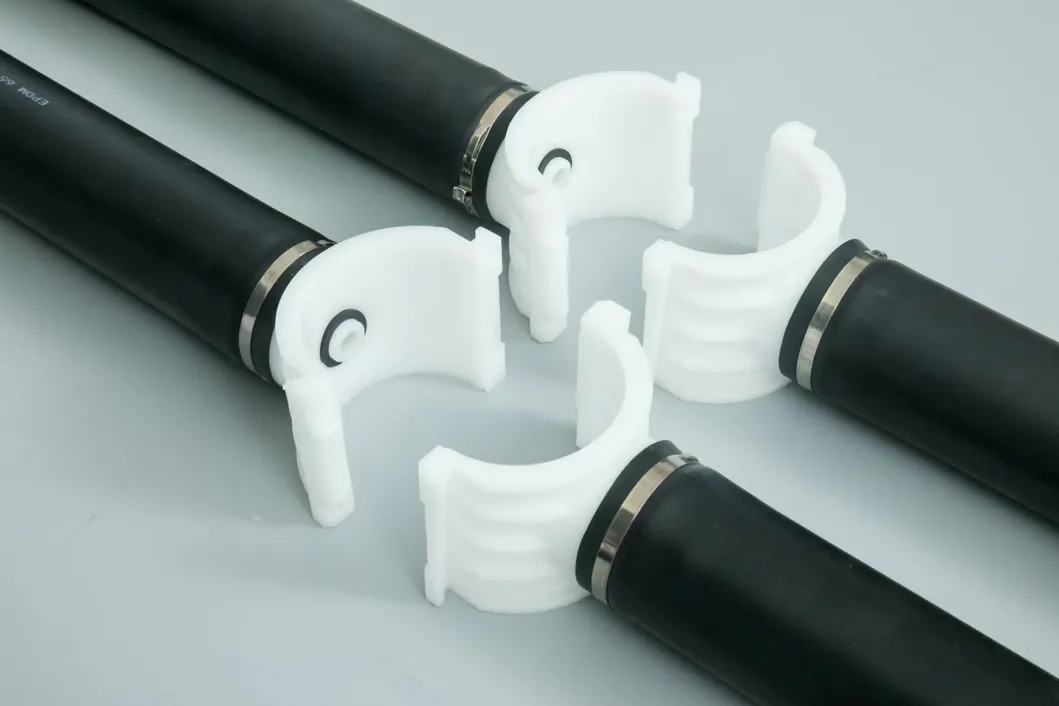

Application 2
Applicable Scope: Municipal sewage and industrial sewage; also used for the restoration and management of lakes, rivers, and aquaculture.

Technical Specifications:
  • Aeration Diaphragm: EPDM Rubber
  • Diaphragm Thickness: 1.8±0.1mm
  • Lined Pipe: PP-TV, Standard OD 63mm
  • Fasten Clamps: 304 Stainless Steel (316 or plastic optional)
  • Thread Standard: DN20 and DN25 (customizable)
Specification & Technical Parameters

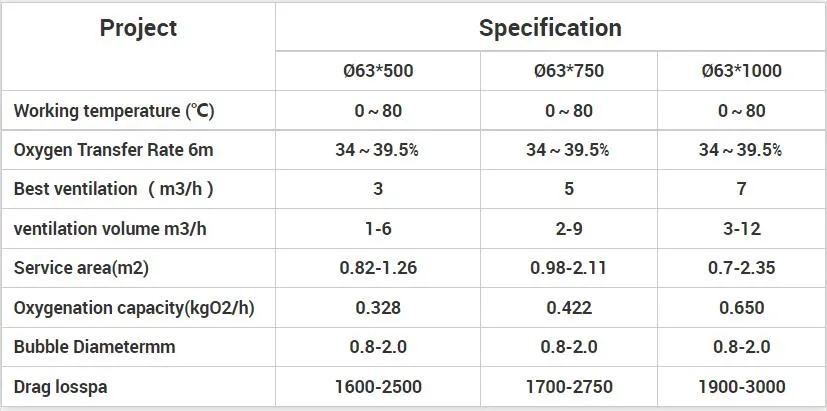

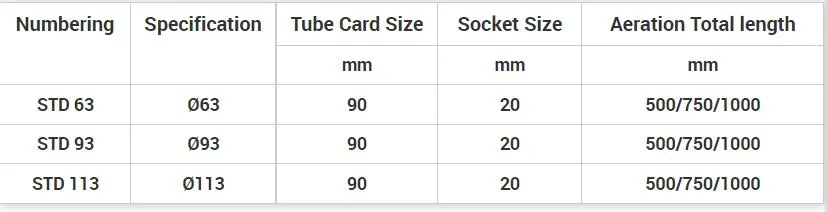

Specification Model Table Technical Parameters Table

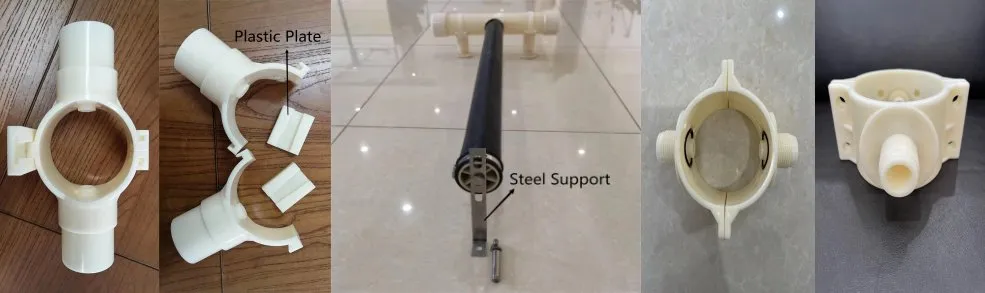

Connector Options
Connectors

Quick Connector (QC): Designed for fast connection and effective fastening of the tube diffuser.

Steel Connector (SC): Effectively reduces shedding and provides easy installation.

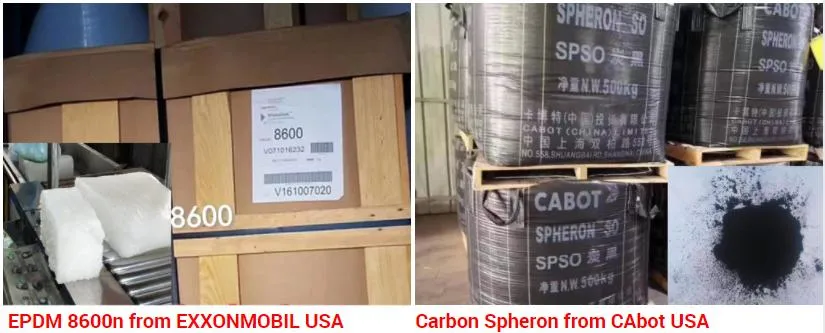

High Quality Materials

To ensure a long service life of 3 to 5 years longer than standard products, we utilize advanced formulas:

  1. High-quality EDPM 8600 imported from ExxonMobil.
  2. High-quality Carbon from Cabot in the USA.
Material Benefits

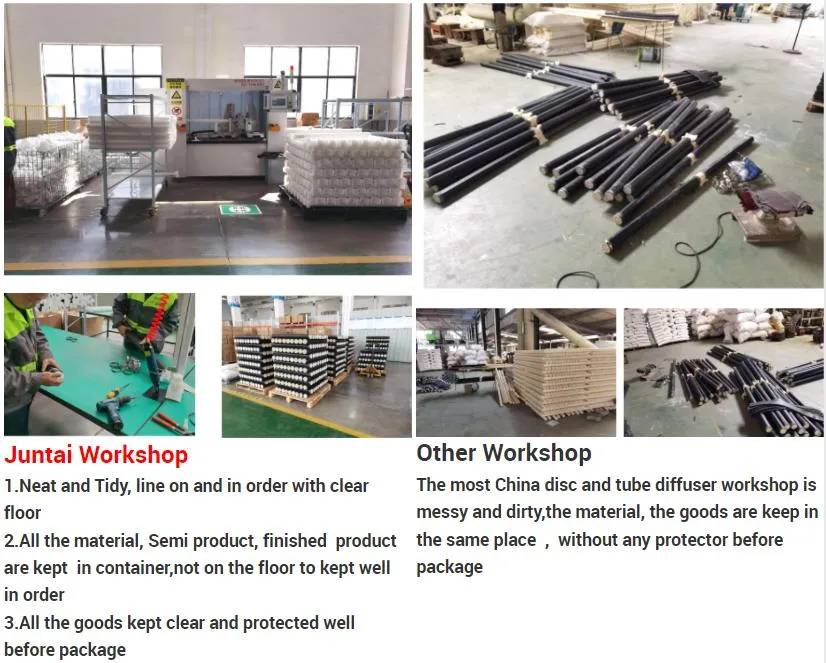

Quality Control & Workshop

Strict factory management ensures a neat and clear workshop where all materials and semi-finished products are safely stored.

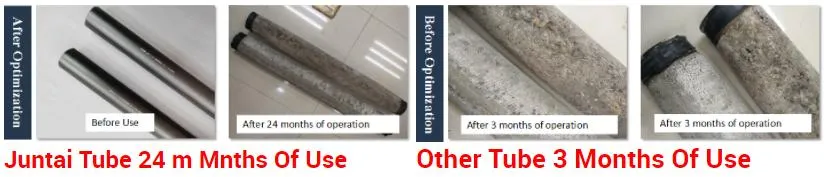

Workshop Quality
Factory Management
Frequently Asked Questions (FAQ)
What are the main applications for these tube diffusers?
They are ideal for municipal and industrial sewage treatment, as well as lake and river management and aquaculture aeration.
What materials are used for the aeration membranes?
The membranes are made from premium quality EPDM rubber, often imported from ExxonMobil or Lanxess Germany, featuring UV protection.
Can the support tubes be reused?
Yes, the support tubes (made of ABS or PP) are designed to be durable and can be reused even when the membranes need replacement.
What thread standards are available for connection?
The standard sizes are DN20 and DN25. Other specifications can be customized according to your specific needs.
What makes the EPDM formula superior?
The formula includes high-quality carbon and UV protectors, providing 3 to 5 years longer life, higher deformation resistance, and lower airflow resistance.
Is the quality of each unit consistent?
Yes, we implement strict quality control throughout the production process to ensure every tube diffuser meets the same high-performance standards.
