Advanced Hollow Fiber PVDF Membrane Solutions for Industrial Water Filtration Systems

📊 Basic Information

Model NO.

JHM MBRIII3A

Type

Membrane Bioreactor System

Method

Biological Treatment

Material

PVDF (Pet Lining)

Membrane Type

Reinforced Hollow Fiber

Certificates

ISO, SGS

Pore Size

0.03 - 0.1 µm

Feature

High Efficiency

🔍 Product Description

Membrane Bio-Reactor (MBR) is a cutting-edge technology that integrates membrane modules into traditional biological wastewater treatment. It is currently the most advanced and efficient water treatment technology, effectively replacing secondary sedimentation tanks to further remove organic matter, nitrogen, and phosphorus.

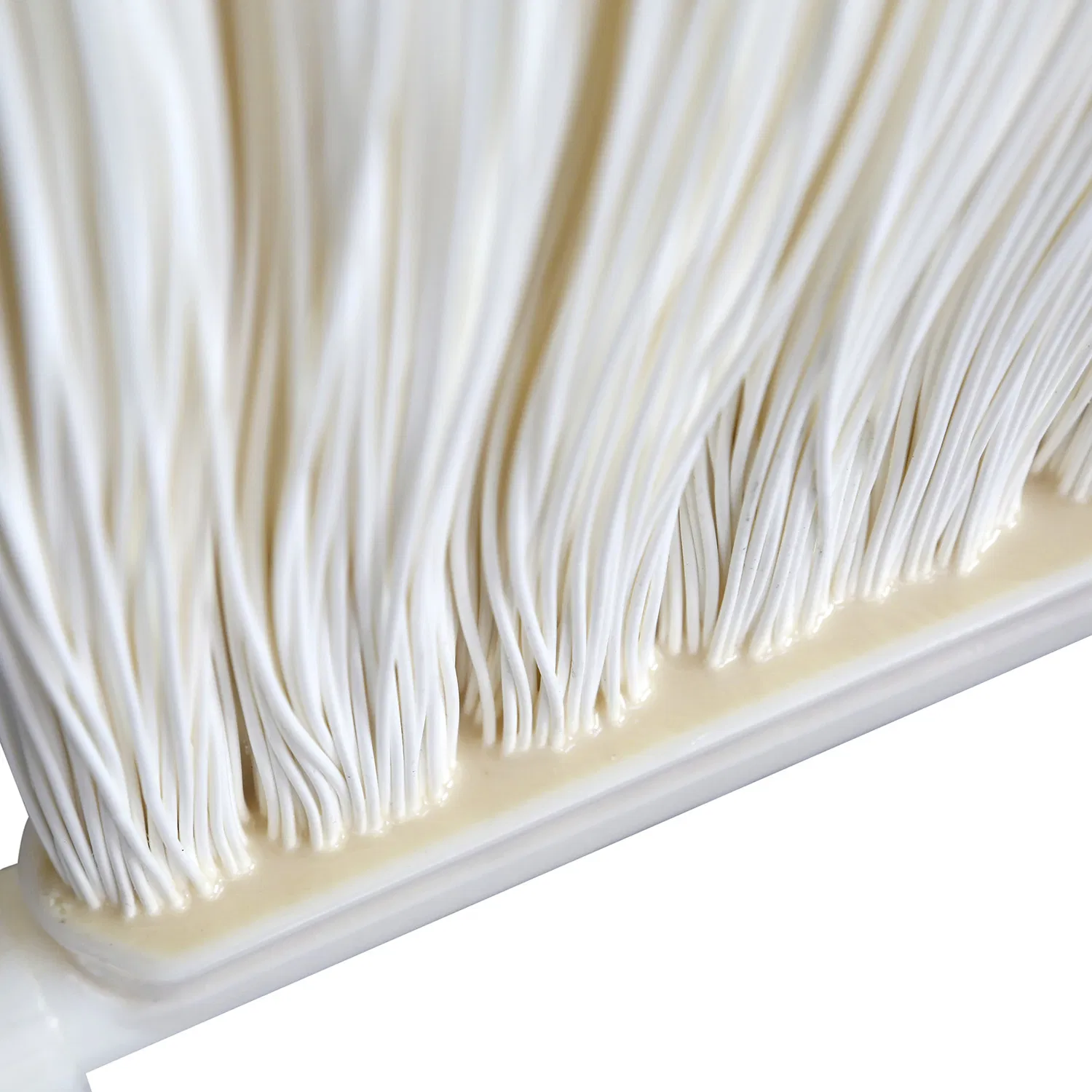

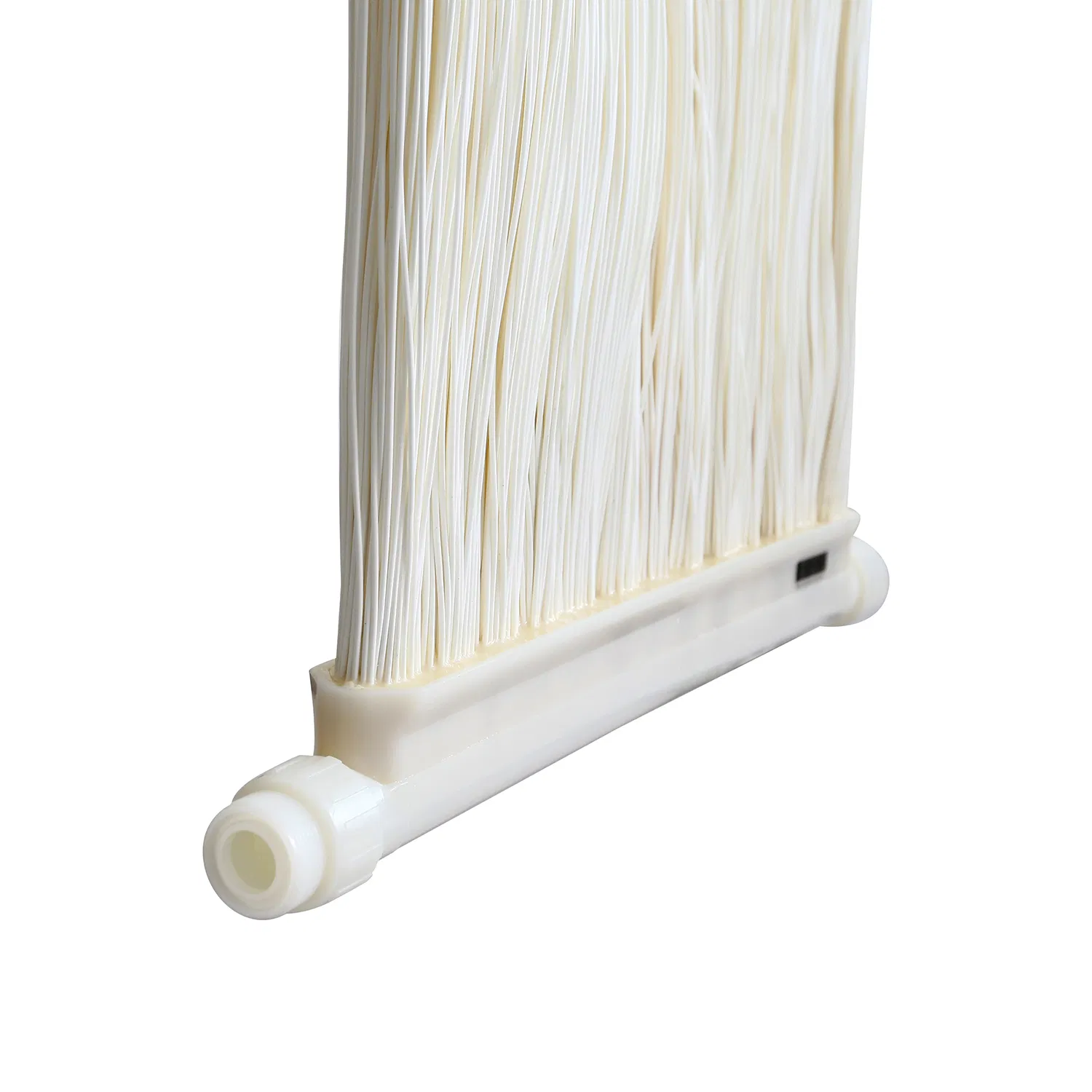

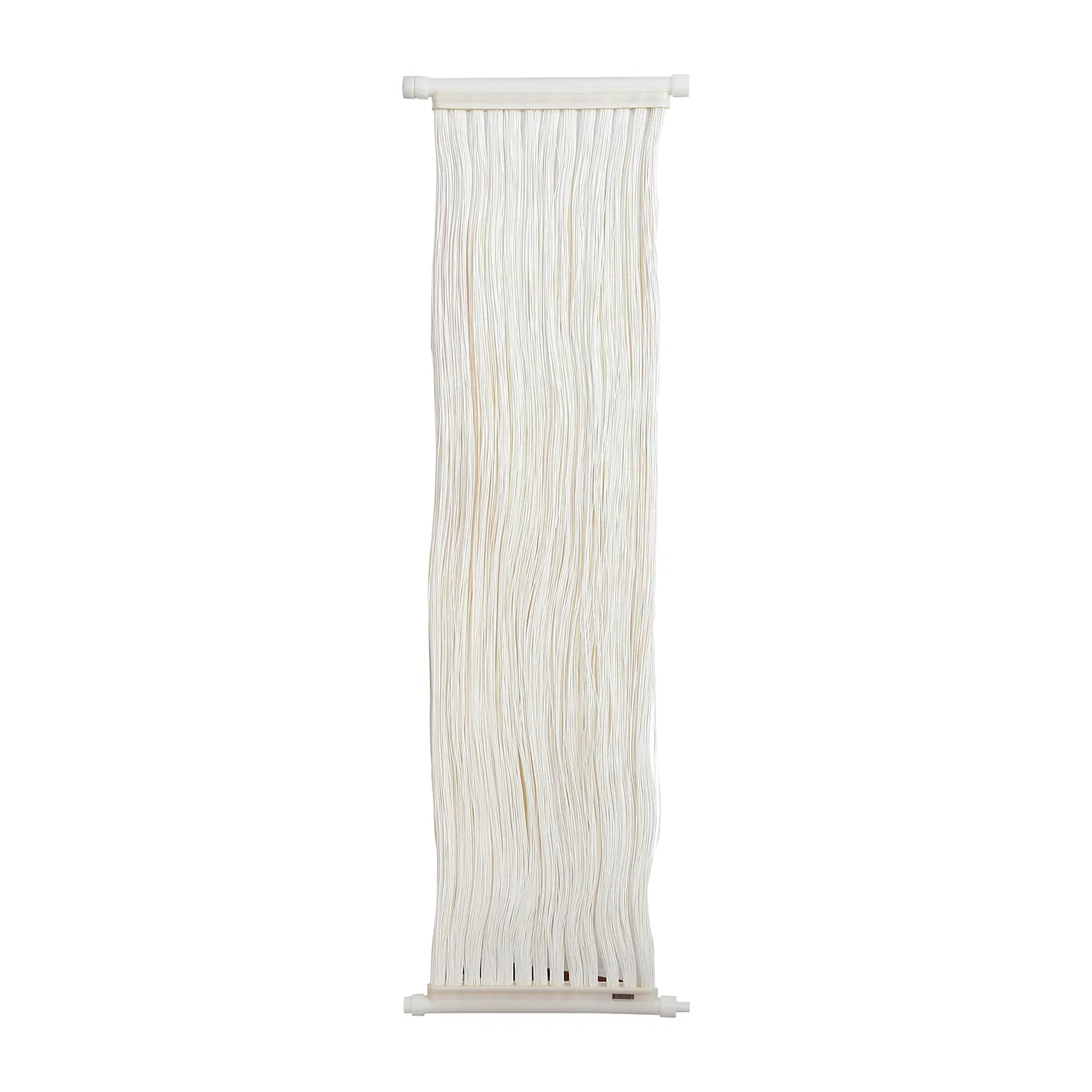

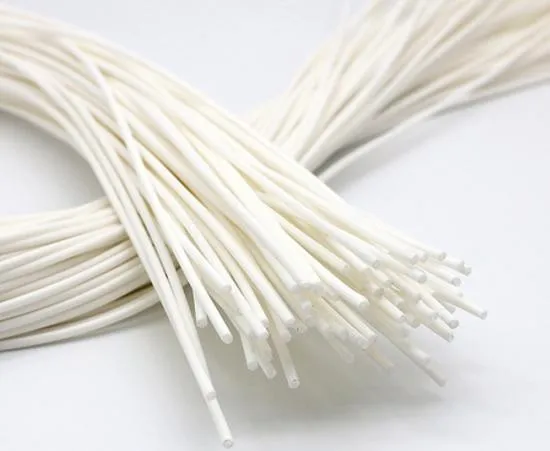

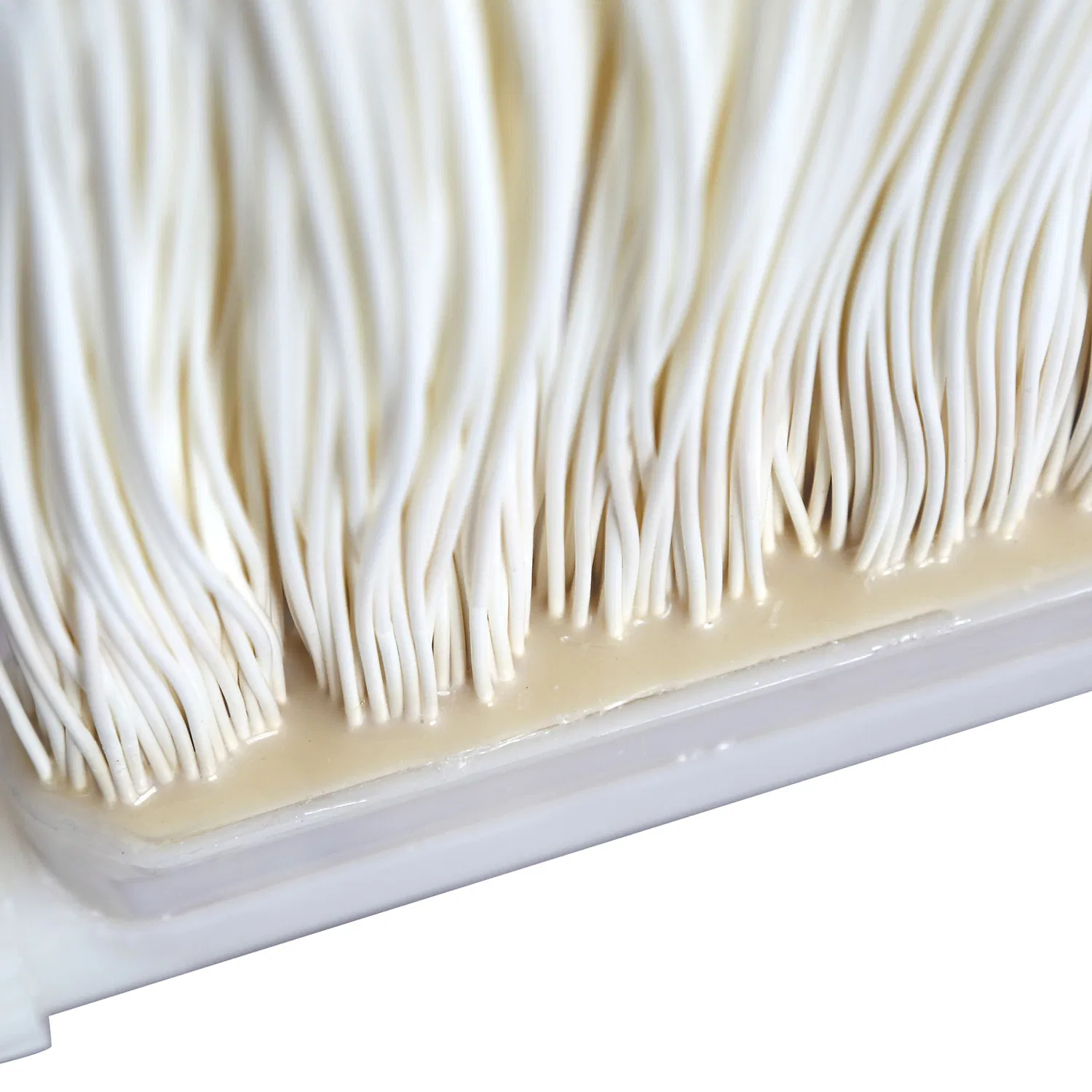

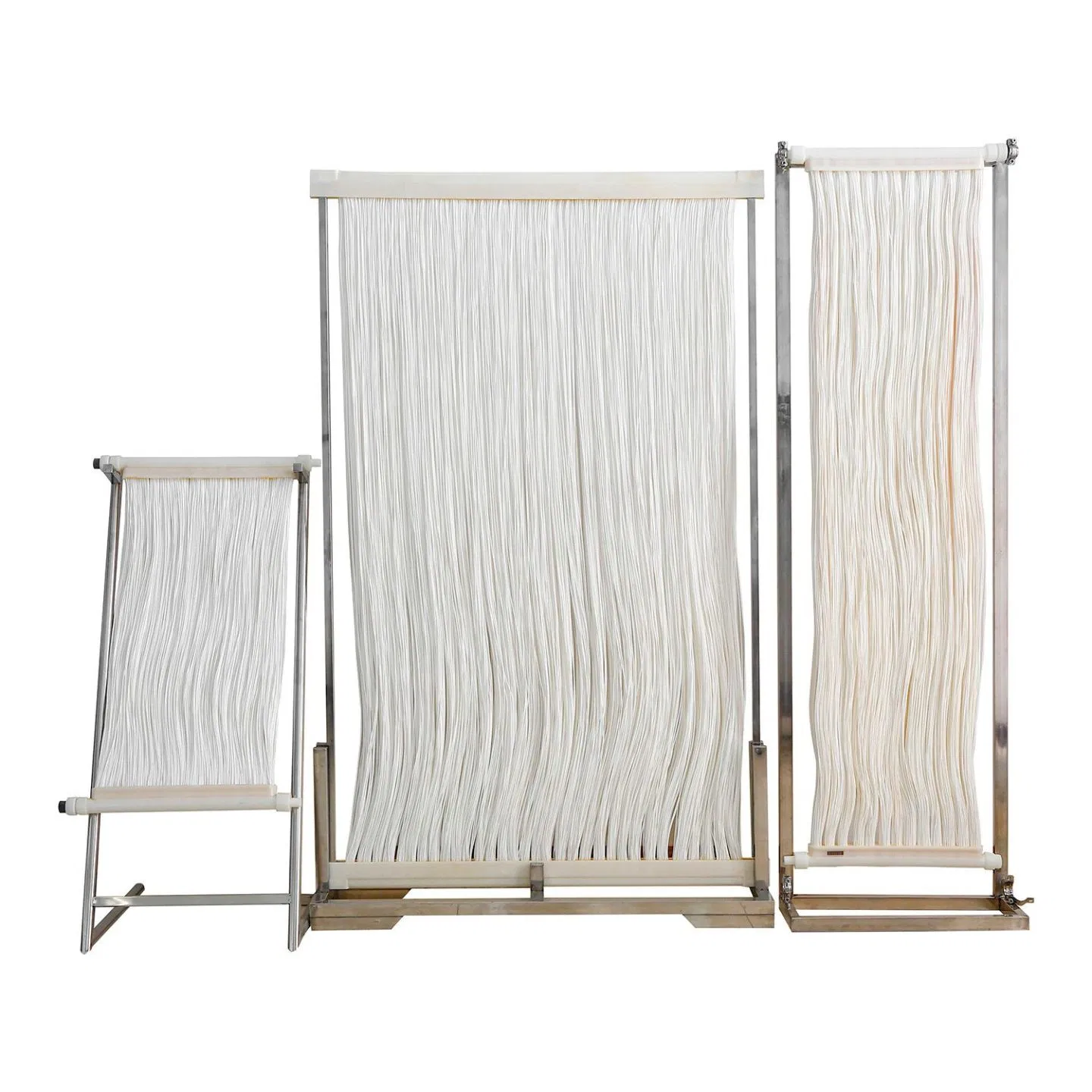

Our MBR modules are high-end systems developed using hollow fiber reinforced lining membranes. They are characterized by high mechanical strength, stable water quality, large flux, and long service life. This technology enhances bioreactor functions through membrane separation, effectively reducing COD, BOD, turbidity, and suspended solids.

⚙️ Technical Specifications

Model	Effective Area	Element Size (mm)	TMP (Mpa)	Flux (m³/d)	Connection
MBRIII3	3m²	60045040	0.02-0.05	0.03-0.06	Φ25
MBRIII6	6m²	60076040	0.02-0.05	0.06-0.12	Φ25
MBRIII10	10m²	630100036	0.02-0.05	0.1-0.2	Φ32
MBRI15	15m²	630150036	0.02-0.05	0.15-0.3	Φ32
MBRII20	20m²	630200036	0.02-0.05	0.2-0.4	Φ32
MBRIIIZ35	35m²	844219849	0.02-0.05	0.35-0.7	Φ32

🚀 Key Applications

Municipal wastewater advanced treatment and recycling
Landfills and compost leachate treatment
Urban sewage treatment for residential and hotels
Food, slaughterhouse, and brewery wastewater
Chemical and petrochemical wastewater treatment
Upgrading of existing biochemical sewage systems

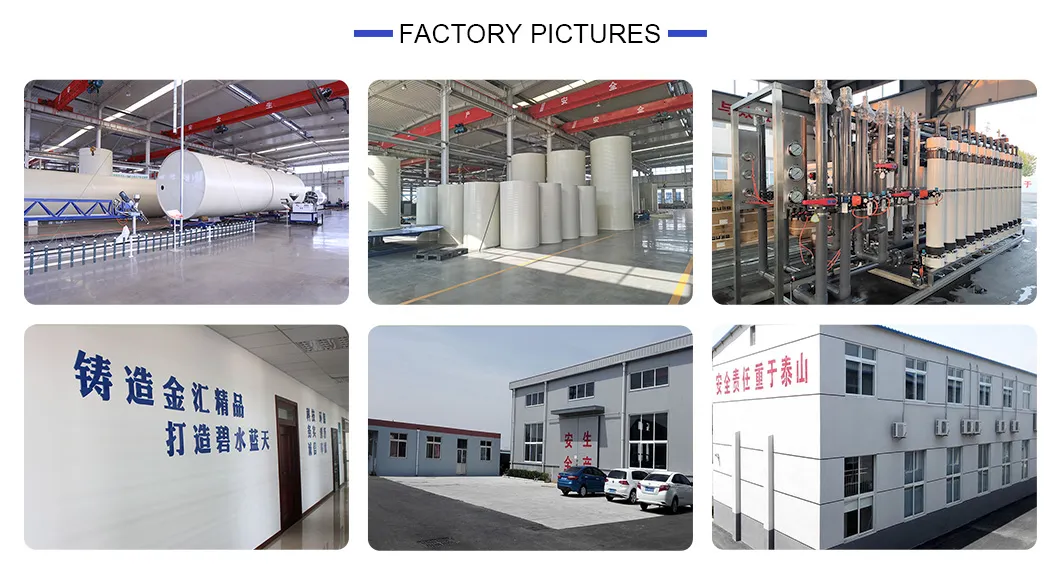

📸 Factory & Certifications

📦 Packaging & Shipping

❓ Frequently Asked Questions

What are the main advantages of your MBR membrane?

Our MBR features high mechanical strength, high flux, stable water quality output, and a long service life of over 5 years under normal usage.

Does this system require modifying existing pipes?

Generally, end users do not need to modify pipes or PLC systems to achieve the same flow rate and high-quality filtrate.

What is the filtration precision of the PVDF membrane?

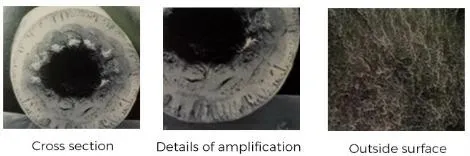

The membrane has an asymmetric structure with a filtering precision (pore size) ranging from 0.03 to 0.2 microns.

What kind of wastewater can be treated with this technology?

It is ideal for municipal sewage, landfill leachate, food processing wastewater, and industrial wastewater from chemical or textile plants.

What are the standard operating conditions for the membrane?

The system operates best at temperatures between 10-45℃, with a PH tolerance of 5-9 during operation and 2-10 during cleaning.

Do you provide customized solutions or OEM services?

Yes, we provide customization based on specific capacity requirements, feed water quality, and specific application needs, including private labeling.
