Product Description

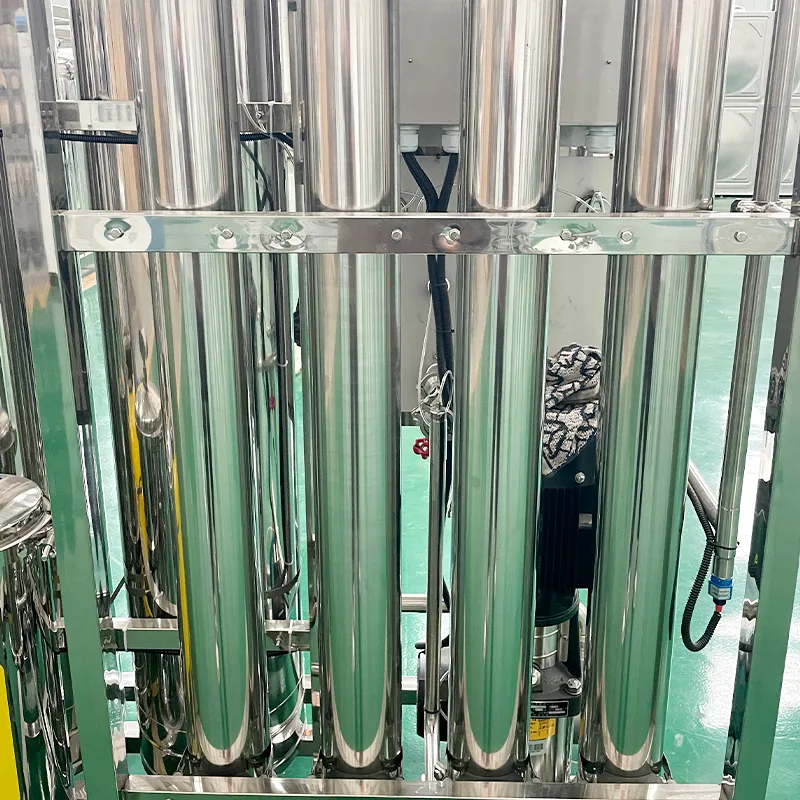

Reverse osmosis process uses semi permeable spiral wound membranes to separate and remove dissolved solids, organic, pyrogens, sub micron colloidal matter and bacteria from water. Feed water is delivered under a pressure of approximately 16 kg/cm2 through reverse osmosis membranes. Water permeates the minute pores of the membrane and is delivered as purified water. Impurities in the water are concentrated in the reject stream and flushed to drain. Reverse osmosis is capable of removing 90-99% of total dissolved solids (TDS), 99% of organic, including pyrogens, and 99% bacterial in the feed water.
Raw water Range: Brackish water TDS less than 20000ppm, ground/well water, city water, rains, river/lake water, or custom requirements.
Capacity Range: 500lph, 1000lph, 2000lph, 3000lph up to 50000lph.
Output Water Application: Drinking, irrigation, commercial bottled water, human consumption.

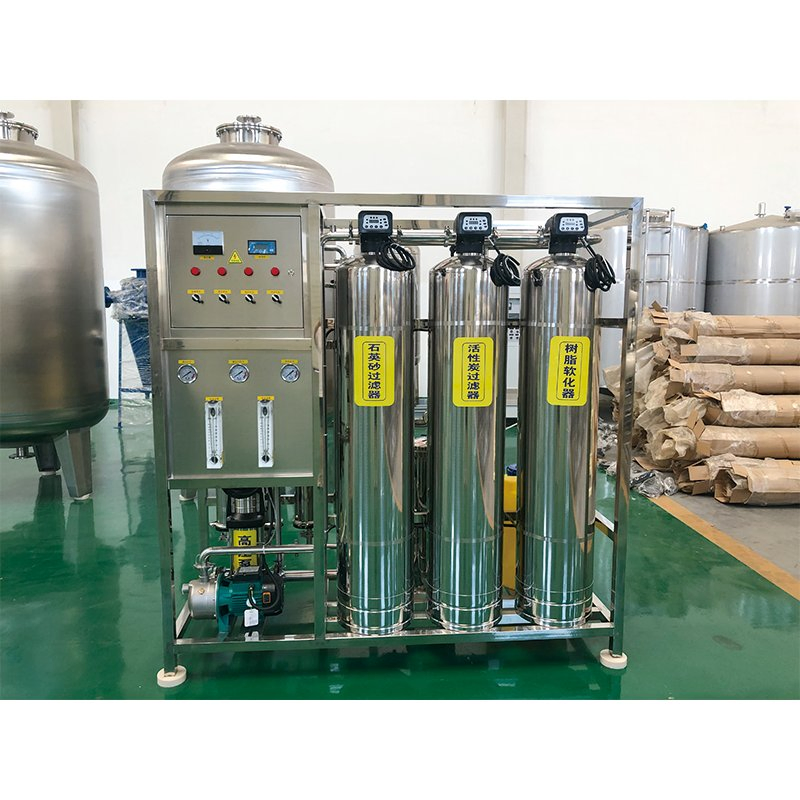

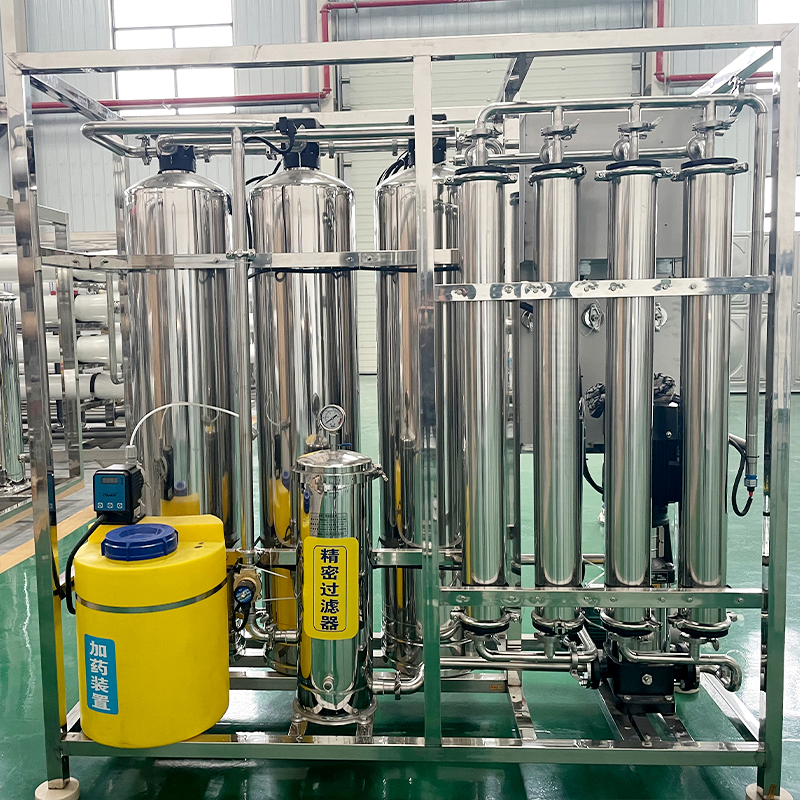

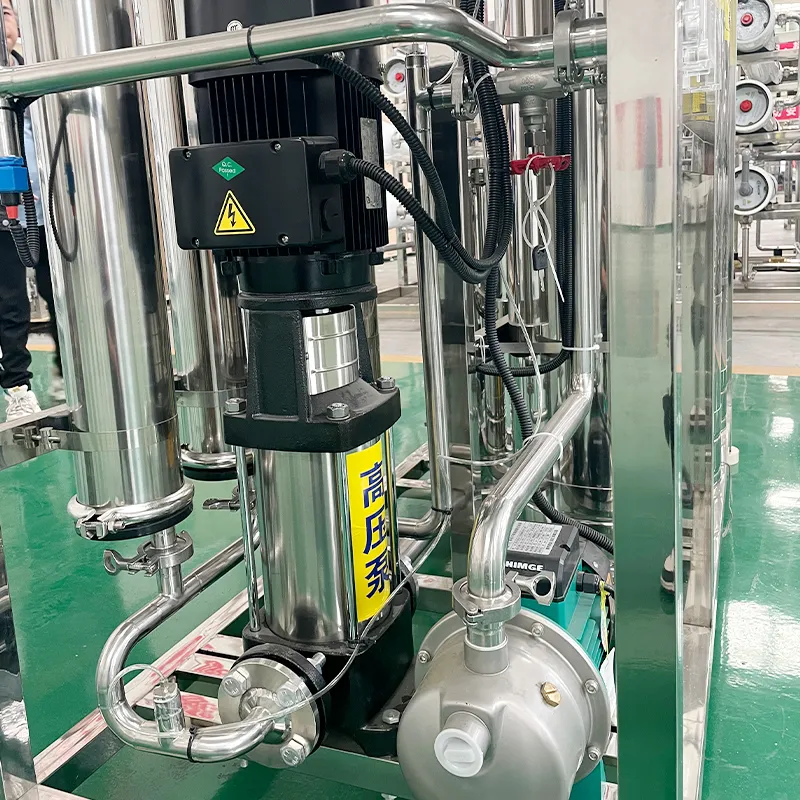

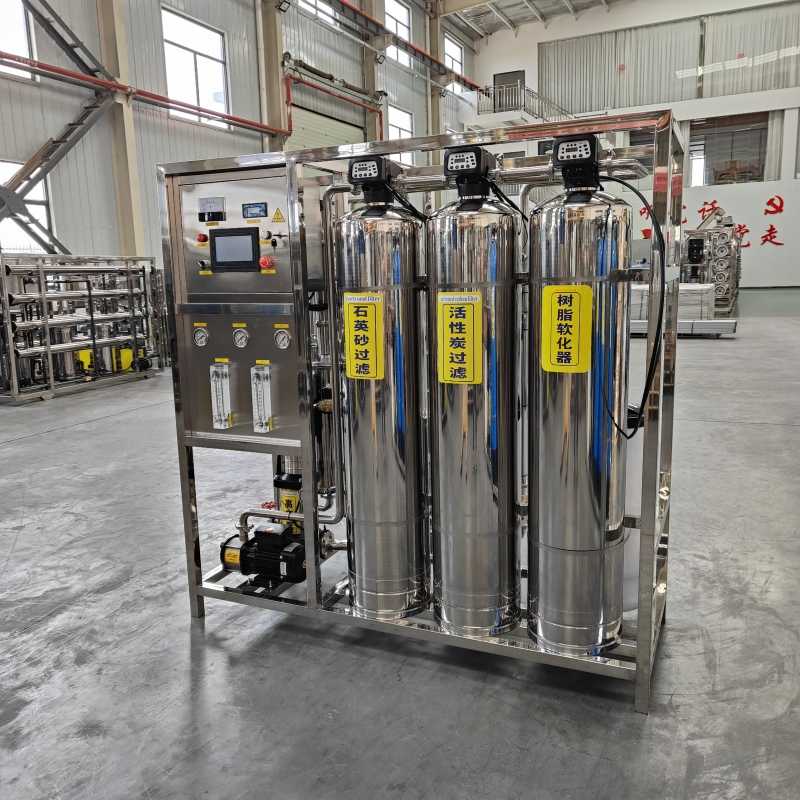

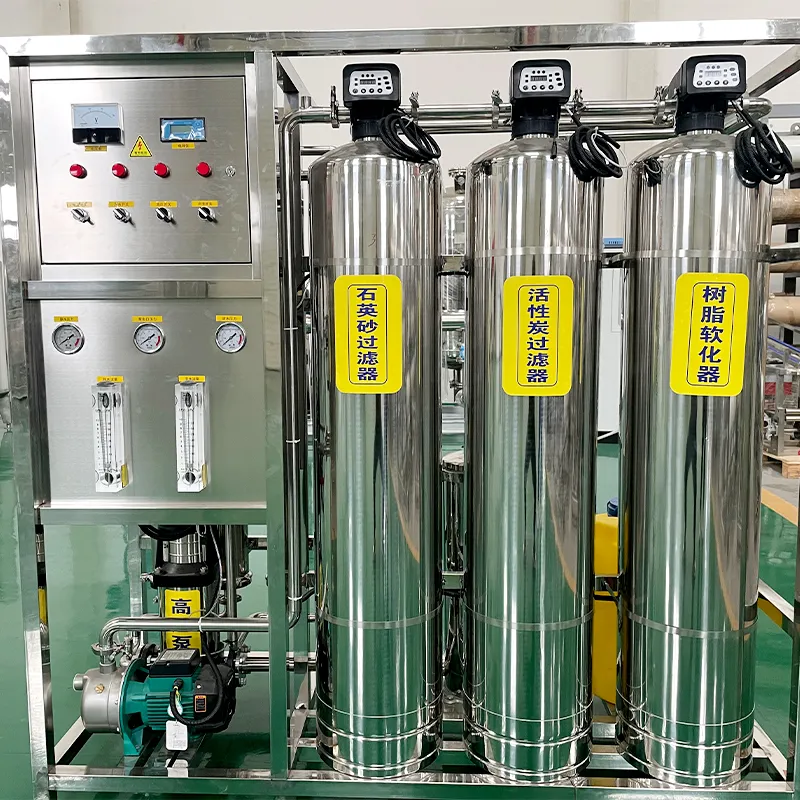

Raw water pump ➔ Sand filter ➔ Carbon filter ➔ Cartridge filter ➔ High pressure pump ➔ RO membrane host ➔ RO Cleaning system
| Model |
Capacity |
Inlet |
Effluent |
Blowdown |
Size (mm) |
Power |
| YSRO-0.5T | 0.5m³/h | DN20 | DN20 | DN15 | 1500×600×1500 | 1.3kw |
| YSRO-1T | 1m³/h | DN25 | DN25 | DN20 | 1700×600×1500 | 2.1kw |
| YSRO-2T | 2m³/h | DN32 | DN25 | DN20 | 2500×1000×1950 | 4.4kw |
| YSRO-3T | 3m³/h | DN40 | DN32 | DN25 | 2500×1200×2150 | 4.5kw |
| YSRO-5T | 5m³/h | DN50 | DN40 | DN32 | 2500×1350×2150 | 7.0kw |
| YSRO-8T | 8m³/h | DN50 | DN50 | DN40 | 3500×1500×2150 | 11kw |
| YSRO-10T | 10m³/h | DN50 | DN50 | DN40 | 3500×1600×2300 | 15kw |
❓
Frequently Asked Questions
Q: What is the purifying efficiency of this RO system?
A: The system is capable of removing 90-99% of Total Dissolved Solids (TDS), and 99% of organic substances, pyrogens, and bacteria.
Q: What types of raw water can be treated?
A: It can treat brackish water (TDS < 20000ppm), ground/well water, city water, rain, and river/lake water.
Q: What materials are used in the construction of the system?
A: The tanks and key structures are made of high-quality Stainless Steel for durability and hygiene.
Q: Is the system easy to operate?
A: Yes, the system features an Automatic control mode, ensuring efficient and simplified water purification processes.
Q: What is your production capacity for these units?
A: We have a professional production line capable of producing approximately 800 pieces per year.
Q: Do you offer customization or OEM services?
A: Yes, we provide ODM, OEM, and full customization services based on specific customer requirements for capacity and water quality.
