Global Industrial Automatic Sludge Treatment and Dewatering Solutions for Efficient Wastewater Management

Customization:	Available
After-sales Service:	1 Year
Warranty:	10 Years

🔹 Basic Information

Model NO.:YMDL-1

Type:Sludge Dewatering Machine

Method:Physical Treatment

Material:SS304

Control Type:Full Automatic

Sludge Flow:0.14m3/H-55m3/H

Moisture Content:70%-80%

Application:Industrial, Agriculture, Hospital, Food

⚙️ Product Description

Working Principle

Thickening: When the shaft is driven by the screw, moving rings move up and down relatively. Water is pressed out from the thickening zone by gravity.

Dewatering: Thickened sludge moves towards the dewatering zone. As the screw pitch narrows, pressure increases, combined with the back-pressure plate to produce dry cakes.

Self-cleaning: Rotating moving rings continuously clean gaps between rings, preventing the clogging common in traditional equipment.

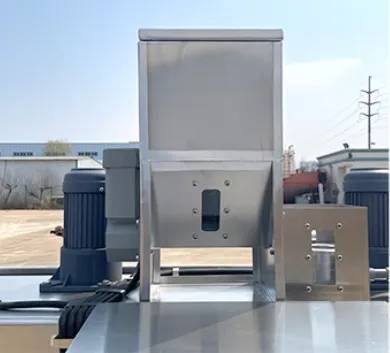

SLUDGE TRANSFER PUMP

Transporting sludge from the storage tank to the metering tank via high-efficiency conveying pumps.

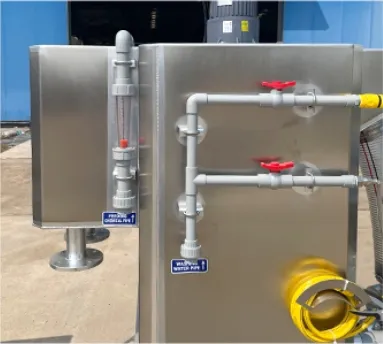

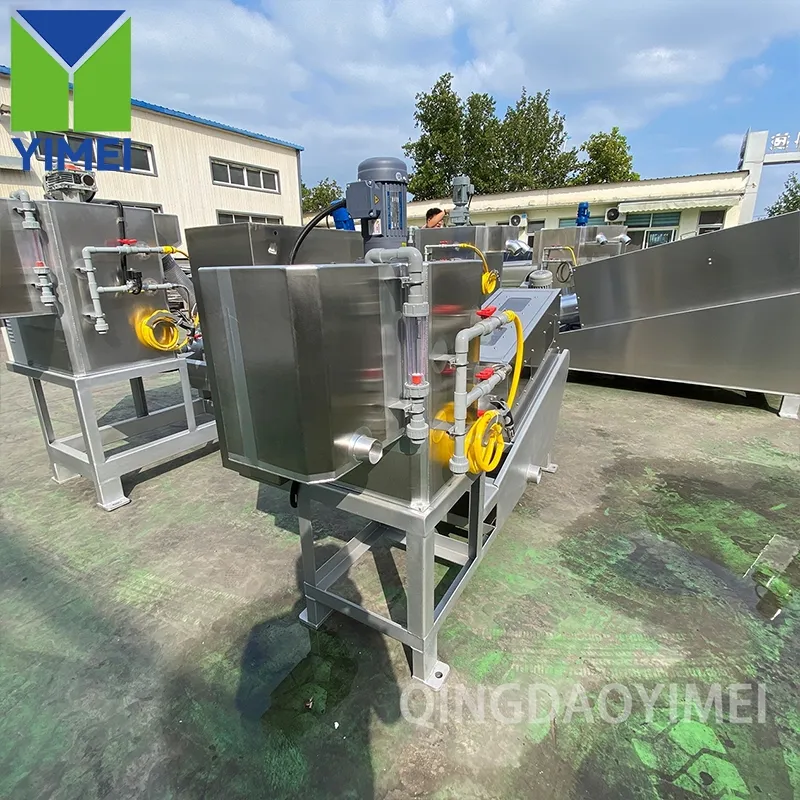

FLOCCULATION MIXING TANK

Precisely metering sludge while returning excess to storage to maintain optimal processing levels.

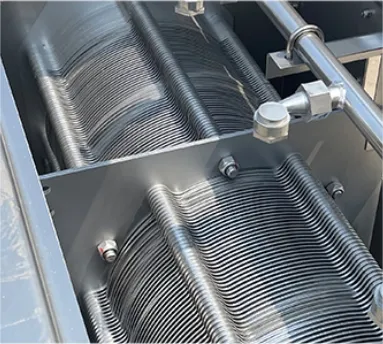

SCREW CONCENTRATION PART

Utilizes changing screw diameter and pitch to create strong extrusion pressure for dehydration.

📊 Technical Parameters

Model	DS Capacity	2000mg/L	10000mg/L	25000mg/L	50000mg/L
YMDL131	6-15kg/h	1.5-3.0m³/h	0.8-1.0m³/h	0.3-0.4m³/h	0.2-0.3m³/h
YMDL132	12-30kg/h	6.0m³/h	2.0m³/h	0.8m³/h	0.5m³/h
YMDL202	18-40kg/h	9.0m³/h	3.0m³/h	1.2m³/h	0.9m³/h
YMDL301	30-75kg/h	15m³/h	5.0m³/h	2.0m³/h	1.5m³/h
YMDL402	80-400kg/h	40m³/h	16m³/h	10m³/h	8m³/h

🏢 Professional Capabilities

We are a professional supplier of containerized sewage treatment equipment, dissolved air flotation machines, and sludge dewatering screw presses. With a focus on product development, quality control, and international standards, our solutions are designed for reliability and efficiency. We offer ODM/OEM customization and 3D design services to meet specific industrial concepts.

🌍 Global Presence & Exhibition

❓ Frequently Asked Questions

1. How long is the warranty period for the dewatering machine?

The warranty period for our products is 12 months from the date of arrival at the destination. We provide professional after-sales support.

2. What sludge concentrations can this equipment handle?

Our equipment features a special pre-concentrating device that handles a wide range of feed solids concentrations from 2000mg/L to 50000mg/L.

3. How do you ensure the quality of the products?

All products undergo strict quality inspection and testing before shipment. We are ISO 9001 certified and our products carry CE certification.

4. What materials are used in the construction?

The main body and key components of the sludge dewatering machine are constructed from high-quality SS304 stainless steel for durability and corrosion resistance.

5. Does the machine require manual cleaning?

No, the machine features a self-cleaning mechanism where moving rings rotate continuously to prevent clogging, which is a common issue in traditional equipment.

6. Can the control system be customized?

Yes, we provide both full automatic and self-automatic control types, and electrical components can be customized (e.g., Omron) according to your requirements.
