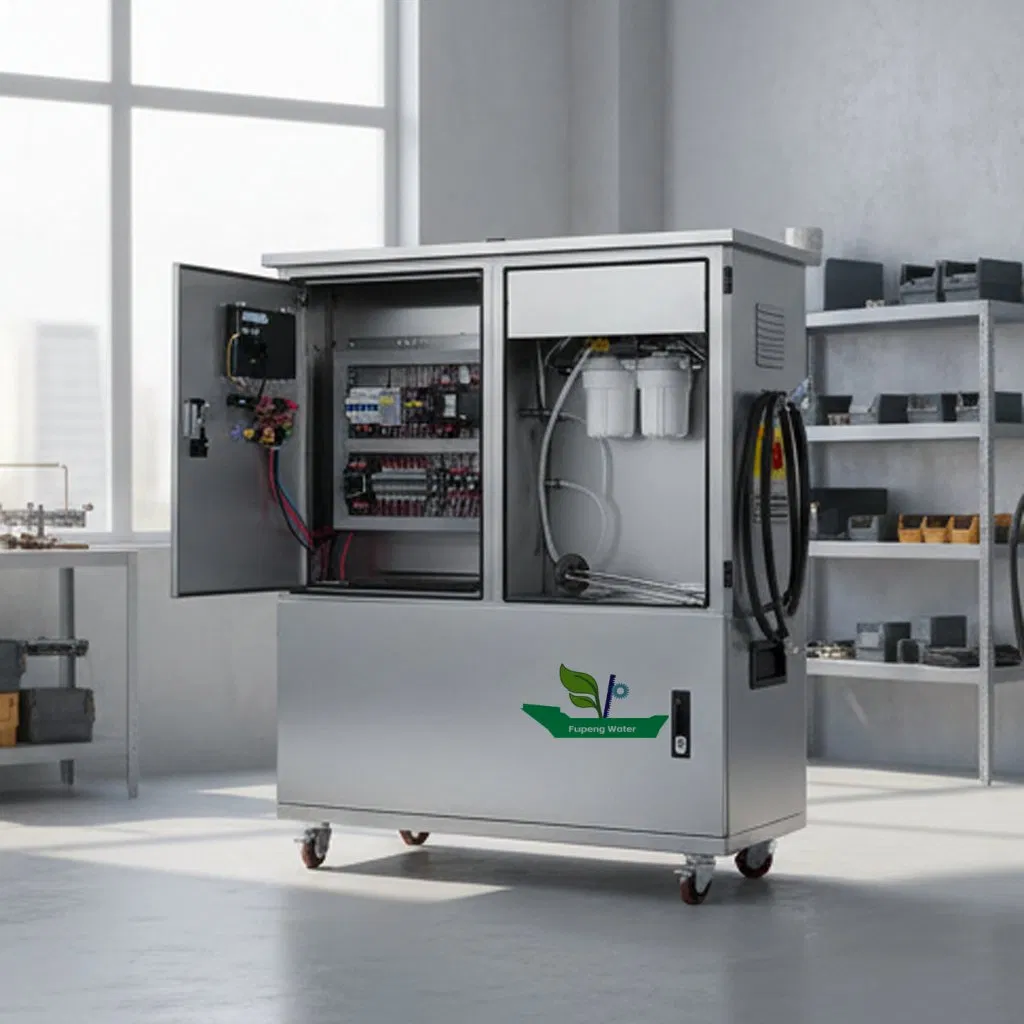

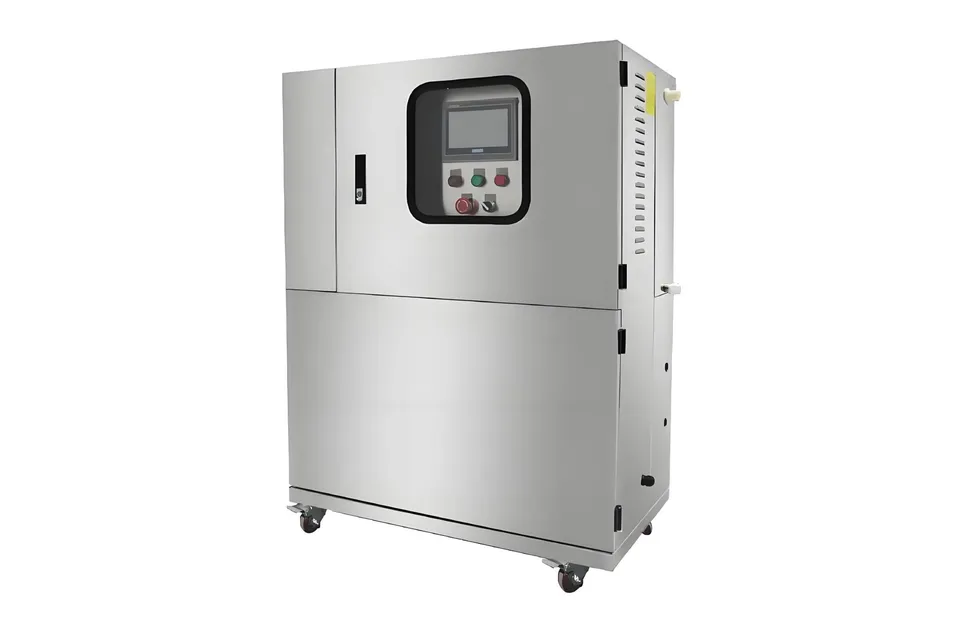

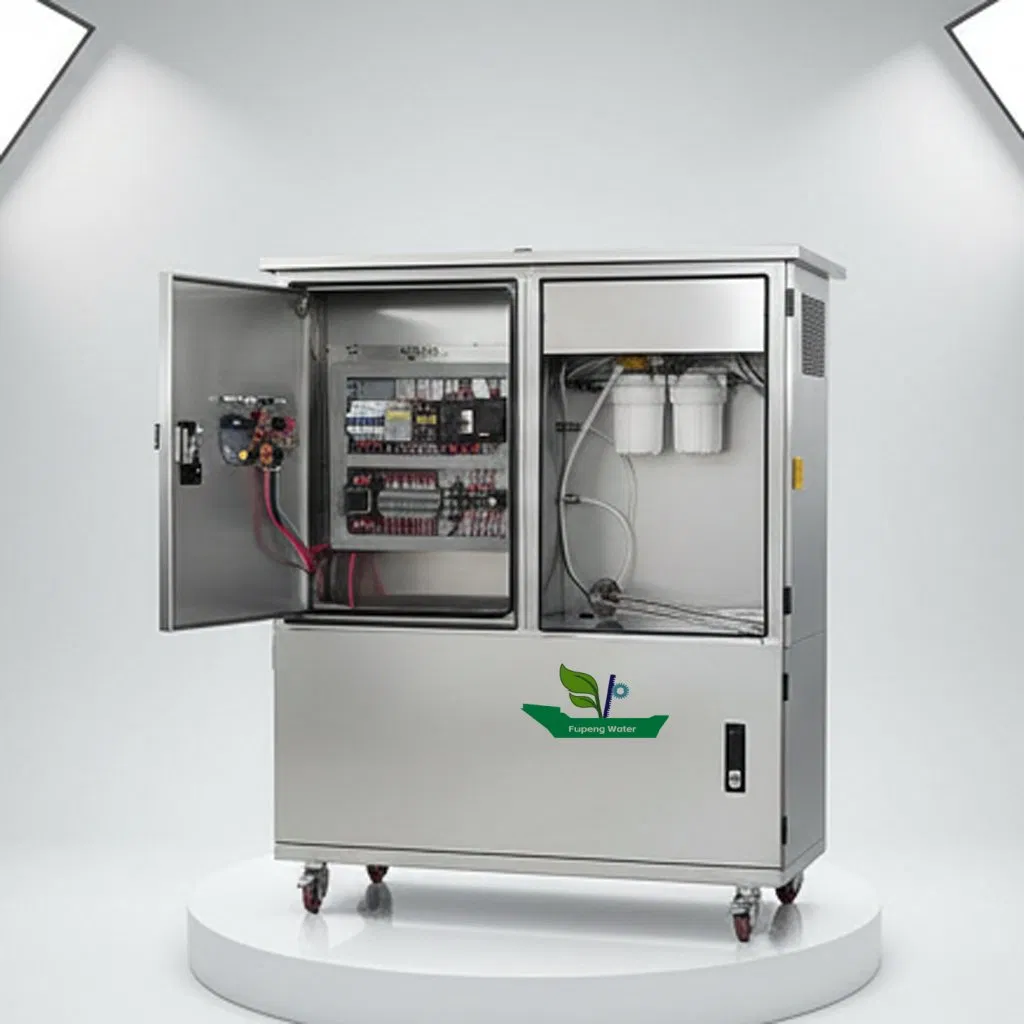

Odor-Specific Biological Treatment System for Sewage and Wastewater Plants

1 / 5

Odor-Specific Biological Treatment System for Sewage and Wastewater Plants

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.

THY-EQ2000 - THY-EQ120000

Certification

Dielectric Material

Enamel Tube

Cooling Method

Air-Cooling

Gas Source

Air

Frequency

>1000Hz

Installation

Portable / Stationary

Type

Electrolytic Type

Deodorization Rate

Up to 99.6%

Max Air Quantity

160,000 m³/H

Ambient Temp

-30℃ to 95℃

HS Code

8421299090

Biological Deodorization System

Our biological deodorization system integrates cutting-edge technologies to address major pollutants such as volatile organic compounds (VOCs), inorganic compounds, hydrogen sulfide, ammonia, and mercaptans. By combining high-temperature oxidation, photocatalytic decomposition, and biological decomposition, deodorization efficiencies can reach over 99.6%, significantly exceeding standard emission requirements.

High Adaptability Handles high concentrations and large volumes of diverse odorous gases stably 24/7.

Low Operating Cost No high-power requirements or frequent daily maintenance. No specialized personnel needed.

Tough Environment Ready Operates in temperatures from -30°C to 95°C and humidity levels from 30% to 98%.

Compact Design Small footprint and light weight, suitable for sites with limited space up to 160,000 m³/h.

Technical Parameter Details

S/N	Model	Dimensions (mm)	Ventilation Outlet (mm)	Power/Voltage	Wind Resistance (pa)
1	THY-EQ2000	850×500×670	450×400	1.28kw/220V	<100
2	THY-EQ6000	1000×1060×1200	950×750	1.6kw/380V	<100
3	THY-EQ10000	1000×1060×1200	950×750	2.4kw/380V	<100
4	THY-EQ15000	1600×1060×1200	950×750	3.2kw/380V	<100
5	THY-EQ20000	1600×1060×1200	950×750	4.8kw/380V	<100
6	THY-EQ30000	1600×1060×1200	950×750	6.4kw/380V	<100
7	THY-EQ40000	1160×1060×1800	800×400	9.6kw/380V	<100
8	THY-EQ60000	1560×1900×2280	1400×700	20.2kw/380V	<100
9	THY-EQ100000	3200×2200×1950	1600×1600	30.8kw/380V	<100
10	THY-EQ120000	4400×2200×1950	1600×1600	41kw/380V	<100

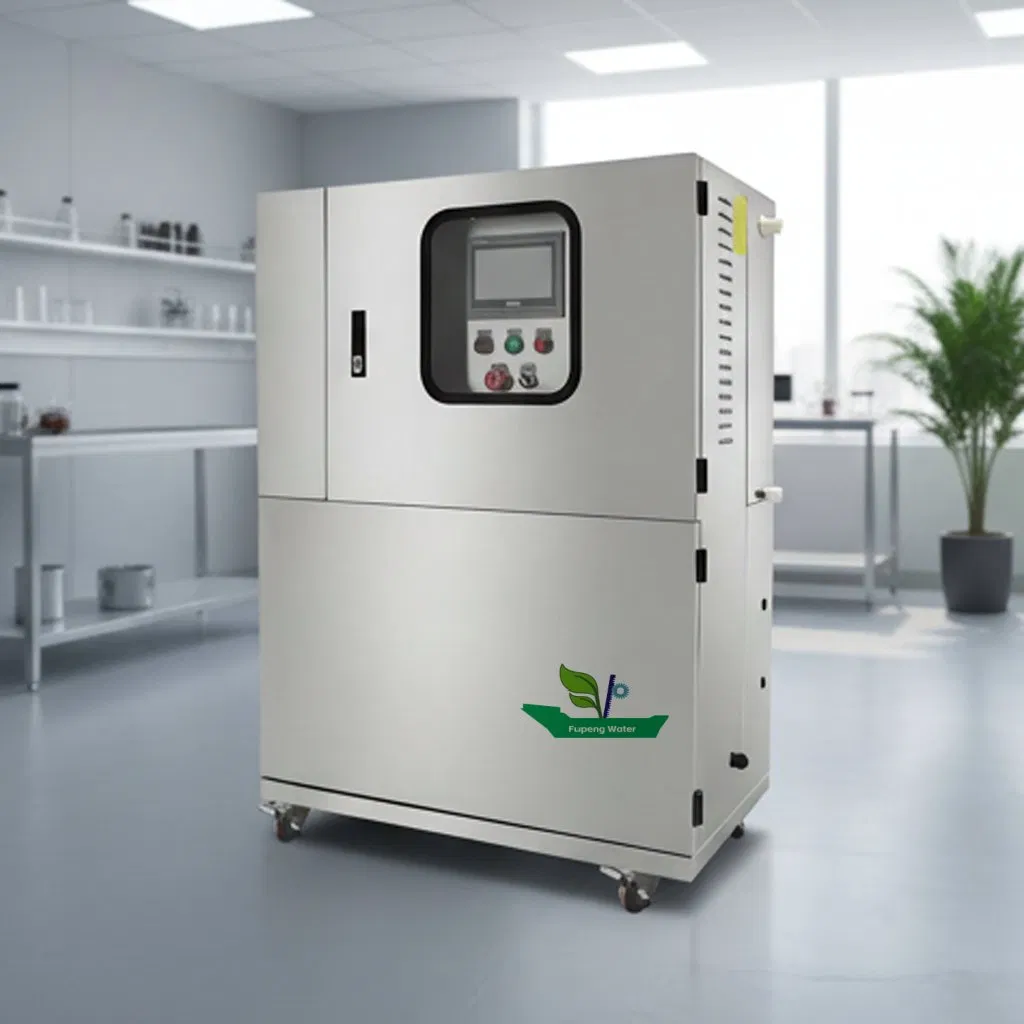

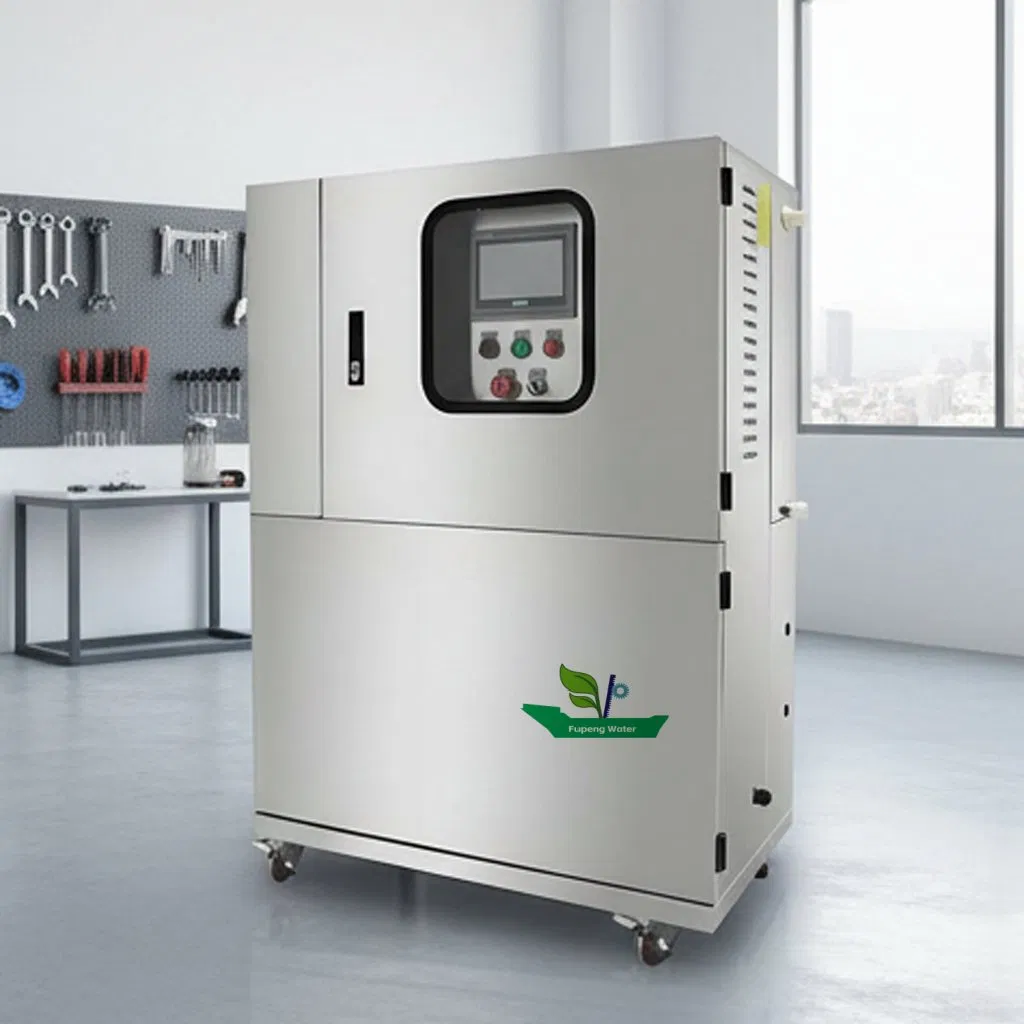

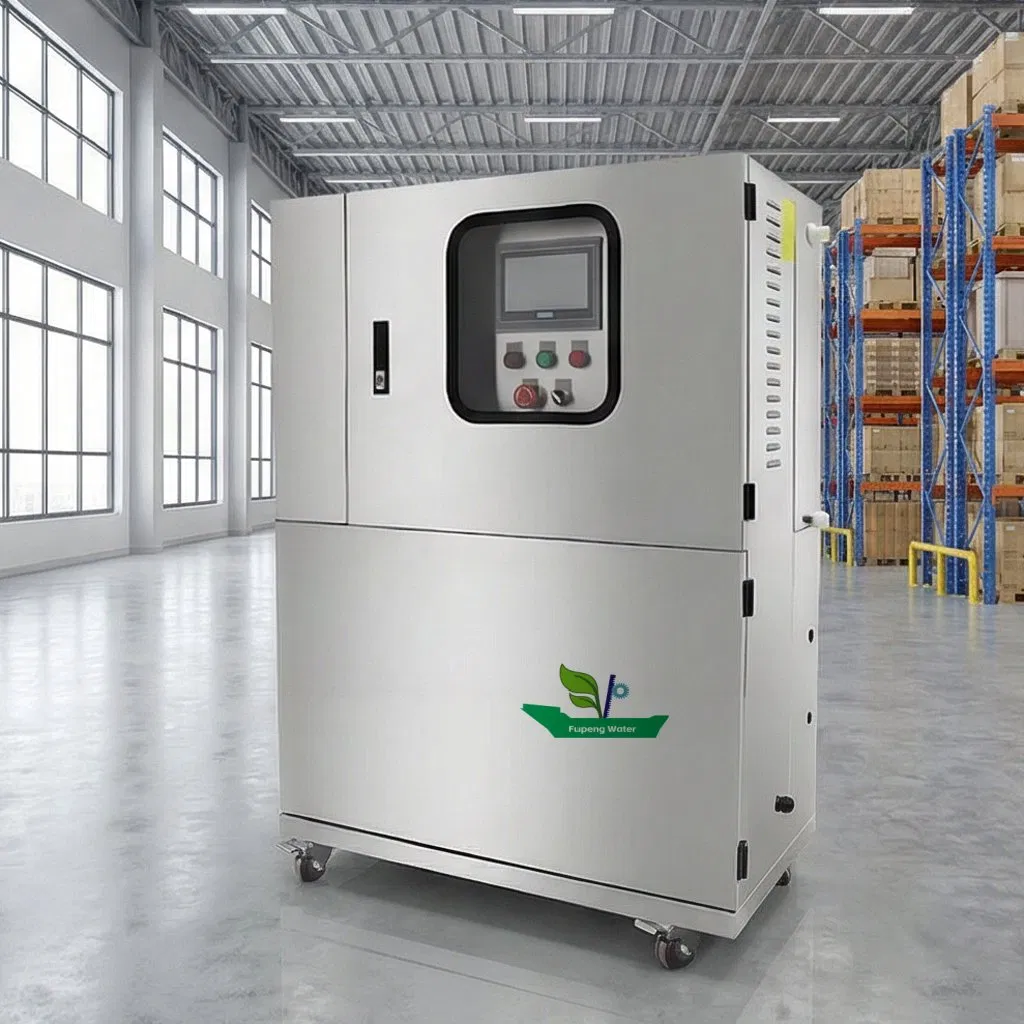

Equipment Showcase

Frequently Asked Questions

1. Are you a manufacturer or a trading company?

We are a factory with rich experience in water treatment engineering. We can arrange video factory inspections for our customers to view our production capabilities.

2. How do I choose the right model for my needs?

Please provide your daily water treatment volume, the source of sewage (domestic or industrial), the number of users, and your local discharge standards. Our experts will recommend the optimal machine.

3. What is the expected deodorization efficiency?

Our biological deodorization system can achieve a removal rate of over 99.6% for various odorous compounds, meeting and exceeding national environmental standards.

4. How is the equipment installed and operated?

Main units are pre-installed. For minor components, we provide detailed training videos and manuals. Approximately 95% of our customers successfully complete the setup independently.

5. What is the warranty period and after-sales support?

We provide an 18-month warranty following installation. Our technical team responds within 24 hours to assist with any operational issues.

6. Does the gas require pretreatment before entering the machine?

No special pretreatment like heating or humidification is usually required. The equipment operates normally in high humidity (up to 98%) and extreme temperatures (-30°C to 95°C).
