Product Overview
High-Tech Automatic Dosing System designed for industrial oil purification and chemical manufacturing plants. This system integrates high-precision motor pumps and gear units to ensure stable performance in demanding environments.

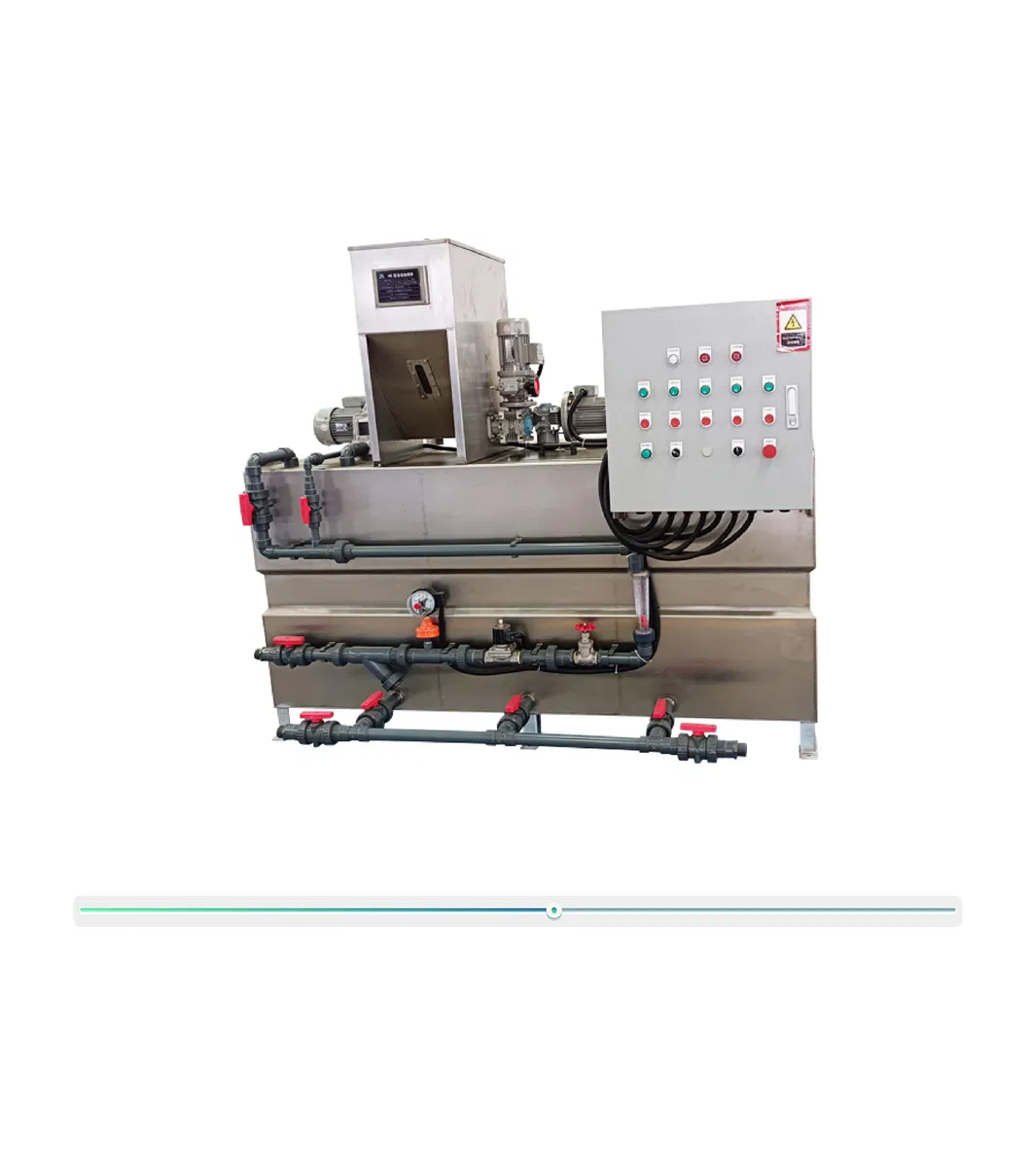

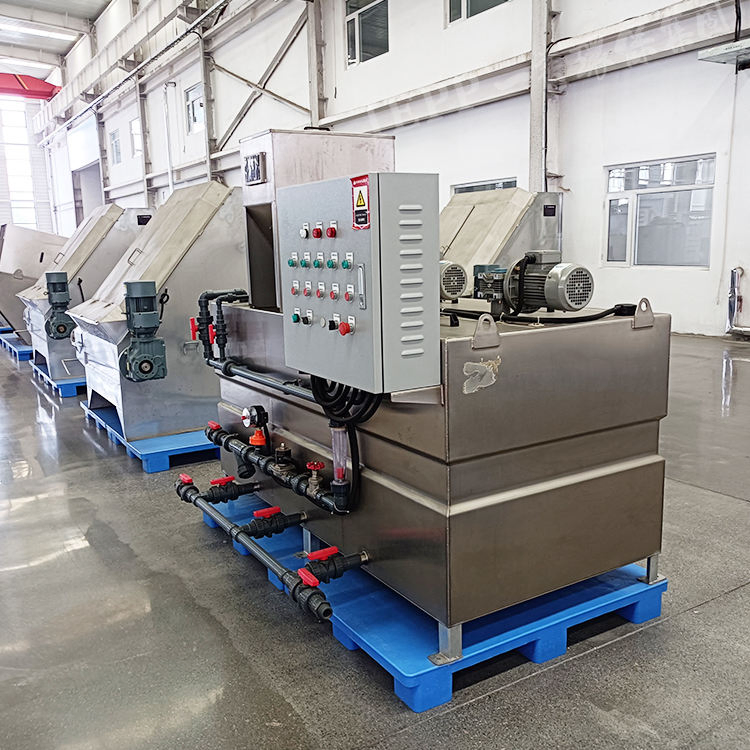

The Automatic Polymer Preparation System provides a complete range of polymer batching and metering solutions. These units automatically prepare polymer solutions used as coagulants for suspended particle removal in wastewater treatment, oil recovery, paper production, and mineral processing.

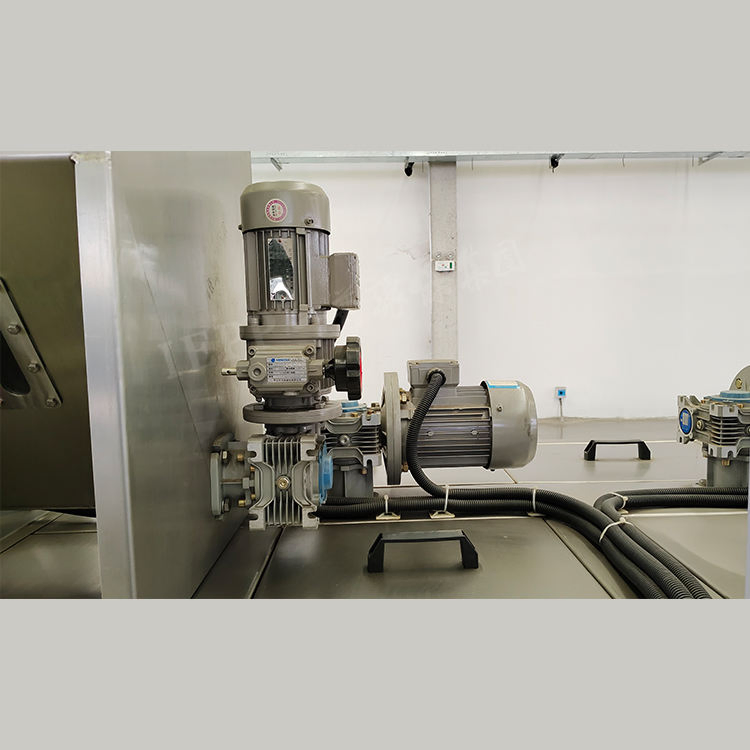

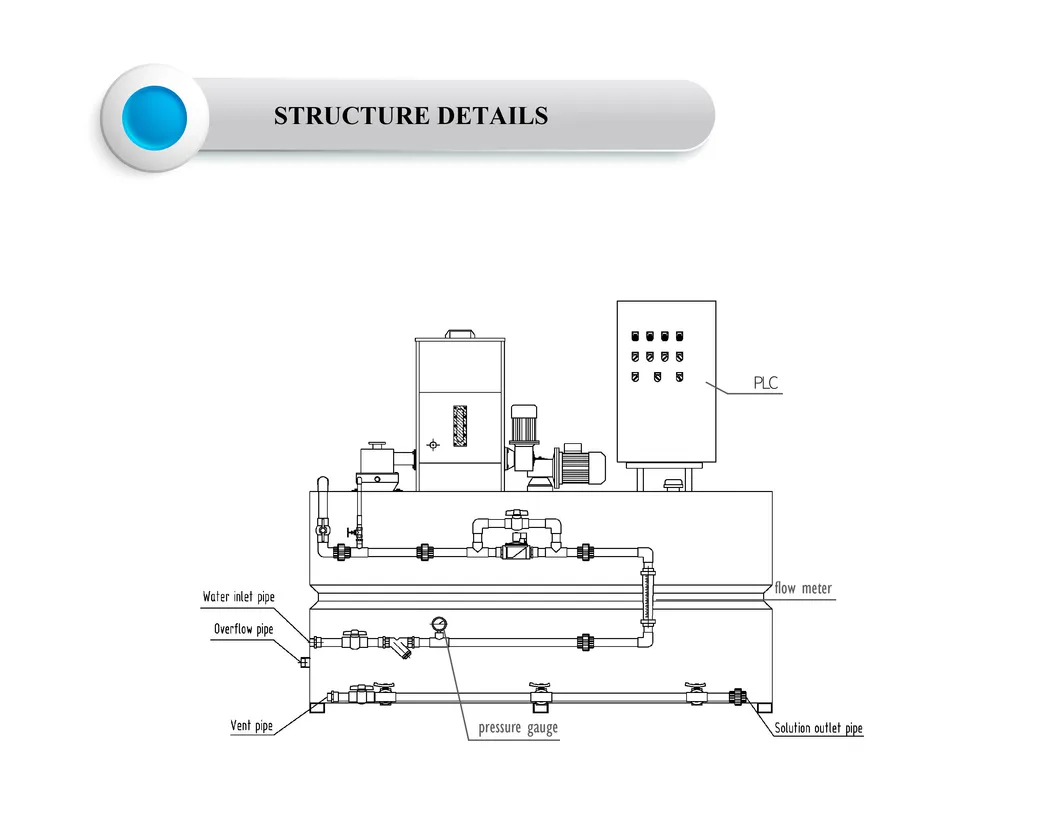

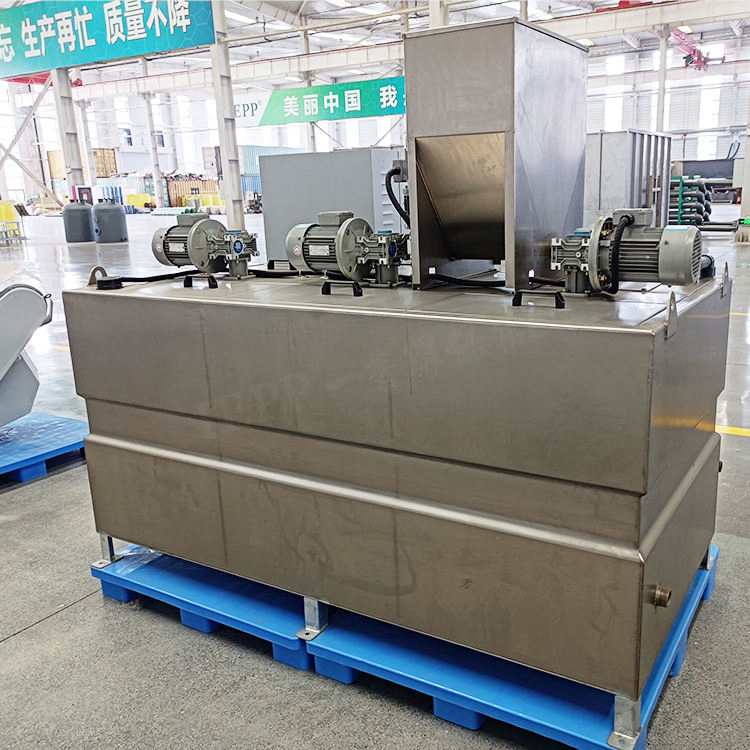

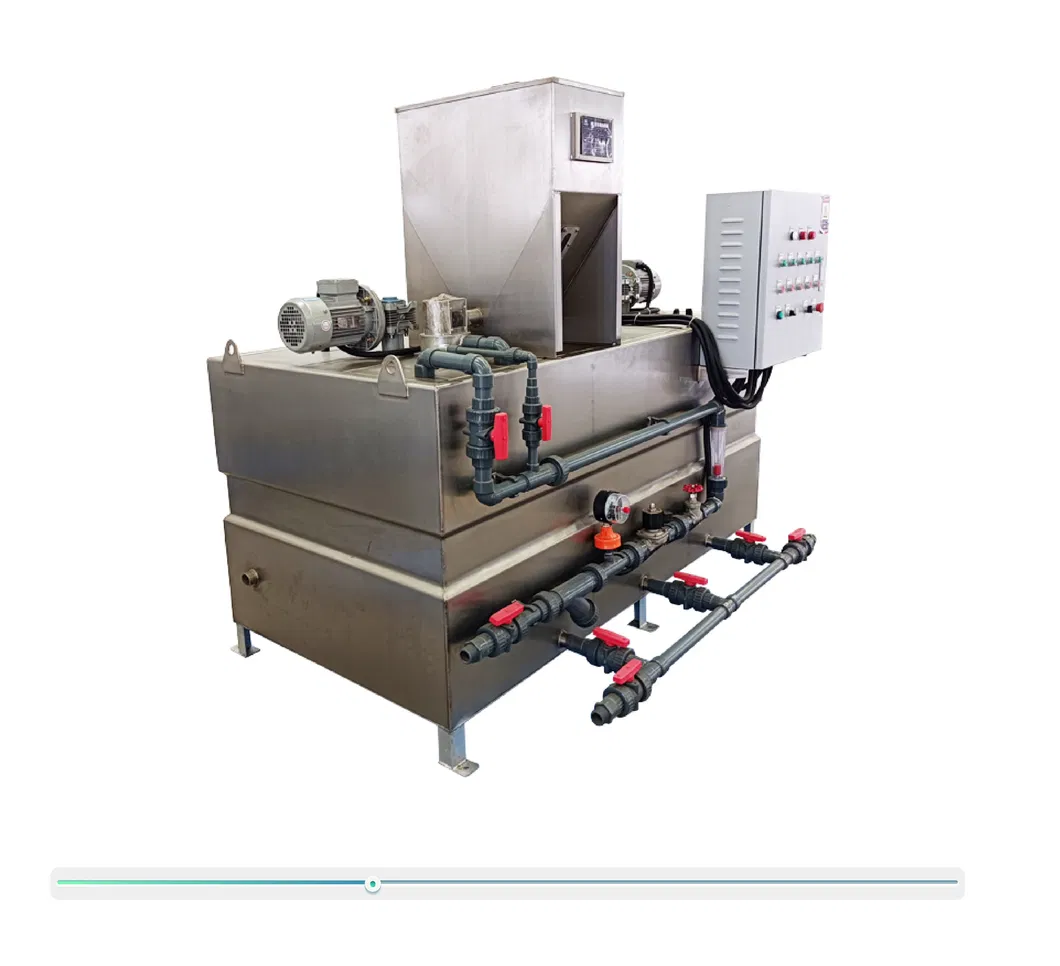

The polymer dosing device consists of a hopper, push screw, and electric heater. The effective volume of the hopper supports long-term dosage operations, monitored by dry powder level meters. The high-precision reducer drives the push screw to maintain consistent dosage, while the electric heater prevents powder caking in the discharge pipe.
Dissolving & Storage System
The dissolving device includes a pre-soaking unit, a three-stage tank system, and three sets of mixers. The tanks are divided into a precast mixing tank, a homogeneous slaking tank, and a solution storage tank to guarantee solution homogeneity.
Frequently Asked Questions
Q1: What information is needed for a system quotation?
Please provide the source, characteristics, and flow rate of the target wastewater, as well as the available installation area.
Q2: How does the system prevent chemical powder from caking?
The system is equipped with an integrated electric heater in the discharge pipe of the push screw to maintain optimal temperature and prevent moisture-induced caking.
Q3: What is the typical lead time for delivery?
Delivery typically ranges between 4 to 6 weeks, depending on the specific order size and customization requirements.
Q4: How is the equipment protected against corrosion?
All carbon steel components undergo a professional anti-corrosion coating process following international standard protocols to ensure durability in harsh environments.
Q5: Is on-site installation support available?
Yes, field installation services are available. A detailed specification with illustrations is also provided with every unit for local setup.
Q6: What are the main applications for this dosing unit?
The system is widely used for water treatment in swimming pools, industrial wastewater processing, oil recovery, and mineral processing.
