Large Advanced 2-Phase Centrifuge System for Sustainable Food Waste Solutions

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

Basic Information

Model NO.

AFSX225

Type

Centrifuge

Object

Food Waste

Separation Mode

Centrifugal

Operating Type

Continuous Type

Installation

Vertical

Centrifuge Type

Disc Centrifuge

HMI

Siemens

Pressure

Low Pressure

Material

SS304/316L/2205

Condition

New

Advantage

Cost-Effective

Specification

2119× 1699× 2368

Capacity

500 Sets Per Year

Product Description

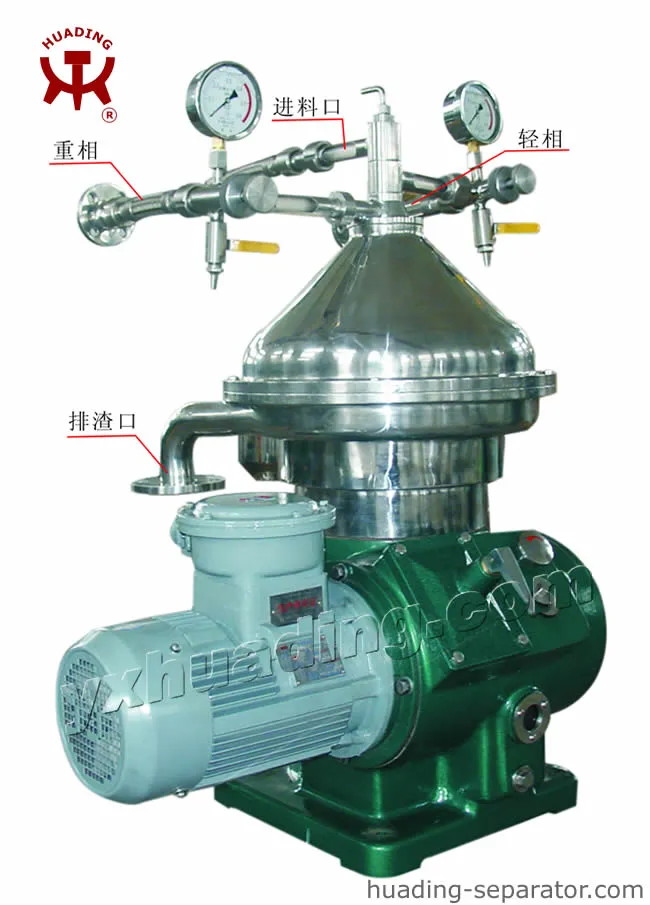

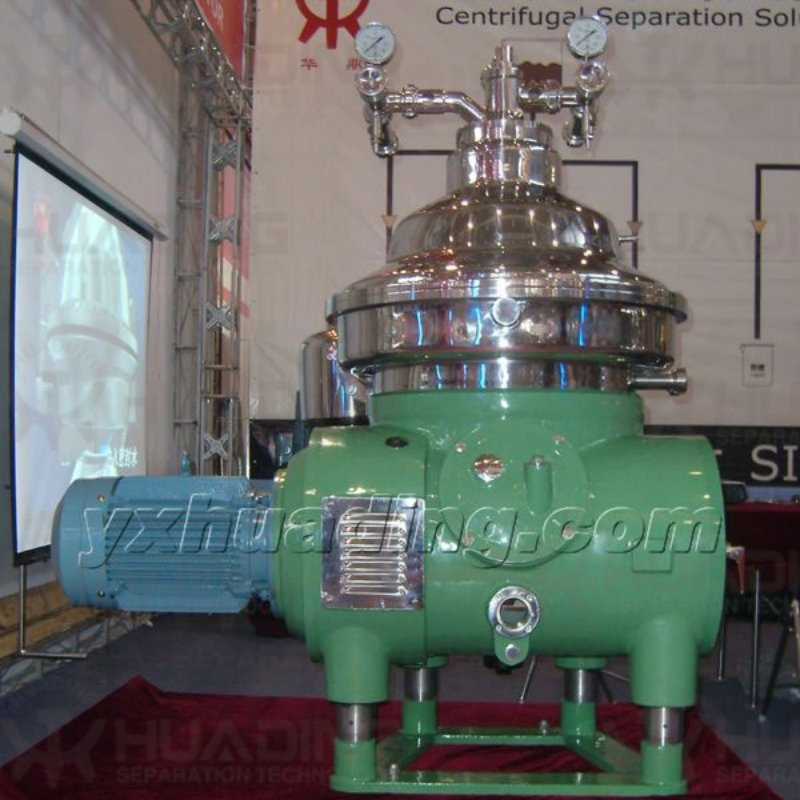

Disc Centrifuge

The AFSX series disc centrifuge are designed to discharge solids intermittently, while at the same time splitting a tight emulsion of two liquid phases. The centrifuge comes in a series of optimized models that are suitable for a considerable number of duties, including separating fish press water, stick and glue water, fish oil as well as meat and fish extracts. Other applications include the purification of fish oil and fish liver oil, animal fat, peel oil, and similar products.

Model	Capacity (L/h)	Pressure (KPa)		Dimension (LXWXH) mm
Model	Capacity (L/h)	Inlet	Outlet	Dimension (LXWXH) mm
AFSX15	500-1200	0-200	100-250	950X950X1250
AFSX40	1300-2500	0-200	100-250	1415X1400X1450
AFSX45	2000-3500	0-200	100-250	1500×1100×1400
AFSX75	3000-6000	0-200	100-250	1772X1473X1855
AFSX90	4200-7500	0-200	100-250	1800×1500×1855
AFSX125	9000-15000	0-200	100-250	1950×1500×1955
AFSX225	13000-22000	0-200	100-250	2119×1699×2368

Frequently Asked Questions

What are the primary applications for the AFSX series disc centrifuge?

The AFSX series is ideal for separating food waste, fish press water, animal fats, fish oils, and meat extracts, as well as the purification of various edible oils.

Does this system support continuous operation?

Yes, the AFSX225 is designed as a continuous type operating system, allowing for efficient processing without frequent shutdowns.

What materials are used in the construction of the centrifuge?

The equipment is manufactured using high-quality corrosion-resistant materials, including Stainless Steel 304, 316L, and 2205 Duplex Steel.

What kind of control system does the equipment use?

The system is equipped with a high-performance Siemens HMI (Human Machine Interface) for precise control and monitoring.

What after-sales support is provided for international clients?

We provide comprehensive support including field installation, commissioning, staff training, as well as online and video technical assistance.

How are solids handled during the separation process?

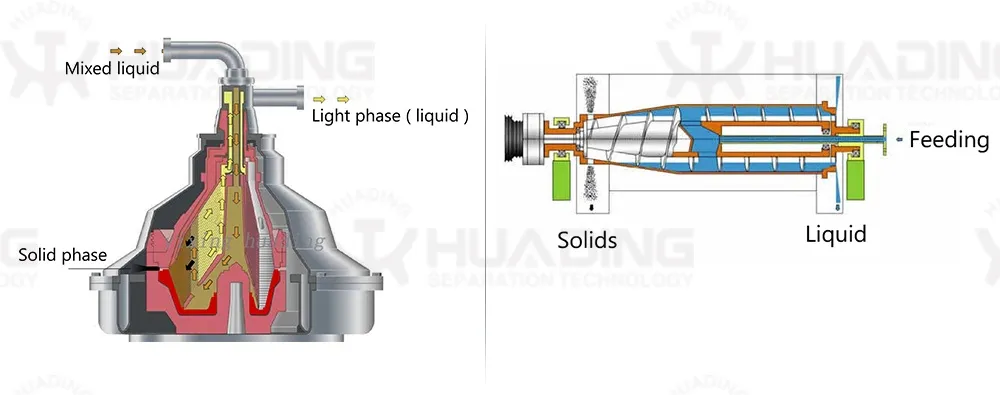

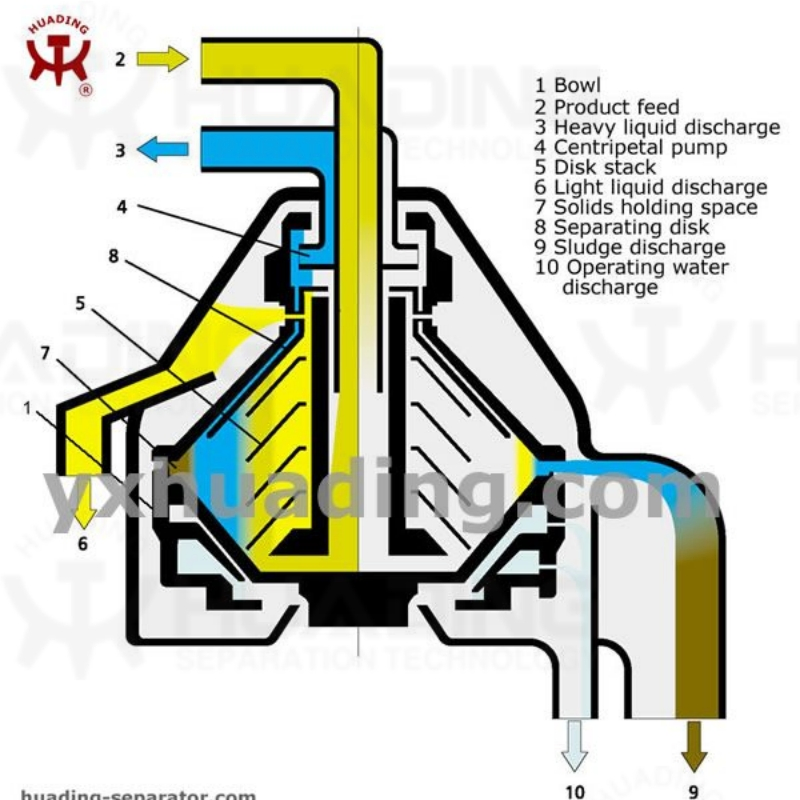

The disc centrifuge is designed to discharge solids intermittently while simultaneously splitting two liquid phases from a tight emulsion.
