Rexon Centrifugal Oil Separator, Emulsion Breaker, Slag Discharge System for Industrial Lubricating Oil, 6000lph

Customization:	Available
Certification:	TüV, ISO9001, CE
Application:	Biodiesel Oil, Cooking Oil, Turbine Oil, Lubricant Oil, Transformer Oil, Engine Oil, Hfo

Send Inquiry

Product Description

Basic Information

Model NO.:RCF-6T (6000LPH)

Voltage:380V

Flow Rate:6000 Liters/Hour

Working Principle:High Speed Rotating Separation

Material:304 Stainless Steel & Carbon Steel

Separation Objects:Diesel, HFO, Turbine Oil, Hydraulic Oil

Water Content:50~100ppm after process

Cleanliness:NAS 6 Grade or Better

Product Description

Centrifugal Oil Separator, Emulsion Breaker, Slag Discharge System for Industrial Lubricating Oil (6000LPH)

Restore lubrication quality | Physical emulsion breaking | No filter elements needed

The Centrifuge Waste Oil Separator is a high-efficiency oil purification system designed for industrial and marine applications. Utilizing centrifugal separation technology, it effectively removes contaminants such as water, sludge, and particulates from waste oil. The result is regenerated oil restored to optimal quality, reducing engine wear and extending equipment lifespan.

This 6 Tons Per Hour machine features a fully automatic sludge discharge system, reducing manual intervention and improving operational efficiency. It is ideal for marine engines, power plants, and oil depots. The PLC-based control system enables precise operation, automatic balancing, and real-time fault detection.

Technical Parameters

Parameters	Unit	RCF-1T	RCF-3T	RCF-6T	RCF-9T	RCF-12T
Light Diesel Oil Capacity	LPH	1500	4500	6000	9000	12000
Turbine Oil Capacity	LPH	1200	3200	4500	6400	9000
Rotation Speed	RPM	8300 ~ 9600 RPM
Solid Sludge Discharge	-	Manual/Auto	Automatic
Total Power	KW	27	57	86	107	174
Weight	KGS	550	750	900	1600	2100

Key Benefits:

Clean high viscosity heavy diesel and ship oil
Separate large quantities of sludge and particles
Highly efficient water contamination removal
Automatic or manual contamination discharge options
Prolong machinery lifetime and save maintenance costs

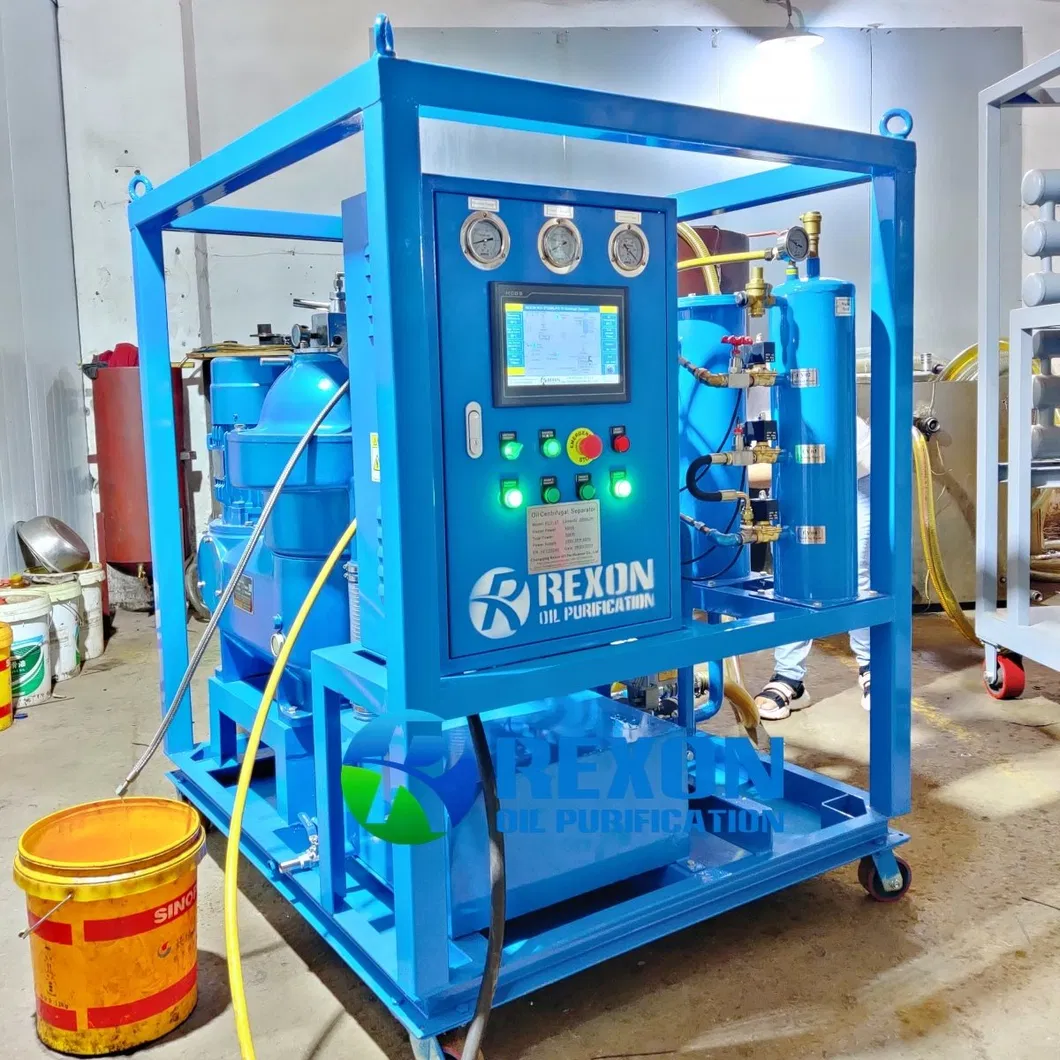

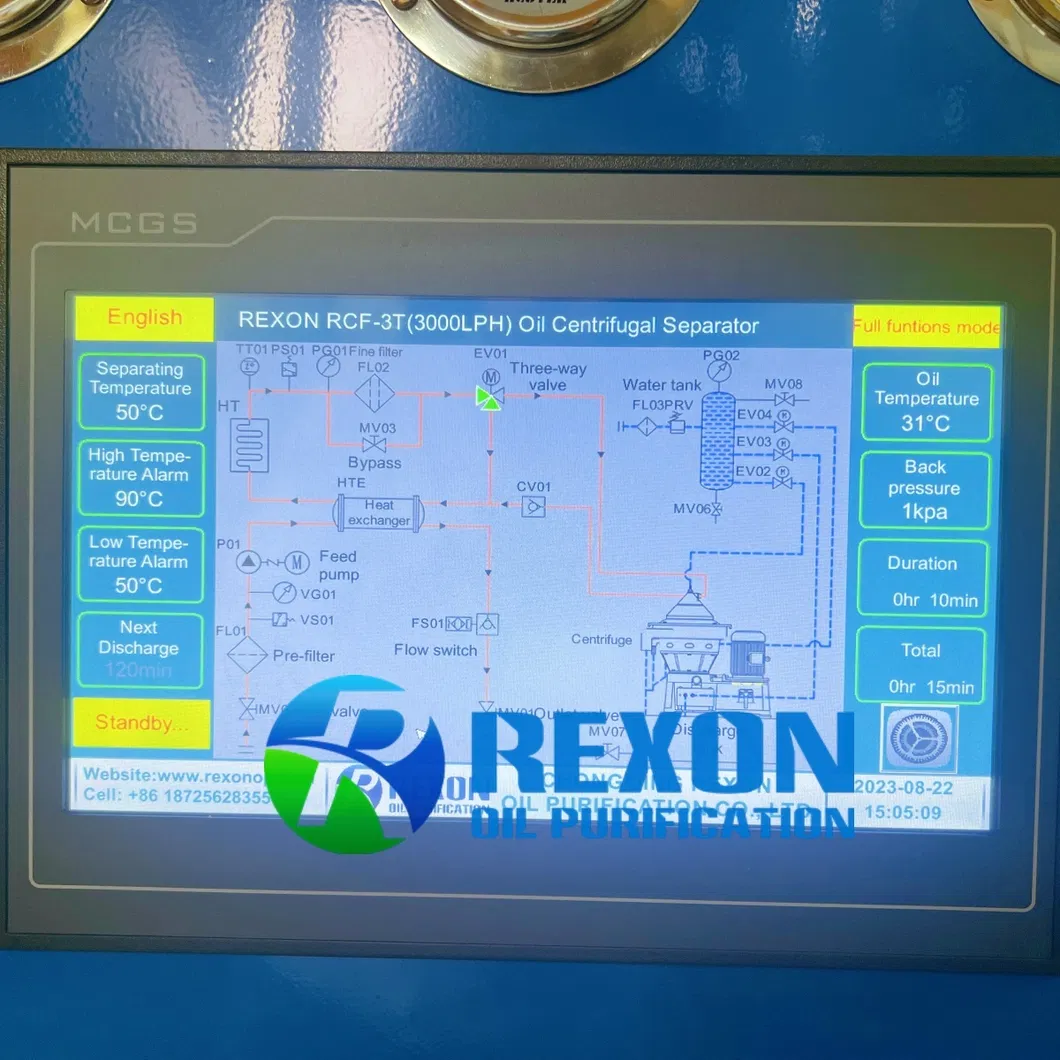

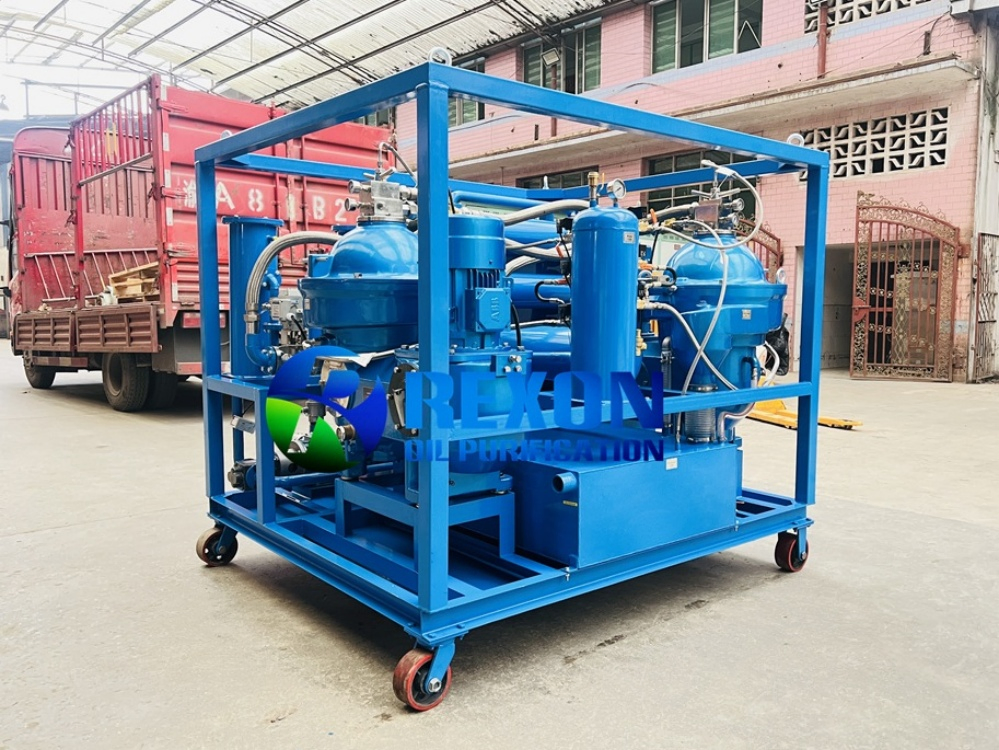

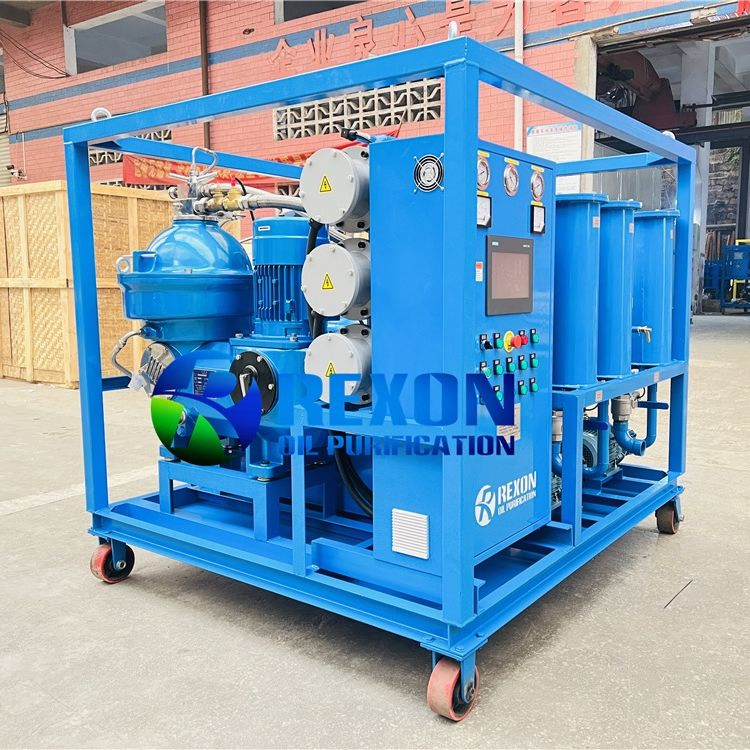

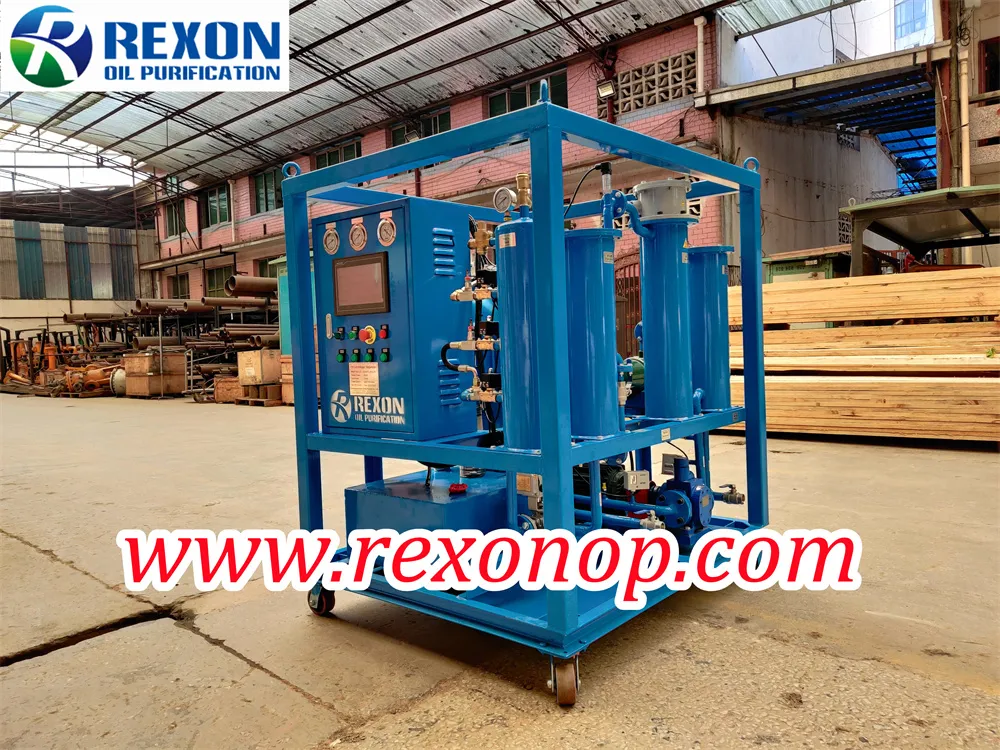

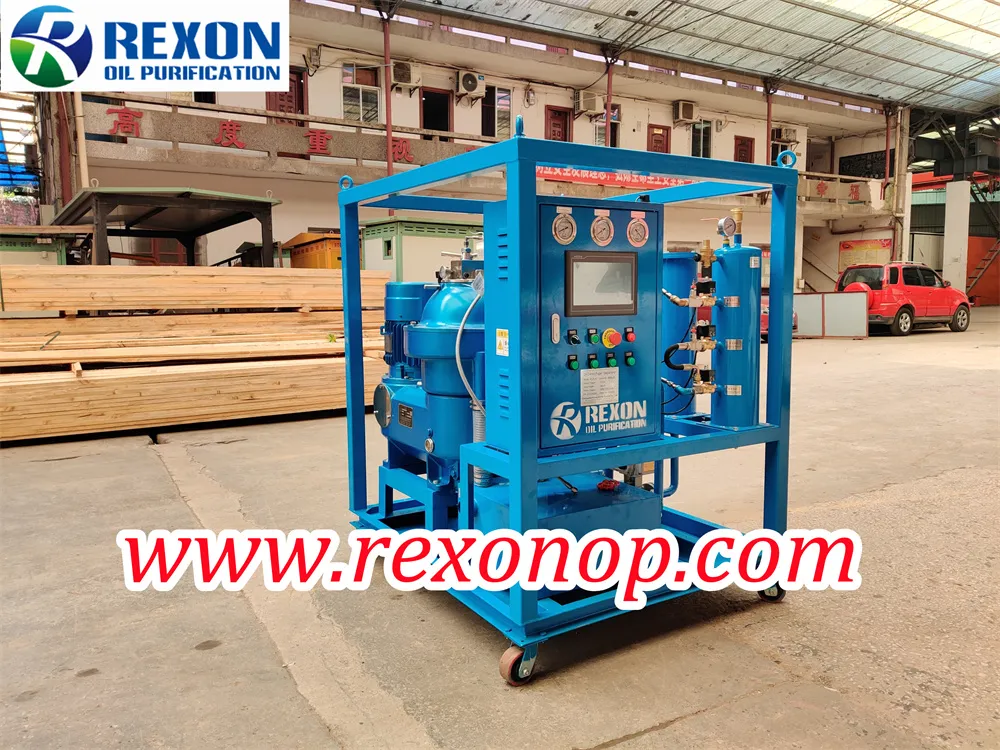

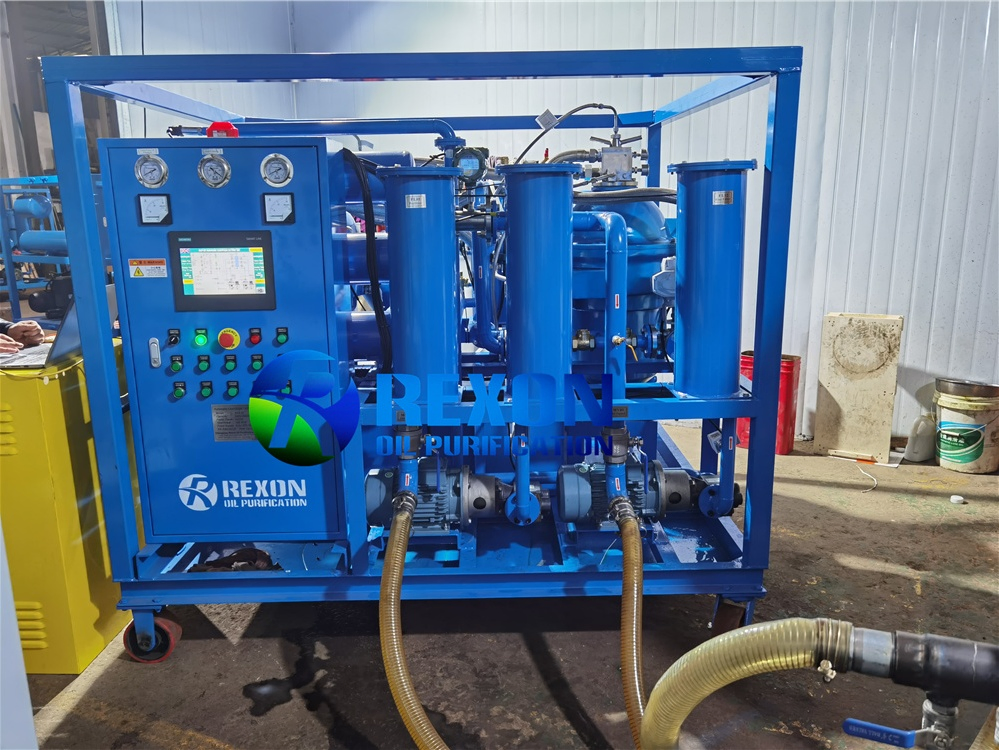

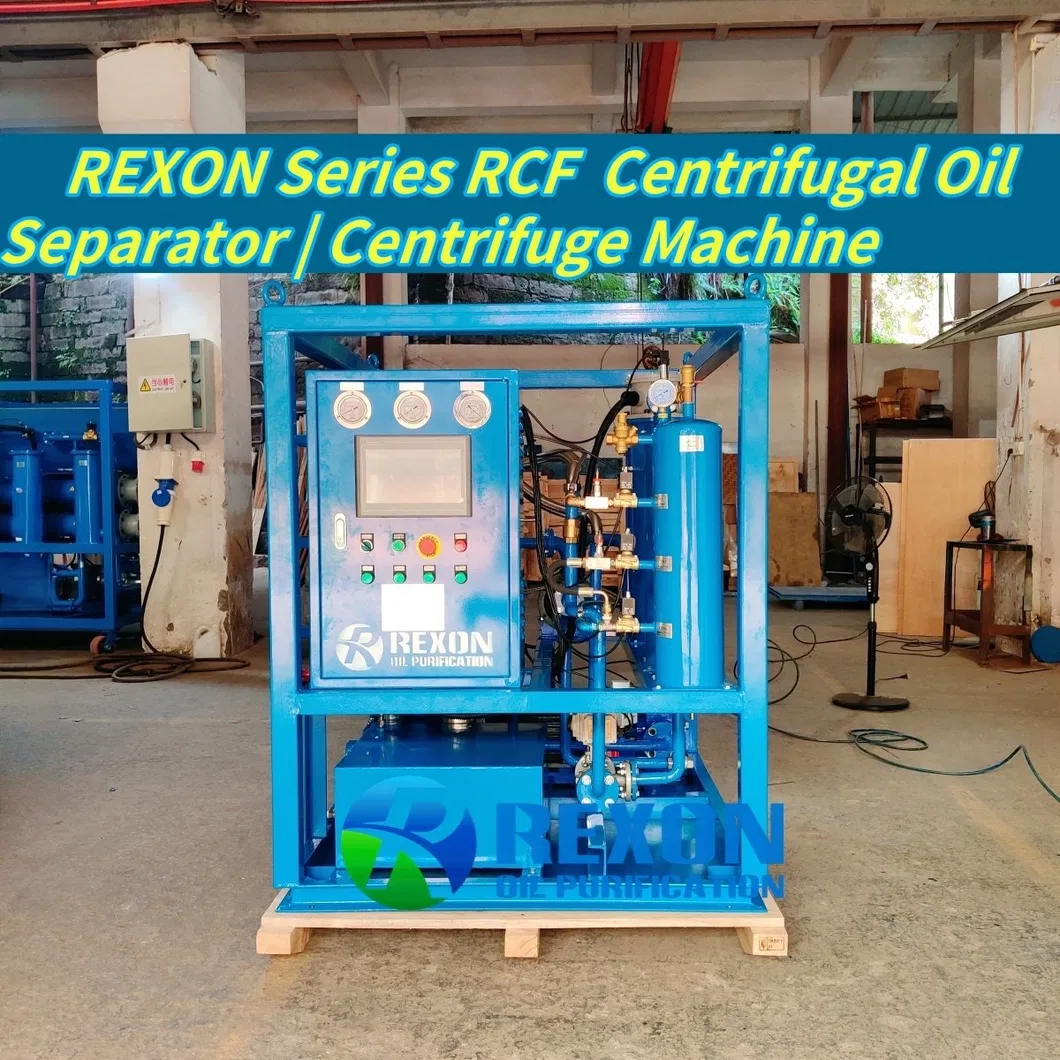

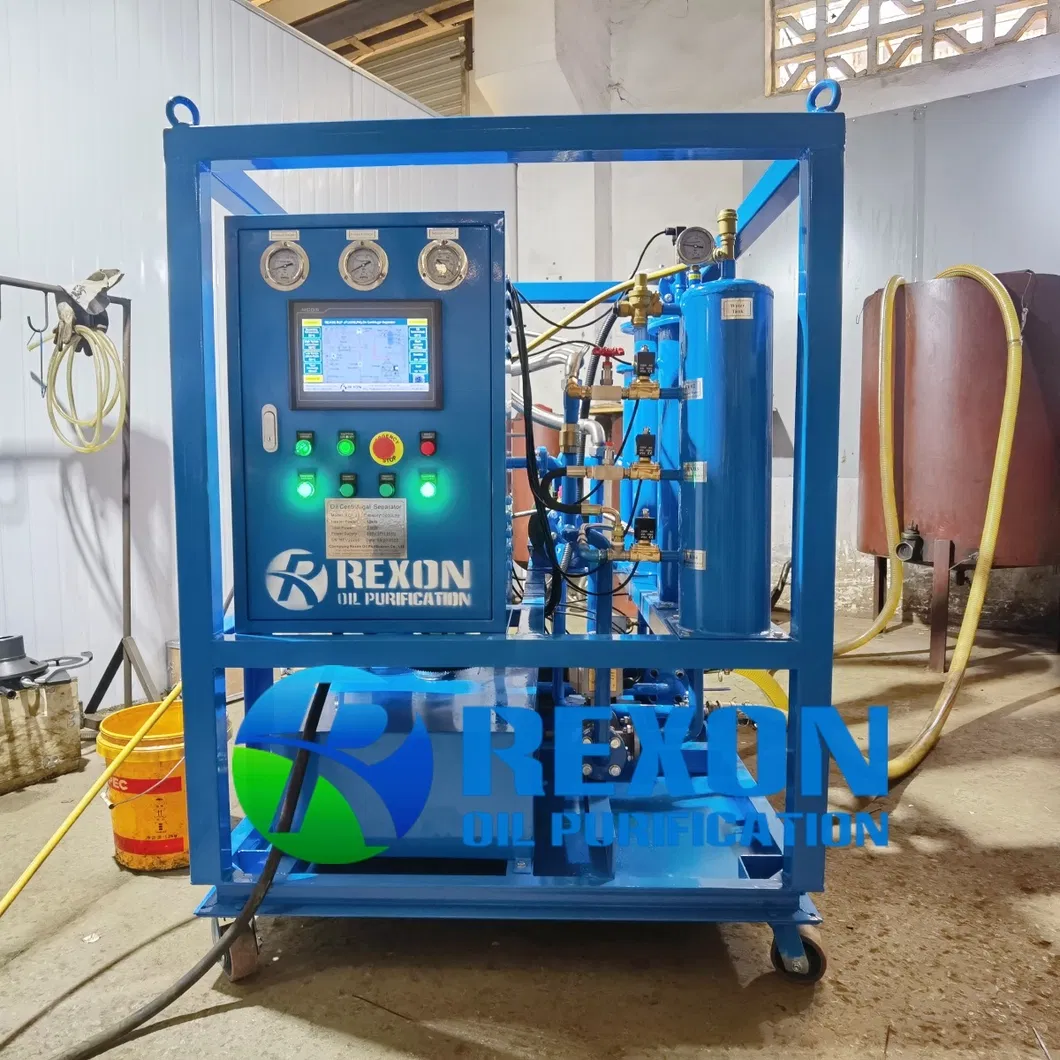

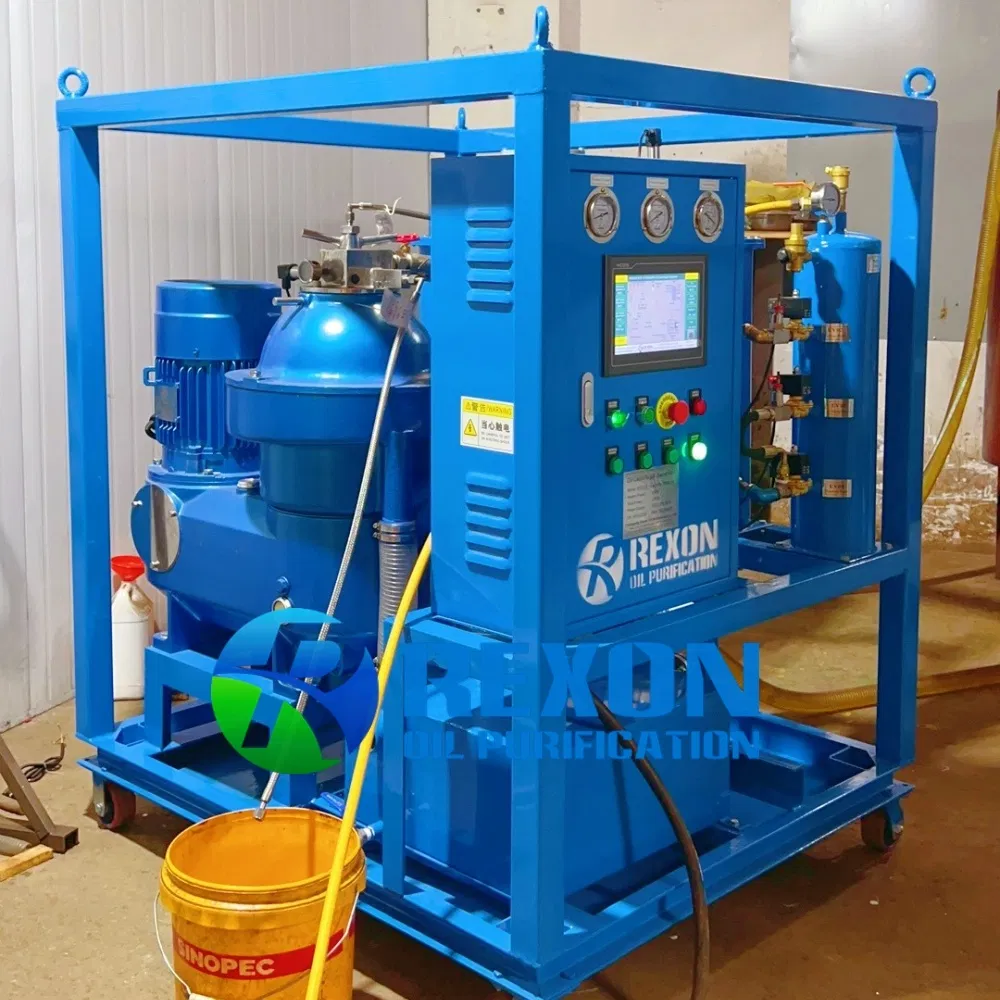

Detailed Photos

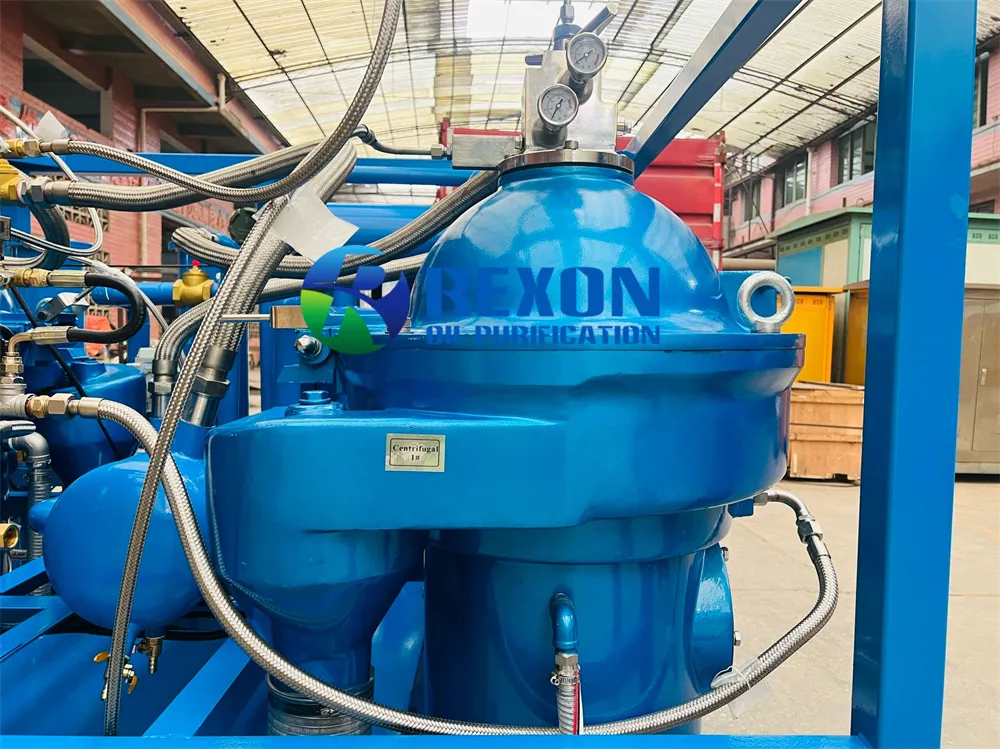

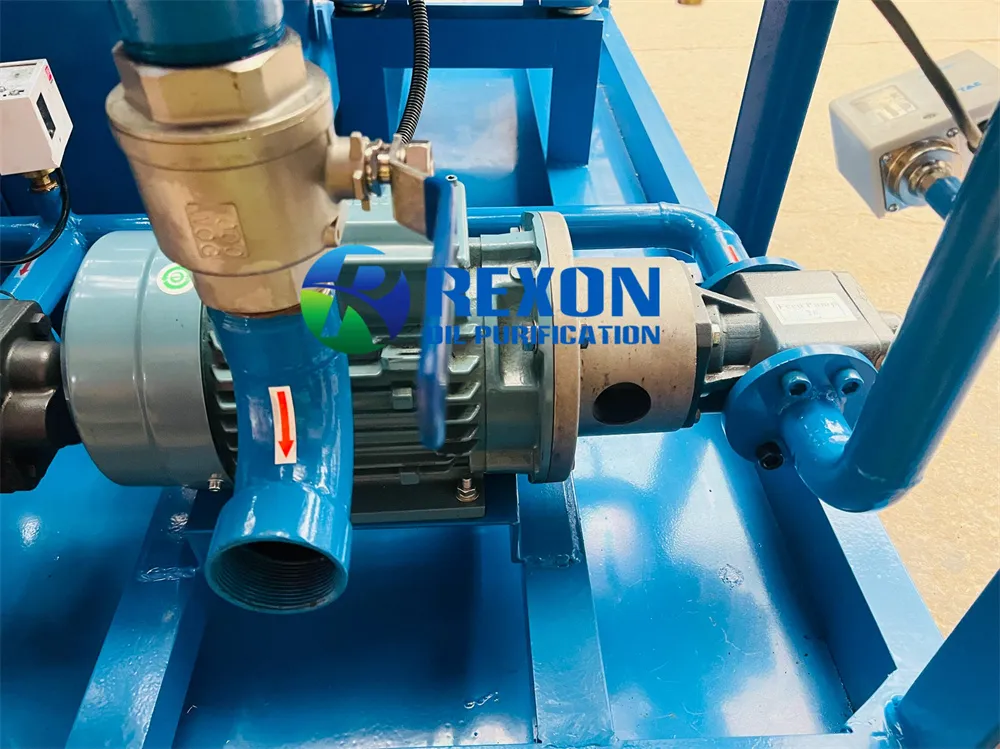

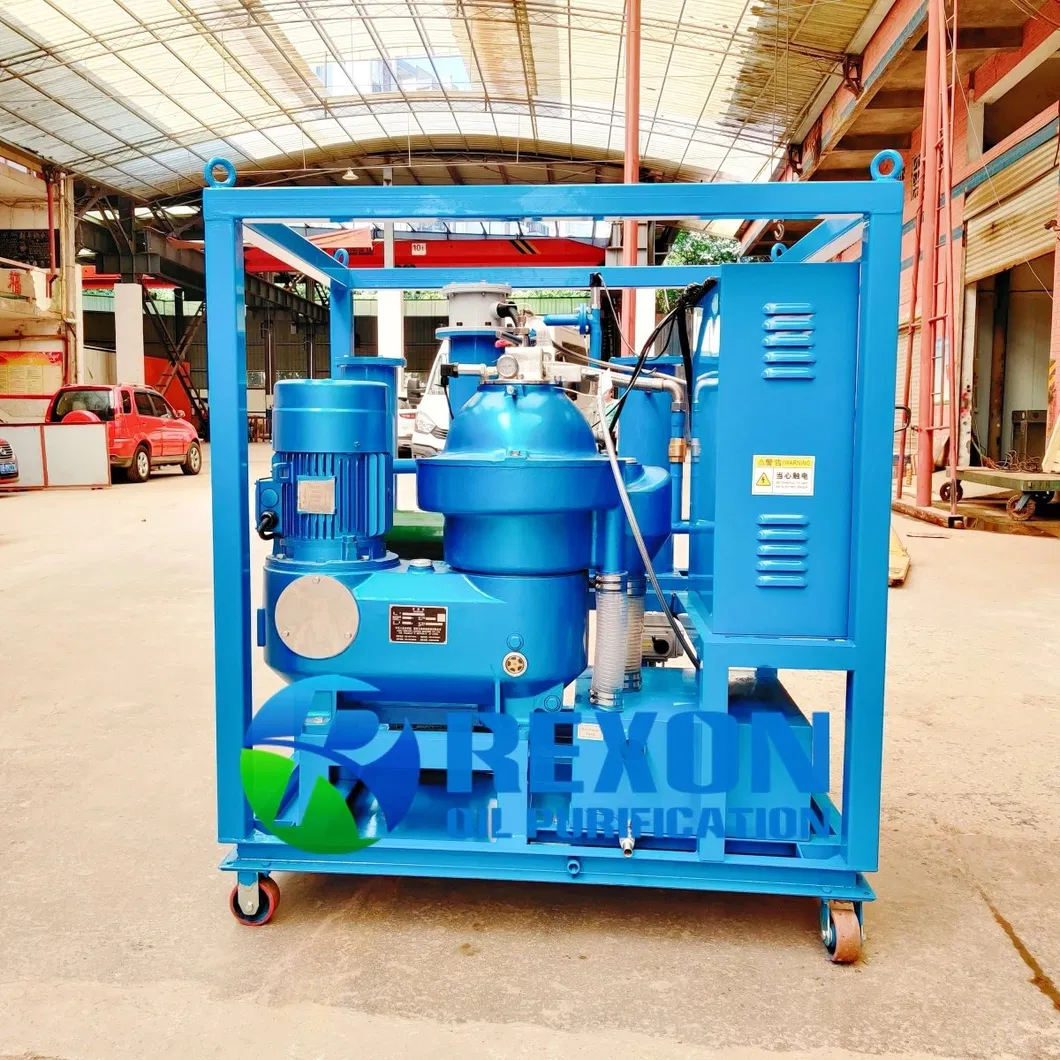

Main Internal Components:

Packaging & Service

Professional Support:

- Lifetime technical support and free technical upgrades.

- 24-hour online service for operation and maintenance troubleshooting.

- Full documentation for customs clearance provided.

- Two-year guarantee for all equipment.

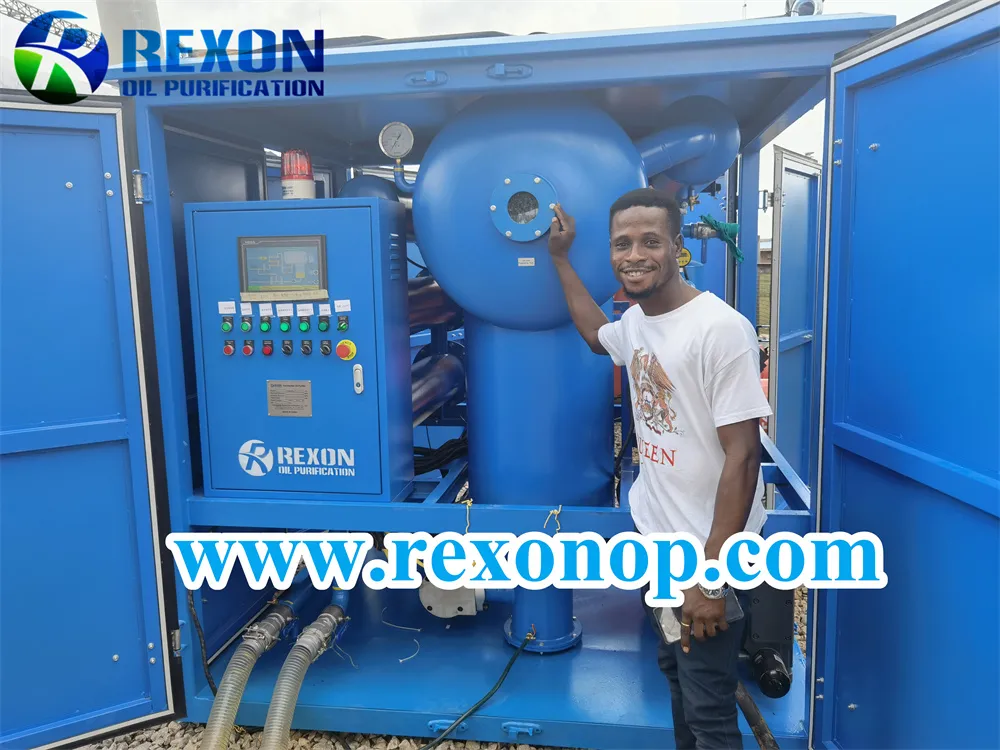

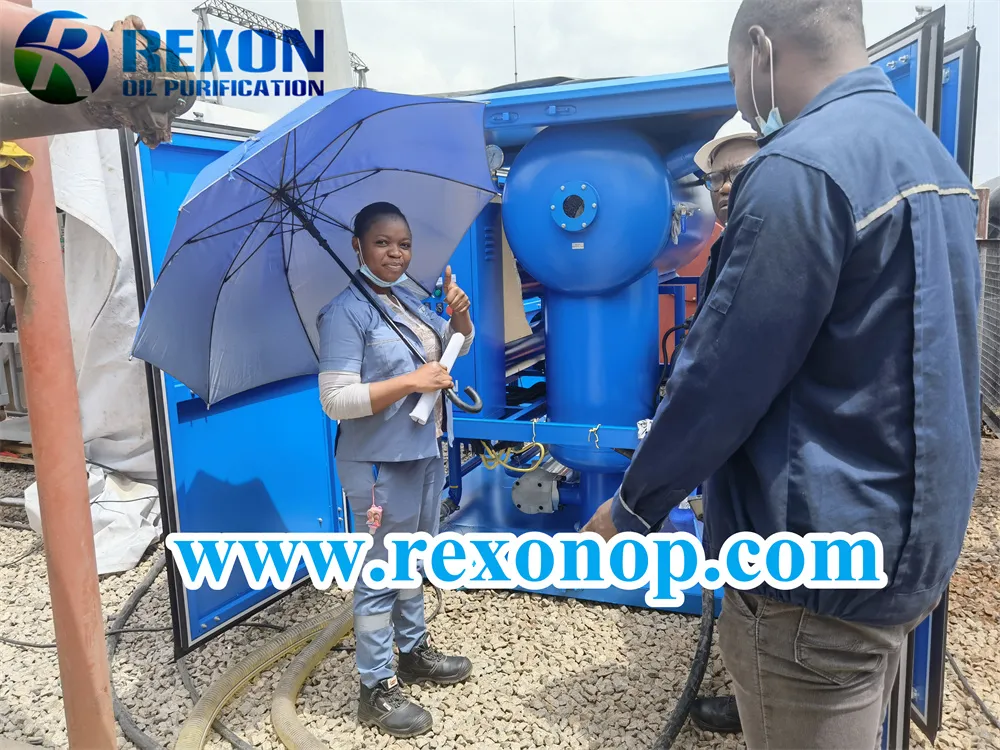

Customer Visits & Onsite Projects

Frequently Asked Questions

Q1: What are the primary functions of this centrifugal separator? It is designed for high-speed centrifugal separation of water, sludge, and solid impurities from industrial oils like diesel, HFO, and lubricating oils.

Q2: Does the machine require consumable filter elements? No, it utilizes physical centrifugal force for separation, which eliminates the need for traditional filter elements, significantly saving operation costs.

Q3: Is the sludge discharge process manual or automatic? The RCF series (from 3T and above) features a fully automatic PLC-controlled sludge discharge system for continuous, unattended operation.

Q4: What level of oil cleanliness can be achieved? The process can achieve a cleanliness degree of NAS 6 Grade or better, with water content reduced to between 50~100ppm.

Q5: Can this machine handle high viscosity oils? Yes, it is specifically effective for high-viscosity oils such as Heavy Fuel Oil (HFO) and heavy ship lubricants.

Q6: What is the standard warranty period? All equipment comes with a two-year guarantee and lifetime technical support.
