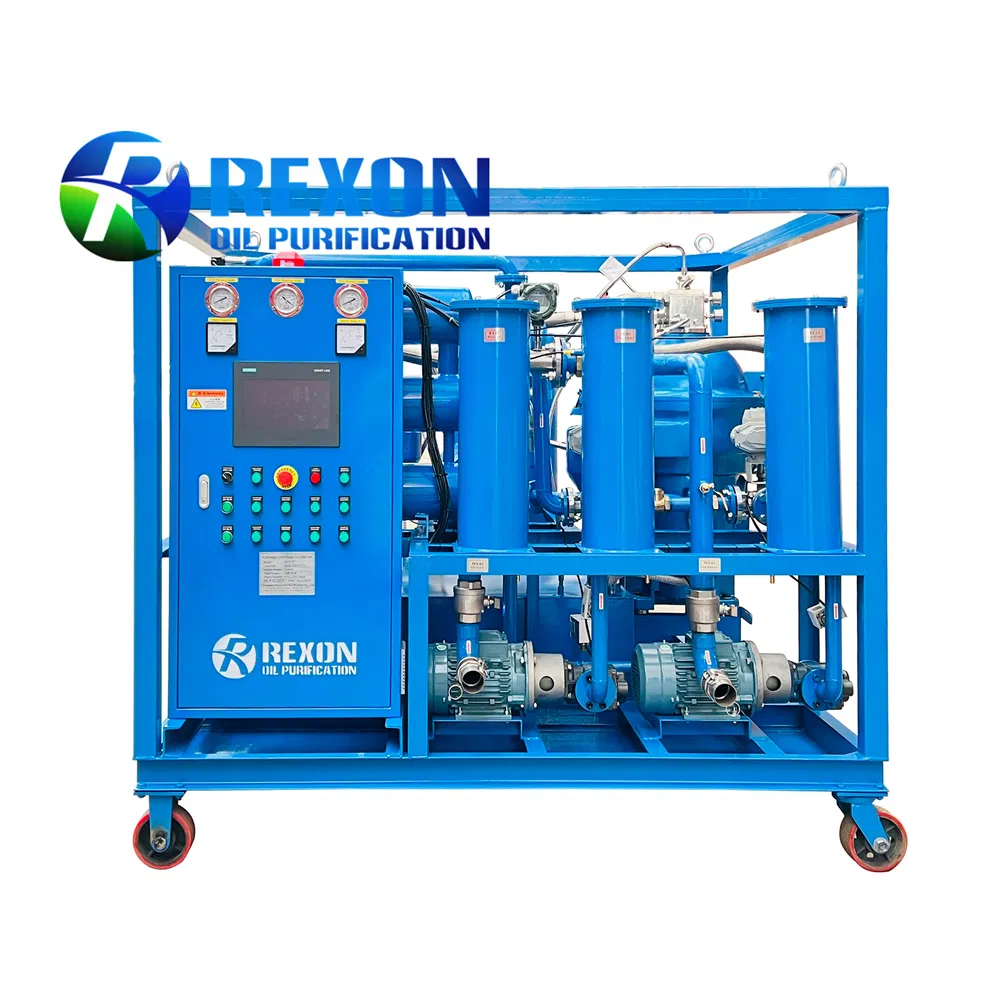

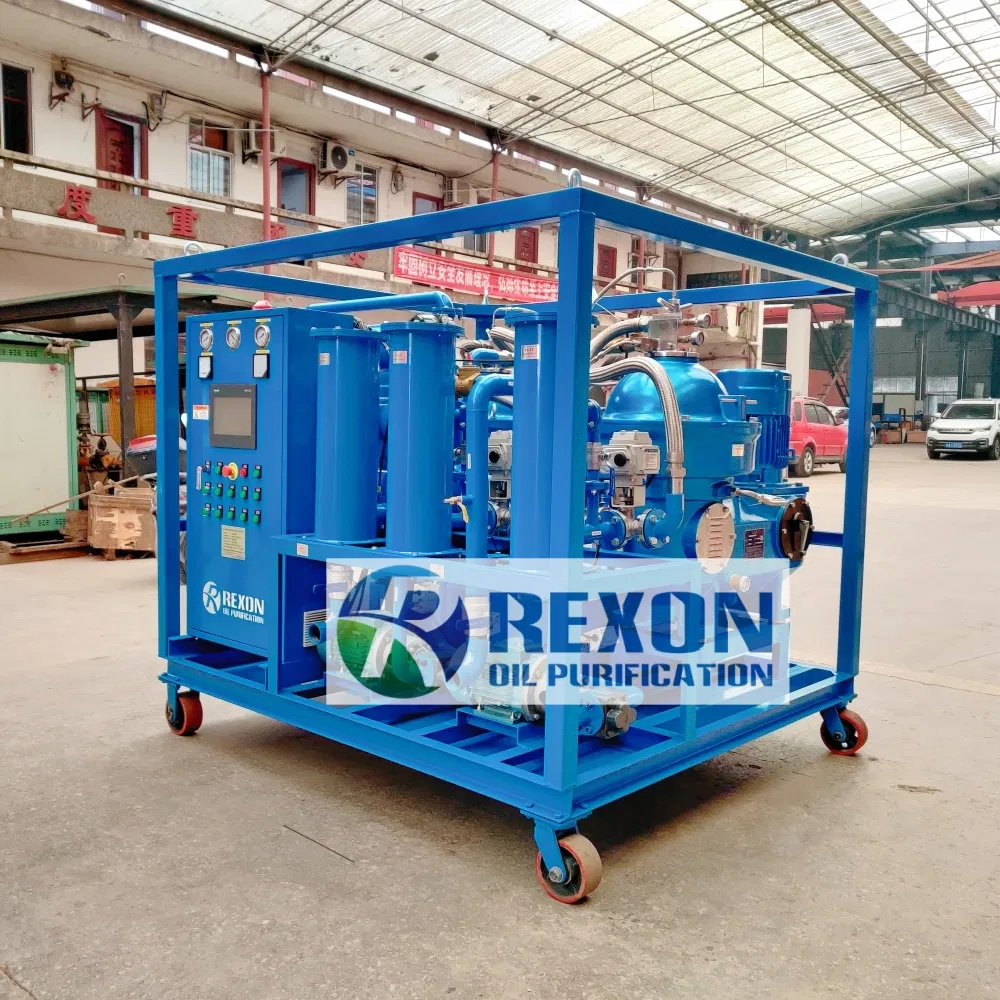

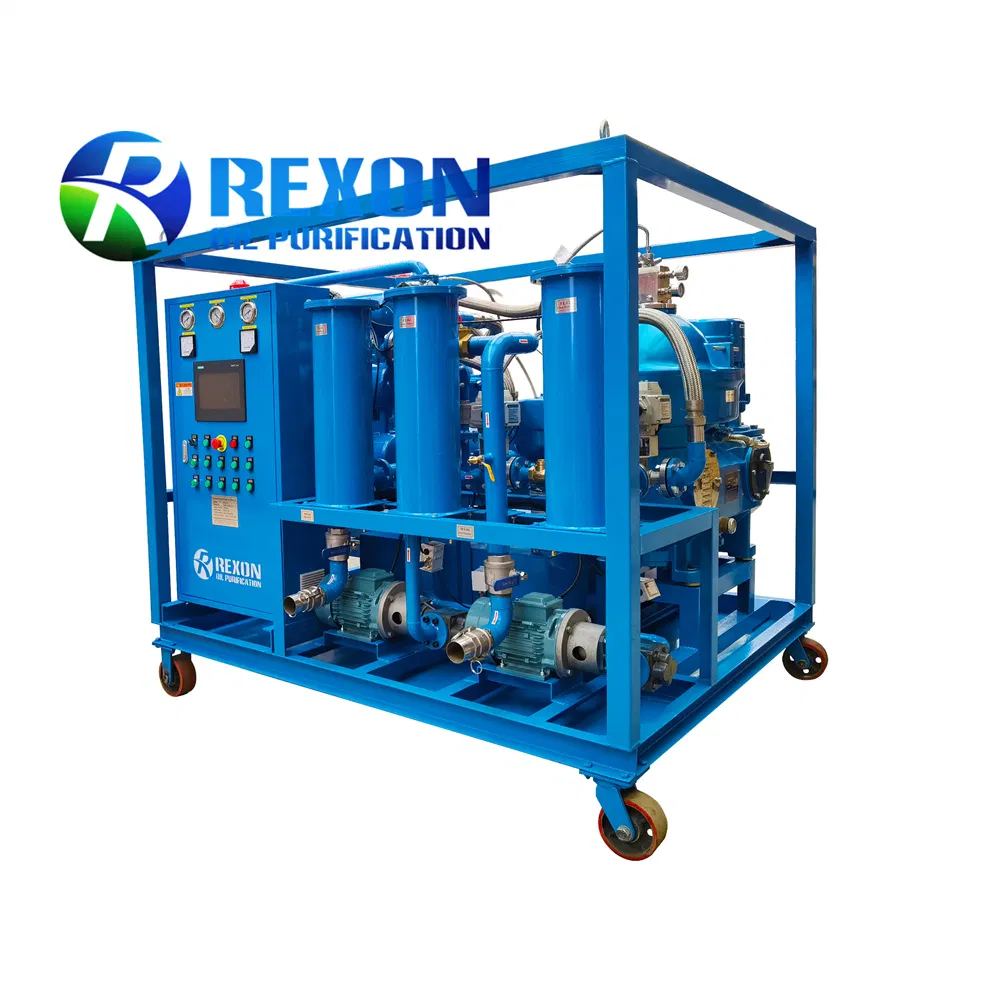

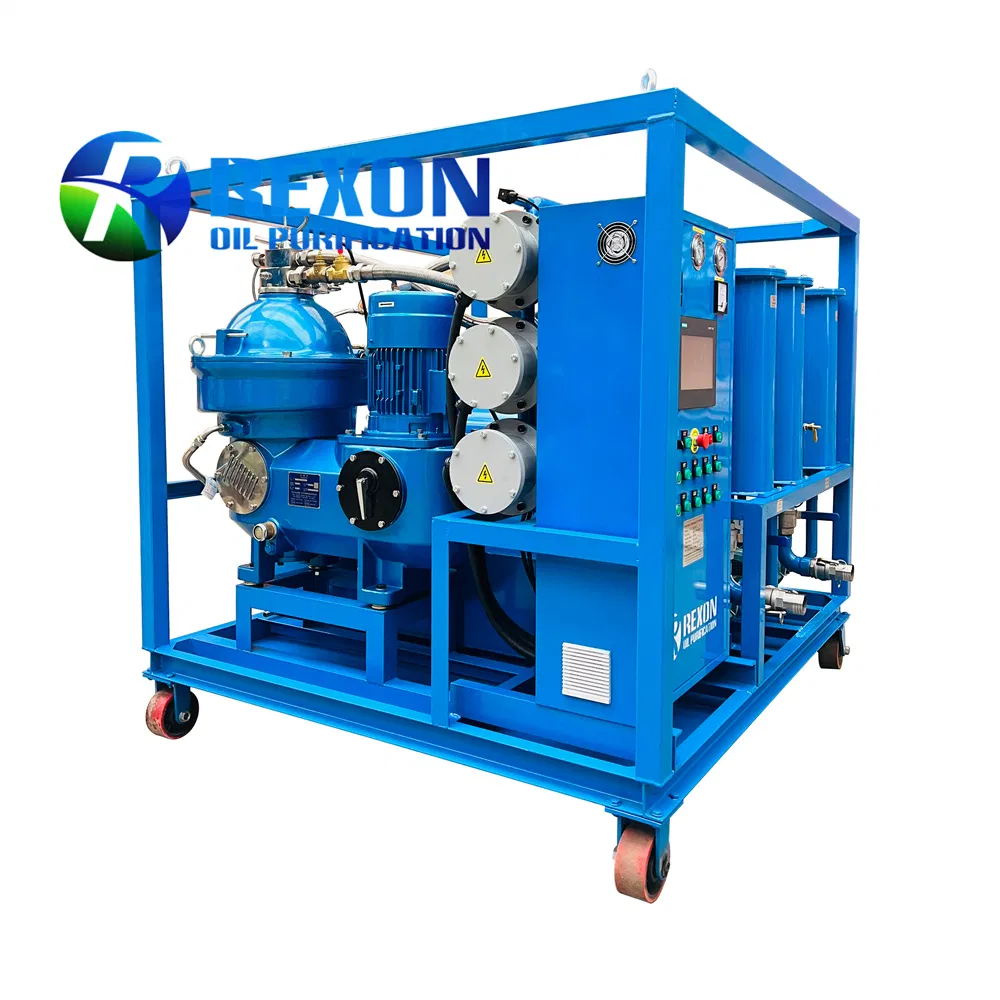

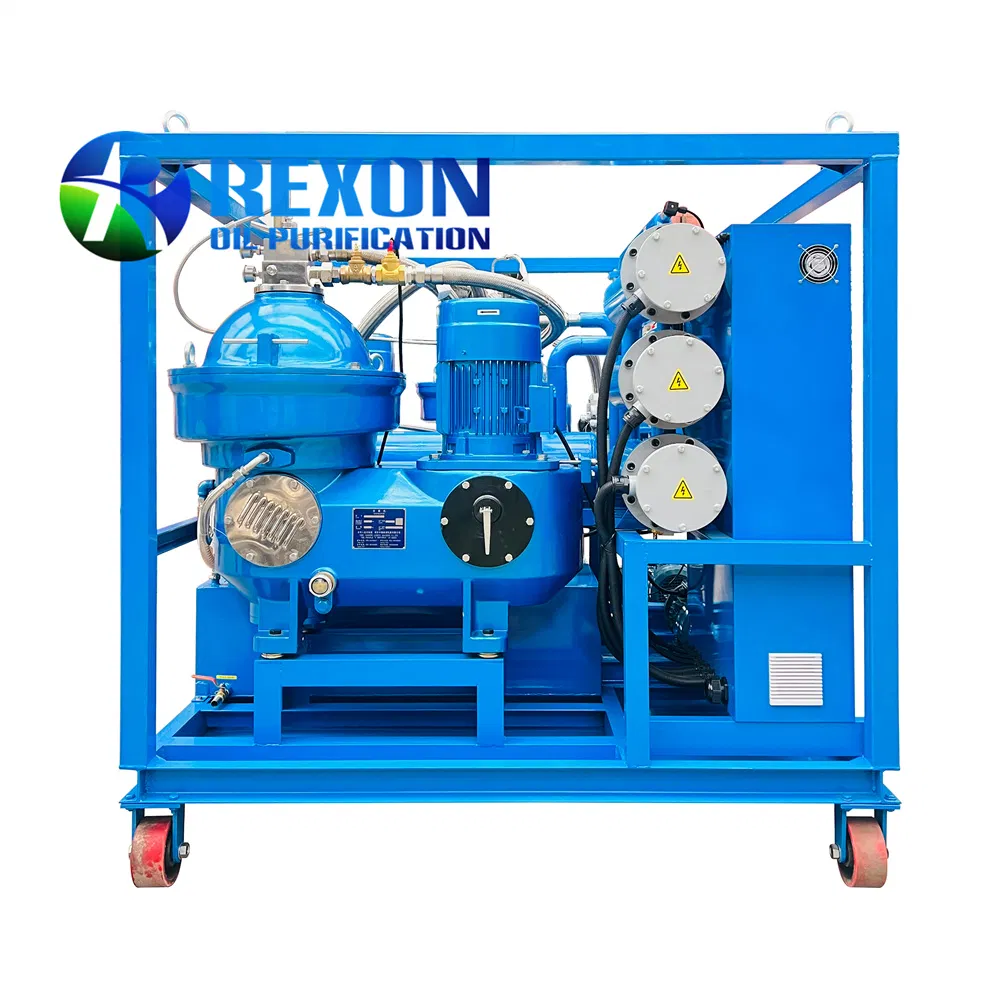

Rexon Centrifuge Separator Industrial Oil Filter Cutting Oil Purification Sludge Removal System 9000lph for B2B Buyers

Customization:	Available
Certification:	TüV, ISO9001, CE
Application:	Biodiesel Oil, Cooking Oil, Turbine Oil, Lubricant Oil, Engine Oil

Overview & Basic Information

Model NO.

RCF-9T (9000LPH)

Voltage

380V

Flow Rate

9000 Lph

Material

304 Stainless Steel & Carbon Steel

Working Principle

High-Speed Rotating Separation

Treatment Objects

HFO, Turbine Oil, Hydraulic Oil, Lube Oil

Sludge Discharge

Automatic Continuous Slag Discharge

Control System

PLC Intelligent Control

Product Description

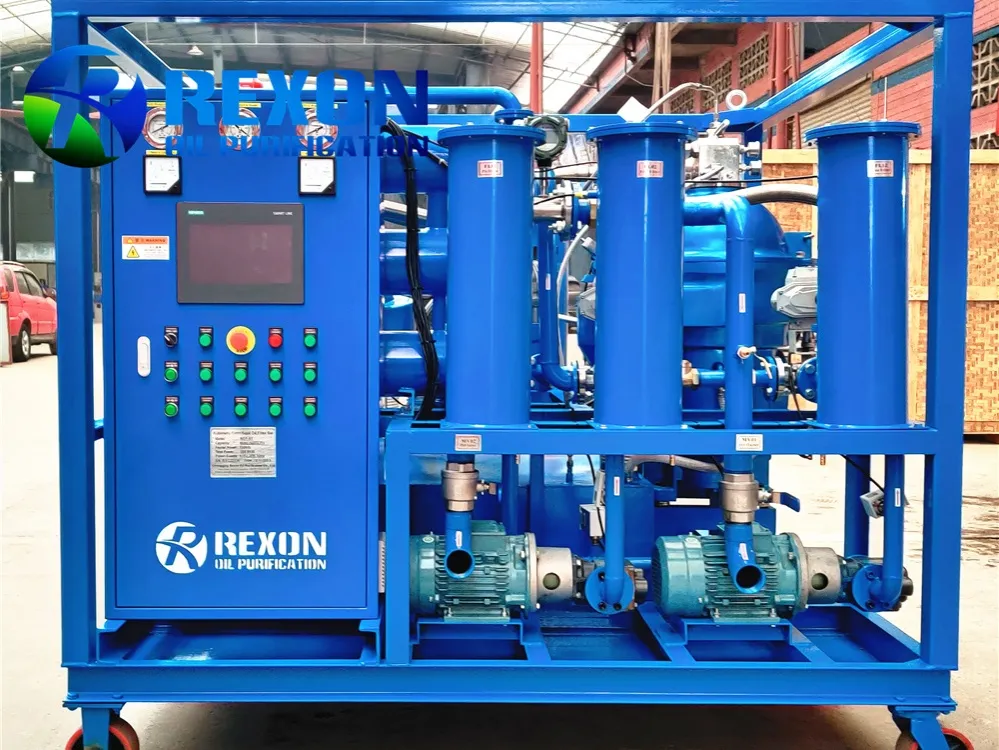

Industrial Centrifuge Separator & Sludge Removal System

Clean cutting fluid | Metal sludge elimination | Prolong tool lifespan

01

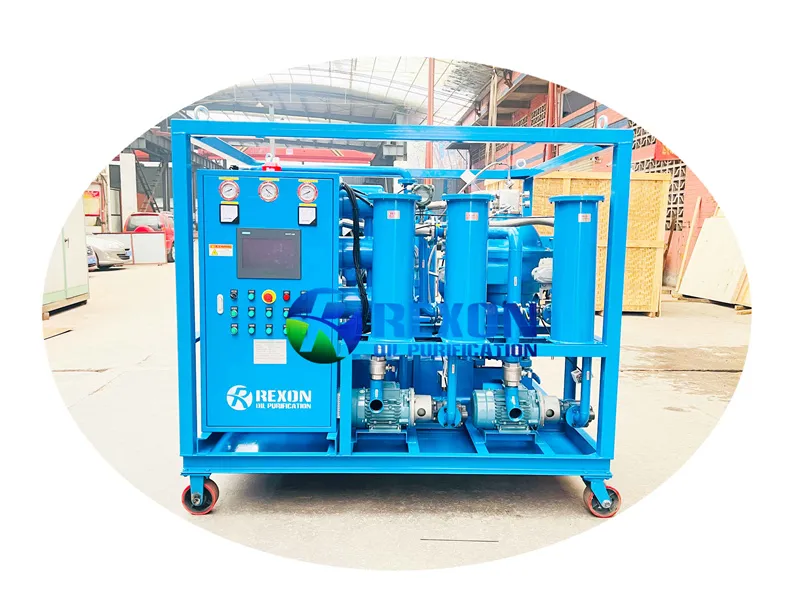

Equipped with Multi-Stage Oil Filtering System to remove high content of sludge and impurities fast.

02

Online Automatic Sludge Discharge System guarantees long-term automatic working without manual intervention.

03

Customizable flow rates (1000LPH to 12000LPH+) based on oil viscosity and contamination degree.

This unit handles high-impurity and high-water content in dirty oil efficiently. Especially designed for Lubricating oil, engine oil, and heavy diesel, it utilizes "gradual density" filtration technology with accuracy up to 0.5μm.

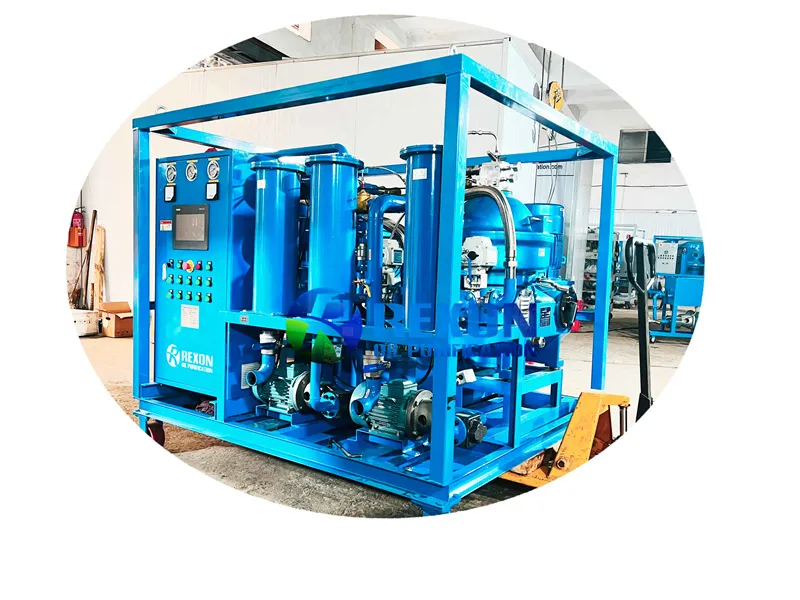

Working Principle

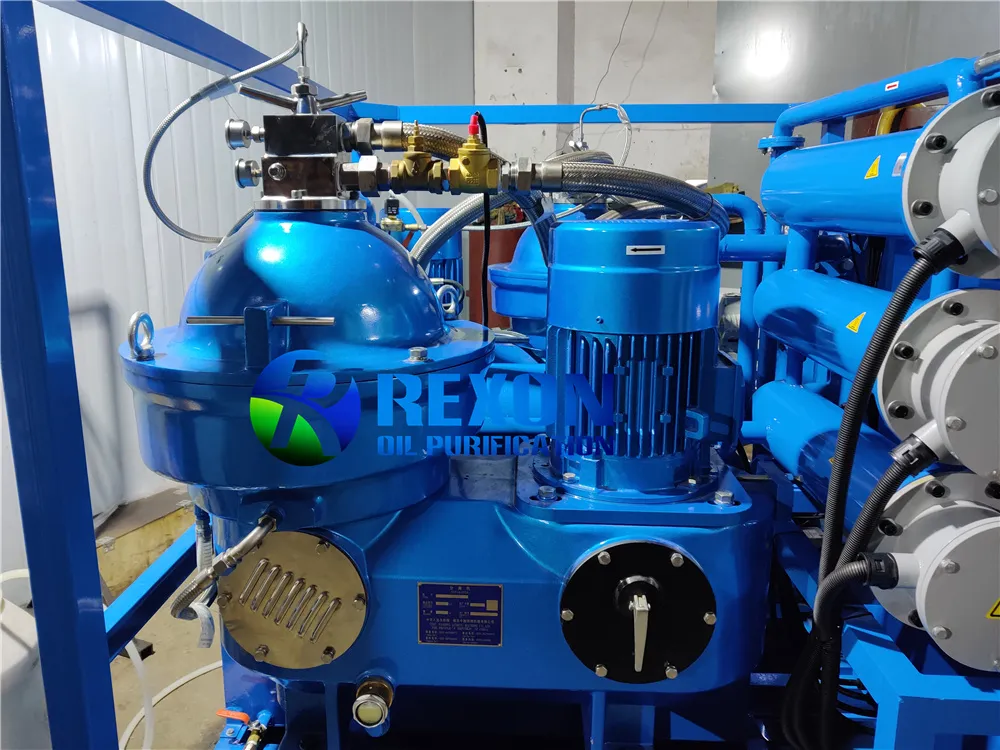

The system operates based on high-speed centrifugal separation. Contaminated oil enters a drum rotating at several thousand times the force of gravity, instantly separating metal shavings, carbon sludge, and water.

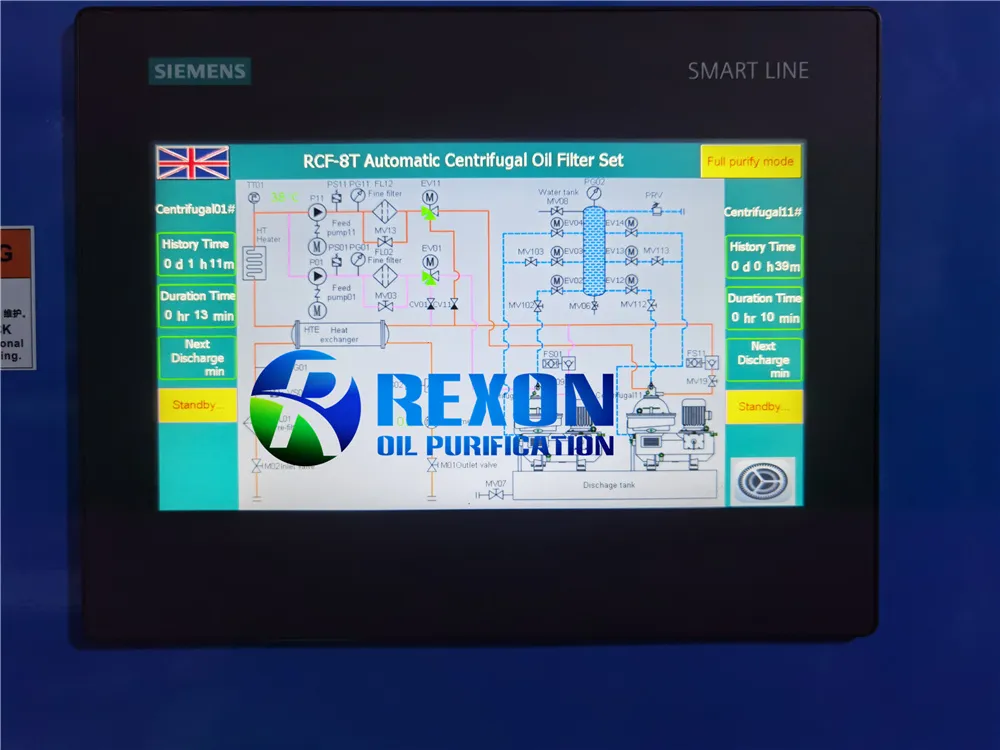

✔ Automatic Monitoring: Real-time rotational speed and pressure tracking.
✔ Continuous Operation: Slag discharge without stopping the machine.
✔ Safety Alarms: Protection against vibration and overload.

Technical Parameters

Parameters / Model	Unit	RCF-1T	RCF-3T	RCF-6T	RCF-9T
Light Diesel Capacity	L/H	1500	4500	6000	9000
Lubricating Oil Capacity	L/H	1000	2000	3000	4000
Rotation Speed	RPM	8300 ~ 9600
Filter Precision	Micron	≤ 3
Total Power	KW	27	57	86	107
Water Content After	PPM	≤ 100

Packaging & After Sales

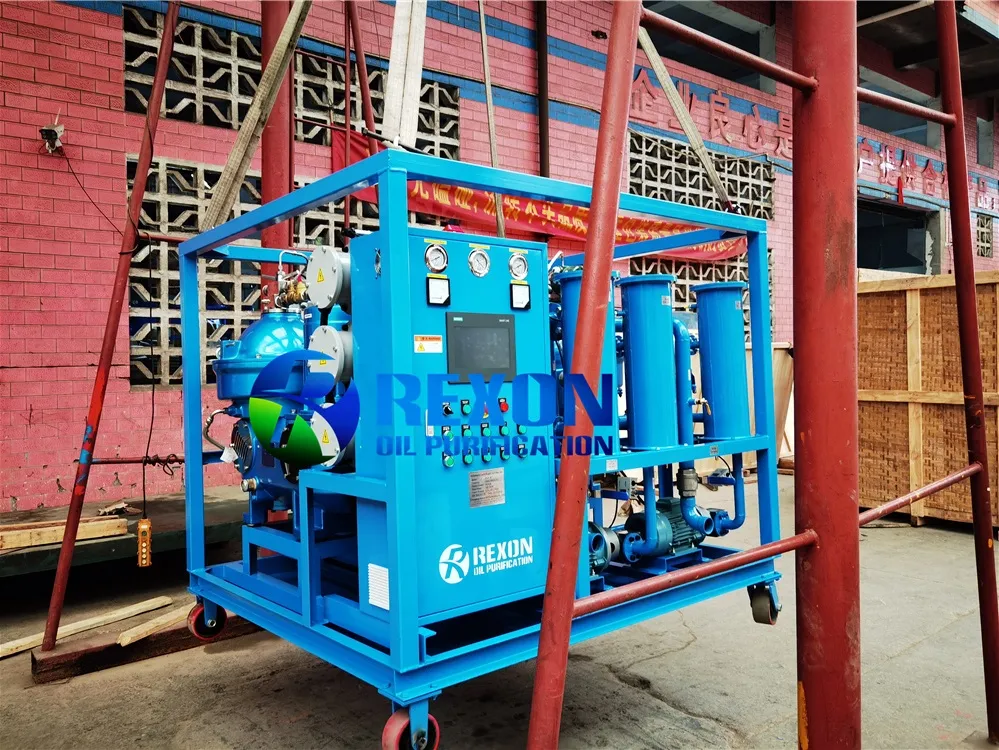

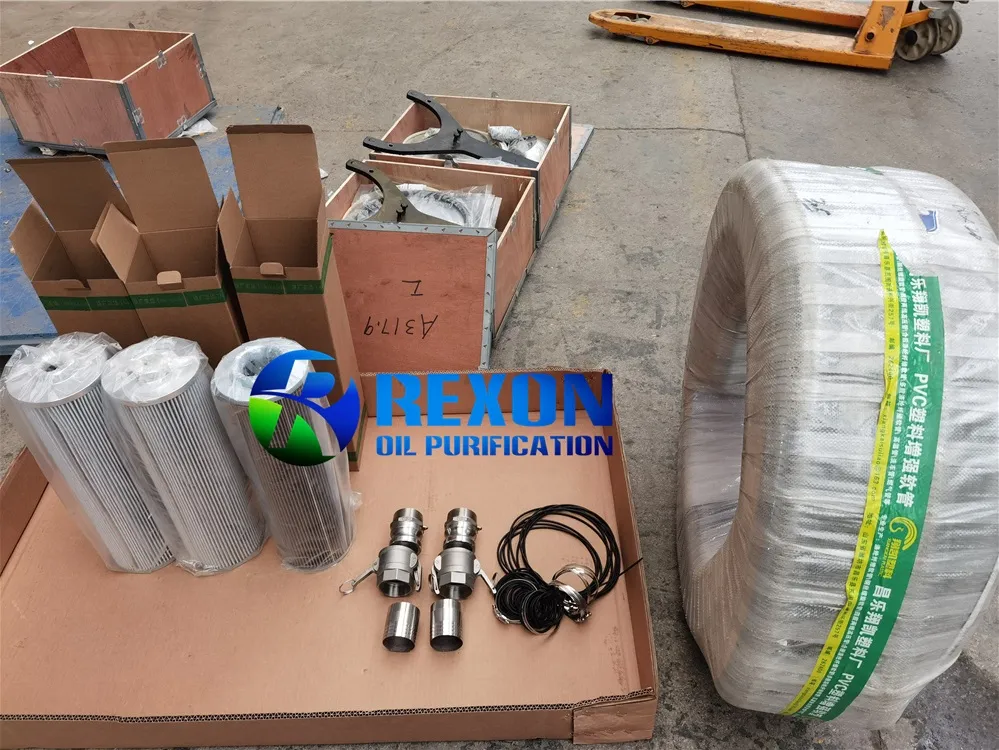

Each unit is securely packed in export-standard wooden cases, moisture-resistant and reinforced for long-distance shipping.

Lifetime Support:

Free technical upgrades and online service 24/7.

Warranty:

Two-year guarantee for all equipment.

FAQ

What types of oil can this centrifuge system process?

The system is designed for high-viscosity oils including heavy diesel, HFO, turbine oil, lubricating oil, and hydraulic oil.

How does the automatic sludge discharge benefit the operation?

It allows for continuous machine operation without the need for an operator to manually clear waste, ensuring high efficiency and 24/7 productivity.

What is the maximum filtration precision of this equipment?

The system utilizes "gradual density" technology, achieving a solid particle retention rate of up to 99.99% with precision as fine as 0.5μm.

Is the power supply customizable for different countries?

Yes, while the standard is 380V/50HZ, the power supply can be configured to any specific local requirement as needed.

Can this machine remove dissolved water from the oil?

The centrifuge is highly effective at removing free water. For dissolved water and deep dehydration (down to 15-30 PPM), we recommend pairing this unit with a vacuum oil dehydration series.

How is the equipment protected during international shipping?

Units are packed in export-standard, moisture-resistant, and reinforced plywood cases to ensure they arrive in perfect condition via sea, air, or land.
