Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
1 / 5
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing
Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing

Large Advanced 2-Phase Centrifuge System for Pure Vegetable Oil Processing

Customization: Available
After-sales Service: 1year
Warranty: 1year
Send Inquiry

Product Description

Technical Specifications

Model NO.
DHZYL700
Type
Centrifuge
Object
Vegetable Oil
Separation Mode
Centrifugal
Operating Type
Continuous Type
Installation
Vertical
Centrifuge Type
Disc Centrifuge
Pressure
Low Pressure
HMI
Siemens
Material
SS304/316L/2205
Advantage
Cost-Effective
HS Code
8421199090
Centrifuge System Overview System Component Detail

Product Description

Vegetable oil is one of the most essential foods for human beings. Consequently, the quality requirements for vegetable oil are exceptionally high. The final quality primarily depends on the refining method and the quality of the base oil. Our separation solutions aim to enhance vegetable oil quality across various scales, with daily outputs ranging from 10 tons (specialty oils) to over 1,000 tons (large-scale production).

Main Applications
1
Soybean & Rapeseed Oil
2
Sunflower & Cotton Seed Oil
3
Palm & Corn Oil
4
Rice Bran & Special Fats
Special Applications & Core Competences
✔
Lecithin Deoiling
✔
Degumming & Neutralization
✔
Dewaxing & Fractionation
✔
Press Oil Clarification

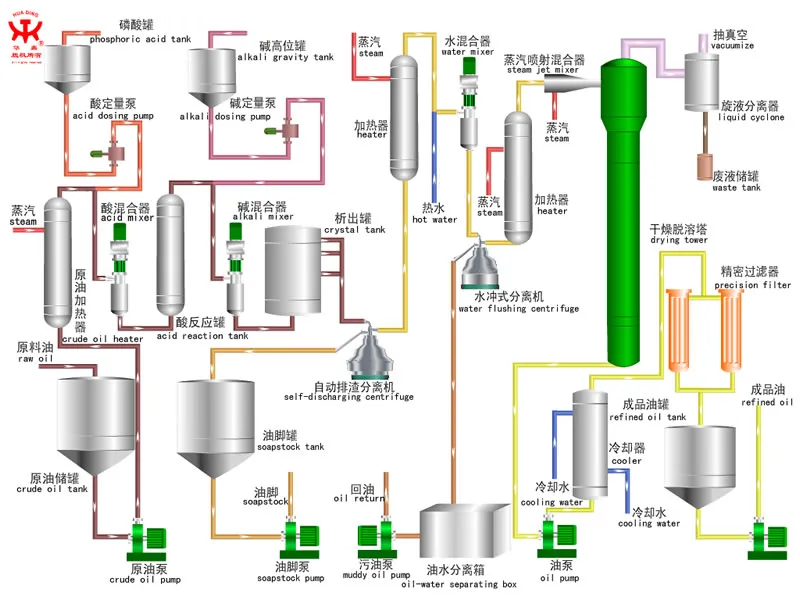

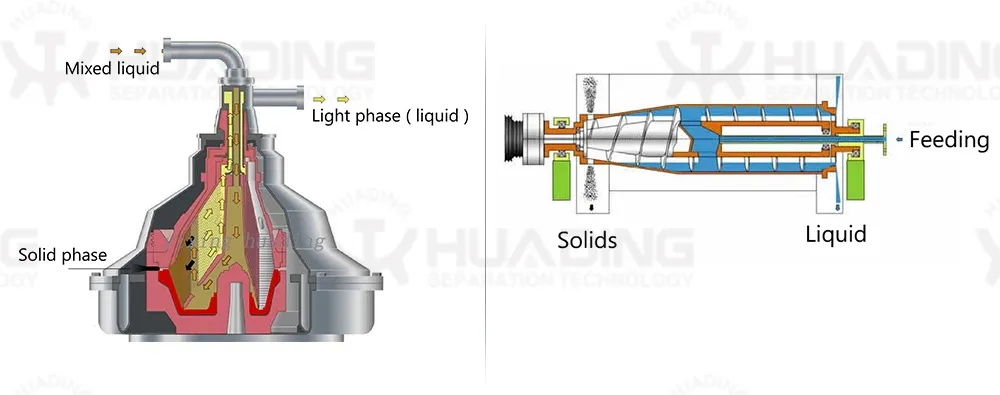

Process Flowsheet
Process Flowsheet

Production Capacity (Self Cleaning)

Model Capacity (L/h) Pressure (KPa) Dimension (LXWXH) mm
Inlet Outlet
DHZYL270500-12000-200100-250950X950X1250
DHZYL3801300-25000-200100-2501415X1400X1450
DHZYL4302000-35000-200100-2501500×1100×1400
DHZYL4703000-60000-200100-2501772X1473X1855
DHZYL5004200-75000-200100-2501800×1500×1855
DHZYL5509000-150000-200100-2501950×1500×1955
DHZYL70013000-220000-200100-2502119×1699×2368

Product Gallery

Frequently Asked Questions

What types of vegetable oils can this centrifuge process?
This system is versatile and handles Soybean, Rapeseed, Sunflower, Cotton seed, Palm, Corn, and Rice bran oil, as well as specialty fats.
What materials are used in the construction of the centrifuge?
The equipment is manufactured using high-grade stainless steel options including SS304, SS316L, and 2205 duplex steel to ensure durability and food-grade hygiene.
Does the system support continuous operation?
Yes, it is designed for continuous type operation with a self-cleaning mechanism to maximize production efficiency and minimize downtime.
What is the processing capacity of the DHZYL series?
The capacity varies by model, ranging from 500 L/h for the DHZYL270 up to 22,000 L/h for the large-scale DHZYL700 model.
What kind of after-sales support is available?
Comprehensive support is provided, including field installation, commissioning, staff training, online technical support, and video troubleshooting.
Is the control system user-friendly?
Yes, the system is equipped with a high-quality Siemens HMI (Human Machine Interface) for intuitive operation and precise control.
