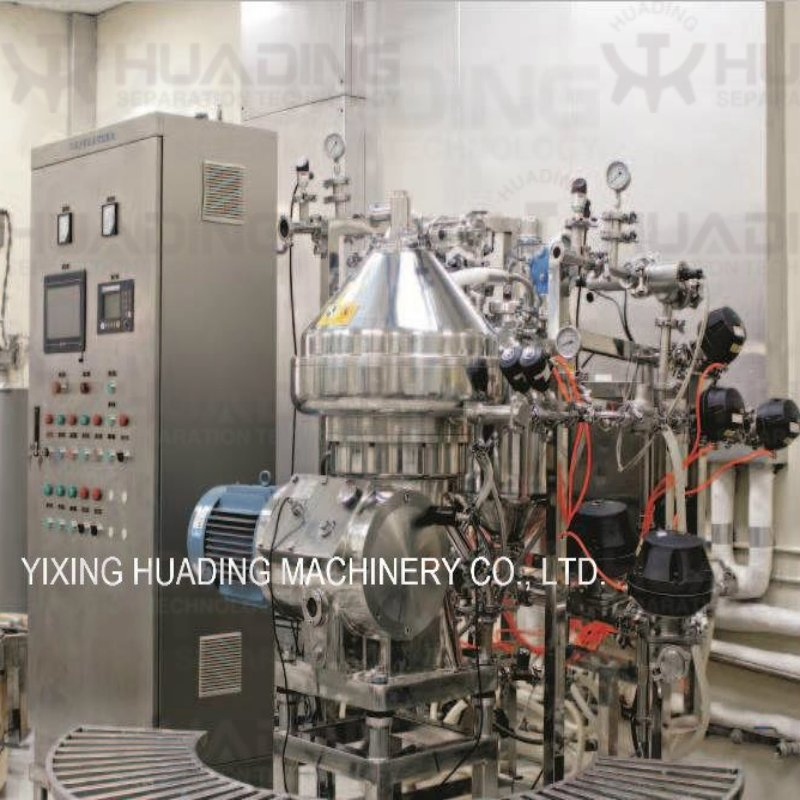

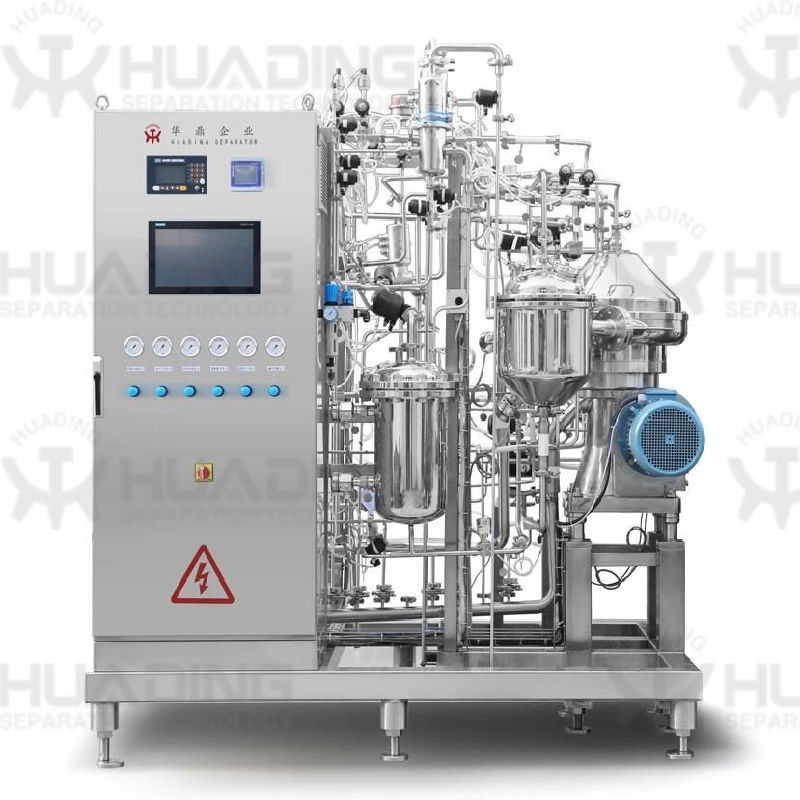

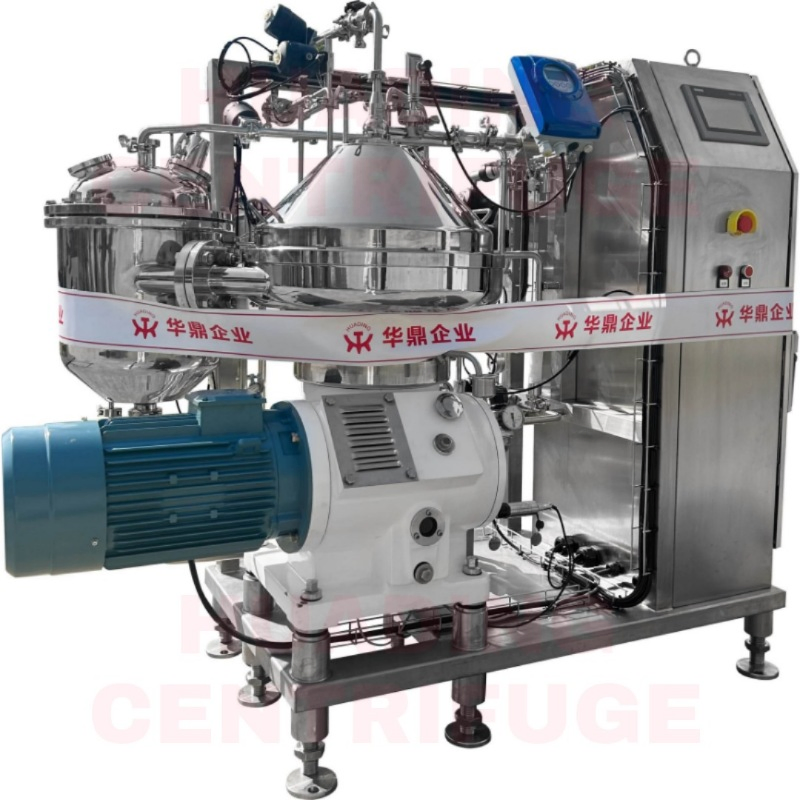

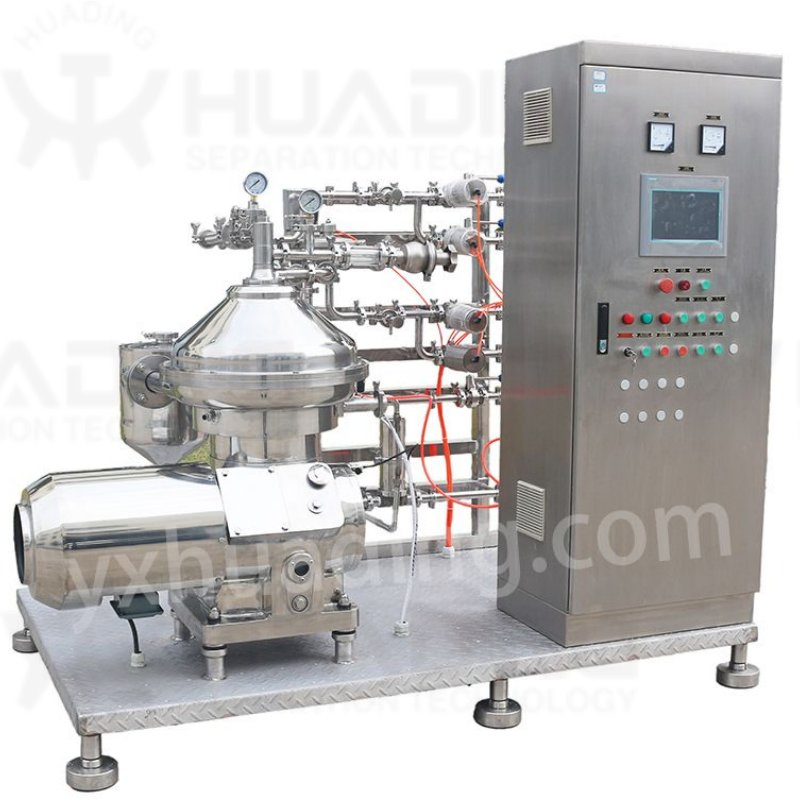

Advanced Disc Centrifuge System for Fresh Citrus Juice Processing

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.

PTSX

Type

Centrifuge

Object

Beverage

Separation Mode

Centrifugal

Operating Type

Continuous Type

Installation

Vertical

Centrifuge Type

Disc Centrifuge

Pressure

Low Pressure

HMI

Siemens

Material

SS304/316L/2205

Condition

New

HS Code

8421199090

Product Description

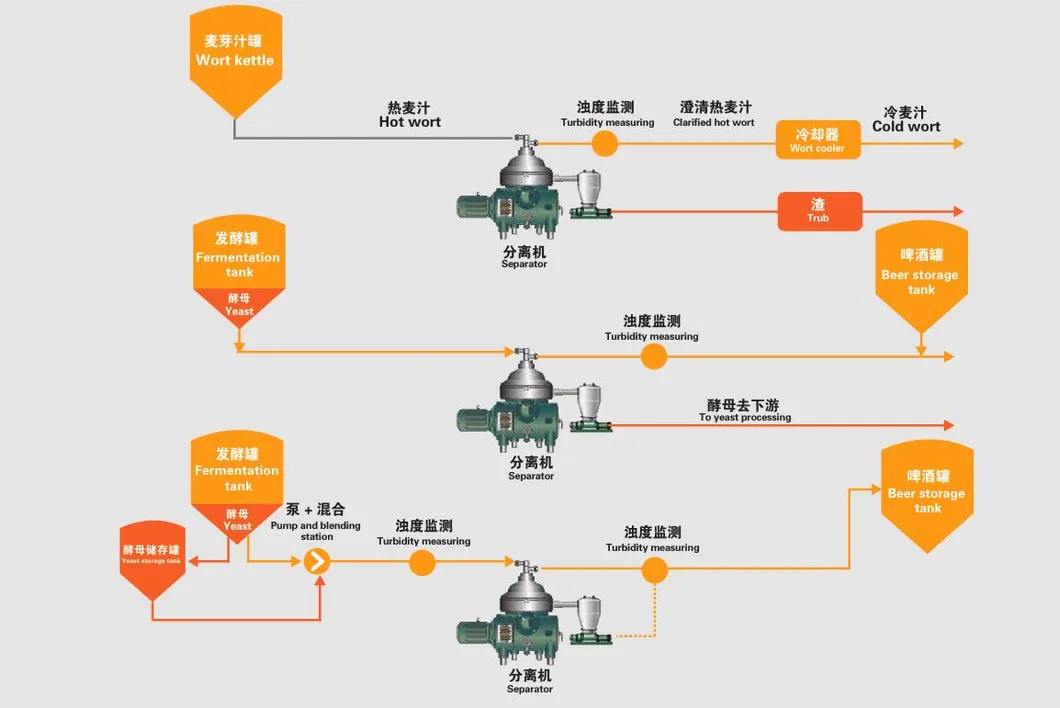

Our craft beer clarifier series provide isolated air separation and clarifying, meanwhile keeping high yeast capacity activity with no oxidation, not only meet the latest standard, but also improve production and reduce costs.

Brewing is a blend of art and science technology in one process. As trends in beer are rapid changes, people are demanding when it comes to new flavors, colors and types, the craft beer clarifier skid used in clarifying solutions of beer process, with the features of high quality, easy operation, high efficiency and easy maintenance, is your necessary elements in the success of brewing industry.

User Benefits

Continuous production, compare with traditional filtration and settling method, low processing time and yields improved.
Control TSS level in the clarified beer, allowing direct bottling.
Minimal losses of flavor or taste, achieve longer product shelf life.
Low temperature maintained throughout the process.
Long service life, low cost by the using of frequency drive.
Return on investment in a short period of time.

Separator Features

Inert gas seal system: Minimized oxygen into products that have been clarified.
Monitoring system: Automatic piping outlet turbidity monitoring and total suspended solids control.
Control system: Monitor all functions with self-adjustment to keep running setting, always accessibility and safe operation.
Self-recirculating seal device: Developed inert gas system that isolates oxygen, ensuring oxygen after separation is no more than 10ppb.
GMP standard: Each stainless steel pipeline is manufactured to meet sanitary standard, clarifier is self-cleaning.
CIP on line: Effectively clean the equipment, save sources and reduce labor.

Technical Model List

Model	BRSX20	BRSX40	BRSX80	BRSX95	BRSX125	BRSX250
Hydraulic capacity	6000L/H	10,000L/H	20,000L/H	25,000L/H	35,000L/H	50,000L/H
Capacity	300-1500L/H	1200-3500L/H	2500-7500L/H	3,000-10,000L/H	3,500-13,000L/H	6,000-16,000L/H
Power	5.5KW	11KW	15KW	18.5KW	22KW	37KW
Weight	~980KG	~1560KG	~2780KG	~3160KG	~3850KG	~4230KG

Frequently Asked Questions

What is the primary application of the PTSX series centrifuge?

The PTSX series is specifically designed for beverage processing, particularly as a craft beer clarifier to provide isolated air separation and clarification while maintaining high yeast activity.

How does the system prevent product oxidation?

The equipment features a specialized inert gas seal system and a self-recirculating seal device that isolates oxygen, ensuring that oxygen levels after separation do not exceed 10ppb.

What materials are used in the construction of the centrifuge?

To meet sanitary and durability requirements, the centrifuge is constructed using high-grade stainless steel materials, including SS304, SS316L, and 2205 duplex steel.

Is the equipment easy to clean and maintain?

Yes, the system is designed to GMP standards with sanitary stainless steel pipelines. It supports CIP (Clean-In-Place) on-line, meaning it is self-cleaning and does not need to be dismantled for routine cleaning.

What is the maximum processing capacity available?

The series offers various models with hydraulic capacities ranging from 6,000L/H up to 50,000L/H, catering to different production scales from small craft breweries to large factories.

What kind of control system does the centrifuge use?

The system utilizes a high-quality Siemens HMI (Human Machine Interface) and an automatic monitoring system for turbidity and total suspended solids (TSS) control.
