Overview
Basic Info.
Motive Force
Electric power
Performance
Sophisticated Filters
Transport Package
Wooden Cases
Production Capacity
2000pieces/Month
Product Description

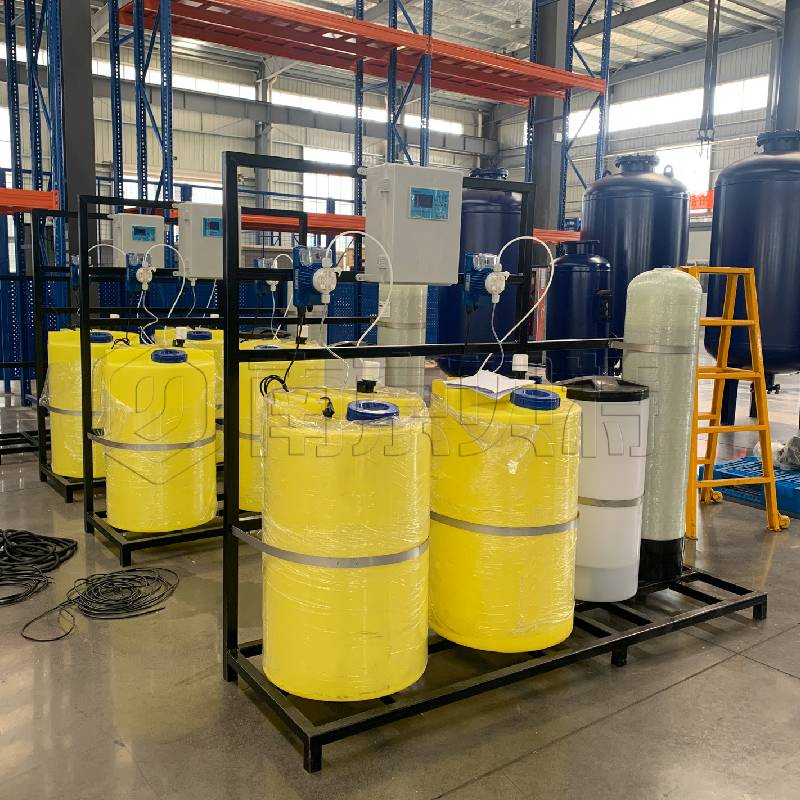

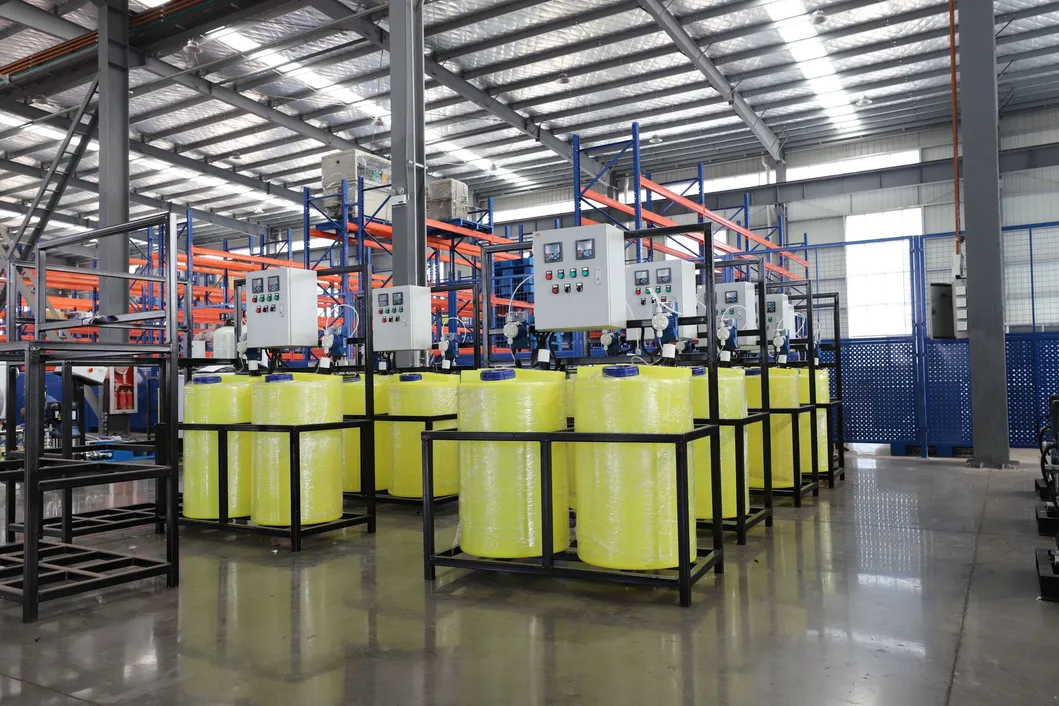

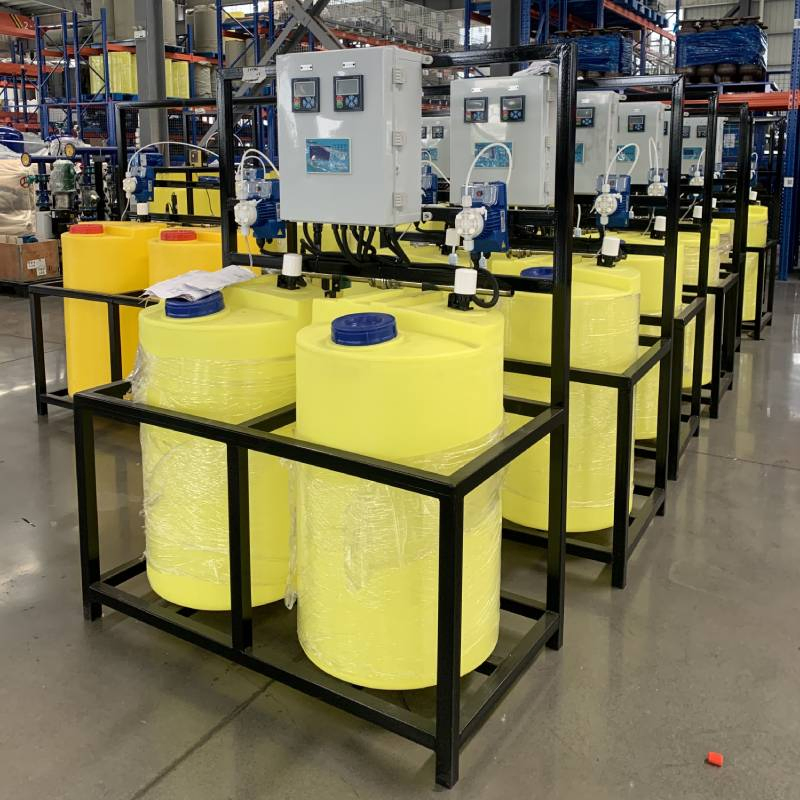

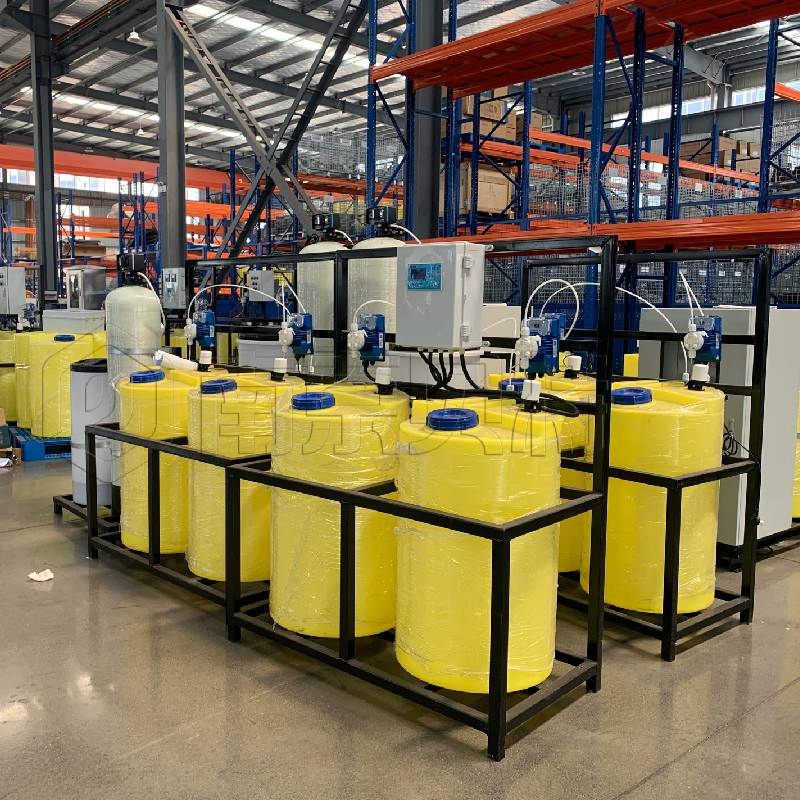

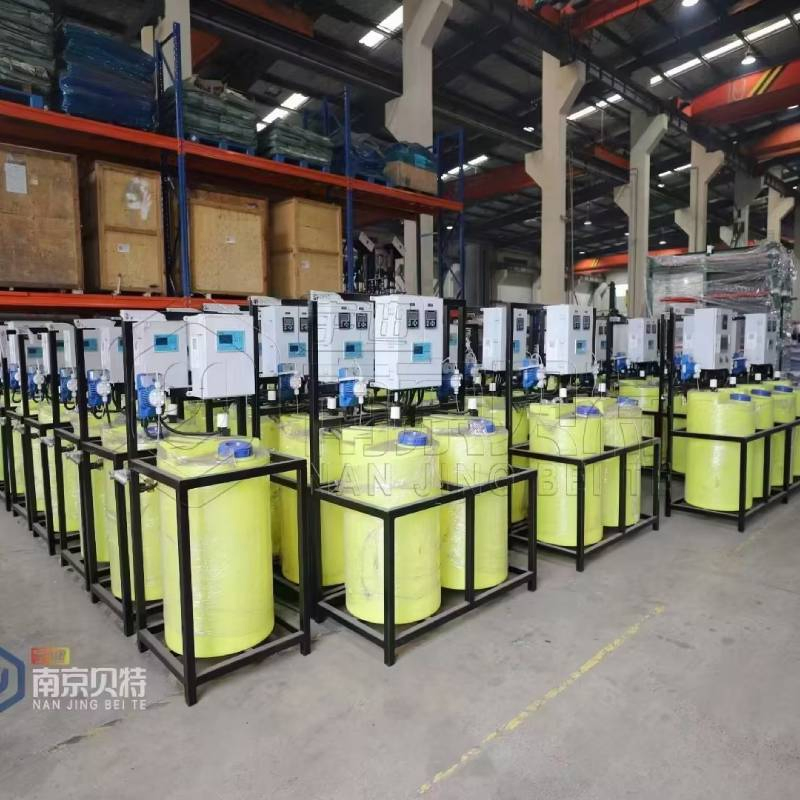

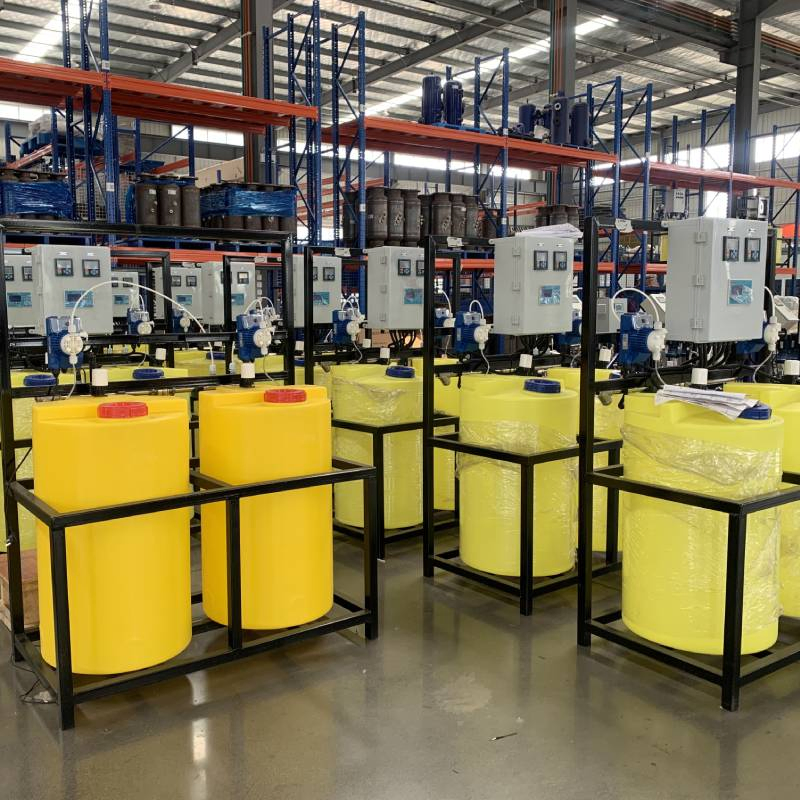

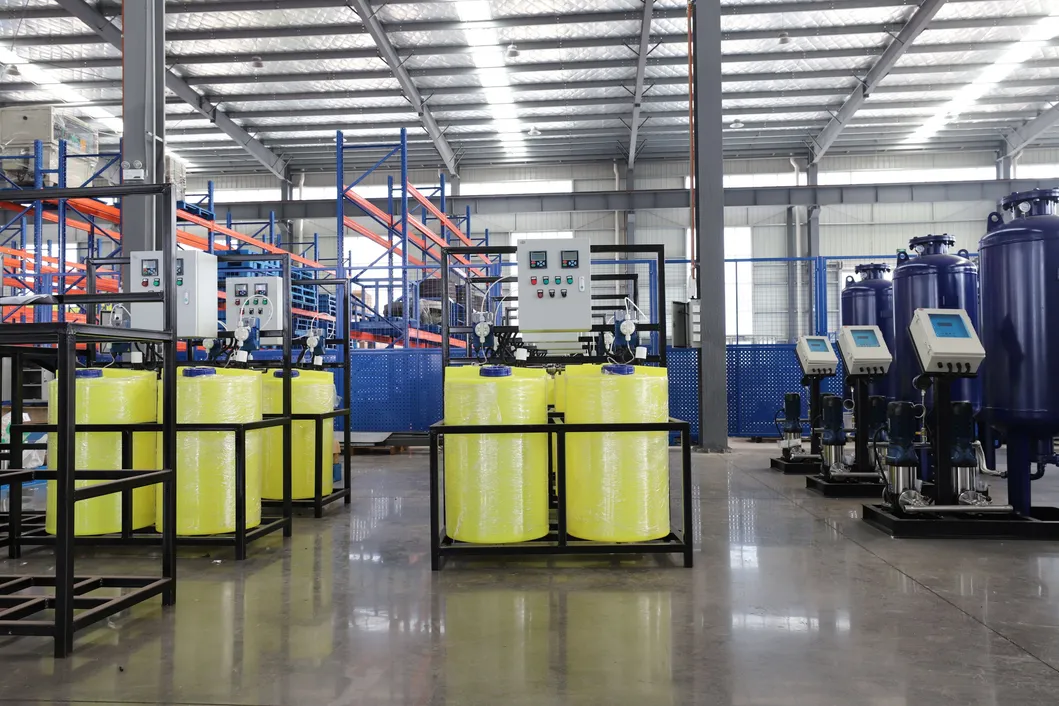

The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through the following two control modes.
Time control mode: Use the microcomputer time control switch to control the timing opening and closing of the metering pump and the sewage valve, so as to realize timing dosing and timing sewage discharge.
Indication control mode: The change of water quality index controls the real-time opening and closing of metering pump and sewage valve, realizing automatic dosing and automatic sewage discharge.
Product Parameters
Key Elements
- PLC control
- Metering pump
- Dosing tank / Chemical tank
- On-line monitoring for corrosion rate (Optional)
- On-line monitoring for PH (Optional)
- On-line monitoring for turbidity (Optional)
- On-line monitoring for ORP (Optional)
- Fouling thermal resistance meter, mixer, PLC, GPRS (Optional)
| Name |
Type |
Dimensions(mm) |
Import /Outlet Diameter |
| Single Pump Single Barrel (Time Control) |
YTZDJ-2000D |
640*670*1650 |
DN25 |
| Single Pump Single Barrel (With Conductivity and PH Detector) |
YTZDJ-2000DP |
640*670*1900 |
DN25 |
| Double Pumps Double Barrels (Time Control) |
YTZDJ-2000S |
670*1260*1650 |
DN25 |
| Double Pumps Double Barrels (With Conductivity and PH Detector) |
YTZDJ-2000SP |
670*1260*1900 |
DN25 |
| Can be configured on request: Corrosion rate online monitor, turbidity online monitor, ORP online monitor, fouling thermal resistance meter, mixer, PLC, GPRS, etc. |
Features & Benefits
Main Features
- Various proportions of water treatment chemicals can be added arbitrarily, and the measurement data is accurate.
- High degree of automation, simple operation and low energy consumption.
- Installation, use and maintenance are simple and convenient.
- Strong corrosion resistance, strong acid and alkali resistance, safe and reliable.
- Remote control capability and integration into computer management systems.
Functions and Benefits
- Effective protection from freshwater/seawater corrosion.
- Prevents incrustation of condensers and heat exchangers.
- Inhibits formation of organisms and biological membrane attachment.
- Gradual removal of organic and inorganic corrosion blockages.
- Applicable to freshwater, seawater, and recycled wastewater.
- Compatible with steel, iron, alloy, plastic, cement, and timber.
- Environmentally friendly and completely biodegradable.
Applications
Industrial Air Conditioning Circulating Water and Boiler Water: To inject corrosion and scale inhibitors, complexing agents for cyanide-free electroplating.
Textile Printing and Dyeing Industry: To add chelating agents and oxygen bleach stabilizers.
Water Treatment System: To add chemicals to tapping water, waste water and sewage system.
Common Problems of Cooling Water Systems
1. Corrosion: Cooling water systems are an ideal environment for the reversion of the metal to the original oxide state.
2. Scale: Minerals such as calcium carbonate and phosphate can precipitate out to form scale deposits.
3. Fouling: The deposition of suspended material like dust or corrosion by-products in equipment.
4. Biological Contamination: Ideal environment for microbial organisms to grow and cause deposit problems.
Company Profile
Our tradition began in 2005. We are a comprehensive enterprise integrating R&D, design, production and sales. Leading the field of HVAC circulating water equipment for over 17 years, through our strategic partnerships, extensive manufacturing and design experience, and advanced R&D capabilities, we provide world-class solutions to our renowned customers. Utilizing advanced mechanical equipment and cutting-edge technical facilities, we have become a leading supplier of filters, constant pressure water supply equipment, volumetric heat exchangers, and dosing equipment.
Our Advantages
- 17 years of R & D and production experience in HVAC industry.
- Fast delivery, smart factory standardized production.
- 24 hours on-line service, prompt and professional answering.
- Installation and commission support and professional after-sales service.
- Cost-effective focus on high quality and inexpensive solutions.
Frequently Asked Questions
Q1: Can I have a sample?
A: Yes, welcome to place sample order to test and check quality. Mixed samples are also OK.
Q2: What is your lead time for production?
A: Generally sample needs 1-3 days, mass production needs 15-30 days, also depends on your specific request.
Q3: Can you accept mixed batch of different products?
A: Yes, we can provide different product mix wholesale.
Q4: What payment terms do you accept?
A: We accept Trade Assurance, T/T, Paypal, and Western Union.
Q5: What is the warranty for your products?
A: We provide a one-year warranty for all our products.
Q6: Are you a trading company or manufacturer?
A: We are a professional manufacturer. You are welcome to visit our factory and check our products.
