Chemical Dosing Device for Disinfection and Sterilization in Swimming Pool Systems
To ensure good water quality in the swimming pool, it is necessary to add corresponding chemical agents into the pool according to different specific situations during the circulating water treatment process and daily maintenance. The addition of chemicals is mainly accomplished by using special chemical dosing equipment. Through the water distribution pipeline, the chemicals are diluted and evenly added to all parts of the swimming pool.

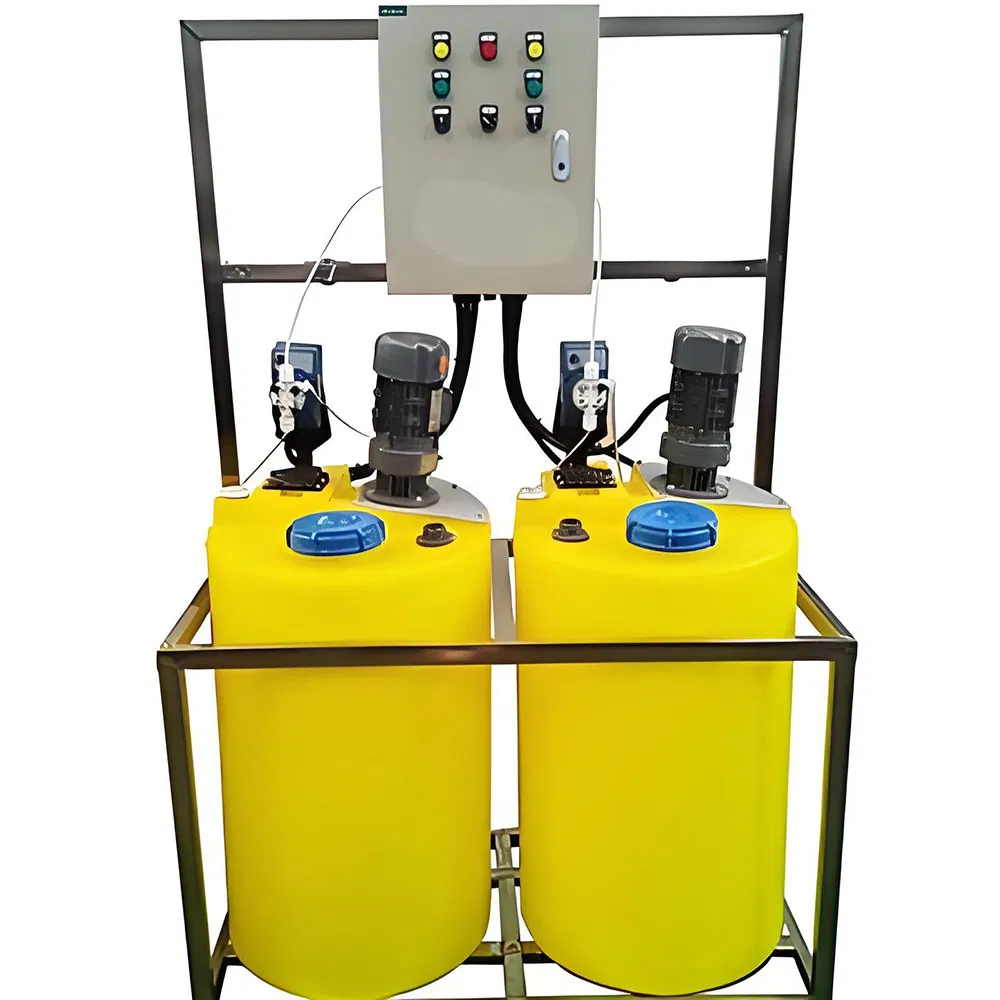

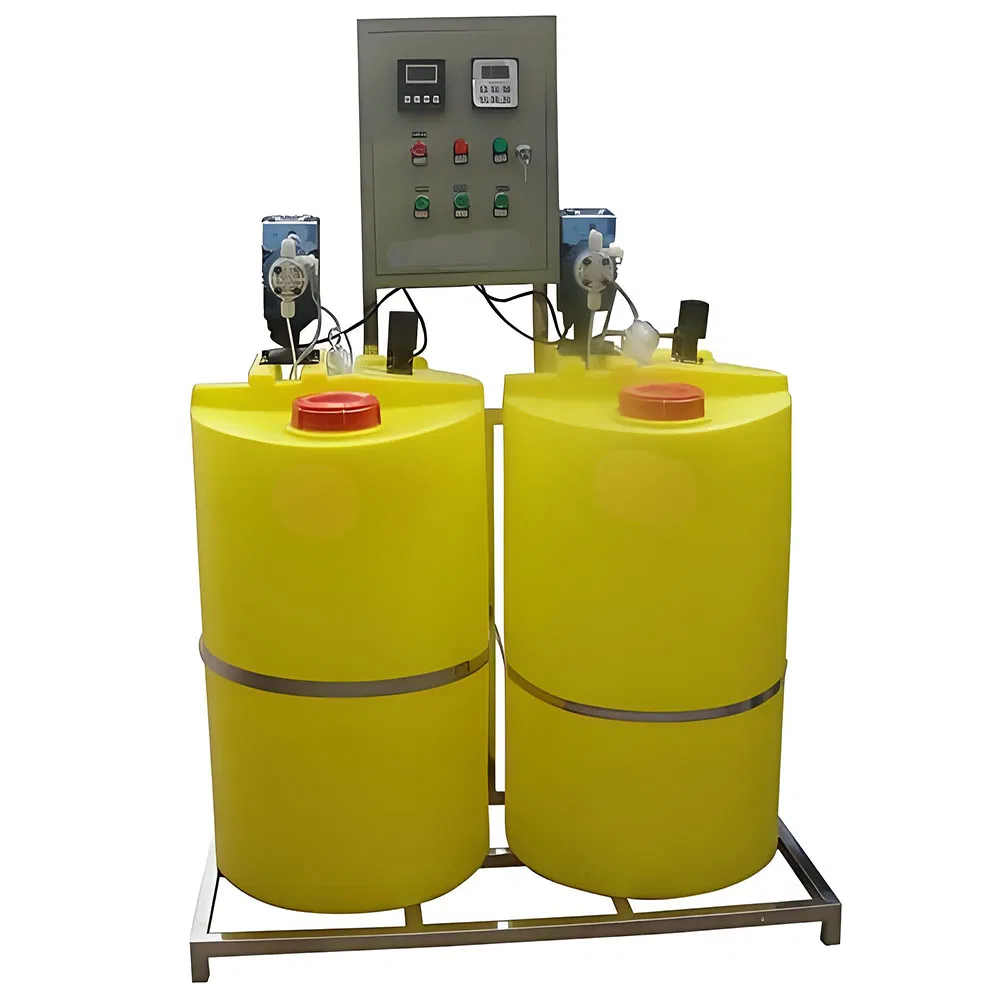

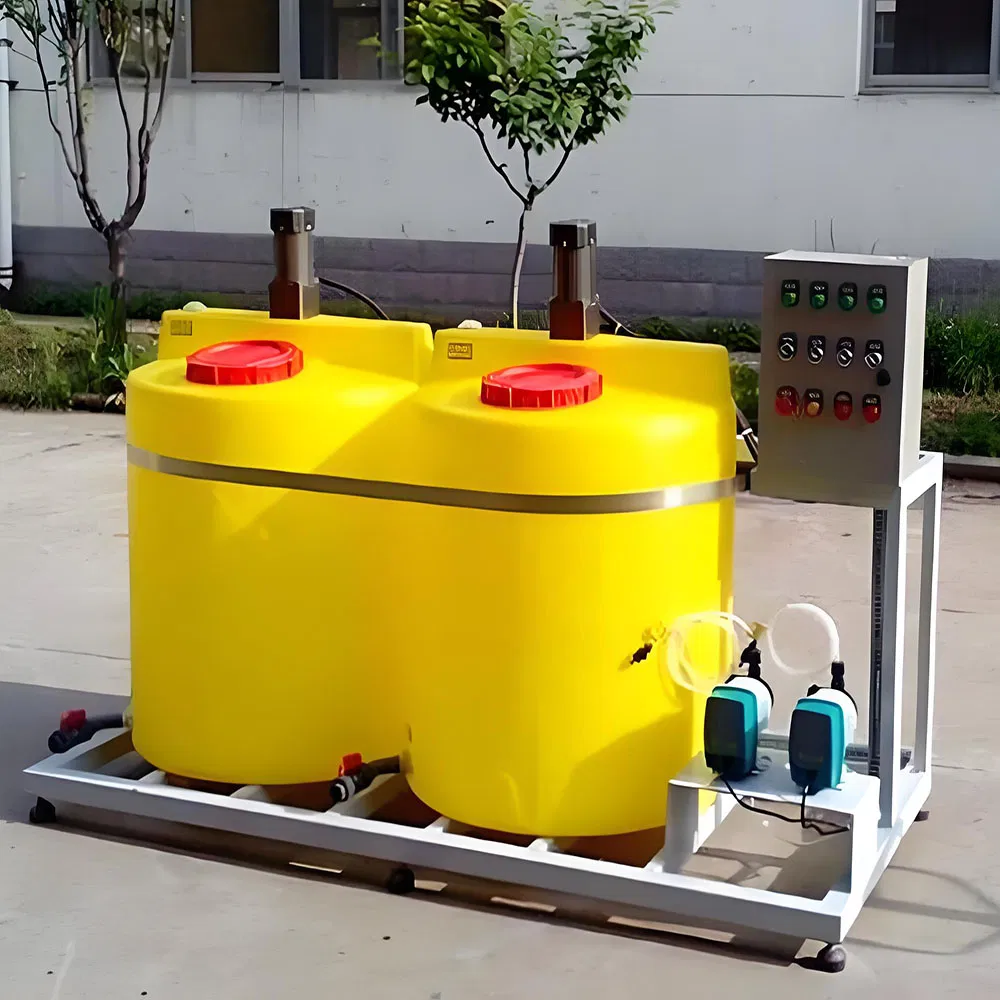

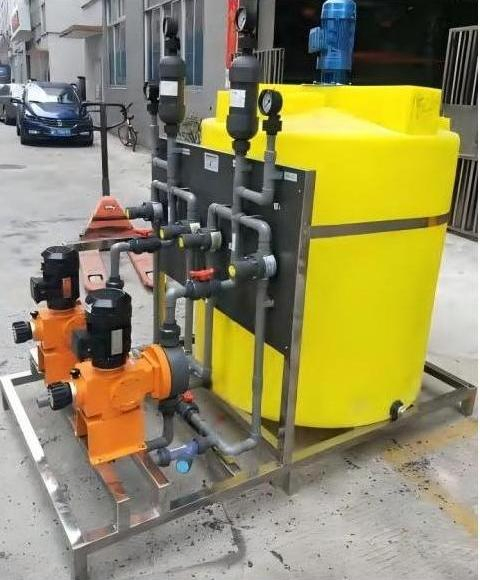

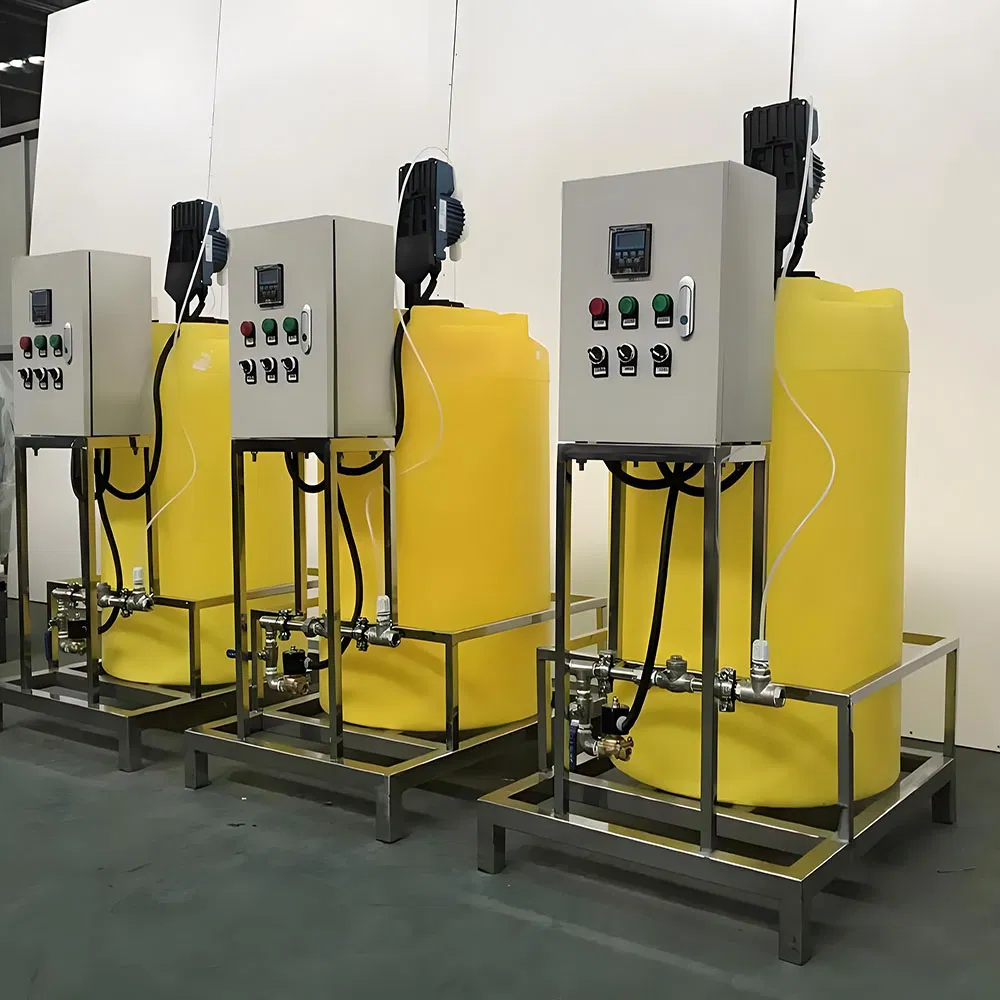

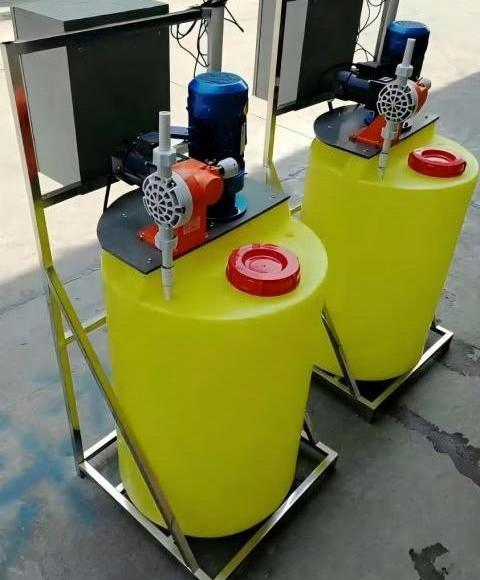

A complete system generally consists of one tank, one pump, and one electric stirrer. Multiple configurations (e.g., two tanks with two pumps) are available.
| Name | Model Specification | Diameter/L&W (mm) | Height (mm) | Thickness (mm) | Weight (kg) | Material |
|---|---|---|---|---|---|---|
| Dosing Tank (Circular) | ECH-40L | 340 | 420 | 4 | 2.5 | PE |
| ECH-100L | 460 | 795 | 5 | 6.5 | PE | |
| ECH-200L | 600 | 910 | 6 | 10 | PE | |
| ECH-300L | 720 | 1050 | 6 | 14 | PE | |
| ECH-500L | 780 | 1200 | 6 | 18 | PE | |
| ECH-500L | 880 | 1030 | 6 | 18 | PE | |
| ECH-1000L | 1060 | 1450 | 6 | 28 | PE | |
| ECH-2000L | 1300 | 1850 | 7 | 55 | PE |

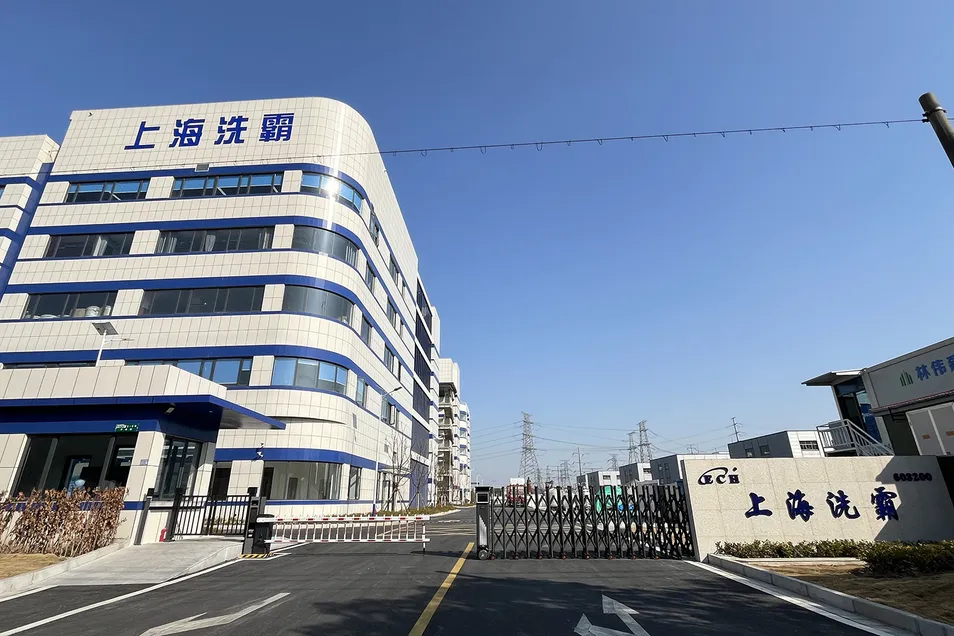

Founded in 1994, we are a professional service provider of integrated solutions for water treatment technology and healthy space environment technology. We hold multiple safety production permits and international certifications for quality, environment, and health management systems.
As of mid-2024, our team holds a total of 126 authorized patents, including 60 invention patents and 66 utility model patents. We operate a dedicated water treatment technology research center providing comprehensive chemicals and operations technology.
