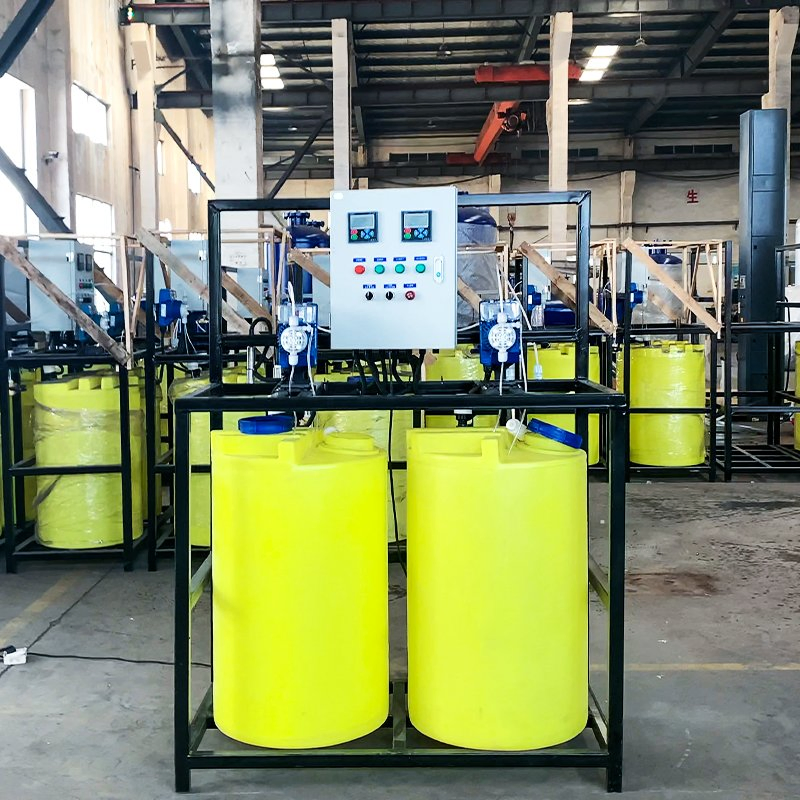

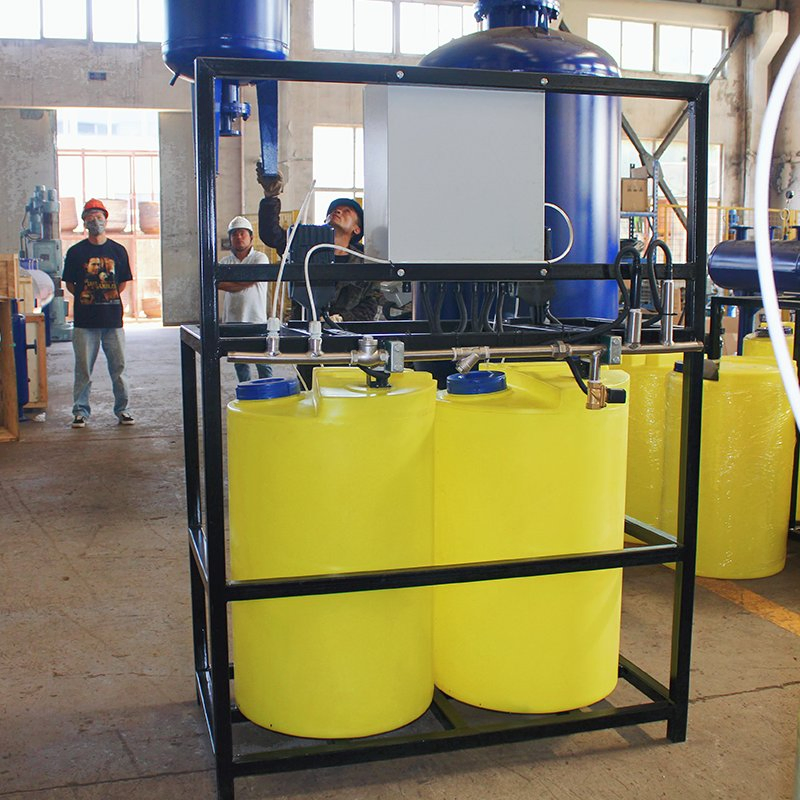

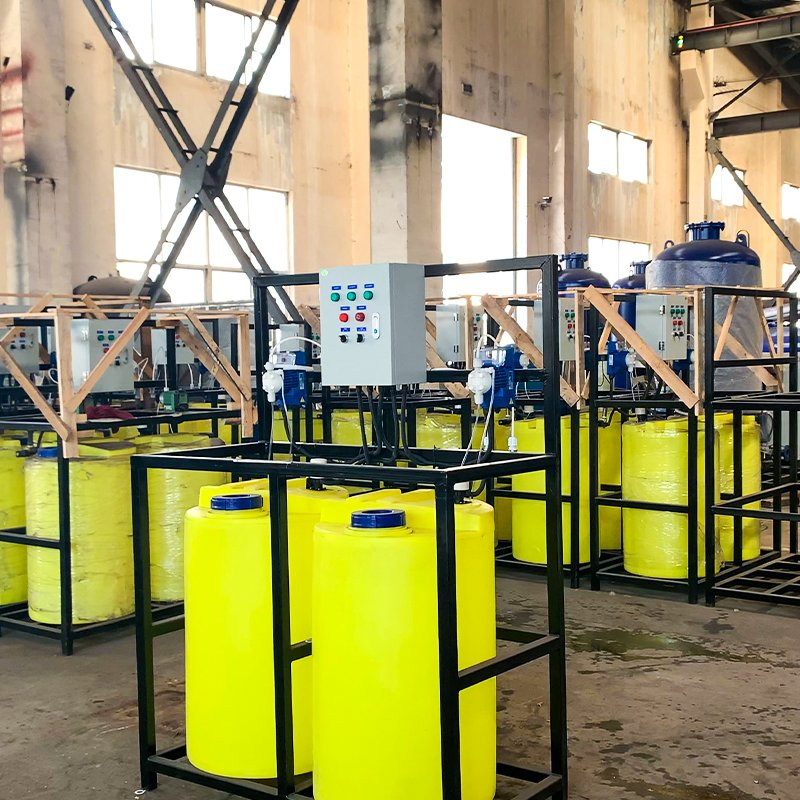

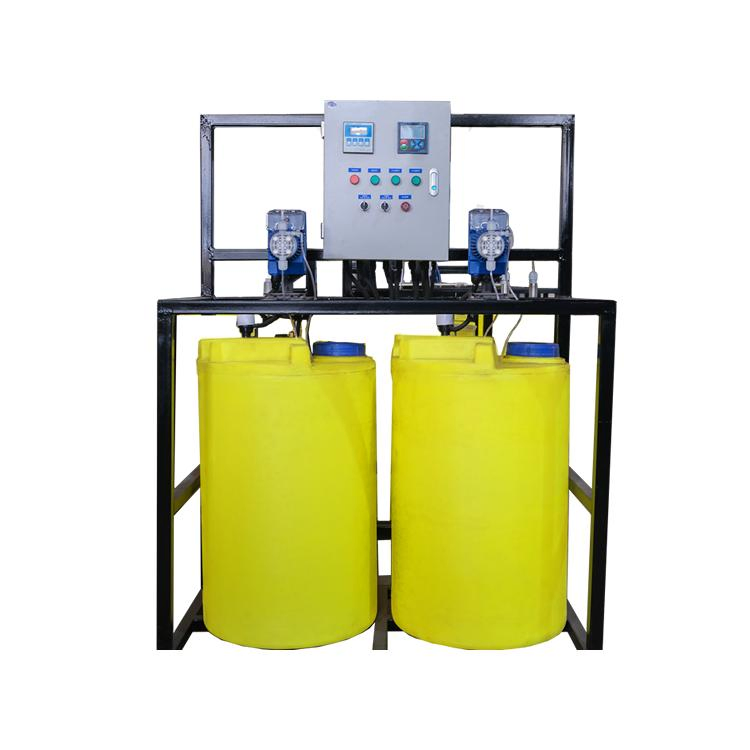

PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
1 / 5
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System
PE Powder Dosing Machine Chemical Feeding System for Water Treatment System

PE Powder Dosing Machine Chemical Feeding System for Water Treatment System

Customization: Available
Type: Water Treatment
Usage: Environmental Protection, Chemical Industry
Send Inquiry

Product Description

Basic Information
Model NO.
YTZDJ
Motive Force
Electric power
Style
Vertical
Performance
Sophisticated Filters
Certification
CE, ISO9001
Material
PE
Color
Customized Color
Pressure
8-20bar
Product Description
The automatic chemical dosing system realizes the metering and adding of medicines to the system through the mechanical pulse action and stroke adjustment principle of the metering pump. It realizes automatic dosing through two control modes: Time control mode (microcomputer switch controls timing) and Indication control mode (real-time water quality index monitoring).

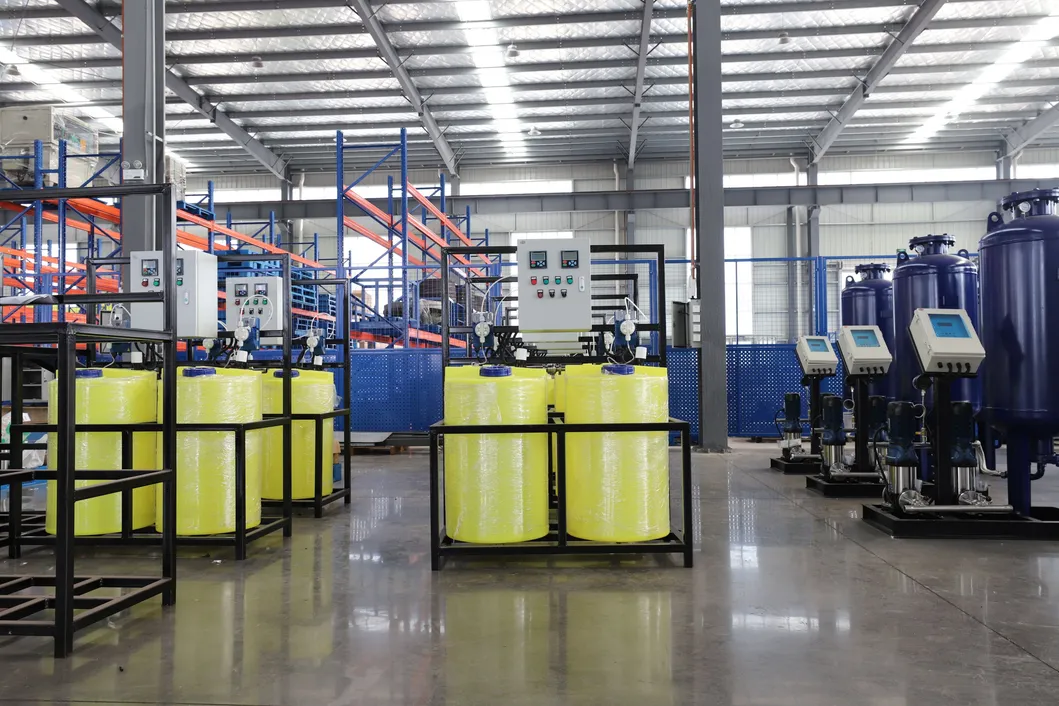

Dosing Machine System 1

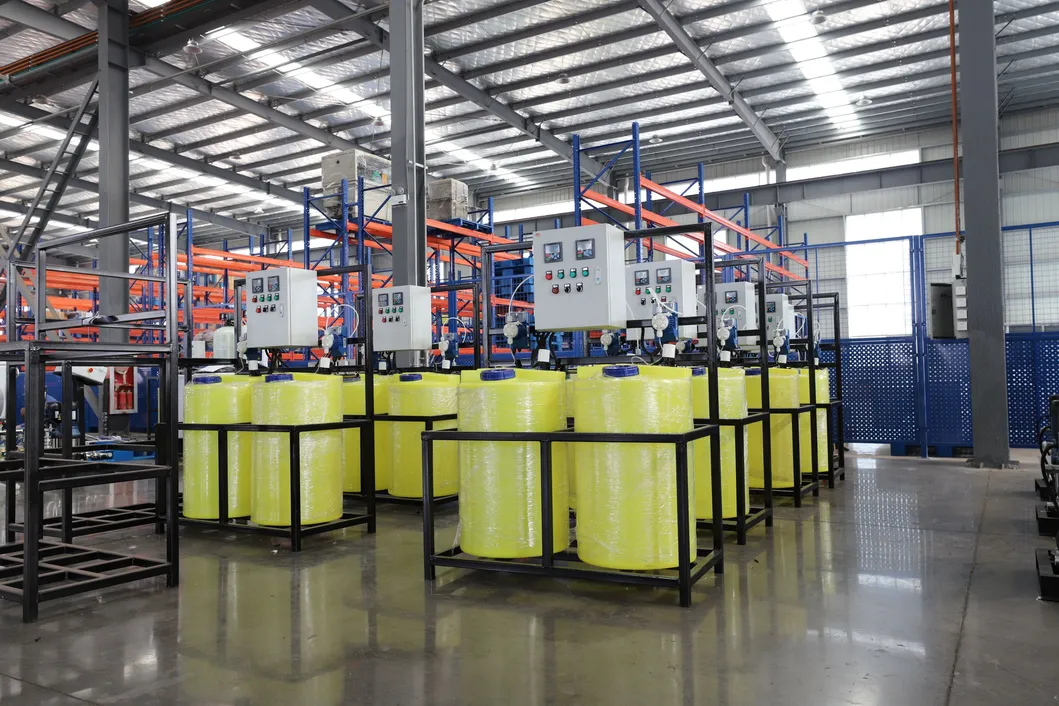

Dosing Machine System 2
Product Parameters
Key Elements
✔PLC control & Metering pump
✔Dosing tank / Chemical tank
✔On-line monitoring (PH/ORP/Turbidity)
✔Fouling thermal resistance meter
Name Type Dimensions (mm) Inlet/Outlet
Single Pump Single Barrel (Time Control) YTZDJ-2000D 640*670*1650 DN25
Single Pump Single Barrel (Conductivity/PH) YTZDJ-2000DP 640*670*1900 DN25
Double Pumps Double Barrels (Time Control) YTZDJ-2000S 670*1260*1650 DN25
Double Pumps Double Barrels (Conductivity/PH) YTZDJ-2000SP 670*1260*1900 DN25
Functions and Benefits
To provide effective protection from freshwater/seawater corrosion.
To prevent incrustation of the condenser and heat exchanger.
To inhibit organism formation and biological membrane attachment.
Saving power and water with no wastewater retreatment burden.
Applicable to steel, iron, alloy, plastic, and other materials.
Environmentally friendly and quickly biodegradable.
Features & Applications
Features: Accurate measurement data, high automation, low energy consumption, simple maintenance, and strong corrosion resistance. The system can be remotely controlled and integrated into computer management systems.
Typical Applications
Industrial: Air Conditioning Circulating Water & Boiler Water.
Textile: Printing and Dyeing Industry chelating agents.
Water Treatment: Tapping water, waste water, and sewage systems.
Common Cooling Water System Problems
1. Corrosion: Reversion of metal to original oxide state.
2. Scale: Precipitation of insoluble minerals like calcium carbonate.
3. Fouling: Deposition of suspended material from dust or corrosion.
4. Bio-Contamination: Environment for microbial organisms to multiply.
Company Overview
Established in 2005, our company is a comprehensive enterprise integrating R&D, design, production, and sales. Leading the field of HVAC circulating water equipment for over 17 years, we provide world-class solutions through extensive manufacturing experience and advanced technology. We are a high-tech comprehensive enterprise specializing in HVAC water treatment equipment.
Production Facility

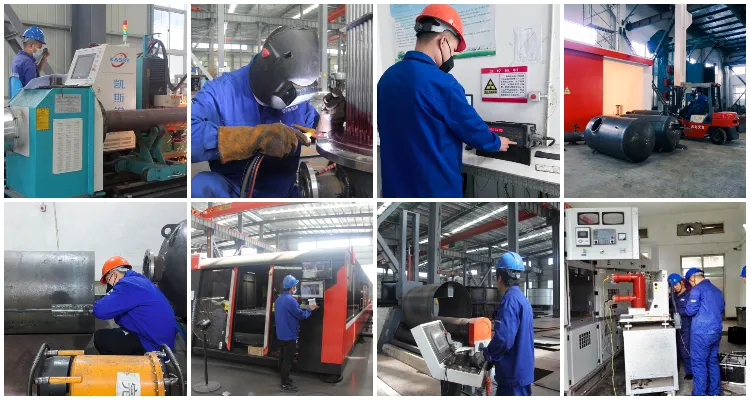

Production Line
Team
Exhibition
Certifications
Certification Documents
Frequently Asked Questions
Q1: Can I request a sample of the dosing system?
A: Yes, we welcome sample orders to test and check the quality of our equipment. Mixed samples are also acceptable.
Q2: What is the typical lead time for production?
A: Generally, samples require 1-3 days, while mass production takes 15-30 days, depending on your specific requirements.
Q3: Do you support mixed batches of different products?
A: Yes, we provide wholesale options for various product mixes to suit your project needs.
Q4: What are your accepted payment terms?
A: We accept Trade Assurance, T/T (Telegraphic Transfer), PayPal, and Western Union.
Q5: What kind of warranty do you provide?
A: We provide a one-year warranty for all our water treatment and dosing products.
Q6: Are you a trading company or a manufacturer?
A: We are a professional manufacturer. You are welcome to visit our factory to inspect our production lines and products.
