Motive Force
Electric power
Performance
Sophisticated Filters
Capacity
2000 pieces/Month

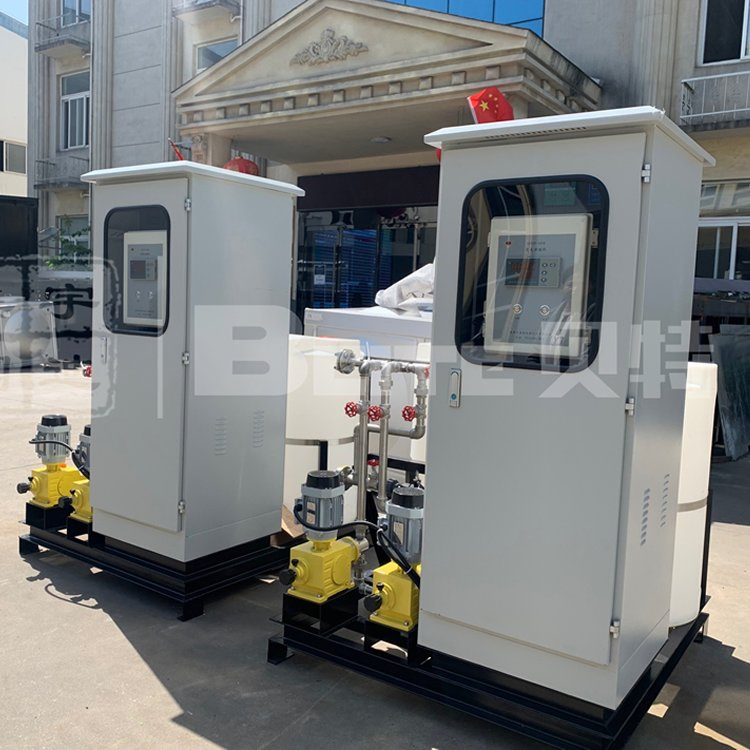

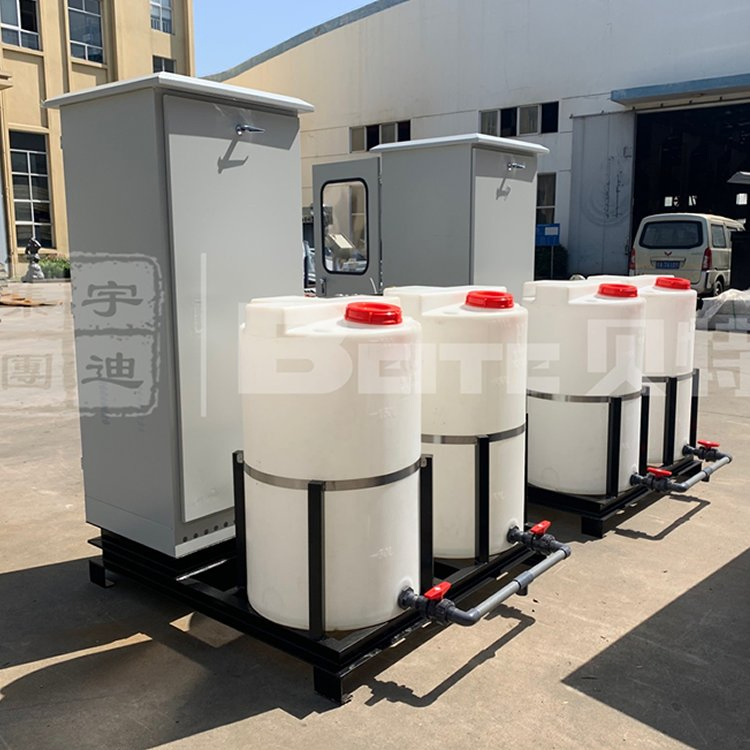

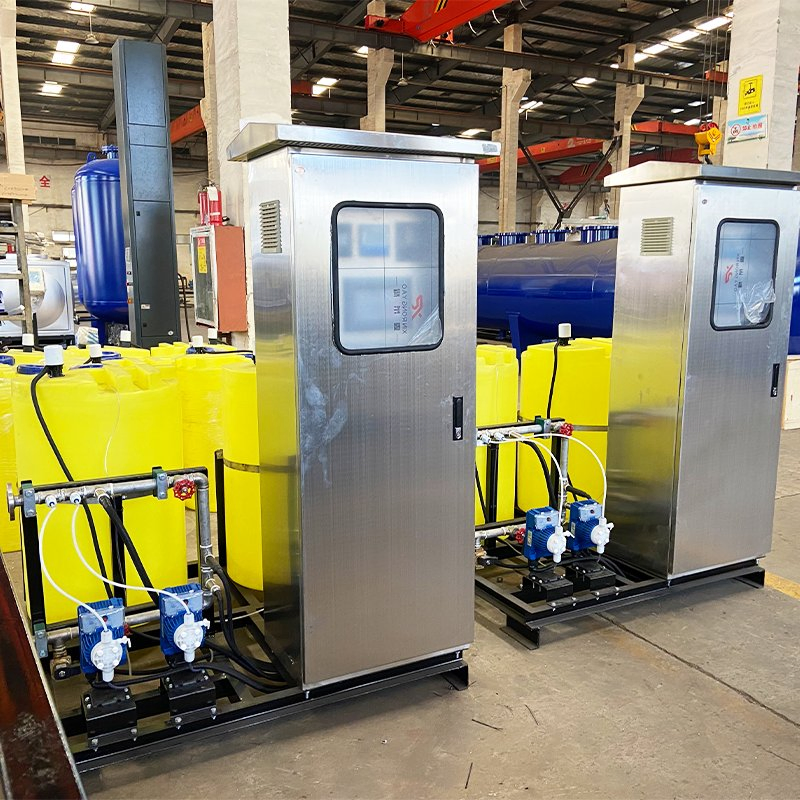

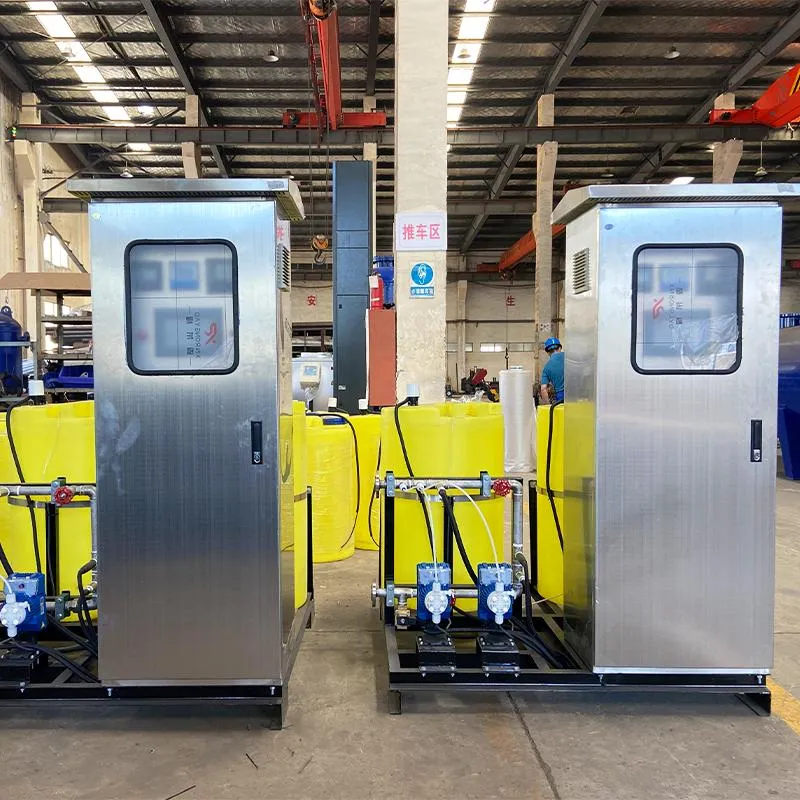

The automatic dosing device adopts advanced fluorescent tracer technology to trace the corrosion and scale inhibitors first. After the dosing, when the circulating water flows into the water sample collector through the bypass, the traced chemicals are captured by the instrument. Activated by monochromatic light to produce fluorescence, the fluorescence intensity is linearly related to the concentration of the drug.
The instrument uses a stable low-power light source and a high-precision photoelectric converter. Two 4-20mA current signals are output: one for human-machine dialogue to realize automatic supervision, and the other to control the dosing pump. The system utilizes PID and fuzzy algorithms to optimize the control effect, ensuring dynamic balance between dosing and medicine consumption.
Technical Specifications
Measuring Range: 0~30mg/l
Measurement Accuracy: ±0.1mg/l
Control Method: Self-tuning closed-loop
Ambient Temperature: 0~45ºC
Sampling Water Flow: 100-200L/h
| No. |
Name |
Specification |
Quantity |
Remark |

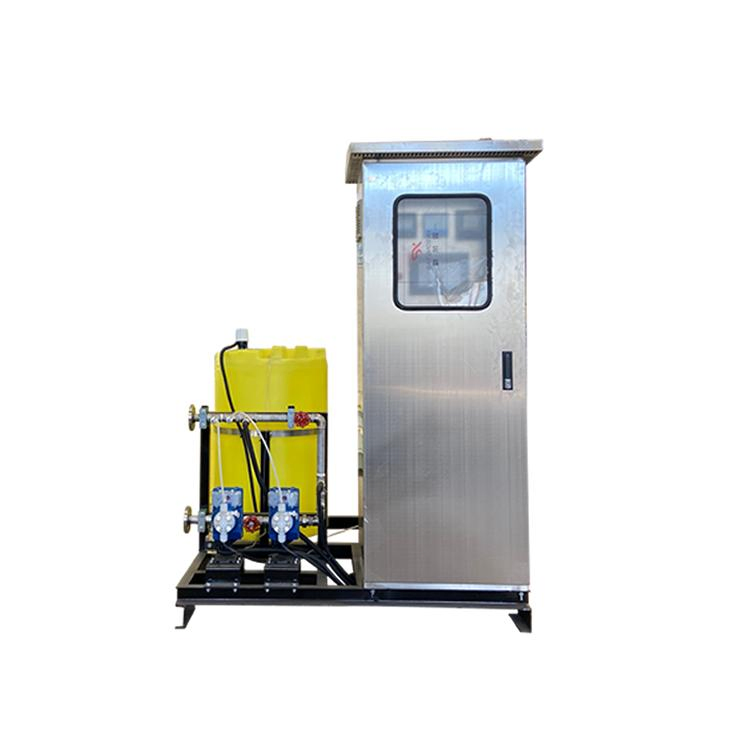

| 1 | Console Control Desk | 650*650*1800mm | 1 | Including touch screen, PLC |
| 2 | Dosing Pump | GM-0010 Q=0-9L/h | 1 | Corrosion Inhibitor & Fungicide |
| 3 | Solution Tank | PE V=0.5-1.0m³ | 1 | PE Material |
| 4 | Tracer | QYSZ-II | 1 | Fluorescent sensing |
| 5 | Conductivity | Standard | 2 | Monitoring |
Core Features
Easy installation & maintenance
High operational reliability
Application Field
Widely used in power plant raw water, boiler high-pressure feed water, oil field collection, petrochemical dosing systems, and wastewater treatment. Ideal for adding coagulants, phosphates, ammonia, lime water, water quality stabilizers, and biocides.

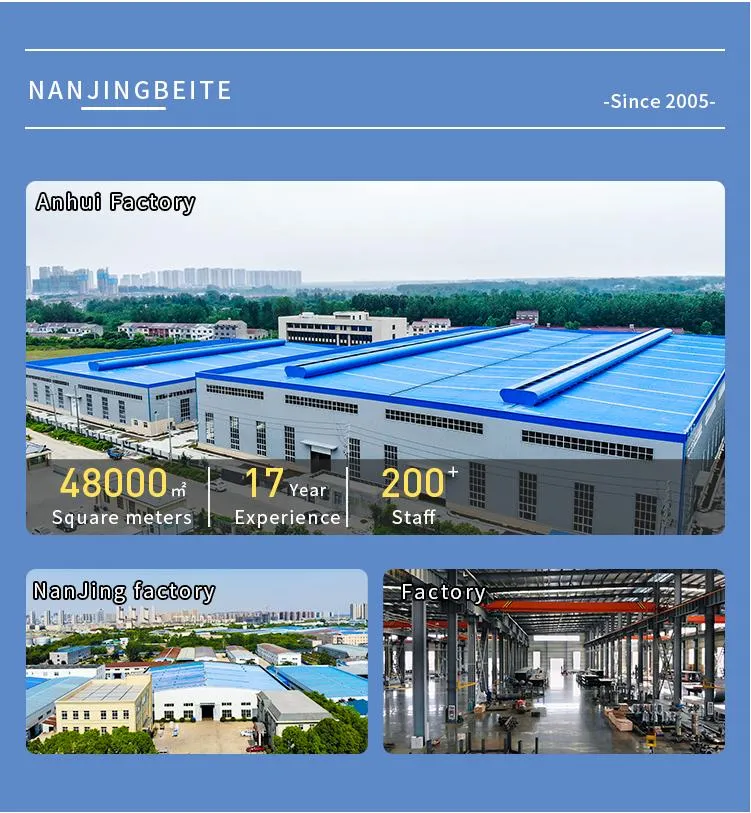

Founded in 2005, this comprehensive enterprise integrates R&D, design, production, and sales. Leading the HVAC circulating water equipment field for over 17 years, the company provides world-class solutions through advanced mechanical equipment and cutting-edge technical facilities.

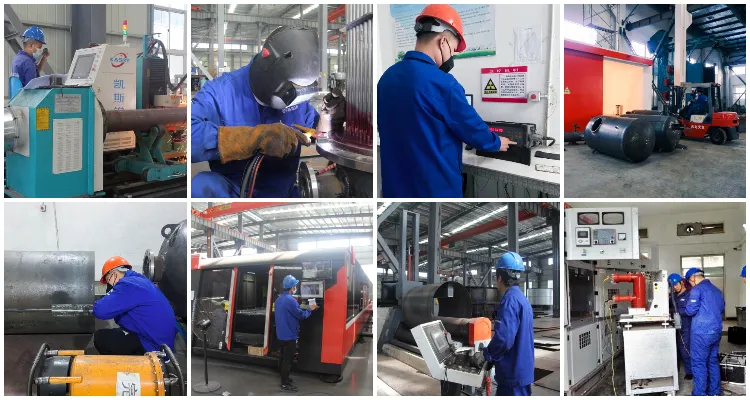

Production, Team & Exhibition
17 years of R&D experience
Fast delivery & smart factory
24-hour professional online service
Full installation & commission support
Cost-effective high-quality solutions
?
Frequently Asked Questions
Can I request a sample?
Yes, we welcome sample orders to test and check the quality. Mixed samples are also acceptable.
What is the standard lead time?
Samples generally take 1-3 days, while mass production requires 15-30 days depending on your specific requirements.
Do you accept mixed product batches?
Yes, we can provide wholesale services for a diverse mix of different products.
What are the accepted payment terms?
We accept various payment methods including Trade Assurance, T/T, PayPal, and Western Union.
What is the warranty period for your products?
We provide a comprehensive one-year warranty for all our professional water treatment products.
Are you a manufacturer or a trading company?
We are a professional manufacturer. You are always welcome to visit our facility to inspect our production lines.
